Universal V8 Multi-Point Fuel Injection, Includes Bosch Oxygen Sensor

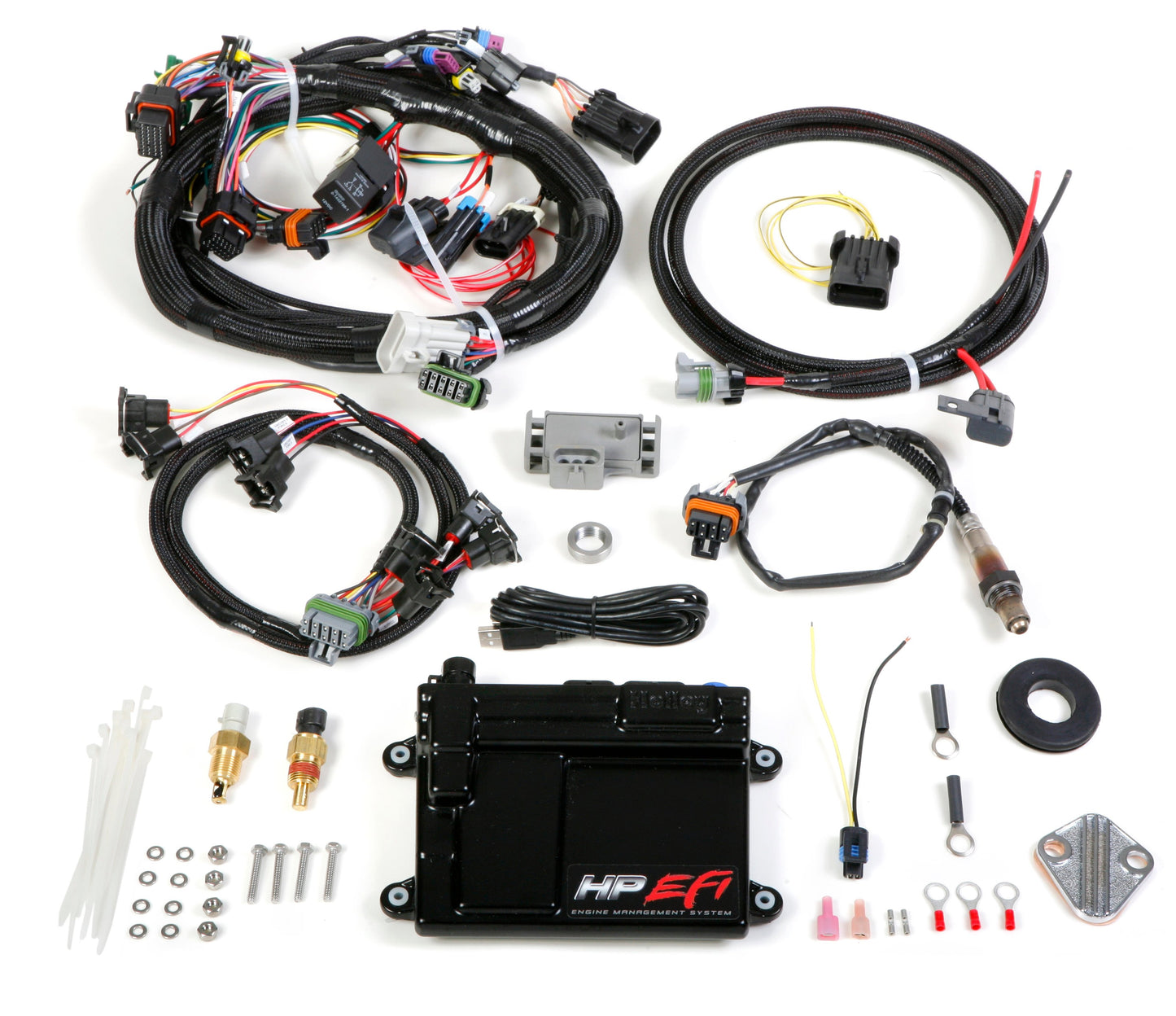

HP EFI ECU & Harness Kits

GM LS2/3/7 (58x crank sensor) with USCAR (EV6 Style) connectors on injector harness, Includes NTK Oxygen Sensor

Overview
Looking for a plug and play kit for your GM LS engine? The HP ECU allows you to accurately control the fuel and ignition of your engine plus much more. Got a stock LS engine? Simply download a base map and you're on your way. Got a turbocharged, nitrous fed LS engine on water/meth? This HP EFI kit can control that too!

ECU is certified to ISO 8846, SAE J1171 & United States Coast Guard Requirements for Ignition Protection & Fire Resistance. Holley HP EFI systems are equipped with 4 programmable inputs and 4 programmable outputs that are ideal for most vehicles with a single power adder. This feature allows the user to configure the system to support a wide range of controls including boost control, progressive nitrous, water/meth injection, speed inputs, fuel pump control, AC inputs, timing retard inputs and various other uses. When selecting an ECU, users need to ensure their planned controls can be run with the 4 inputs and 4 outputs as certain combinations may use more I/Os than are available. If more I/Os are required, users should choose the Dominator VMS.
Software and firmware updates can be downloaded here for free.

Features:

• Optional 5.7??? full-color touchscreen LCD allows easy on-the-fly tuning, data-logging or can be used as an easy to see graphical gauge panel
• Eight sequentially driven 8:2 peak and hold injector drivers, capable of driving up to 16 low or high impedance injectors as a standard feature. Multiple staged injector strategies
• Eight channel Distributorless Ignition (DIS)outputs capable of directly driving Smart??? ignition coils or Holley DIS coils. Will drive 2 wire coils with the addition of PN 554-112 high current coil driver module
• Integrated single channel wide band oxygen sensor control. Works with NTK or Bosch sensors
• Internal data-logging standard with a huge 2GB of memory
• 4 Stage progressive nitrous control
• Turbo boost control
• Integrated water/methanol injection control
• Self-tuning fuel table strategy greatly simplifies tuning process
• Individual cylinder fuel and spark control allows you to unlock your engine??????s potential
• Works with 4, 6, 8 cylinder engines
• Unique lb/hr based fueling strategy greatly simplifies and commonizes tuning
• Advanced idle, closed loop, and enrichment strategies allow for very stable operation
• ECU is fully potted and can be mounted in the engine compartment or interior
• Sealed automotive and marine grade connectors
• Allows for use of common OEM sensors as well as customer sensor calibration input
• Ignition Plug and Play with GM HEI, Ford TFI, magnetic and hall effect trigger, and other ignition systems. New Plug and Play applications in process. Custom settings can be configured to allow many other applications
• 1-5 Bar MAP sensor capability
• Two channel knock control sensor Inputs for both one or two wire knock sensors
• Dedicated fuel and oil pressure inputs
• Controls both stepper and PWM Idle Air Control (IAC) motors
• Speed density, Alpha-N, or combination fueling strategies
• 4 Programmable high or low Pulse Width Modulated (PWM) outputs and 4 fully configurable inputs can be configured for use
• 4 Stage nitrous oxide control
• Fully featured nitrous control eliminates the need for a separate nitrous controller device
• Can be configured Wet??? or Dry??? with closed loop feedback
• Progressive control based on time, RPM, or boost, requires part # 554-111
• Lean or rich safety cutoff
• Full timing retard/control configurability per stage based on RPM or time
• Integrated Water/Methanol injection control
• Uses Holley Water/Meth solenoids specially designed and calibrated for use with this EFI system to allow the user to enter Water/Meth flow as a percentage of fuel injector flow for Water/Meth tuning precision unmatched in the industry

Details:

• Ignition Type: Coil - (No Timing Control)
• Ignition Type: Ford TFI
• Ignition Type: GM HEI Small Cap
• Ignition Type: Holley Dual Sync Distributor
• Injector Connector: Jetronic / Minitimer (Bosch)

Links
EFI selection chart
