Universal Cam Sync Systems

Universal Cam Sync Systems

Big Block Chevy w/ +600/1.0 Inch Raised Cam Height; For external, dry timing-belt, cam drive systems

Overview

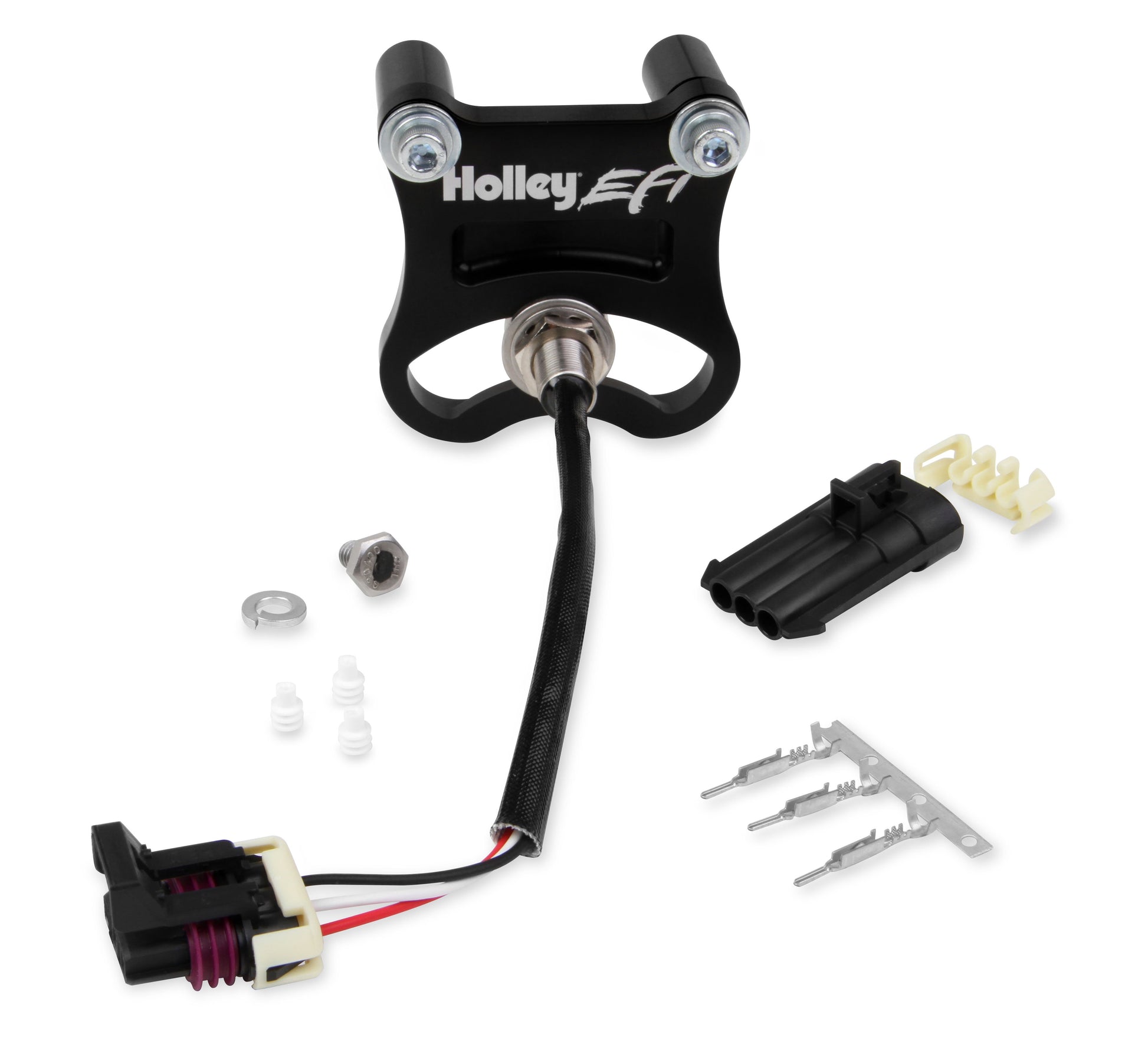

Specifically designed for use w/ JESEL and similar external, dry timing-belt, cam drive systems. Includes 3 wire hall-effect sensor (8-20 volts), anodized billet aluminum bracket, mounting hardware, mating connector, and stainless steel 1/4"-20 "flying magnet" screw w/ high-temp, rare-earth magnet.

Features:

• Includes 3 wire hall-effect sensor, all billet constructed, anodized, aluminum bracket stainless T-Nut, better than grade 8 mounting hardware, mating connector, and SS ?????-20 flying magnet??? screw w/ high-temp, rare-earth magnet
• Unique t-nut and bracket design allows for complete sensor adjustment from the outside of the bracket with a single jam nut
• Designed to provide a plug-&-play cam position signal to Holley EFI systems yet compatible with any EFI system which can read a digital, square-wave cam input signal
• Bracket assembly can be mounted at any angle about the perimeter of the cam pulley to clear various front accessory drive arrangements

Details:

• Application: Universal

Links
Instruction Sheet
