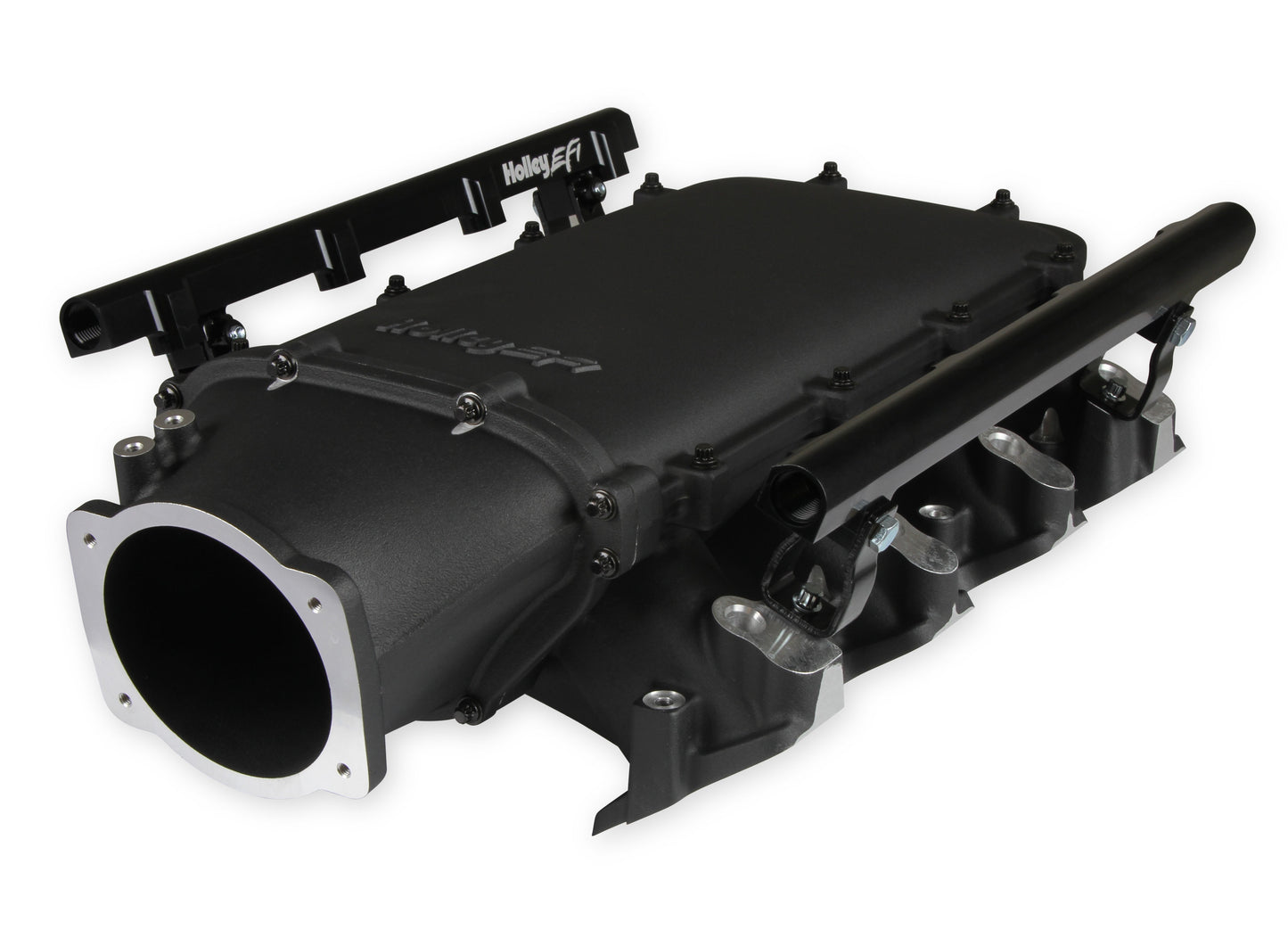

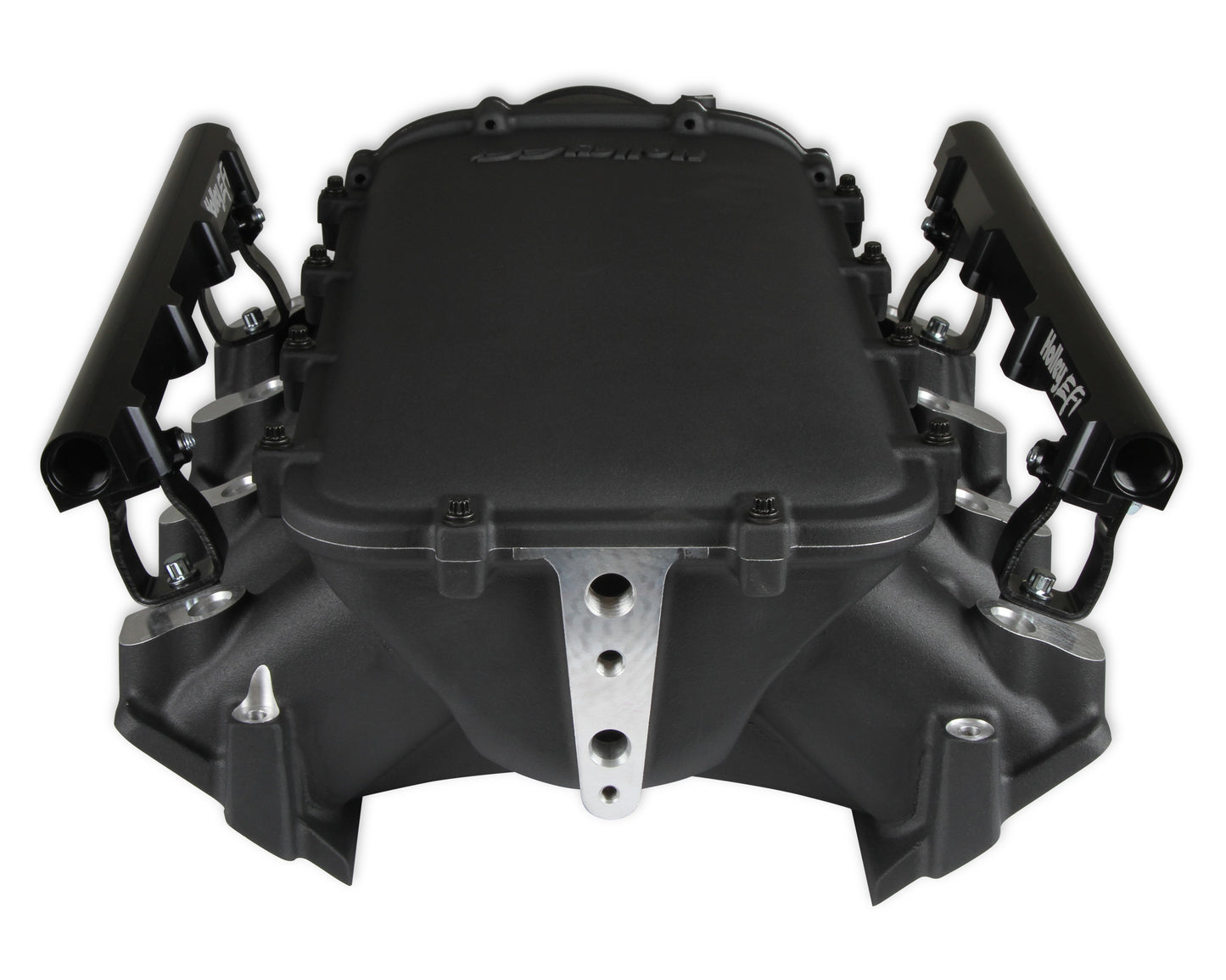

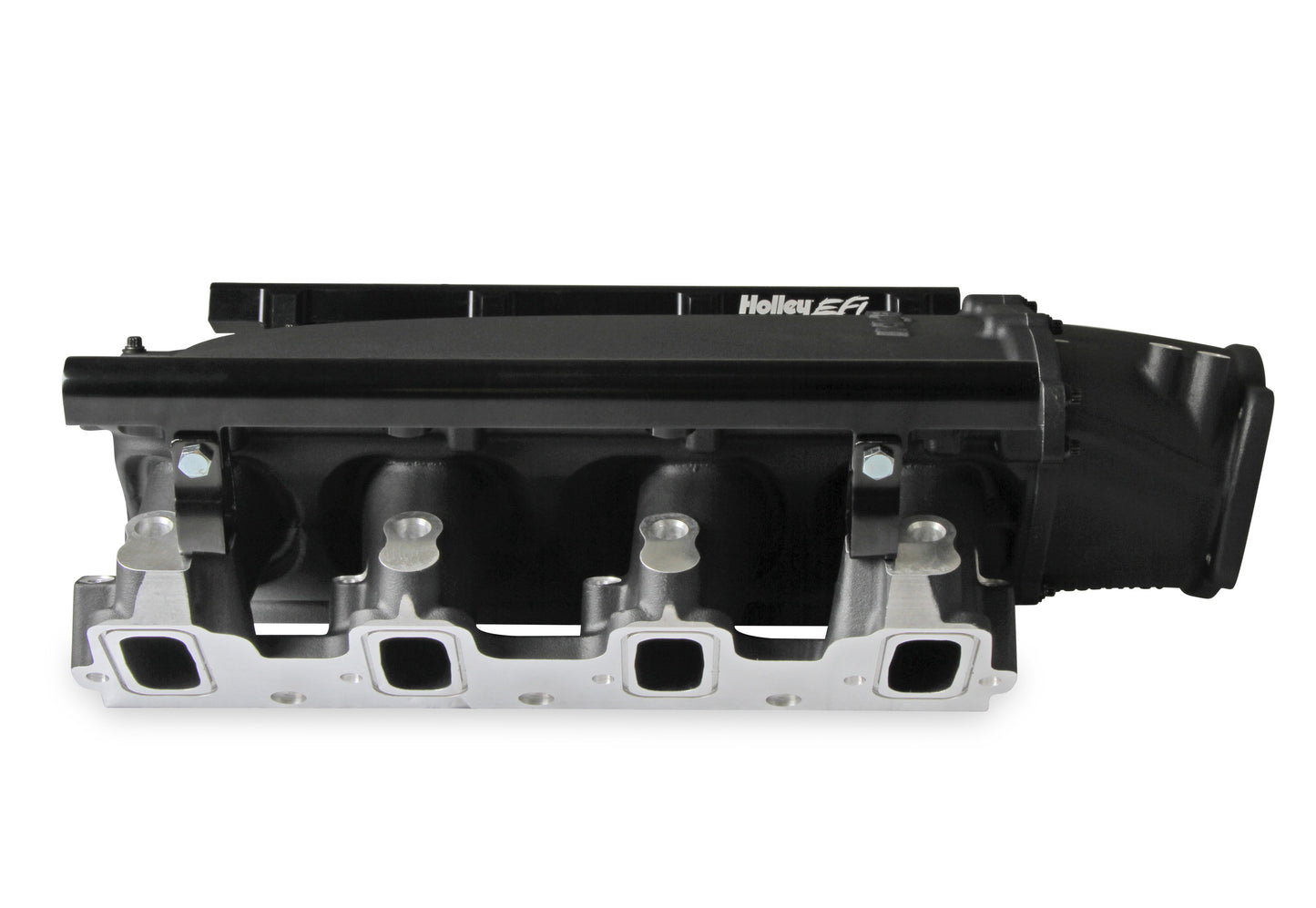

Holley Ultra Lo-Ram Manifold Kit Single Injector- Black - GM LS3/L92
Ultra Lo-Ram Manifold Kit - LS3
Overview Available with single or dual injector provisions and a burst panel flange, the LS3 Ultra Lo-Ram intake manifold is designed for boosted combinations with hood clearance in mind.

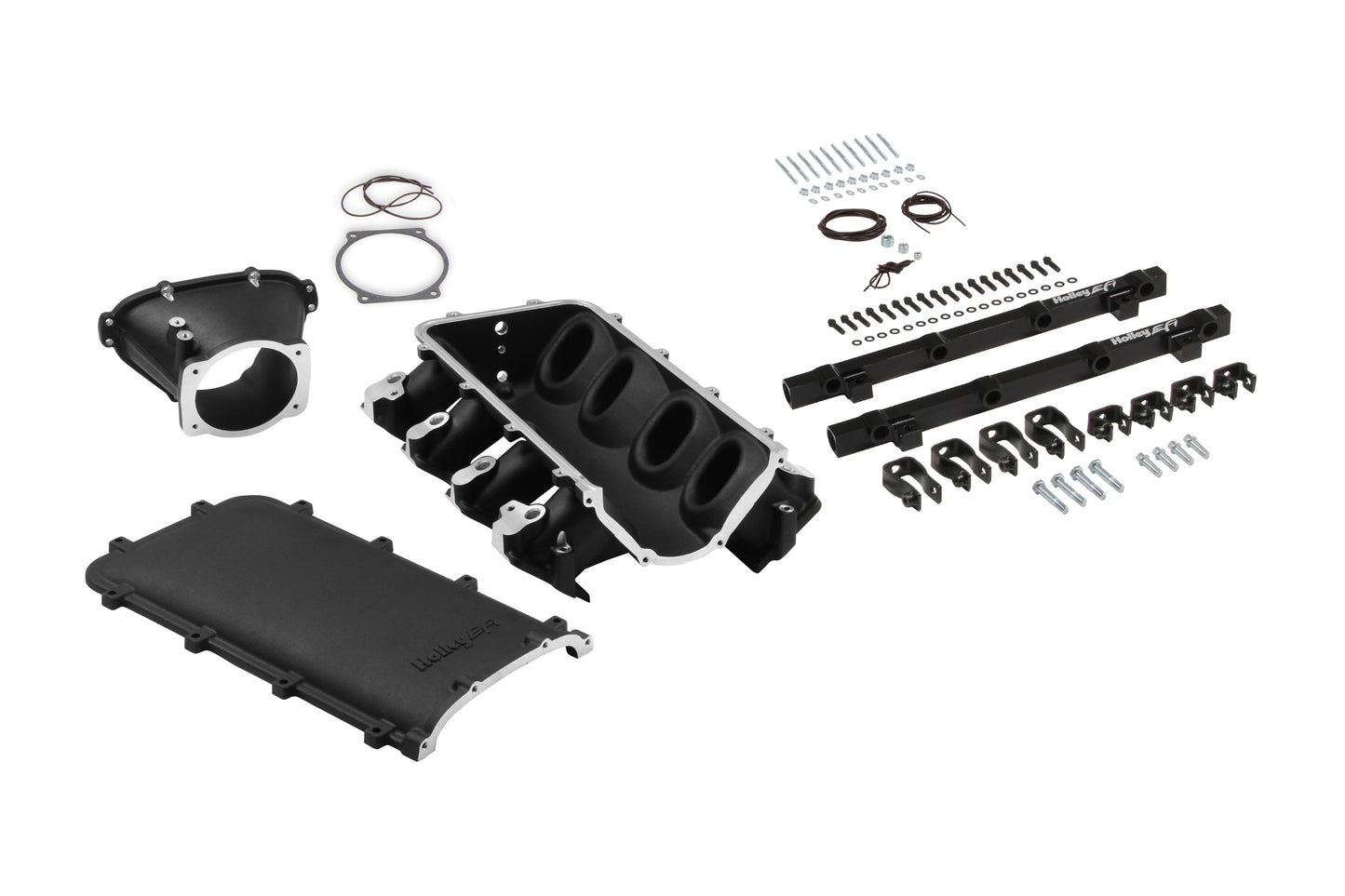

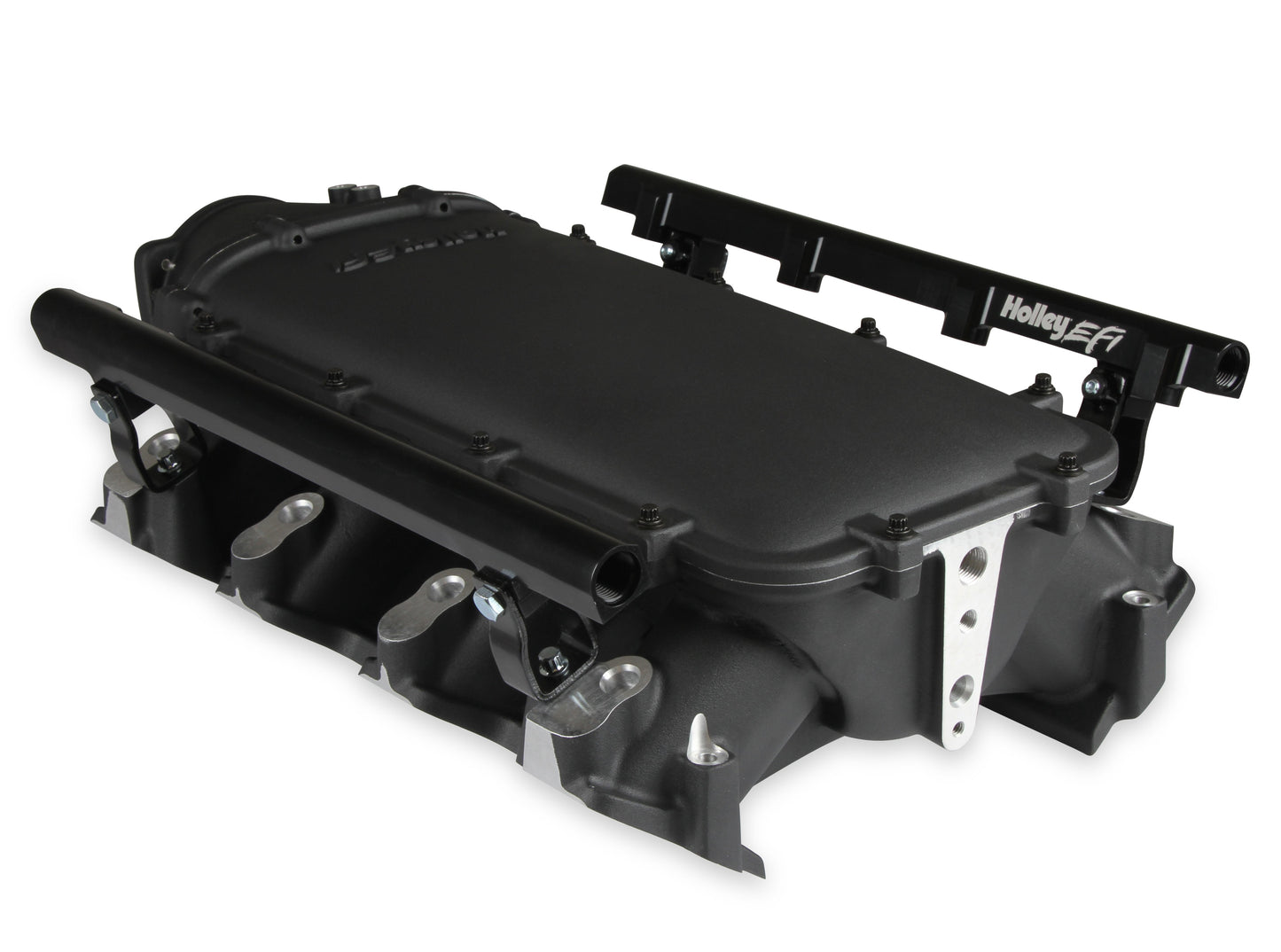

The Holley LS3 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Ultra Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm depending on the application. The Ultra Lo-Ram plenum flange has a 105 mm opening to work with throttle body part number 112-581 or similar models. The base intake manifold is designed with a lower overall height to fit under a stock or mildly modified hood in the front configuration. The LS3 Ultra Lo-Ram is constructed to provide a very low profile modular intake manifold suitable for fabrication of special throttle body adapters or inlet ducts for custom installations. Available with single or dual injector provisions and a burst panel flange options.The fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors.

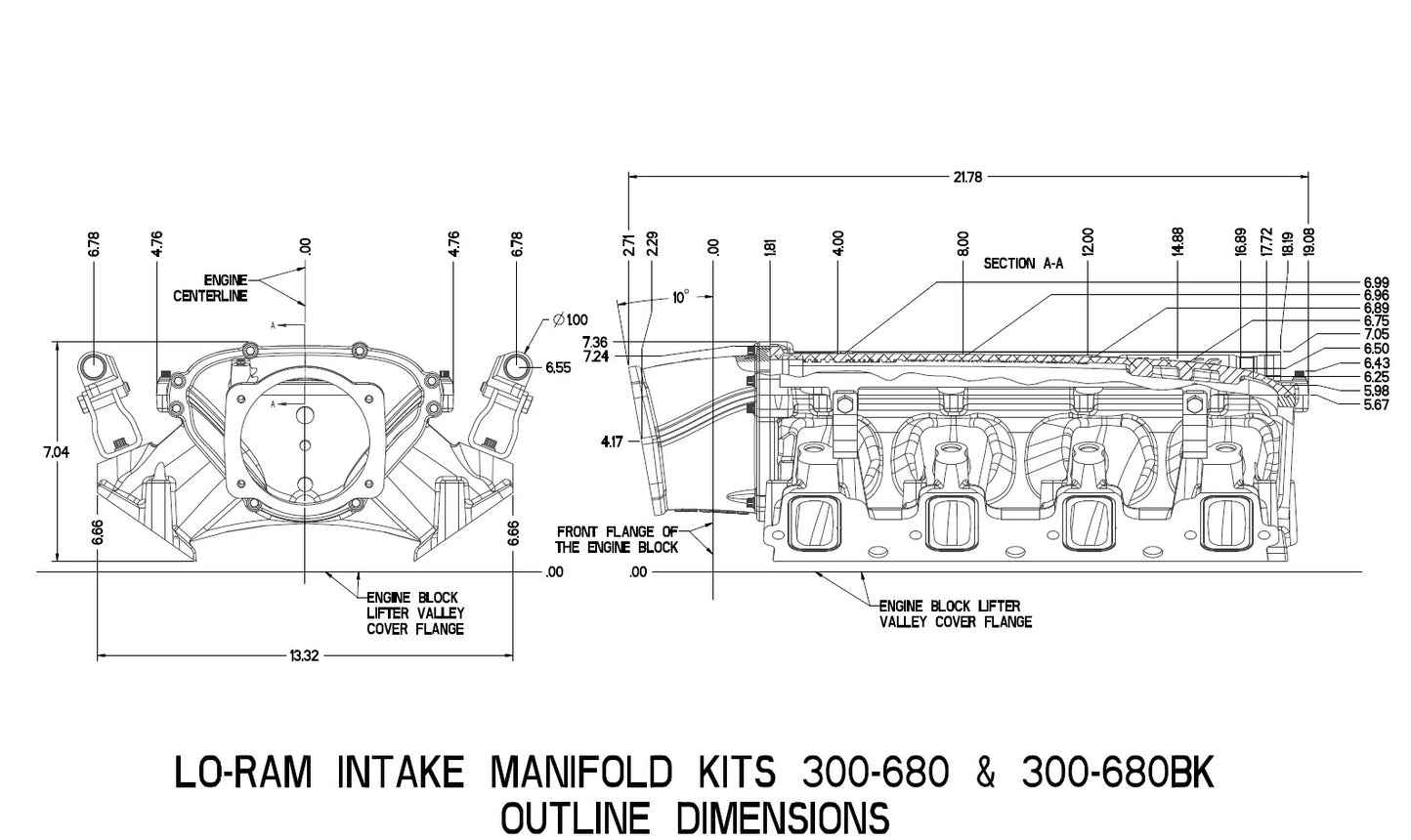

Ultra Lo-Ram Base Intake Manifold Plenum Top Mounting Flange Height - 5.17"

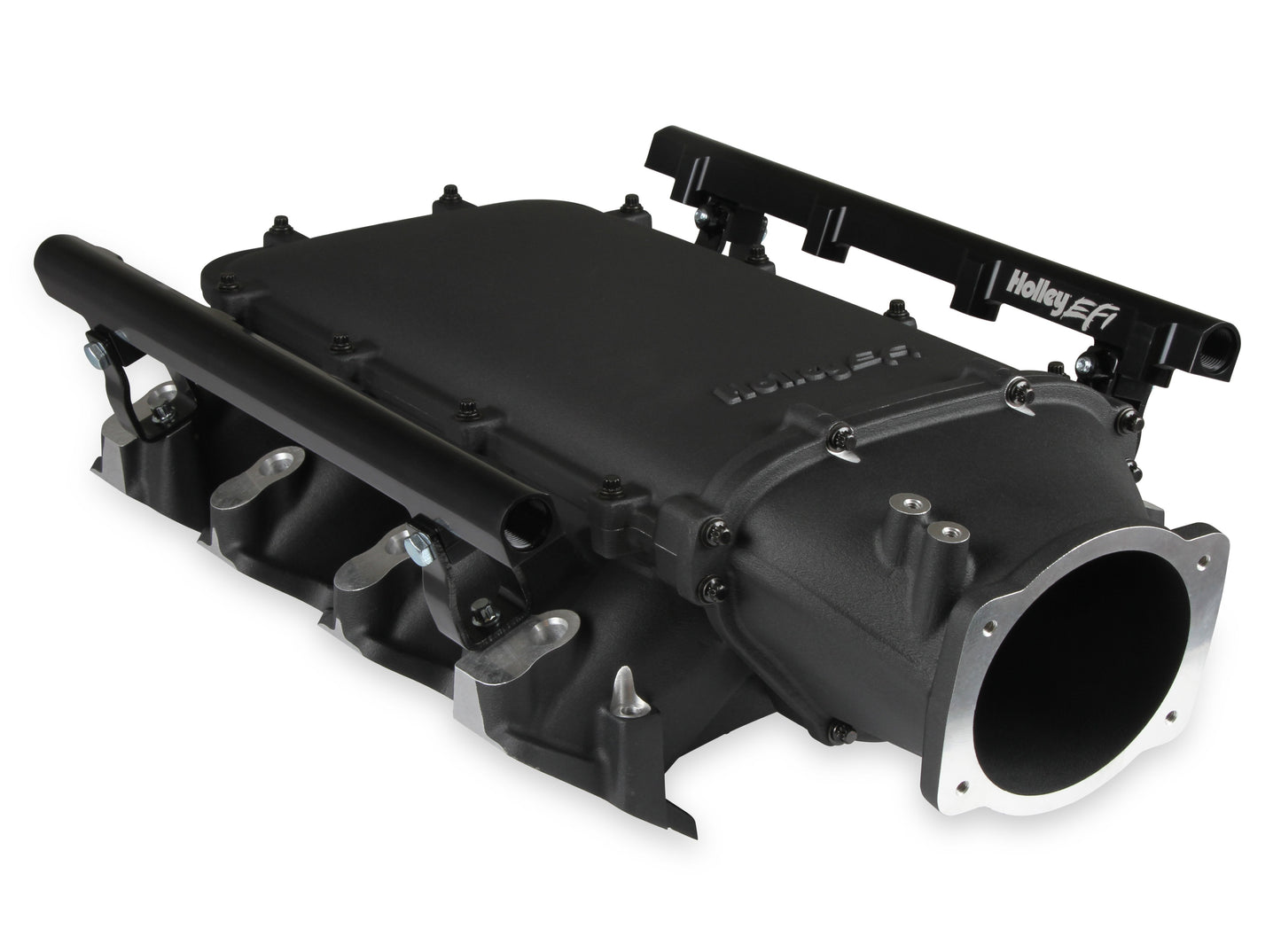

Plenum Configuration w/105mm Throttle Body Adapter - 6.86"
Features:
Designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads???
Engineered for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm depending on the application.
Low height to fit under a stock or mildly modified hood in the front configuration
Front entry plenum flange allows design & fabrication of special throttle body adapters or inlet ducts for custom installations
Clears C6 Corvette cowls and hoods without modification
Available with single or dual injector provisions and a burst panel flange.

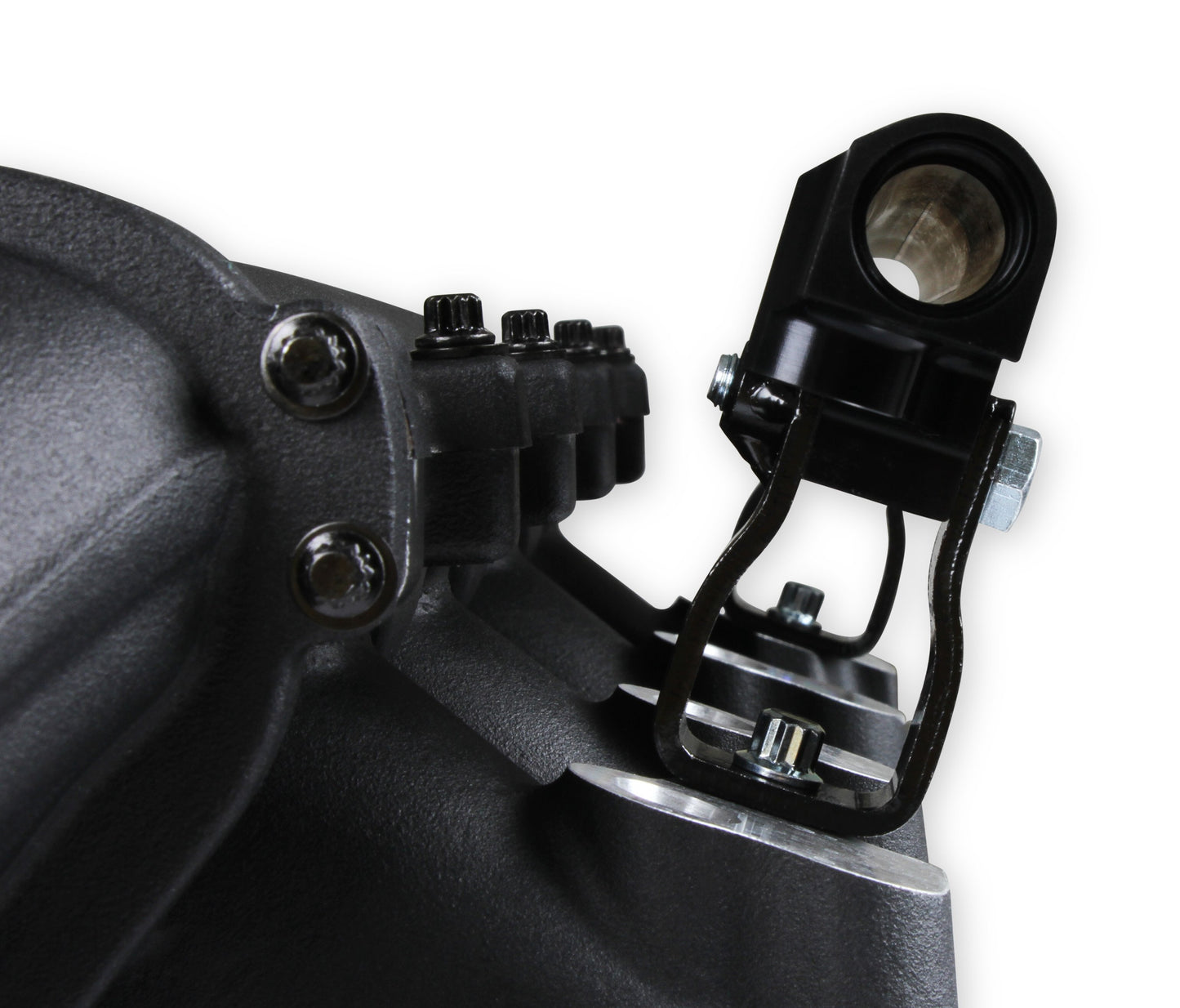

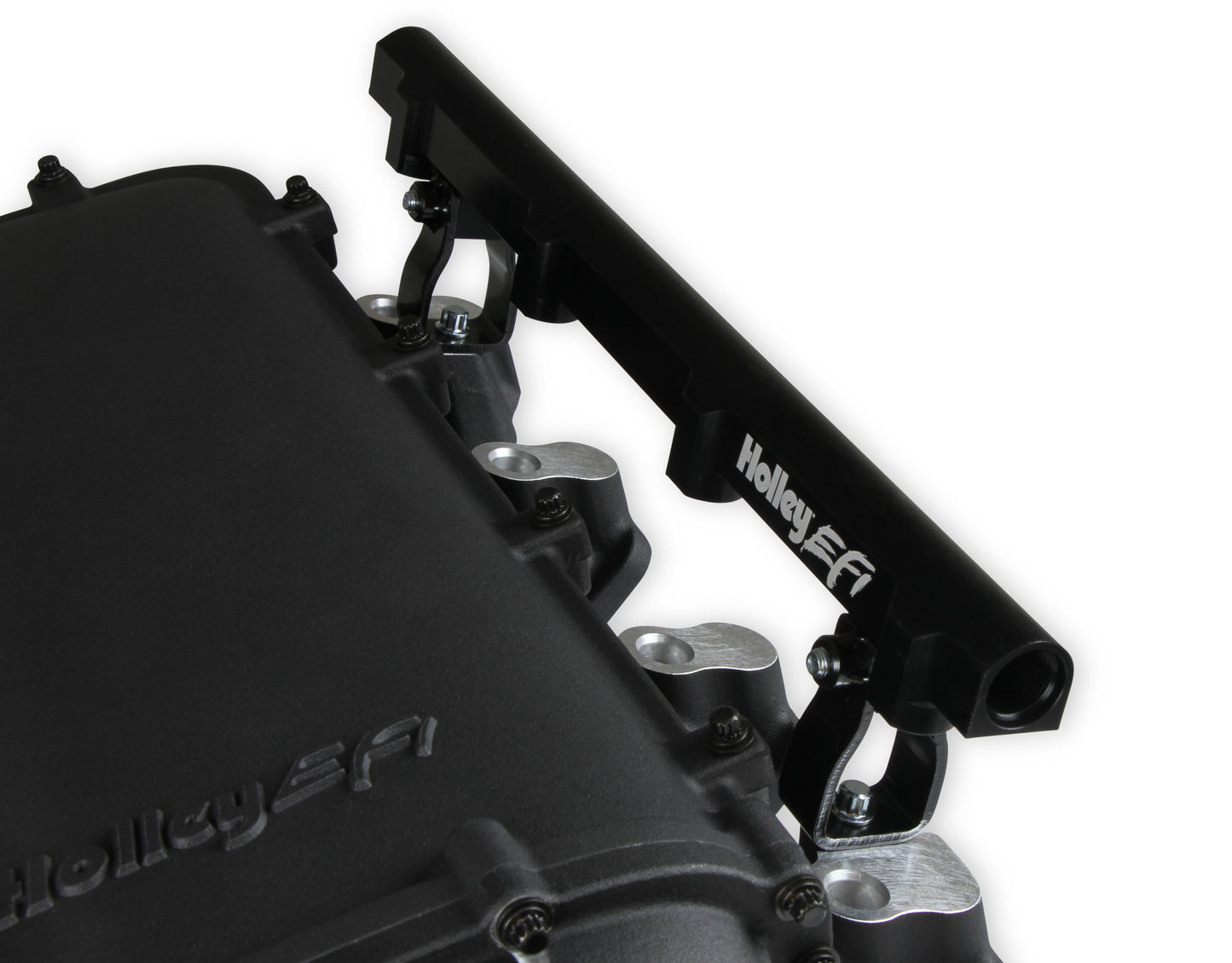

High volume fuel rails for eight and sixteen injector configurations. Mounting hardware included with 3/4-16 O-ring ports (8 AN)
Billet options for the top and throttle body adapters are available seperately.
Details:
Burst Panel Compatible: Yes
Color: Black
Construction: Cast
Engine: GM LS3/L92
Finish: Black
Flange Style: EFI
Front Height: 6.86" height with throttle body adapter
