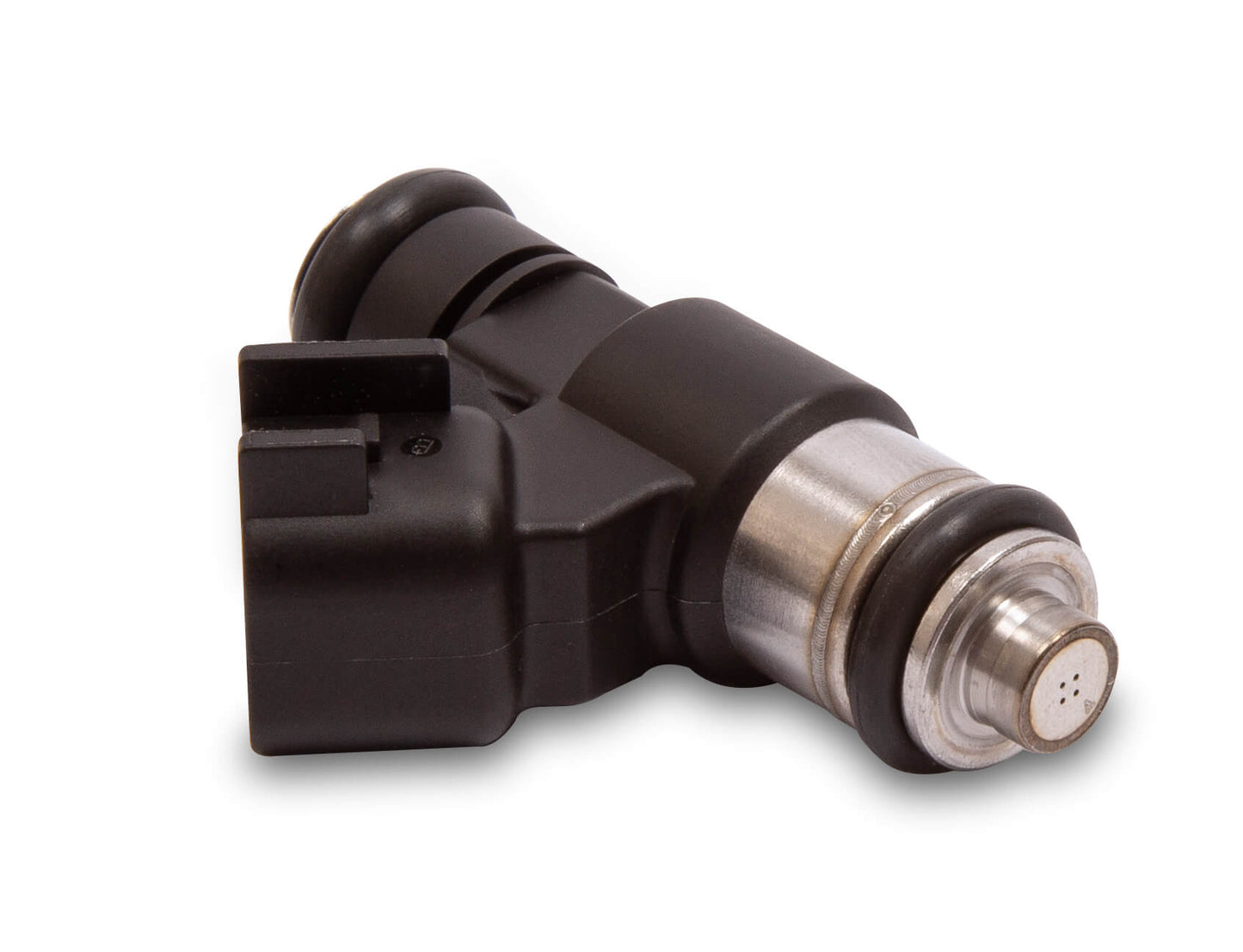

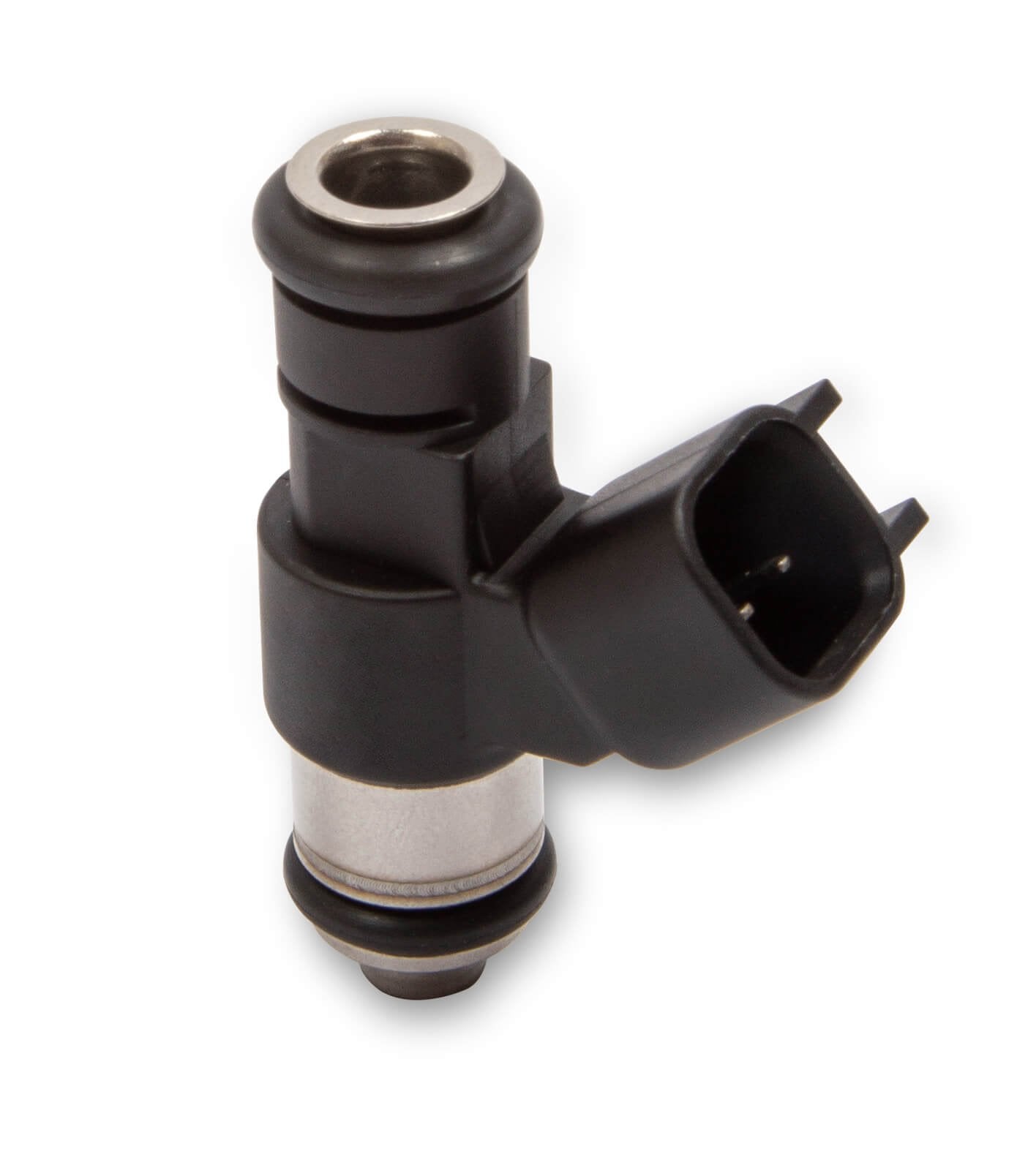

Terminator X Performance Fuel Injectors - Set of Eight - PICO/EV6 - 120 lb/hr - High Impedance - Flow Matched

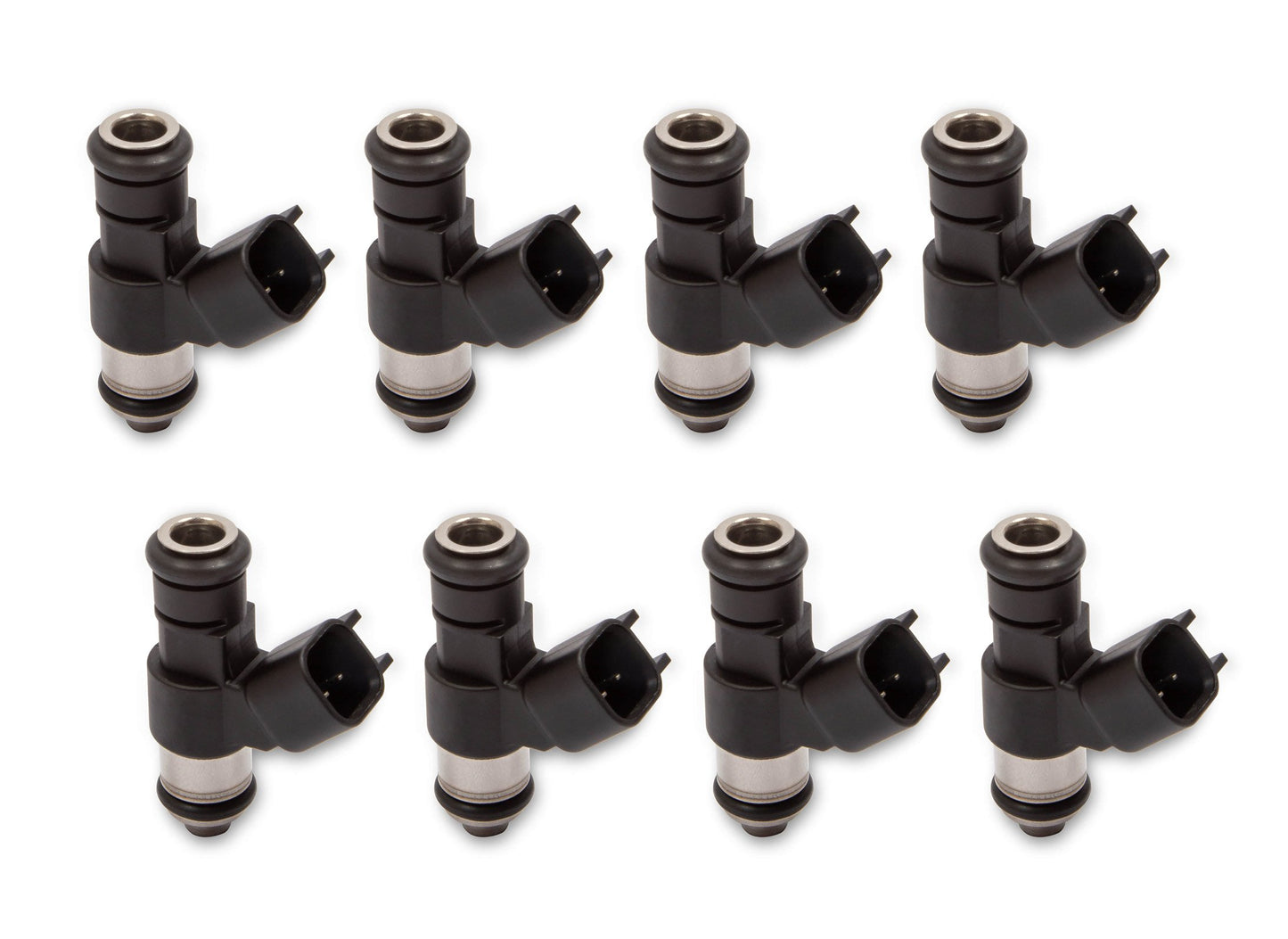

Terminator X Performance Fuel Injectors - Set of Eight

PICO/EV6 - 120 lb/hr - High Impedance

Overview
Terminator X High Impedance Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp o-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. With a wide variety of fuel flow offerings from 42 lb./hr. to 220 lb./hr. (441 cc/m to 2310 cc/m) you are sure to find an injector that matches your non-emissions controlled application. These high quality fuel injectors can also be used with any ECU that utilize high impedance fuel injector drivers.

Features:

• PICO/EV6 style performance injectors ???? sold individually or set of 8
• Dynamic Flow Matched within 1%
• High impedance for use with saturated drivers
• Rated injector flow from 42lb/hr to 120lb/hr for a wide array of applications, at 60psi base pressure, 220lb/hr injectors rated at 43psi base pressure
• 40mm o-ring to o-ring length
• Compatible with many OEM LS Intake Manifolds: LSA, LS3, LS7, L76, L92, L98, L99, LS9
• Injector Off Time provided in the Holley EFI software

Details:

• Body Diameter: 0.65
• Body Length: 1.85"
• Body Style: EV6
• Connector Series: EV6
• Fuel Type: E-85
• Fuel Type: Gasoline
• Impedance: High (12.2 Ohm)
• O-Ring to O-Ring: 1.421
• Rated Injector Flow: 120 lb/hr
