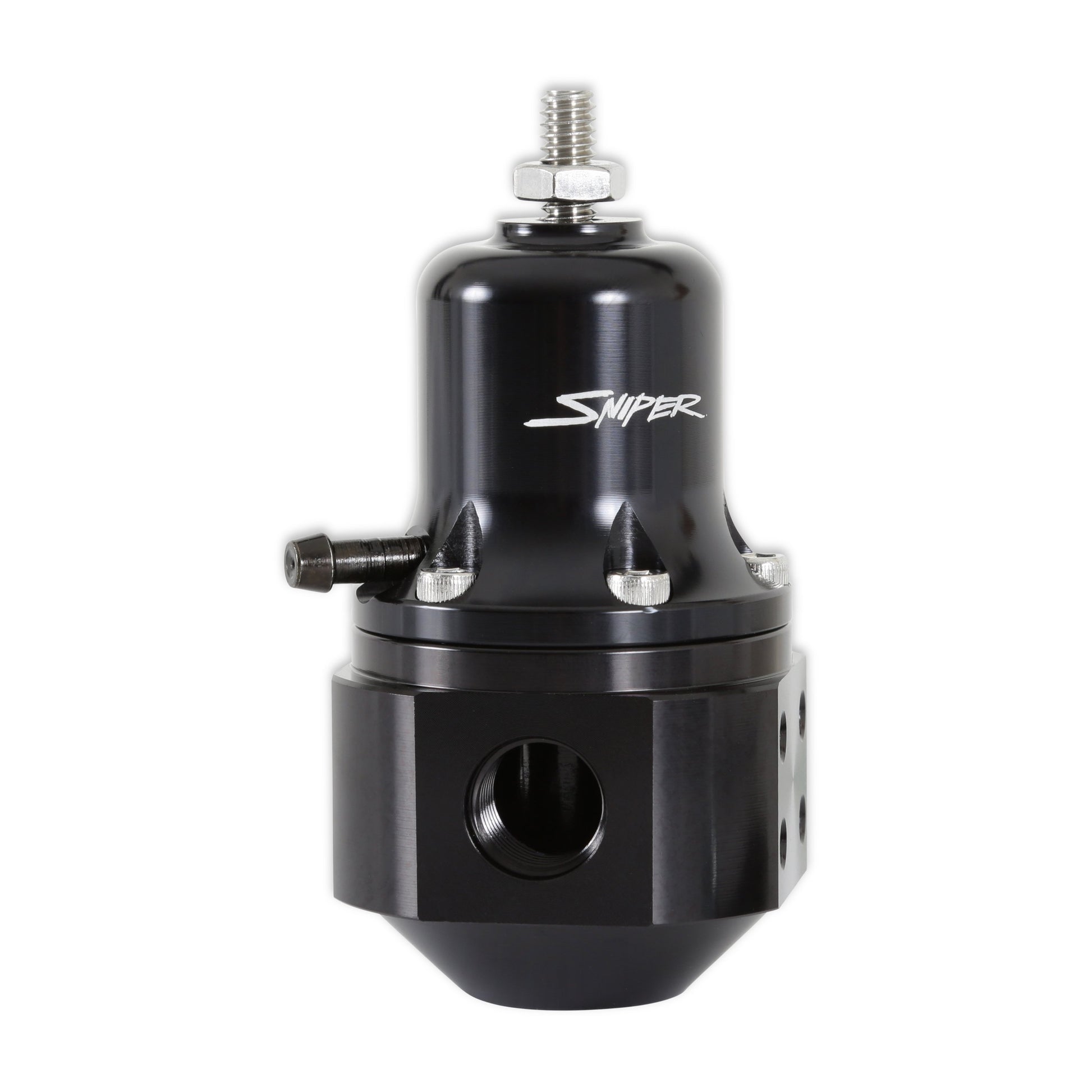

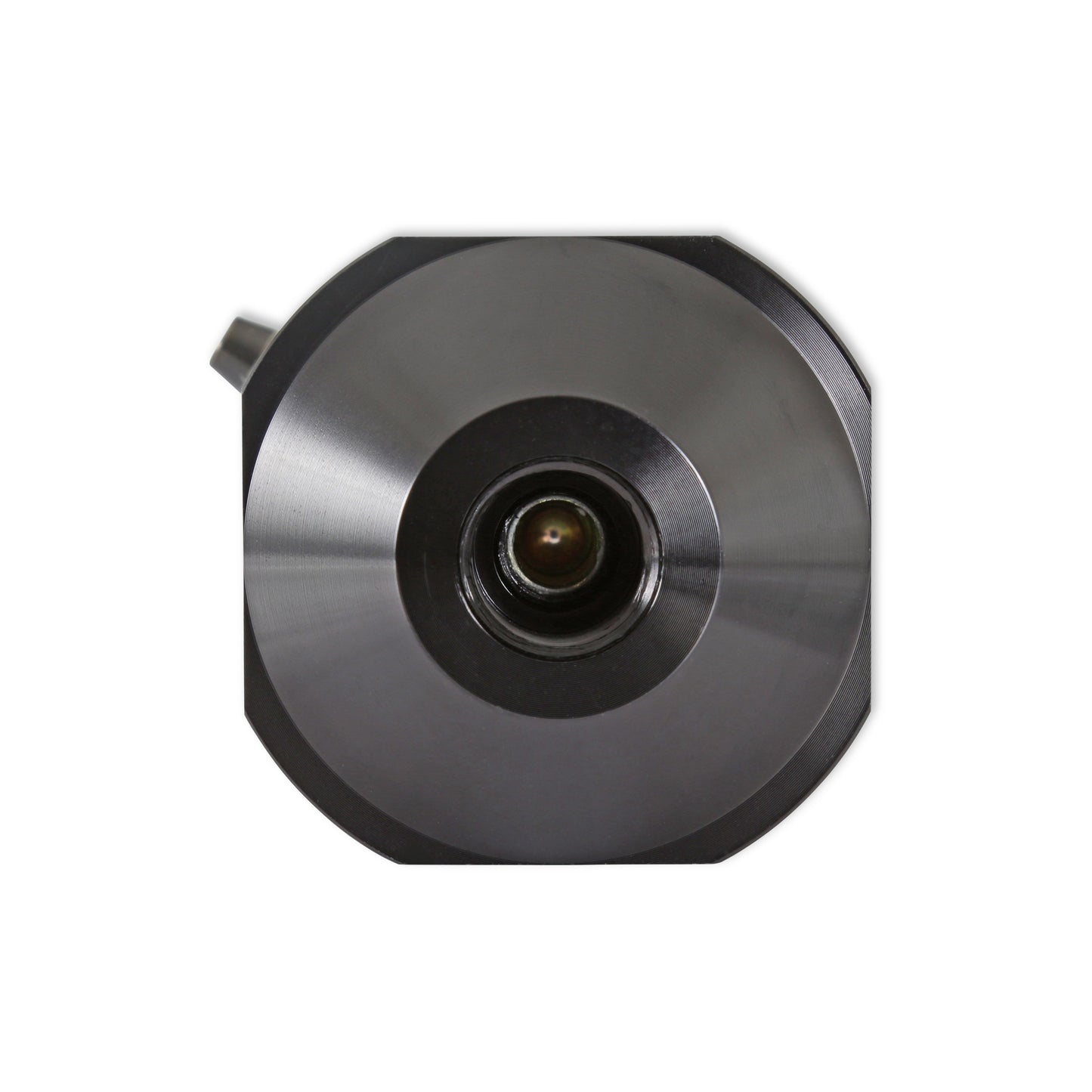

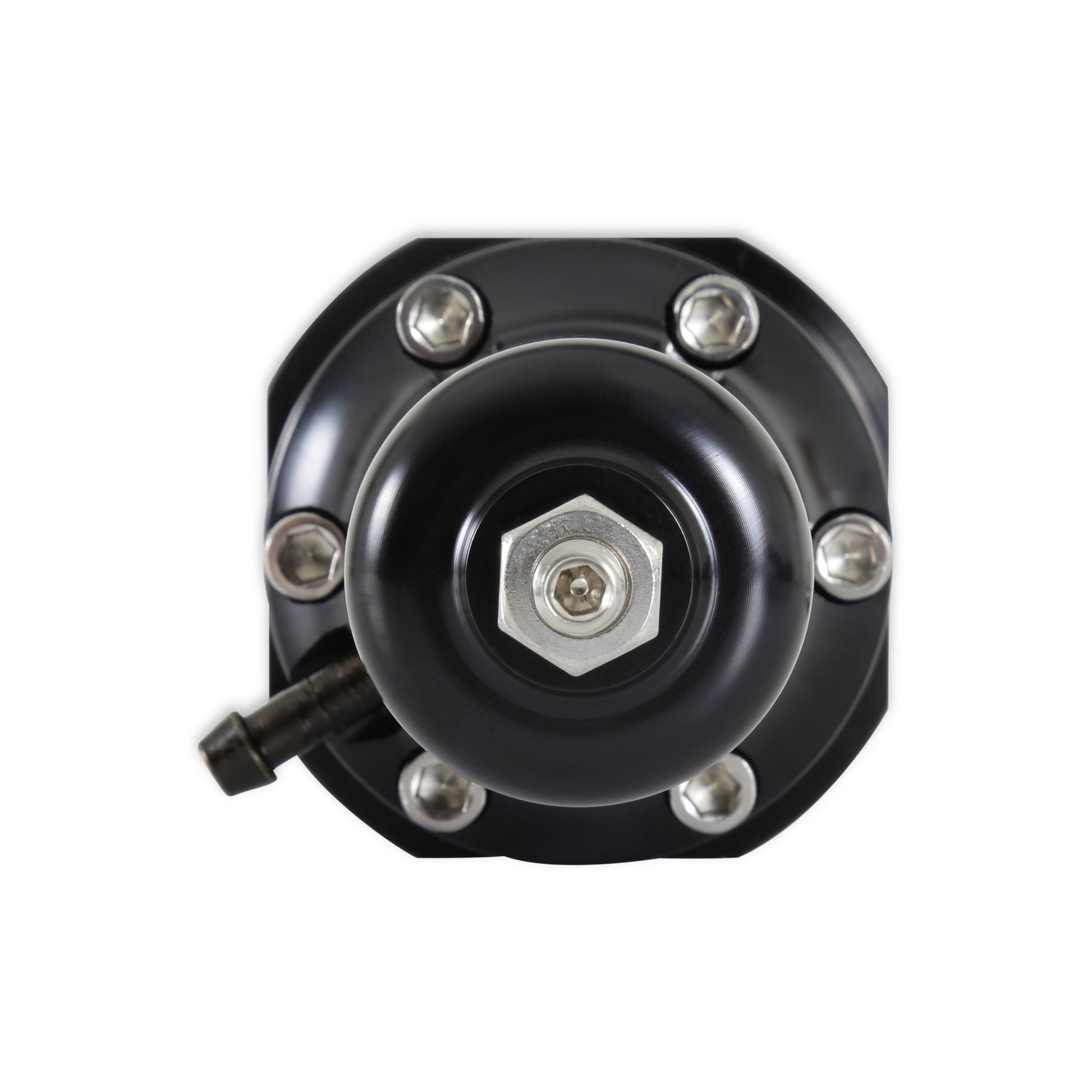

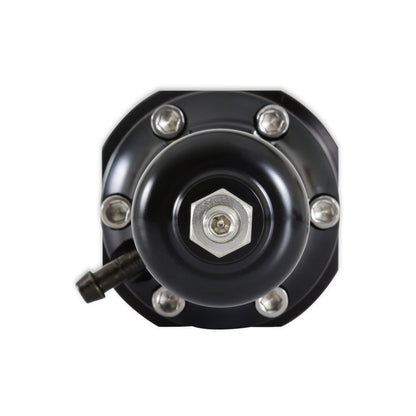

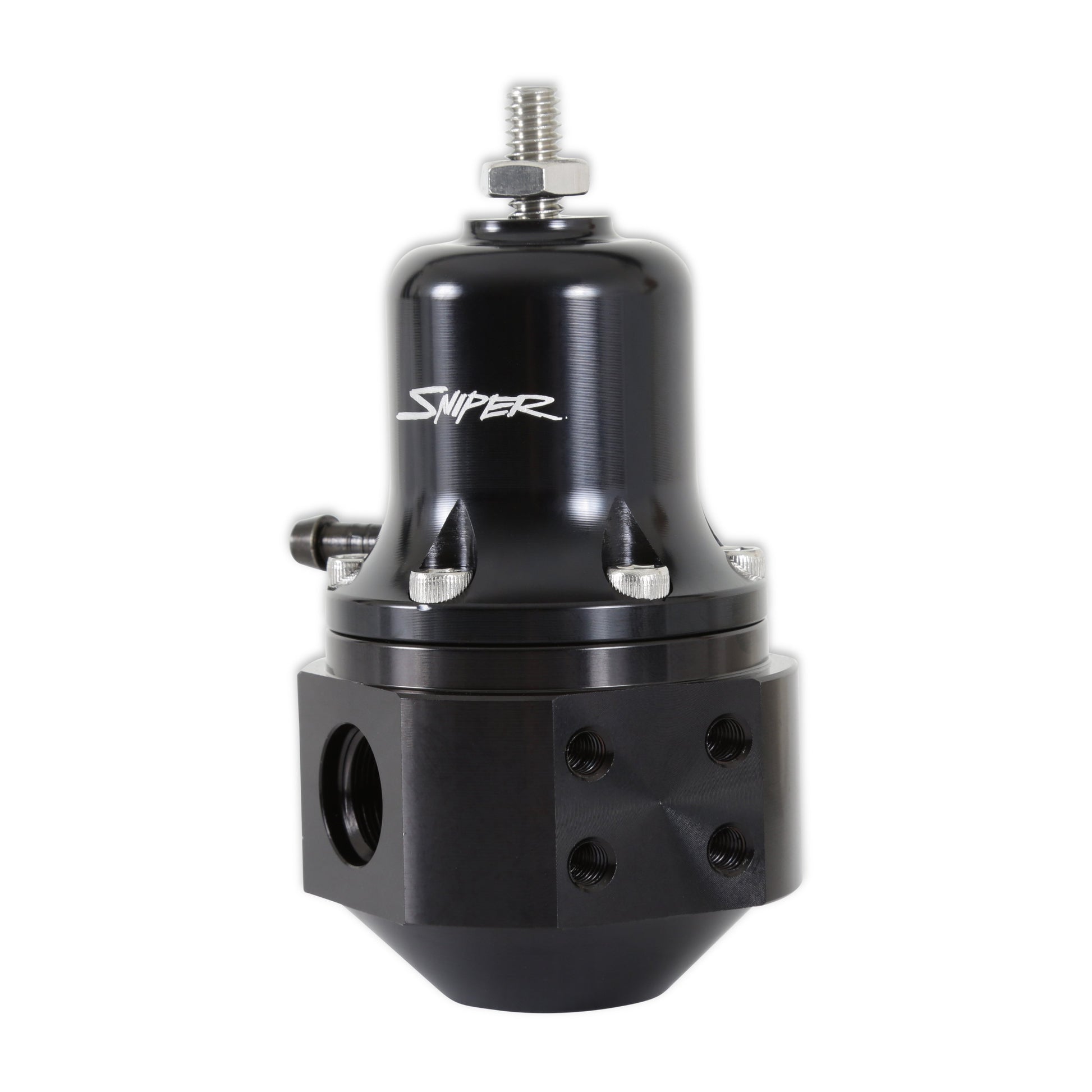

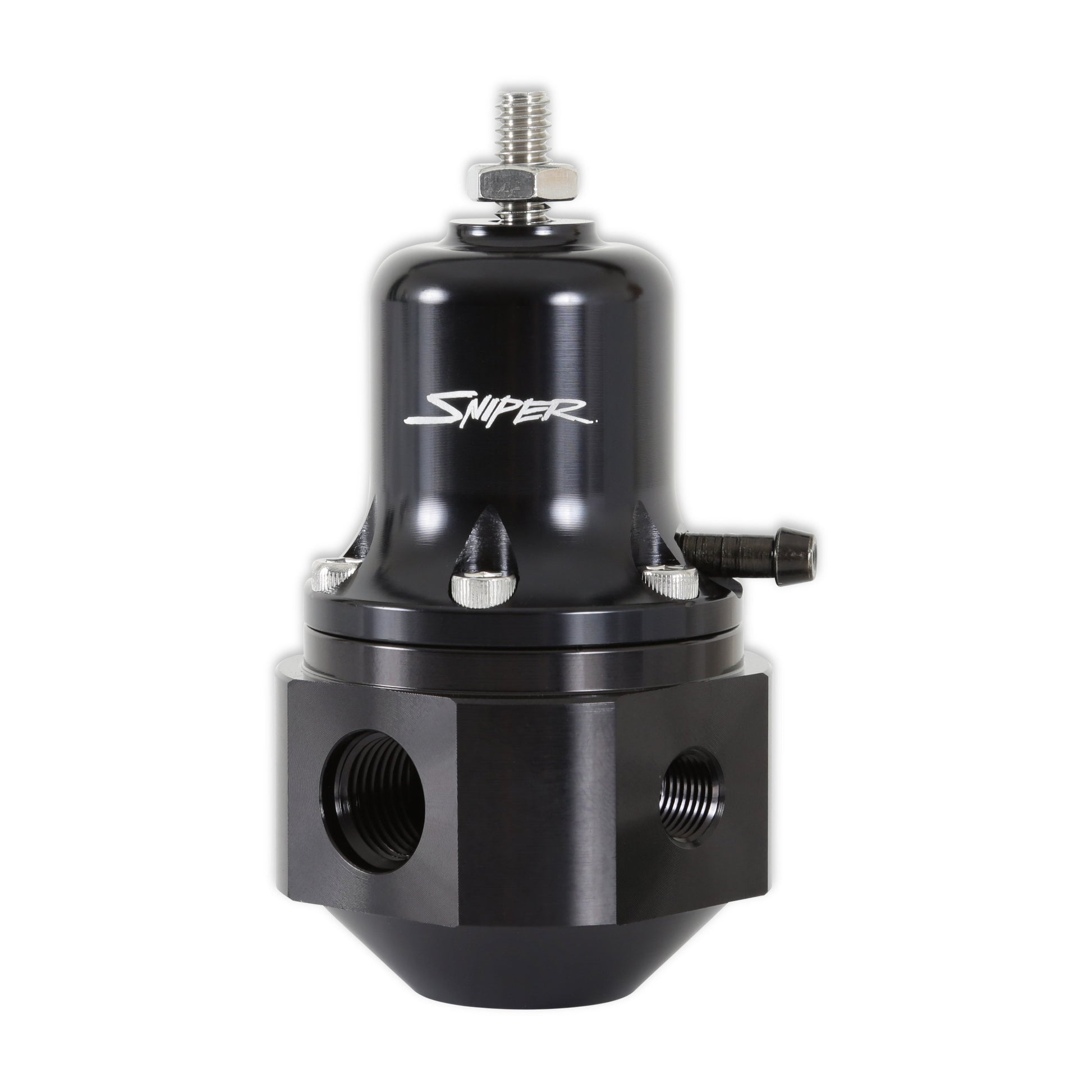

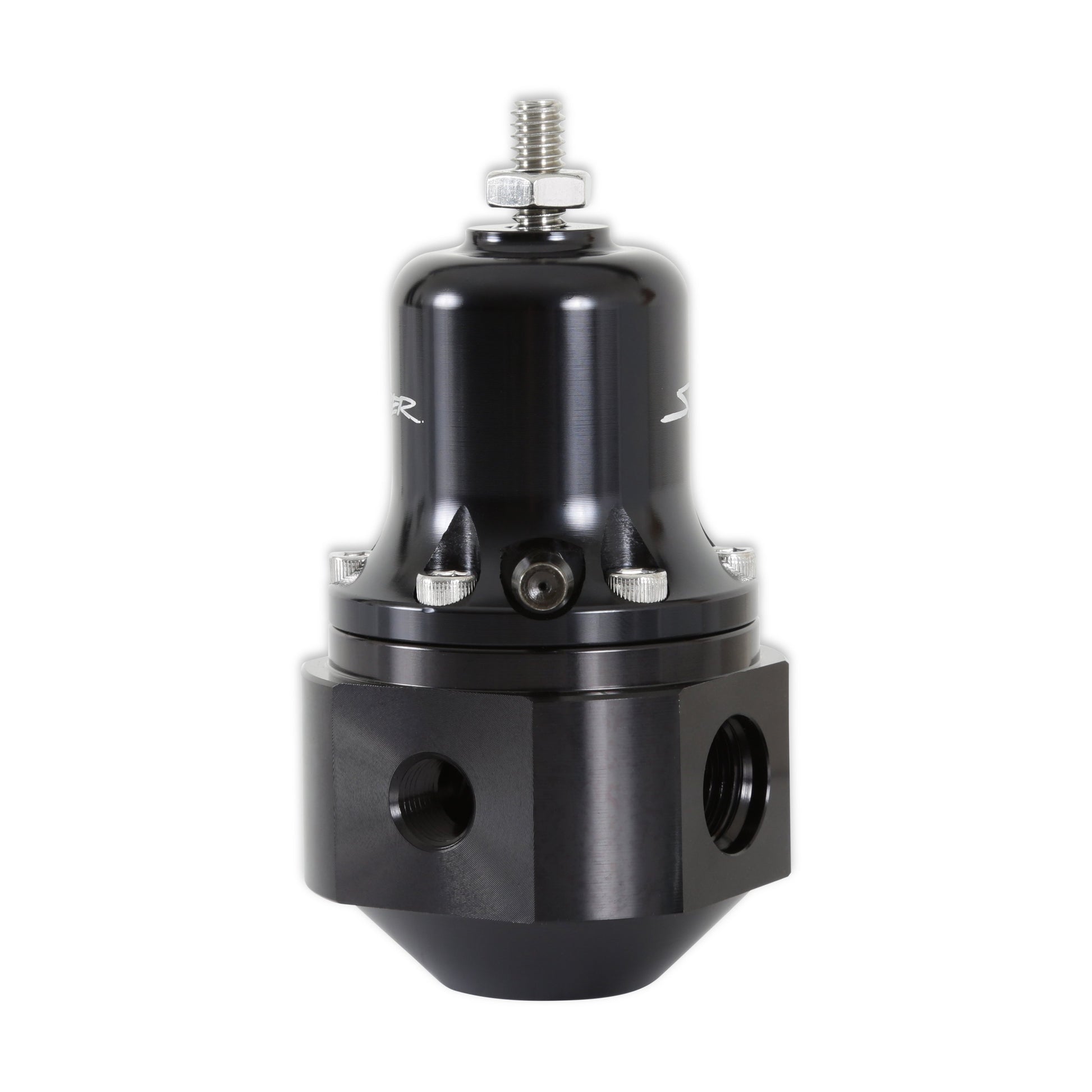

Sniper EFI Fuel Regulator 6AN

Sniper EFI Fuel Regulator 6AN

12-Bolt Flange 340 LPH E85 Compatible Drop-In EFI

Overview
Updating your racing fuel system to EFI is so simple! Sniper is introducing their latest Diecast Fuel Cell EFI Pump Modules. The modules were designed to drop in as a direct replacement for your existing 12 bolt flange fuel cell cap assembly. The diecast aluminum top flange includes an 6AN inlet port, a 6AN outlet port, and a fuel filler cap. The fuel pump depth is fully adjustable from 7.5" to 12" deep. The EFI modules are available with single 340 LPH fuel pumps in both return and returnless system designs. The module kits include all the hardware to install into your existing fuel cell. All that you need to add is your fuel line. ***Assembly fits common RJS, Jaz, Summit, Jegs, RCI, Speedmaster and Speedway fuel cells. ***Supports up to 700 EFI or 900 Carb HP (HP Rating @ 60 PSI at 13.5 Volts / 10.4 AMP Draw)

*** EFI rated fuel hose and clamps required when connecting to existing vehicle fuel lines. Bolt pattern is 5.375"

Features:

• Longer spring for wider range of adjustment (40-130 psi)
• Features an oversized bypass orifice and corrugated diaphragm for superior flow
• Constructed of billet aluminum with a black anodized base and top for good looks
• Offered in -6 and -8 ORB configurations
• Used in systems with a return line back to tank

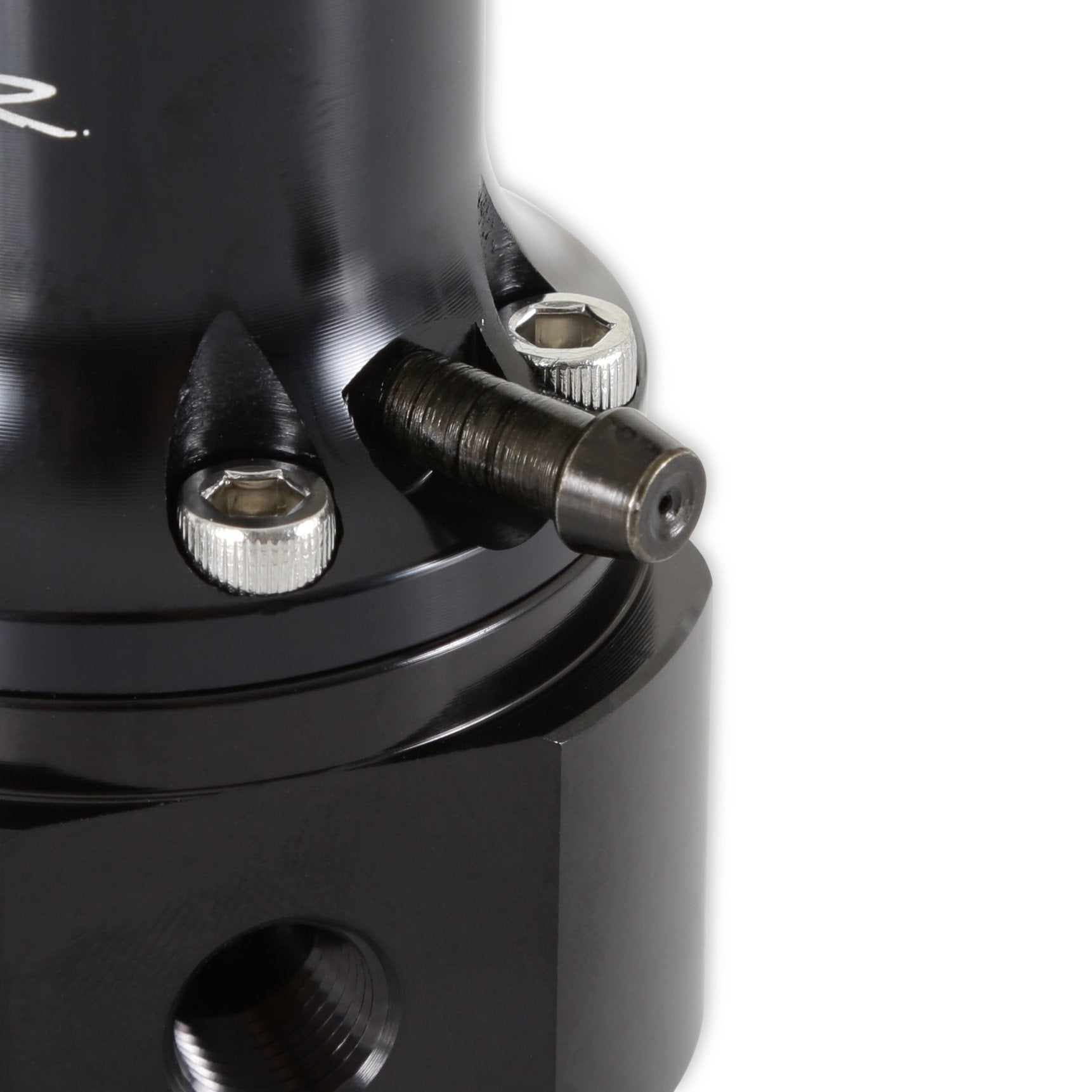

• 1/8-inch NPT Boost Reference Port (Ratio 1:1)
• 1/8-inch NPT Fuel Gauge Port
• Alcohol fuel and race gas compatible

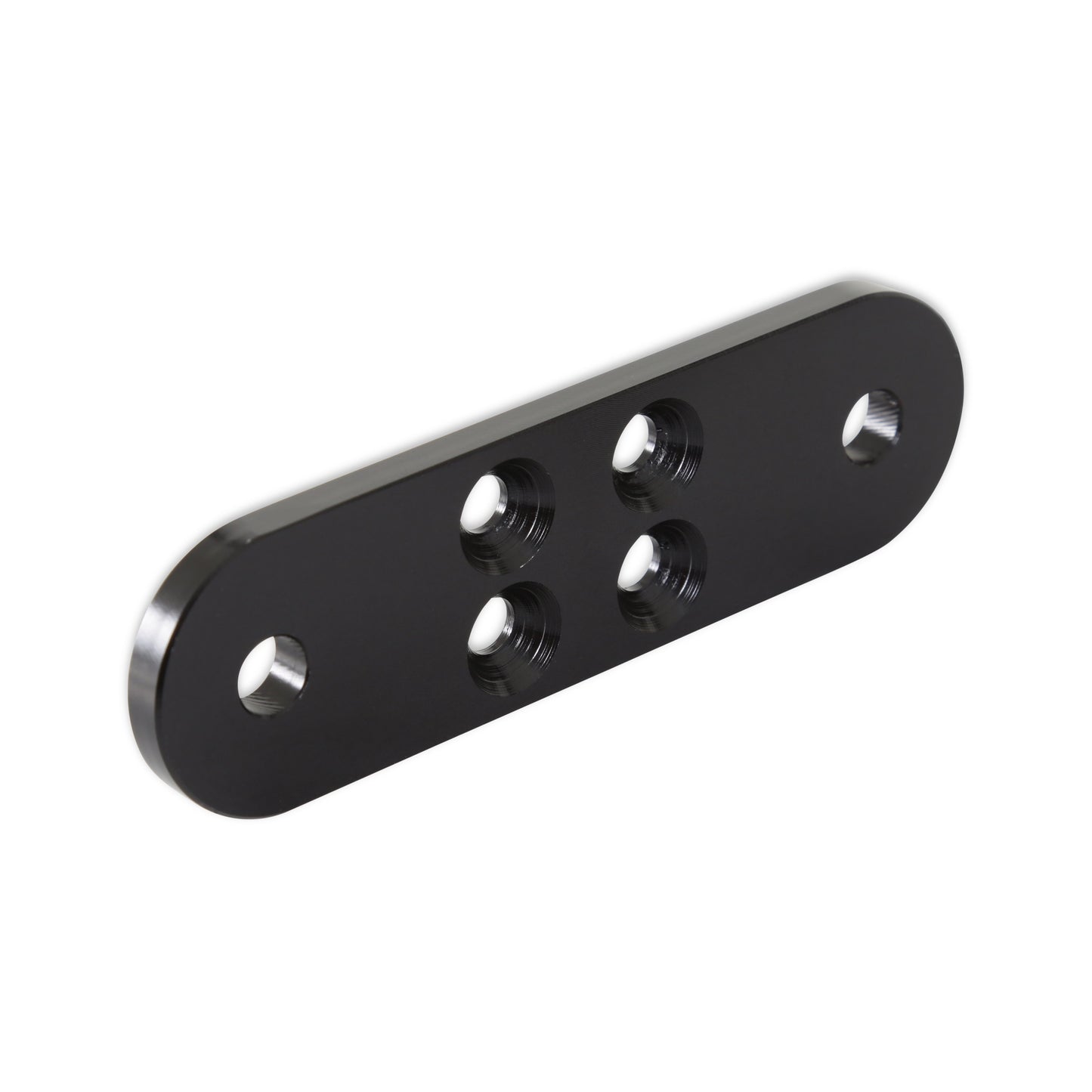

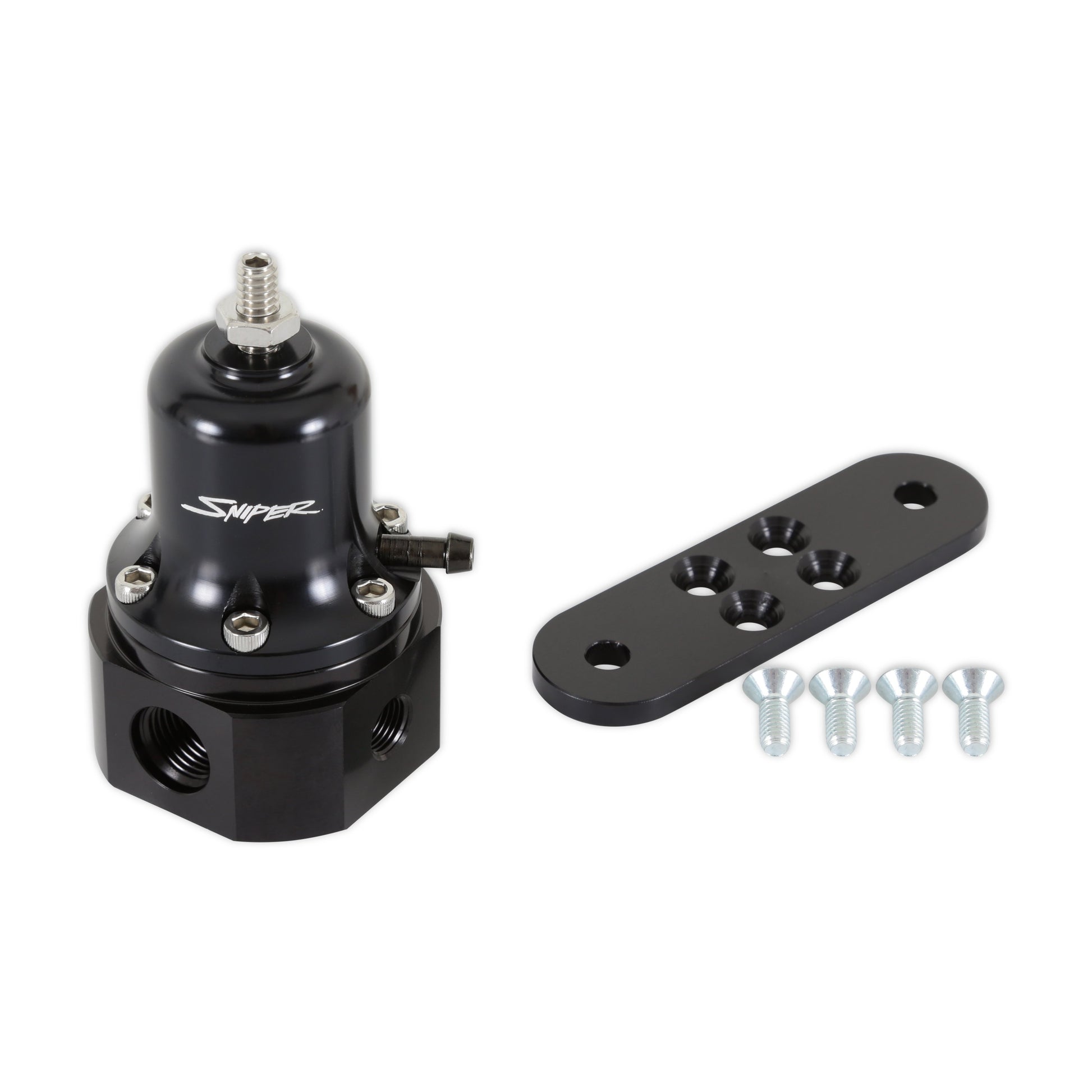

• Includes mounting bracket, hardware, and an 1/8-inch NPT barb fitting for manifold reference

Details:

• Fuel Type: Gasoline/Alcohol
• Style: Return Style
• Warranty: Limited 1 Year Warranty
