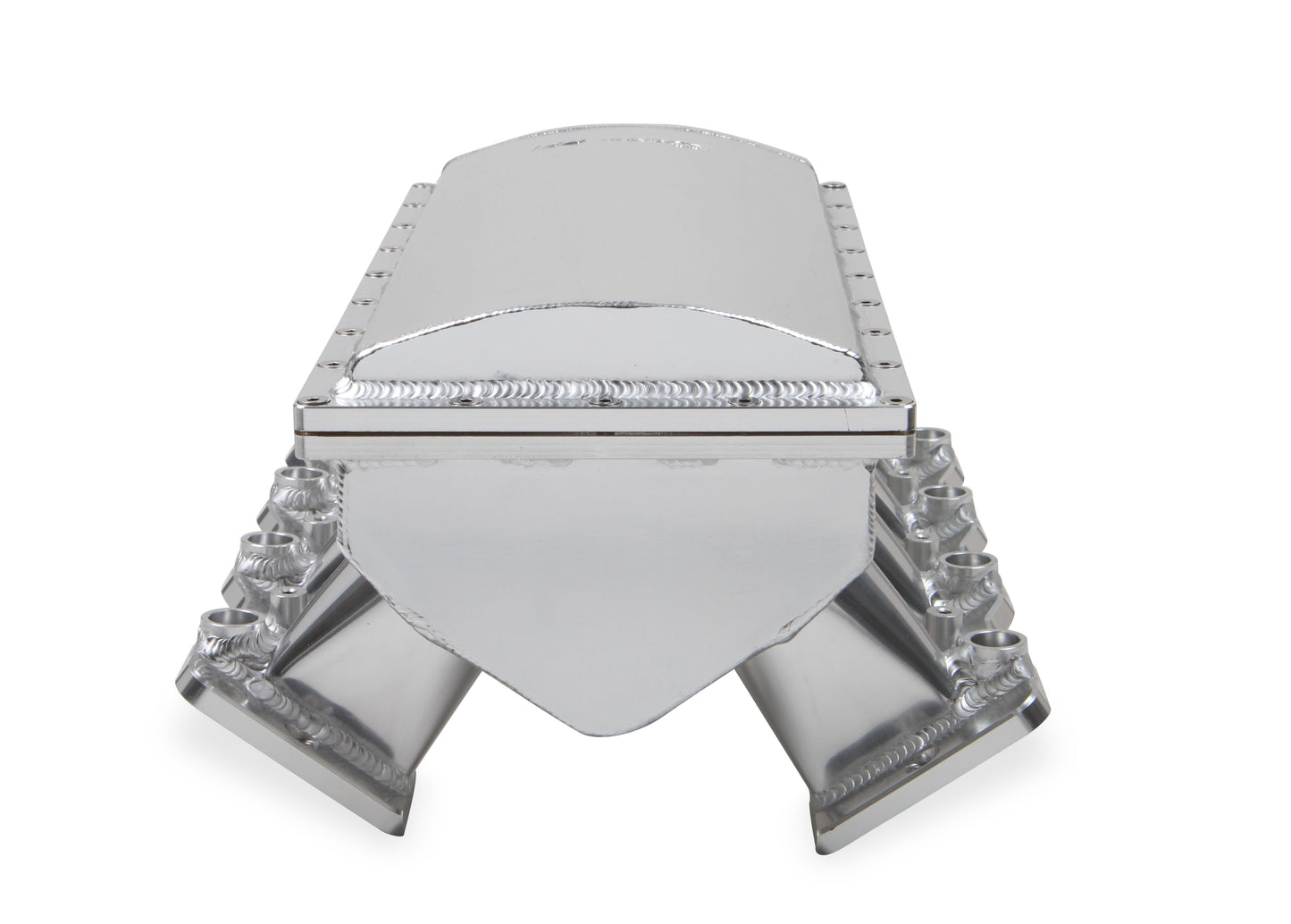

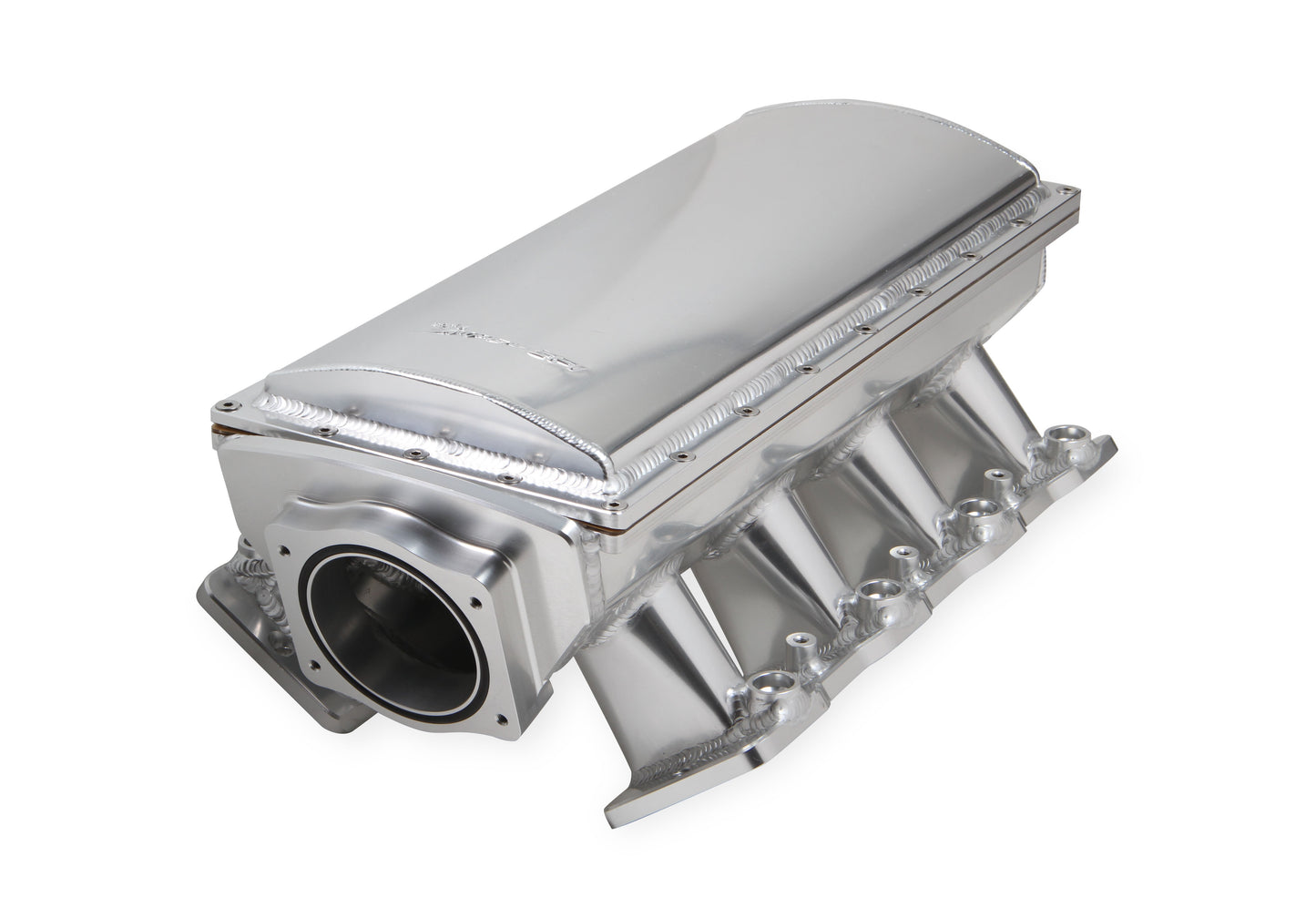

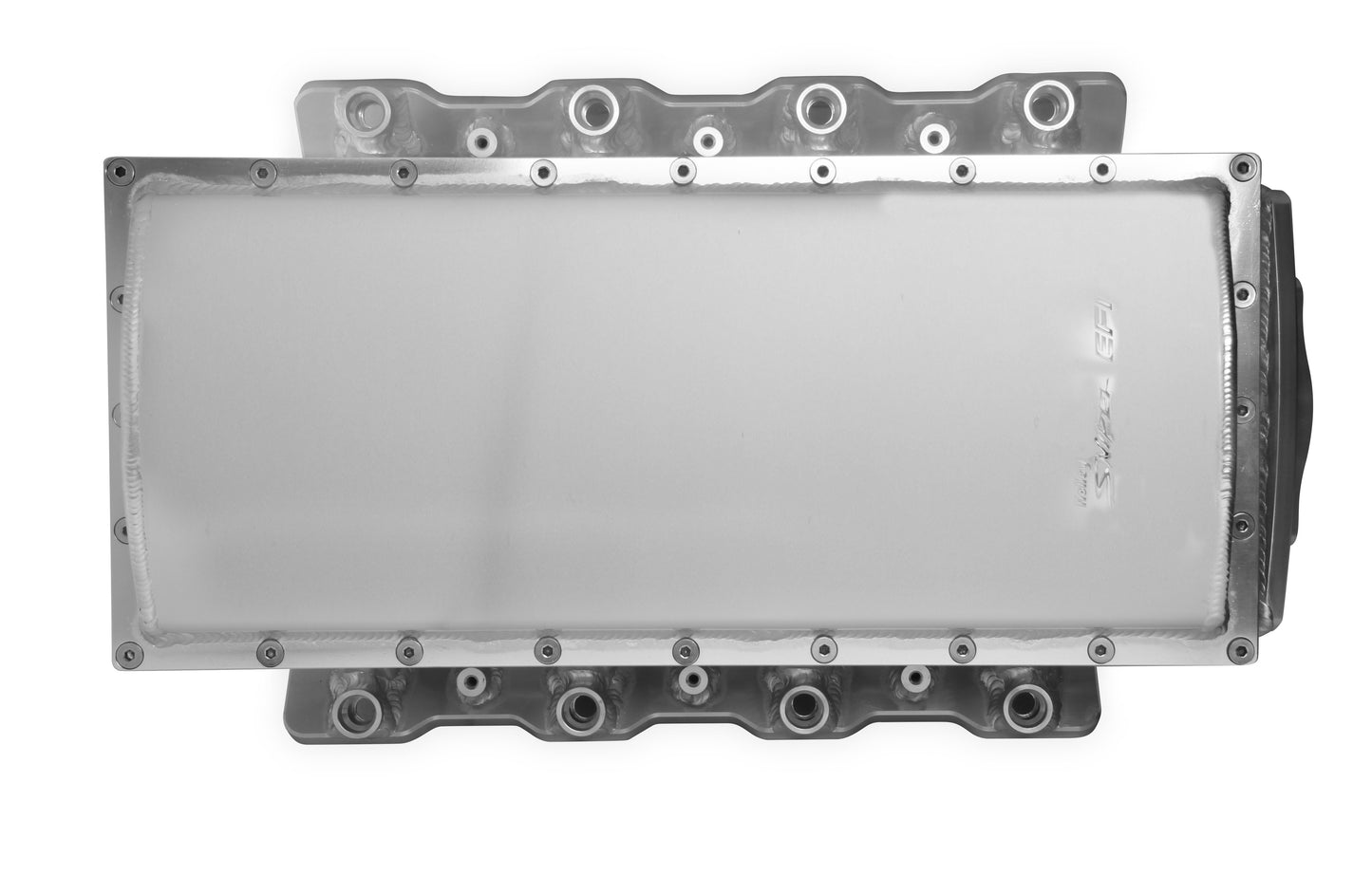

Sniper EFI Fabricated Race Series Intake Manifold - GM LS1/LS2/LS6 - Silver

Sniper EFI Fabricated Race Series Intake Manifold - GM LS1/LS2/LS6 - Silver

Hi-Ram Sheet Metal Fabricated Intake Manifold LS7 102mm Throttle Body opening + Fuel Rail Kit Silver with Sniper logo -Low Profile

Overview
Holley Sniper Fabricated Manifolds continues to push the aftermarket by introducing Low Profile intakes for GM LS Engines. These Intakes are a good looking, perform well, and offer an extremely good value for a performance sheet metal style intake manifold for the very popular GM LS engine family. Each manifold is ready to bolt on out of the box and are designed to accept our Sniper high-flow throttle bodies and include high flow fuel rail kit. This updated design was developed to allow the end user to fit under a stock hood. Each manifold is precision fixtured and welded for a perfect fit and maximum structural integrity. Choice of Throttle Body opening sizes of 92mm & 102mm are available

*** This intake is designed to work with stock LS heads. The use of some aftermarket cylinder heads may result in port misalignment ***

Features:

• Silver finish creates high impact under-hood styling
• 5mm (13/64") thick T6061 sheet aluminum construction for maximum durability

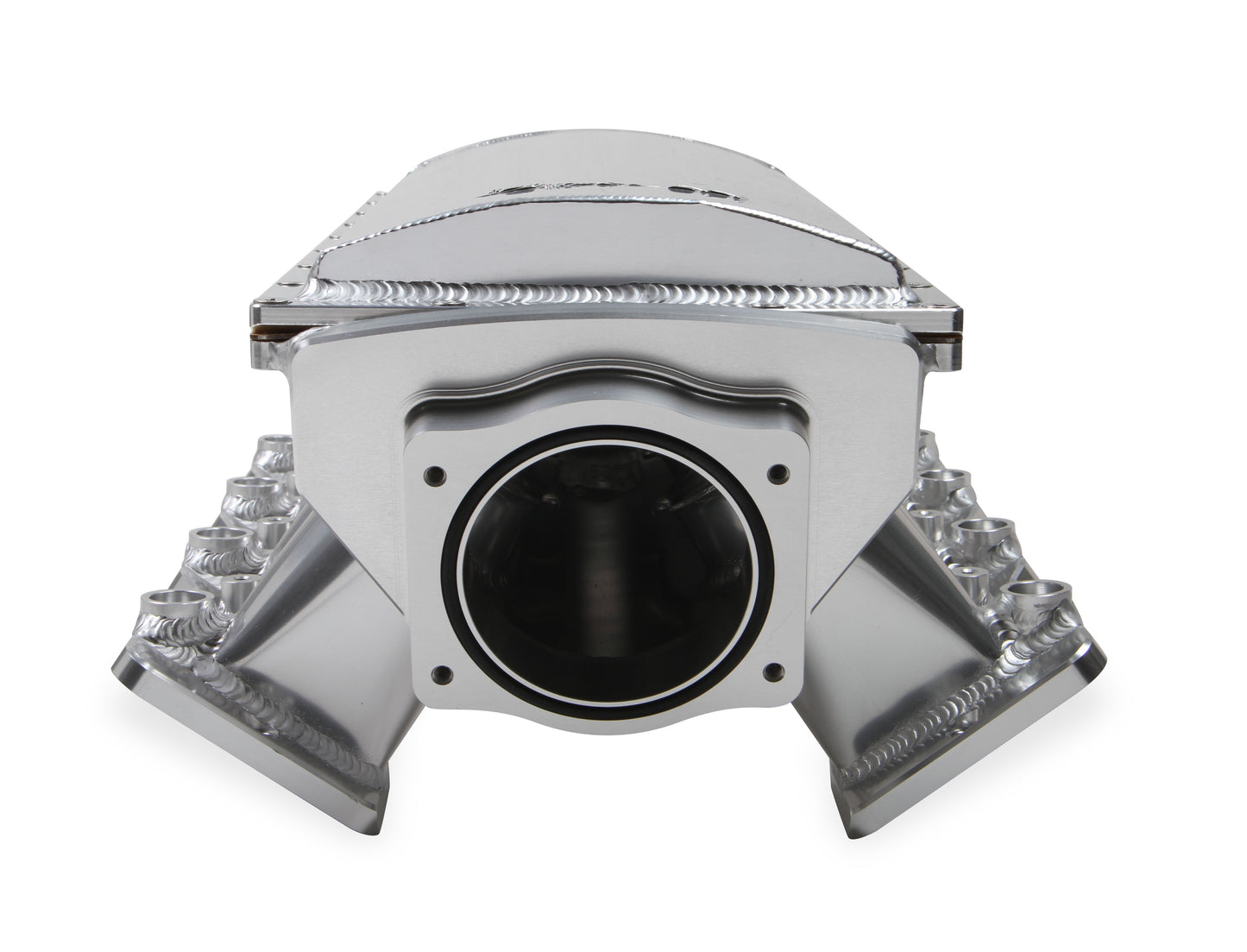

• 90mm throttle bore opening for increased air flow

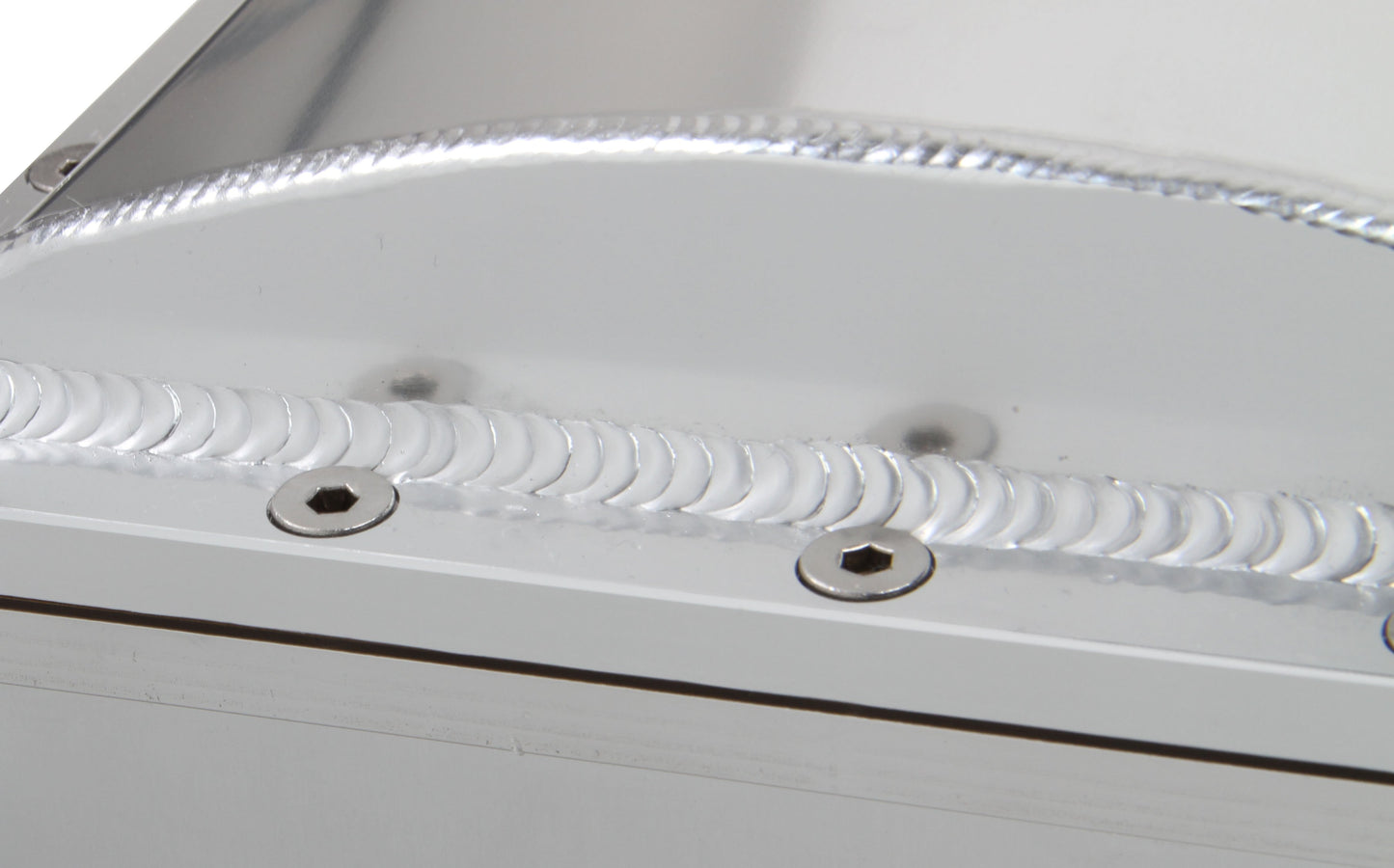

• 100% TIG welded for strength and durability

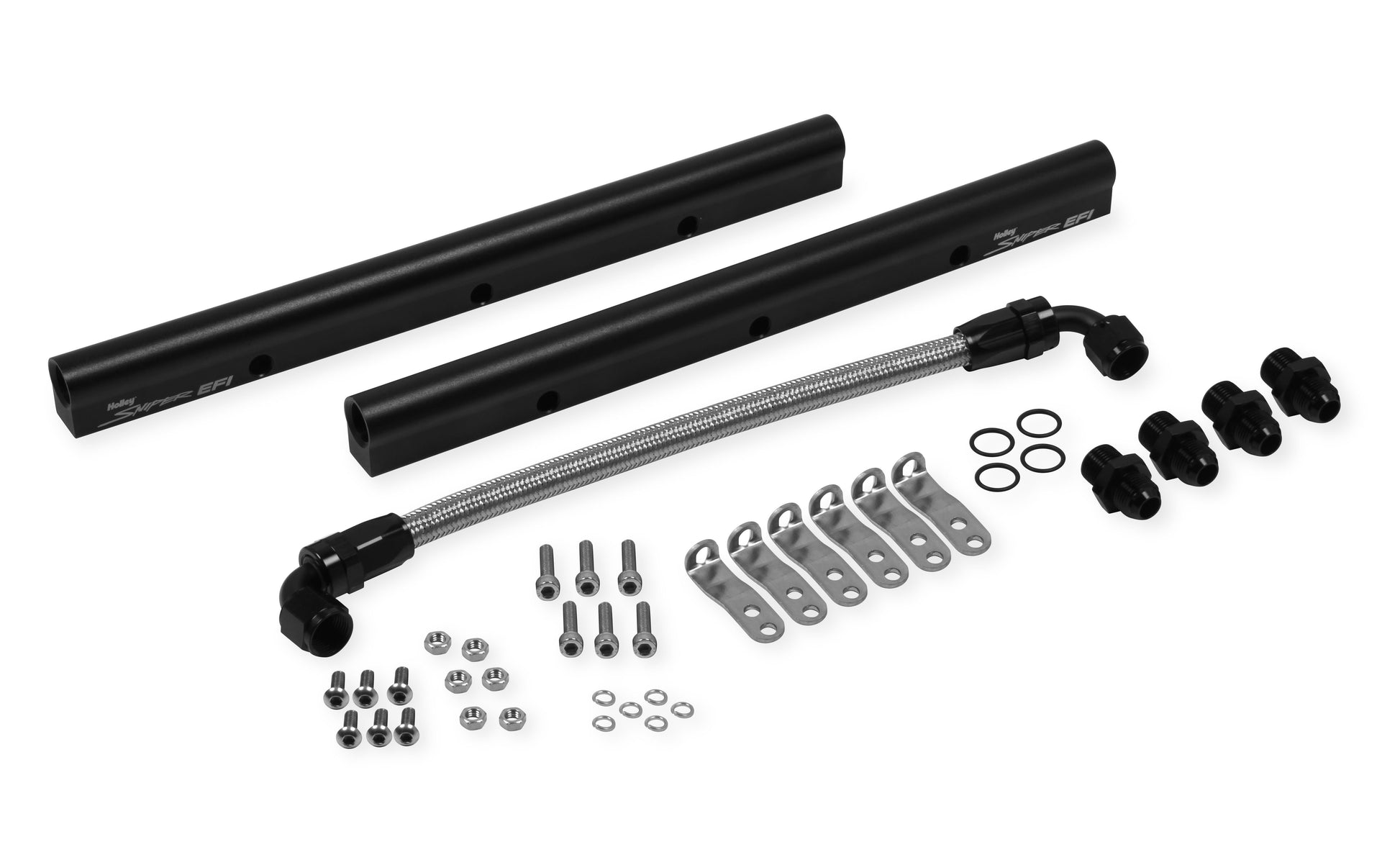

• Includes 3/8" Fuel rail kits (Sniper logo laser engraved)

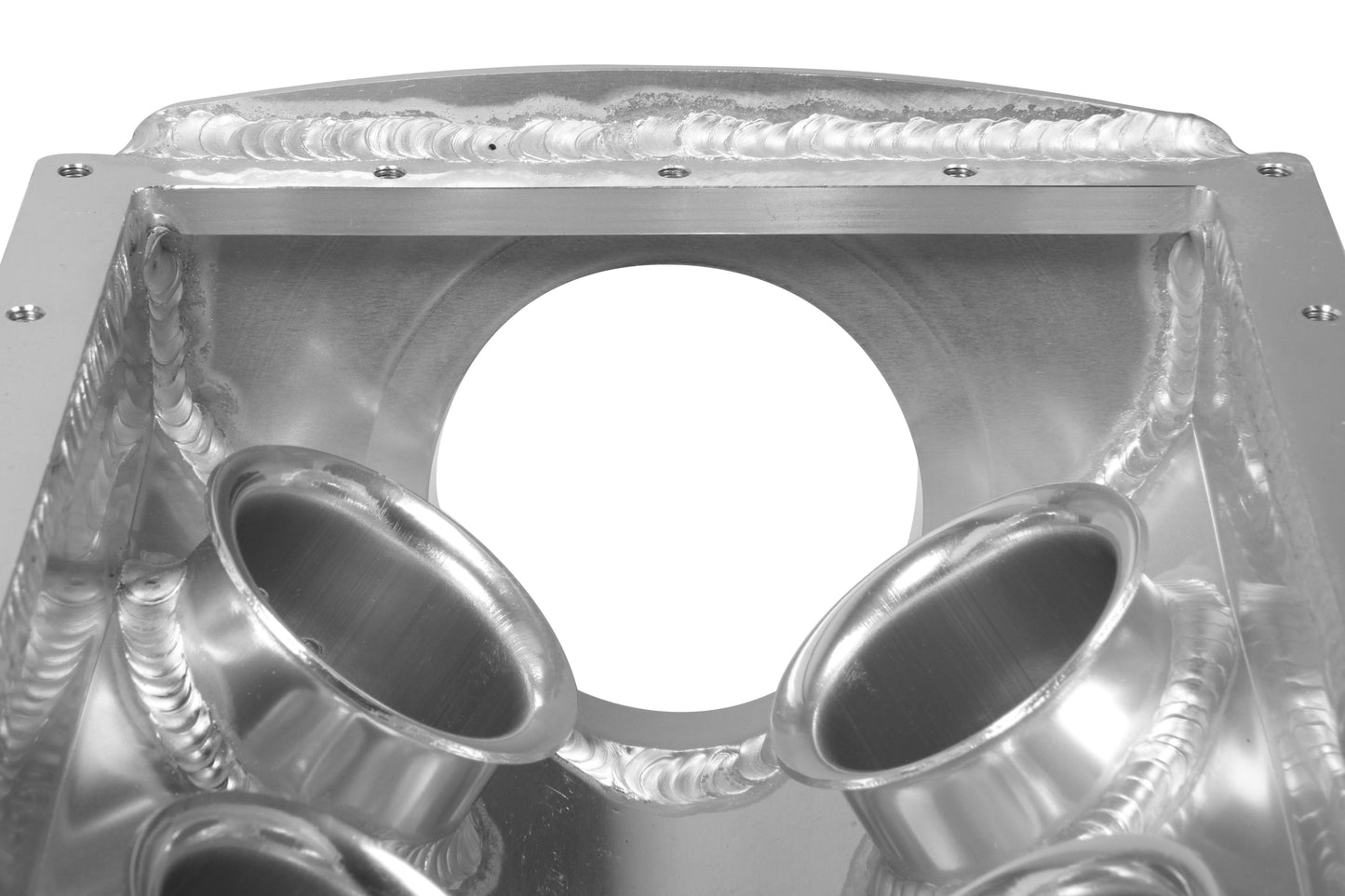

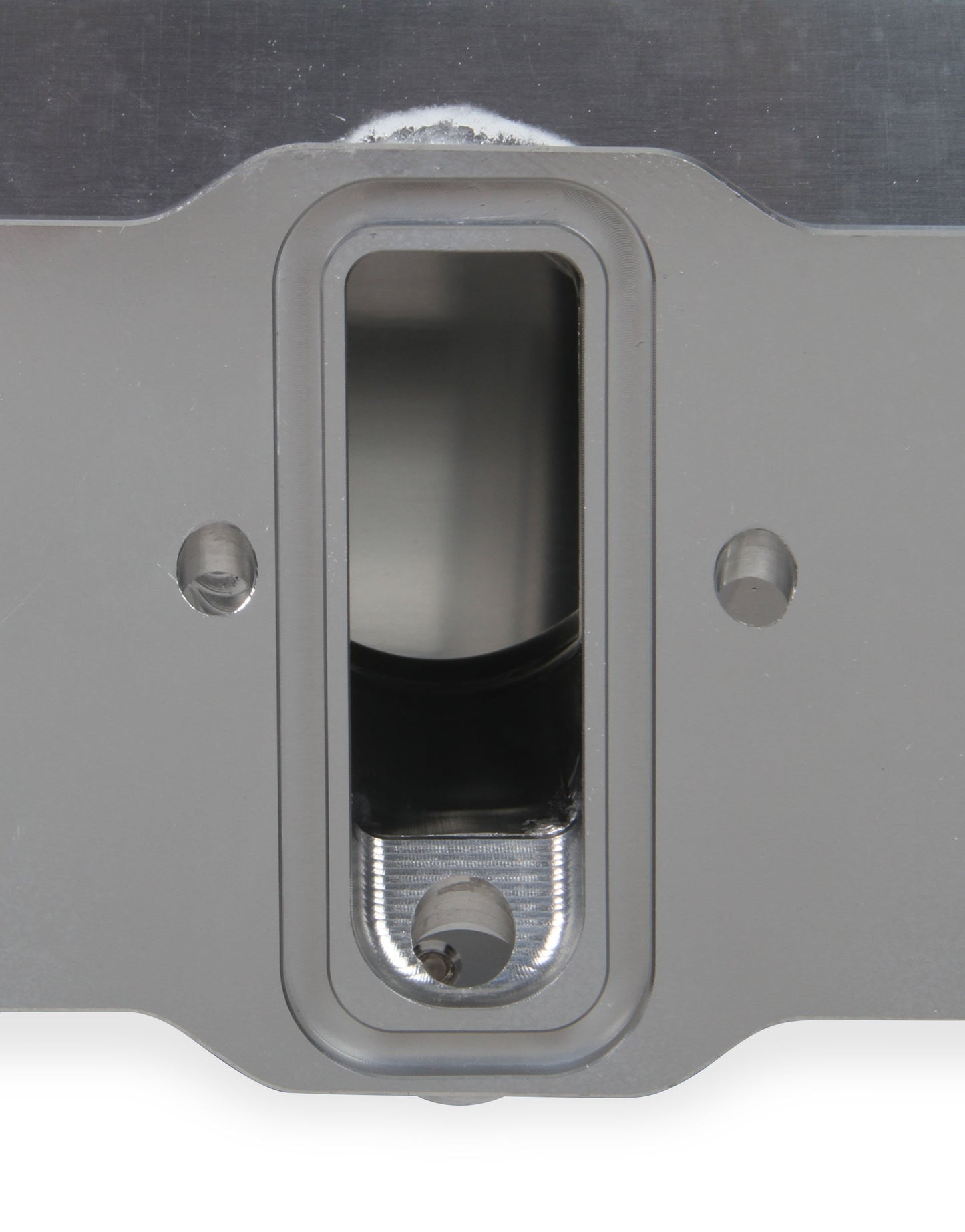

• Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response

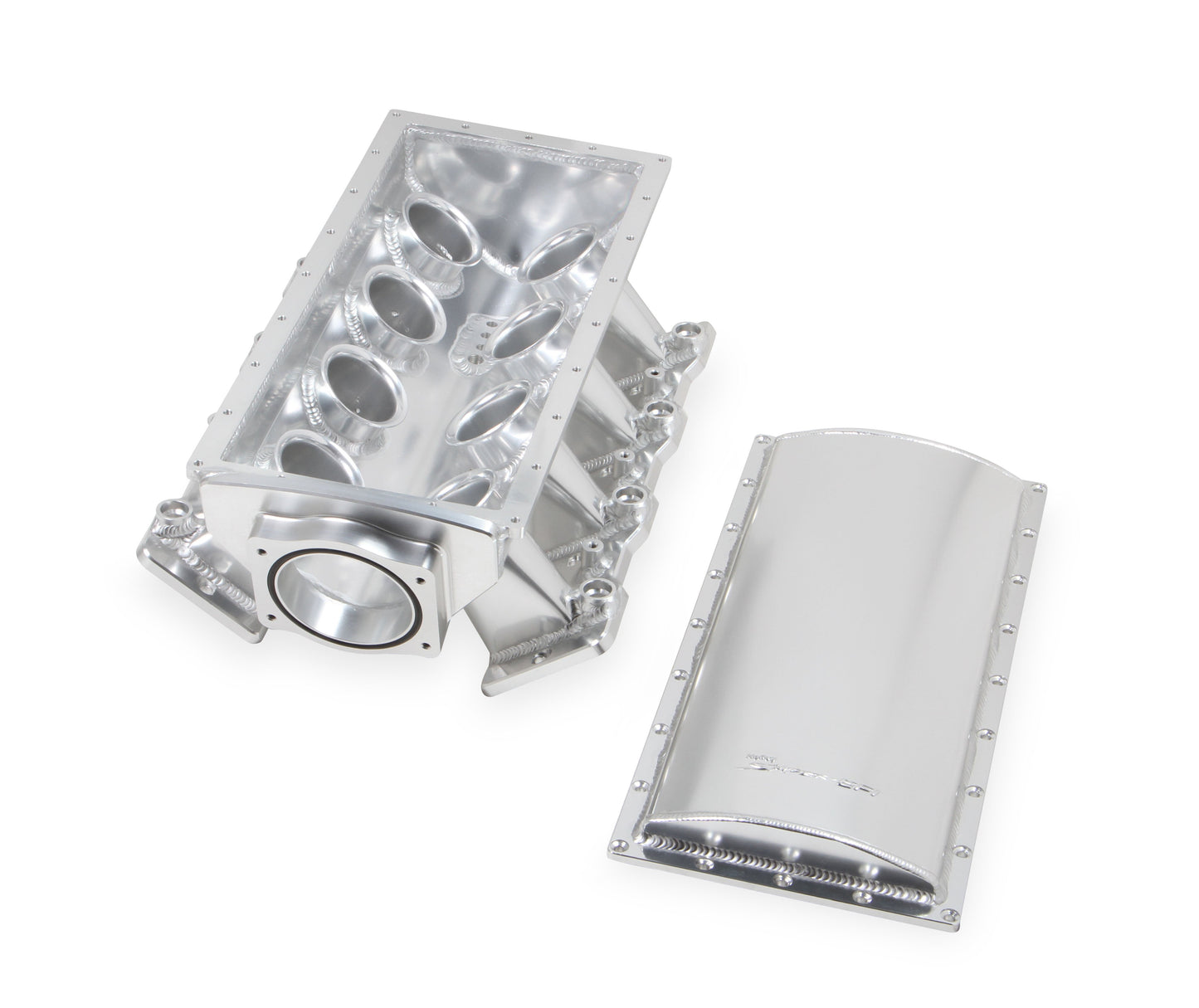

• Removable top for ease of inspection, modification, and addition of sensors
• Welded seams inside and out for added strength and durability on high horsepower, max-effort engines and boosted applications
• Larger Intake plenum vs. standard Sniper EFI manifolds for max effort engines and boosted applications
• Longer Intake runner lengths offering a wider RPM operating range of 2100-8200 RPM
• Product includes all gaskets and hardware for a hassle-free installation
• The Sniper intake will only accept EV1 style injectors.

Details:

• Color: Silver
• Construction: Fabricated
• Engine: GM LS1/LS2/LS6
• Finish: Silver
• Front Height: 9.62 inch
• Fuel System Type: EFI
• Injector Style Provision: EV1
• Manifold Type: Fabricated
• Rear Height: 9.015 inch
• Recommended Use: Forced Induction
• RPM Power Band: 3500-8000 RPM
• Runner Length: 4.527" (115mm)
• Style: EFI
• Throttle Bore: 90mm
• Vacuum Ports: (3) 1/8"-28BSPT & (1) 1/4"-19BSPT
• Warranty: Limited 90 Day
