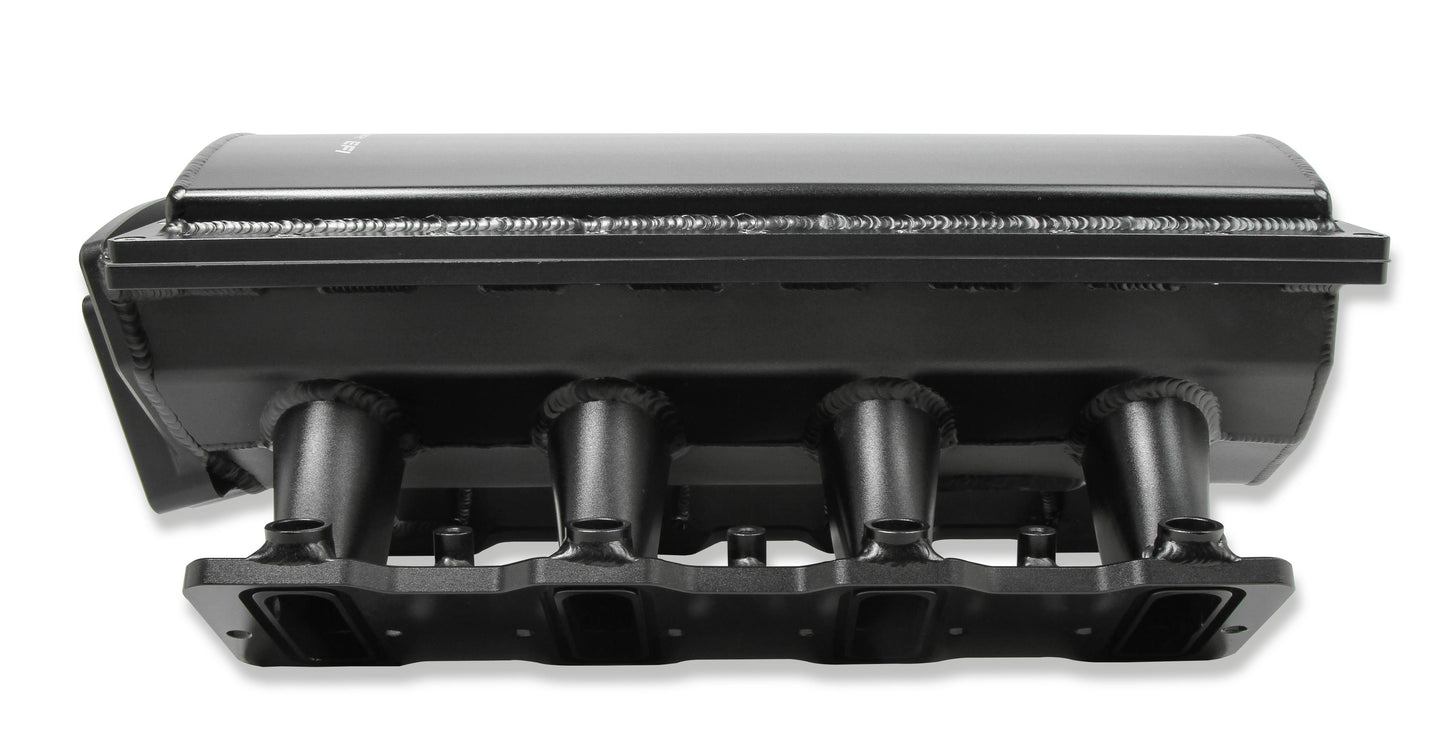

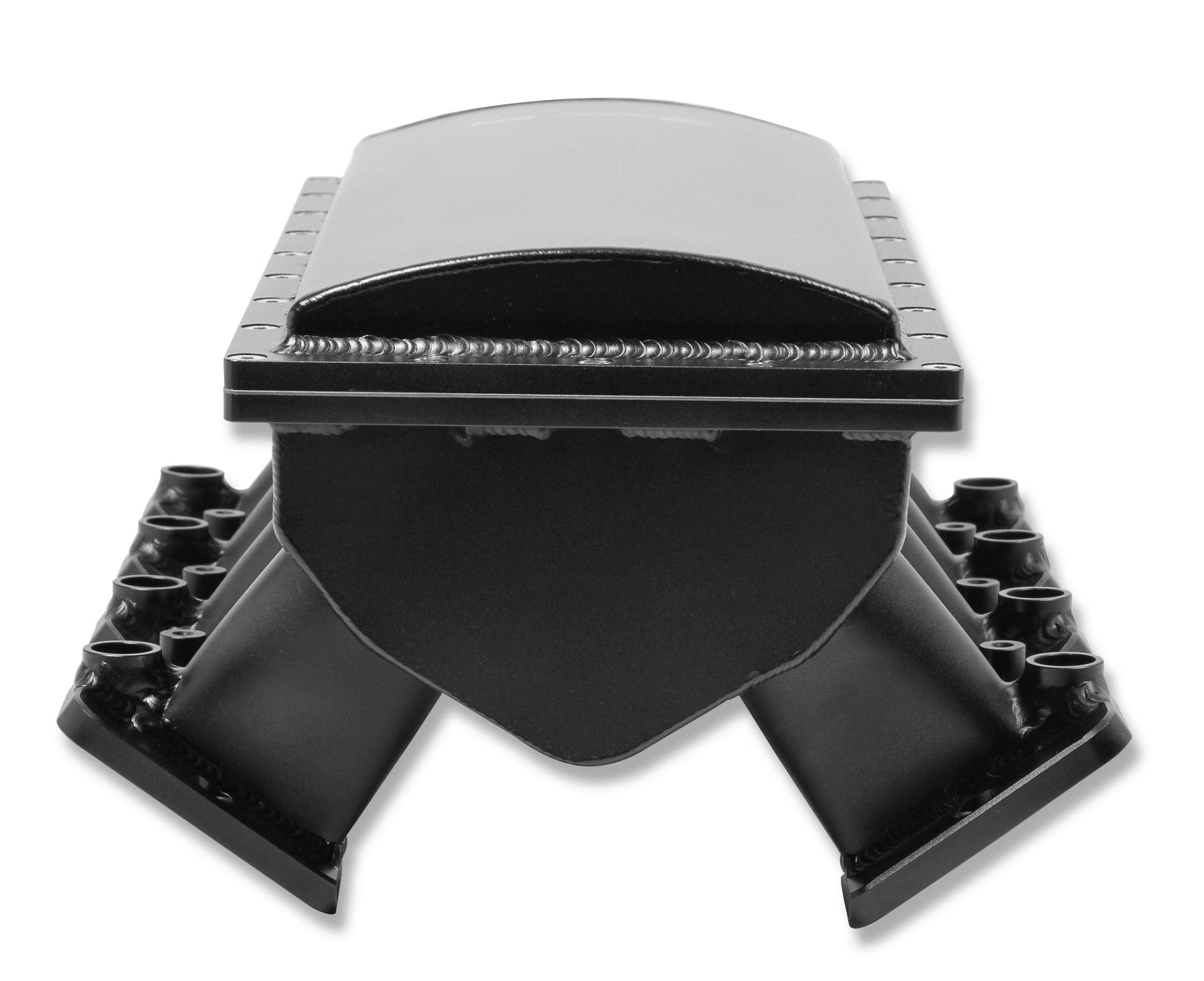

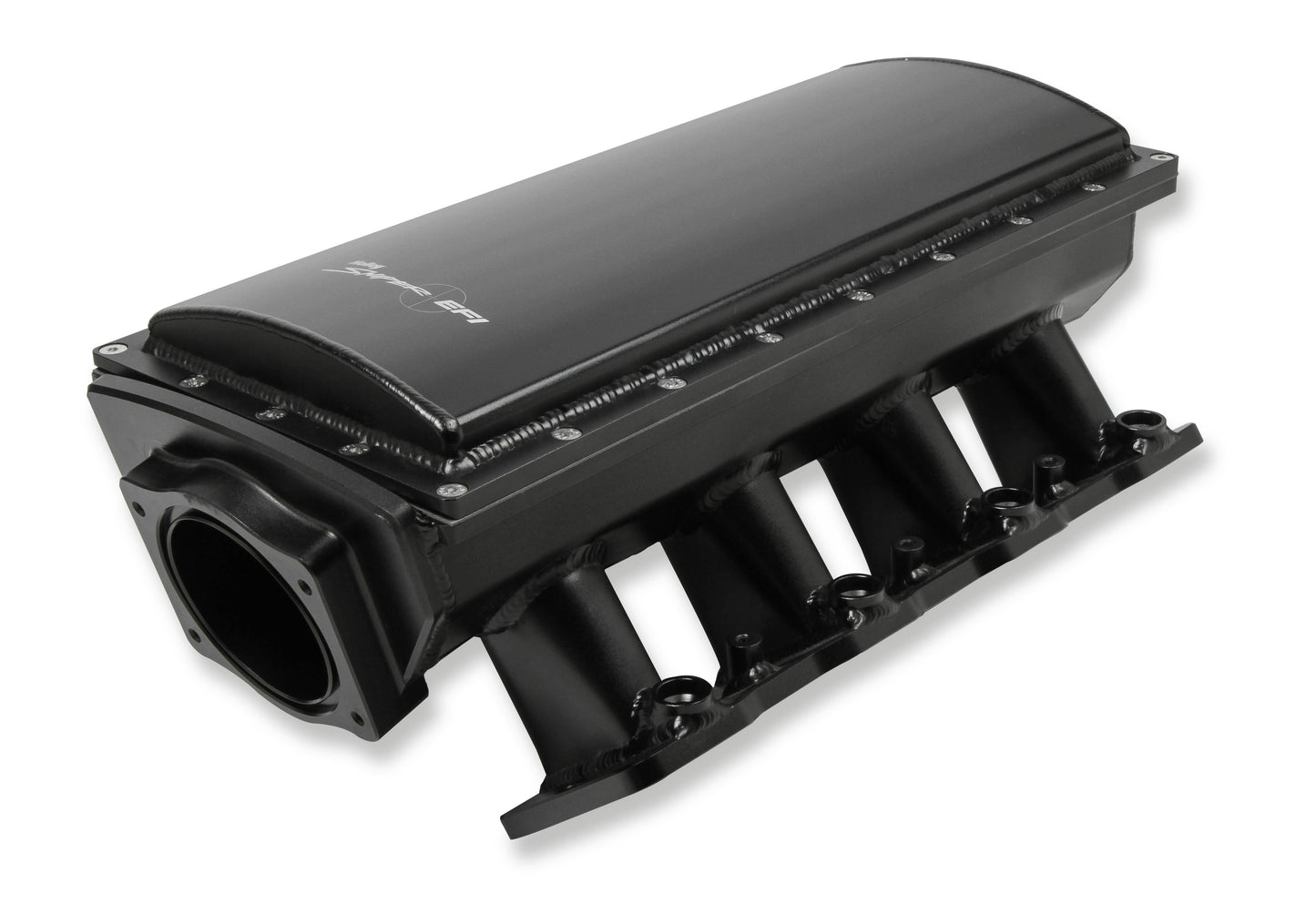

Sniper EFI Fabricated Race Series Intake Manifold - GM LS1/LS2/LS6 - Black

Sniper EFI Fabricated Race Series Intake Manifold - GM LS1/LS2/LS6 - Black

Hi-Ram Sheet Metal Fabricated Intake Manifold LS1/LS2/LS6 90mm Race Series w/ Removable top, Throttle Body Spacer & Fuel Rail Kit w/ Sniper EFI Logo - Silver

Overview
Holley Sniper EFI Fabricated Manifolds continues to push the aftermarket by introducing our latest Race Series line of intakes for GM LS 1/2/6 and Ford Coyote 5.0L engine platforms. Feedback from racers and install shops, related to our original line of EFI intakes launched in 2015, were critical in the development of these Race Series manifolds. These Intakes are more robust, good looking, perform above and beyond the original Sniper EFI series of intakes, and offer a very competitive alternative to much higher priced offerings in the marketplace making for a compelling value for those in the market for a high-performance sheet metal style intake manifold. Each manifold is ready to bolt on out of the box and are designed to accept our Sniper high-flow throttle bodies and include high flow fuel rail kit, TB Spacer, and a removable top. Each manifold is precision fixtured and welded for a perfect fit and maximum structural integrity.

Features:

• Black Finish creates stealthy under-hood styling
• 5mm (13/64") thick T6061 sheet aluminum construction for maximum durability

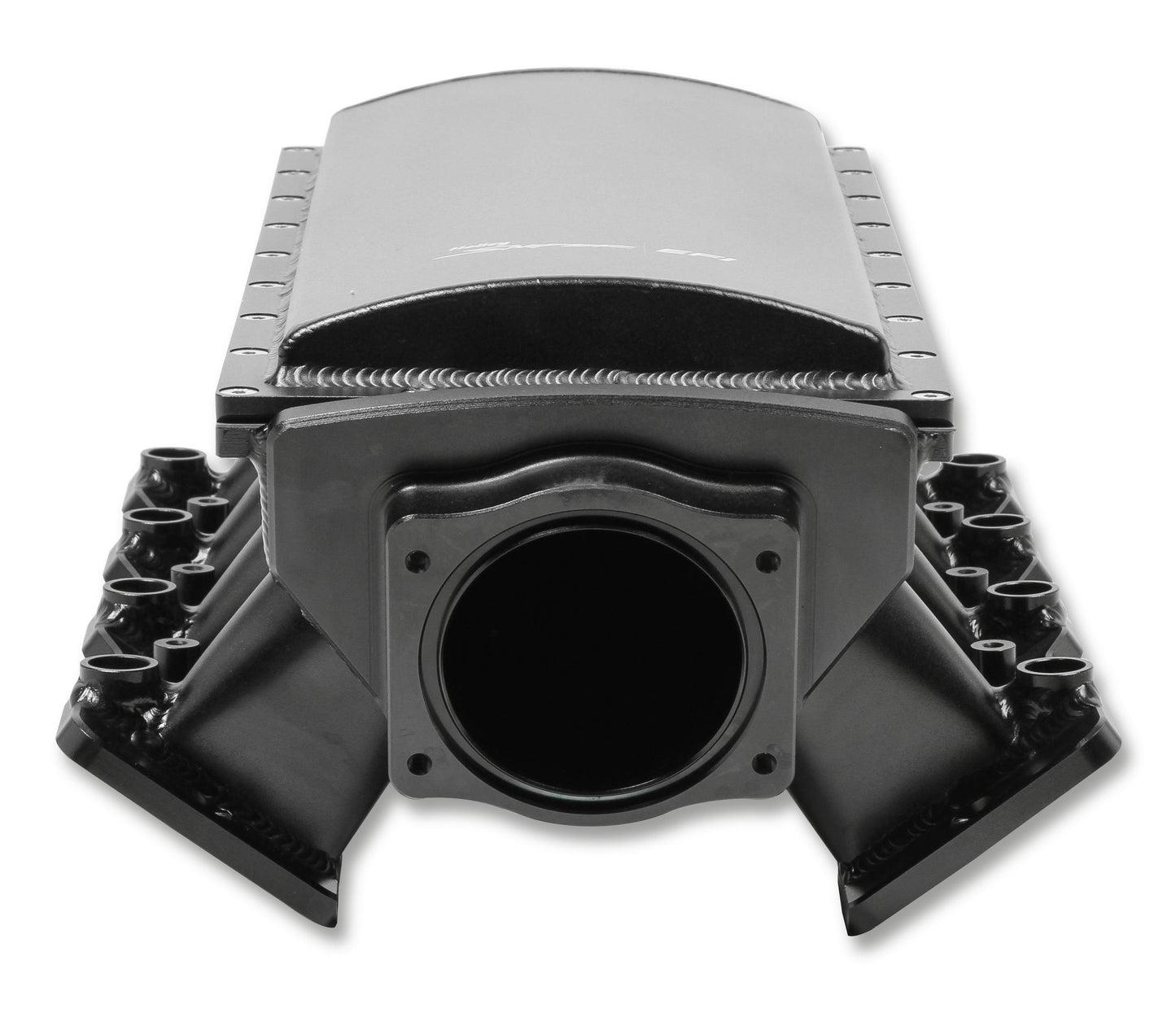

• 90mm throttle bore opening for increased air flow
• 100% TIG welded for strength and durability
• Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
• Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response

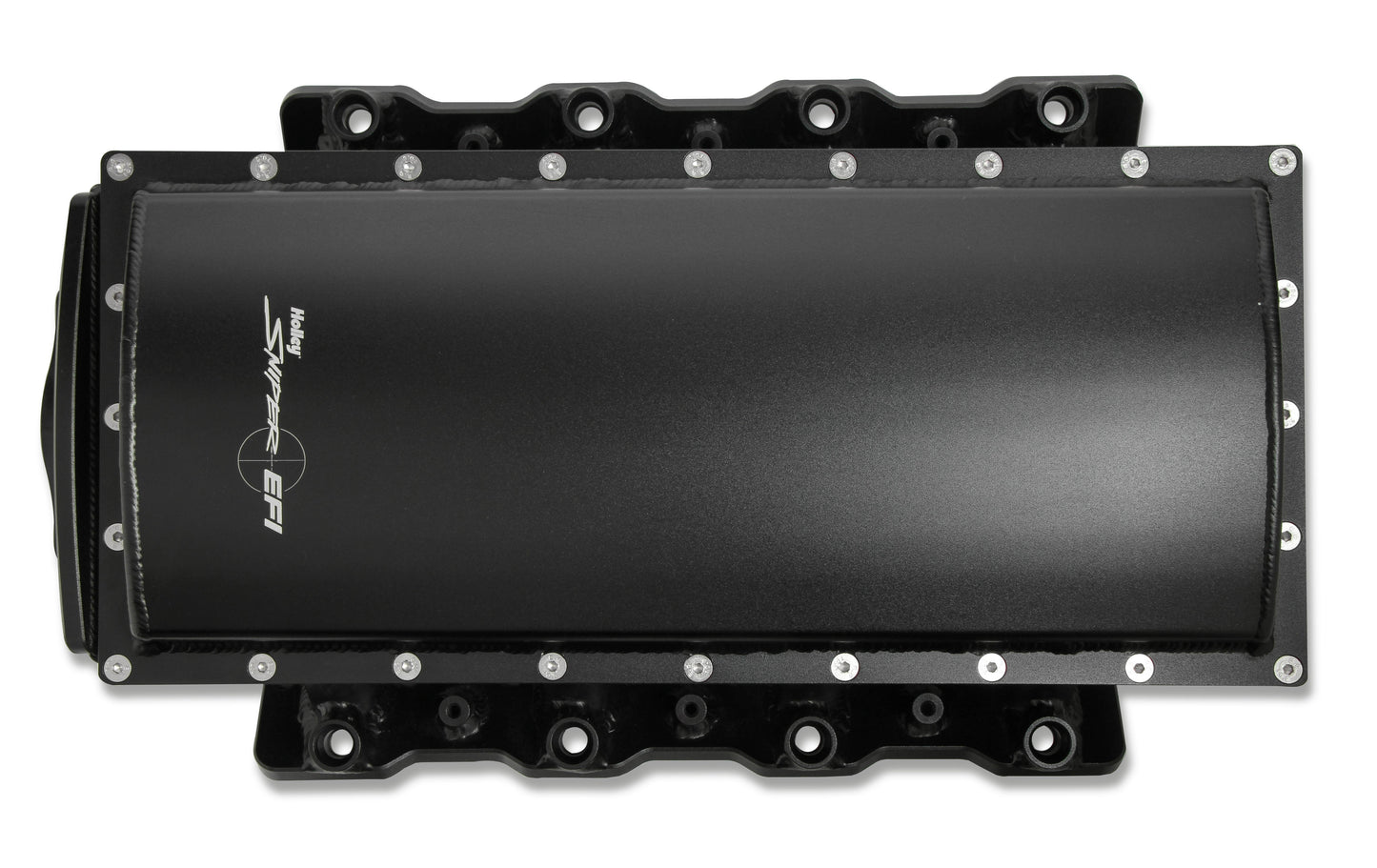

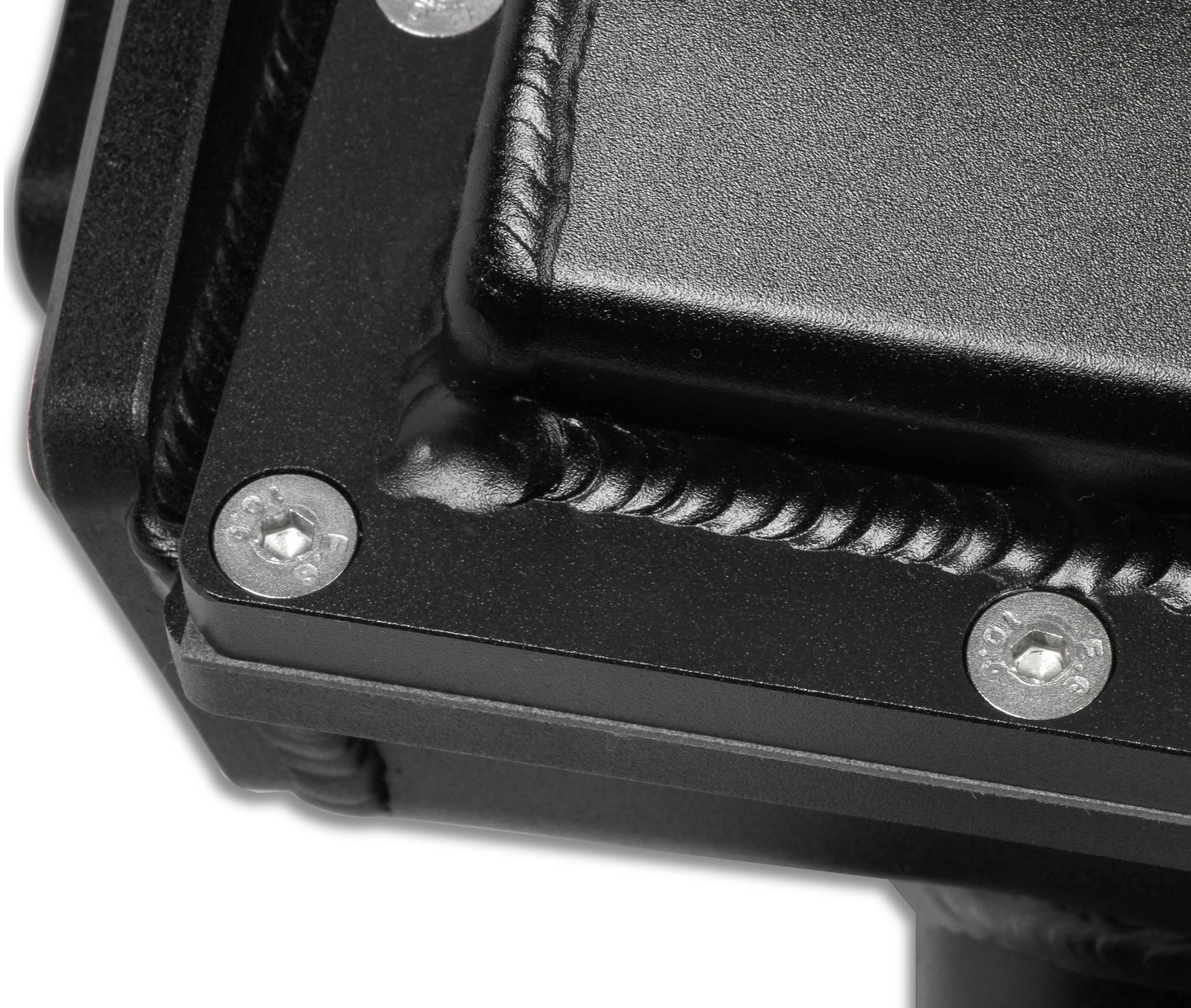

• Removable top for ease of inspection, modification, and addition of sensors

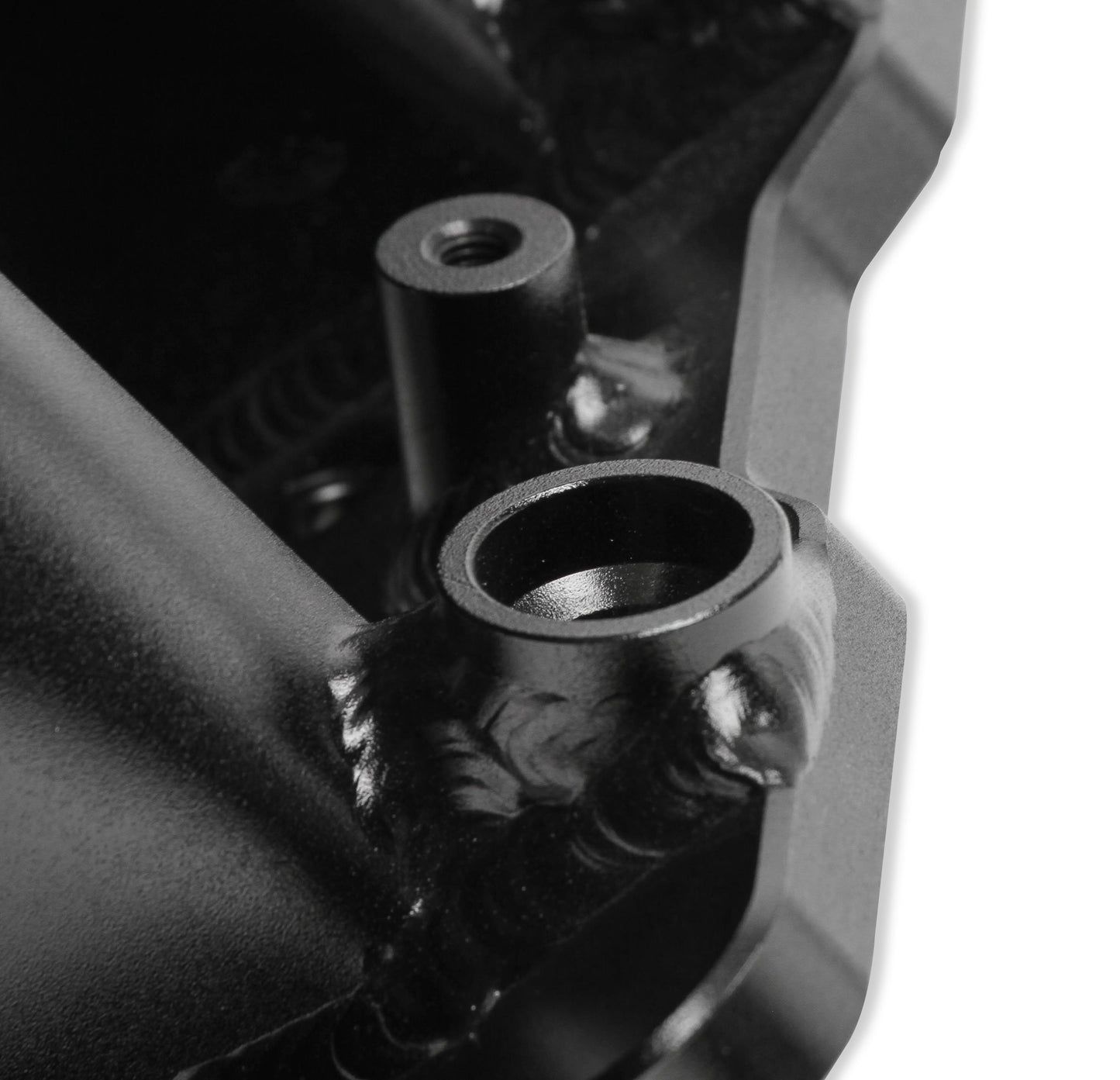

• Welded seams inside and out for added strength and durability on high horsepower, max-effort engines and boosted applications
• Larger Intake plenum vs. standard Sniper EFI manifolds for max effort engines and boosted applications
• Longer Intake runner lengths offering a wider RPM operating range of 2100-8200 RPM

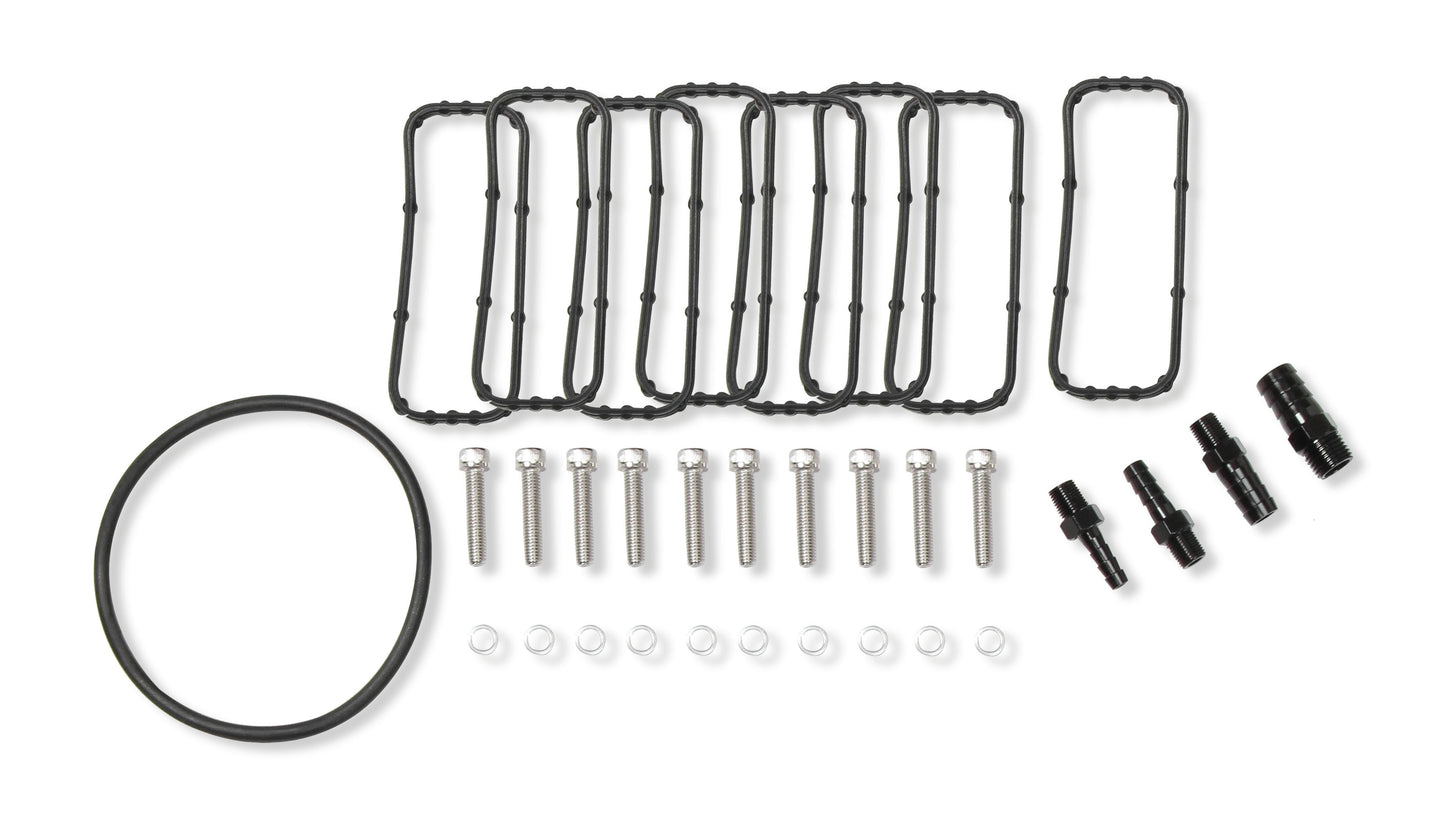

• Product includes all gaskets and hardware for a hassle-free installation
• The Sniper intake will only accept EV1 style injectors.

Details:

• Color: Black
• Construction: Fabricated
• Engine: GM LS1/LS2/LS6
• Finish: Black
• Front Height: 9.62 inch
• Fuel System Type: EFI
• Injector Style Provision: EV1
• Manifold Type: Fabricated
• Rear Height: 9.015 inch
• Recommended Use: Forced Induction
• RPM Power Band: 3500-8000 RPM
• Runner Length: 4.527" (115mm)
• Style: EFI
• Throttle Bore: 90mm

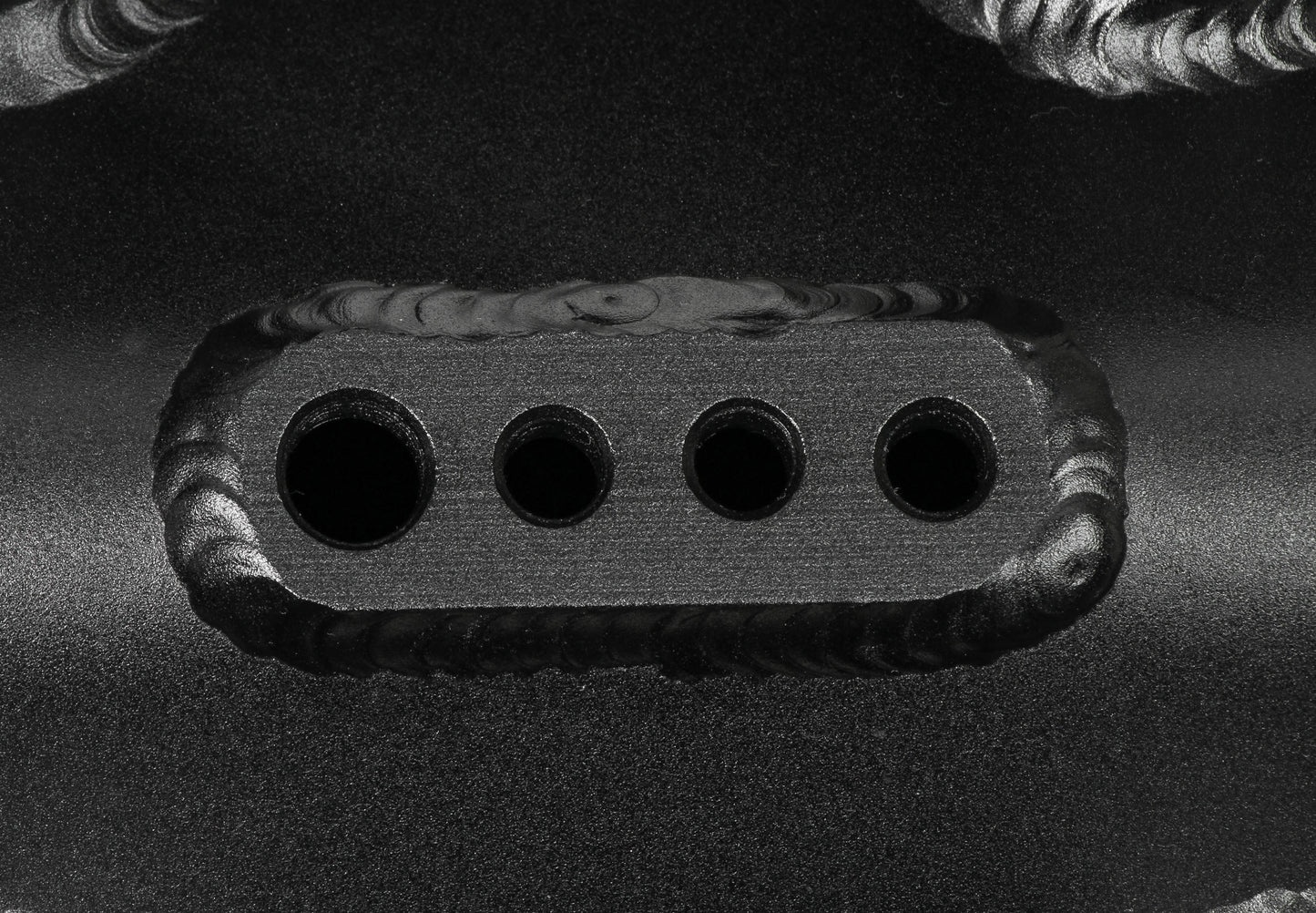

• Vacuum Ports: (3) 1/8"-28BSPT & (1) 1/4"-19BSPT
• Warranty: Limited 90 Day
