Sniper Diecast 340 LPH In-Tank RetroFit Fuel Module w/Return
$449.95
19-350
Regular price
$449.95
Sale price
$449.95
Regular price
$506.95
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Sale
Sniper Diecast 340 LPH In-Tank RetroFit Fuel Module w/Return
SNIPER 340 LPH 90-97 FORD TRUCK LONG BED
Overview

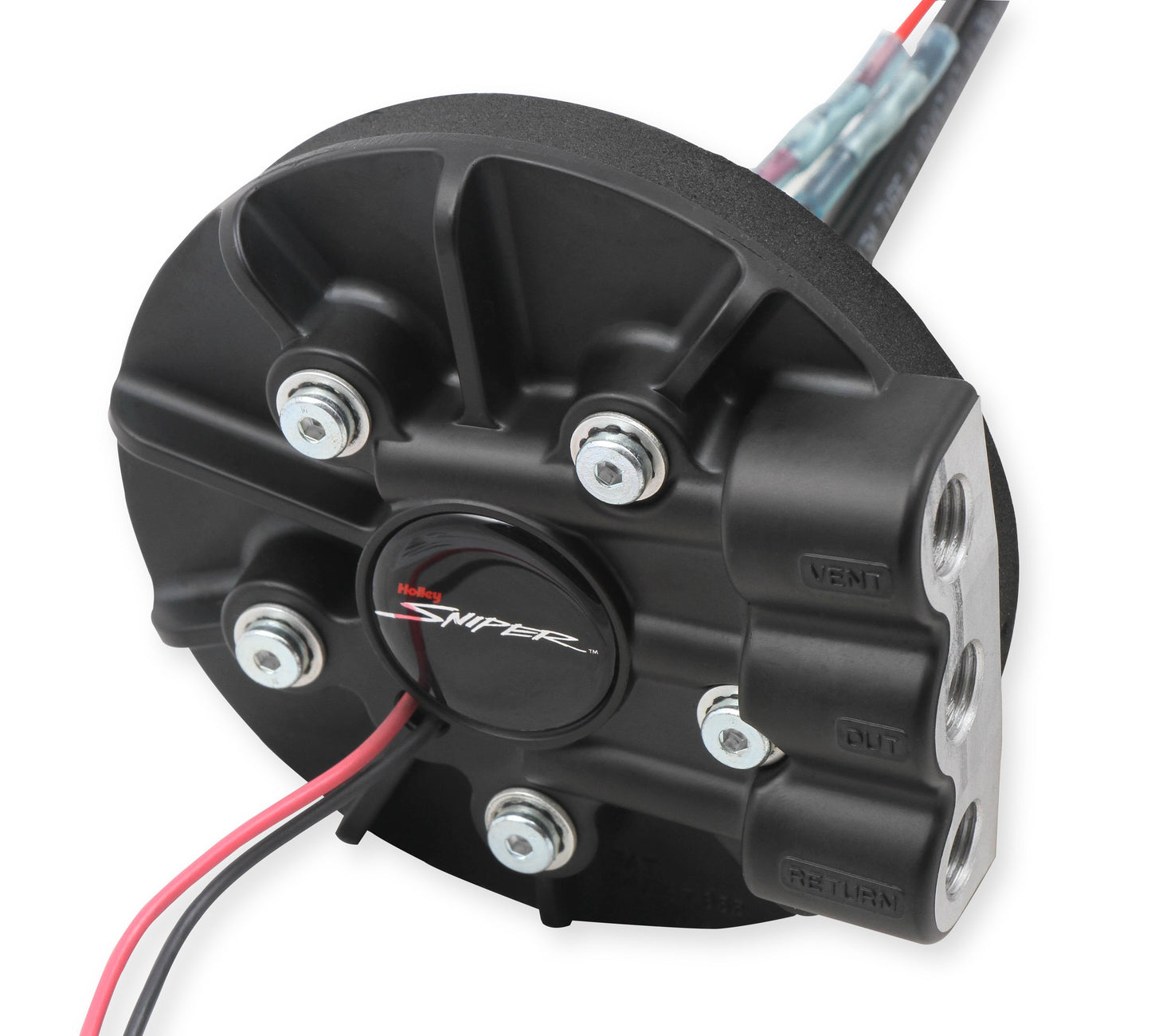

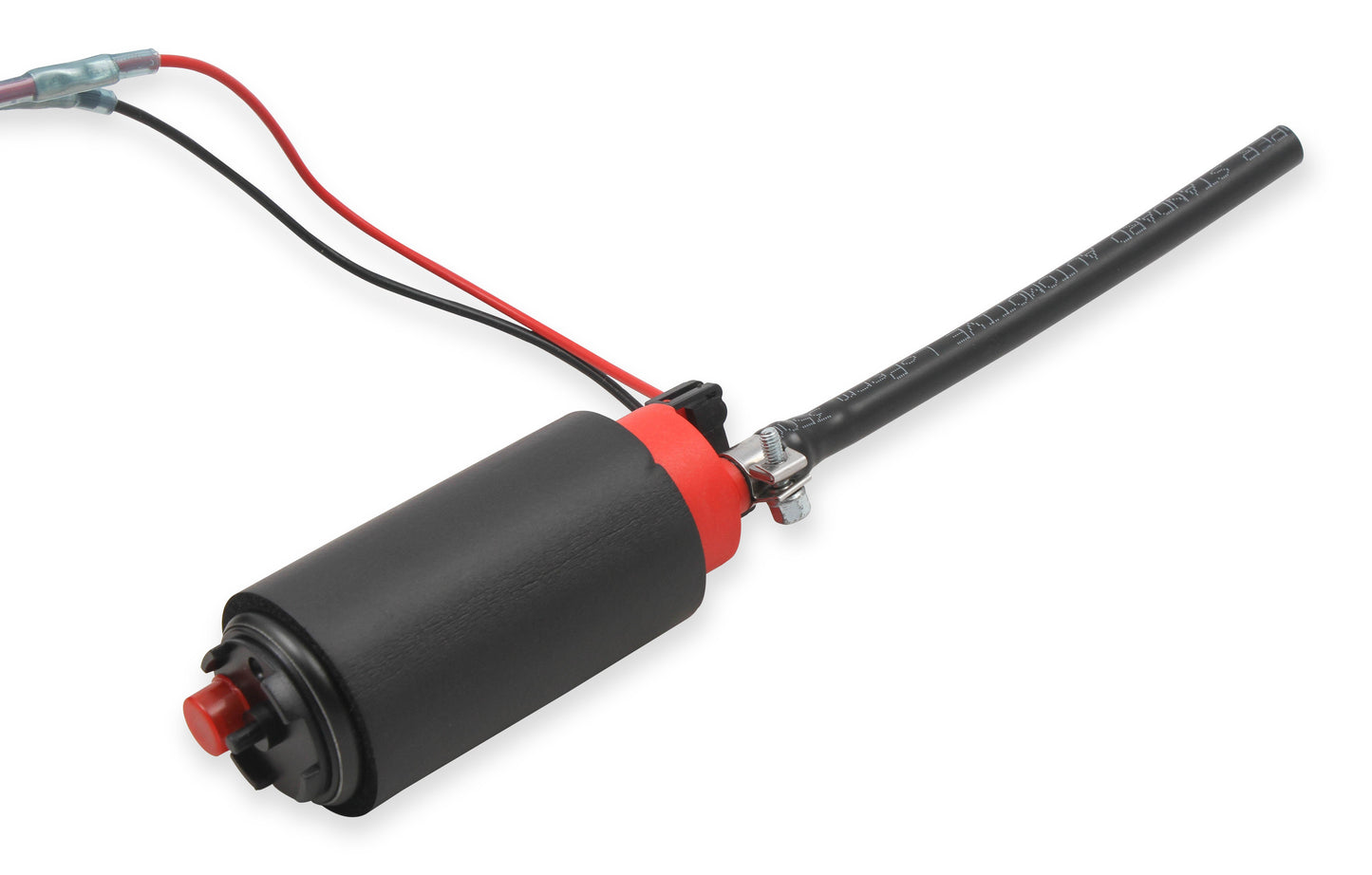

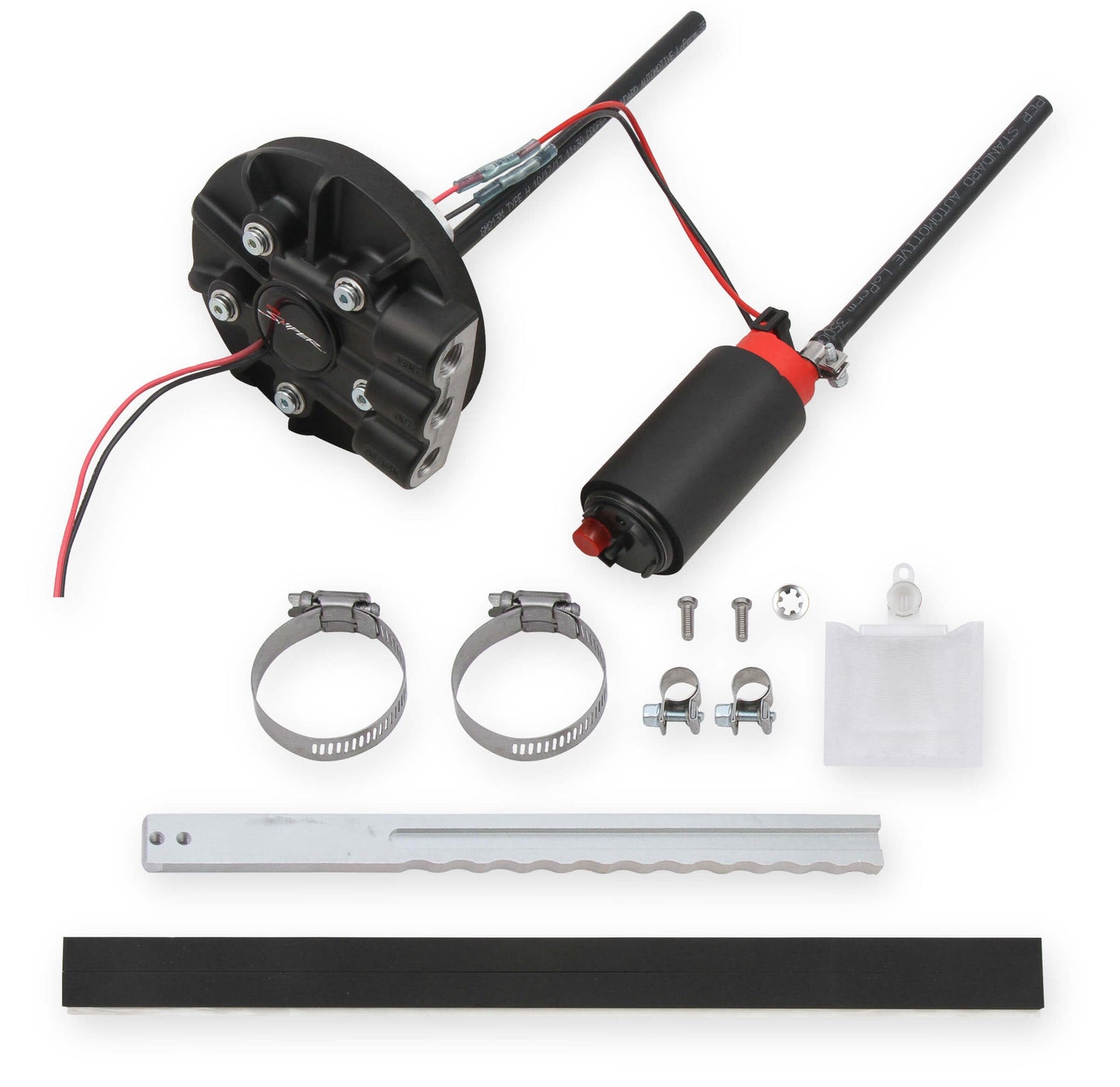

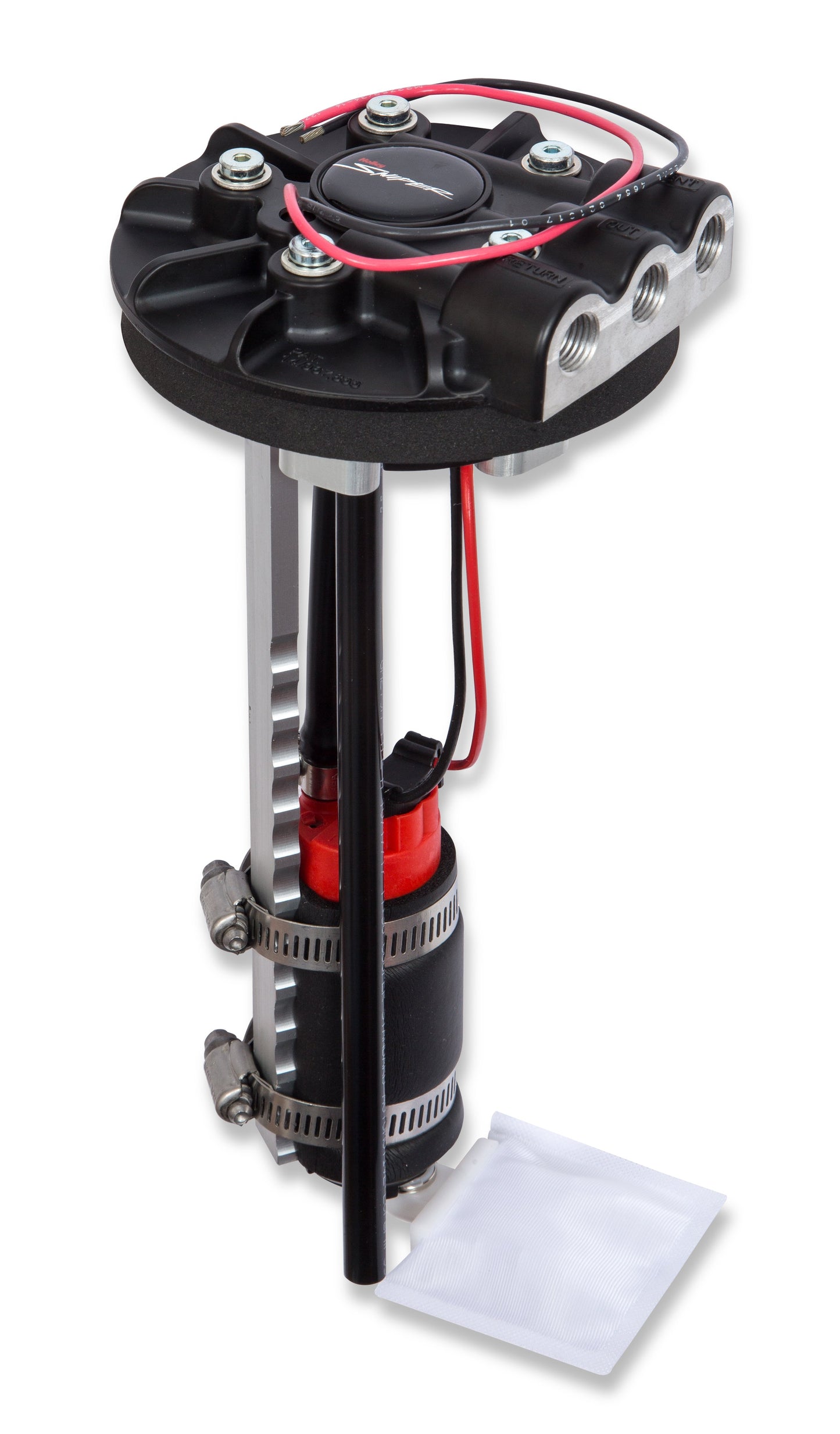

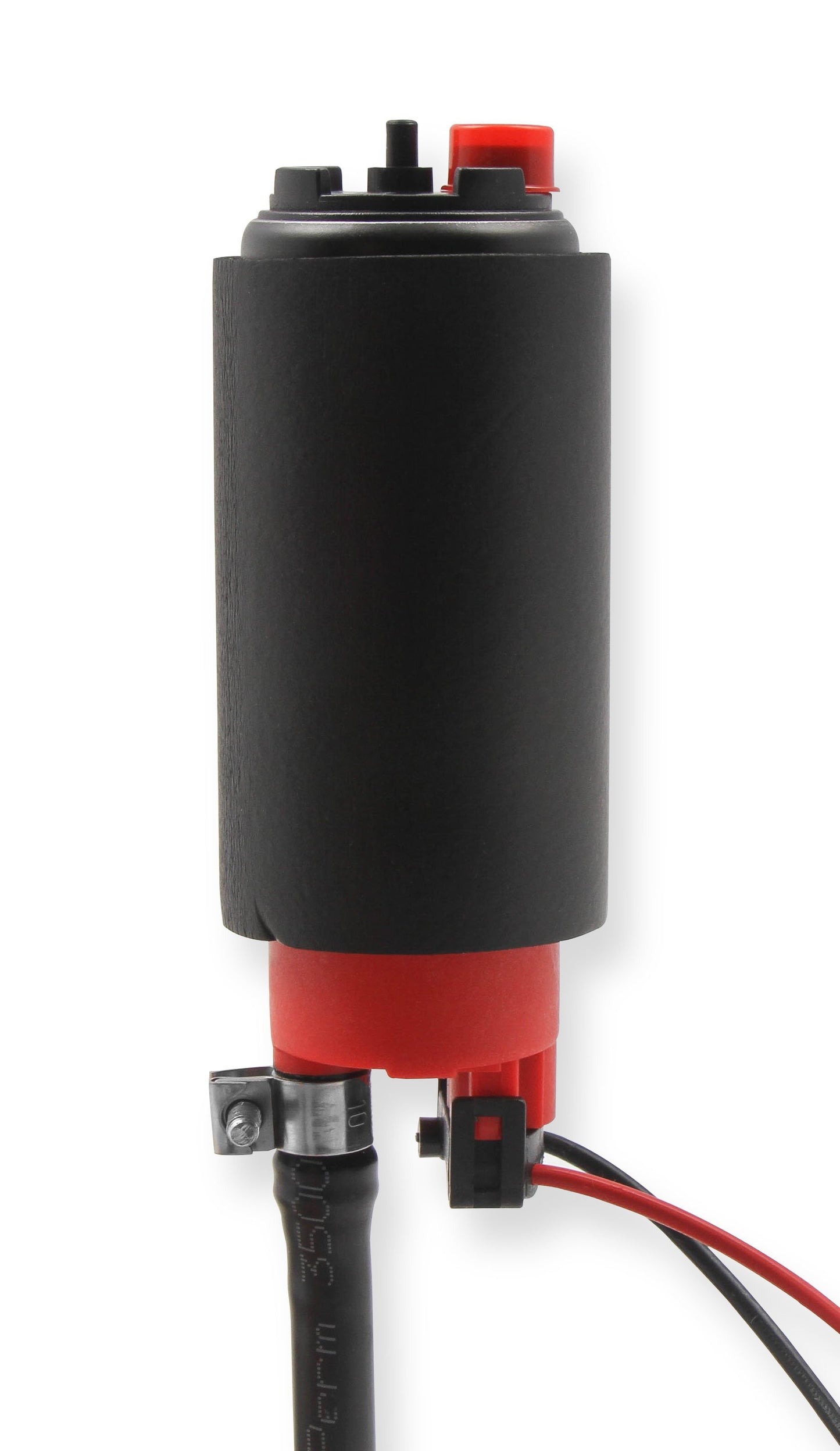

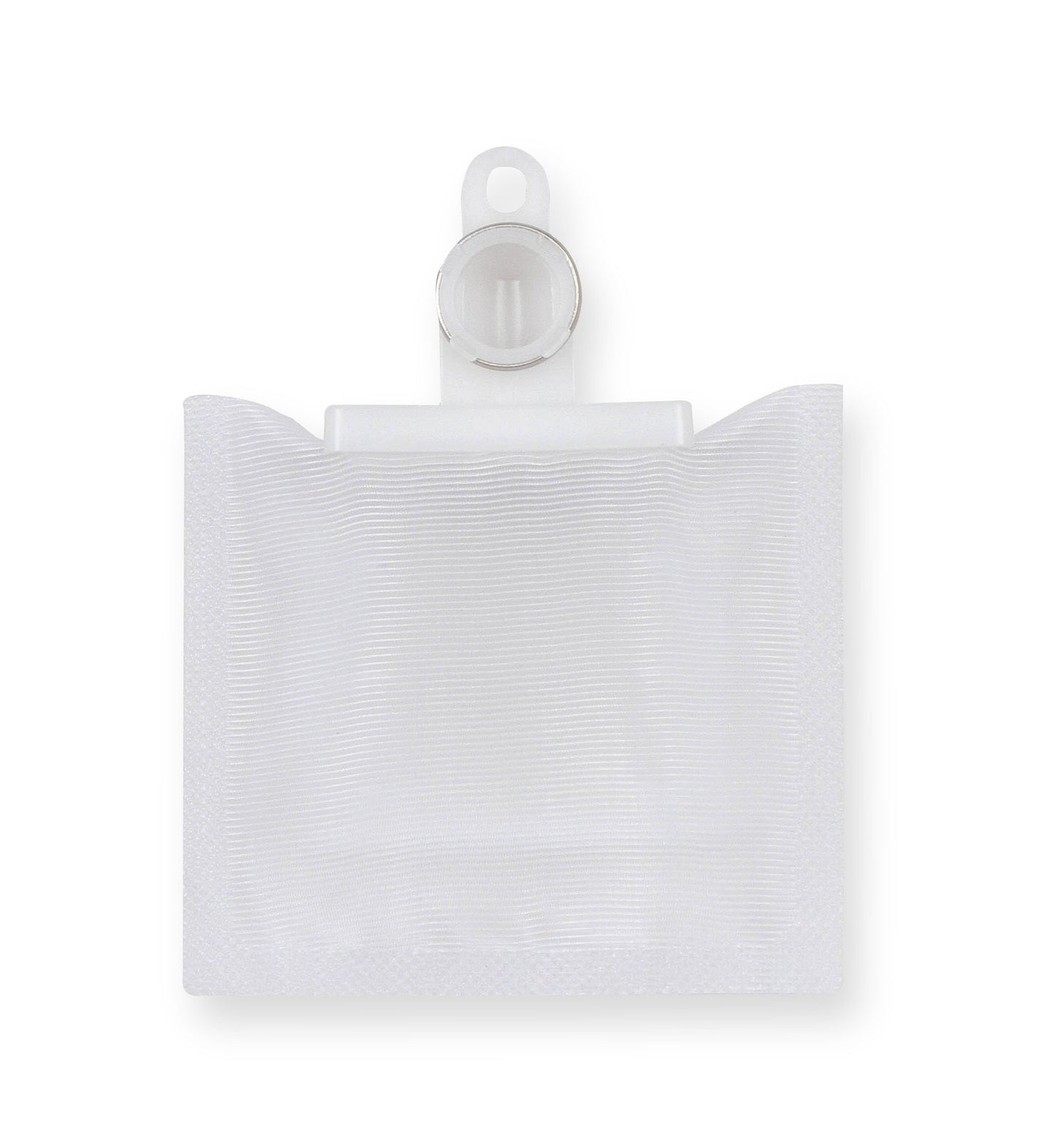

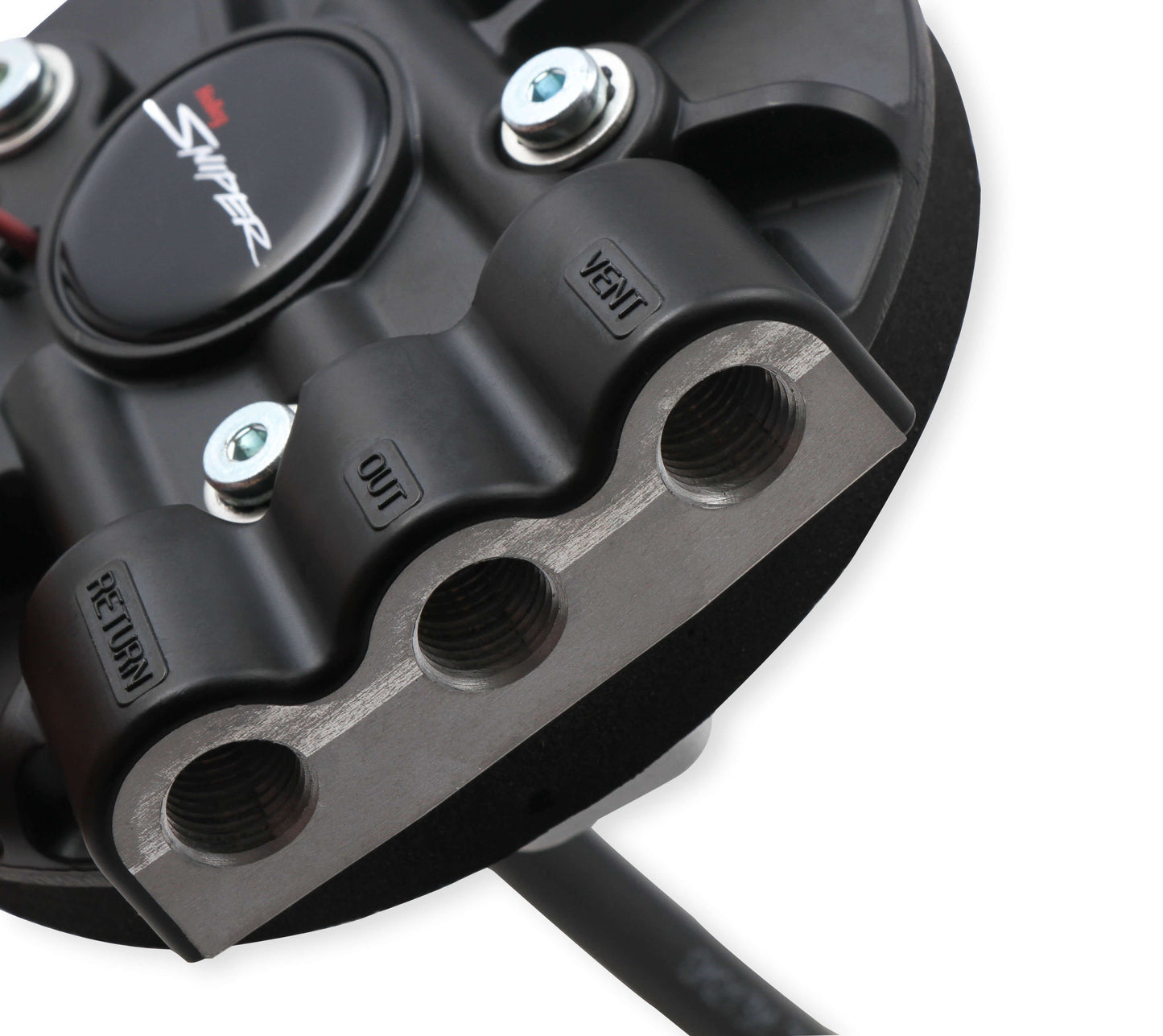

This direct fit fuel pump module will drop directly into any 1990-1997 Ford Truck Long Bed EFI fuel tanks. The module has been designed with a 340 LPH (liters per hour) Sniper fuel pump that will support up to 700 EFI or 900 Carbureted horsepower (HP Rating @ 60 PSI at 13.5 Volts / 10.4 AMP Draw) The flange has a 6AN o-ring outlet and return port making the plumbing connections easy. The kit includes the assembled module, a new filter sock, flange o-ring, and the lock ring to complete your installation into your stock fuel tank. The 6061-T6 module flange has been anodized in a bright dip black finish that not only looks great but will also protect from undercar corrosion.
Recommended Regulators (Holley 12-879, 12-880)
Features:
Details:
Links
Instruction Sheet
SNIPER 340 LPH 90-97 FORD TRUCK LONG BED
Overview
This direct fit fuel pump module will drop directly into any 1990-1997 Ford Truck Long Bed EFI fuel tanks. The module has been designed with a 340 LPH (liters per hour) Sniper fuel pump that will support up to 700 EFI or 900 Carbureted horsepower (HP Rating @ 60 PSI at 13.5 Volts / 10.4 AMP Draw) The flange has a 6AN o-ring outlet and return port making the plumbing connections easy. The kit includes the assembled module, a new filter sock, flange o-ring, and the lock ring to complete your installation into your stock fuel tank. The 6061-T6 module flange has been anodized in a bright dip black finish that not only looks great but will also protect from undercar corrosion.
Recommended Regulators (Holley 12-879, 12-880)
Features:
- The easiest way to convert your vehicle to an in-tank, EFI fuel system
- Installs in any fuel tank from 7??? to 12??? deep to fit a wide variety of applications
- The low profile 5 inch diameter design is only 1.275 inches thick above the tank mounting surface for added clearance when needed
- The innovative clamping system allows you to locate the module anywhere in the tank beside your existing sending unit
- The clamping system allows you to rotate the unit 360 degrees for easier clocking of the plumbing and wiring locations under your ride
- Die cast aluminum construction for corrosion resistance and long lasting good looks
- ????? NPT ports for a wide variety of plumbing options
- Ideal for Terminator EFI, Sniper EFI, MSD Atomic EFI or any TBI of EFI conversion
- 340LPH pump that is E85 compatible for both return and returnless style systems
Details:
- Application: Universal
- Free Flow LPH: 340
- Fuel System Type: Gasoline/E85 Compatible
- Fuel Type: E85
- Fuel Type: Gasoline
- Material: Die Cast Aluminum
- Minimum Fuel Tank Depth: 7 inches
- NPT Thread: 1/4 NPT
- Warranty: Limited 90 Day
Links
Instruction Sheet
