Sniper Diecast 340 LPH In-Tank Carbureted RetroFit Fuel Module Returnless System
Sniper Diecast 340 LPH In-Tank Carbureted RetroFit Fuel Module Returnless System
SKU:19-365
Low stock: 1 left
- Ships from Kentucky or Utah
- Add $300+ for $10 off of your order!
- Add $500+ for $20 off of your order!
Shipping Estimate
Shipping Estimate
Tracking: 1-2 days
Average Shipping: 2-3 days once tracking is available
Regular price
$293.35 USD
Regular price
$366.95 USD
Sale price
$293.35 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Sniper Diecast 340 LPH In-Tank Carbureted RetroFit Fuel Module Returnless System
340 LPH Drop-In Retrofit EFI Fuel System-E85 Compatible Supports up to 700 EFI or 900 Carb HP (HP Rating @ 60 PSI at 13.5 Volts / 10.4 AMP Draw)
Overview

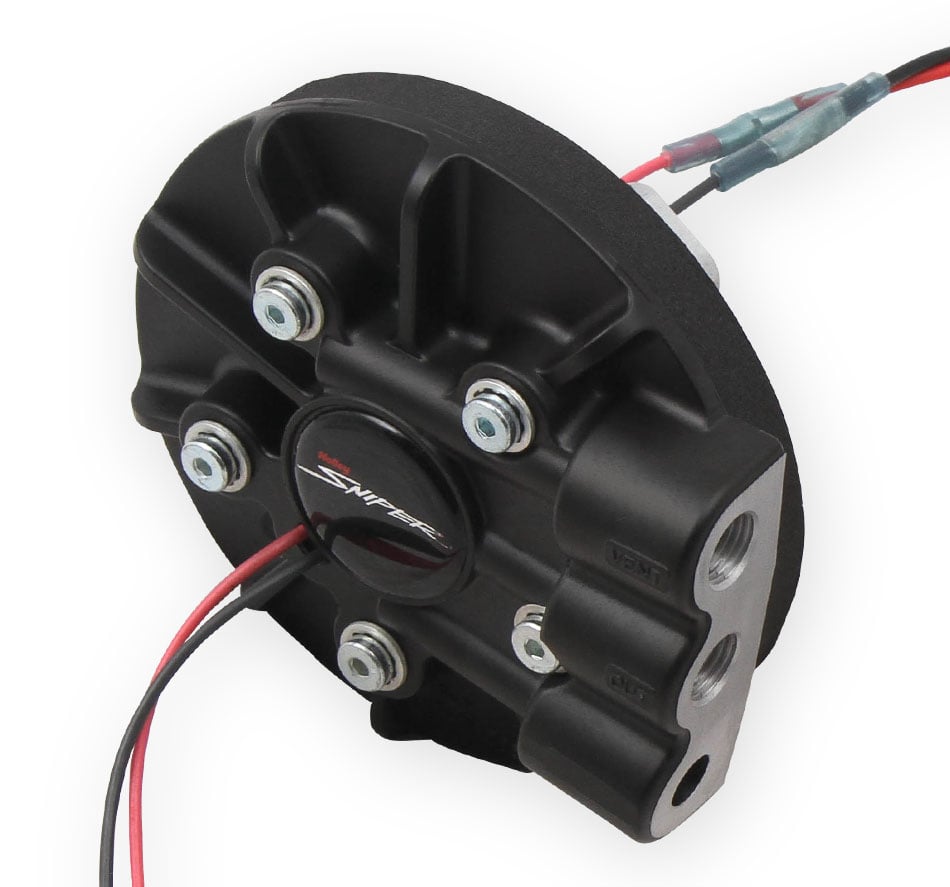

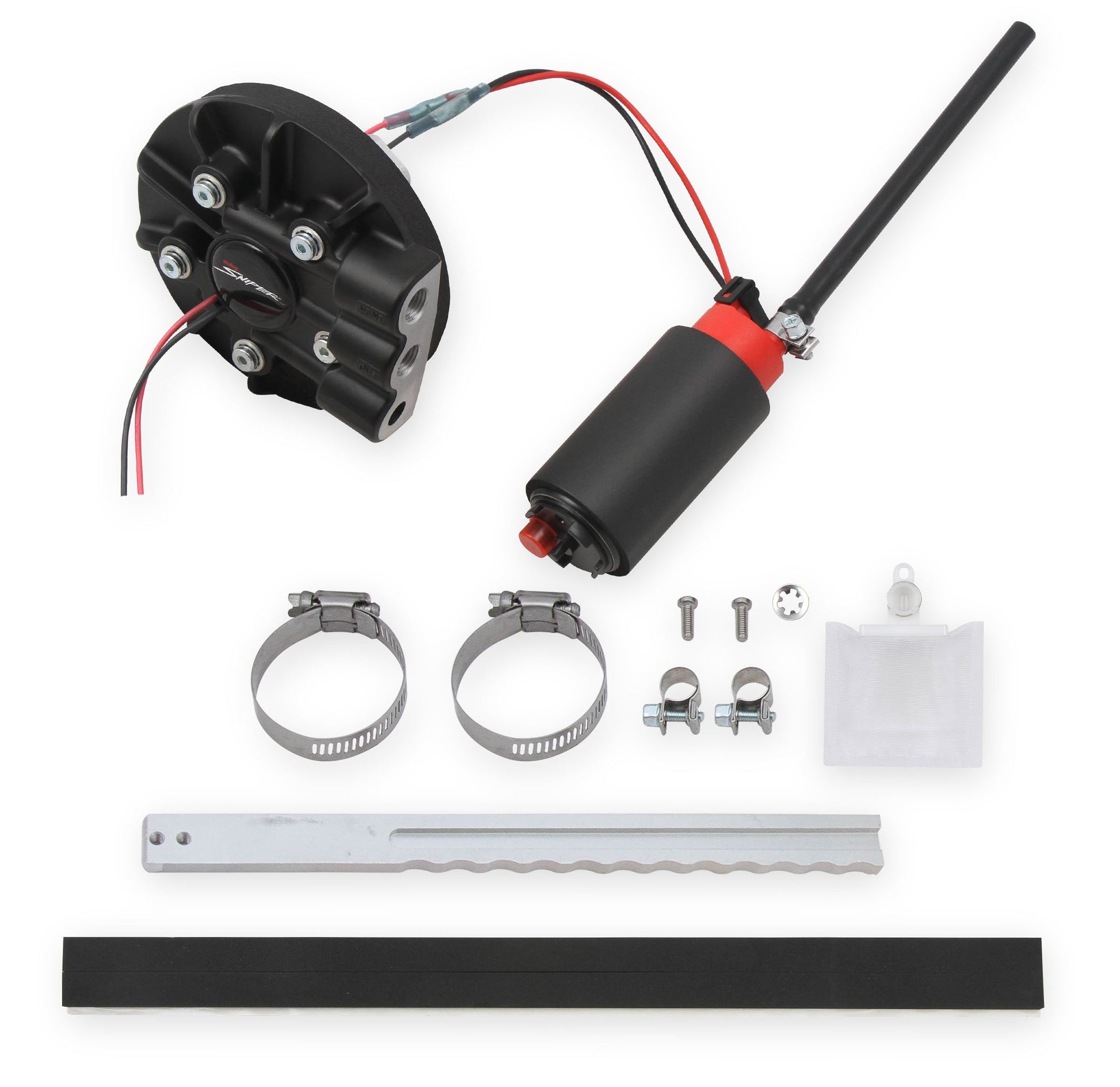

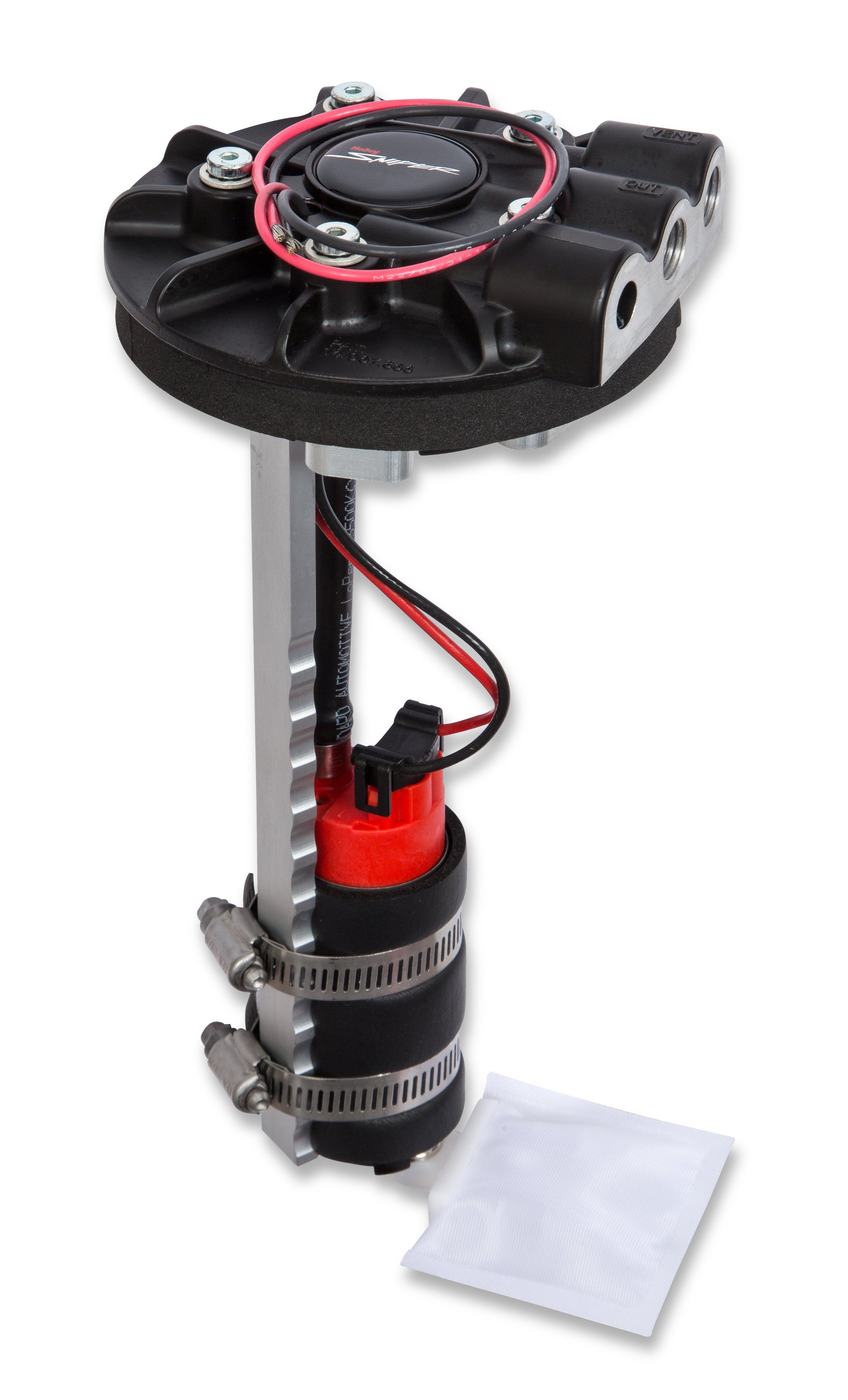

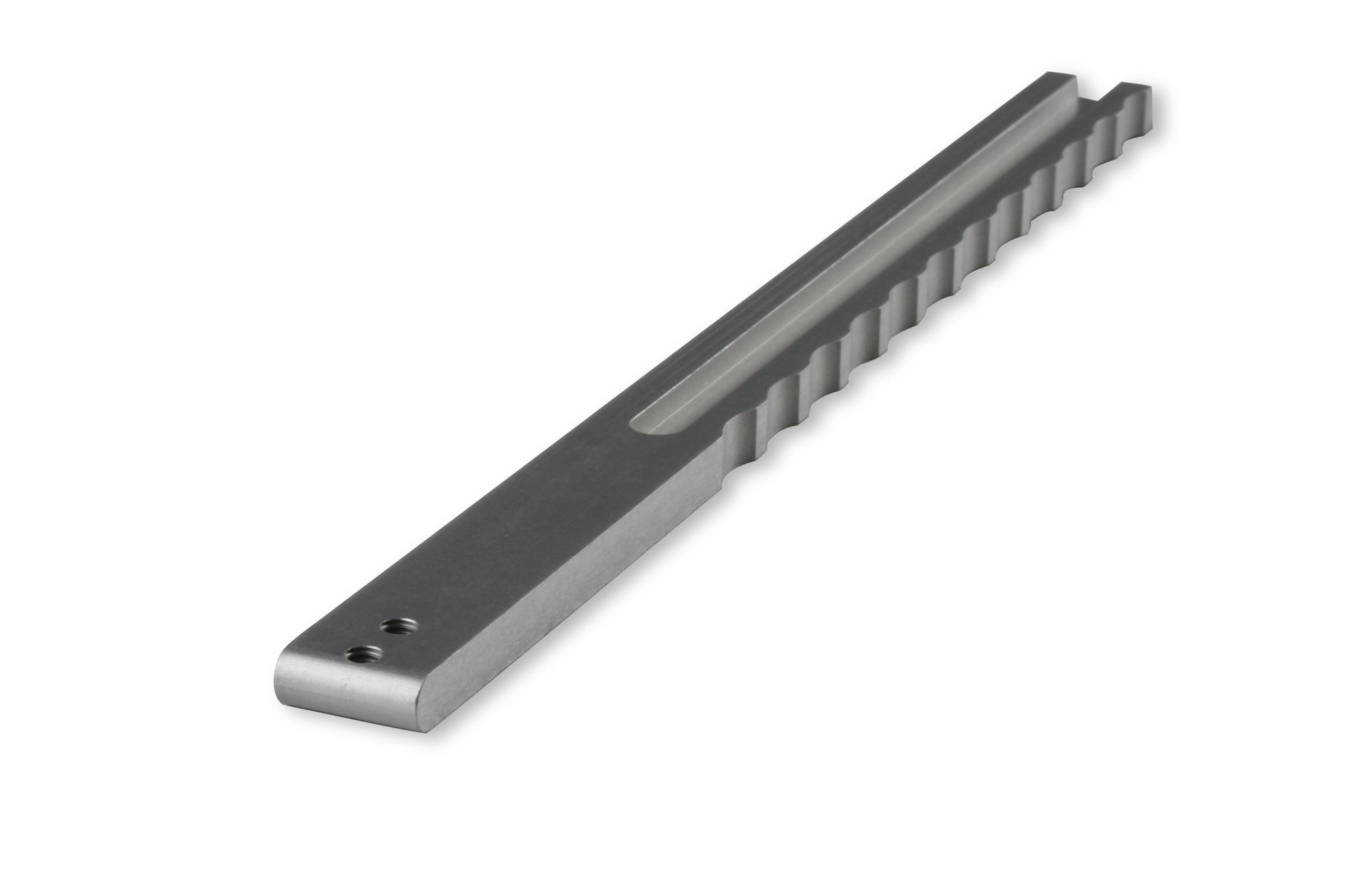

Holley/MSD is pleased to announce the release of Sniper Diecast Retrofit Fuel Pump Modules, which support up to 700 EFI horsepower or 900 carbureted horsepower and make it easy to affordably upgrade to EFI. Available in return and returnless versions, they convert your factory tank or fuel cell to an in-tank EFI fuel system. They're easy to install with basic hand tools and require no welding or fabrication whatsoever. Sniper Diecast Retrofit Fuel Pump Modules include a diecast pump-hanger bracket to control pump vibration in a low-profile design that's perfect wherever space is at a premium. They fit any fuel-tank depth from 7 to 12 inches and protrude only 1.275-inch above the tank-mounting surface to accommodate numerous applications. You can locate the 5 inch diameter module beside your existing sending unit anywhere in the tank and rotate it a full 360 degrees to work flawlessly with various plumbing and wiring configurations. Once the module is installed, all you need to do is connect your power-source/ground and fuel lines. Supports up to 700 EFI or 900 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw) Of course there are many variables, estimates are based on gasoline. Individual systems will vary based on fuel system design, regulator type, fuel cell location, etc...

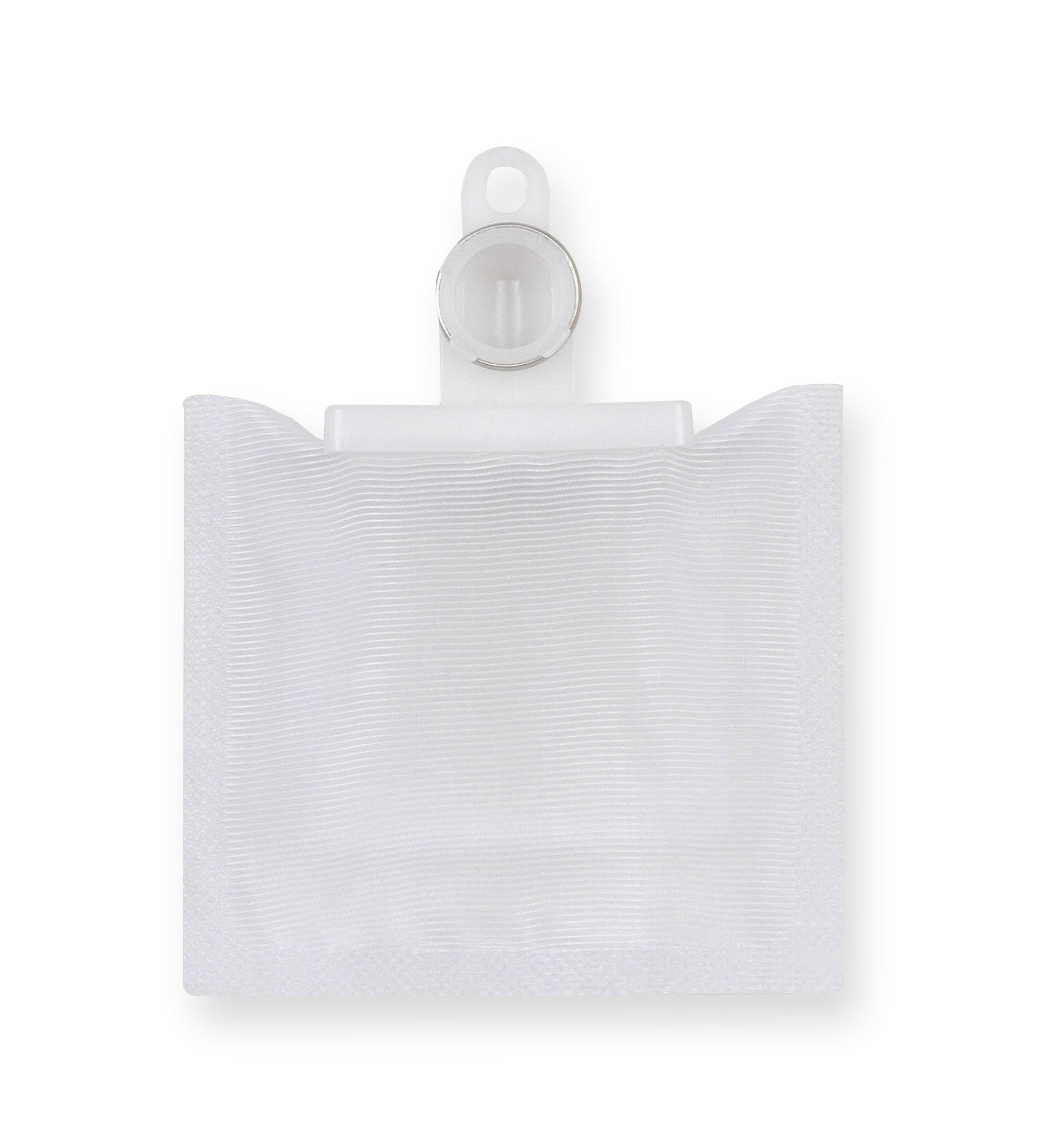

It is recommended to use a Holley 12-753 30 Amp Fuel Pump Relay along with a minimum size of 12 Gauge wire for your installation. Strainer Service Part - Walbro 125-147
Features:
Details:
Links
Instruction Sheet
View full details
340 LPH Drop-In Retrofit EFI Fuel System-E85 Compatible Supports up to 700 EFI or 900 Carb HP (HP Rating @ 60 PSI at 13.5 Volts / 10.4 AMP Draw)
Overview
Holley/MSD is pleased to announce the release of Sniper Diecast Retrofit Fuel Pump Modules, which support up to 700 EFI horsepower or 900 carbureted horsepower and make it easy to affordably upgrade to EFI. Available in return and returnless versions, they convert your factory tank or fuel cell to an in-tank EFI fuel system. They're easy to install with basic hand tools and require no welding or fabrication whatsoever. Sniper Diecast Retrofit Fuel Pump Modules include a diecast pump-hanger bracket to control pump vibration in a low-profile design that's perfect wherever space is at a premium. They fit any fuel-tank depth from 7 to 12 inches and protrude only 1.275-inch above the tank-mounting surface to accommodate numerous applications. You can locate the 5 inch diameter module beside your existing sending unit anywhere in the tank and rotate it a full 360 degrees to work flawlessly with various plumbing and wiring configurations. Once the module is installed, all you need to do is connect your power-source/ground and fuel lines. Supports up to 700 EFI or 900 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw) Of course there are many variables, estimates are based on gasoline. Individual systems will vary based on fuel system design, regulator type, fuel cell location, etc...
It is recommended to use a Holley 12-753 30 Amp Fuel Pump Relay along with a minimum size of 12 Gauge wire for your installation. Strainer Service Part - Walbro 125-147
Features:
- The easiest way to convert your vehicle to an in-tank fuel system
- Installs in any fuel tank from 7??? to 12??? deep to fit a wide variety of applications

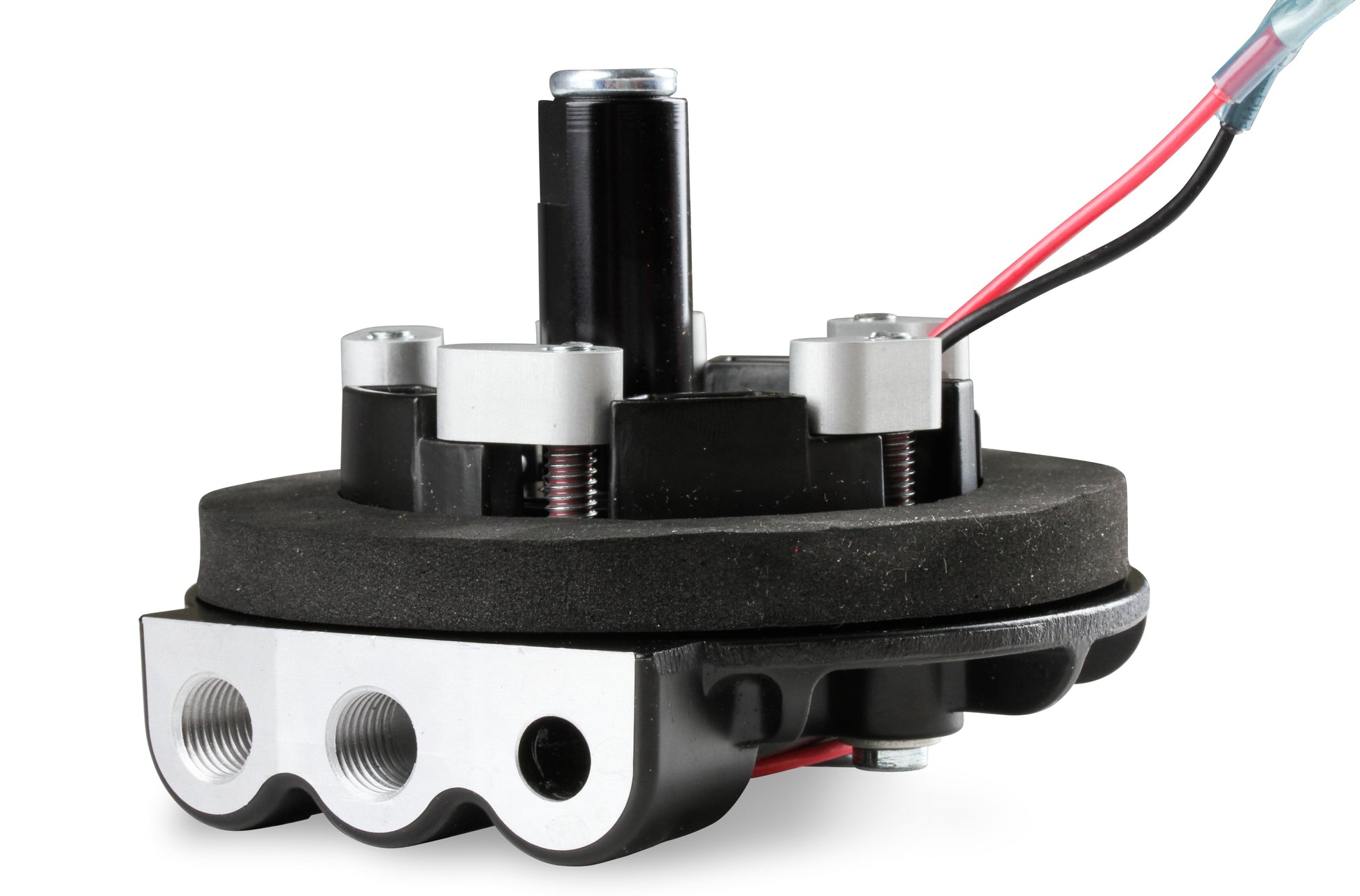

- The low profile design is only 1.275" thick above the tank mounting surface for added clearance when needed
- The innovative clamping system allows you to locate the module anywhere in the tank beside your existing sending unit
- The clamping system allows you to rotate the unit 360 degrees for easier clocking of the plumbing and wiring locations under your ride
- Die cast aluminum construction for corrosion resistance and long lasting good looks

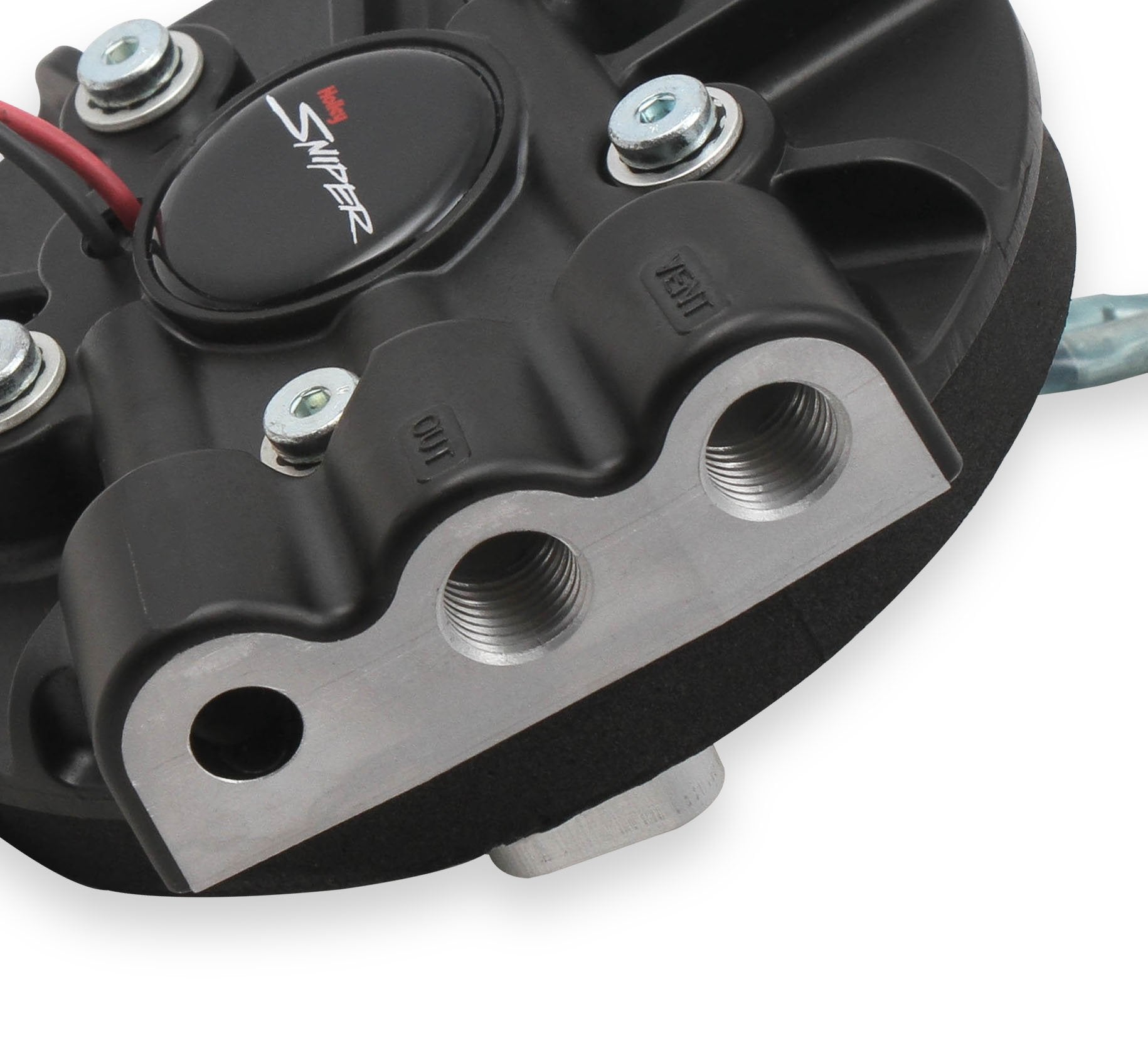

- ????? NPT ports for a wide variety of plumbing options

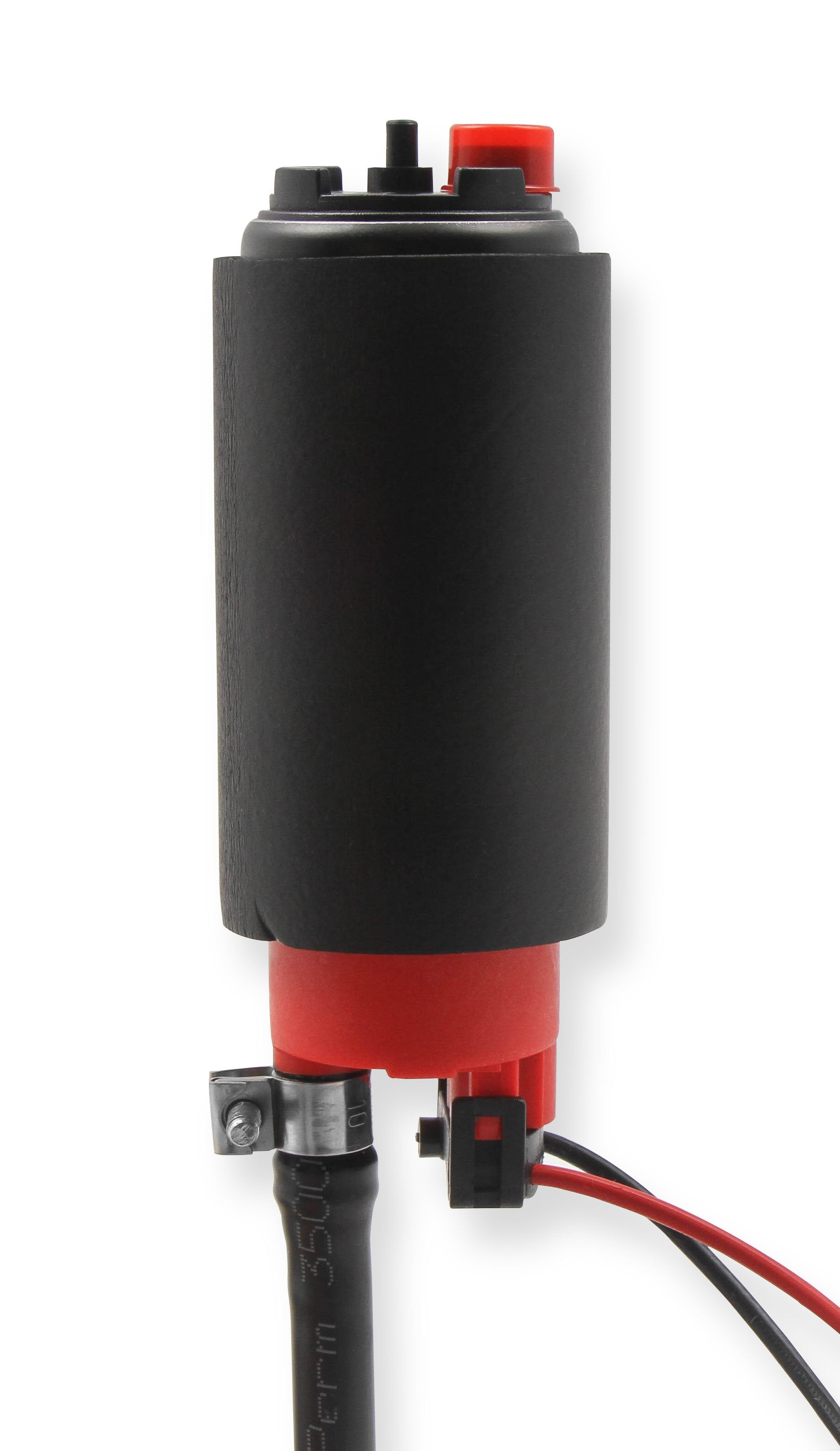

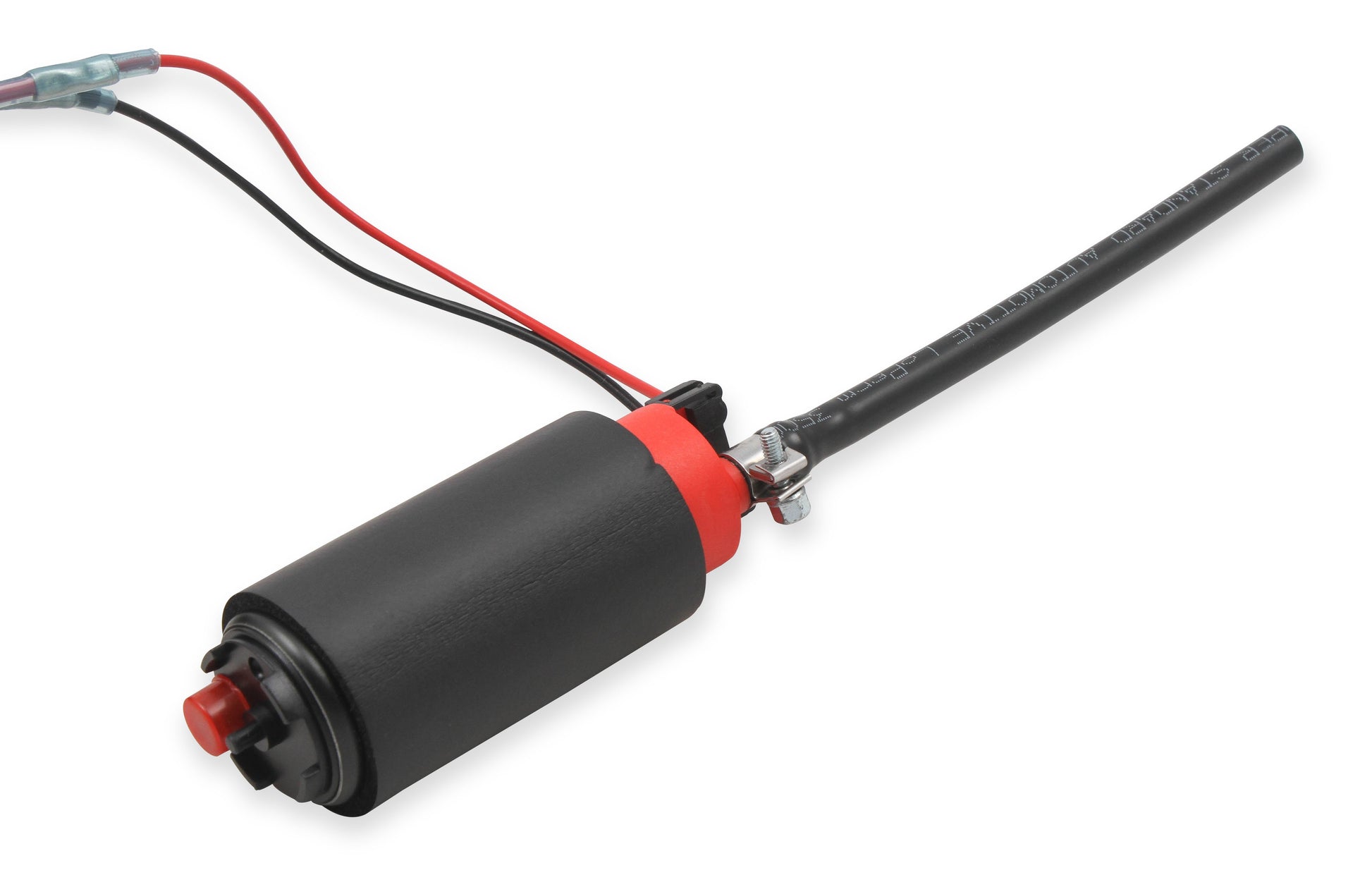

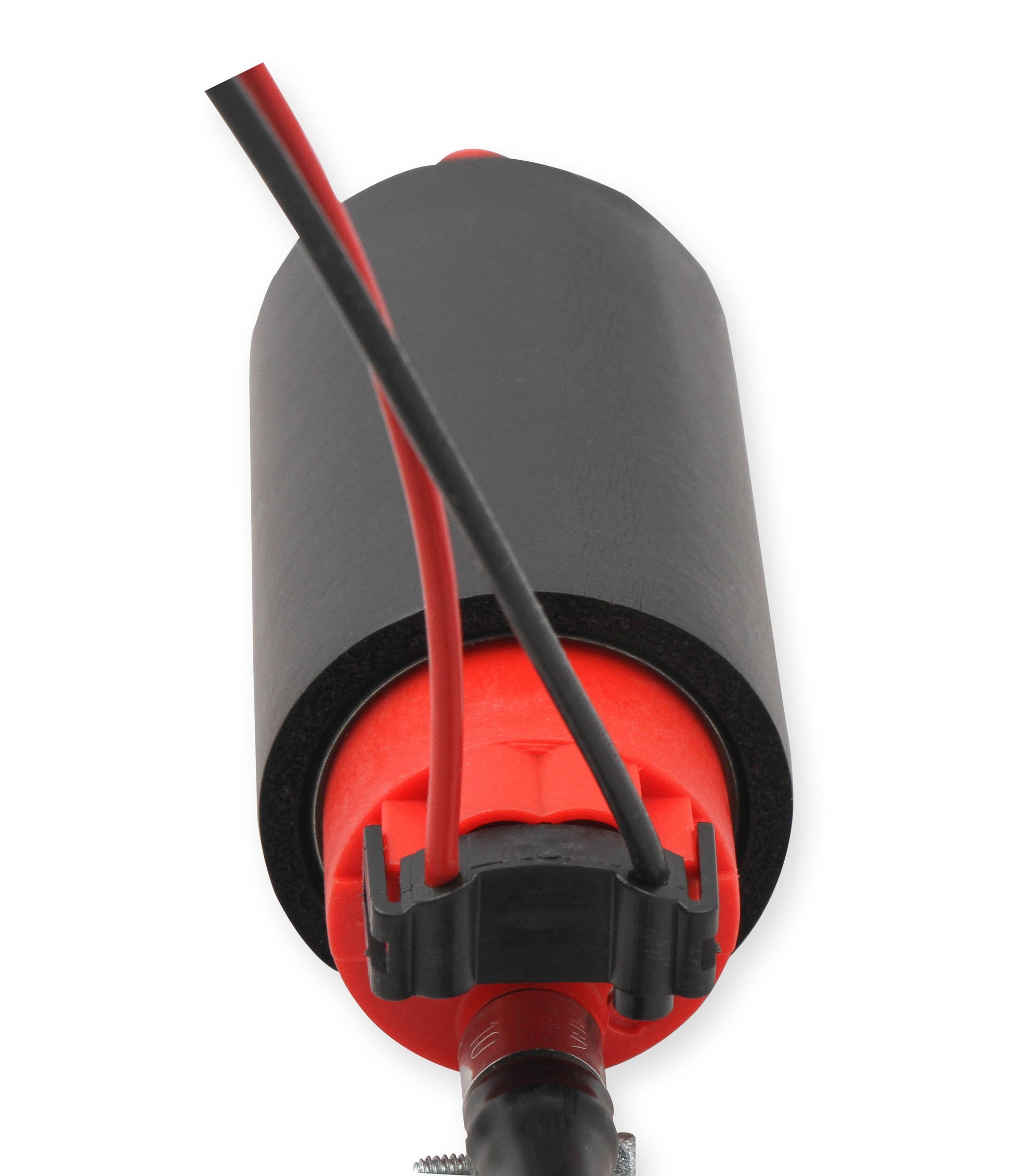

- 340LPH pump that is E85 compatible for returnless style systems
Details:
- Application: Universal
- Diameter: 4.8"
- Free Flow LPH: 340
- Fuel System Type: Gasoline/E85 Compatible
- Fuel Type: E85
- Fuel Type: Gasoline
- Material: Die Cast Aluminum
- NPT Thread: 1/4 NPT
- Warranty: Limited 90 Day
