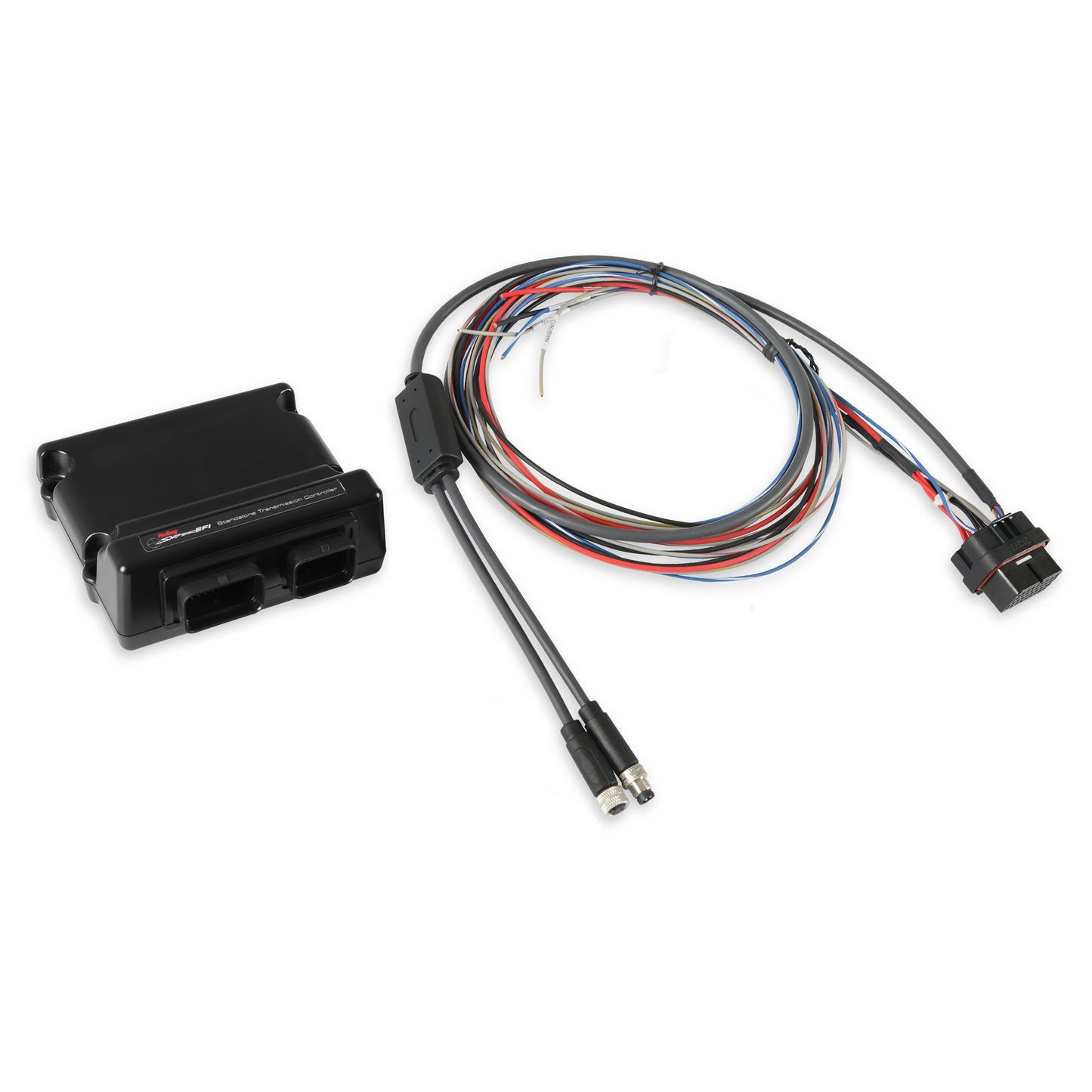

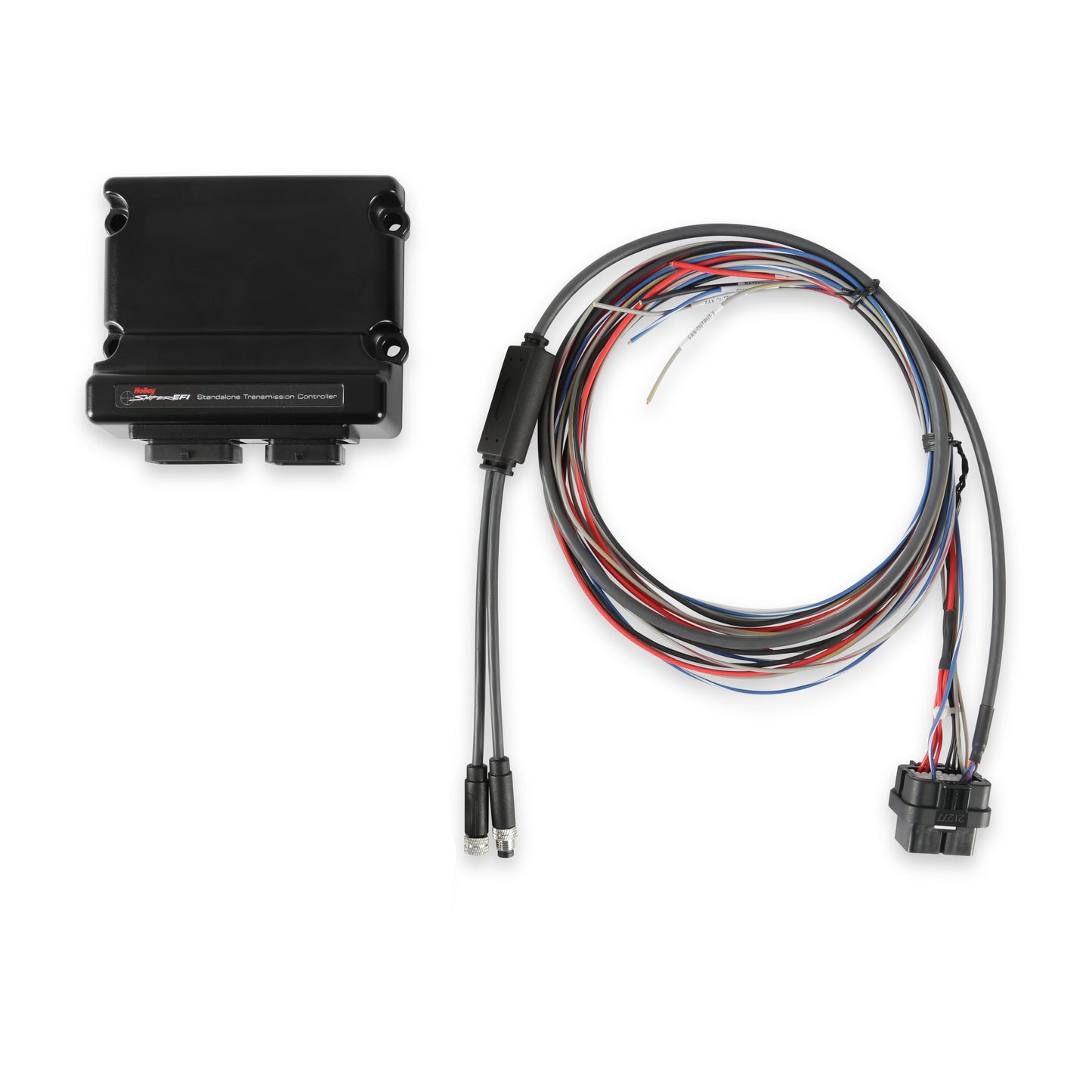

Sniper 2 Transmission Control Kit

Sniper 2 Transmission Control Kit

For Carbureted applications - includes 3.5" Handheld.

Overview
The Sniper Transmission Controller (STC) is designed for common GM and Ford electronic 4-speed transmissions. Three part numbers cover a complete range of applications - all Sniper EFI systems, Sniper 2 EFI specific (M8 CAN connection), or a full standalone unit. The Sniper specific applications connect to your Sniper EFI system via CAN bus and is programmed through the existing Sniper 3.5-inch touchscreen. No programming is available with PC computer software, however the transmission functions can be data-logged and reviewed with Sniper PC software. The Standalone version includes a dedicated 3.5-inch touchscreen and is primarily intended for carbureted engine combinations. GM and Ford four speed electronic overdrive transmissions are simple in operation. They have four speeds with the top gear being an overdrive and all have a lockup torque converter that eliminates any slippage when the lockup is applied. With a stock torque converter the lockup should only be applied under light throttle conditions or excessive wear will occur. Upshifts, downshifts, and torque converter lockup are based on vehicle speed and throttle position (or optionally the MAP sensor) and are adjustable with the 3.5-inch touchscreen

Features:

• Adds electronic transmission control functionality to a Sniper 2
• Controls conventional electronic 4 speed transmission applications. GM 4L60/70/80E and Ford AODE and 4R70W - transmission specific harnesses sold separately
• ??? 558-405 ???? GM 4L60/70/80E
• ??? 558-455 ???? 2009+ GM 4L60E*
• ??? 558-470 ???? 1998+ Ford 4R70W/4R75W
• ??? 558-471 ???? 1992-1997 Ford AODE/4R70W
• Tuning is performed through the 3.5-inch Touchscreen LCD (included with the Standalone version). Future compatibility will include 5-inch Display and Bluetooth Module
• Tune Upshifts, Downshifts and WOT shift points
• Full programmability of torque converter lockup
• Full tuning of transmission line pressure (shift firmness)
• Controls and Layouts interface mirror Dominator and Terminator X MAX ECUs (except no paddle shift)
• A MAP sensor is needed if using MAP for line pressure, which is usually only done with forced induction applications
