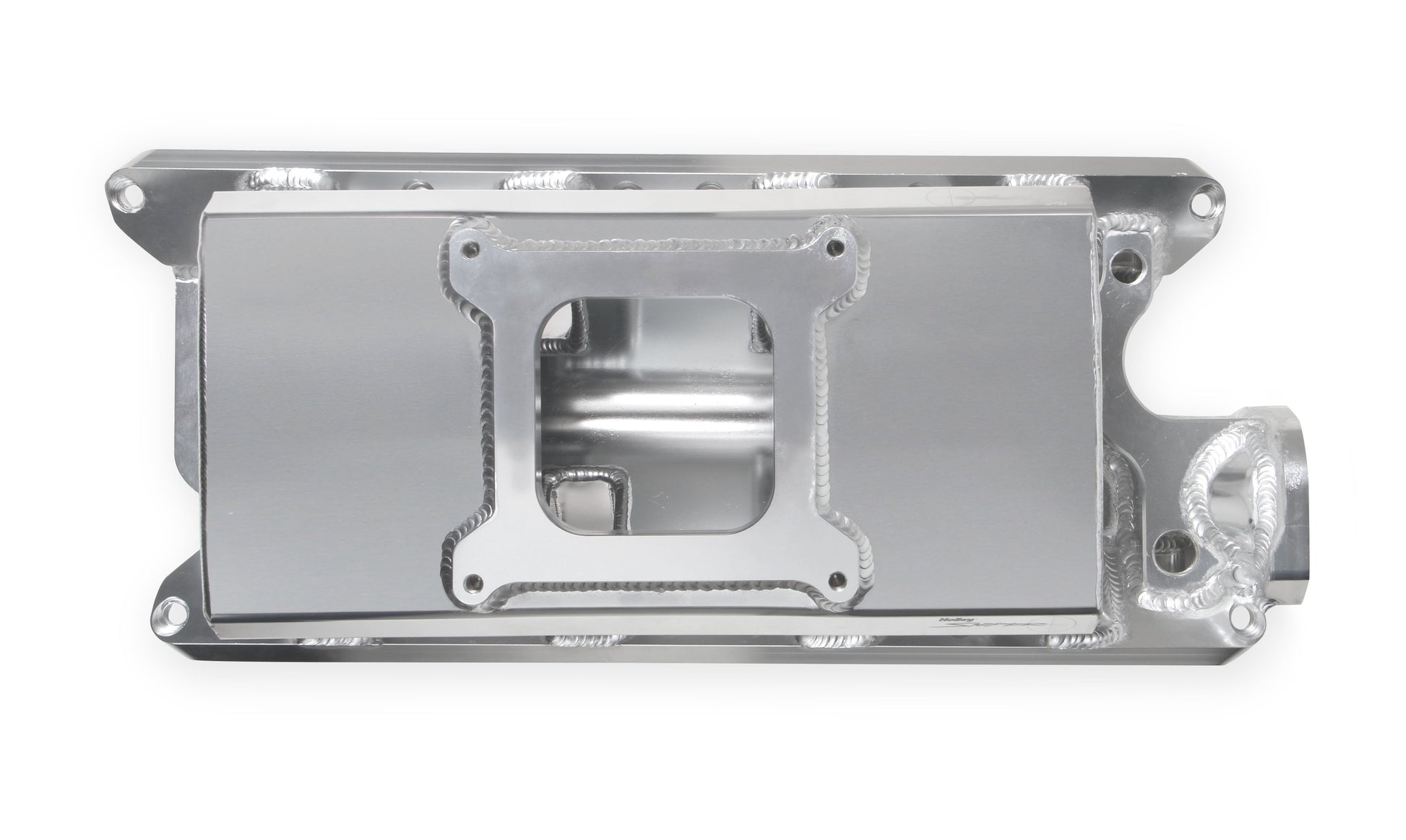

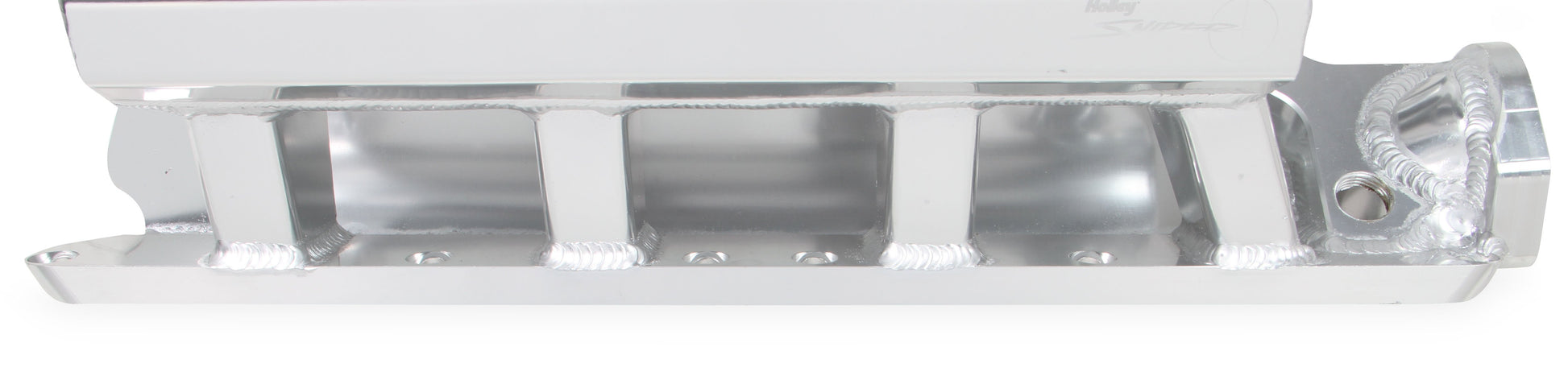

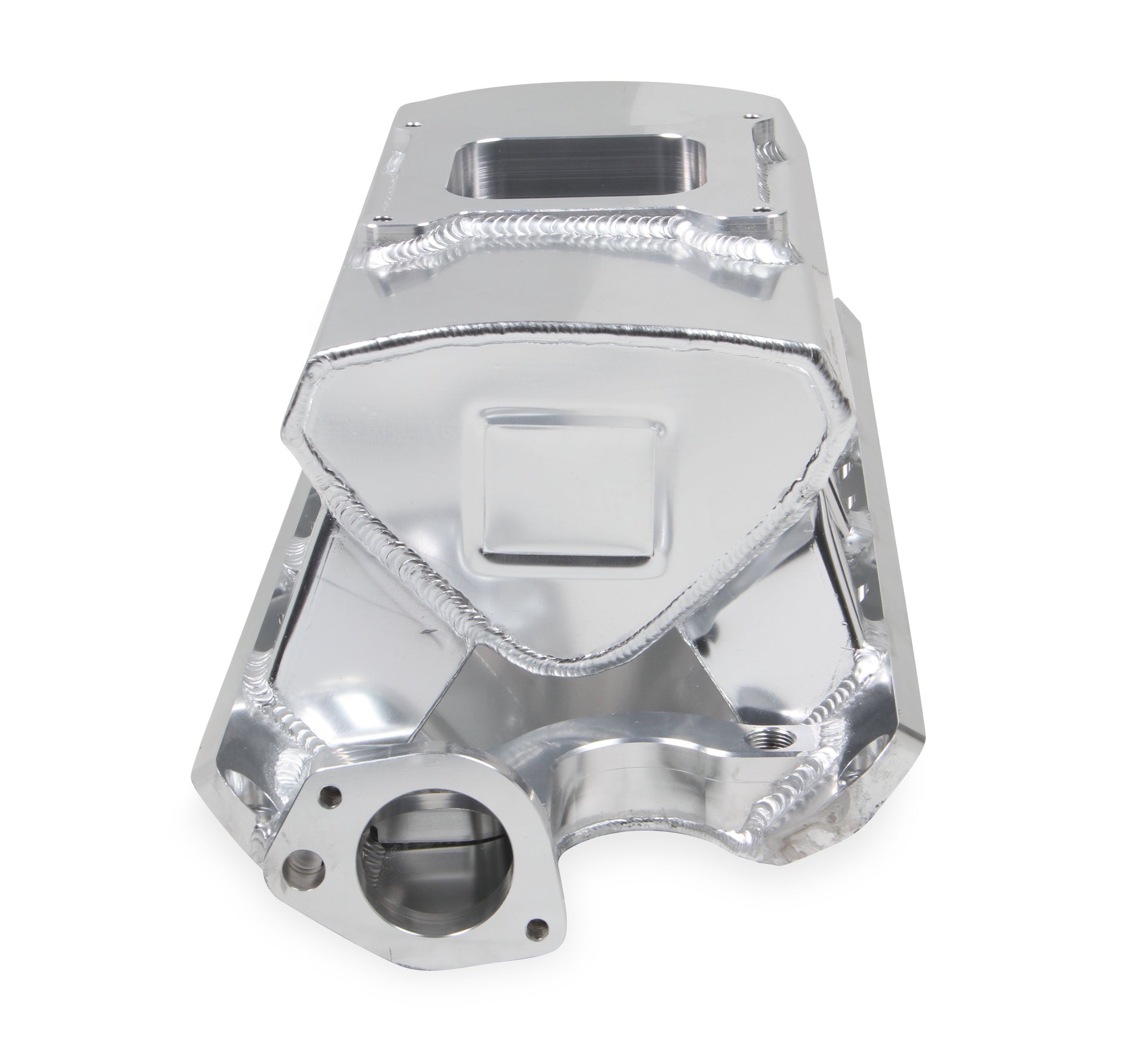

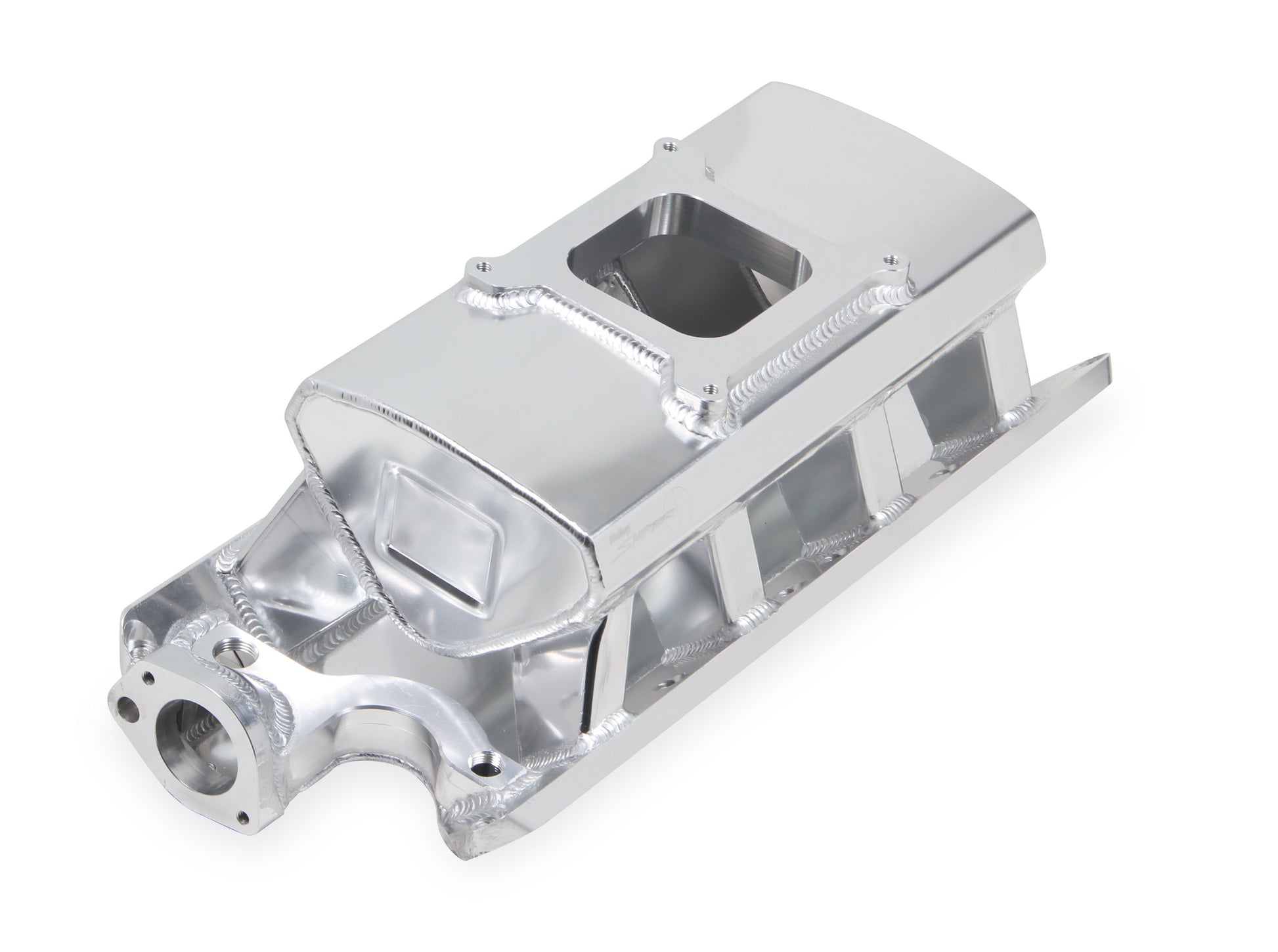

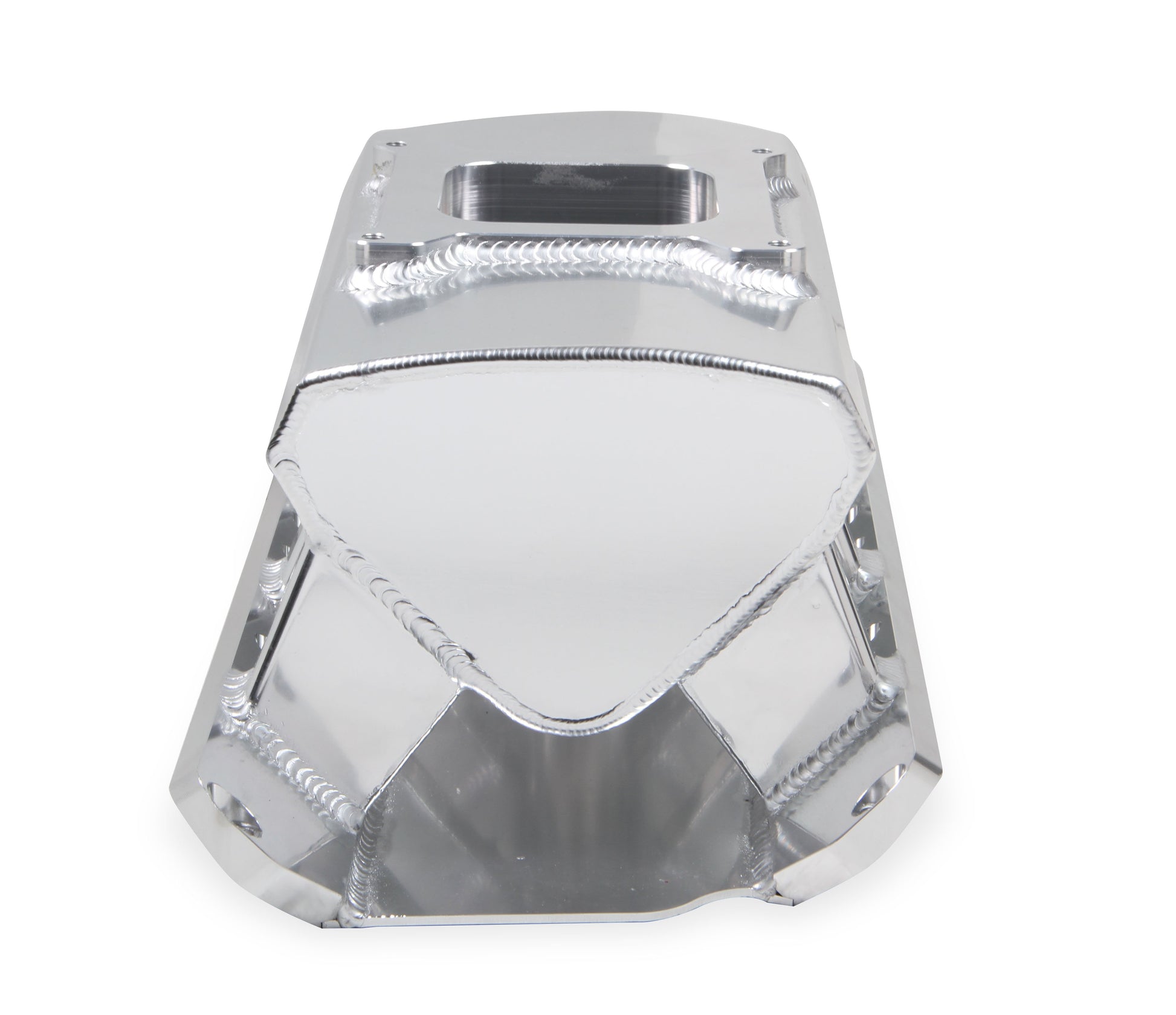

Sheet Metal Fabricated Intake Manifold 289-302 Small Block Ford Single Plane Carbureted Silver with Sniper logo.
$636.95
827011
Regular price
$636.95
Sale price
$636.95
Regular price
$796.95
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Sorry, it's out of stock.
But we can let you know when it's back in.
SaleSold out
Sniper Sheet Metal Fabricated Intake Manifold Ford 289-302
Fabricated Intake Manifold SBC Single Plane Carbureted (4500 style flange changeable plate) Silver with Sniper logo
Overview
Holley Sniper continues to push the aftermarket by introducing fabricated carbureted and EFI intake manifolds for GM Small Block and LS along with Ford 4.6 Modular 3-valve and 5.0L Coyote engines. These performance sheet metal intakes are great looking and an excellent value compared to other fabricated intake manifolds. Each manifold is ready to bolt-on out of the box (including a high-flow fuel rail kit for EFI versions). These manifolds are precision fixtured and welded for a perfect fit and maximum structural integrity.
Features:
Details:
Links
Instruction Sheet
Fabricated Intake Manifold SBC Single Plane Carbureted (4500 style flange changeable plate) Silver with Sniper logo
Overview
Holley Sniper continues to push the aftermarket by introducing fabricated carbureted and EFI intake manifolds for GM Small Block and LS along with Ford 4.6 Modular 3-valve and 5.0L Coyote engines. These performance sheet metal intakes are great looking and an excellent value compared to other fabricated intake manifolds. Each manifold is ready to bolt-on out of the box (including a high-flow fuel rail kit for EFI versions). These manifolds are precision fixtured and welded for a perfect fit and maximum structural integrity.
Features:
- 3mm (1/8") thick T6061 Sheet Aluminum construction, more durable than competitive intakes
- Designed for 8.2 deck blocks

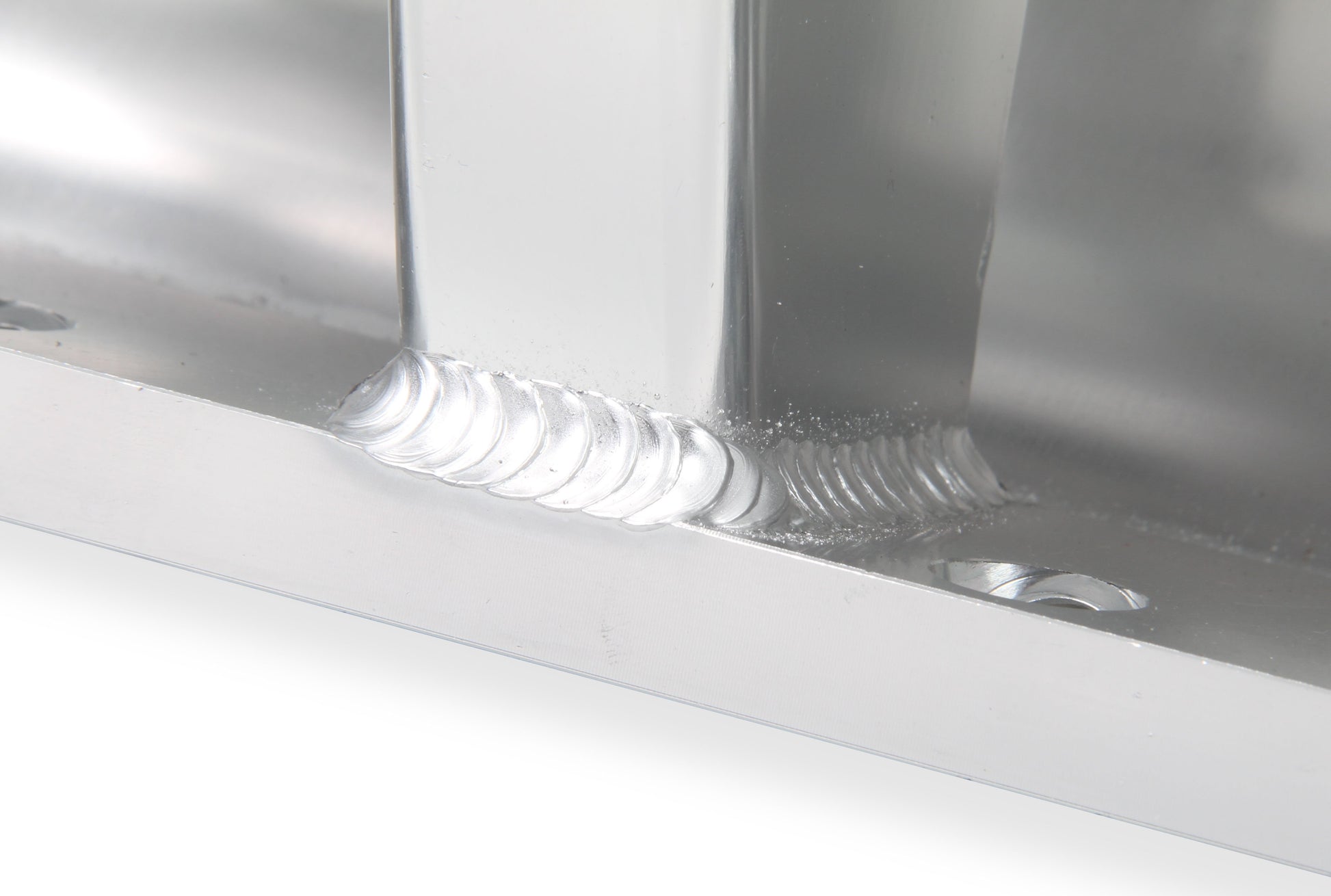

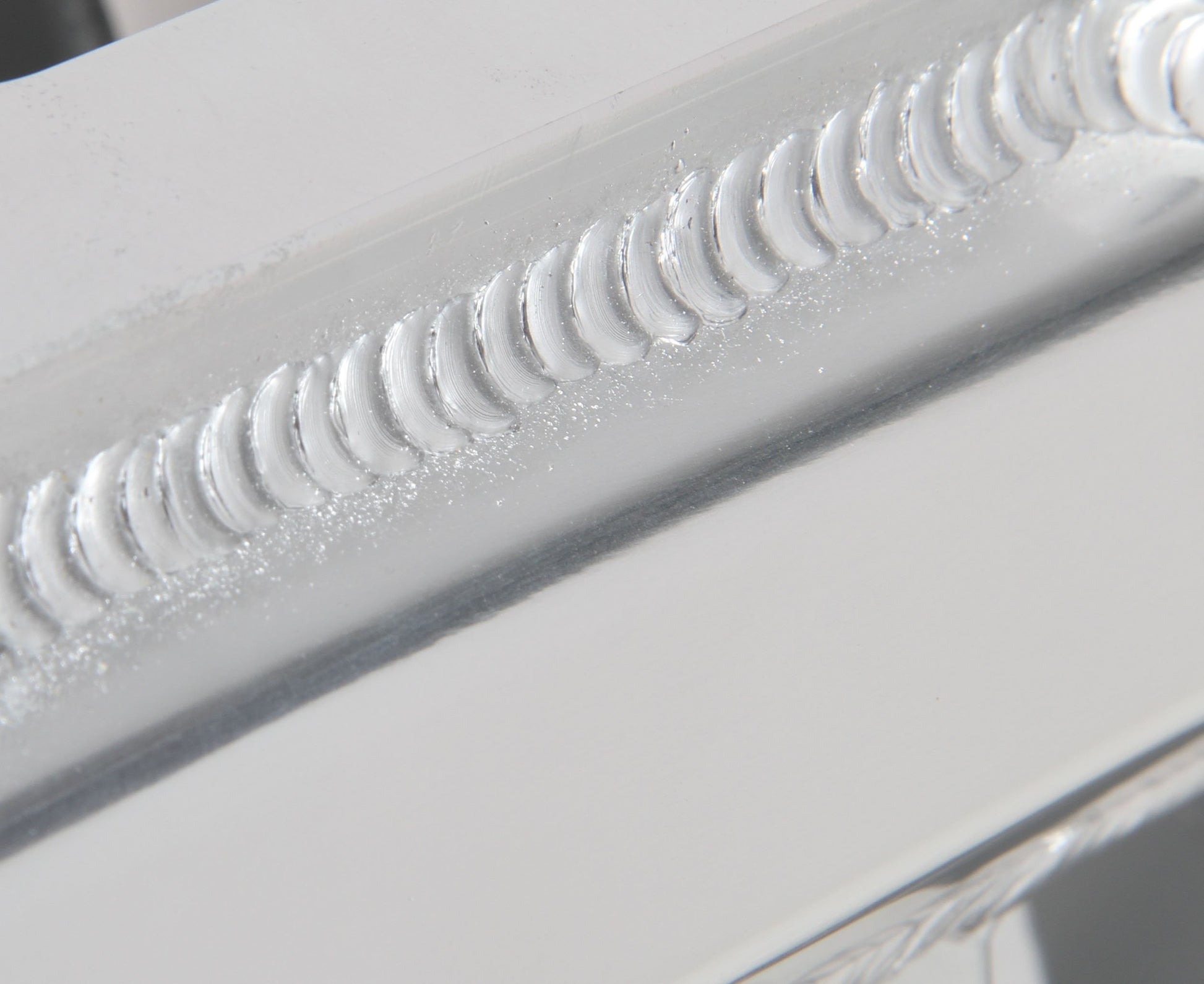

- 100% TIG welded
- Available for EFI and Carbureted applications with custom Holley Sniper logo
Details:
- Application: Small Block Ford
- Barrels: 4
- Construction: Fabricated
- Engine: Ford Small Block V8
- Finish: Silver
- Flange Size: 4150
- Front Height: 6.875 inch
- Fuel System Type: Carburetor
- Manifold Type: Fabricated

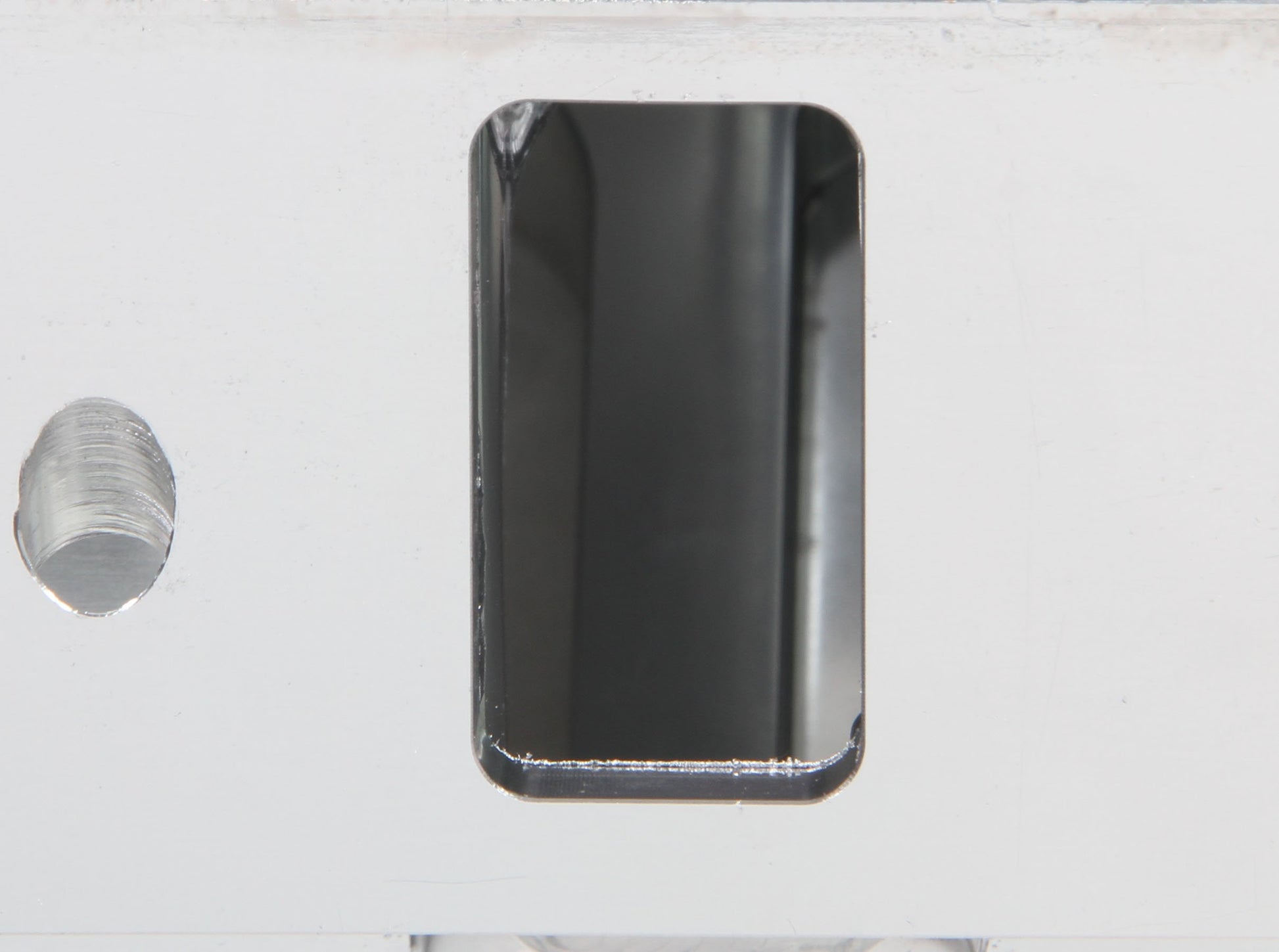

- Port Size: 1.82" x 1.01"
- Rear Height: 6.875 inch
- RPM Power Band: 1800-7000 RPM
- Style: Carbureted
- Vacuum Ports: None
- Warranty: Limited 90 Day
Links
Instruction Sheet
