Holley

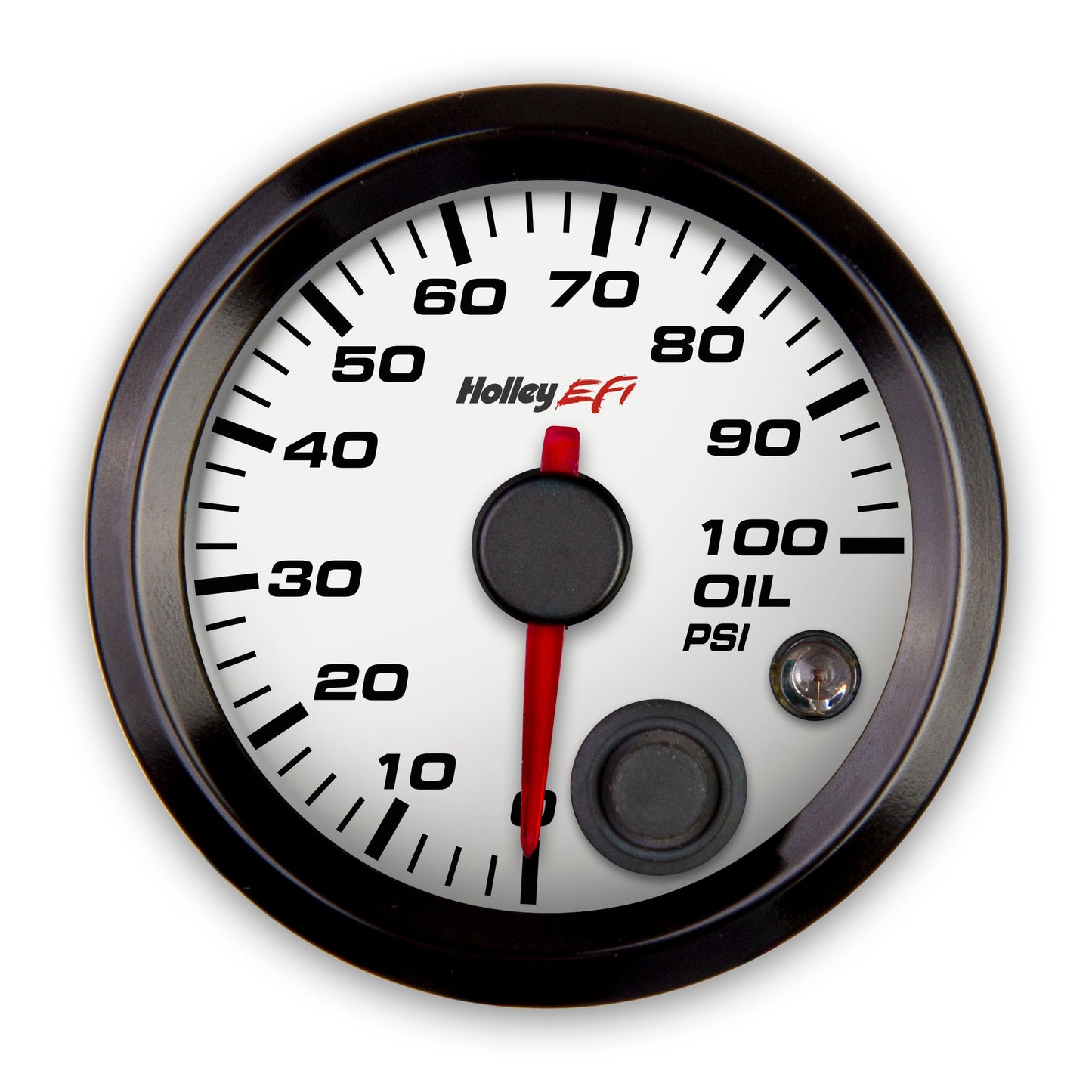

Oil Pressure Gauge - Standard 2-1/16" size - CAN - 0-100 PSI - White Face - Black Bezel

Oil Pressure Gauge - Standard 2-1/16" size - CAN - 0-100 PSI - White Face - Black Bezel

553-127W

13 in stock

  • Ships from Kentucky or Utah
  • Add $300+ for $10 off of your order!
  • Add $500+ for $20 off of your order!

Shipping Estimate

Tracking: 1-2 days

Average Shipping: 2-3 days once tracking is available

$214.88 USD
$220.95 USD $214.88 USD
Sale Sold out
Shipping calculated at checkout.
Holley EFI Oil Pressure Gauge

Oil Pressure Gauge - Standard 2-1/16" size - CAN - 0-100 PSI - Black Face - Black Bezel

Overview

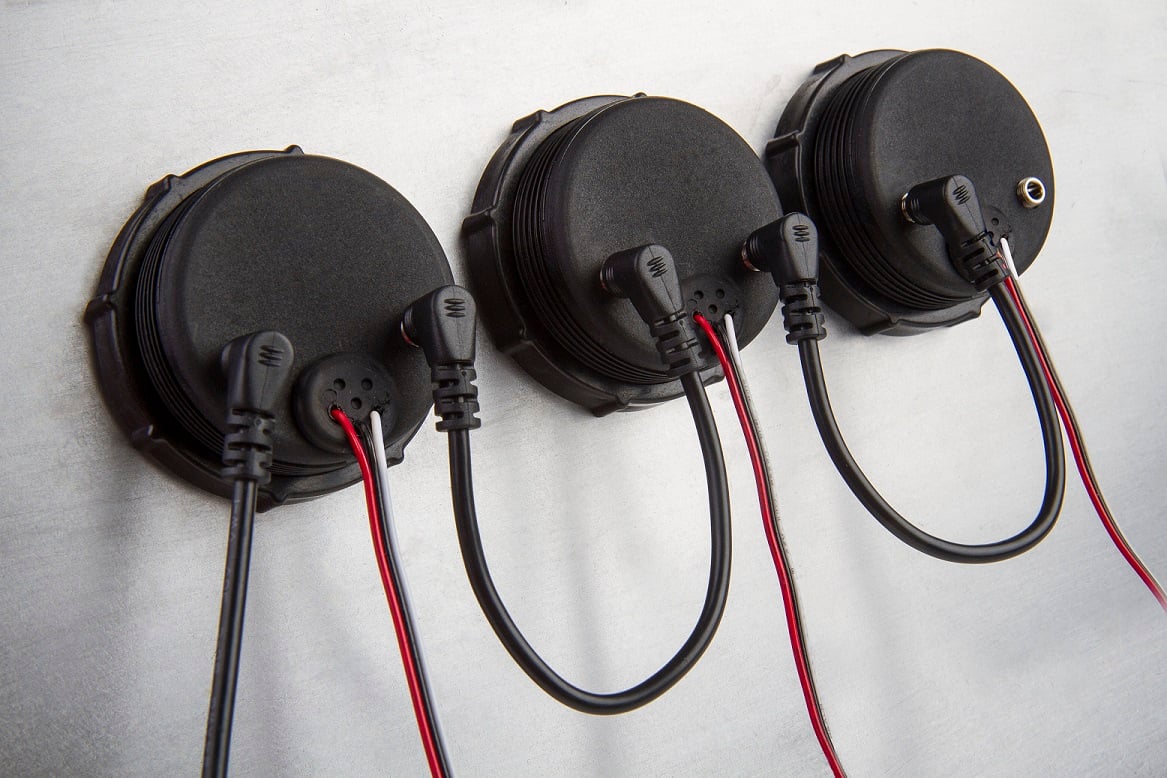

These analog-style gauges are designed specifically for use with Holley EFI systems. They are compatible with all Terminator, HP, and Dominator ECU's, allowing them to be installed in a variety of Holley EFI equipped vehicles. CAN-bus communication allows the gauges to daisy chain using the included stereo cables, making installation quick and clean. The required gauge module (P/N 554-130) allows plug and play communication between the ECU and gauges, through a one-wire ECU connection.

Easy to install - One plug and play gauge module (P/N 554-130) is required per set of CAN gauges. User can daisy chain as many gauges as they choose; all gauge data supplied through a one-wire ECU connection.

Features:
  • Plug and play compatibility with all Terminator, HP, and Dominator ECU??????s (w/ module P/N 554-130)
  • No programming necessary; eliminates the need to install duplicate sending units
  • Compatible with all Holley EFI touch screens, dashes, handheld tuners, and other CAN devices
  • 270 sweep pointer from 6 to 3 o??????clock makes gauges easy to read at a glance
  • Pointer is driven by a high-torque internal stepper motor to ensure accurate movement in racing conditions
  • Adjustable LED warning light allows user to set both low and high trigger points
  • LED warning light brightness can be configured for both day and night
  • Peak recall lets user view the min/max gauge readings with the push of a button
  • Spin lock ring threads to back of gauge case for simple and secure gauge mounting
  • CNC machined billet aluminum bezels with anodized finish ???? Bezels are threaded for easy replacement
  • Multiple bezel options available separately ???? User can customize the gauges to their preference

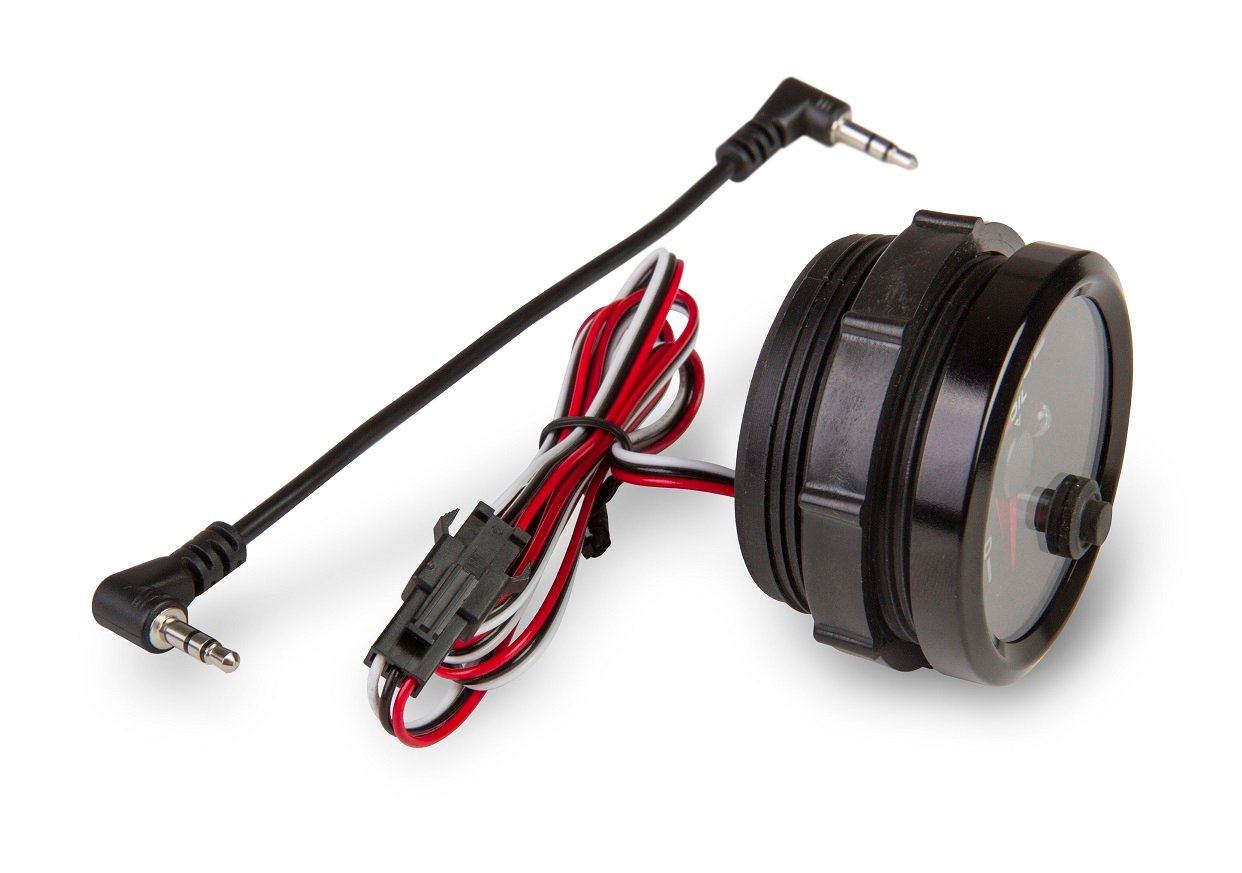

  • Gauges include 6 in. daisy chain cable and 3 ft. power harness
  • Additional length cables and multi-connection power distribution harness available separately


Details:
  • Gauge Background Color: White
  • Gauge Type: Oil Pressure
  • Size: 2-1/16"
