LS Ultra Lo-Ram Billet Burst Panel Duct - Billet Burst Panel Duct Black Anodized Finish

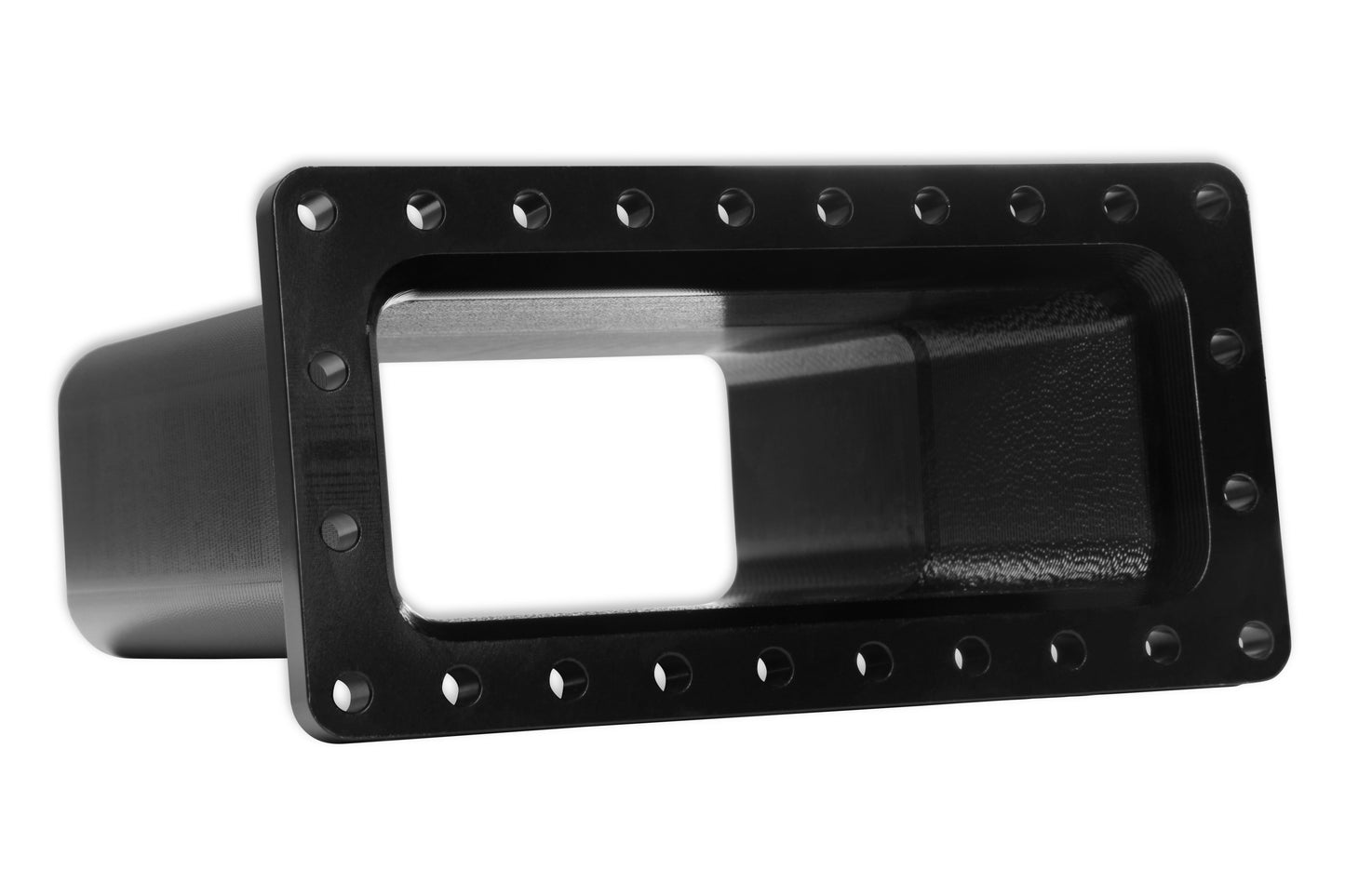

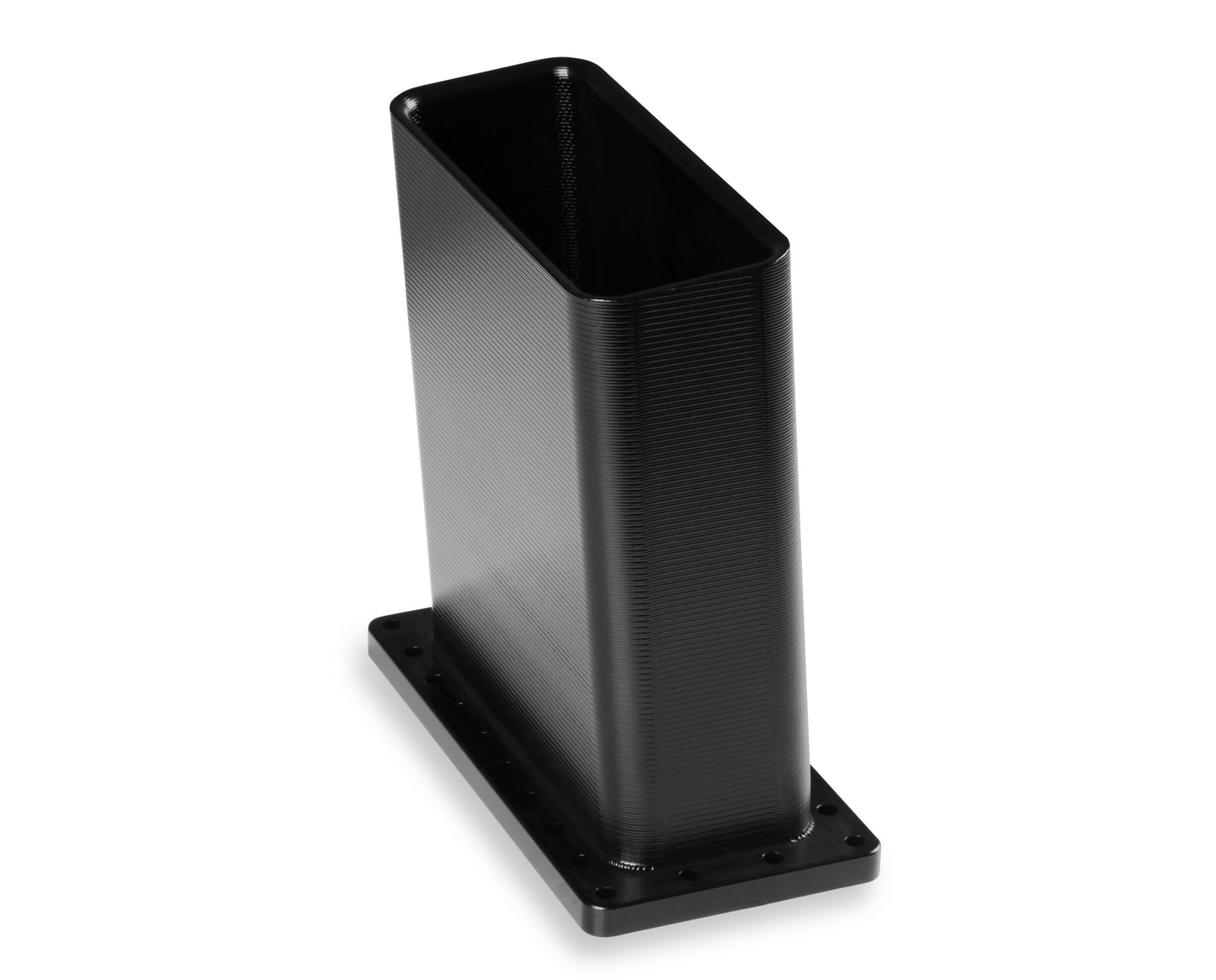

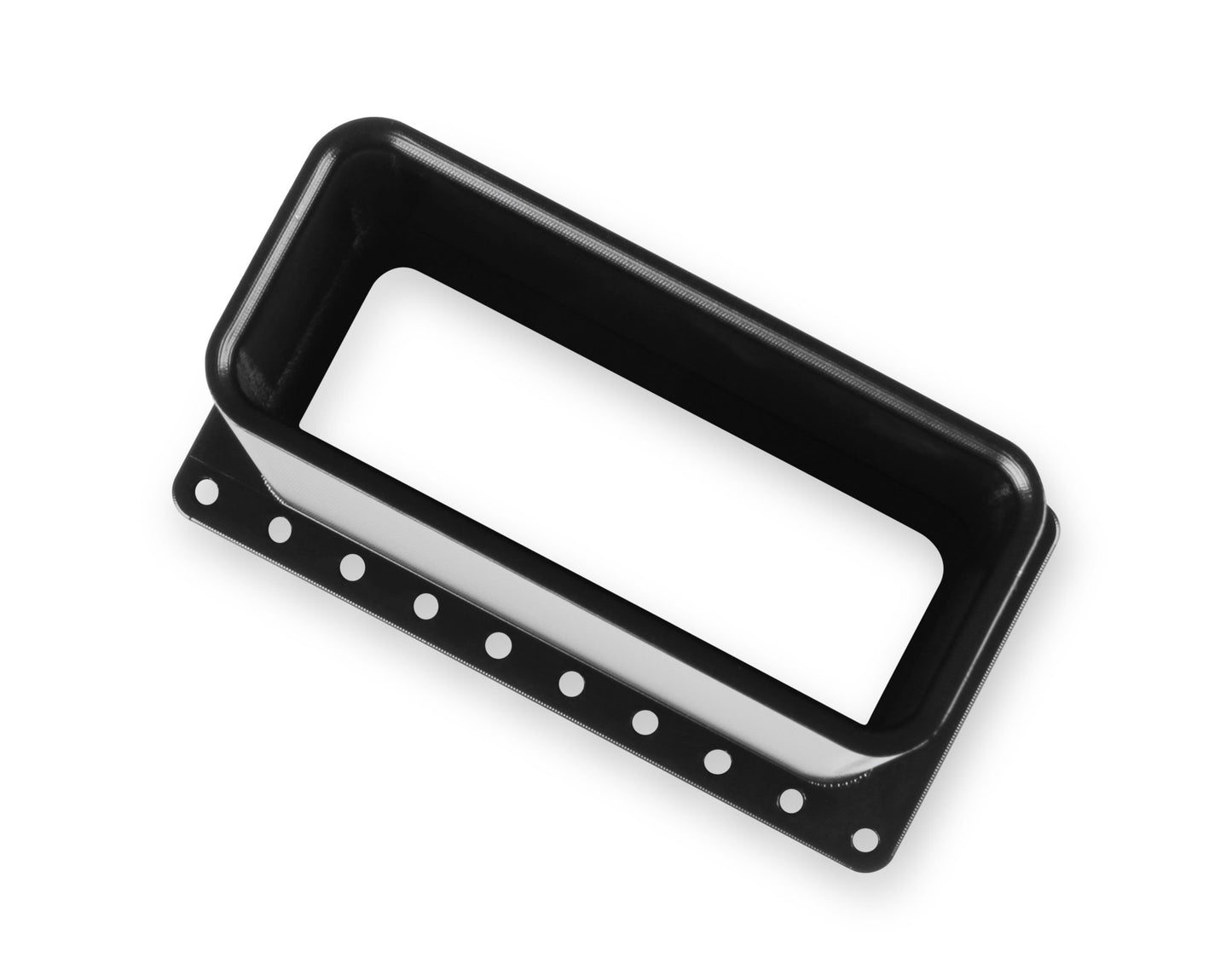

LS Ultra Lo-Ram Billet Burst Panel Duct

Billet Burst Panel Duct Clear Anodized Finish

Overview
The P/N 300-608 & 300-608BK Lo-Ram billet burst panel ducts are designed to complement the Holley LS Ultra Lo-Ram EFI intake manifold kits. The Ultra Lo-Ram kits are intended for boosted engine applications where the requirement of an intake manifold plenum burst panel may be recommended to protect the engine from an intake plenum backfire. The 300-608 & 300-608BK Ultra Lo-Ram billet burst panel ducts are made for a standard "large" 6-1/8" x 3-1/8" burst panel. SFI Approved Burst panels, burst panel frame sets, and gaskets may be purchased from various manufacturers such as Allstar Performance or Specialty Fasteners. P/N 300-608 has a clear anodized finish and P/N 300-608BK has a black anodized finish. Mounting fasteners are included in the kit.

The 300-608 & 300-608BK Ultra Lo-Ram billet burst panel ducts are made for a standard "large" 6-1/8" x 3-1/8" burst panel. SEMA Approved Burst panels, burst panel frame sets, and gaskets may be purchased from various manufacturers such as Allstar Performance or Specialty Fasteners.

Features:

• LS Lo-Ram billet burst panel duct is designed for LS Ultra Lo-Ram plenum tops with the machined-in burst panel flange
• This burst panel duct is made for a standard large??? 6-1/8??? x 3-1/8??? burst panel (SFI approved burst panels be purchased from various manufacturers such as Allstar Performance or Specialty Fasteners)??? This burst panel duct is made for a standard large??? 6
• The LS Lo-Ram billet burst panel duct is designed to direct the products of an intake manifold plenum backfire and burst to the outside of the vehicle bodywork
• This burst panel duct could be used on any intake manifold plenum fitted with a standard large??? 6-1/8??? x 3-1/8??? burst panel flange
• The 6061-T6 billet aluminum duct is available in a clear or black anodized finish
• 18-8 stainless steel mounting fasteners are included in the LS Ultra Lo-Ram billet burst panel duct kits

Details:

• Burst Panel Compatible: Yes
• Color: Black
• Construction: Billet Aluminum
• Engine: GM LS1/LS2/LS6
• Finish: Black
• Fuel System Type: EFI
• Inlet Location: Front
• Manifold Type: Ultra Lo-Ram
• Recommended Use: Forced Induction
• Warranty: Limited 90 Day
