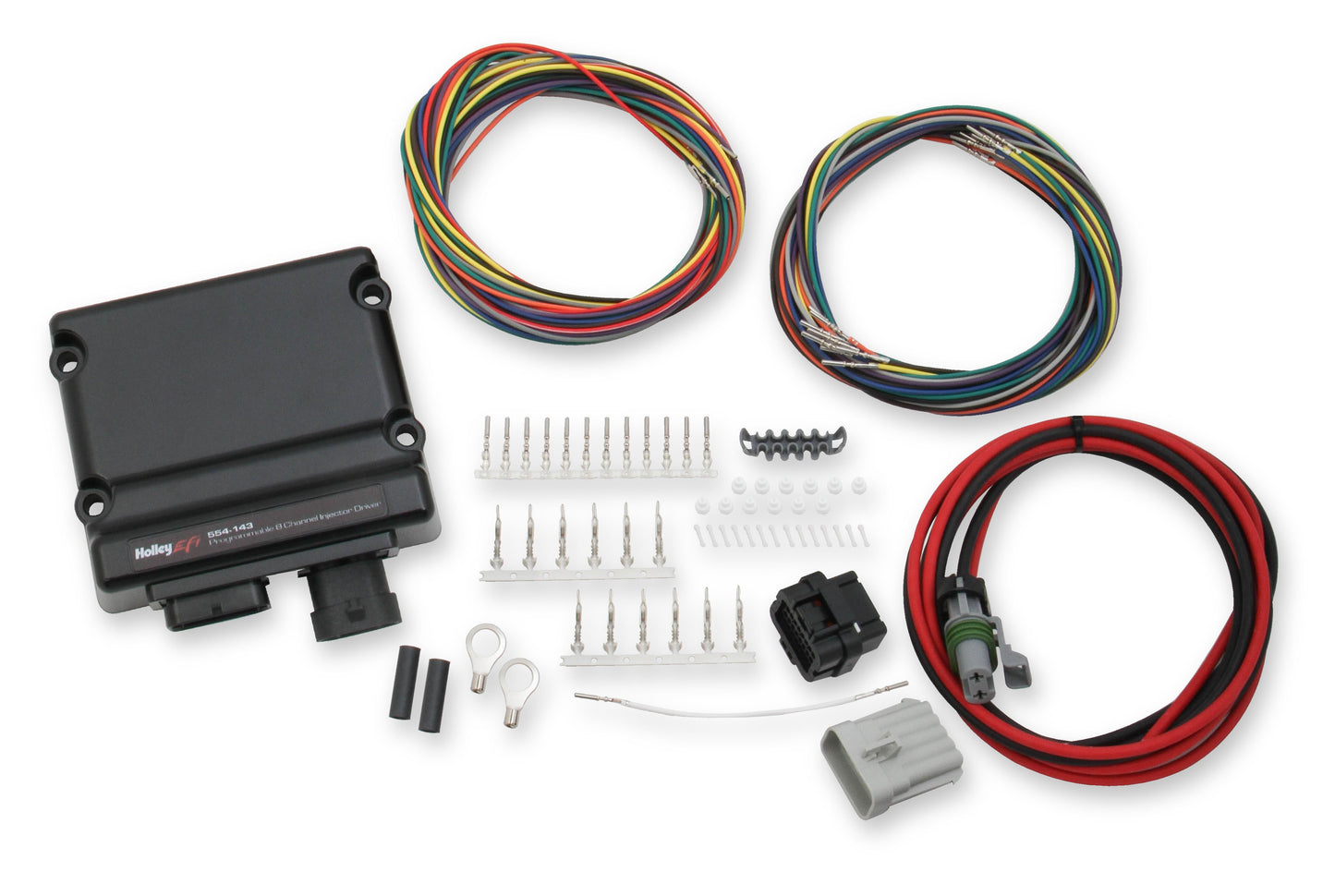

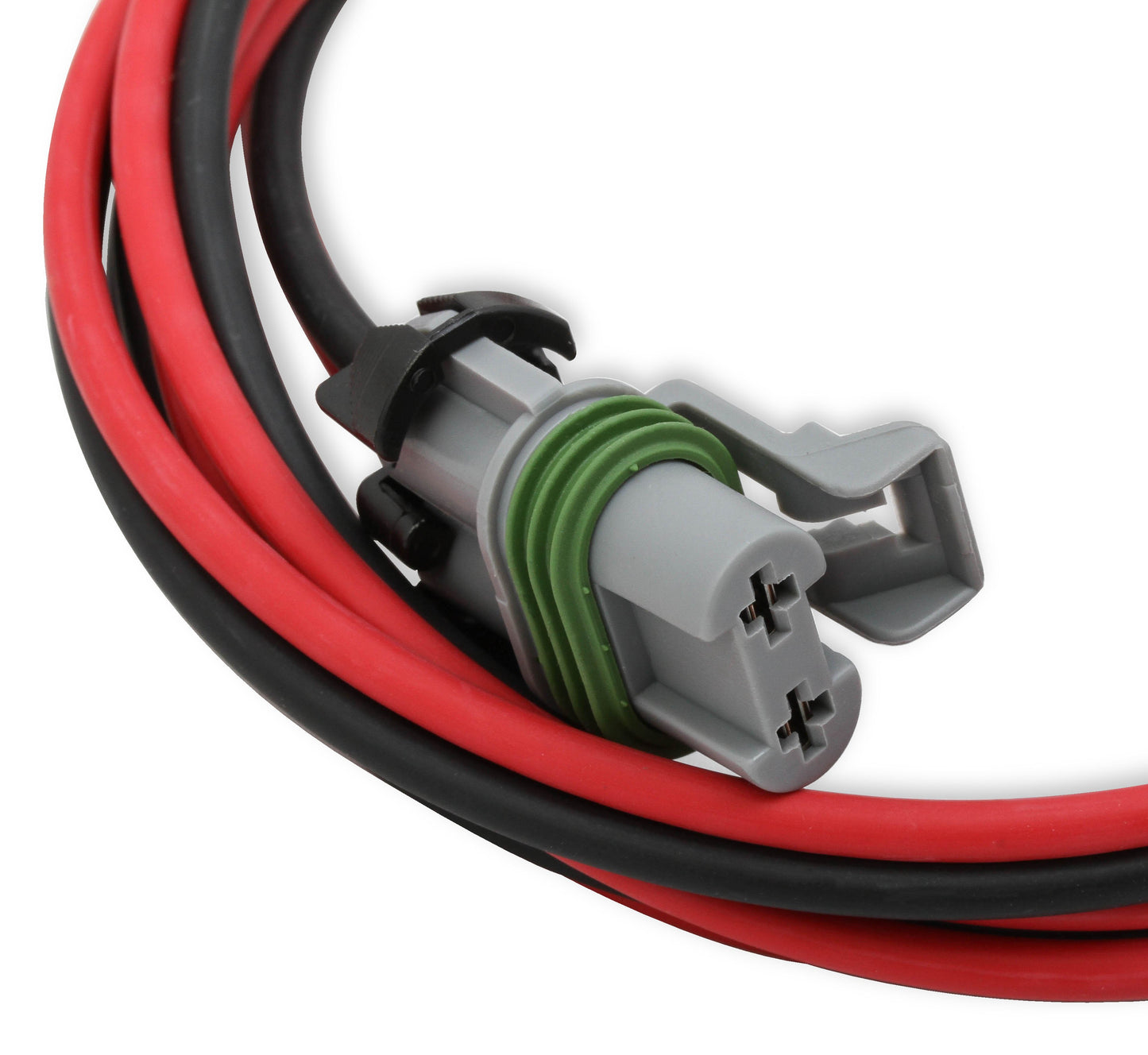

Injector Driver Module, w/ Harness

Injector Driver Module, w/ Harness

USB Connection for 553-109 553-106

Overview
Have you been searching for a reason to discard your old noisy mechanical speedometer cable? If so, the Holley GPS Module for our 7" Digital displays should be the next addition to your project vehicle. Featuring a simple plug and play installation, this GPS Module will allow you to display vehicle speed on your digital dash, without needing any external sensor information.

Features:

• Engineered specifically to add a secondary set of high peak current injectors when utilizing a Holley EFI Dominator ECU
• Can be triggered by either negative or positive trigger to ease install in all EFI applications, be it a stock or aftermarket ECU
• Eight easily programmable channels for precise injector control

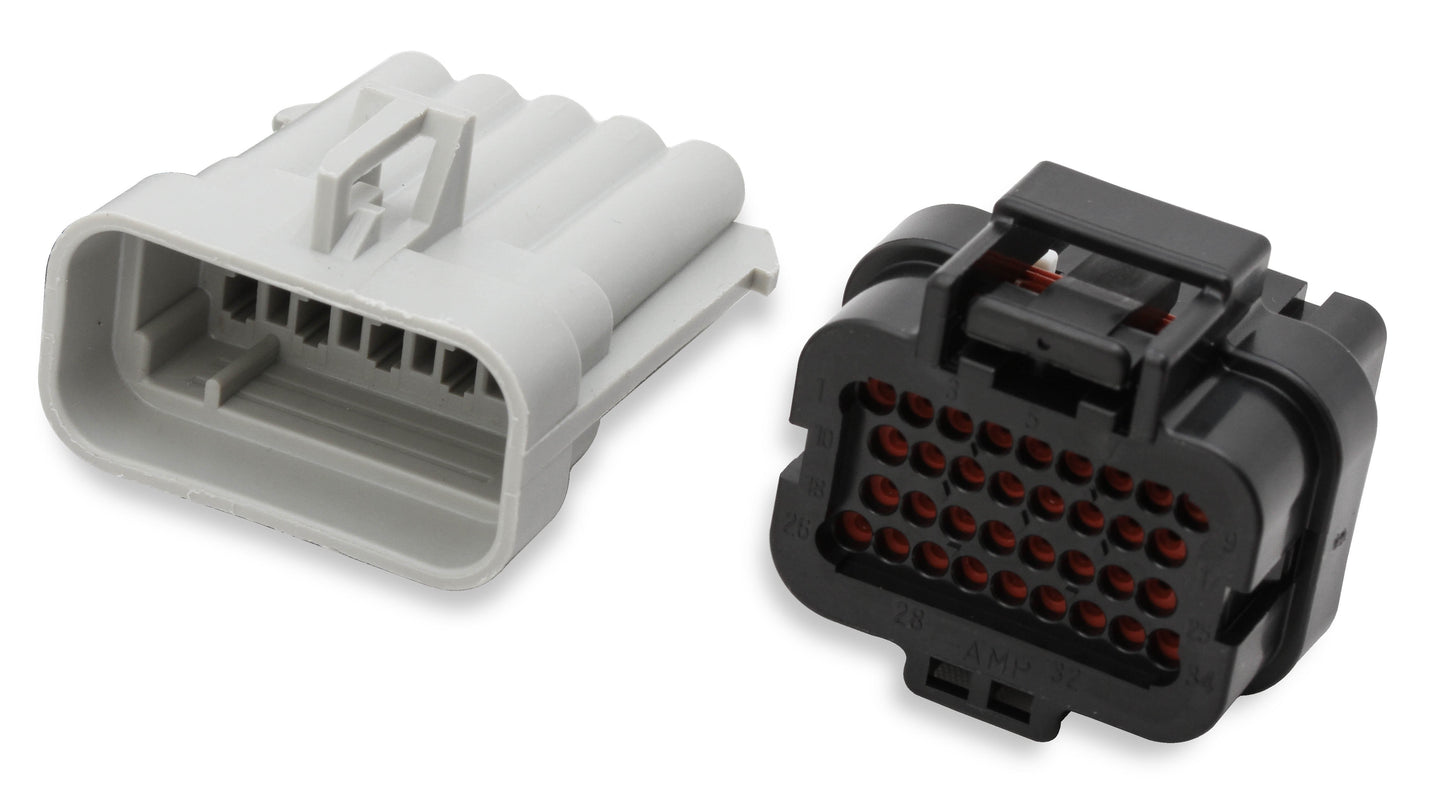

• Easy to wire Tyco Super Seal Connector
• Eight pre-programmed injector current curves
• Peak current settings from 4A to 10A
• Hold current settings from 1A to 2.5A
• Peak hold duration settings from .5 to 1.0ms
• Injector test fire program for quick troubleshooting while in the field

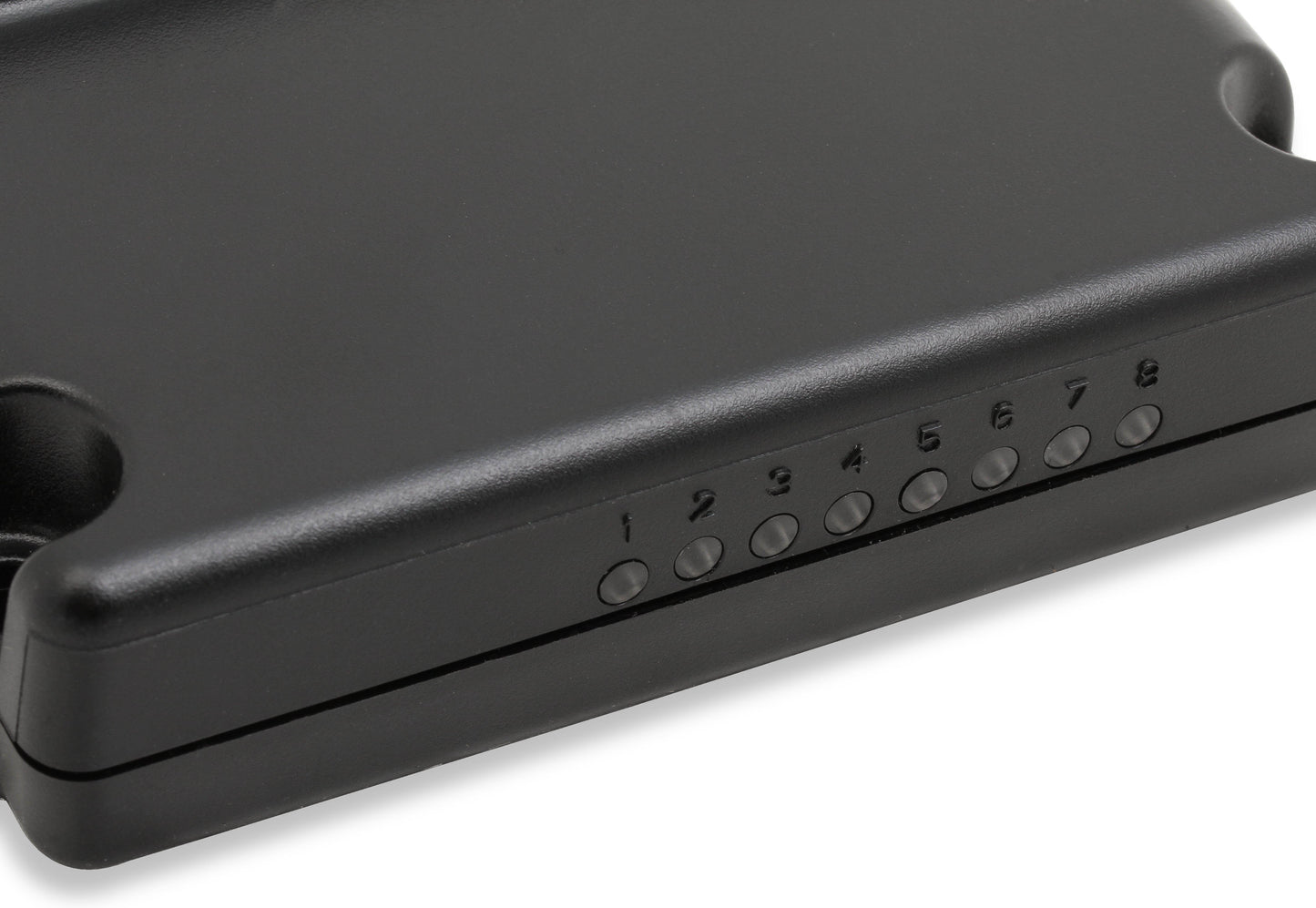

• 8 RGB LEDs indicate proper operation as well as log faults
• Two outputs (Ground and 0-5V) can be run to an ECU to datalog any injector faults
• Pre-Programmed in Position 7 for Billet Atomizer 325-800 or Precision 500 Lb/Hr Injectors

Links
Instructions
