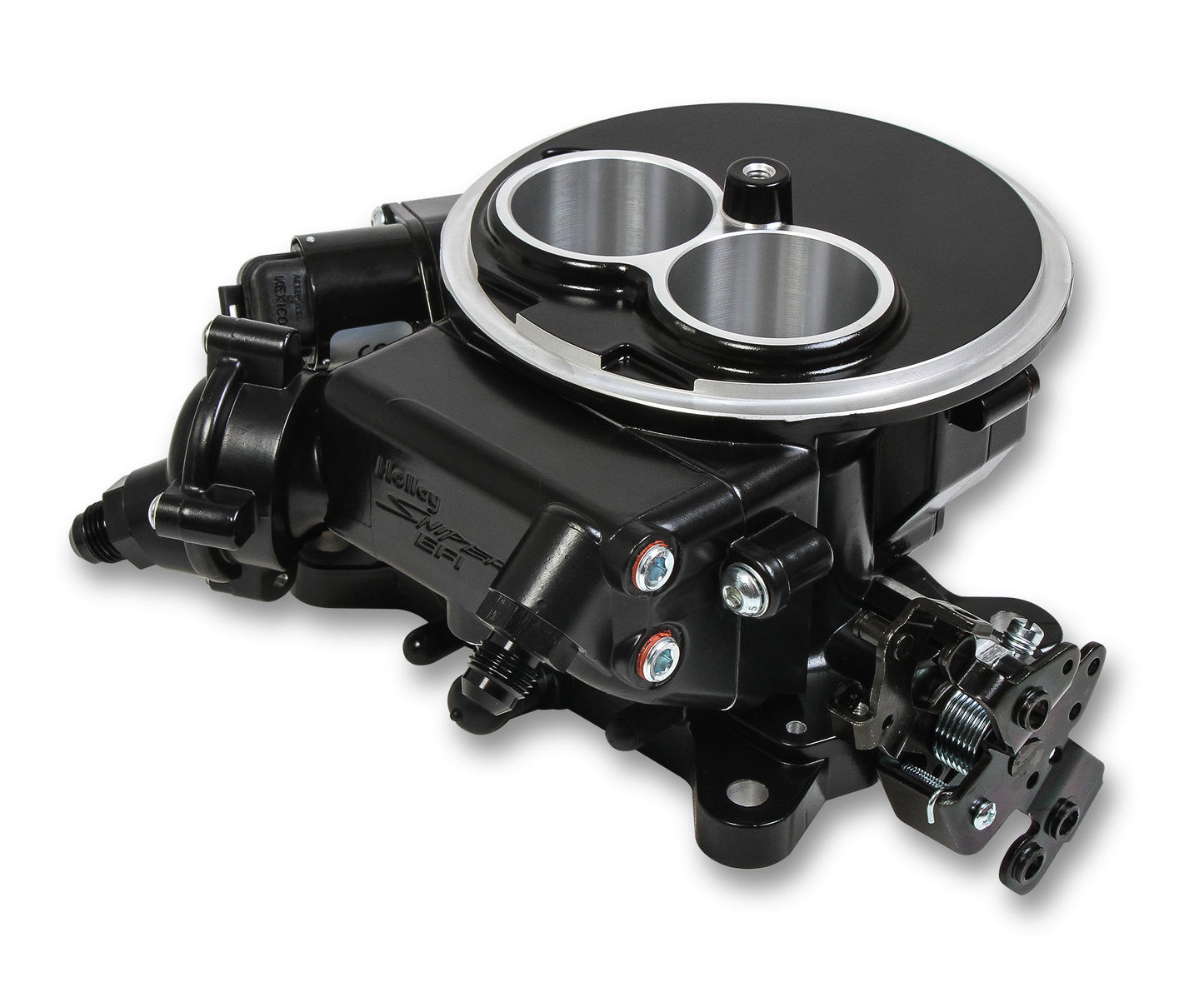

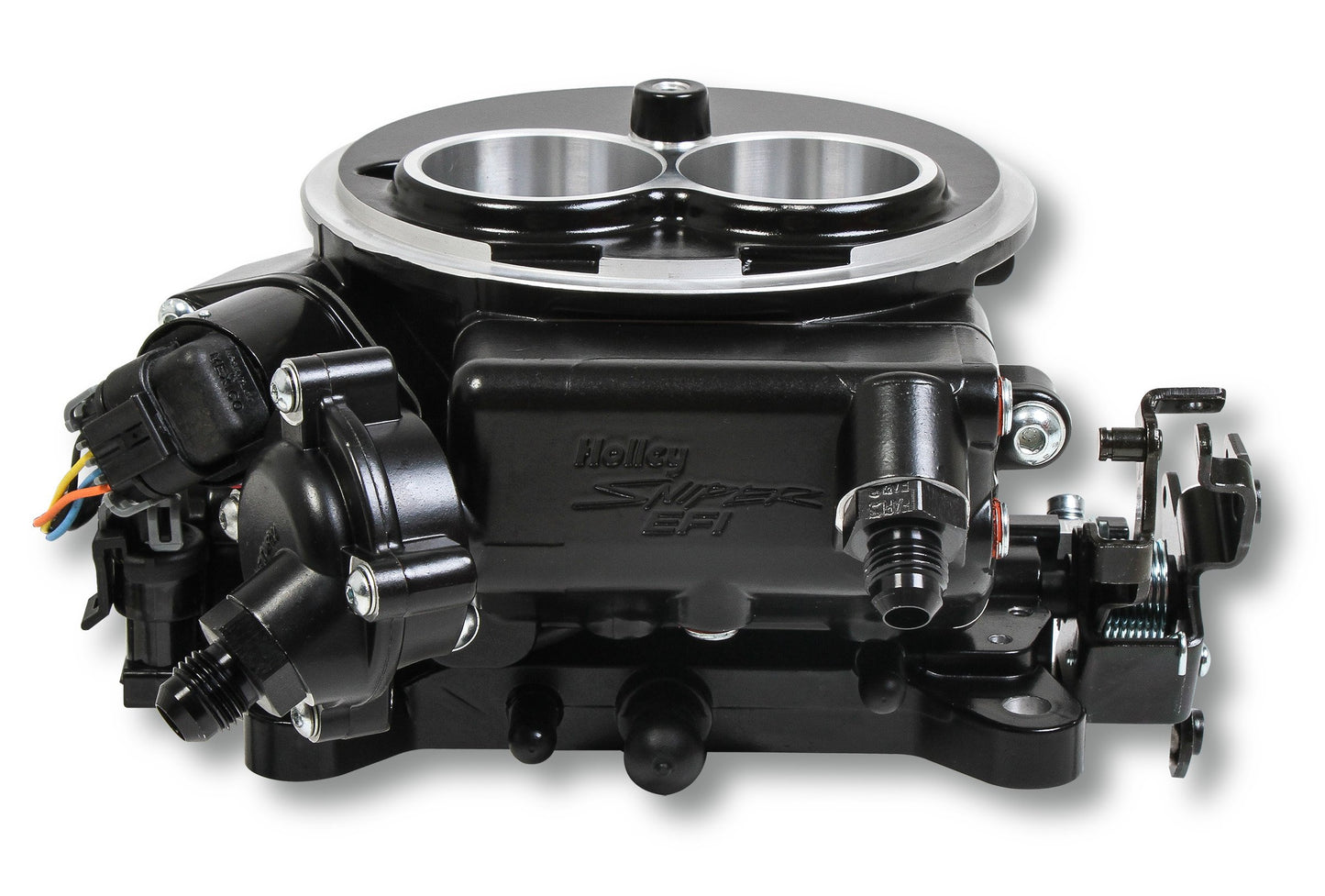

Holley Sniper EFI 2300 Self-Tuning Master Kit - Black

Holley Sniper EFI 2300 Self-Tuning Master Kit - Black

Supports Up To 350 HP - 3.5 in. Handheld Monitor - Returnless Fuel System

Overview

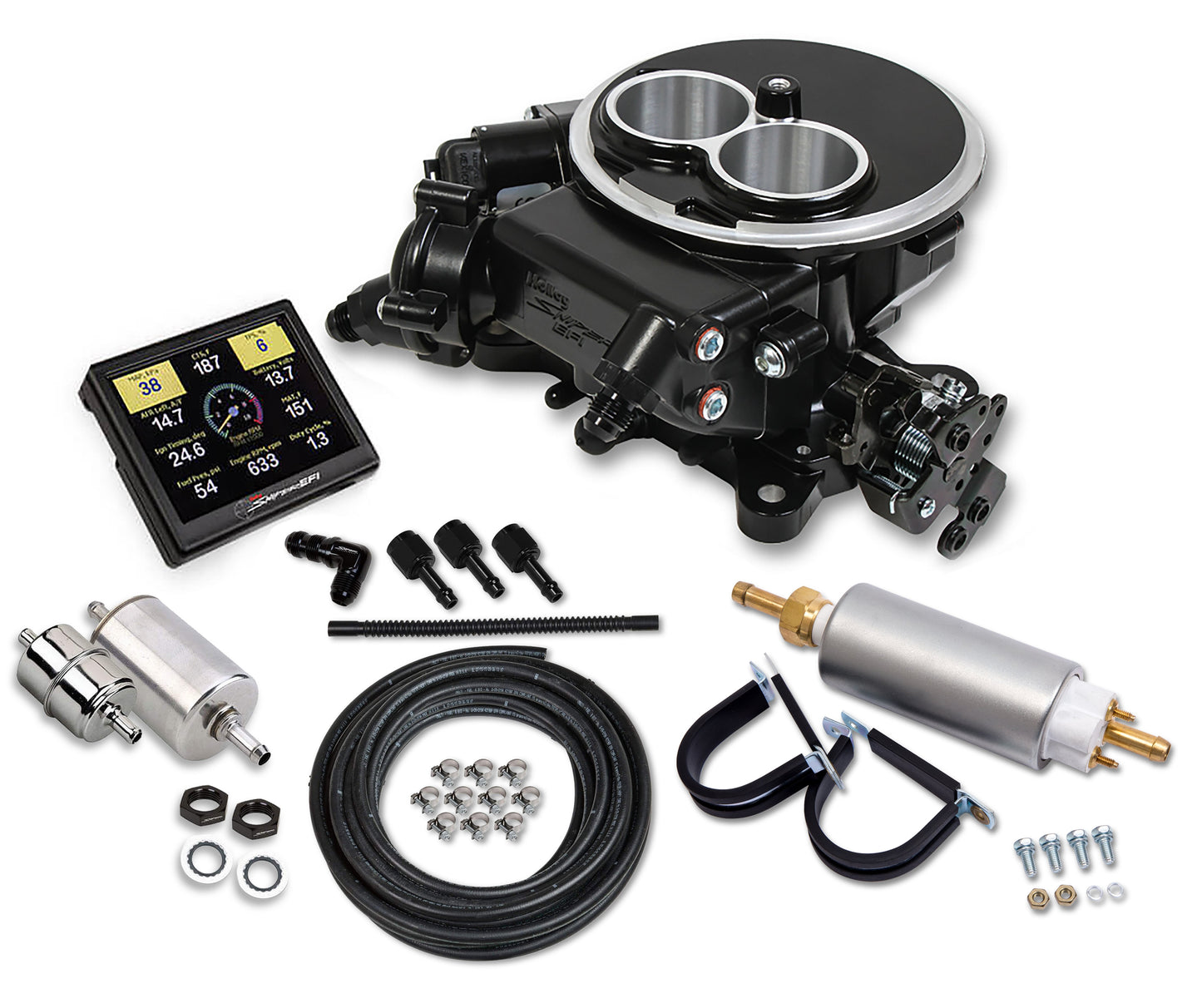

Using the Sniper EFI 2300 you can put an end to cold start issues, hesitations, vapor lock, and flooding on your Fairlanes, Galaxies, Falcons, Comets, F100s, Javelins, Rebels, Mustangs, Thunderbirds, Cougars and more. A Sniper kit is the #1 way to upgrade your classic to fuel injection in a cost-efficient way with just 4 simple connections required. After a simple installation designed to be completed at home in your garage or driveway with limited tools and the support of Holley's comprehensive installation manual and videos, you'll be enjoying better engine performance, improved miles per gallon and easier starting. This kit supports up to 350 Horsepower Naturally Aspirated and 285 Horsepower on Forced Induction setups with 2 x 100 Lb/Hr Injectors. You don't have to be a tuning genius or computer wiz to convert your build to EFI. Our simple calibration wizard allows you to just answer a few questions about your engine and the system will begin self-tuning with no laptop required. Use the high resolution 3.5" full color touchscreen for tuning and gauge displays. The Sniper EFI Master Kit comes with an included fuel system that places a 340LPH fuel pump in the tank, which can easily be accomplished with basic hand tools. The Drop-in Master kits make plumbing your Sniper EFI installation as hassle-free as possible, simply cap the regulator on the Sniper EFI throttle body with the provided -6an cap, safely route the vapor guard fuel line along the chassis back to the diecast fuel hat, and the job is finished. Now that you're beginning your EFI journey, you don't have to stop here! Sniper is apart of a complete ecosystem designed specifically to work together and support all of your EFI needs. This kit pair's seamlessly together with plug-n-play Hyperspark Ignition systems (coil, ignition box and distributors), fuel system's (fuel pump kits, modules, in-tank systems), air cleaners & digital dashes to unlock the full potential of your build.

Ford transmissions may require Part Number 20-60 Ford Transmission Kickdown Spring & Bracket kit.

Features:

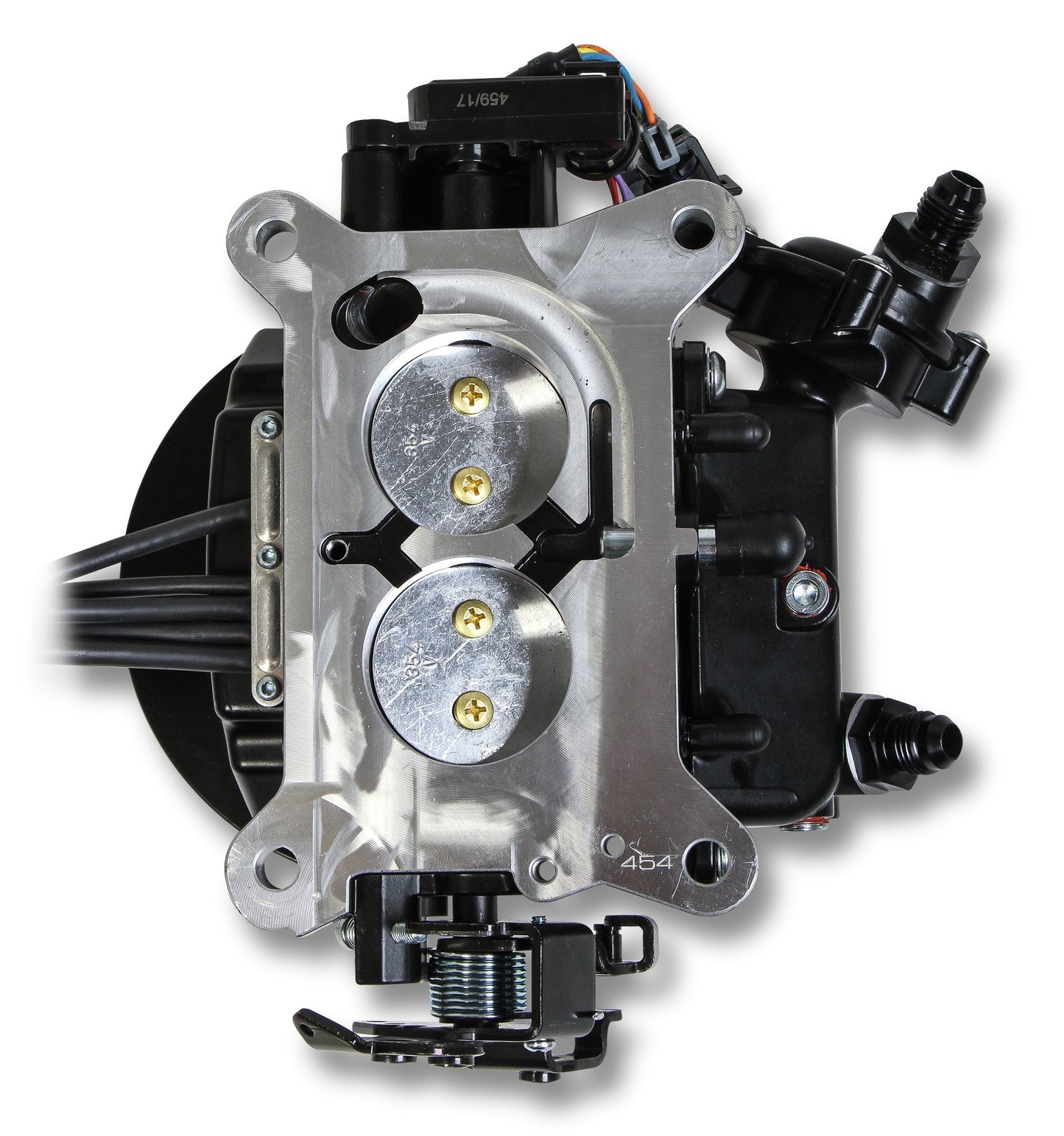

• Bolt on 2300 Flange Carburetor Replacement
• Self-tuning ECU means you don??????t have to be a computer/tuning wiz to have EFI!

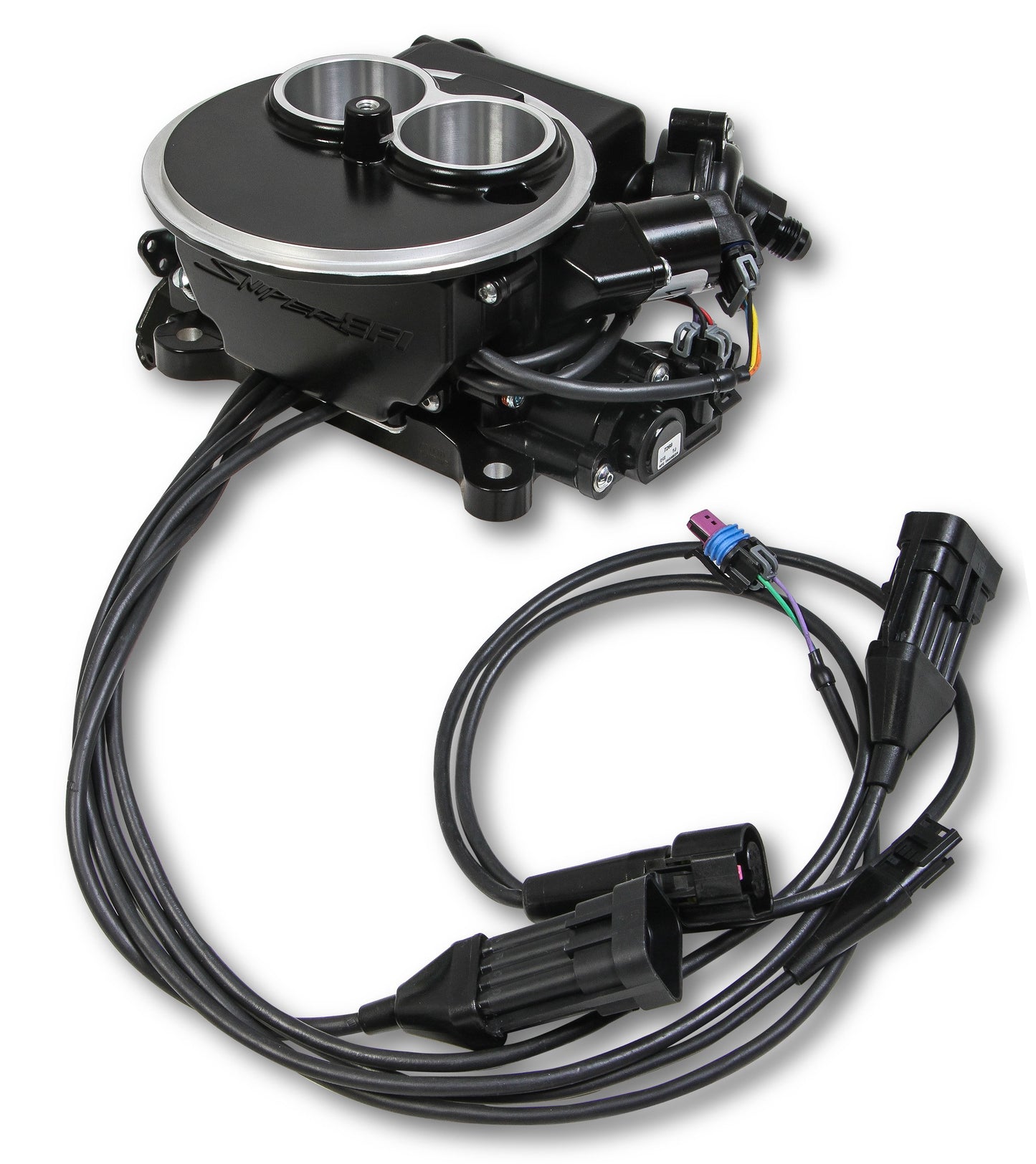

• Only 4 Wiring Connections Required! (Battery +, Battery - , Switched Ignition & RPM)
• Simple Calibration Wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required!
• High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays
• Supports up to 350HP with Two 100lb/hr Injectors

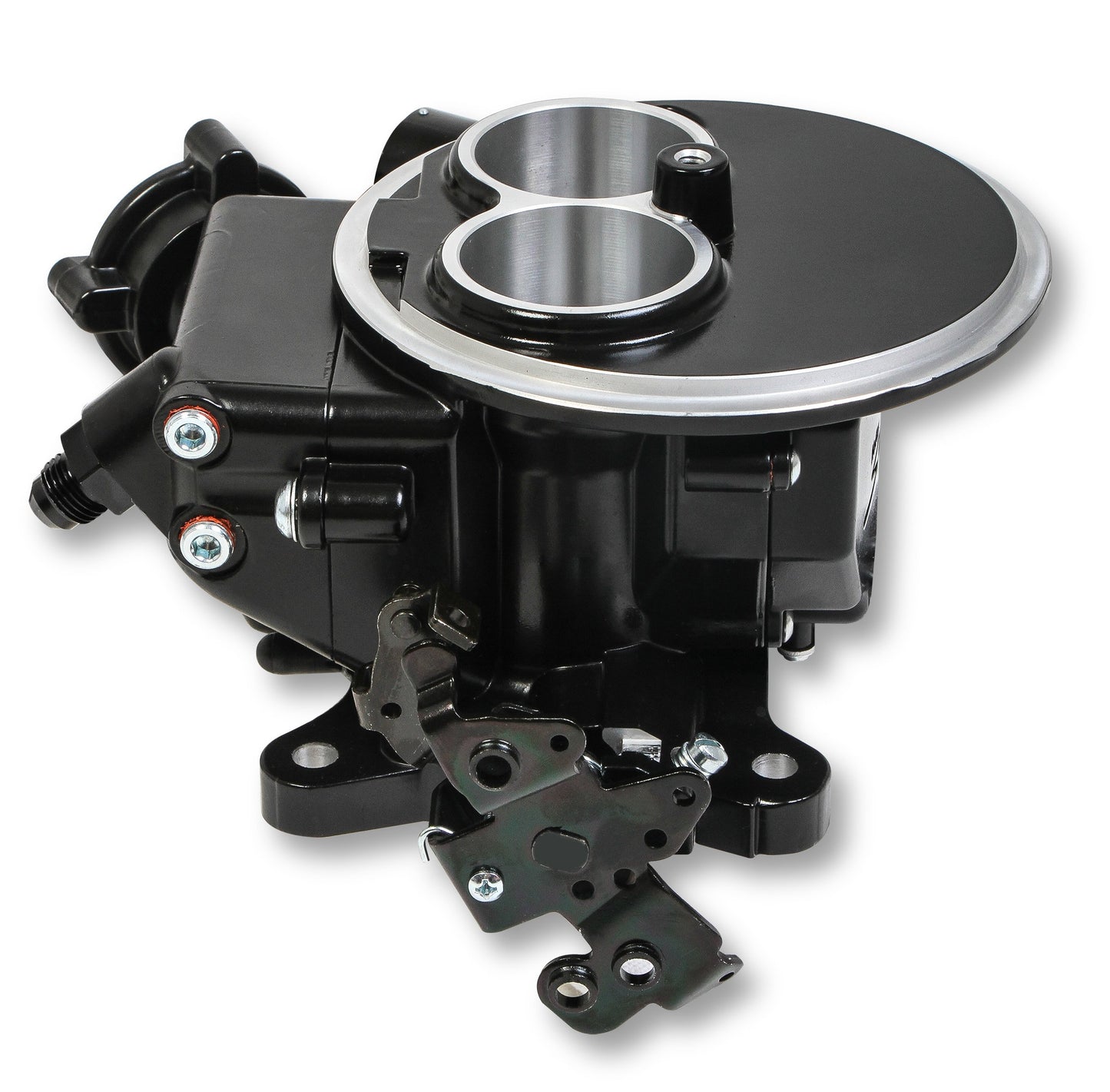

• Equipped with C4 / C6 Ford transmission kickdown lever as well as TH350, 400 and 700R4 provisions
• Accepts many common 5 1/8??? OEM or aftermarket air cleaner assemblies
• Throttle body mounted ECU ???? no extra boxes to mount
• Integrated ignition timing control

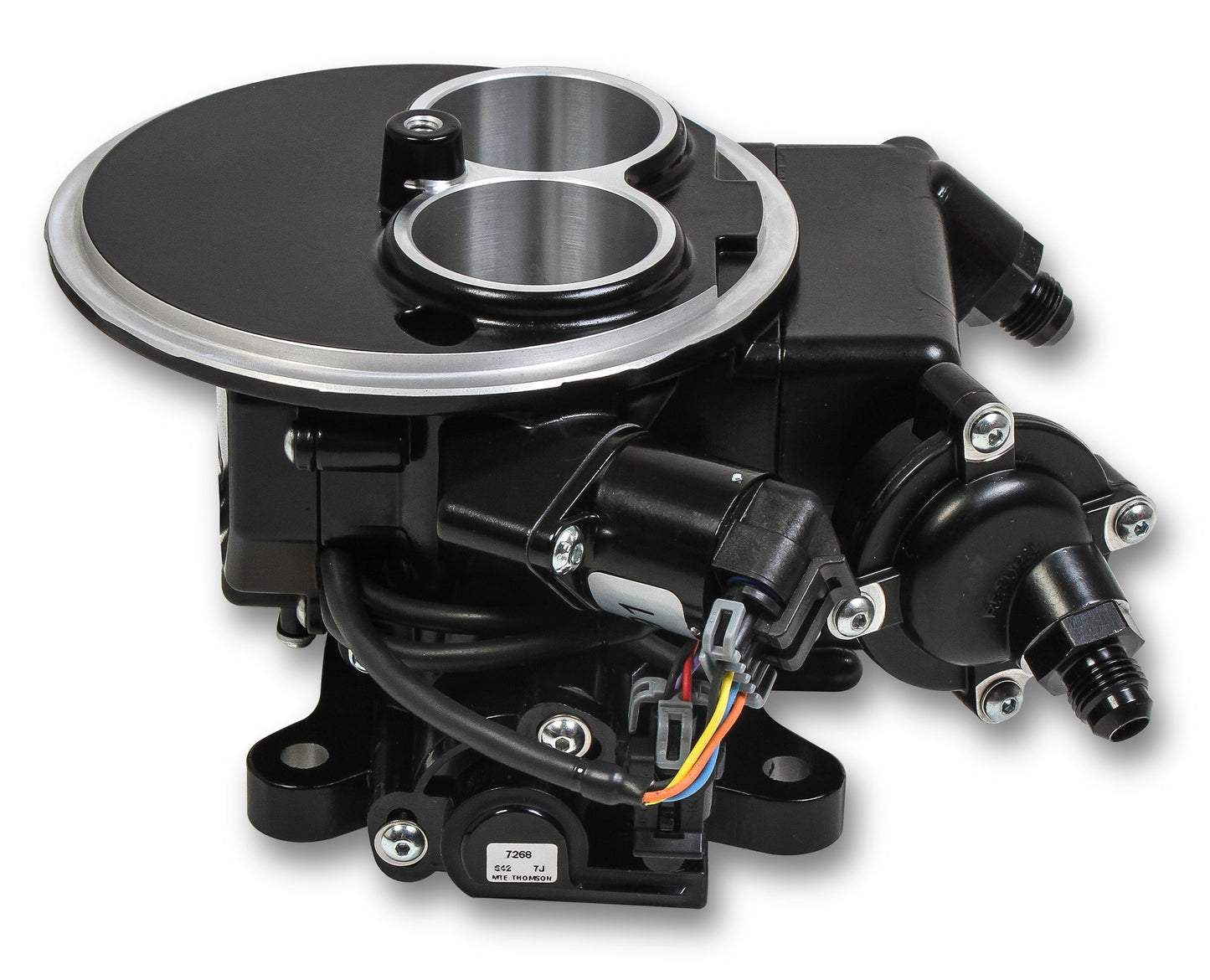

• Internal fuel pressure regulator eliminates the hassle of plumbing an external fuel pressure regulator (Preset to 58.5 PSI)
• The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides realtime Fuel Map Learn!
• OEM Style TPS/IAC and Fuel Pressure regulator, for years of dependable service.
• Included clamp-on oxygen sensor kit for 2.25" exhaust ensures a leak free oxygen sensor installation, with Stainless Steel T-Bolt clamps and a Stainless Steel (Weldable) oxygen sensor flange
• Sniper EFI Software free to download which allows for realtime tuning
• Printable throttle body flange template included
• Patent Pending

Details:

• CFM: 580
• Finish: Black
• Flange Style: 2300
• Fuel Pressure: 58.5 PSI
• Injector Size: 100 lb/hr @ 58.5 PSI
• Inlet / Outlet Size: 9/16-18 Female O-Ring (AN 6)
• MAP Sensor: 2Bar
• Max Horsepower Rating: 350 Naturally Aspirated
• Transmission: 700R4/200R4
• Transmission: Ford C4/C6
• Transmission: TH350
