Holley Sniper EFI 2300 Self-Tuning Kit - Shiny

Holley Sniper EFI 2300 Self-Tuning Kit - Shiny

Supports Up To 1500HP - 3.5 in. Handheld Monitor - 8x100 LB/HR Injectors

Overview
Wanting to convert your Dragster or Pro-street vehicle to Fuel Injection? Sniper, the #1 Fuel Injection Conversion system has you covered with the Stealth 4500. Featuring 8 100LB/HR Fuel Injectors this kit is the perfect option for any build looking to make between 800-1500HP. We have many Sniper options for builds going from mild to wild. This is the perfect set up for the more extreme build with multiple input and output options for sensor inputs and switched outputs to control external relays. 2.125" throttle plates, flows 1440 CFM for larger cubic inch engines. Included 2.5BAR Map sensor and programmable launch control via 2-step which can be triggered by the trans-brake input. Simplicity is what we strive for when it comes to everything related to EFI conversion! Sniper is designed to be installed at home in your garage or driveway with limited tools and the support of Holley's comprehensive installation manual and videos. An afternoon in the garage and you will be enjoying improved engine performance, better MPG's and easier starting. You don't have to be a computer wiz or tuning professional to run a sniper kit on your build. Our calibration wizard allows you to just answer a few questions about your engine and the system will begin self-tuning with no laptop required. Use the high resolution 3.5" full color touchscreen for tuning and gauge displays. Once you made your conversion to EFI, don't stop there! Sniper is an Ecosystem! This kit pair's seamlessly together with Holley's Sniper Hyperspark Ignition, Fuel System's, Air Cleaners, Throttle Body & Digital Dash to unlock the full potential of your build. For a full list of features & benefits on what the Sniper Stealth 4500 has to offer, see below!

Not for use with engines producing less than 800 horsepower Gasoline Only Use of leaded race fuels may shorten the service life of the WBO2 sensor

Features:

• Bolt on 2300 Flange Carburetor Replacement
• Self-tuning ECU means you don't have to be a computer/tuning wiz to have EFI!
• Simple Calibration Wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required!
• Only 4 Wiring Connections Required! (Battery +, Battery - , Switched Ignition & RPM)

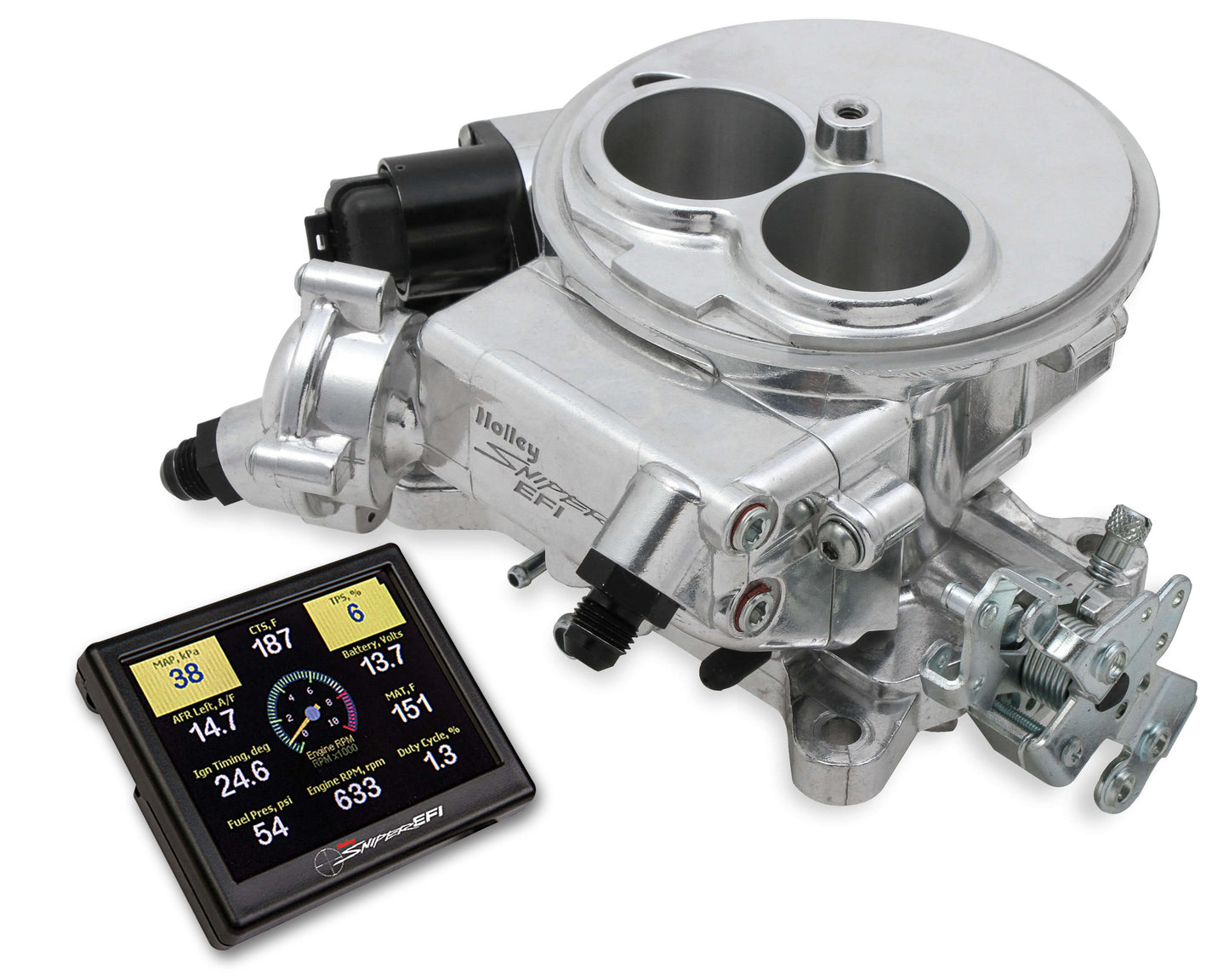

• High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays
• Supports up to 350HP with Two 100lb/hr Injectors
• Equipped with C4 / C6 Ford transmission kickdown lever as well as TH350, 400 and 700R4 provisions
• Accepts many common 5 1/8" OEM or aftermarket air cleaner assemblies
• Throttle body mounted ECU ???? no extra boxes to mount
• Integrated ignition timing control
• Internal fuel pressure regulator eliminates the hassle of plumbing an external fuel pressure regulator (Preset to 58.5 PSI)
• The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides realtime Fuel Map Learn!
• OEM Style TPS/IAC and Fuel Pressure regulator, for years of dependable service.
• Included clamp-on oxygen sensor kit for 2.25" exhaust ensures a leak free oxygen sensor installation, with Stainless Steel T-Bolt clamps and a Stainless Steel (Weldable) oxygen sensor flange
• Sniper EFI Software free to download which allows for realtime tuning

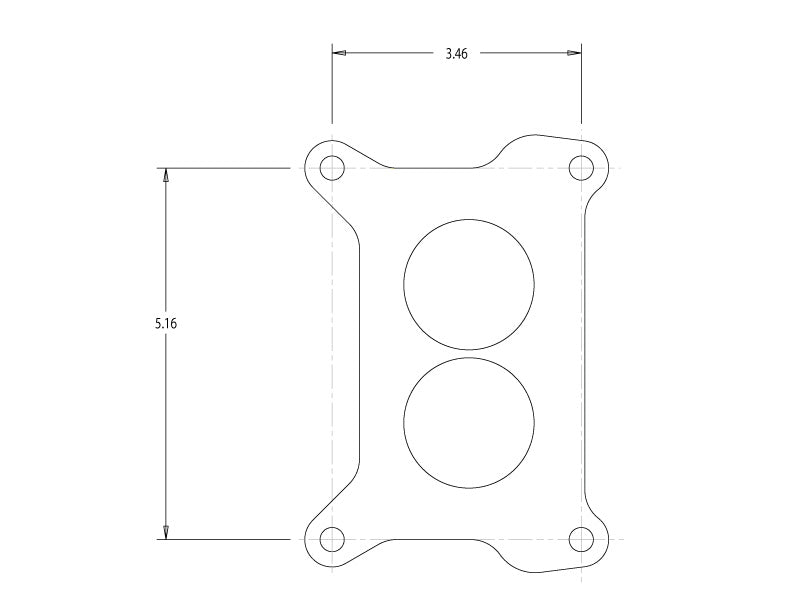

• Printable throttle body flange template included
• Certified to ISO 8846, SAE J1171 & United States Coast Guard Requirements for Ignition Protection & Fire Resistance. Making Sniper EFI the perfect choice for carburetor to marine fuel injection conversions!
• A Flame Arrestor is REQUIRED for marine installations, such as part number, 720-1 or 720-13

Details:

• CFM: 580
• Coast Guard Approved: Yes
• Finish: Shiny
• Flange Size: 2300
• Flange Style: 2300
• Fuel Pressure: 58.5 PSI
• Injector Size: 100 lb/hr @ 58.5 PSI
• Inlet / Outlet Size: 9/16-18 Female O-Ring (AN 6)
• MAP Sensor: 2Bar
• Max Horsepower Rating: 350 Naturally Aspirated
• Transmission: 700R4/200R4
• Transmission: Ford C4/C6
• Transmission: TH350

Links
Instruction Sheet
Quick Start Guide
SniperEFI 2300 Application Guide
