Holley Smart Coil Remote Coil Relocation Brackets

Holley Smart Coil Remote Coil Relocation Brackets

Gen V Coil Body, Remote Relocation System - Black Finish

Overview

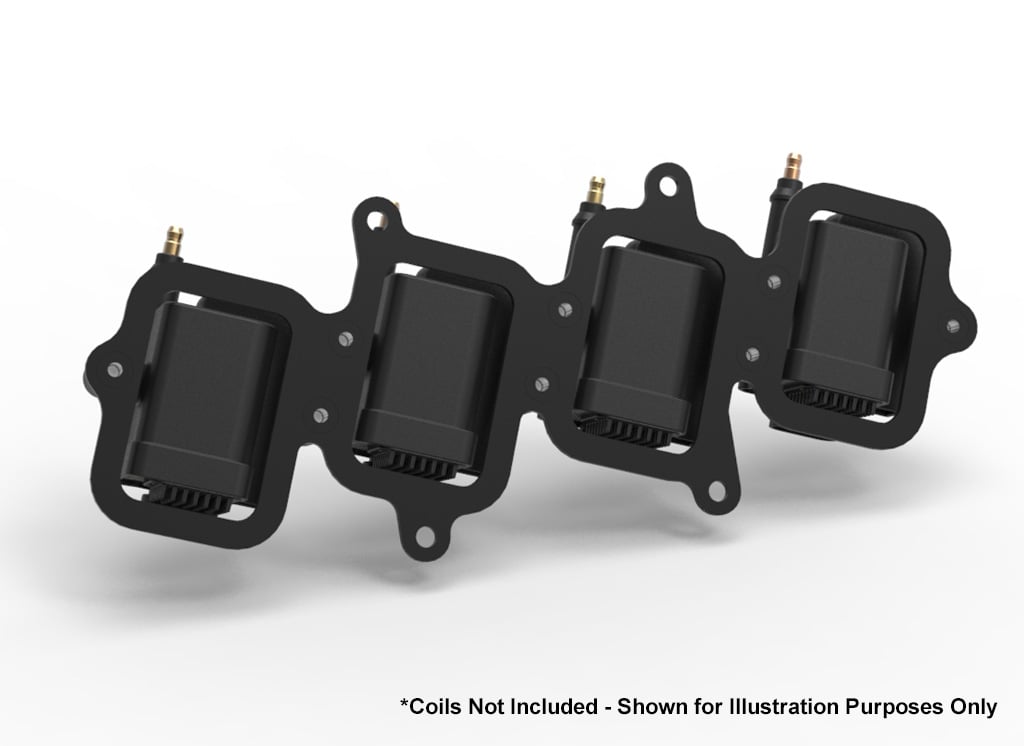

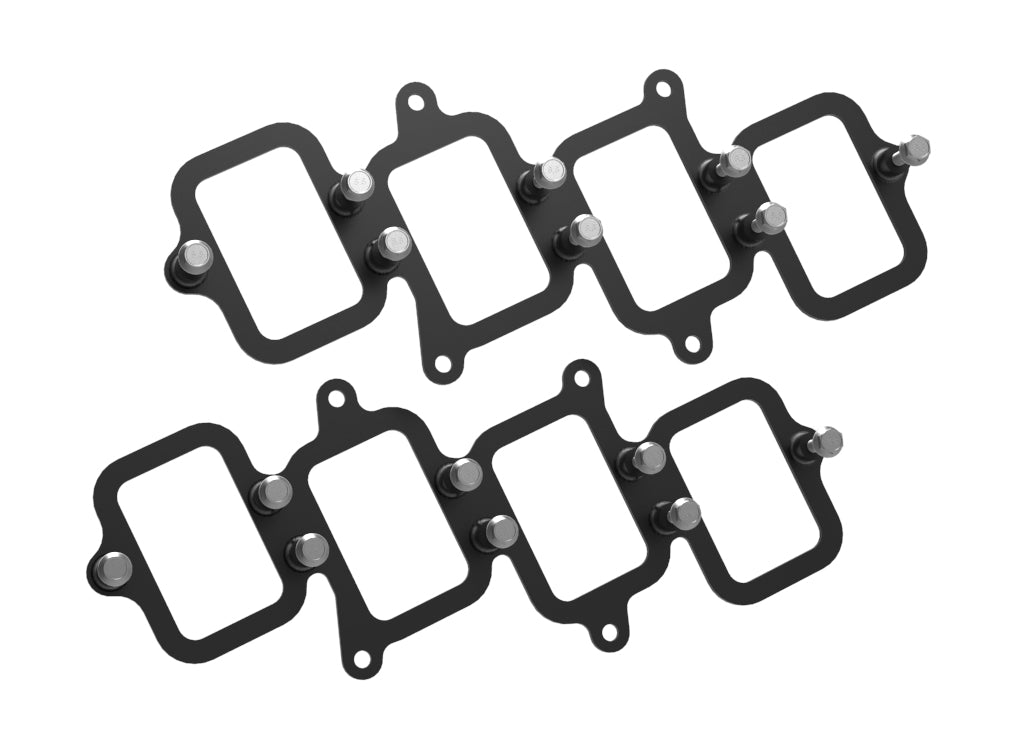

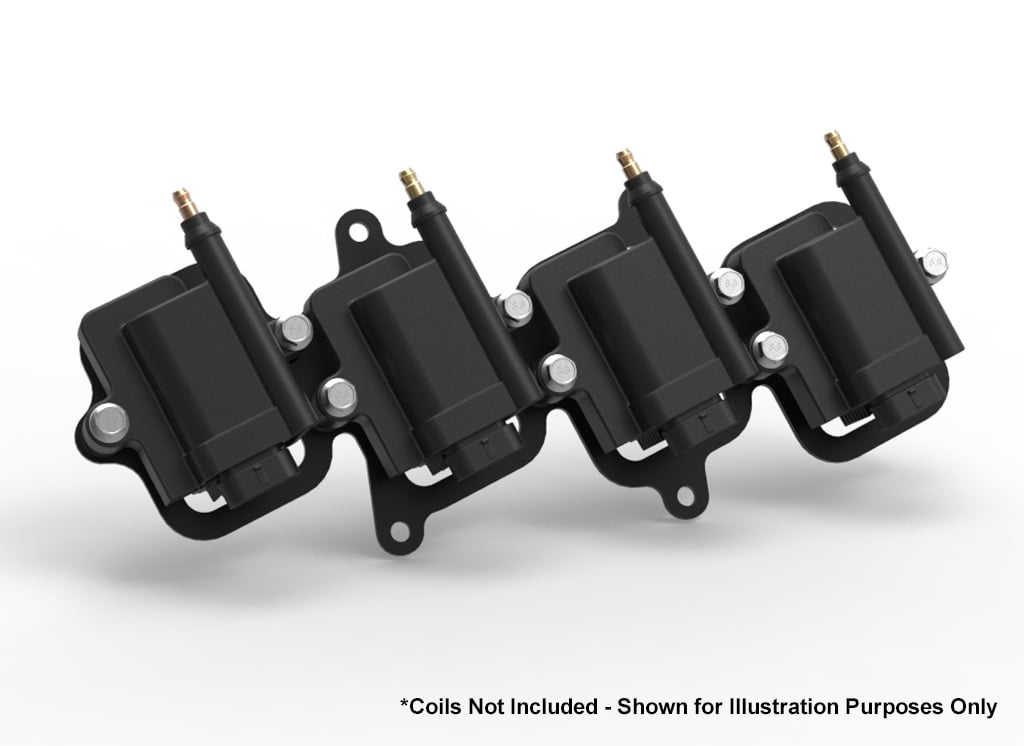

Holley is pleased to announce the arrival of our remote coil relocation brackets for all existing LS coil models, as well as for Holley EFI SmartCoils. These brackets are fabricated from lightweight aluminum and allow users to discreetly remote mount their LS engine coils at a location of their choice. Each kit was custom designed based on the specific coil model to ensure that the coils will mount as compactly as possible ????????" size and shape between each kit will vary depending on the coil being used. Each kit includes two coil dependent mounting brackets (available in both natural aluminum and black) and mounting hardware for each coil.

Vehicle Applications: - 05-06 Chevy, Buick, Cadillac, Pontiac Cars w/ 5.3L, 6.0L, 7.0L Engines VIN Designation: M, E, C - 05-06 Chevy, GMC Trucks w/ 5.3L, 6.0L Engines VIN Designation: M, U, H
Coil Reference Numbers: GM: 12570616 AC Delco: D510C MSD: 8265 / 82658 Holley: 410004 Accel:140043 / 140043-8

Features:

• Eliminates OE Coil-on-Cover clutter
• Designed to custom fit all LS Ignition coil models
• Fabricated from lightweight aluminum
• Includes coil mounting hardware
• Sold as a pair ???? Coils not included
• Available in Black & Natural

Details:

• Coil Spacing: 2.9" / 74mm

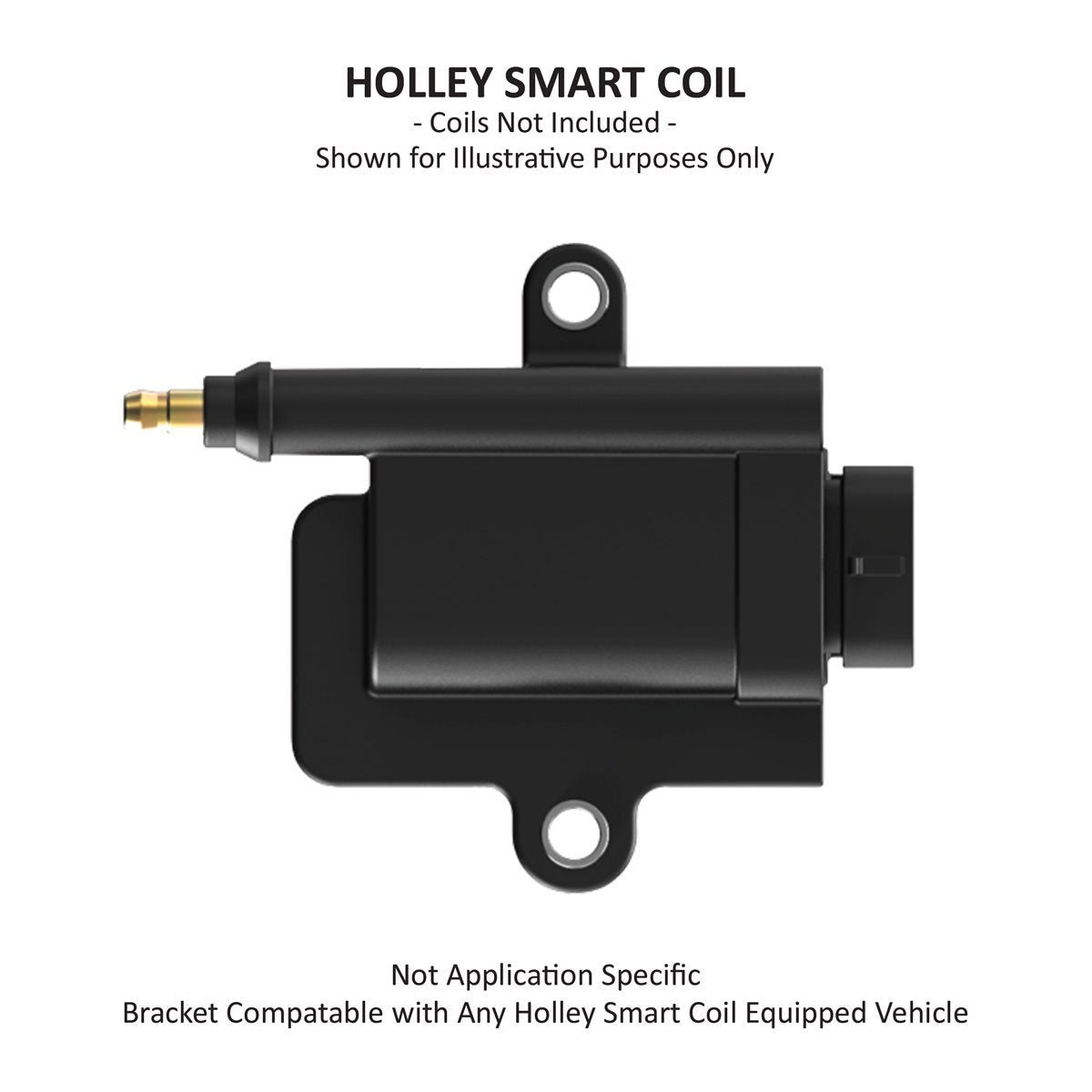

• Coil Type: Holley SmartCoil
• Dimension A: With Coils: 13.45" L x 5.4" W x 2.1" H
• Dimension B: Bracket Only: 13.45" L x 5.2" W x 0.6" H
• Finish: Black
• Hardware Included: Yes
• Material: Aluminum
• Thread Size: M6 x 1.0 x 25mm
