Holley Lo-Ram Manifold Base and Fuel Rails Dual Fuel Injector - GM LS3/L92
Ultra Lo-Ram Manifold Kit- Single Injector with Burst Panel Flange
Overview Available with single or dual injector provisions and a burst panel flange, the LS3 Ultra Lo-Ram intake manifold is designed for boosted combinations with hood clearance in mind.

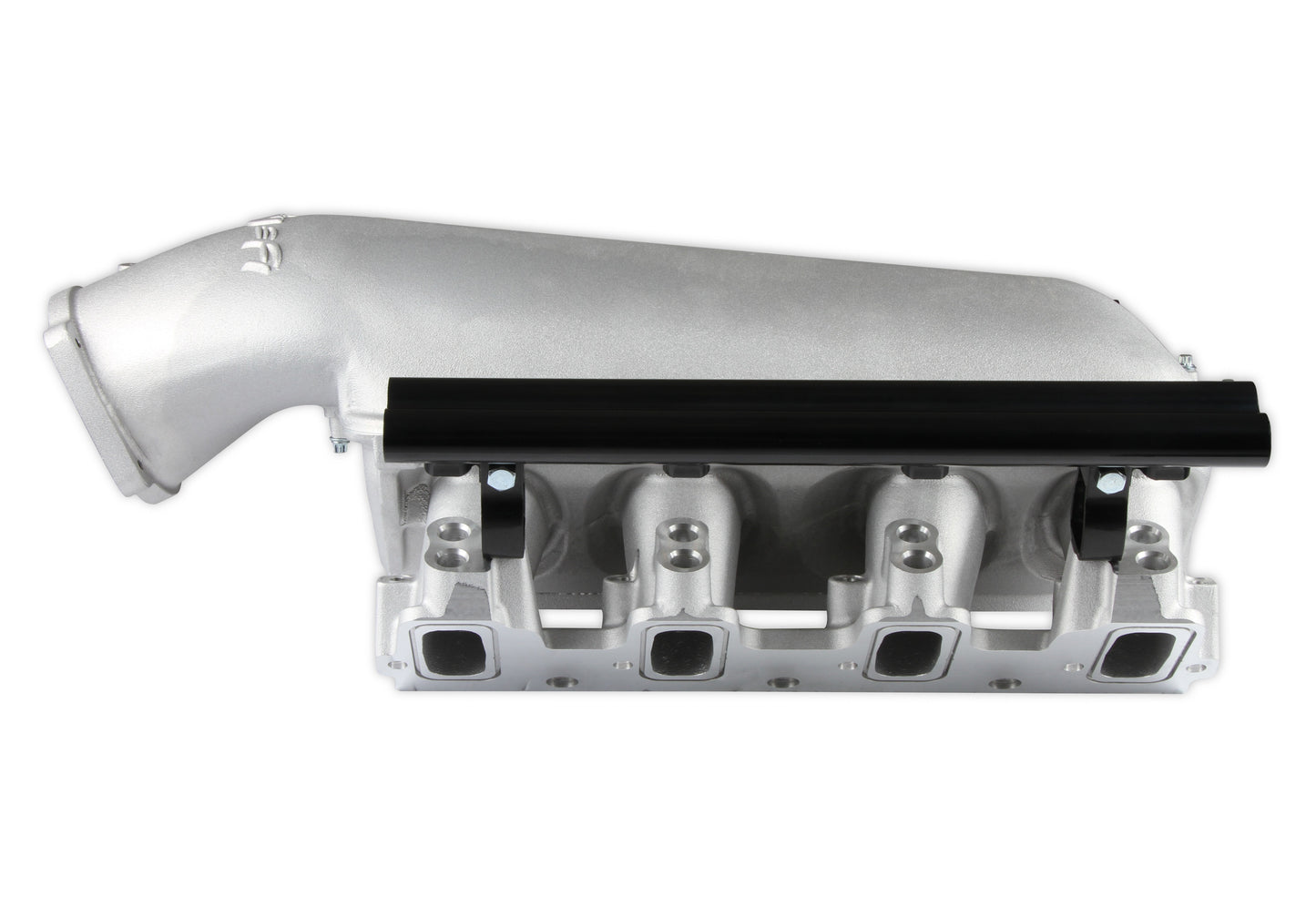

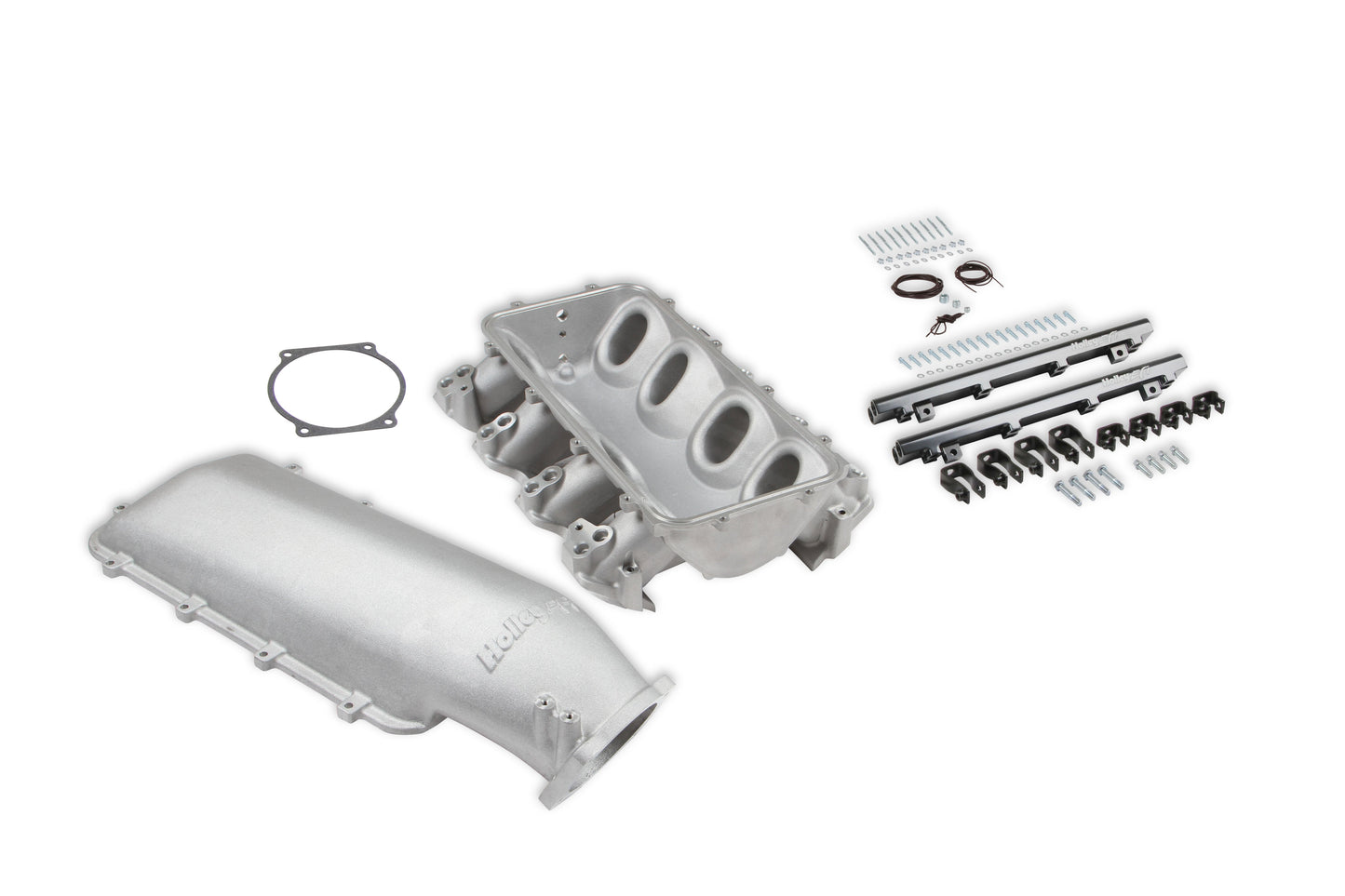

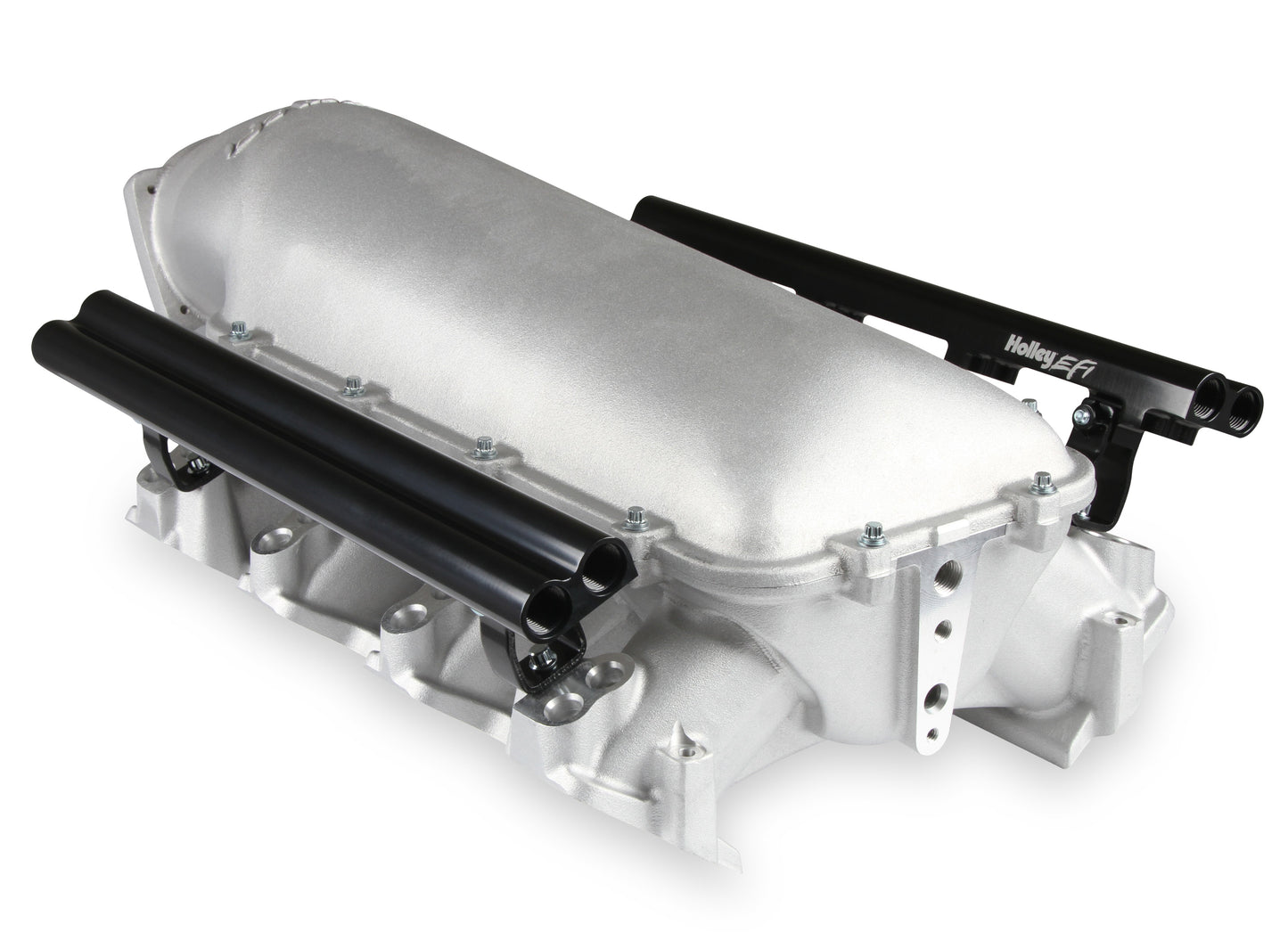

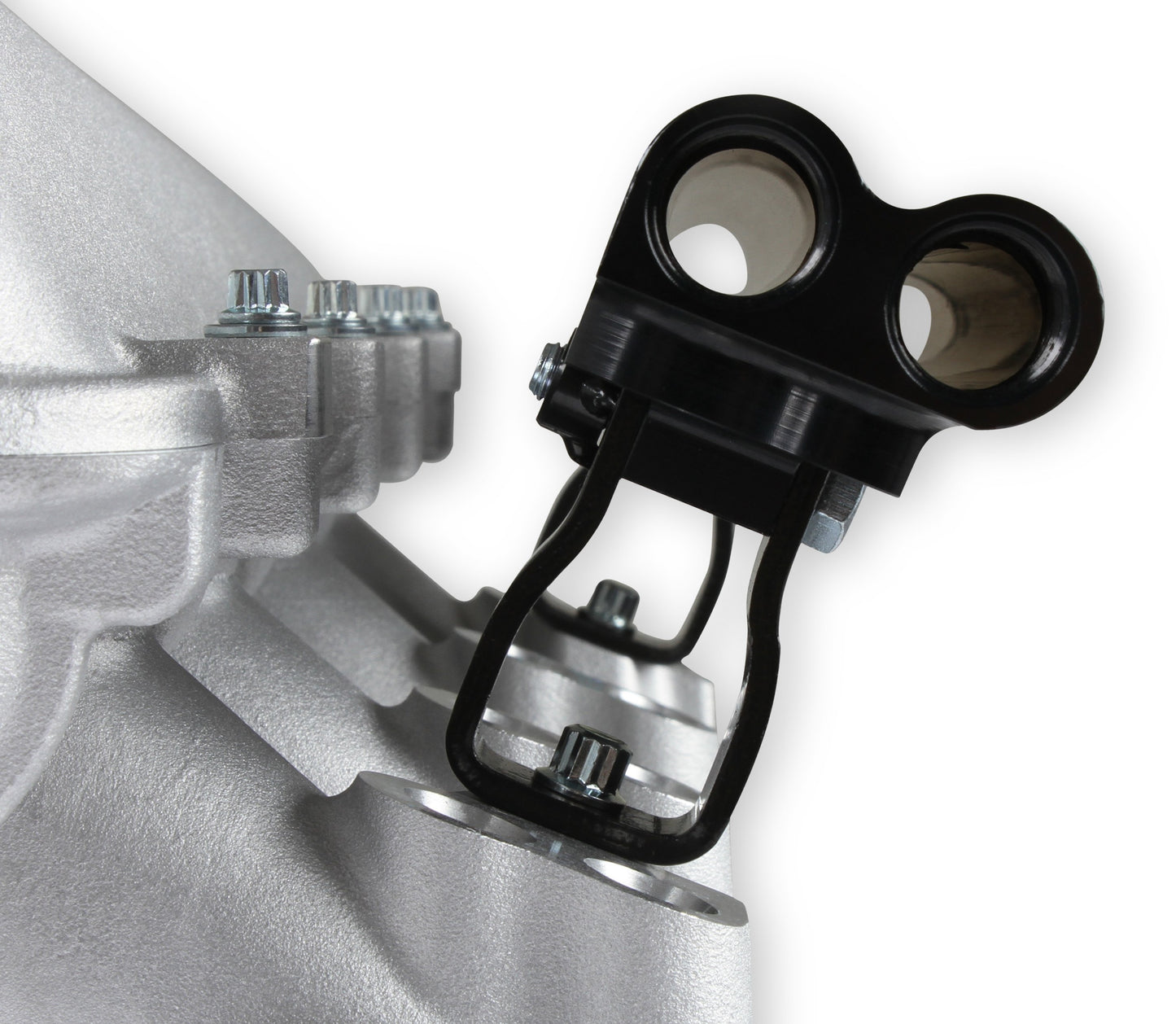

The Holley LS3 Ultra Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm depending on the application. The front entry plenum flange has a 105 mm opening to work with throttle body part number 112-581 or similar models. The base intake manifold is designed with a lower overall height to fit under a stock or mildly modified hood. The LS3 Ultra Lo-Ram is constructed to provide a very low profile modular intake manifold suitable for fabrication of special throttle body adapters or inlet ducts for custom installations. Available with single or dual injector provisions and a burst panel flange options. The fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors.

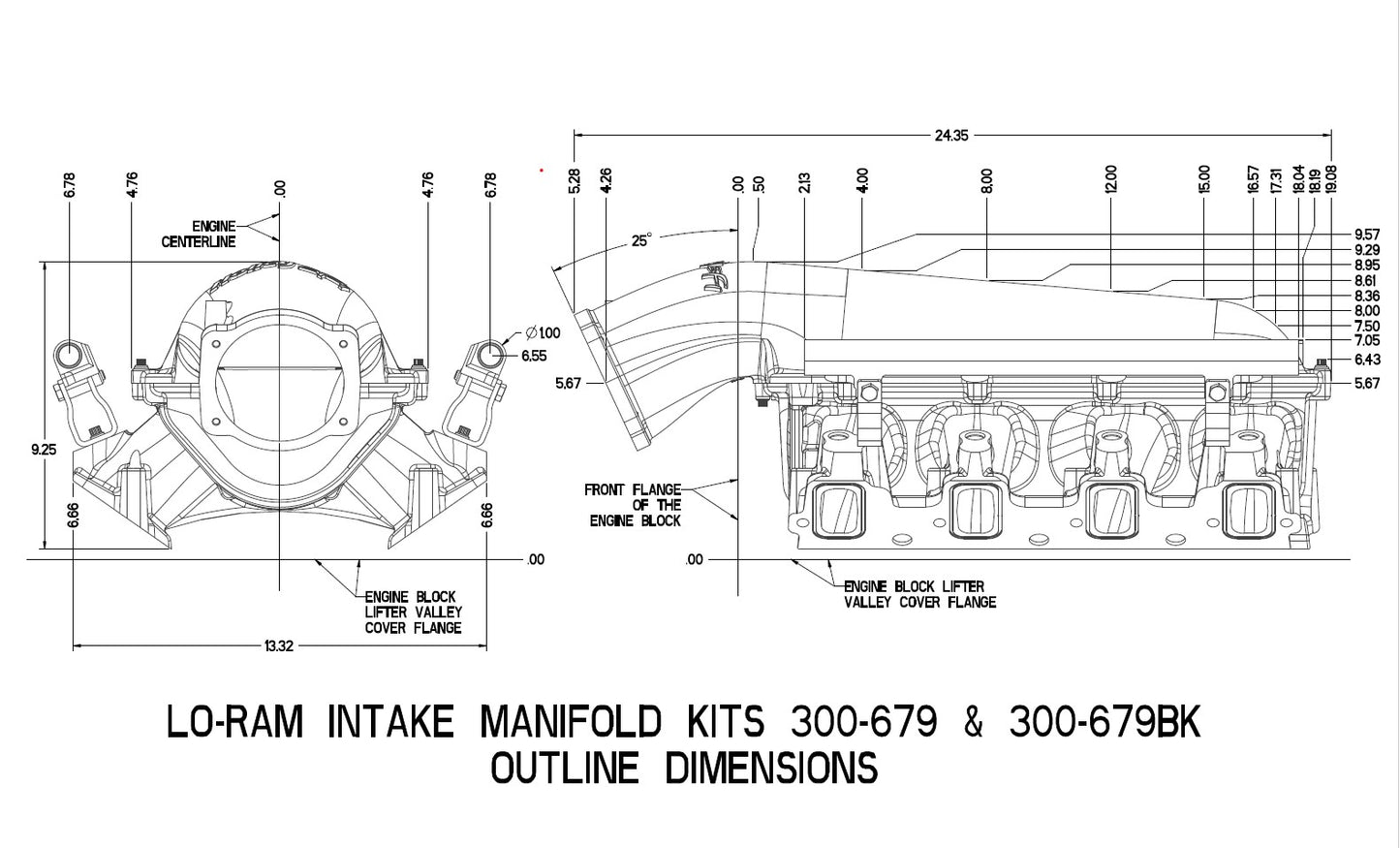

Lo-Ram Base Intake Manifold Plenum Top Mounting Flange Height - 7.00
Plenum Configuration w/105mm Throttle Body Adapter - 5.67"
Features:
Designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads
Provides best performance for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm, depending on the application

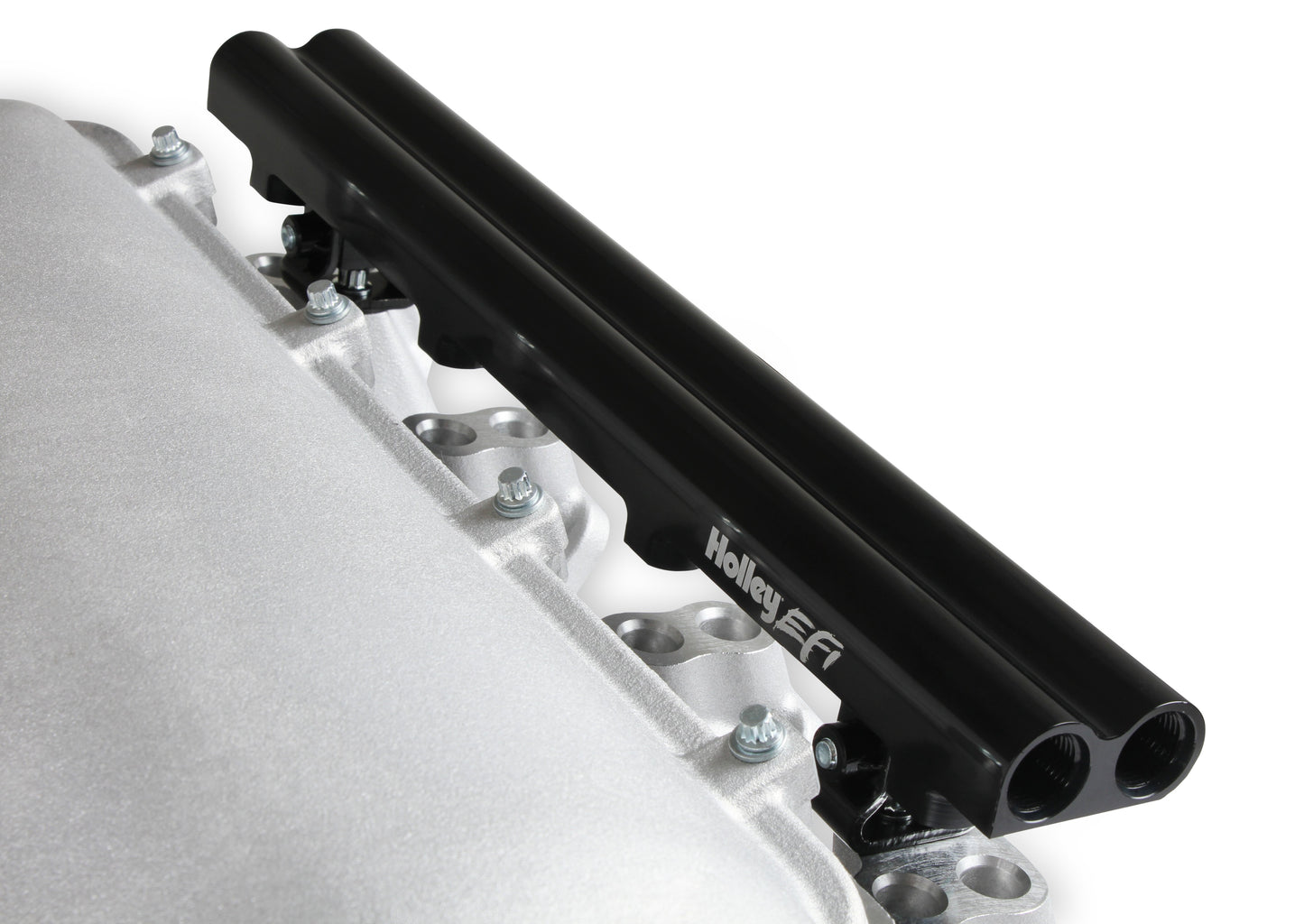

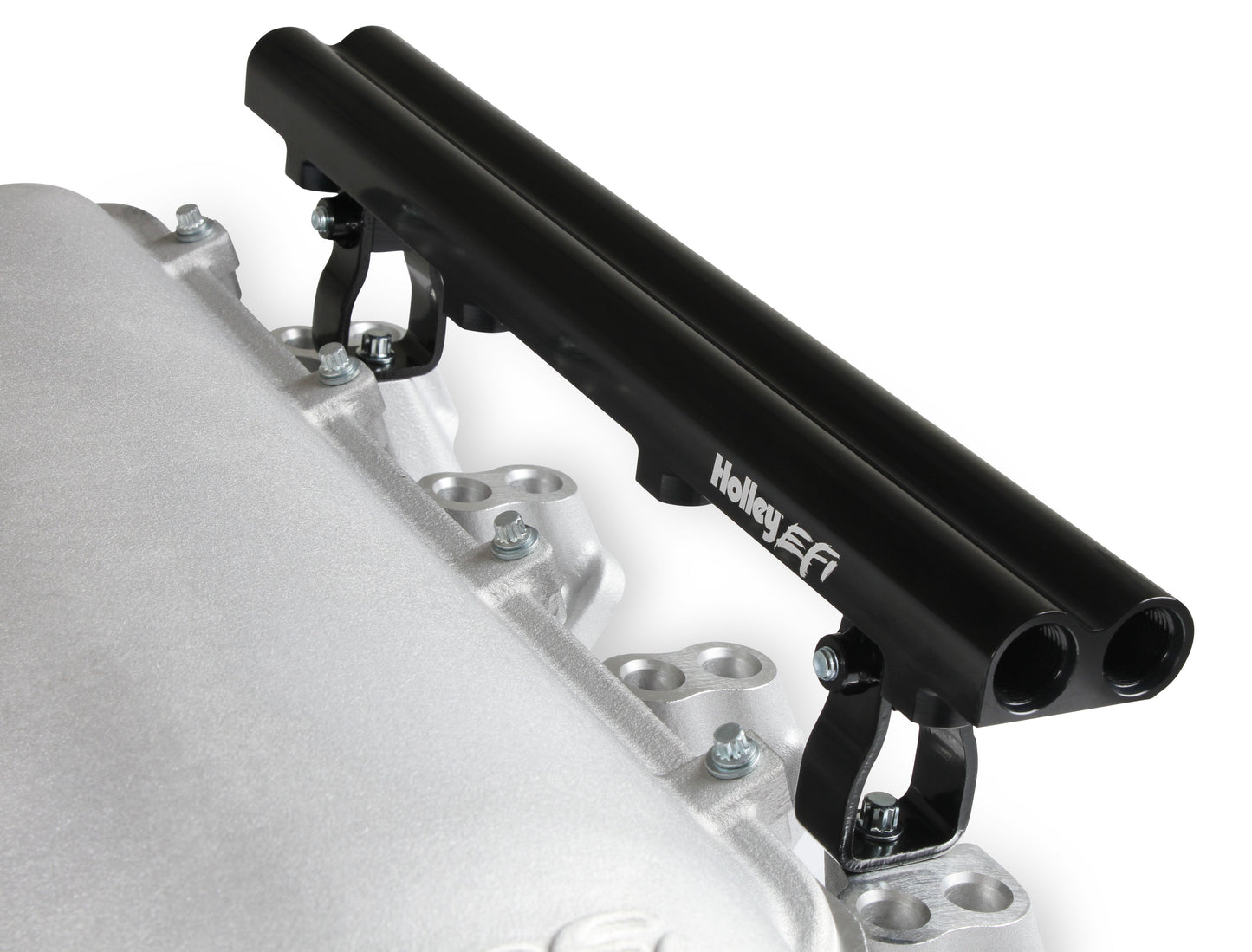

Dual-injector, separate-passage, high-volume fuel rails with mounting hardware, dual-fuel capable, 8 AN o-ring ports
Low height to aid the packaging of a plenum mounted air-to-water intercooler in a top-feed configuration
Available with both as-cast satin and black power-coat finishes
High volume fuel rails for eight and sixteen injector configurations. Mounting hardware included with3/4-16 O-ring ports (8 AN)and mounting hardware included with 3/4-16 O-ring ports (8 AN)
