Holley EFI SBC 4150 Single Plane Fuel Injection Intake Manifold - Chevy Small Block V8 with L31 Vortec cylinder heads

Holley EFI SBC 4150 Single Plane Fuel Injection Intake Manifold - Chevy Small Block V8 with L31 Vortec cylinder heads

EFI Single Plane Manifold 1962-1986 262ci-400ci, 1987-later with Aluminum Heads

Overview
The new single plane EFI intake manifold is designed to provide a broad RPM powerband for high-performance street/strip engine applications to a maximum engine speed of 7500 RPM. The manifold is designed to work with 4150 Style Throttle body EFI systems like the Holley 4150 style flange Universal Throttle Bodies. These intake manifolds are designed to accept most stock hardware and accessory brackets, but offer performance features; like an updated plenum divider area, a 1" shorter overall height than most single plane manifolds, and a choice of two distributor clamp locations. The isolated design of the air/fuel passages helps to increase charge air density and performance. The fuel injector bores have back-cut exits in the runners for better fuel atomization. This design points the injectors at an angle to match the intake runner airflow angle. The black coated fuel rails and rail bracket assortment are included with the manifold for any easy installation with the injectors that you choose to use for your combination. Fuel rail designed for maximum throttle lever clearance. (Injectors are not included) The 300-260 intake manifolds are designed 4150 style Throttle Body EFI applications on 1957-86 262-400cid Small Block Chevrolet engines and SBC engines equipped with 1987-91 L98 aluminum Corvette cylinder heads (non-EGR applications). Also, these manifolds will work with any SBC engine equipped with aftermarket cylinder heads, as long as they have a standard port flange opening and mounting bolt locations. Also Available: 20-86 Throttle Cable Bracket, 20-87 Kickdown Cable Bracket

Modification to the valve covers may be required when this manifold is used with some types of cylinder heads. The fuel rail inlet threads are 9/16-18 for a -6 port.

Features:

• Single plane design with isolated plenum to keep the air charge cooler
• 4150 square bore mounting flange to adapt most aftermarket throttle body designs
• Power band: 2500-7500 RPM

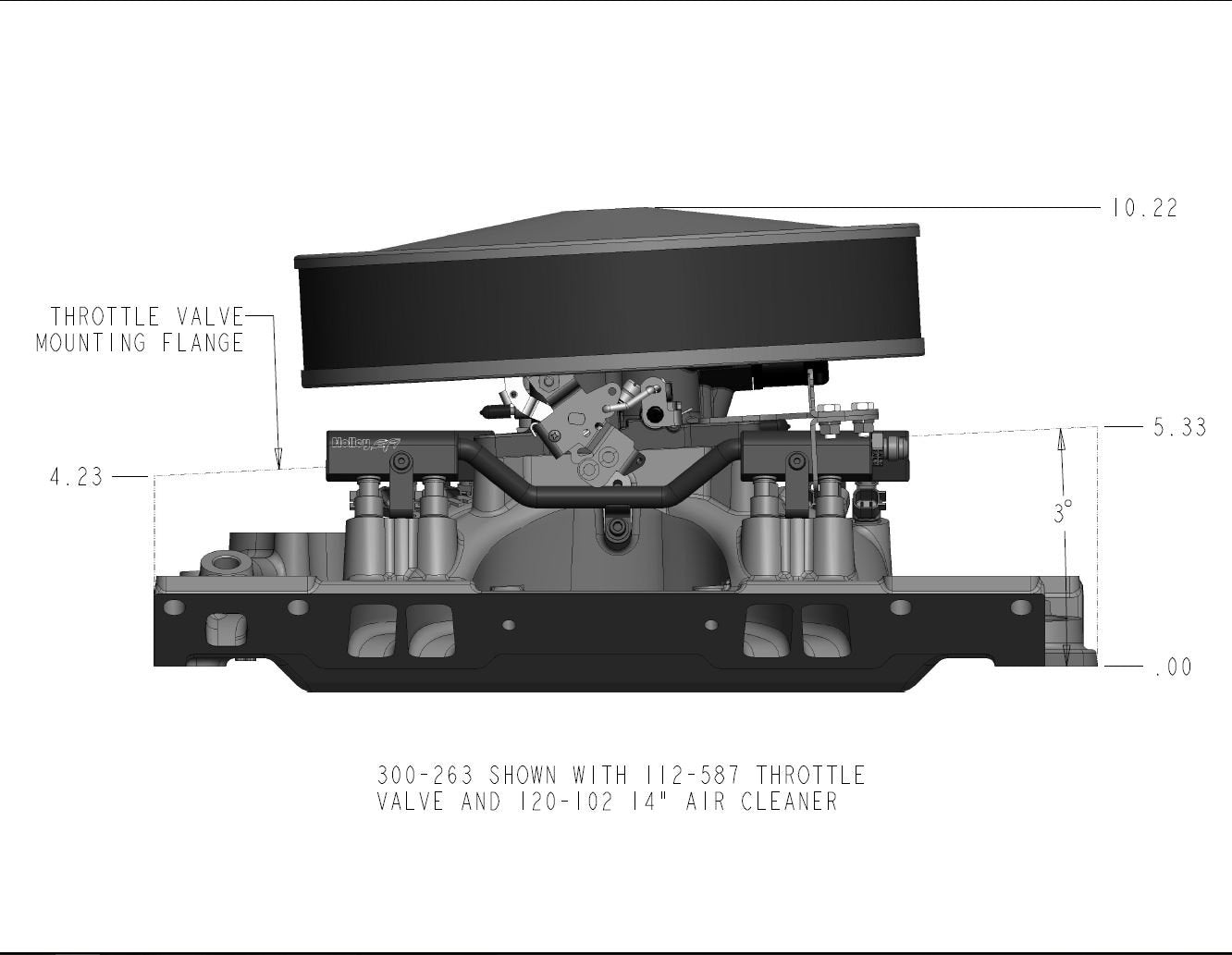

• Height: Front 4.23", Rear 5.33"
• Port Size: 2.05??? height 1.02" width
• Lower throttle body mounting height to help with hood clearance
• Black coated fuel rails with bracket assortment allowing different height fuel injectors
• Fuel injectors are not included
• Fuel rail designed for maximum throttle lever clearance
• Small Block Chevrolet 262-400 cid engines equipped with 1996-2002 (L31) Vortec cylinder heads (non-EGR applications)

Details:

• Construction: Cast Aluminum
• Engine: Chevrolet Small Block Gen II (LT Based)
• Finish: Satin
• Front Height: 4.18"
• Fuel System Type: EFI
• Manifold Type: High Rise
• Rear Height: 5.28"
• RPM Power Band: 2500-7500
• Warranty: Limited 90 Day
