Holley EFI High Flow Dual Solenoid Boost Control Kit

Holley EFI High Flow Dual Solenoid Boost Control Kit

557-201

100 in stock

  • Ships from Kentucky or Utah
  • Add $300+ for $10 off of your order!
  • Add $500+ for $20 off of your order!

Shipping Estimate

Tracking: 1-2 days

Average Shipping: 2-3 days once tracking is available

$370.95 USD
$463.95 USD $370.95 USD
Sale Sold out
Shipping calculated at checkout.

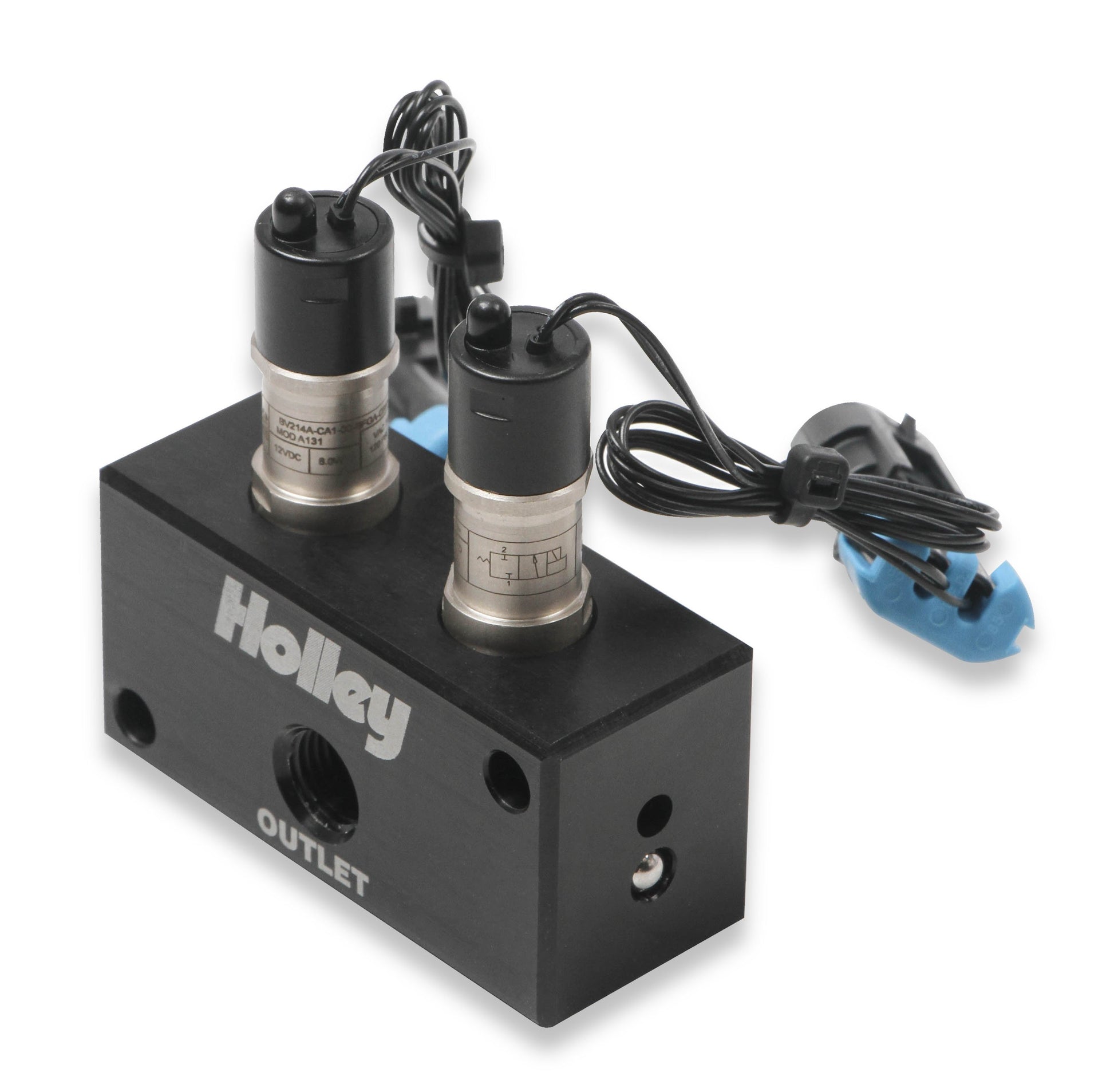

Holley EFI High Flow Dual Solenoid Boost Control Kit

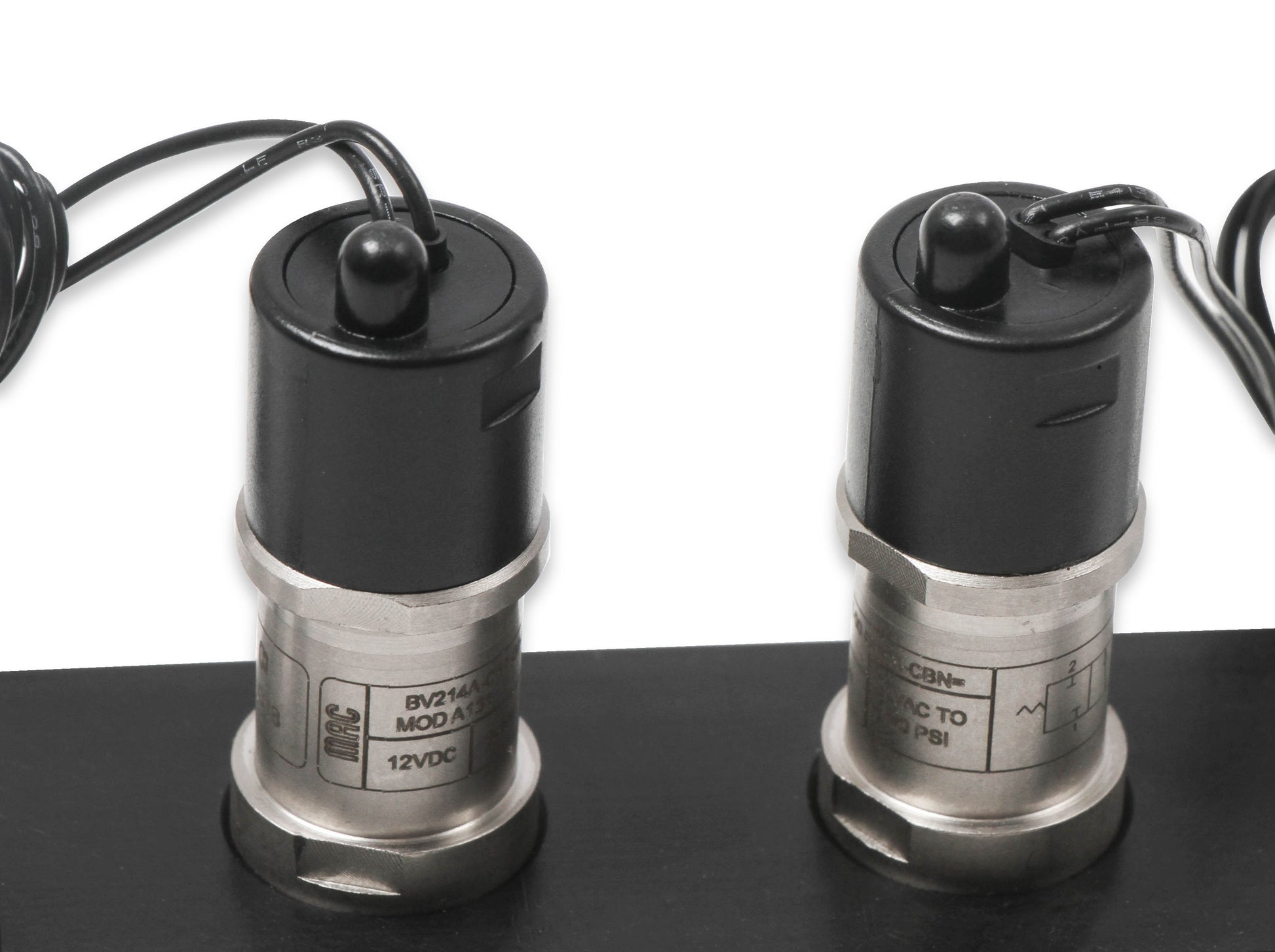

3 Port Boost Control Solenoid Valve

Overview

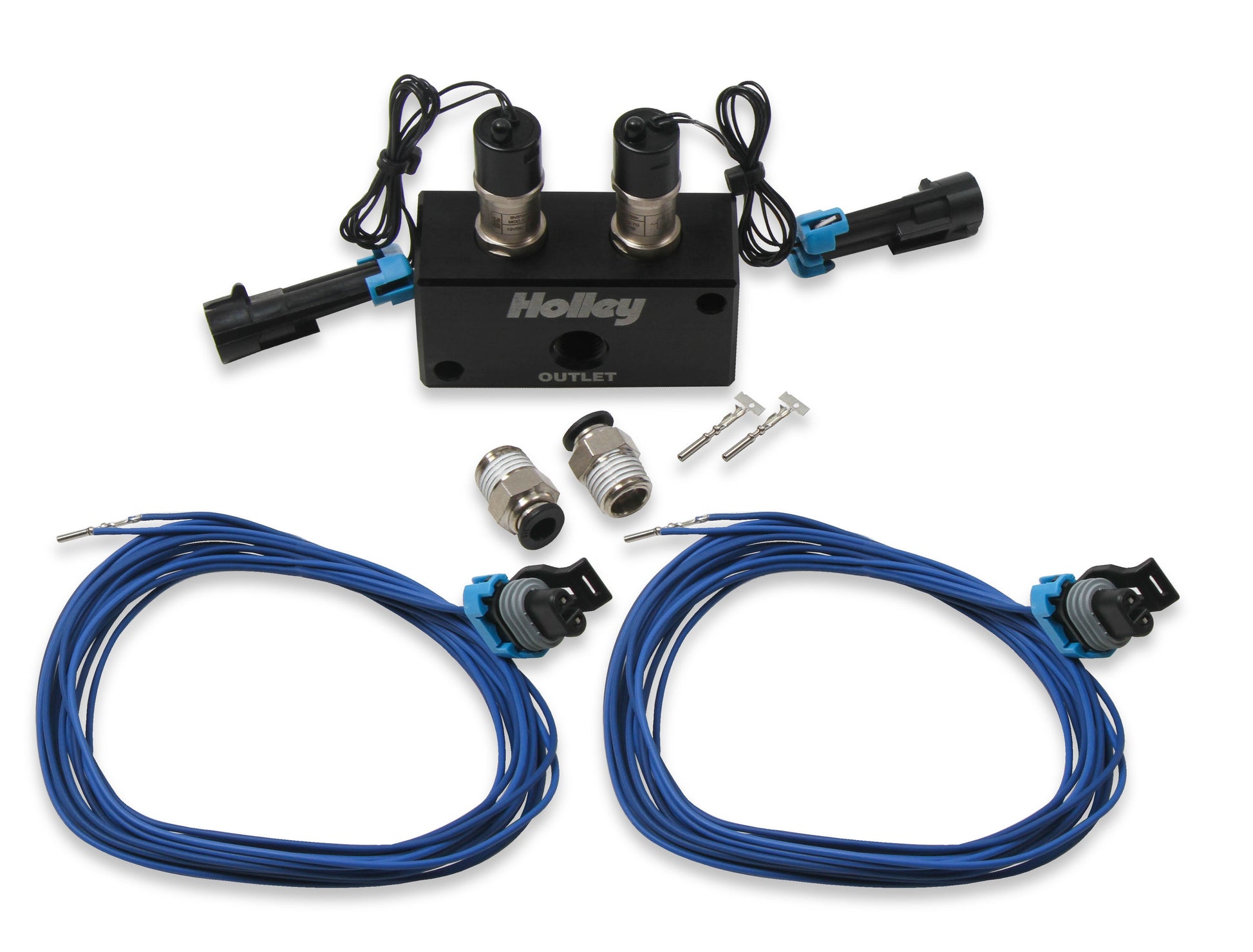

3 Port Boost Control Solenoid Valve Includes: (1) solenoid, (1) ECU pigtail harness with factory crimped ECU pin, (3) 3/16" barb fittings, (1) 1/8" NPT plug, (1) Sintered brass muffler. and (1) spare ECU pin for modified harness lengths.

Solenoid is driven directly from a Pulse Width Modulated (PWM) ECU output

Features:
  • Black Anodized Billet Dual Port Manifold

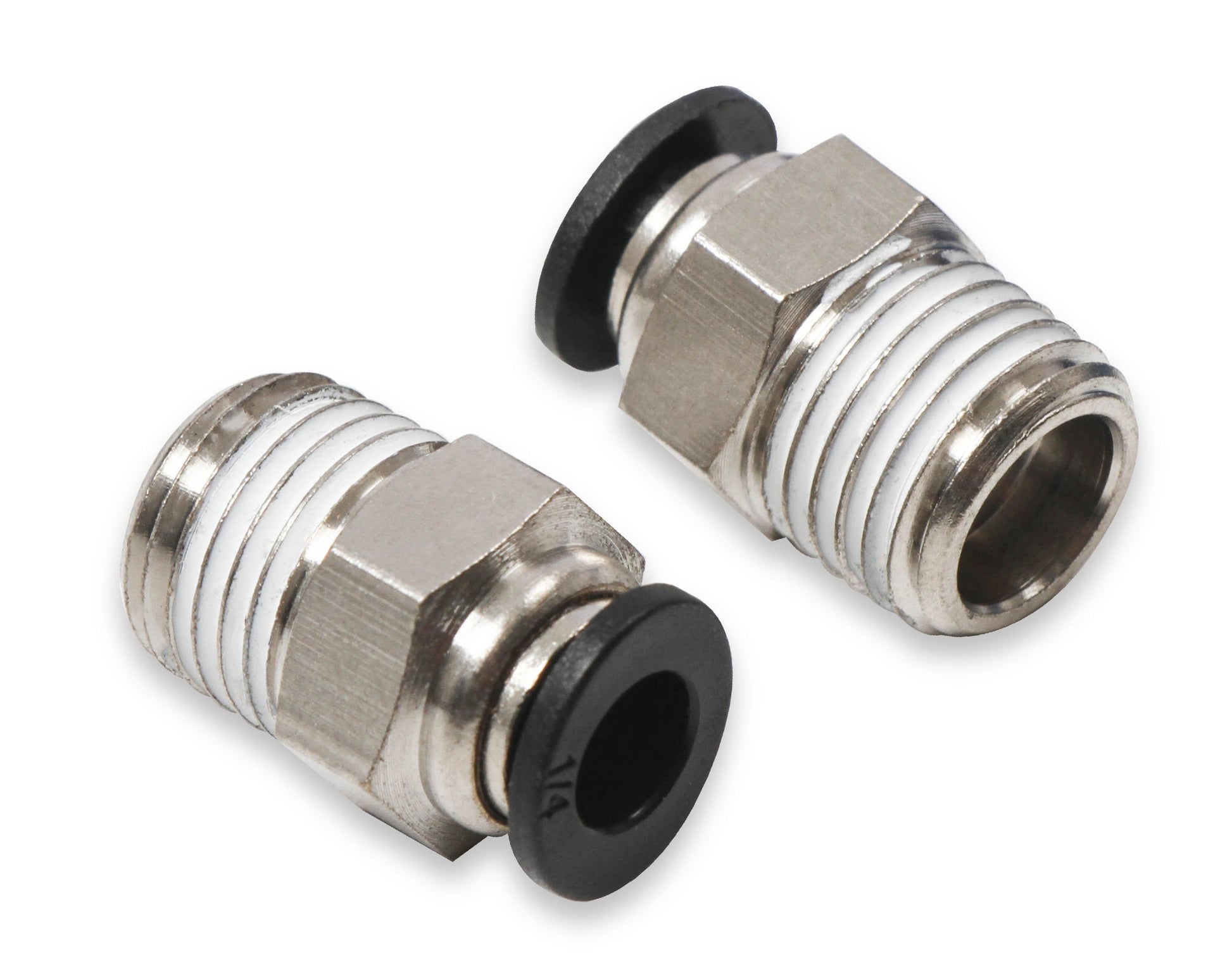

  • Two 1/4??? NPT Push-Lock Fittings for easy plumbing and installation

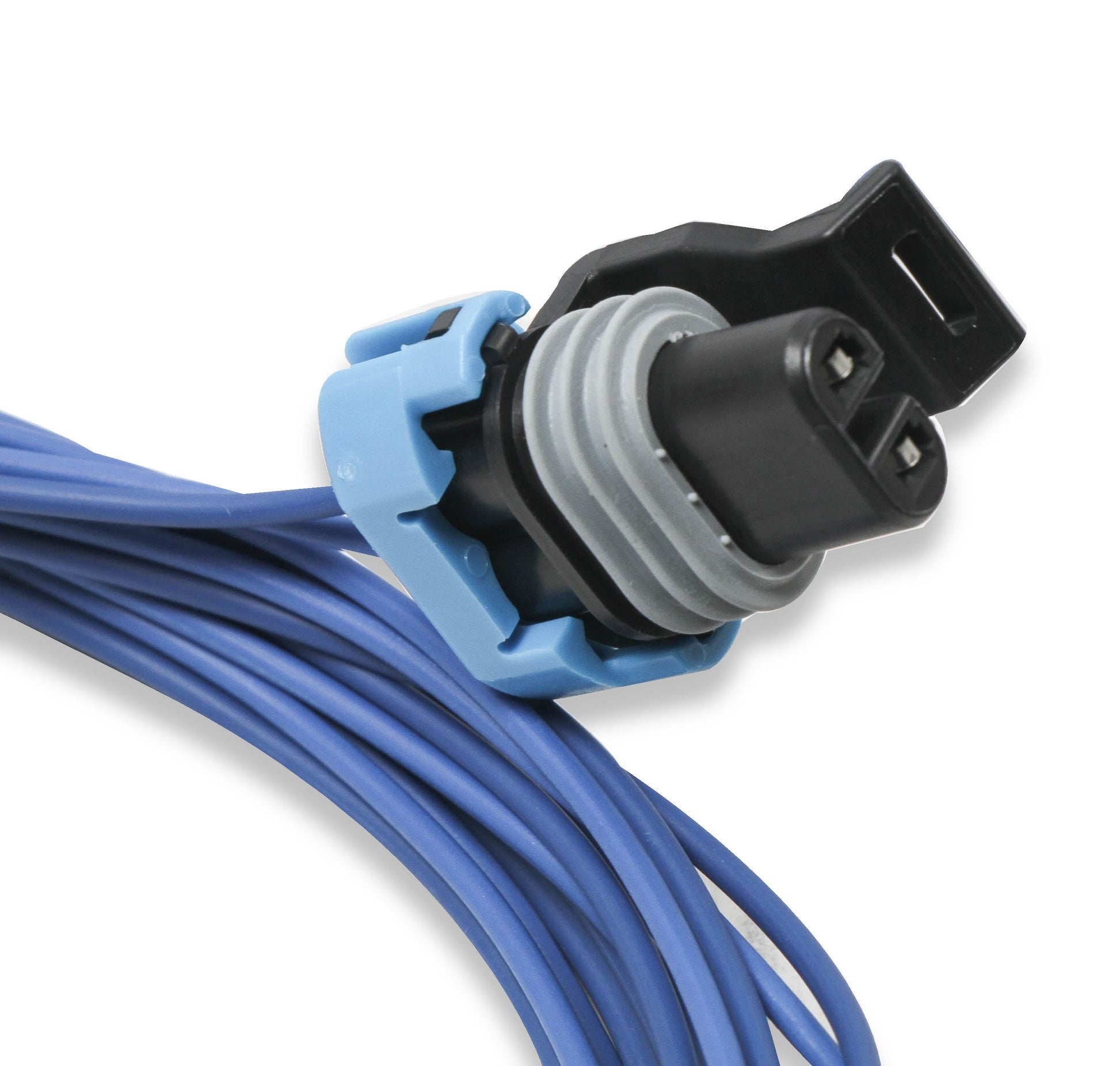

  • Two Pre-Terminated connectors simply plug into the solenoids and pin into Holley EFI ECU connectors
  • The billet manifold contains built in mounting provisions, setup for ?? hardware
  • Proprietary design to flows nearly 40% more than comparable designs and up to 90% more than conventional 3-port boost control solenoids


Details:
  • Color: Black
  • Inlet / Outlet Size: 1/4" NPT
  • Material: Billet
