Holley EFI Fuel Tank Modules - 350 LPH - 1955-1957 Chevrolet Vehicles
Holley EFI Fuel Tank Modules - 350 LPH - 1955-1957 Chevrolet Vehicles
SKU:12-379
41 in stock
- Ships from Kentucky or Utah
- Add $300+ for $10 off of your order!
- Add $500+ for $20 off of your order!
Shipping Estimate
Shipping Estimate
Tracking: 1-2 days
Average Shipping: 2-3 days once tracking is available
Regular price
$522.95 USD
Regular price
$653.95 USD
Sale price
$522.95 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Holley EFI Fuel Tank Modules - 350 LPH - 1955-1957 Chevrolet Vehicles
In-tank fuel pump module for 1973-1987 GM C/K Series. Supports Up To 750 Horsepower.
Overview

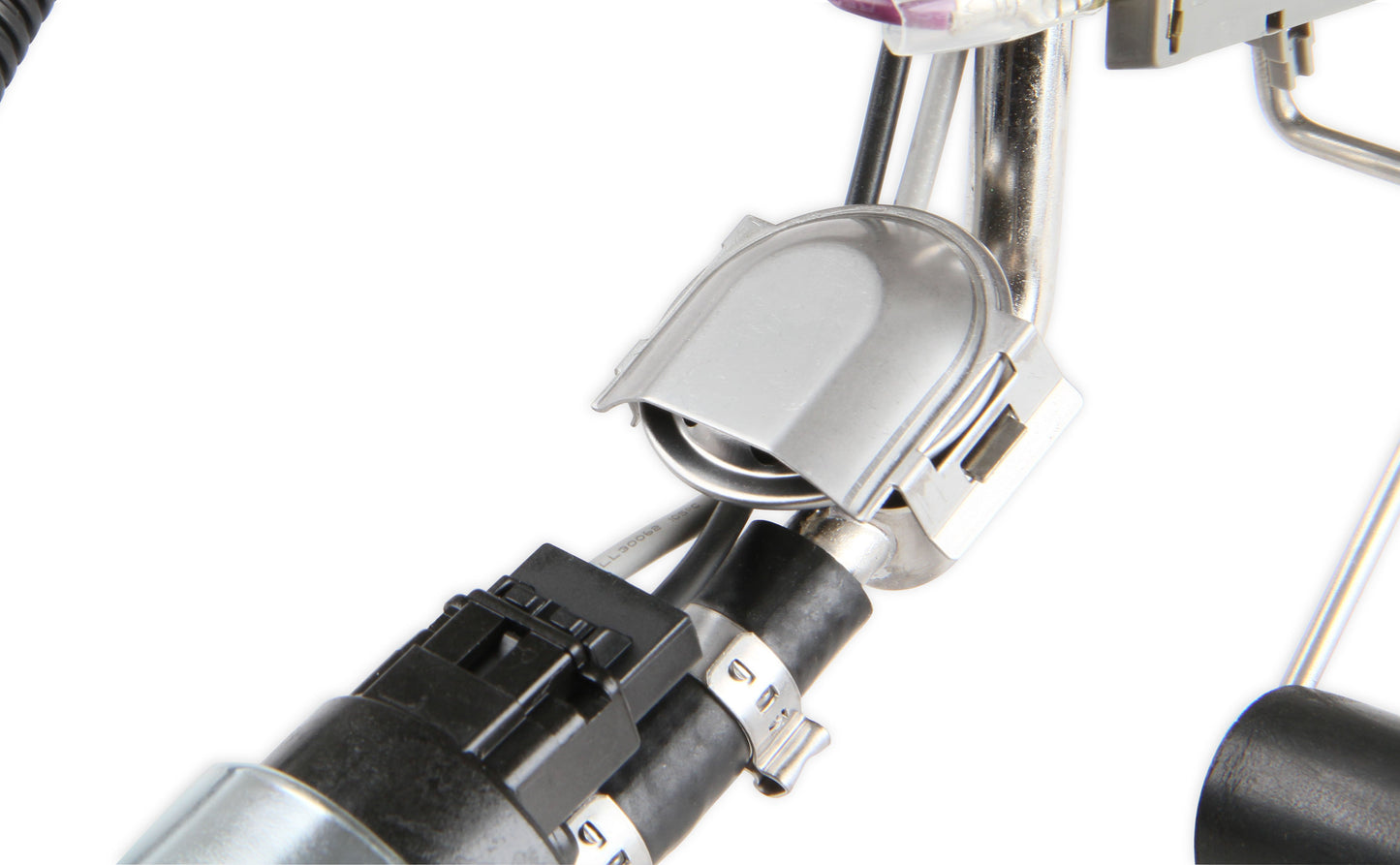

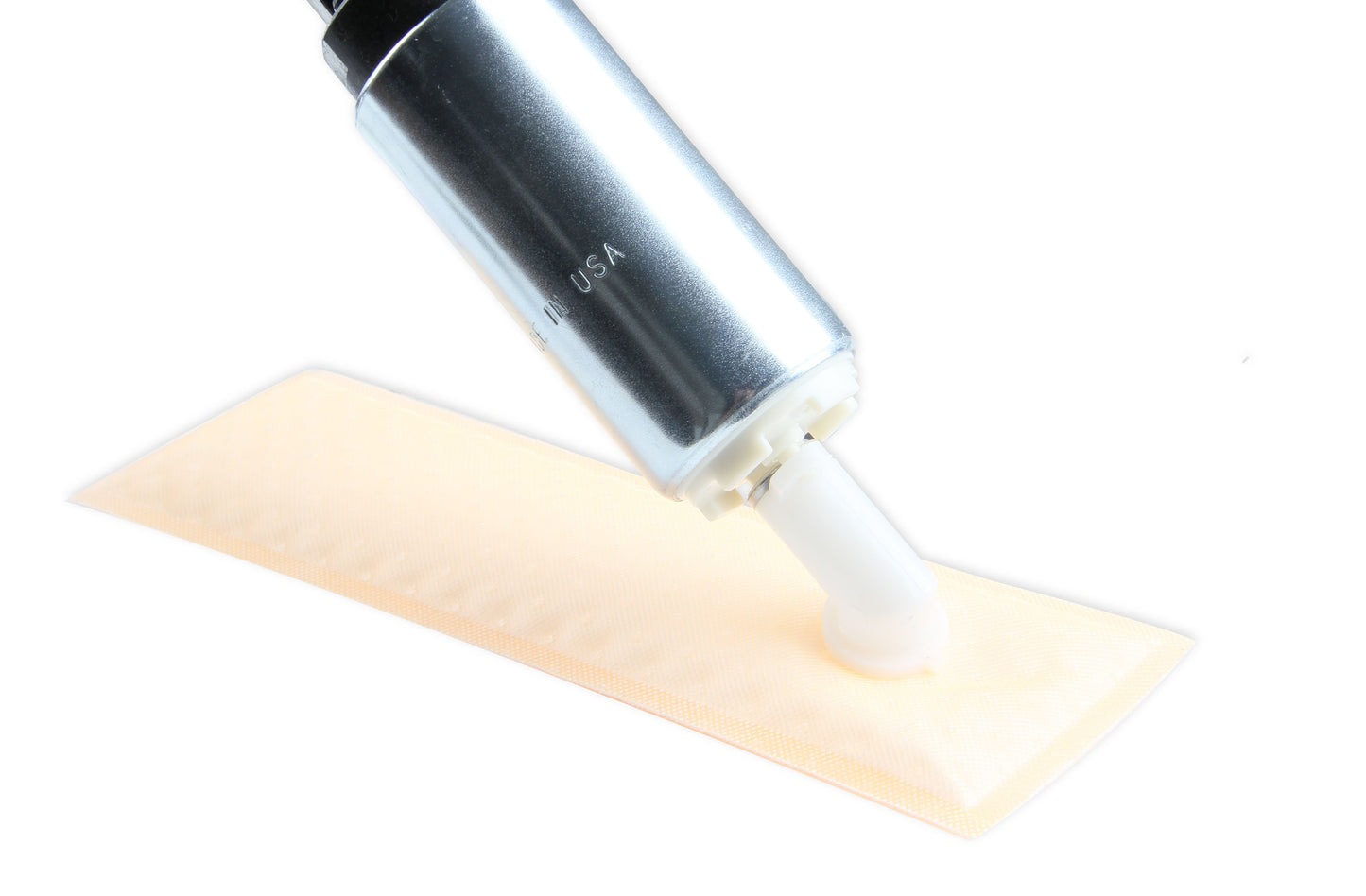

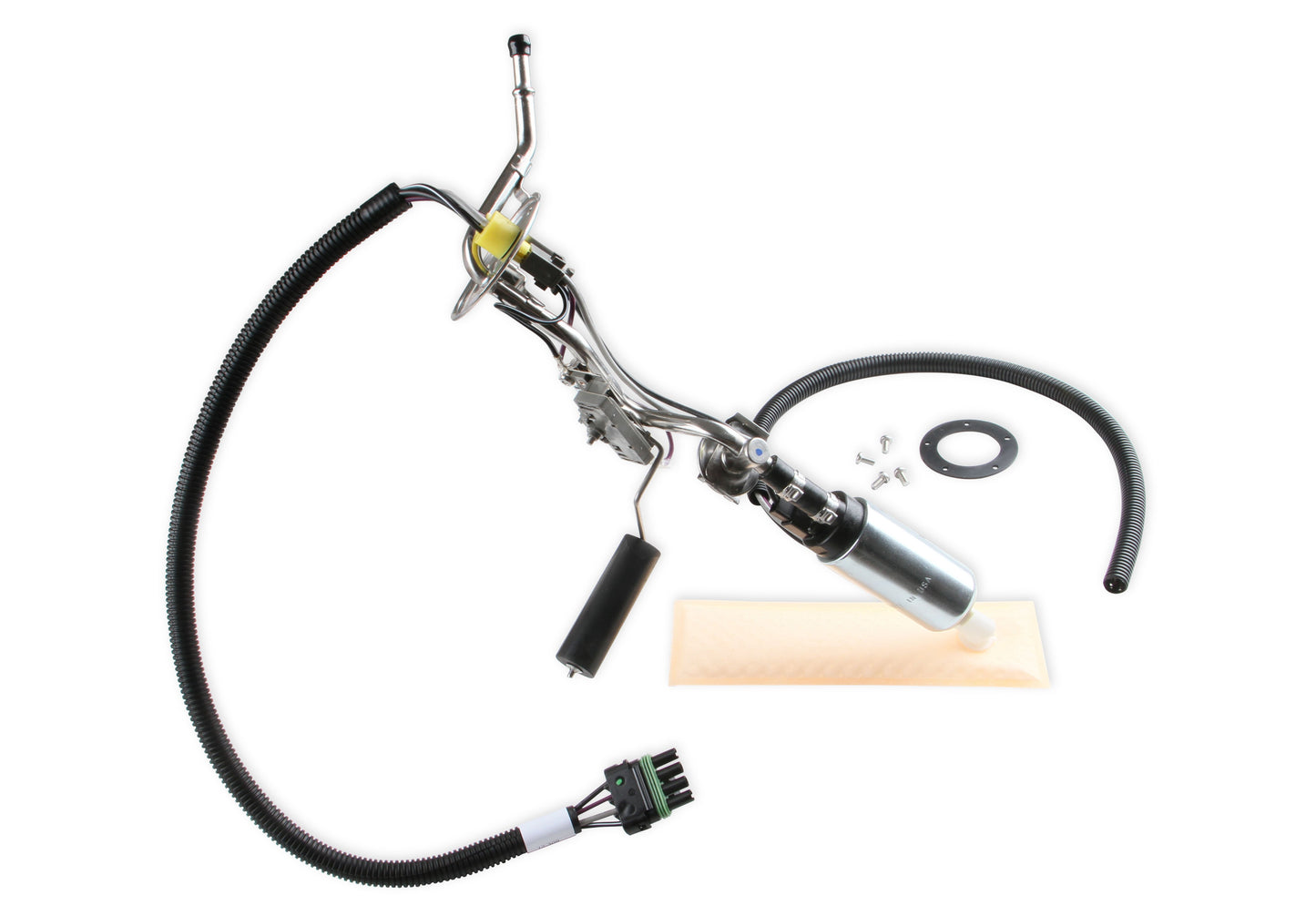

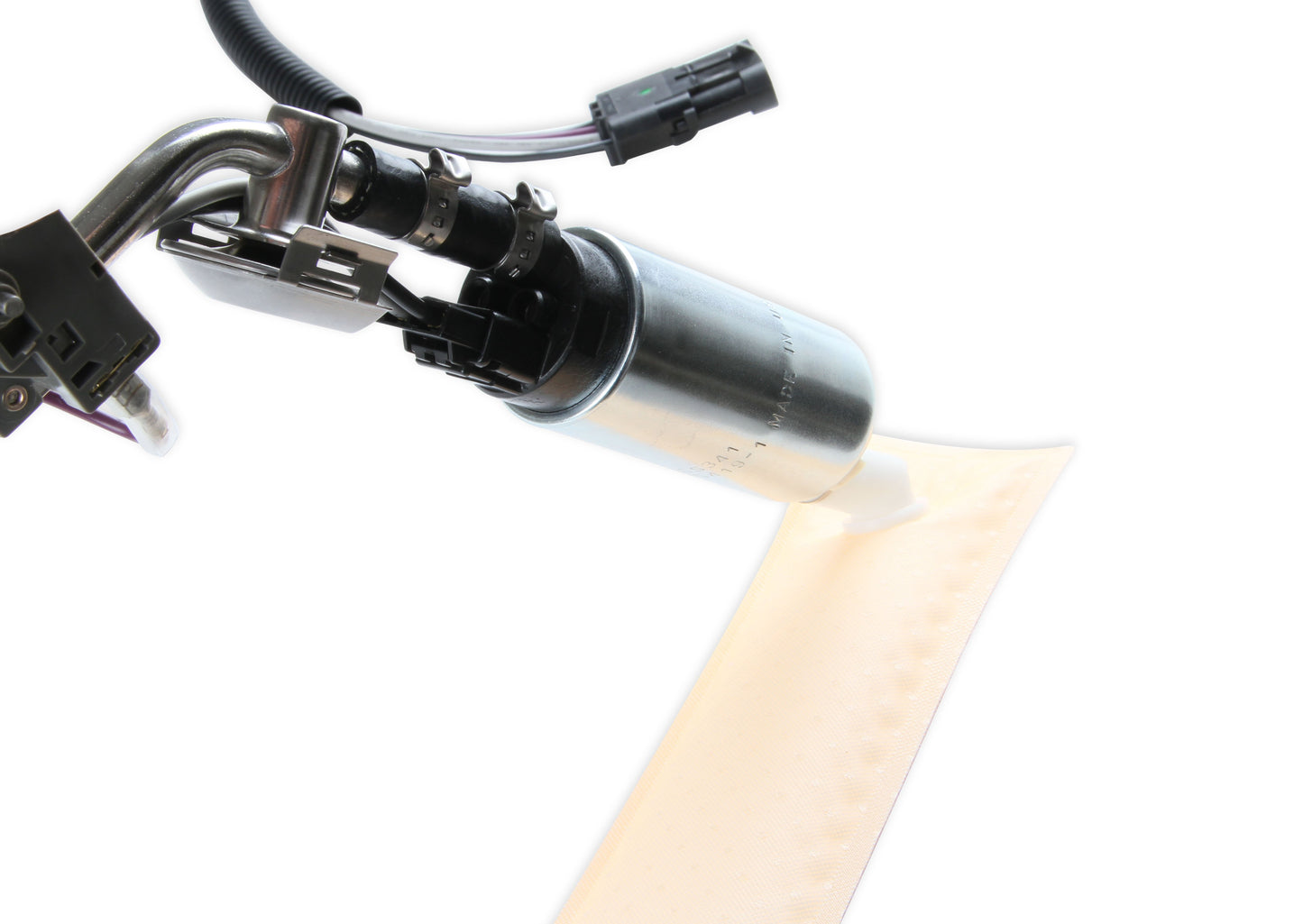

This in-tank fuel pump module is a high-pressure unit that flows 350 liters per hour (LPH) and is capable of supporting electronic fuel injection (EFI) engines producing up to 750 horsepower. Featuring a pre-calibrated fuel-level sending unit designed to work with the factory fuel gauge for this application is included. This module also features a HydraMat filter which has a unique internal reservoir that keeps fuel available at the pick-up and also provides protection from contaminates Fuel pressure is internally regulated to 58 psi eliminating the added expense and effort of purchasing and installing an external fuel pressure regulator - no separate return line is required because this module returns excess fuel right inside the tank! This 1973-1987 GM C/K Series Muscle Car EFI Fuel Pump module was designed as a direct replacement for your factory pick-up and sending unit. There is no need to purchase a custom EFI fuel tank. You can even retain the factory fuel hard line - just connect the outlet of the pump module to the hard line on your vehicle with EFI-rated fuel hose and hose clamps available in the Earls Vapor Guard line. This Muscle Car EFI Module includes a 350 LPH fuel pump and a Holley HydraMat. HydraMat is an amazing patent-pending fuel reservoir system that reduces fuel starvation issues that might otherwise occur while cornering, accelerating, stopping, traversing inclines, and during low fuel conditions.
This pump module is compatible with 1973-1986 fuel tanks that do not have the fuel injection baffles (GM11B style). If you have the 1987 (GM11C) tank, you will have to use the earlier non-fuel injection tank. The pump is not compatible for use with PWM (Pulse-width Modulation)
Details:
Links
Instruction Sheet
View full details
In-tank fuel pump module for 1973-1987 GM C/K Series. Supports Up To 750 Horsepower.
Overview
This in-tank fuel pump module is a high-pressure unit that flows 350 liters per hour (LPH) and is capable of supporting electronic fuel injection (EFI) engines producing up to 750 horsepower. Featuring a pre-calibrated fuel-level sending unit designed to work with the factory fuel gauge for this application is included. This module also features a HydraMat filter which has a unique internal reservoir that keeps fuel available at the pick-up and also provides protection from contaminates Fuel pressure is internally regulated to 58 psi eliminating the added expense and effort of purchasing and installing an external fuel pressure regulator - no separate return line is required because this module returns excess fuel right inside the tank! This 1973-1987 GM C/K Series Muscle Car EFI Fuel Pump module was designed as a direct replacement for your factory pick-up and sending unit. There is no need to purchase a custom EFI fuel tank. You can even retain the factory fuel hard line - just connect the outlet of the pump module to the hard line on your vehicle with EFI-rated fuel hose and hose clamps available in the Earls Vapor Guard line. This Muscle Car EFI Module includes a 350 LPH fuel pump and a Holley HydraMat. HydraMat is an amazing patent-pending fuel reservoir system that reduces fuel starvation issues that might otherwise occur while cornering, accelerating, stopping, traversing inclines, and during low fuel conditions.
This pump module is compatible with 1973-1986 fuel tanks that do not have the fuel injection baffles (GM11B style). If you have the 1987 (GM11C) tank, you will have to use the earlier non-fuel injection tank. The pump is not compatible for use with PWM (Pulse-width Modulation)
Details:
- Application: 1955-1957 Chevrolet Coupe/Sedan
- Free Flow LPH: 350
- Fuel Sending Unit Ohms: 0-30 Ohms
- Fuel Type: Gasoline
- Inlet Diameter (in): 5/16"
- Material: Steel and Plastic
- Vent Size: N/A
- Warranty: Limited 90 Day
Links
Instruction Sheet
