Holley EFI Fuel Regulator 8AN

Holley EFI Fuel Regulator 8AN

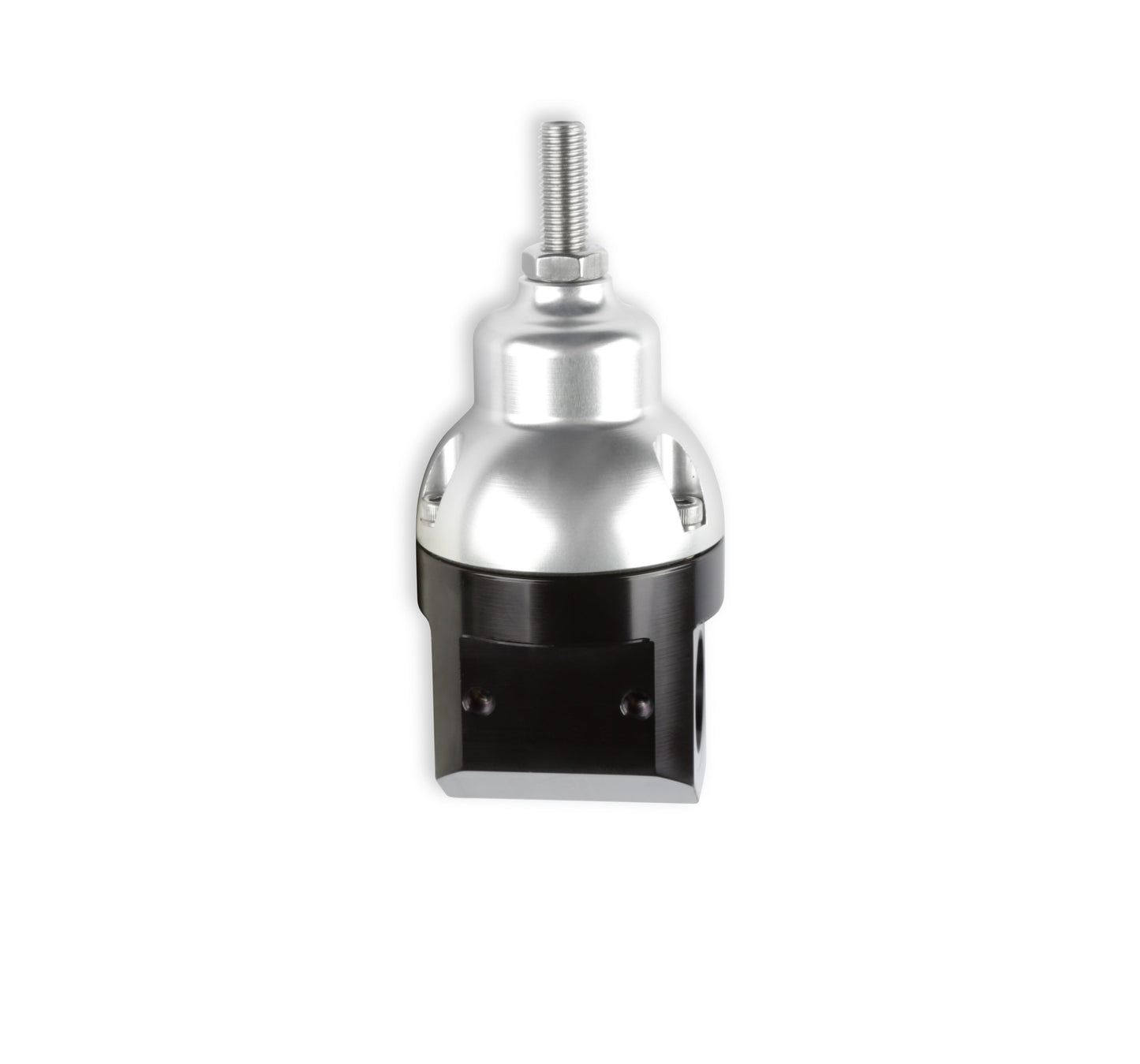

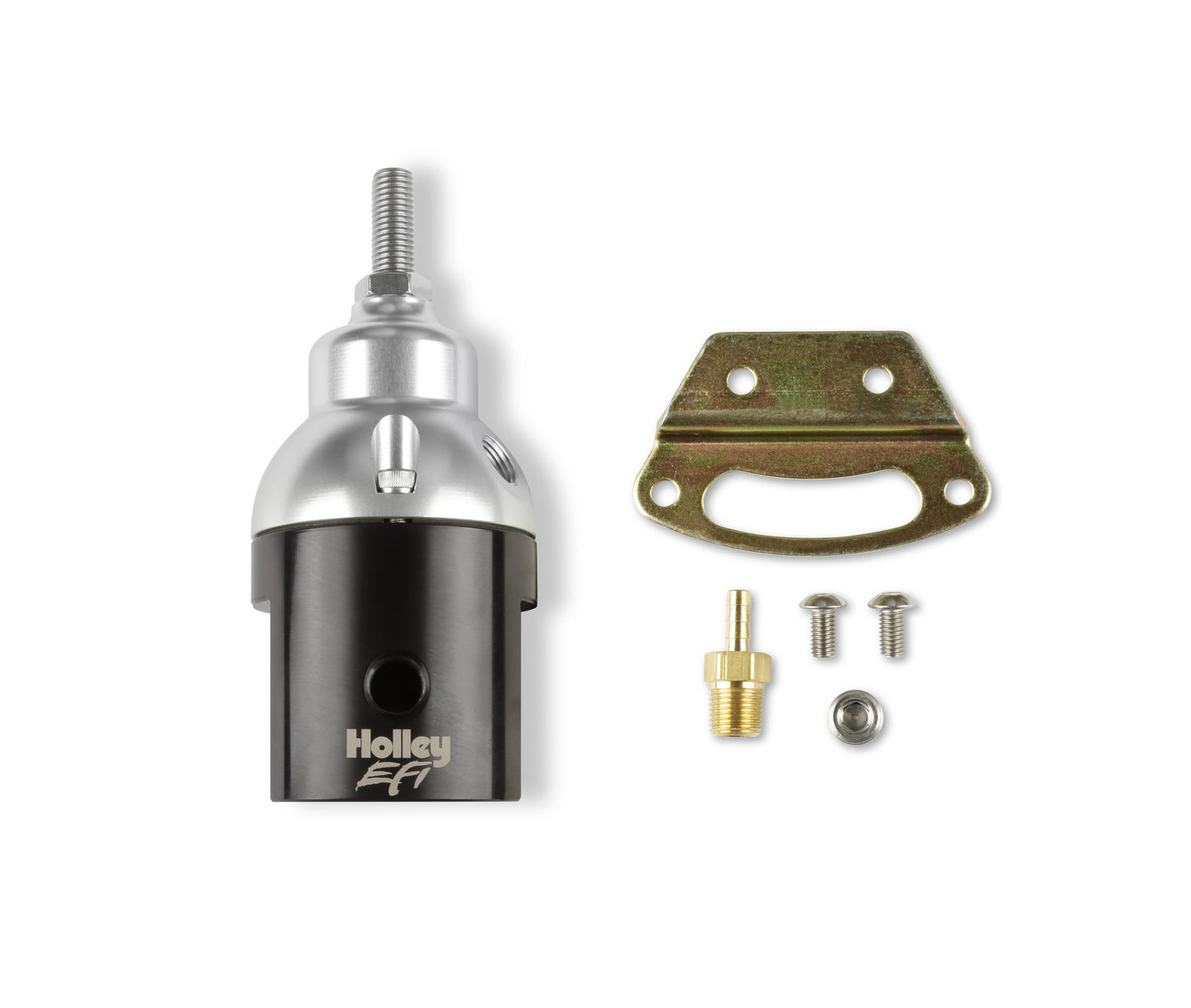

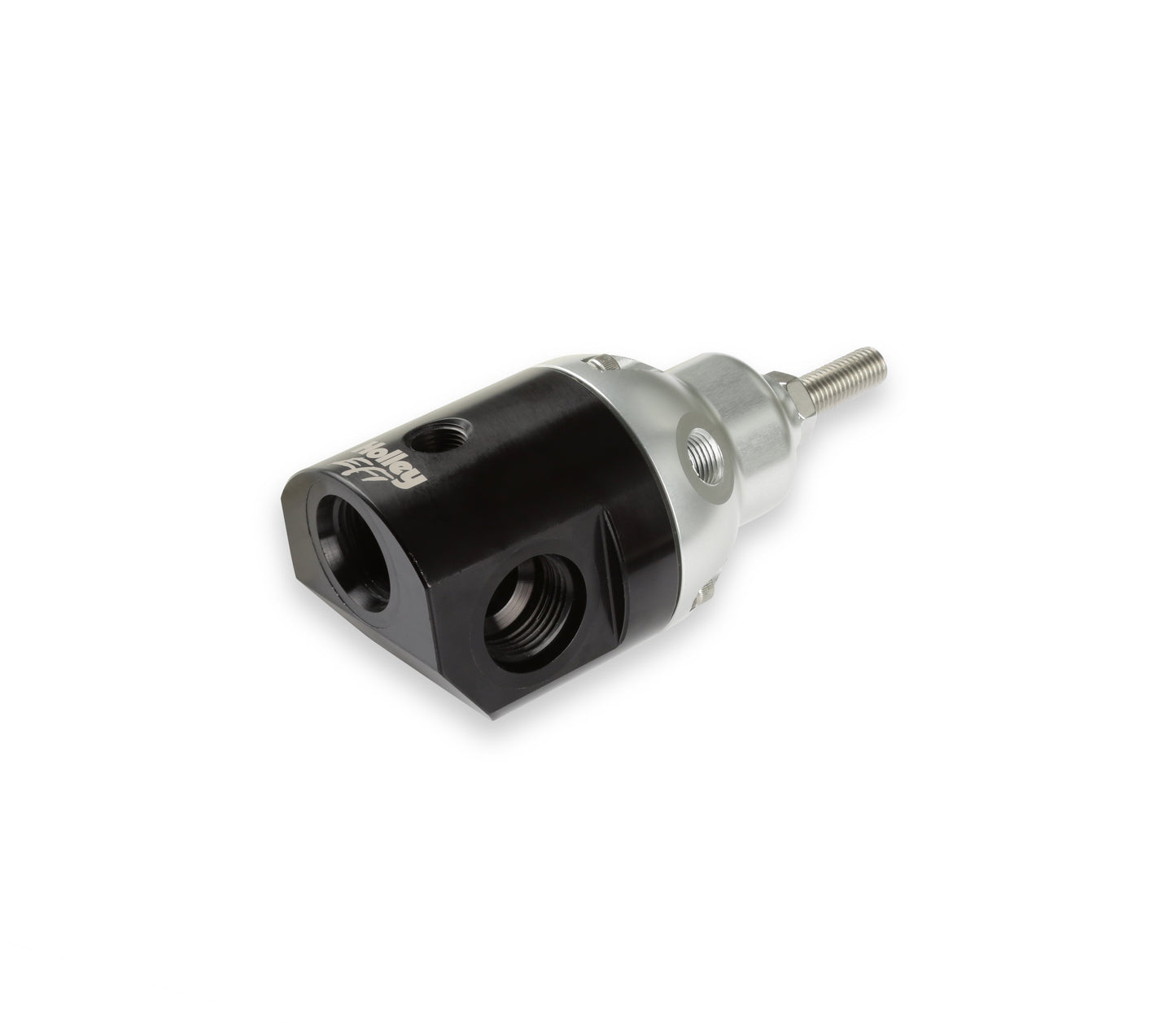

Holley EFI 15-90 PSI Fuel Regulator 6AN Boost Reference 1:1, Gauge and Fittings

Overview
Holley EFI universal bypass fuel pressure regulators are for use with fuel systems in street or track applications. They feature adjustable base pressure from 15-90 psi, a gauge port, and a boost reference port as well. The regulators are ideal for vehicles/systems where superior flow and pressure control are desired. The regulators are precision machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks. The Holley 12-894 has -6AN port sizes and the 12-895 has -8AN port sizes.

Features:

• Adjustable from 15-90 psi for precise fuel pressure adjustments
• Constructed of billet aluminum with a black anodized base and clear anodize top for good looks

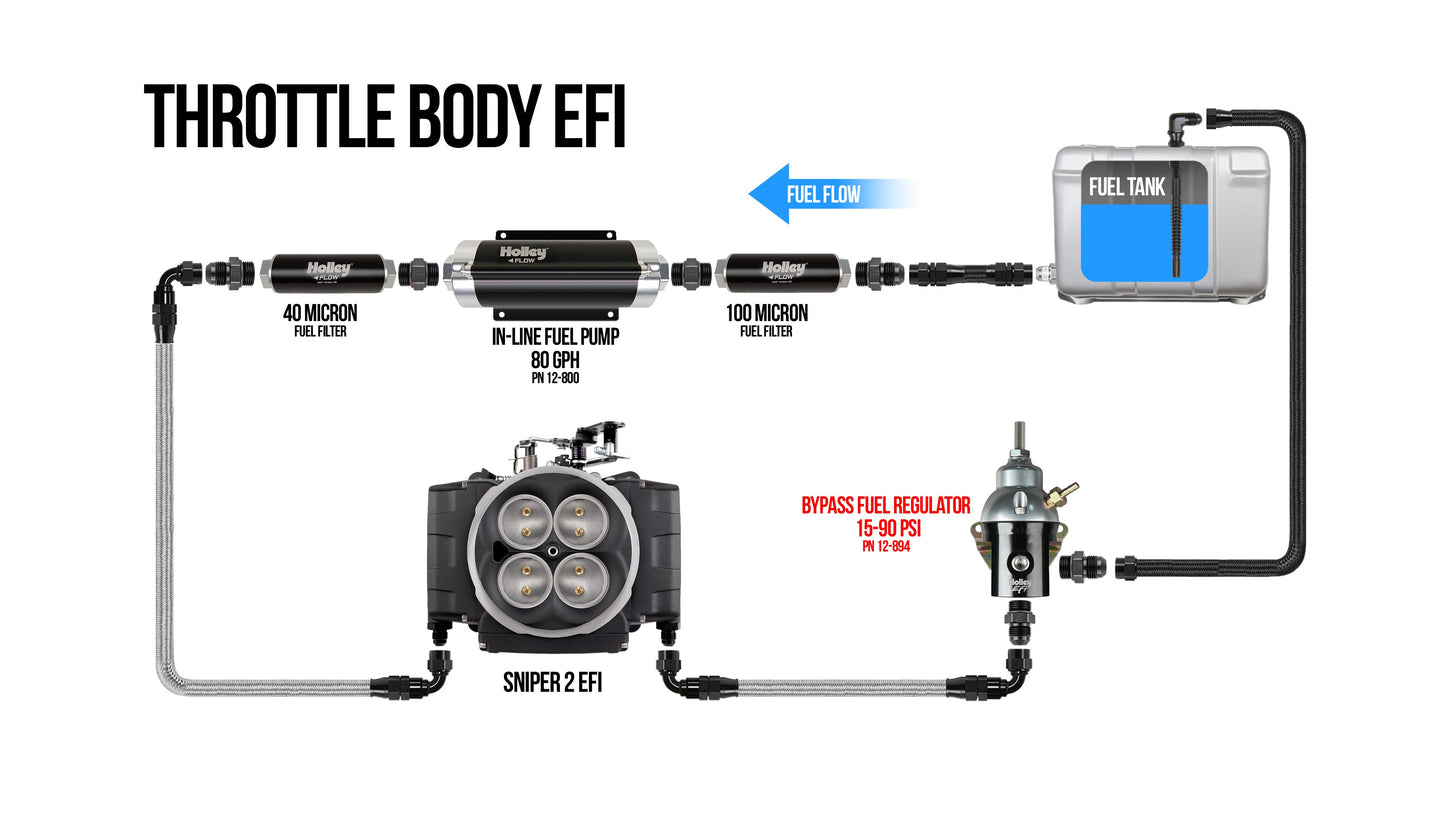

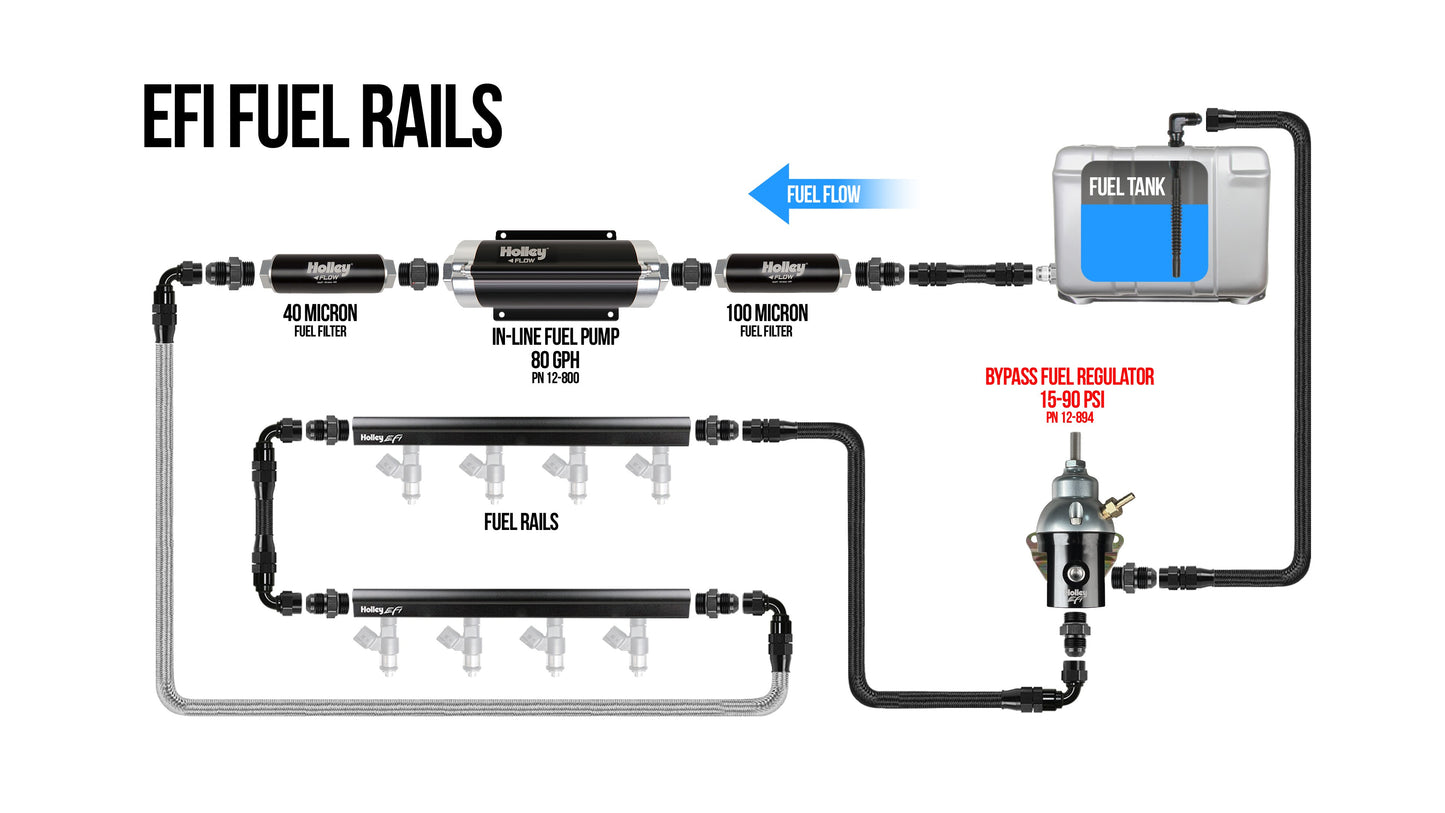

• Used in systems with a return line back to tank
• Includes fitting for manifold reference
• Use with electric pumps only
• Available in -6AN and -8AN Port sizes
• 1/8-inch NPT Boost Reference Port (Ratio 1:1)
• 1/8-inch NPT Fuel Gauge Port

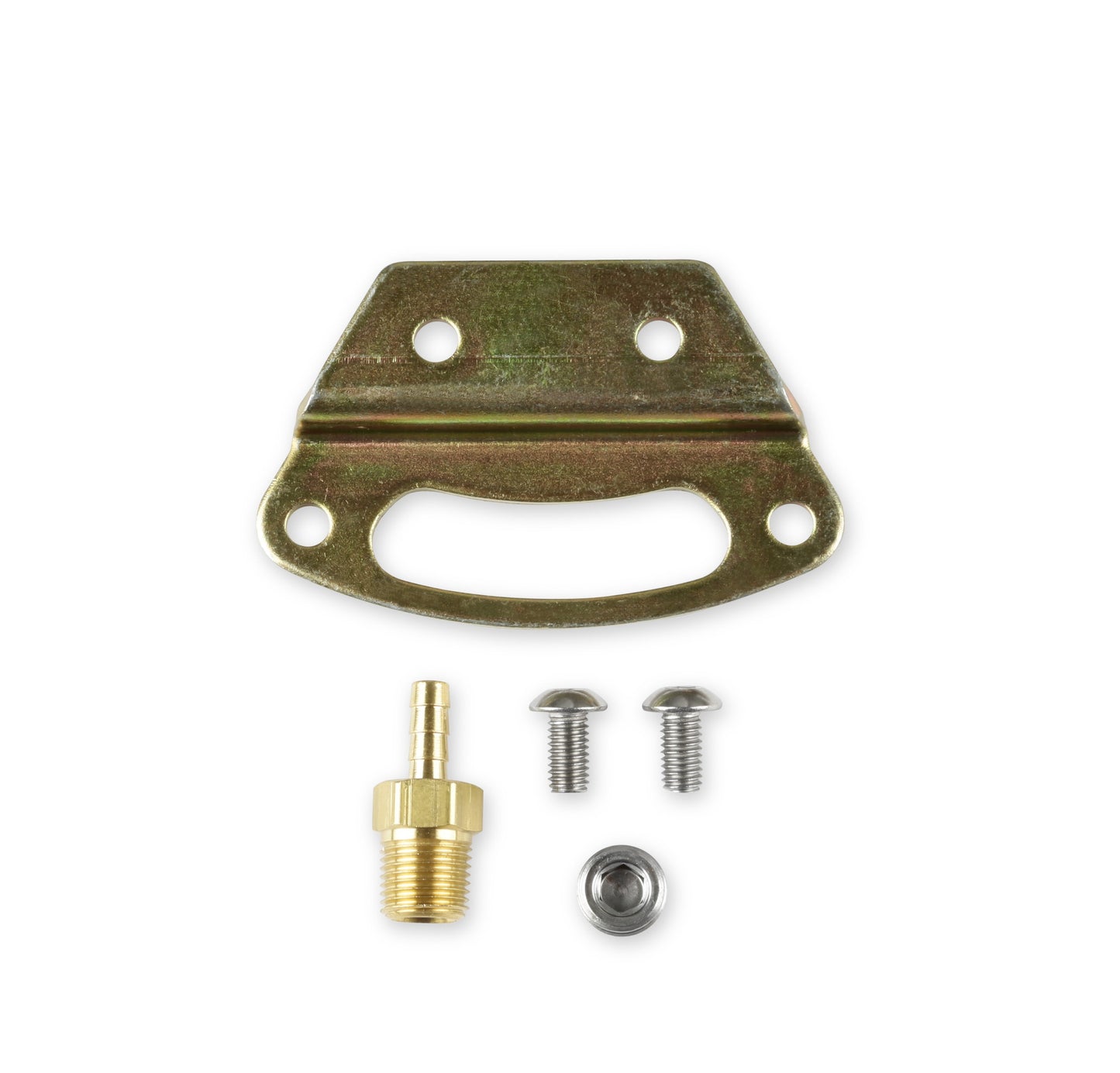

• Mounting bracket included

Details:

• Fuel Type: Gasoline
• Style: Bypass
• Warranty: Limited 1 Year Warranty

Links
Instruction Sheet
