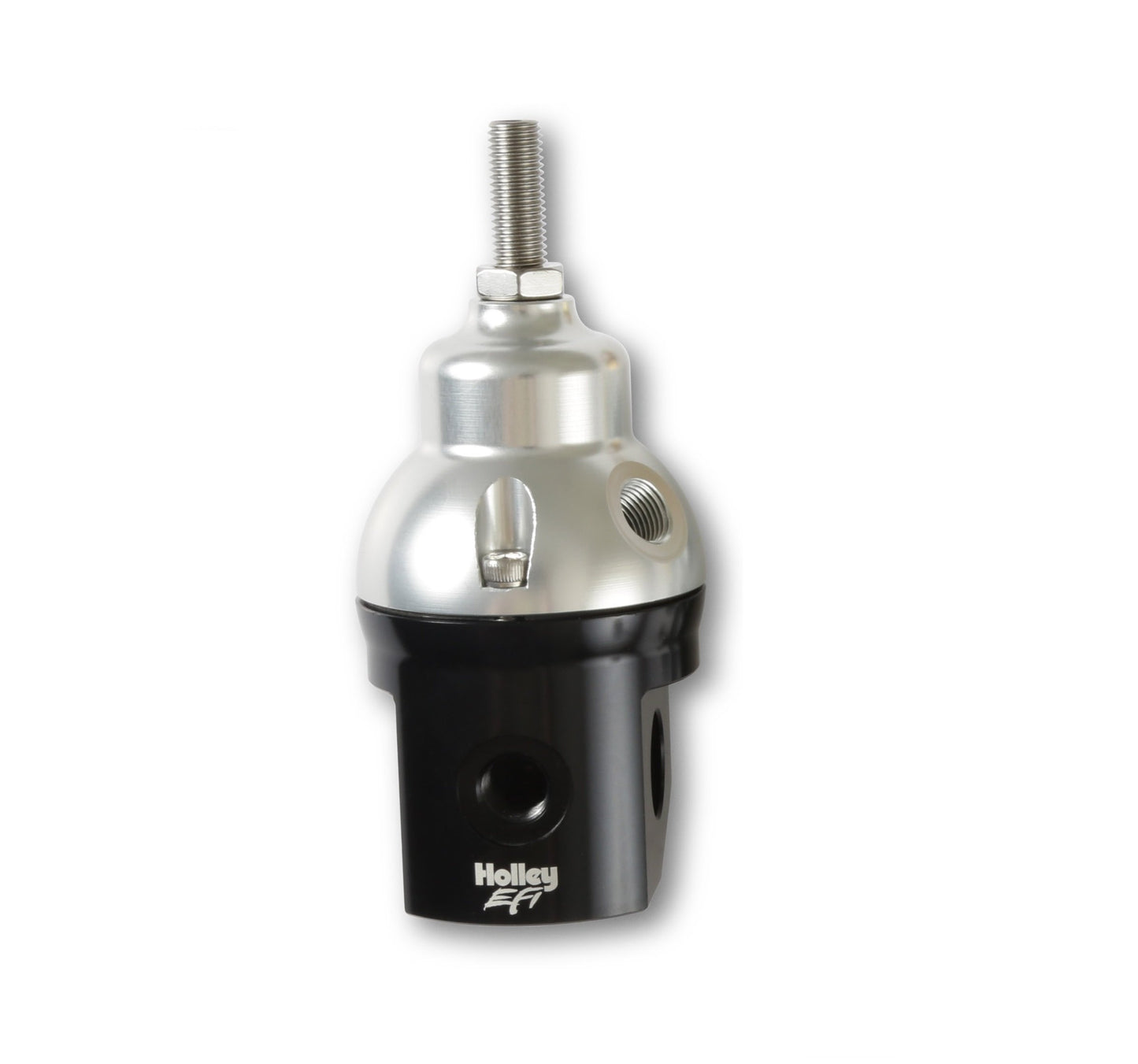

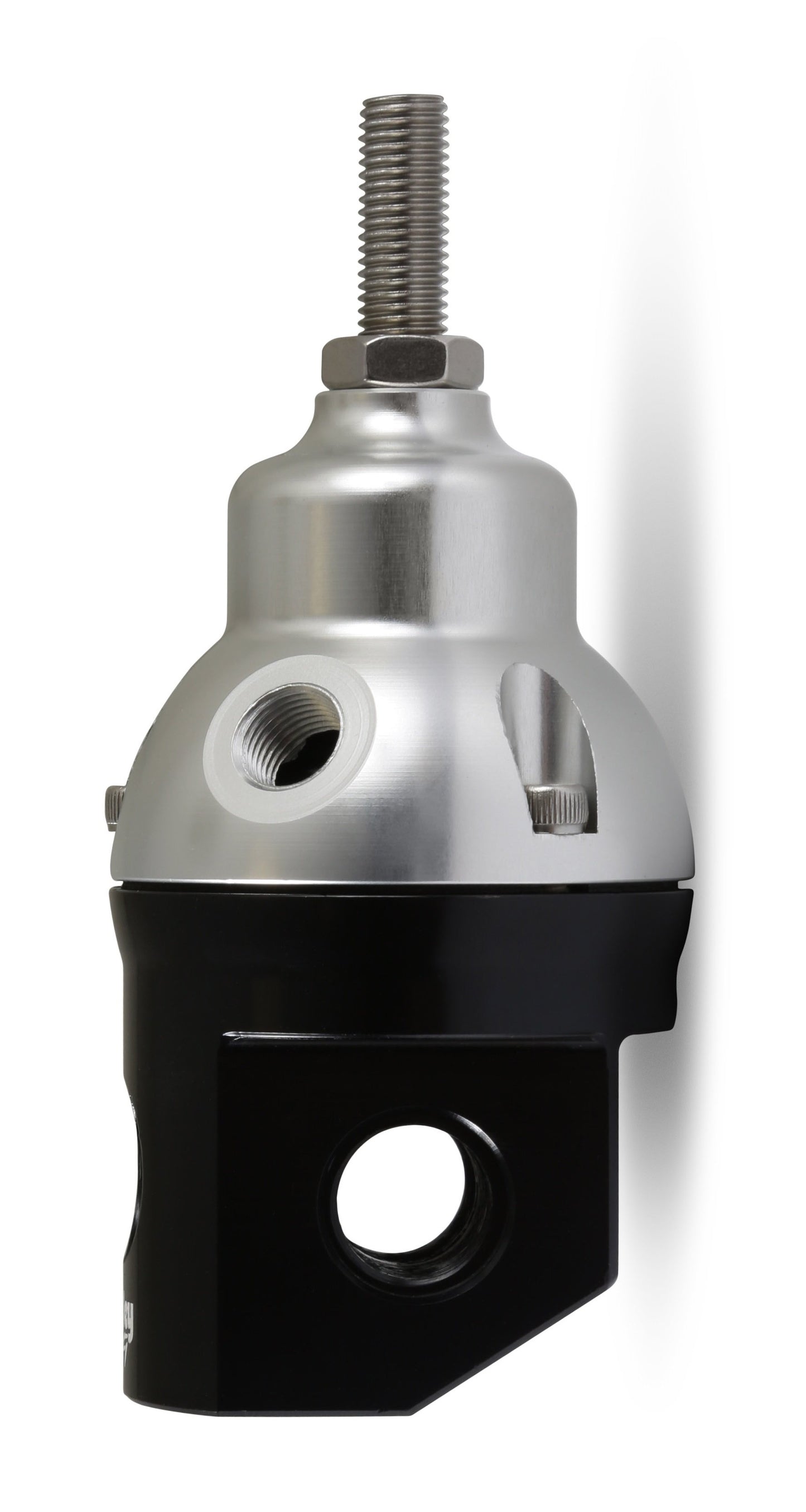

Holley EFI Fuel Regulator 6AN

Holley EFI Fuel Regulator 6AN

Filter Regulator ASY - 8AN o-ring , 175 GPH, 10 Micron All die cast aluminum housing is both clear and black anodized for corrosion protection. Internal Regulator is preset at 59.5 psi #12-888 has 3/8" NPT ports. #12-889 has -8AN o-ring ports.

Overview

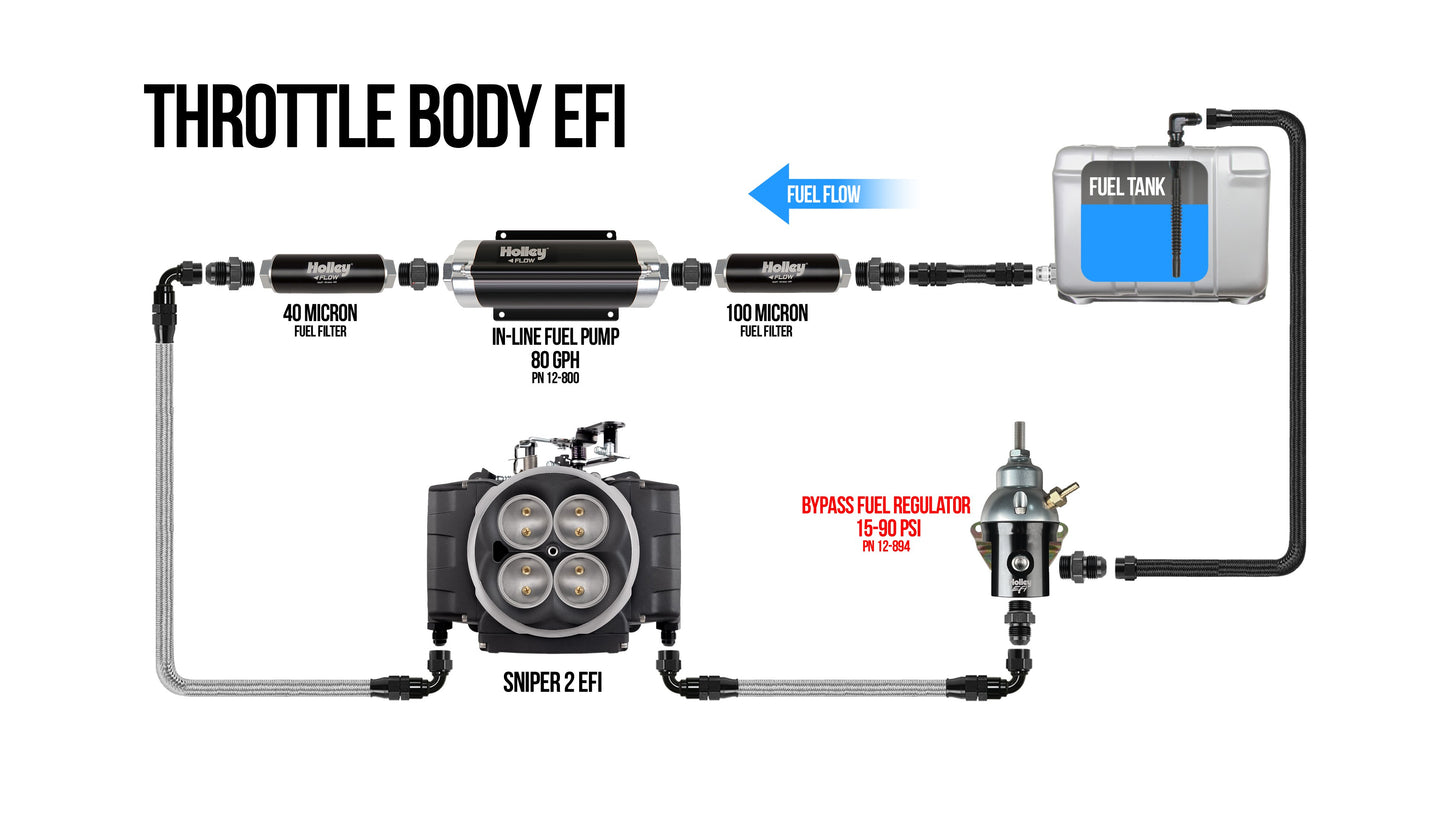

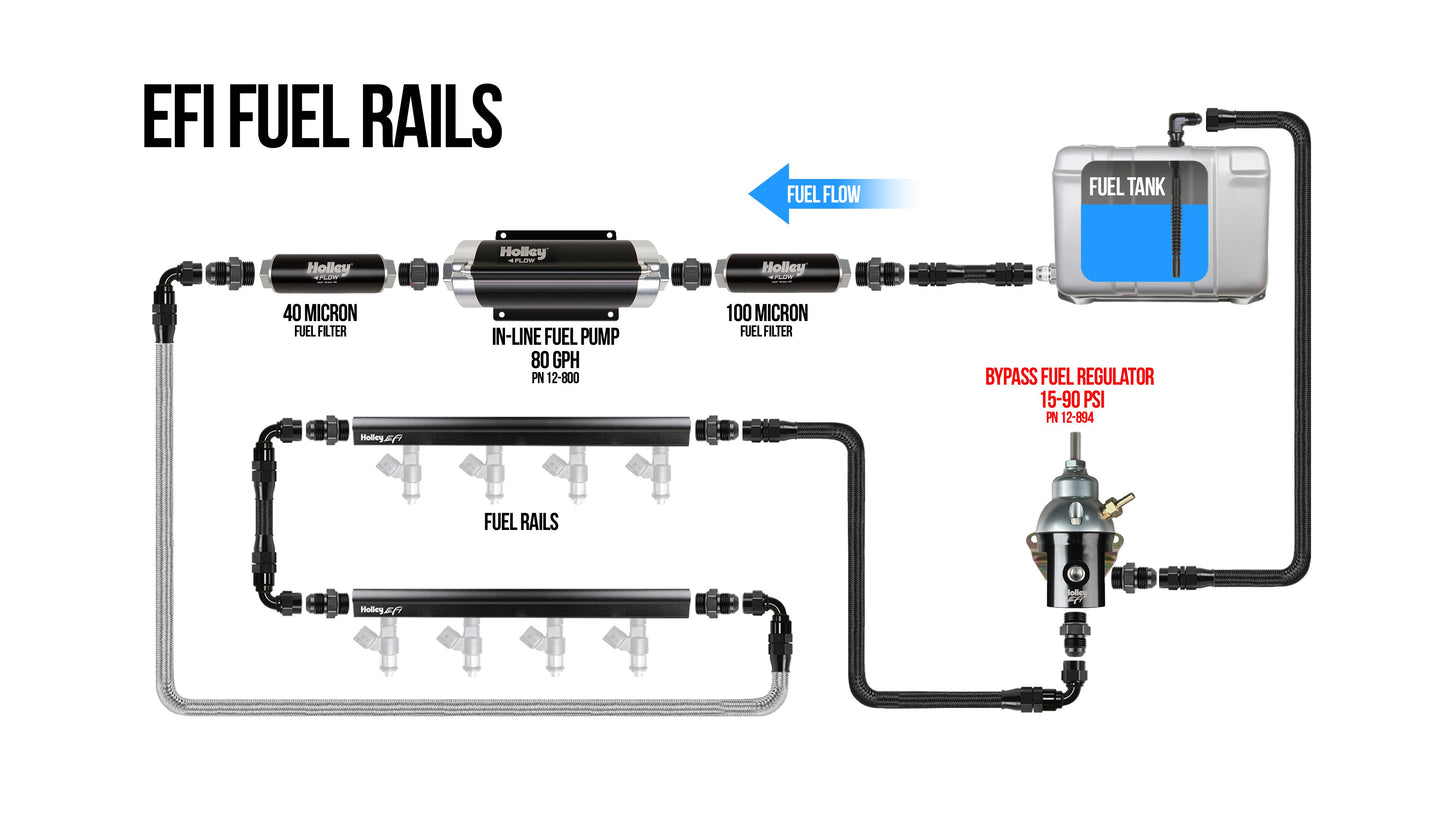

When converting your fuel system to a return style EFI setup, the biggest challenge can be plumbing the fuel lines. Holley continues to be the leader in fuel system development to make your life easier! The new Holley EFI Filter Regulator assembly simplifies your installation by combining the fuel filter and regulator in one assembly that can be mounted in the rear of the vehicle. Thus making your return line much shorter. The die-cast aluminum assembly contains a 175 GPH 10 Micron filter and a regulator preset at 59.5 psi. The filter regulator comes in 3/8" NPT or -8AN o-ring port sizes to match most EFI fuel systems. Add billet mounting clamps; 12-574 and 12-574S

Features:

• Adjustable from 15-90 psi for precise fuel pressure adjustments
• Constructed of billet aluminum with a black anodized base and clear anodize top for good looks
• Used in systems with a return line back to tank
• Includes fitting for manifold reference
• Use with electric pumps only
• Available in -6AN and -8AN Port sizes
• 1/8-inch NPT Boost Reference Port (Ratio 1:1)
• 1/8-inch NPT Fuel Gauge Port
• Mounting bracket included

Details:

• Fuel Type: Gasoline
• Style: Bypass
• Warranty: Limited 1 Year Warranty

Links
Instruction Sheet
