Holley EFI Crank Trigger System - BBC

Holley EFI Crank Trigger System - BBC

556-113

Out of stock

  • Ships from Kentucky or Utah
  • Add $300+ for $10 off of your order!
  • Add $500+ for $20 off of your order!

Shipping Estimate

Tracking: 1-2 days

Average Shipping: 2-3 days once tracking is available

$548.95 USD
$686.95 USD $548.95 USD
Sale Sold out
Shipping calculated at checkout.
Holley EFI Crank Trigger System - BBC

For use with Holley???? HP and Dominator ECUs and other EFI systems

Overview
This coil is designed for use with Holley???? HP and Dominator ECUs, as well other EFI systems that can drive "smart" ignition coils. Although it is designed for high powered race applications, it produces more spark energy, which means you get hotter spark at the plug to burn the maximum amount of fuel in each cylinder.

The supplied connectors and pins are "Pull to Seat " This means that you need to insert the wire through the connector from the back, crimp the pin and pull it back into the connector for assembly. Always use proper crimping tools to ensure a proper connection.

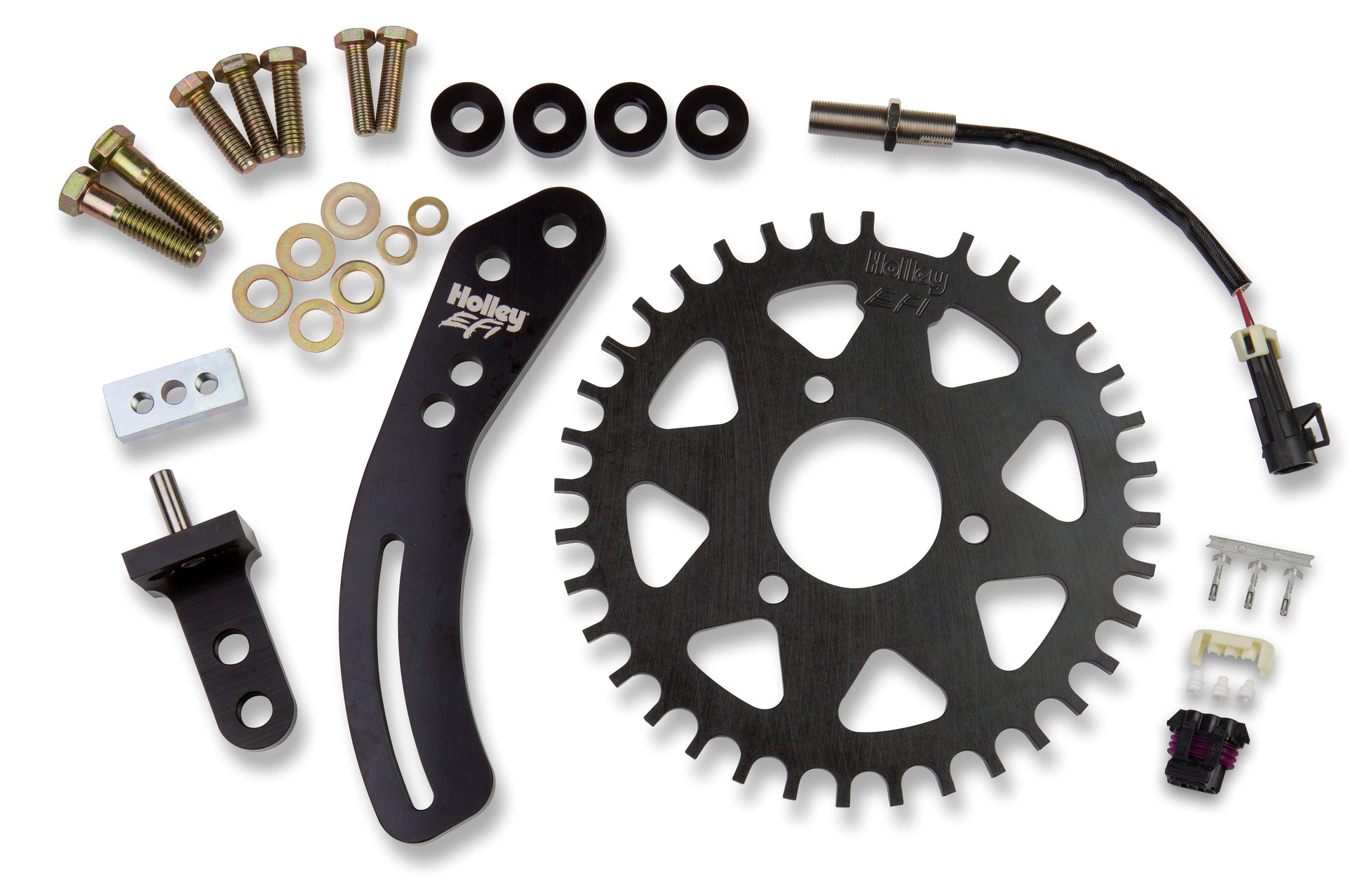

Features:
  • 8??? diameter, 1/4??? thick, billet steel, 36-1 tooth, crank wheel with Black Zinc Oxide finish for superior corrosion resistance & striking good looks.
  • Crank wheel centers off of the balancer??????s hub, eliminating the need for a centering ring
  • All billet, 6061-T6 aluminum sensor mounting brackets with bright-dipped??? black anodized finish & Laser etched Holley EFI logo
  • Custom 3-wire, ferrous-target, Hall-effect sensor with M12X1mm threads for finer gap adjustment
  • All Grade 8 & Mil. Spec mounting hardware


Details:
  • Color: Black
  • Diameter: 8 in.
  • Diameter: 8"
  • Finish: Black Zinc Oxide
  • Make: Chevrolet
  • Sensor Dimensions: 12mm x 50mm
  • Sensor Type: Hall Effect
  • Trigger Type: 36-1
  • Wheel Width: 1/4"
