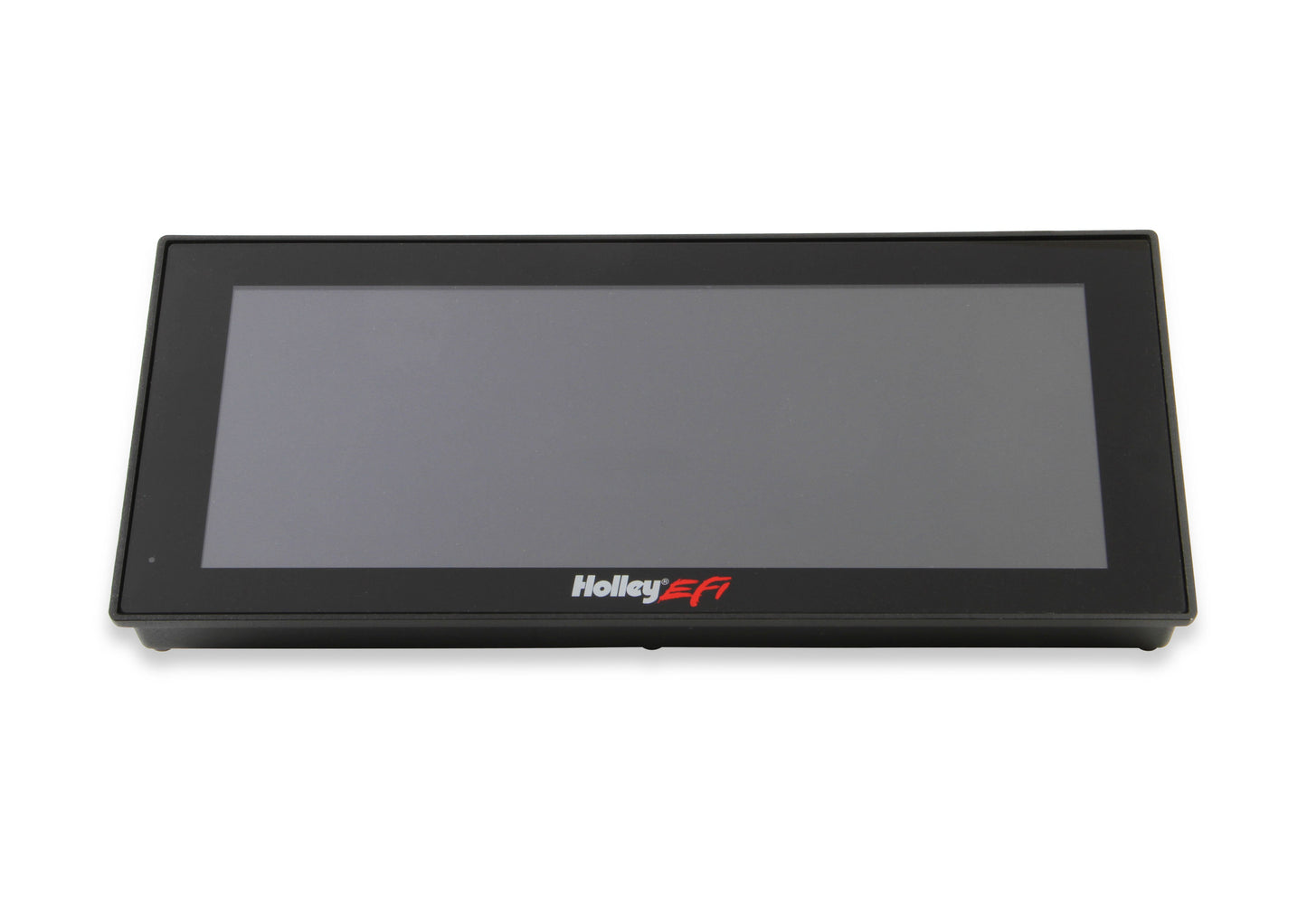

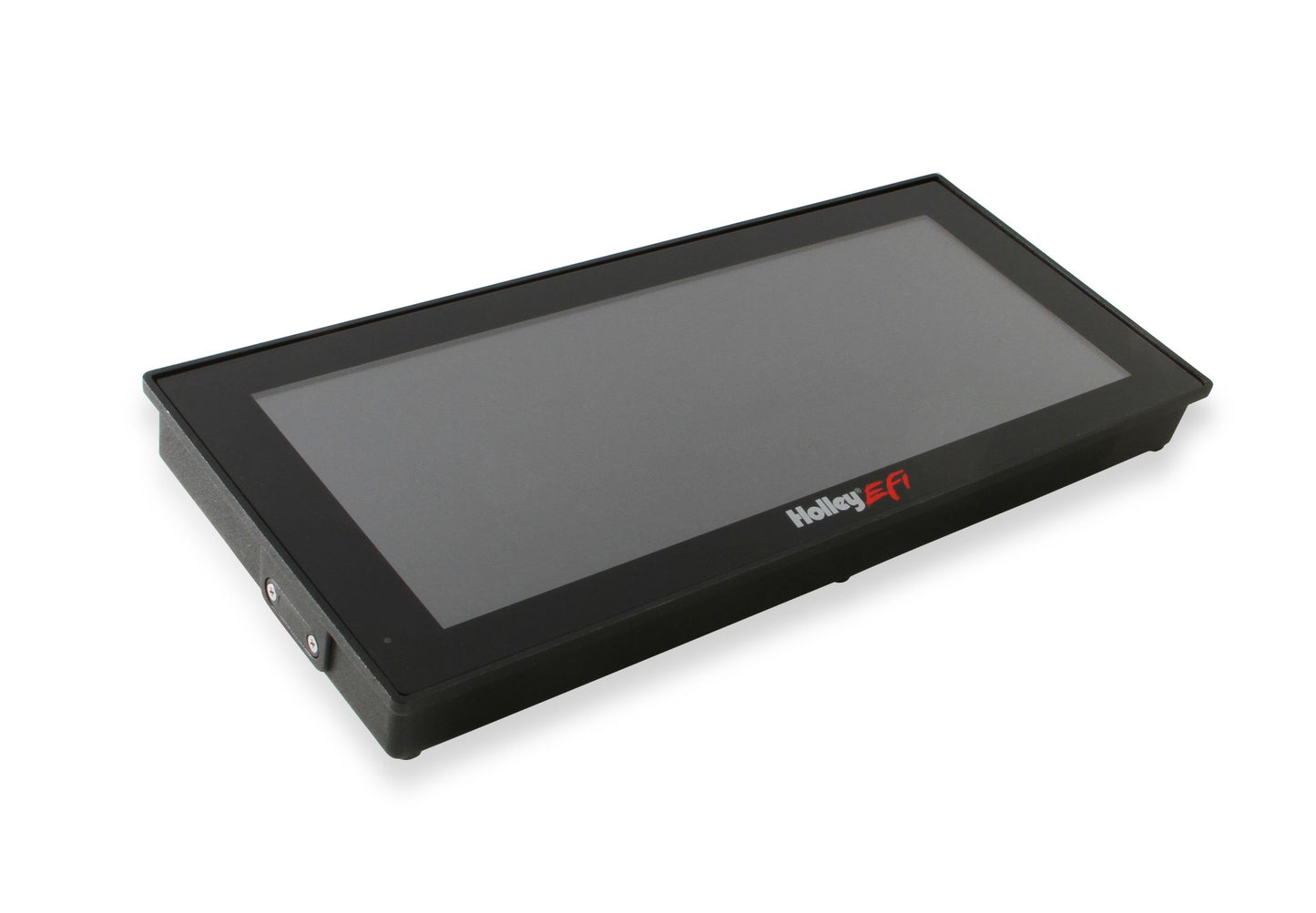

The Holley EFI 6.86" Pro Dash is customizable with a variety of gauge and indicator screens that can be
programmed to display any parameter you need from a Holley EFI system. It also includes an integrated ten
LED shift light as well as two LED's on the top left and two on the top right that can be programmed as desired.
Overview Holley's new 6.86" Pro Dash delivers over 200 monitoring channels of reliable real-time data in a more compact, full HD package suitable for nearly any motorsports application.
Be assured that the Holley EFI 6.86" Pro Dash will deliver the vitals you need!

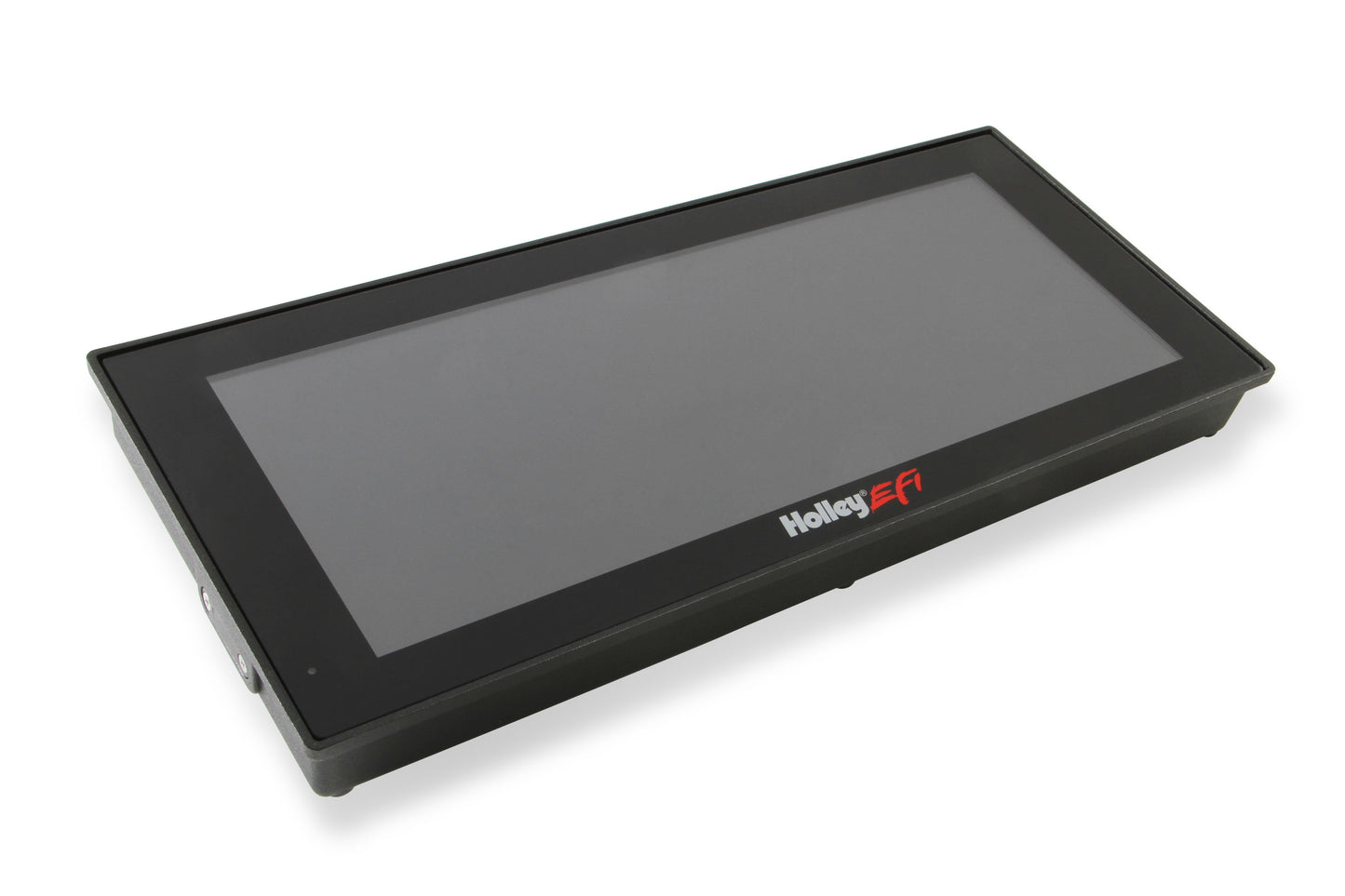

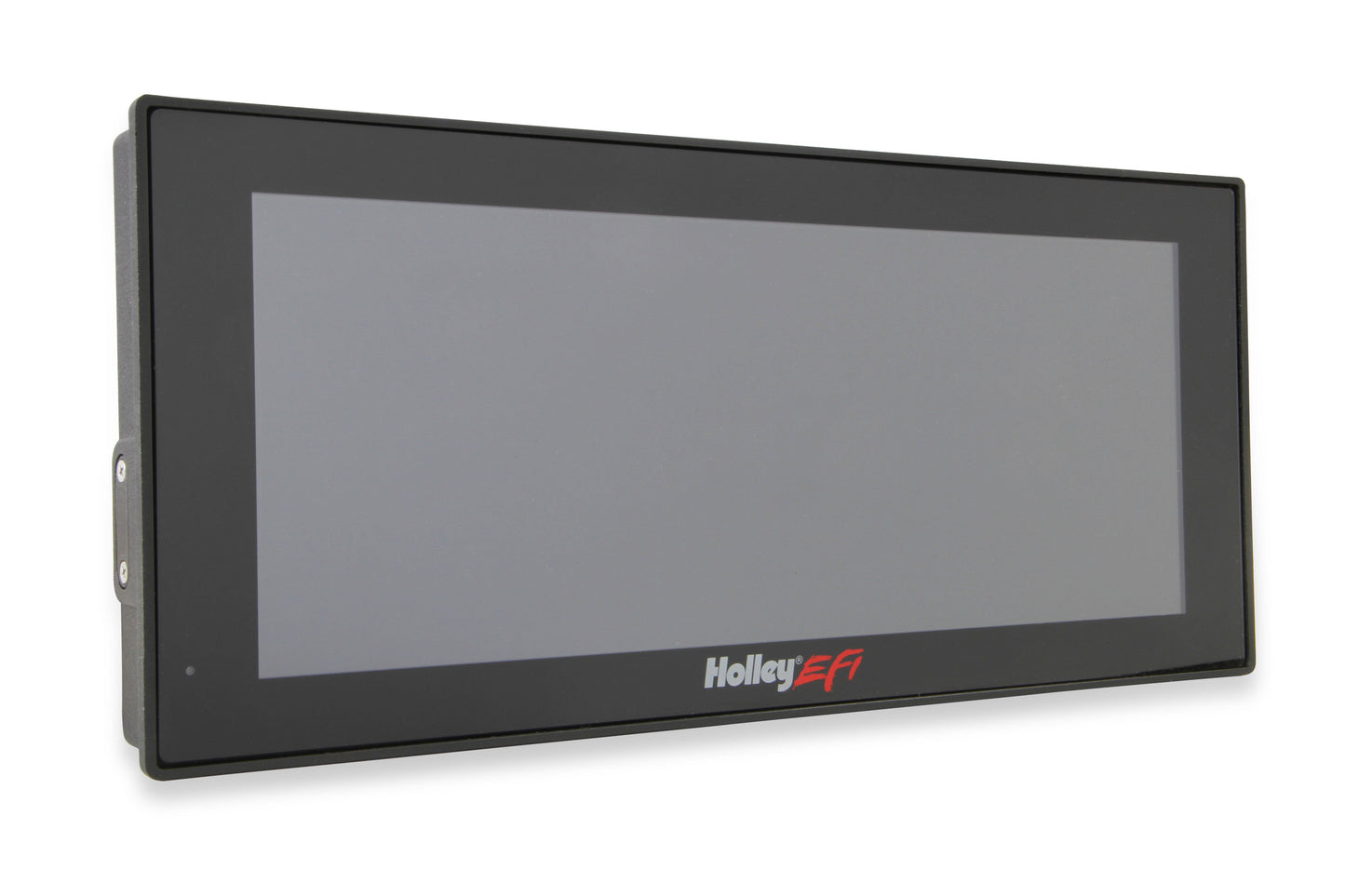

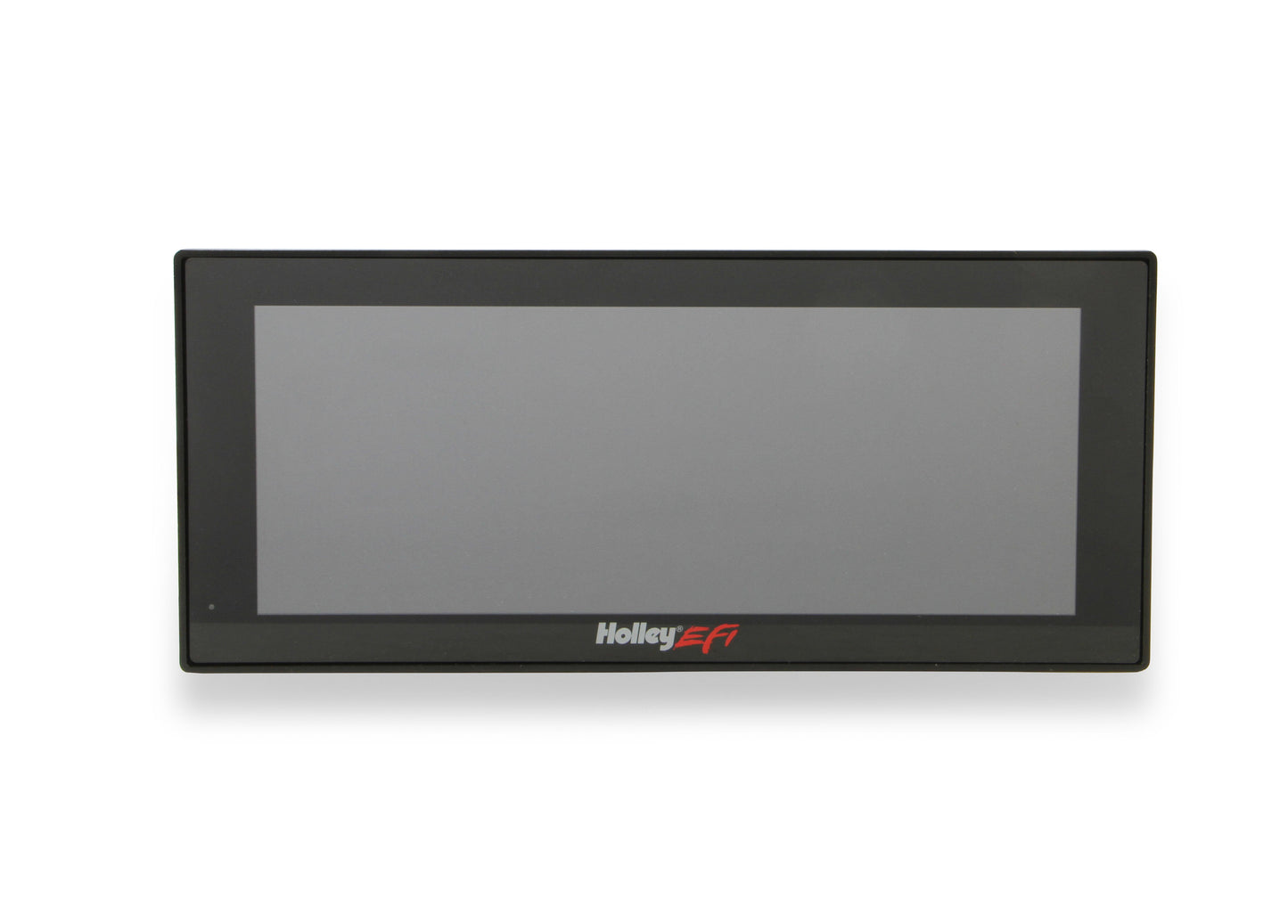

The 6.86" Pro Dash is completely customizable for use in a variety of motorsports applications. It features a 6.86" 1280x480 resolution low glare, high brightness, high contrast, full-color capacitive touch screen for easy viewing even in the sun, plug and play connection to all Holley EFI systems as well as a weatherproof aluminum housing featuring flexible mounting options. Monitor the power of your Holley EFI system at a glance! Holley EFI 6.86" Pro Dash includes everything needed for installation!

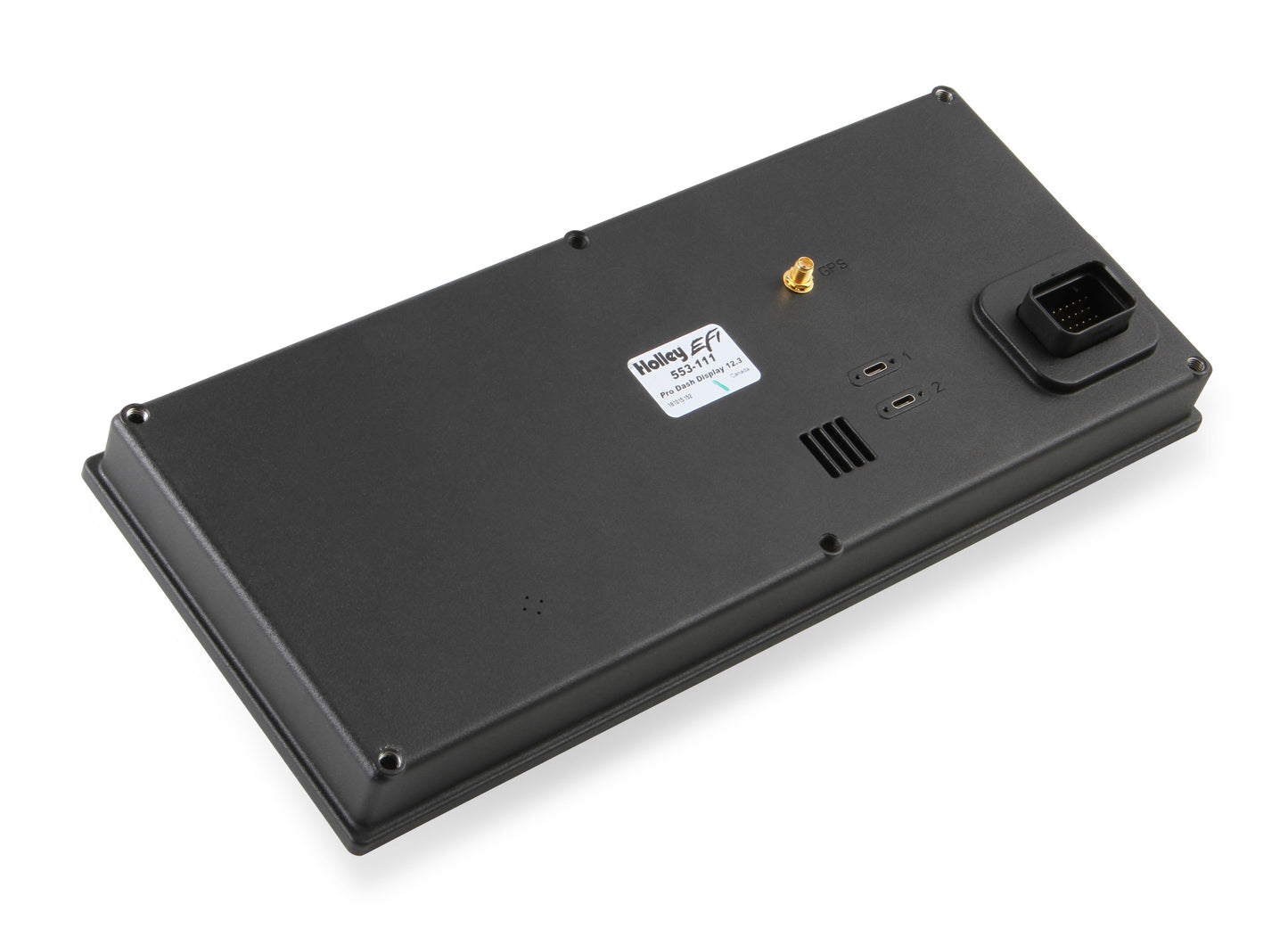

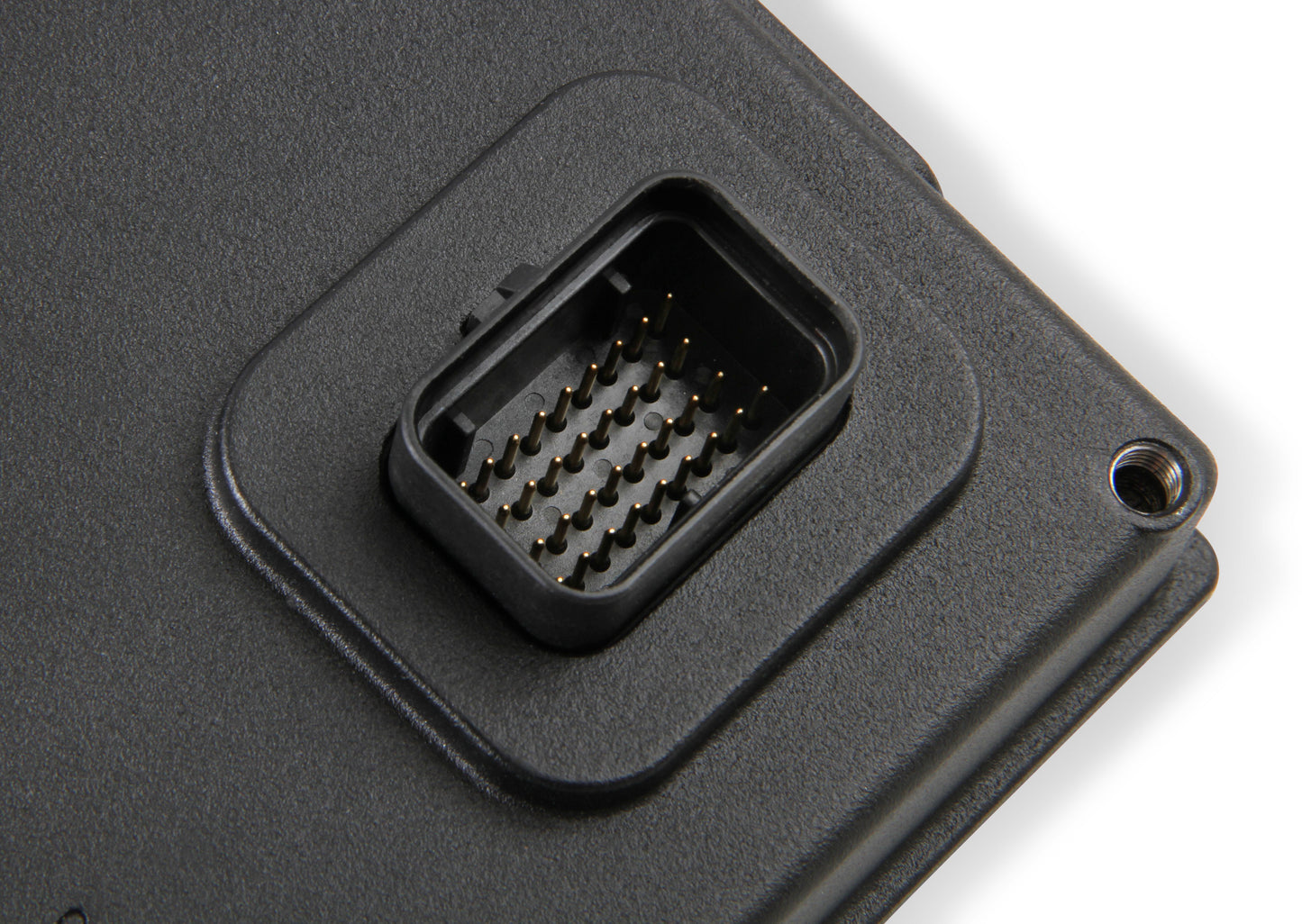

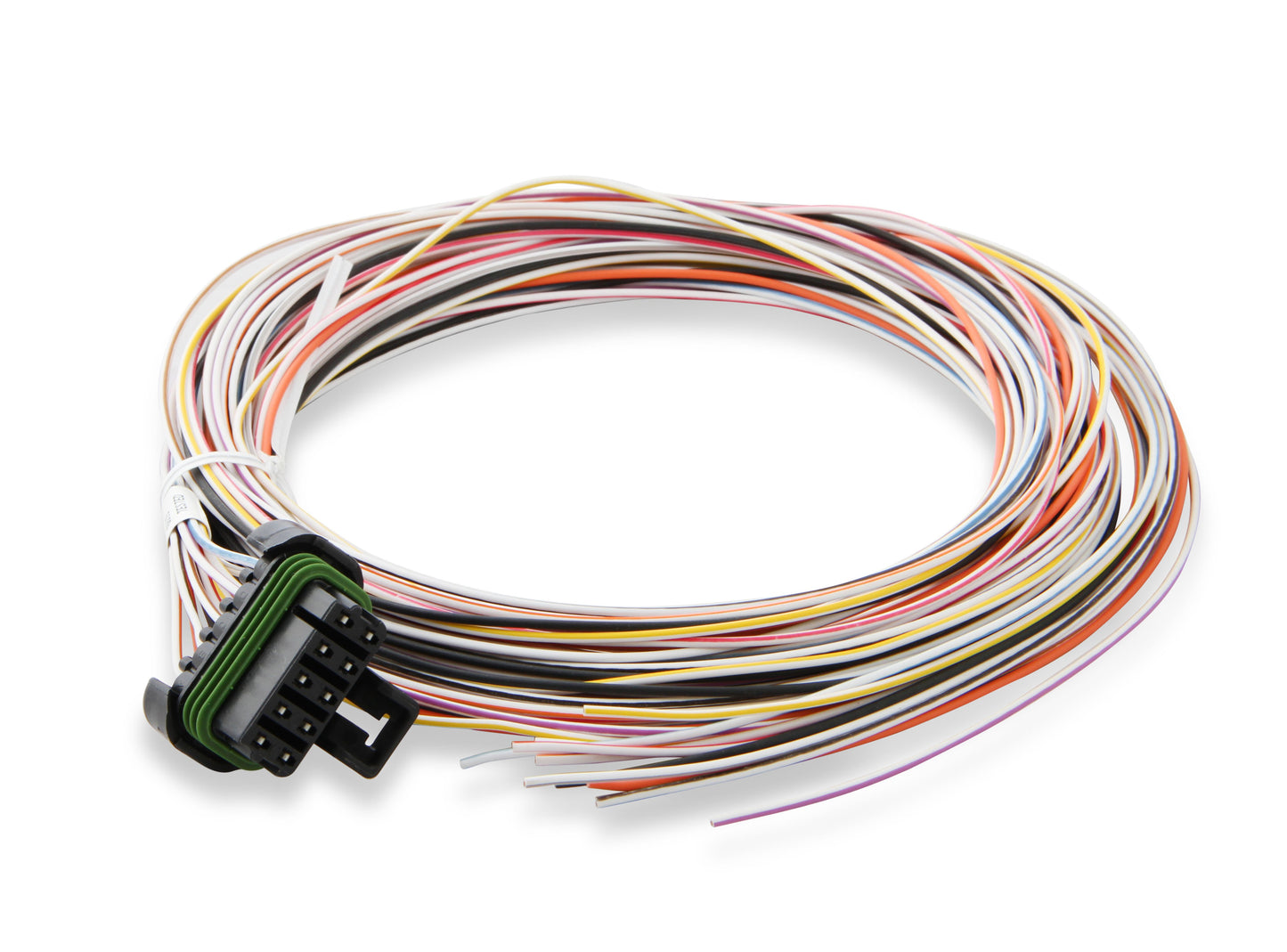

The Holley EFI 6.86" Pro Dash also features a plethora of inputs and outputs for expanded functionality of your Holley EFI installation. The included 34pin connector has 13 multi-configurable inputs for most Holley EFI sensors, such as pressure and temperature. Not using Holley EFI sensors? We still have you covered, these inputs are configurable, allowing you to utilize different sensor scaling calibrations! The Pro Dash also features two dedicated speed inputs, for RPM, Driveshaft speed, or any other Hall effect speed input. Need more outputs? The Pro Dash contains 4 ground switched outputs, that can be utilized with the switch panel feature to quickly turn on any of your auxiliary accessories, such as a master nitrous switch, or an electric water pump.
We have also integrated a 10-LED Programmable shift light into the bezel of the dash and added 4 optional LED's that can be programmed for virtually anything, such as fuel pressure or oil pressure warning indicators, or a target boost indicator, the options are almost endless.
This device will only display and/or communicate with Holley EFI HP/Dominator ECUs with V4 build 110 or later firmware. It will also communicate with Terminator X / Terminator X Max and Sniper ECUs. Not compatible with Sniper 2.
Not compatible with Sniper 2
Features:
Standalone digital dashes for installation in most any vehicle ???? no ECU or fuel injection required.o As easy to install as traditional gauges!
Two models available:
6.86??? version is big on features, but small on size for installation almost anywhere!

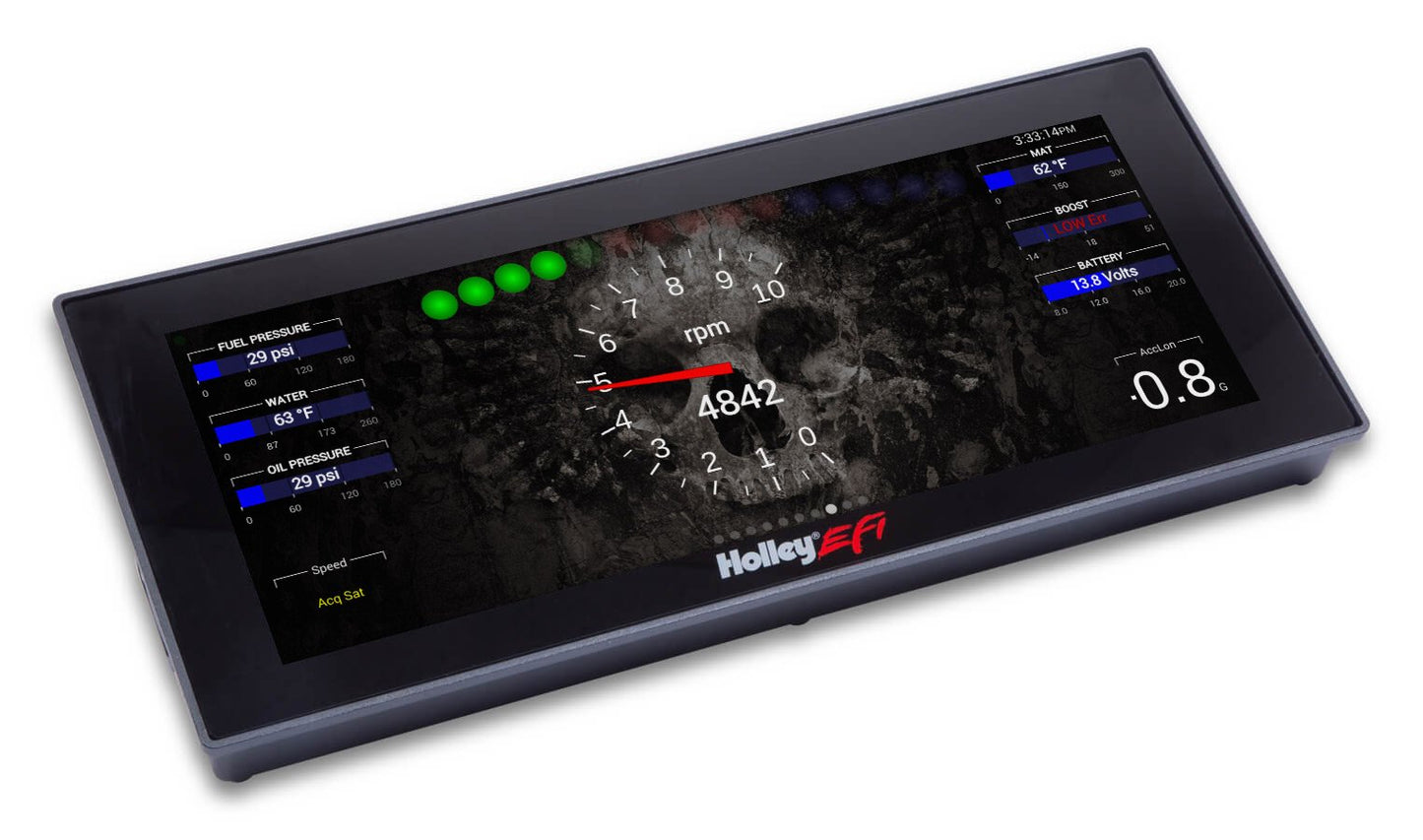

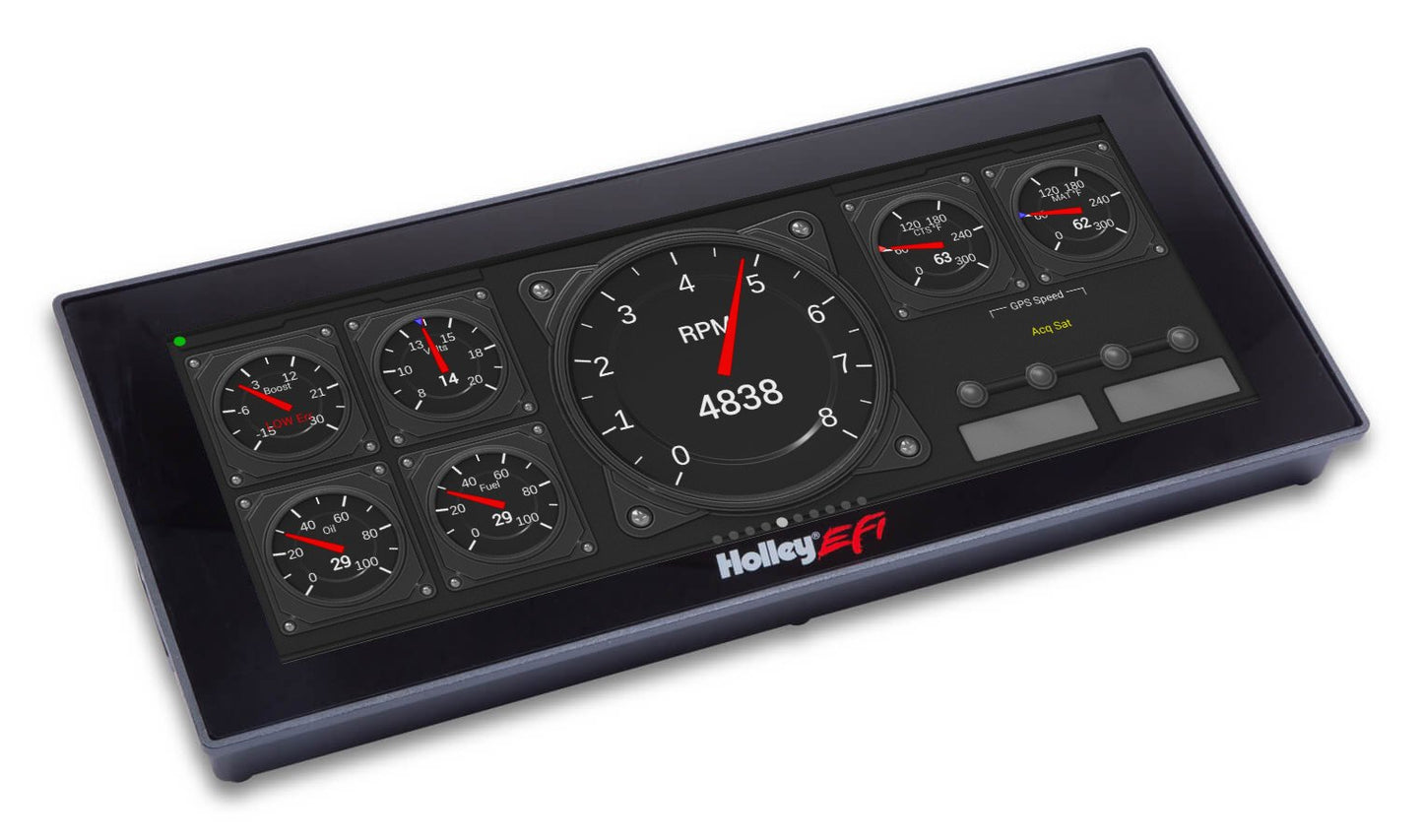

12.3??? version is for the hard-core enthusiast who wants the ultimate display device!

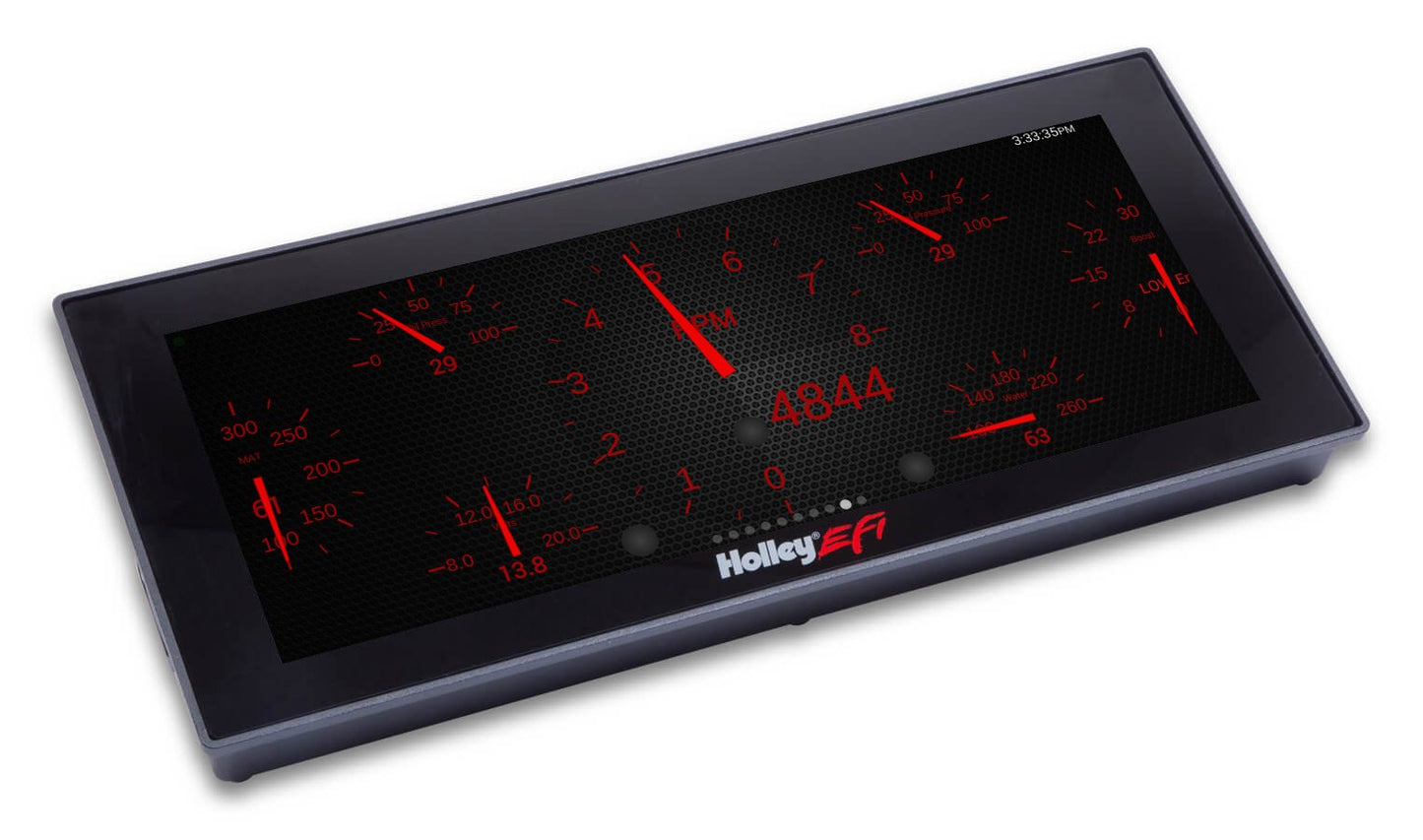

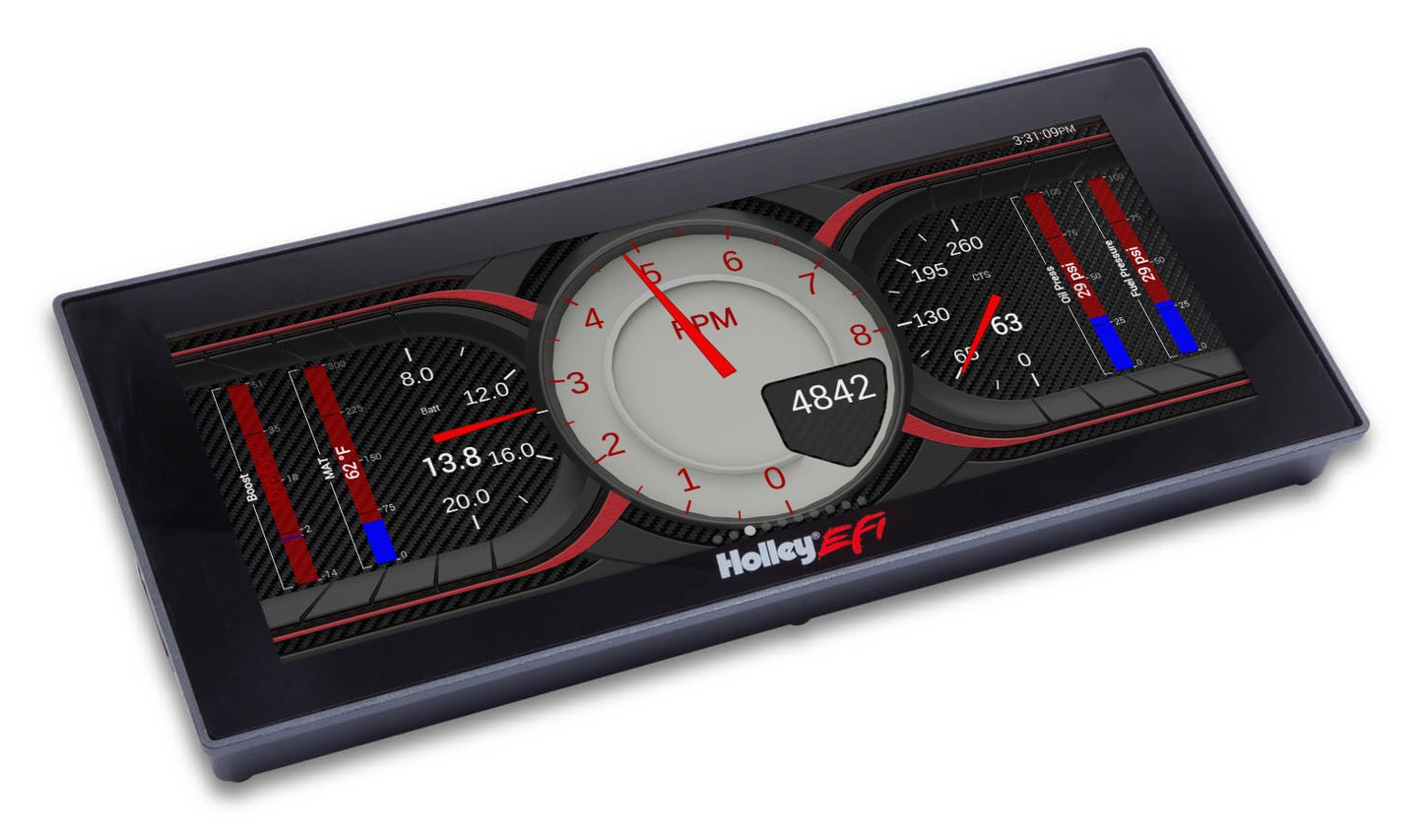

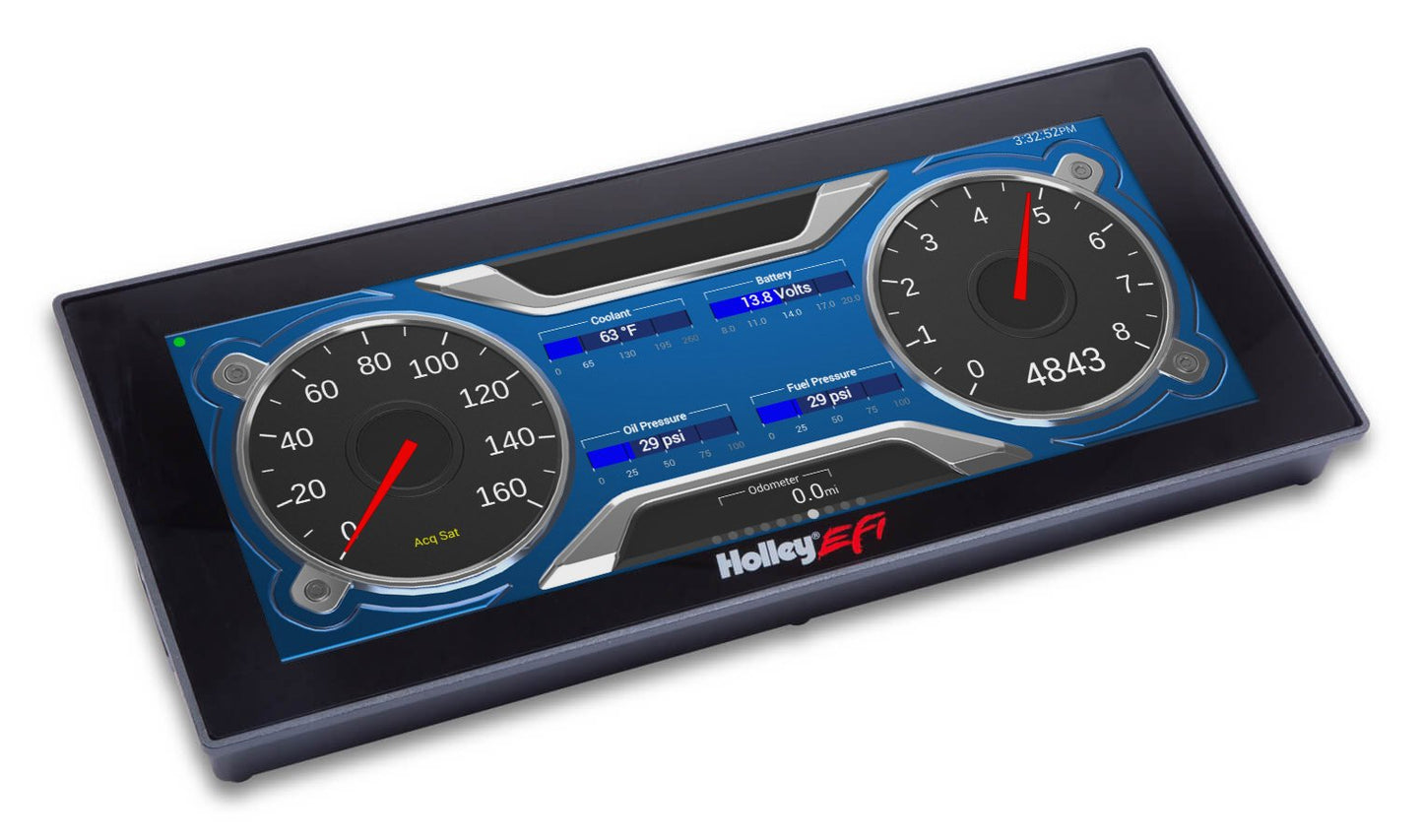

High resolution, state-of-the-art, multi-gauge touch-screen display with fully configurable layouts:
Full color, capacitive touch screen with auto dimming offers crystal clear data at your fingertips ???? day or night ???? no stylus needed
Quickly swipe between multiple active screens (tune, warm-up, race, drive, etc.)

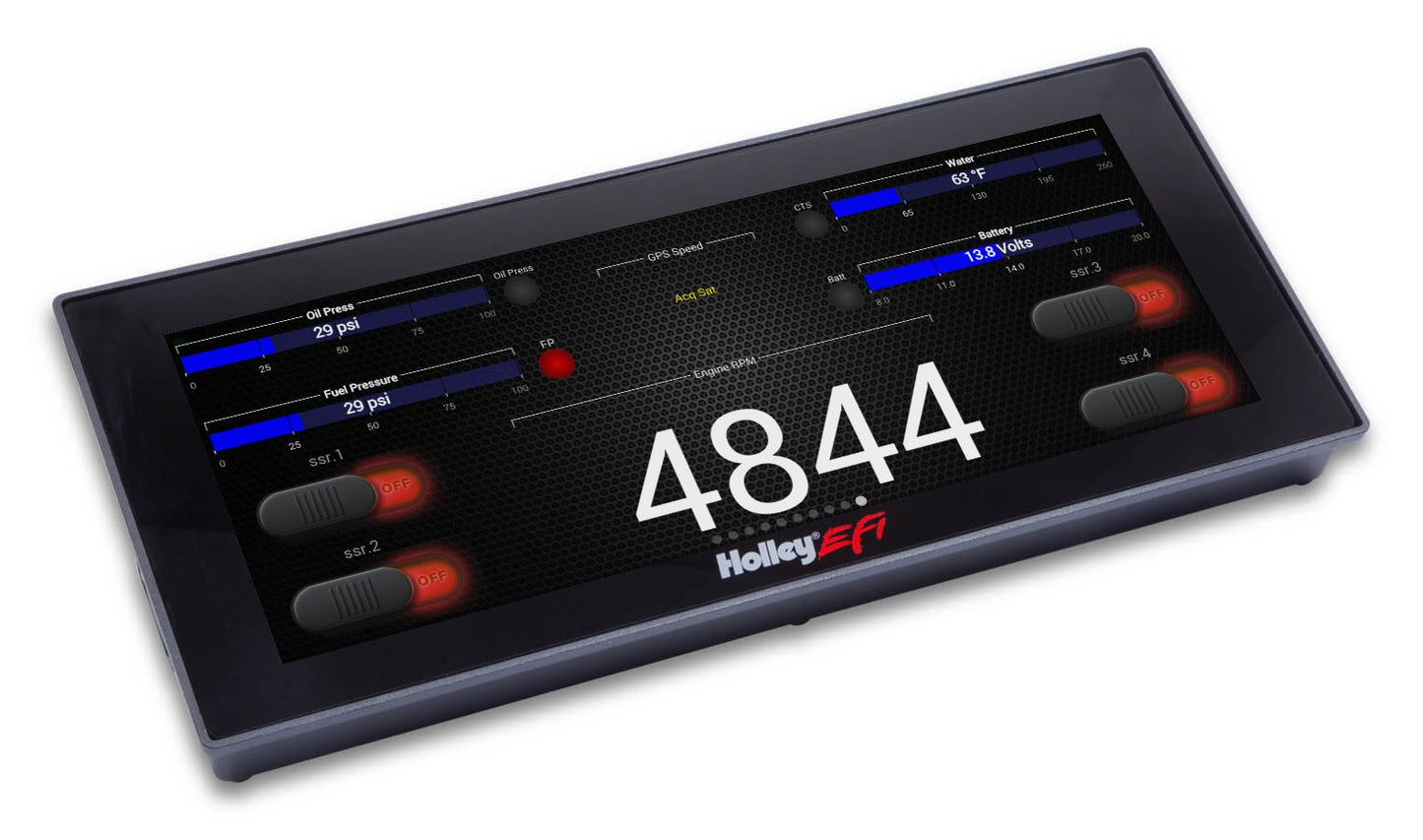

Virtual switch panel eliminates the need for external toggle switches
16 default backgrounds skins pre-loaded with unlimited options for importing custom layouts

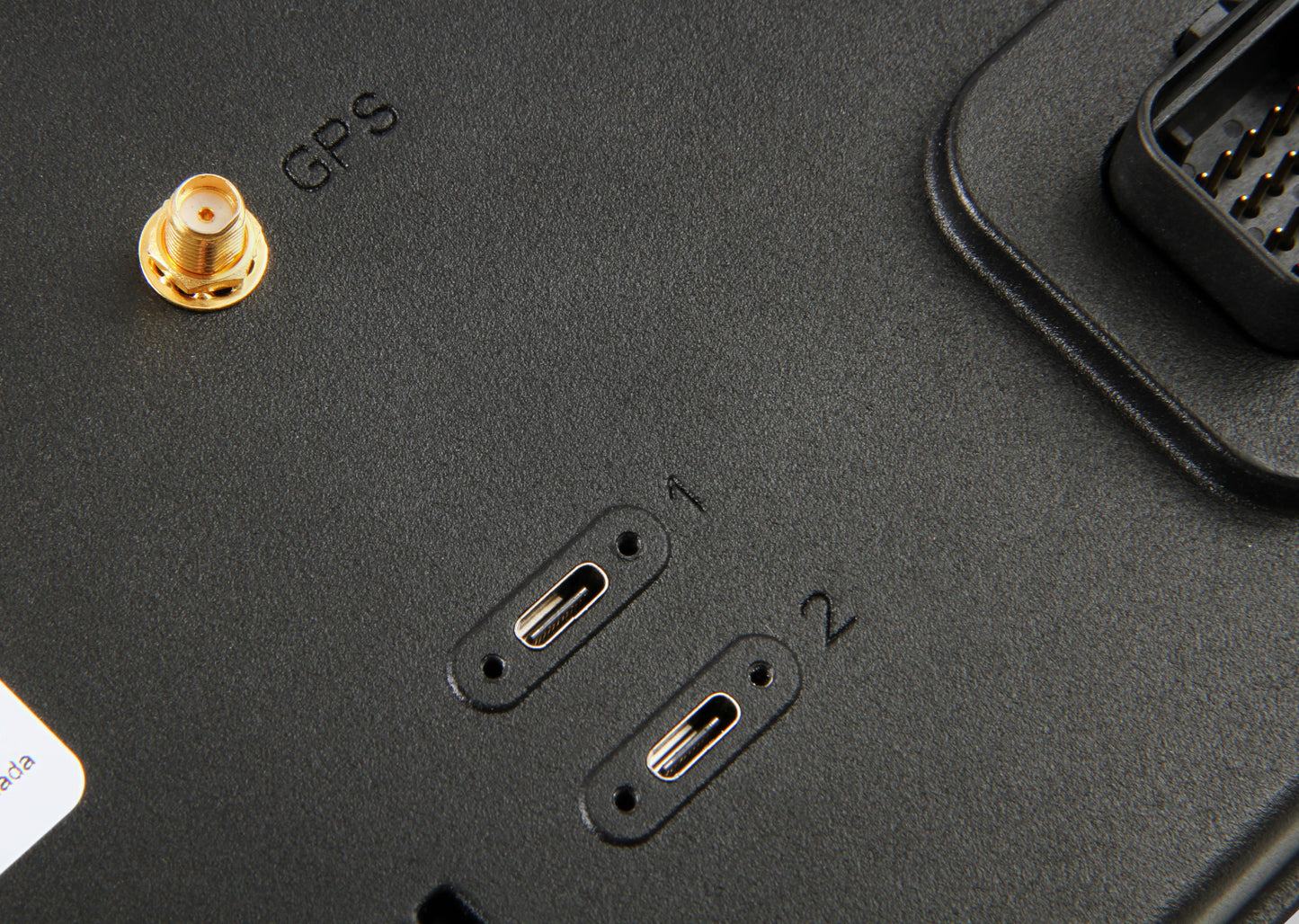

Built-in GPS with speed, odometer and trip odometer function (external antenna included)

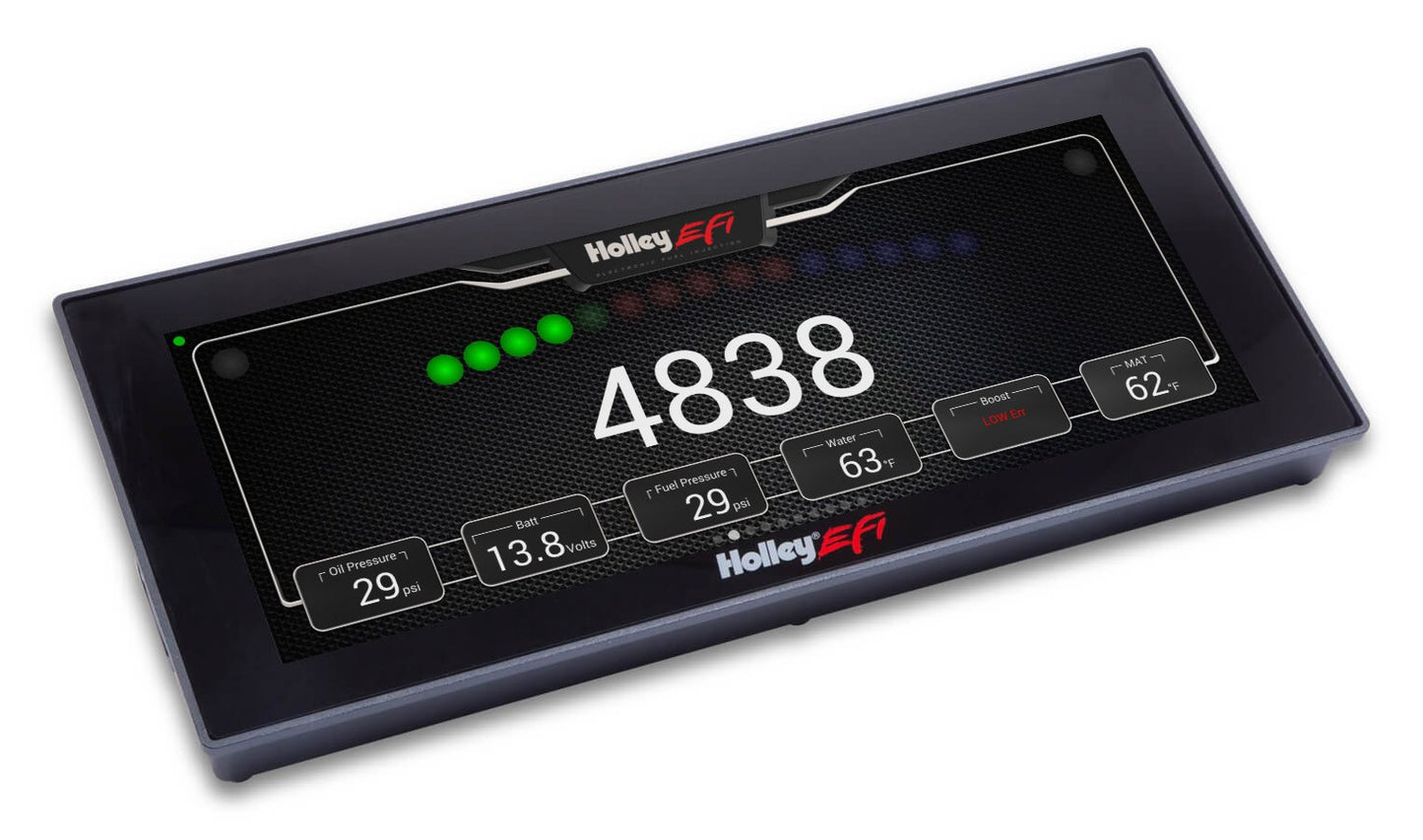

Integrated 10-LED programmable shift light w/ 4-LED warning indicators for other sensor inputs. (6.86??? dash only)

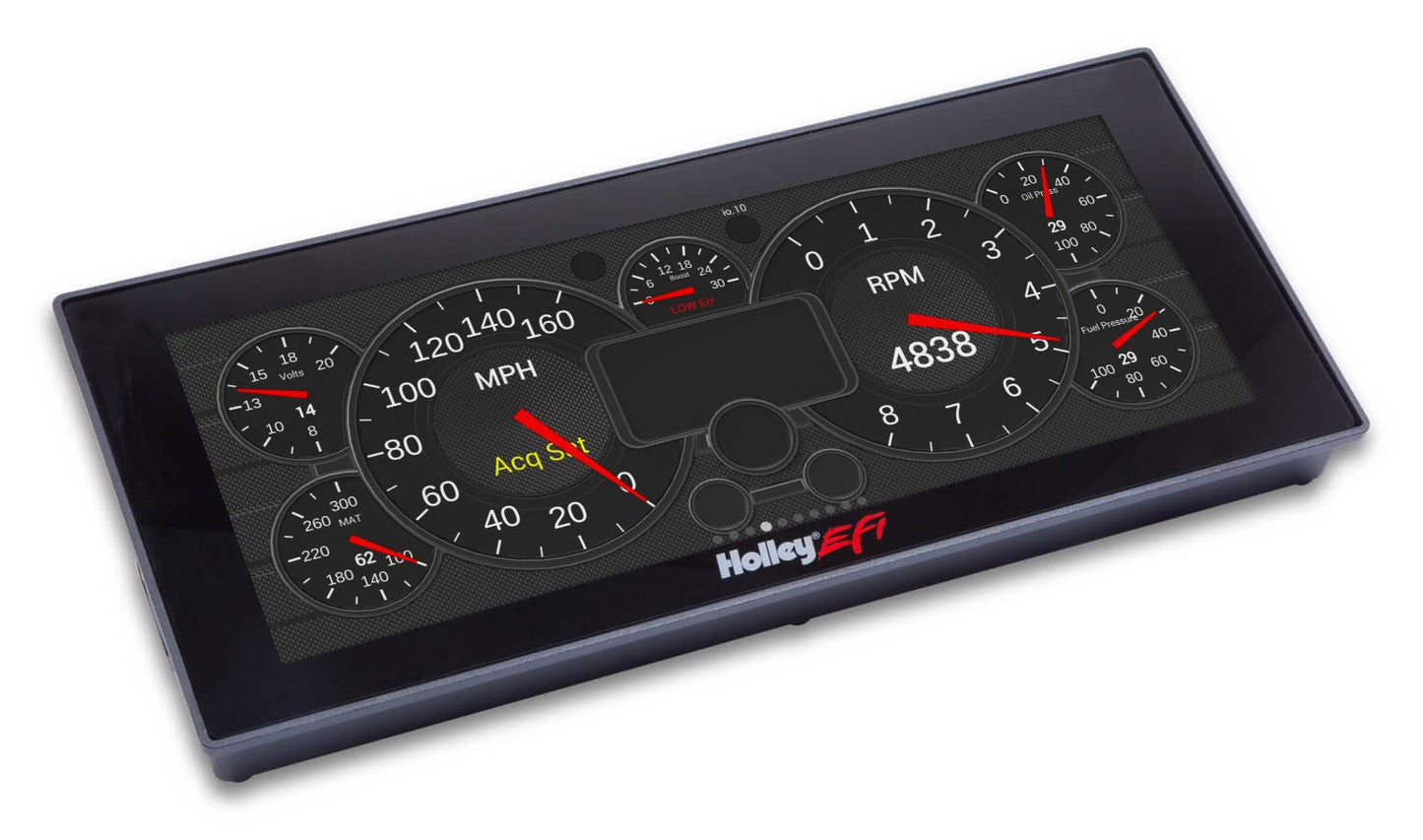

Rendered analog (dials / needles) and digital gauge styles available
Integrated datalogger
Rugged, water resistant case is constructed of cast aluminum for long life and durability
Plug and play features are pre-configured in the harness and include dash layouts / screens for::
Oil and fuel pressure, coolant and air temp (utilizes plug and play Holley sensors, not included)
Turn signals
High beam
Fuel level
Engine vacuum / boost
Additional input and output functionality:
13 multi-configurable inputs
4 ground switched outputs
Four speed channels (two dedicated) for RPM, driveshaft speed, or any other Hall effect speed input
User definable channel alarms and warnings
Communications / Harness:

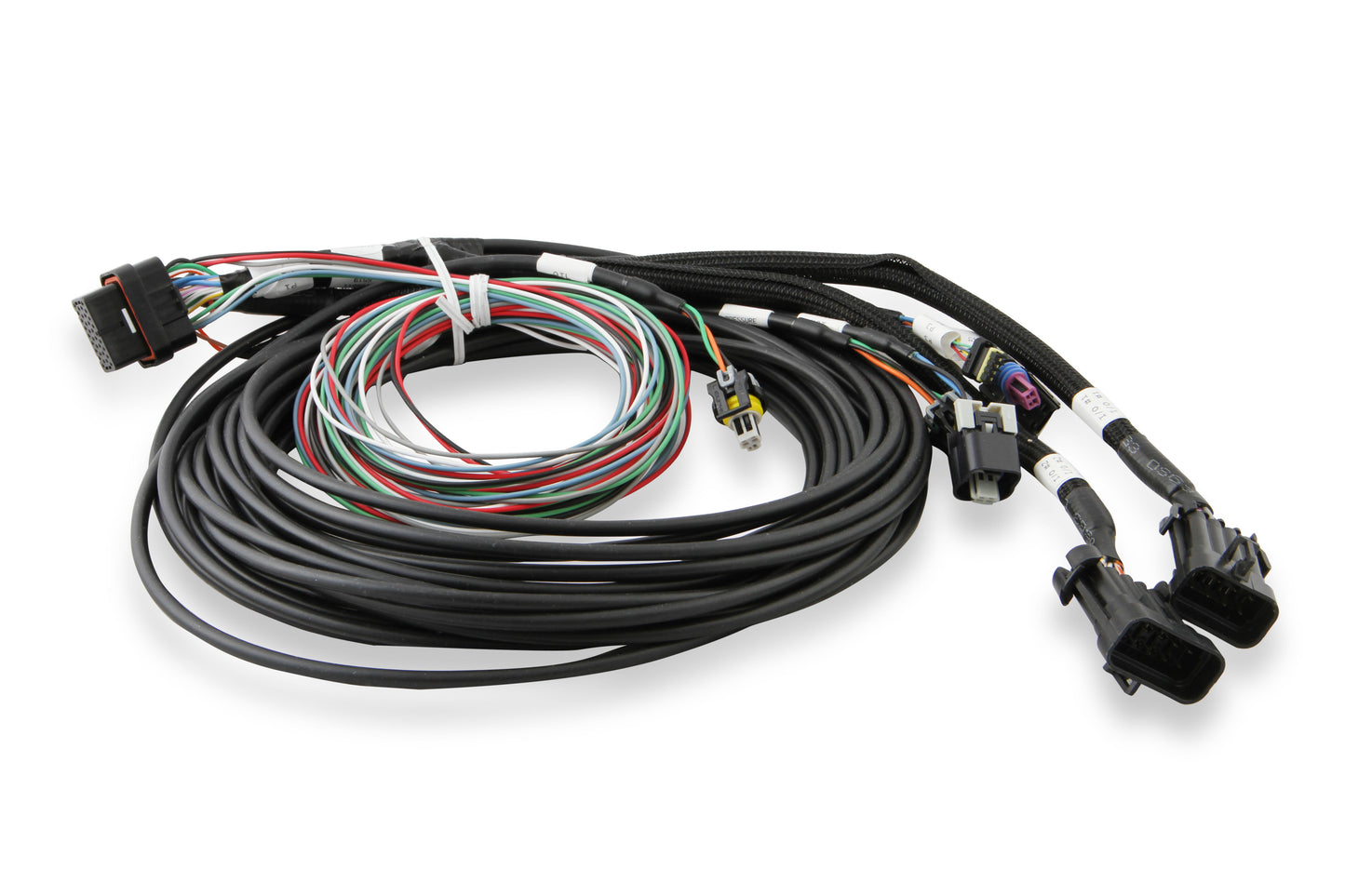

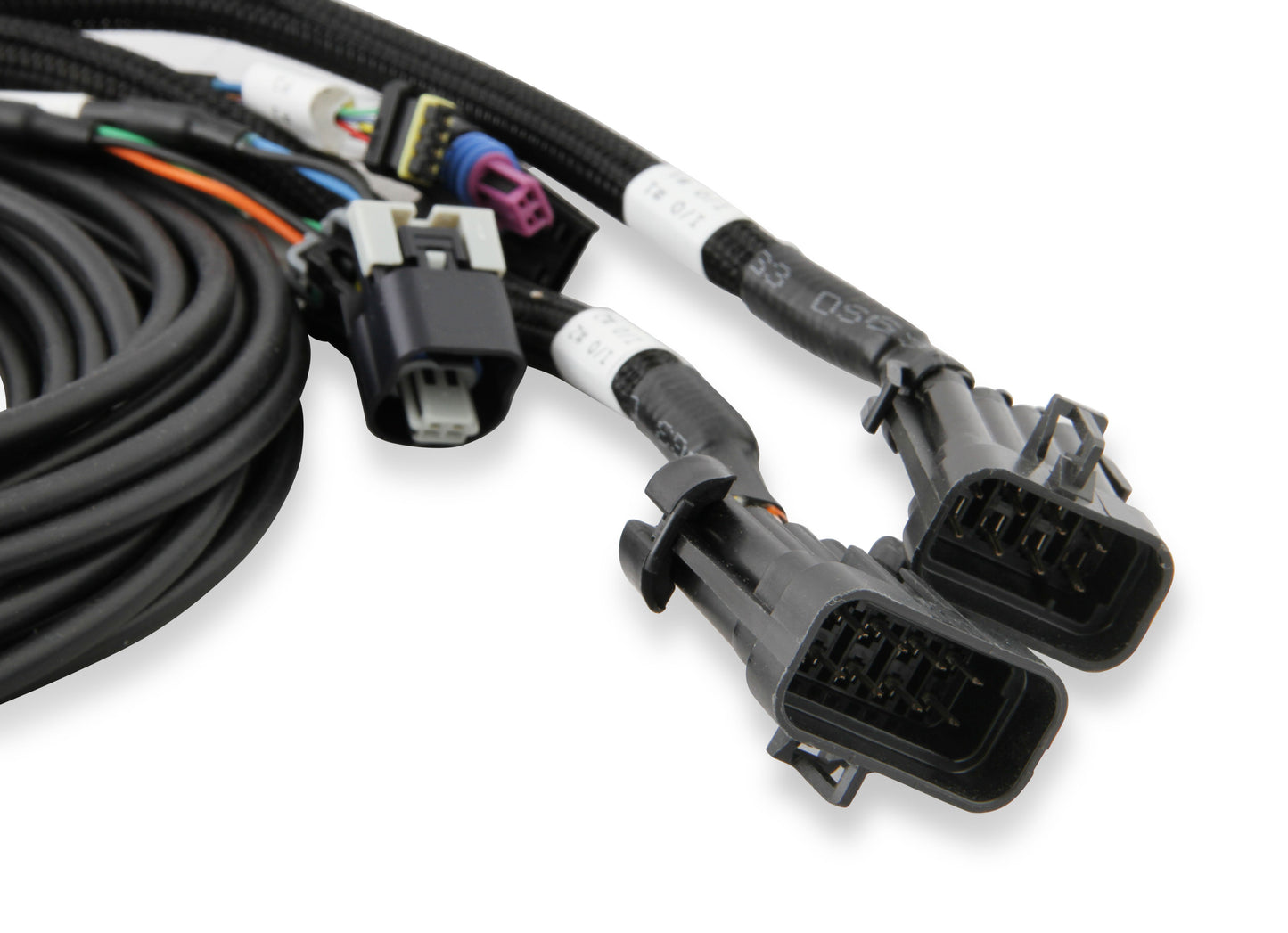

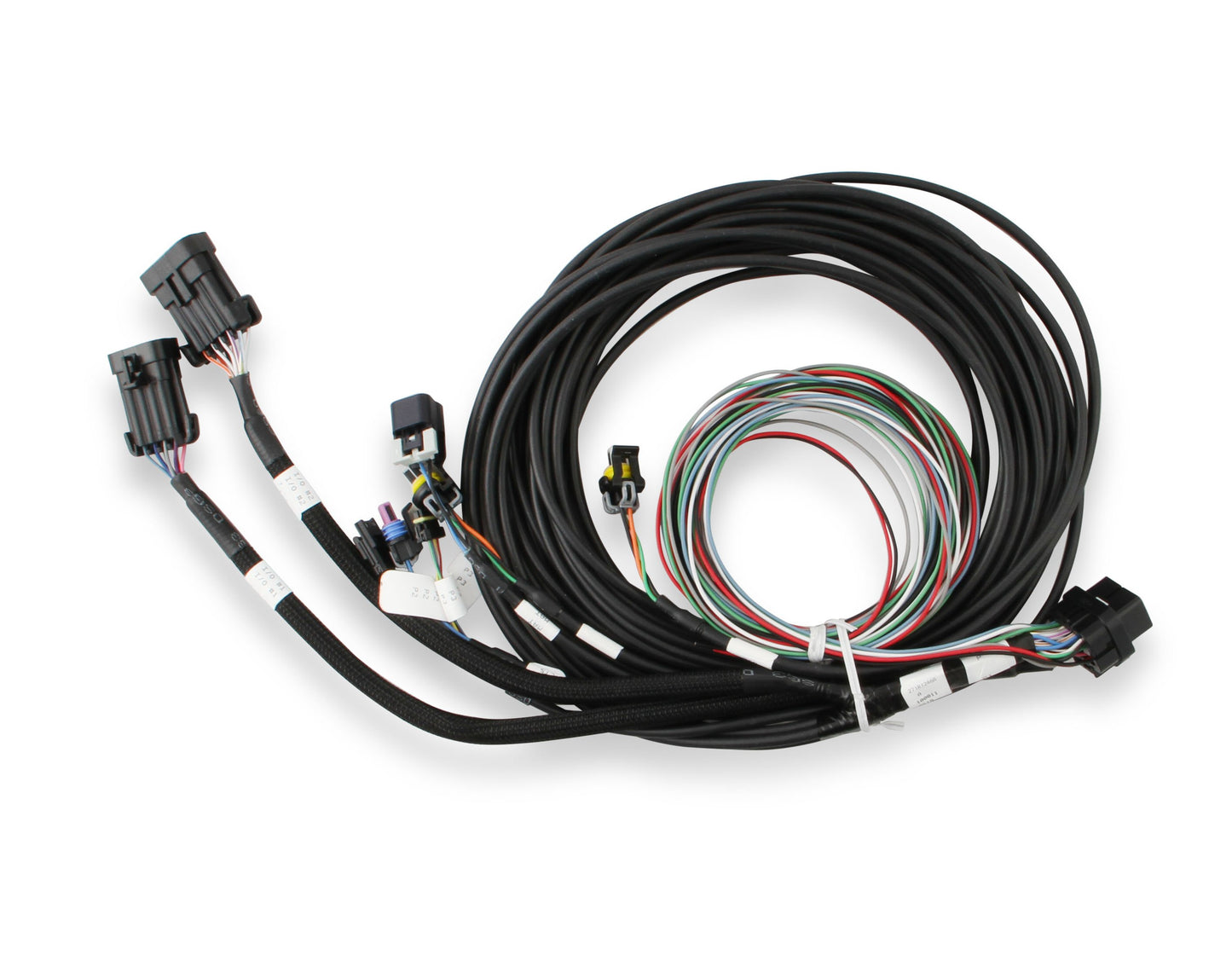

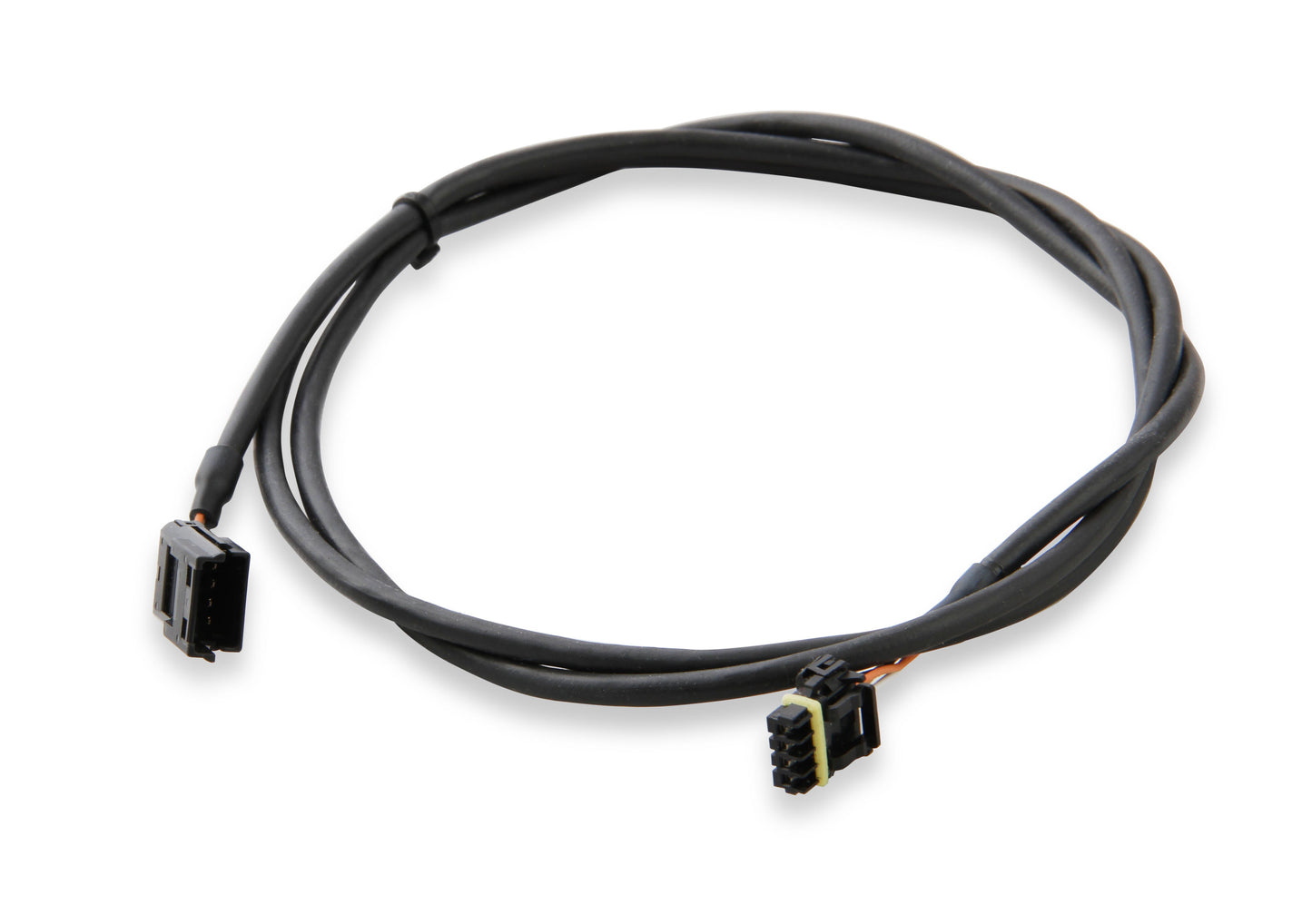

4 Pin Wiring Harness contains Power, Ground and CANbus connections
Holley EFI CANbus connection for expanded capability with Holley EFI systems

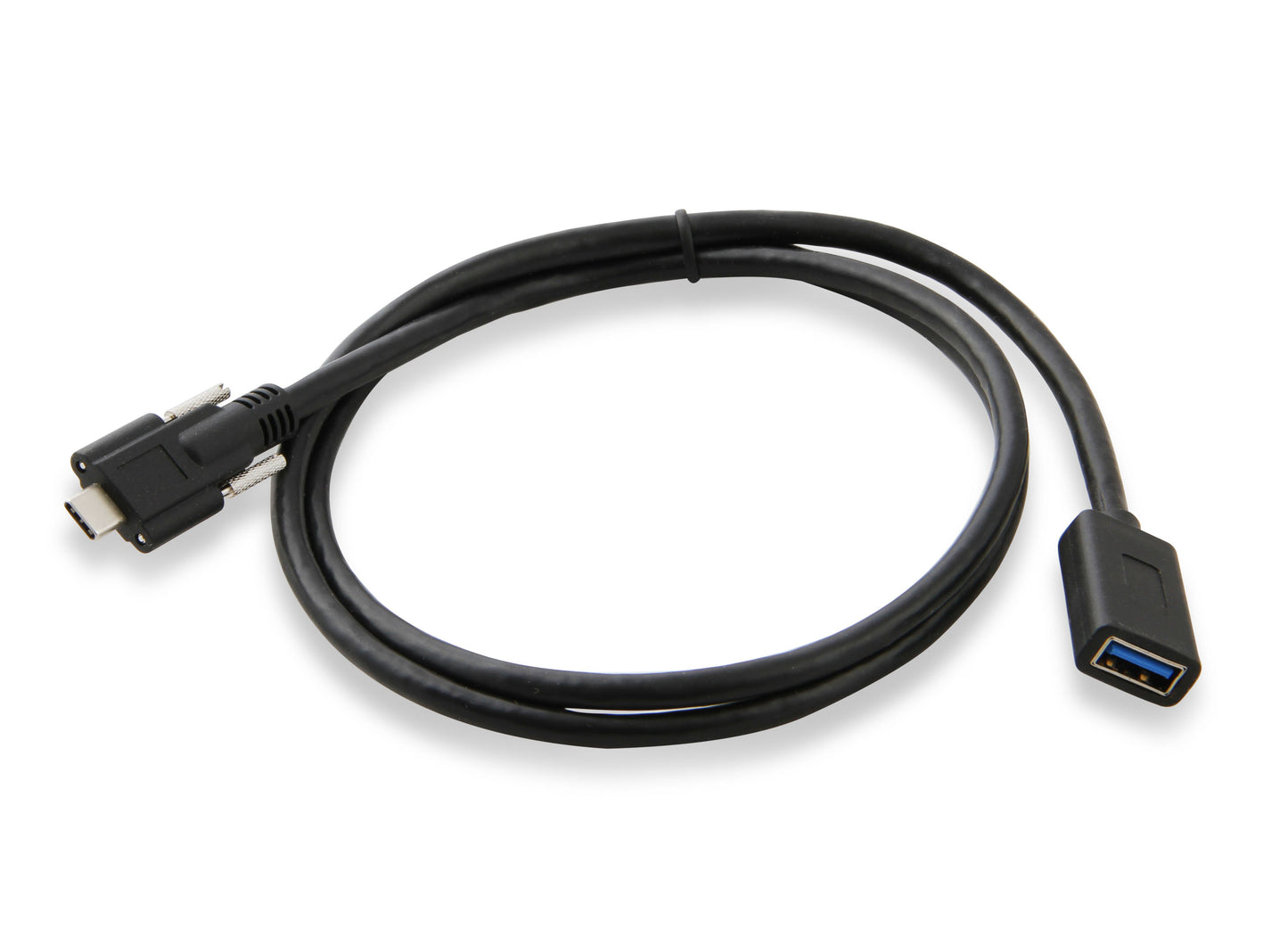

Expandable storage via USB
Integrated Datalogger:
Internal Log Memory ???? 1 GB (expandable up to 32GB with addition of micro-SD card)
External Logging to USB Flash Drive is also available for easy file management
On-screen datalog playback allows you to review vital run information right on the dash
Full analysis via laptop is available. Simply download the file to a USB drive and view with the free datalog viewer at Holley.com

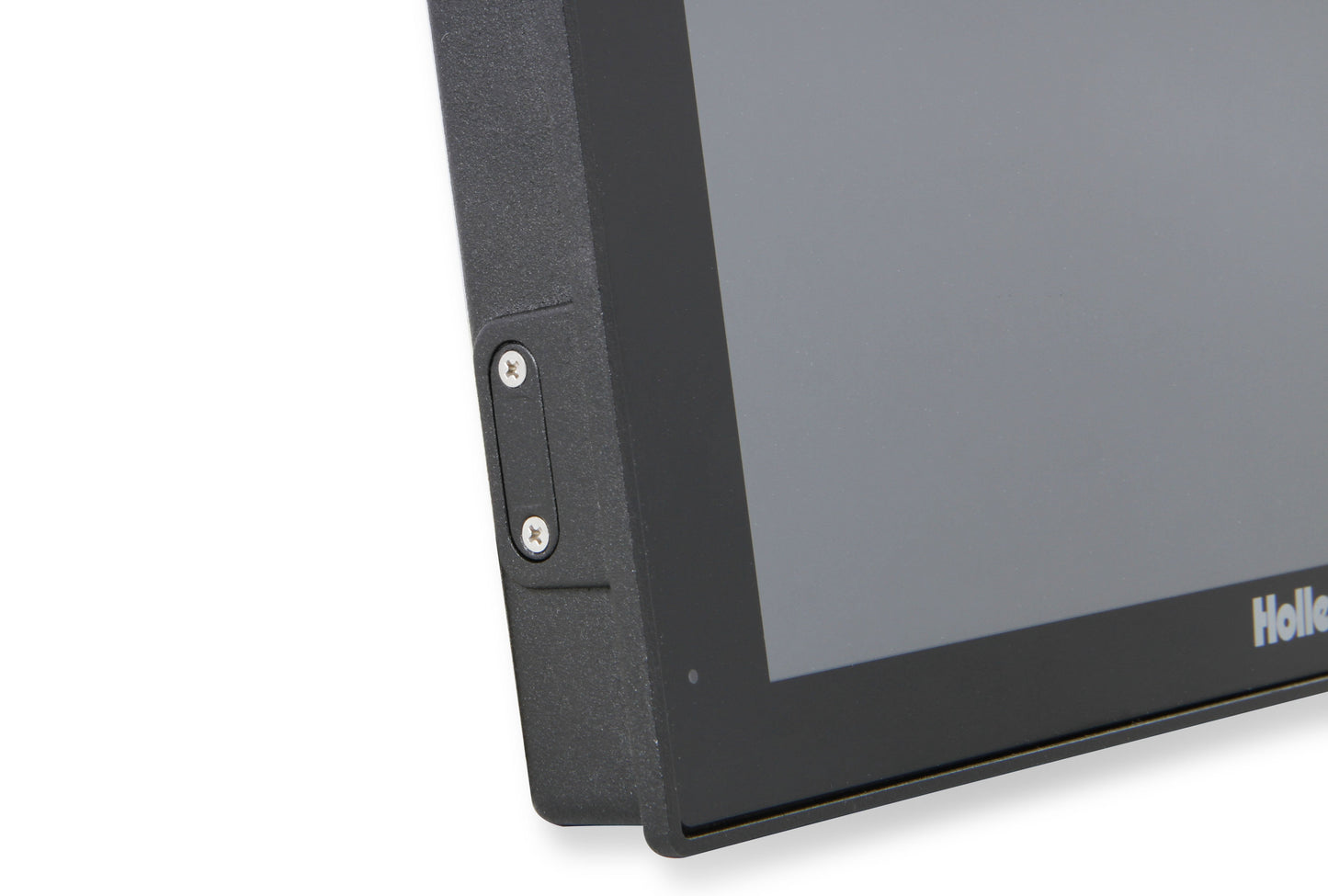

Flexible mounting options: Surface or flush mounting, with high quality hardware included
Simple setup and programming: USB Keyboard and Mouse functionality makes it quick and easy to setup new layouts
Fully Upgradeable:
Upgradable with future software enhancements
Can easily be converted for use with Holley EFI to monitor up to 238 real-time values such as RPM/TPS/Boost
Compatible with Holley EFI Plug and Play Programmable Shift Light - Part Number 553-107
What??????s Included:

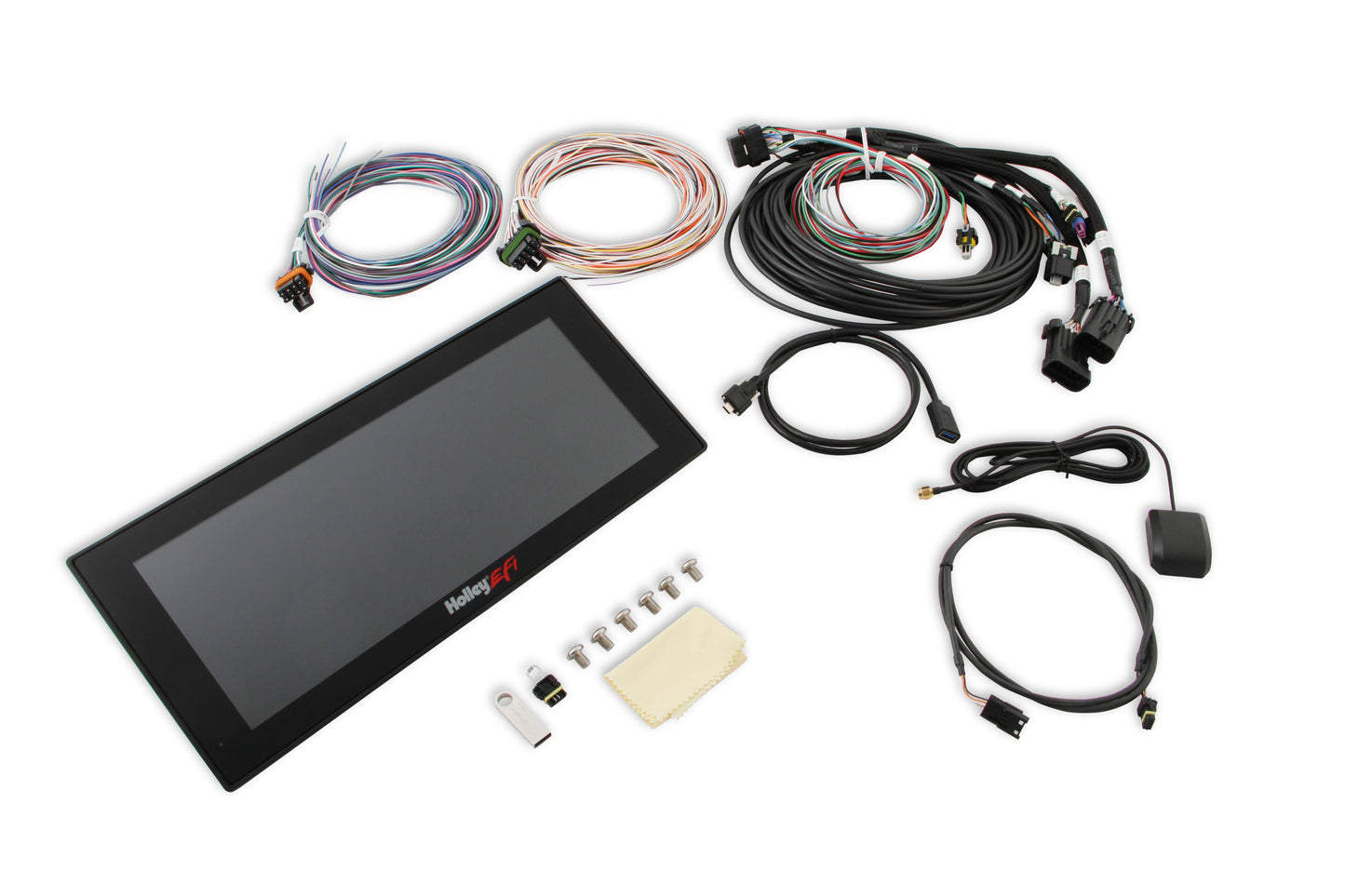

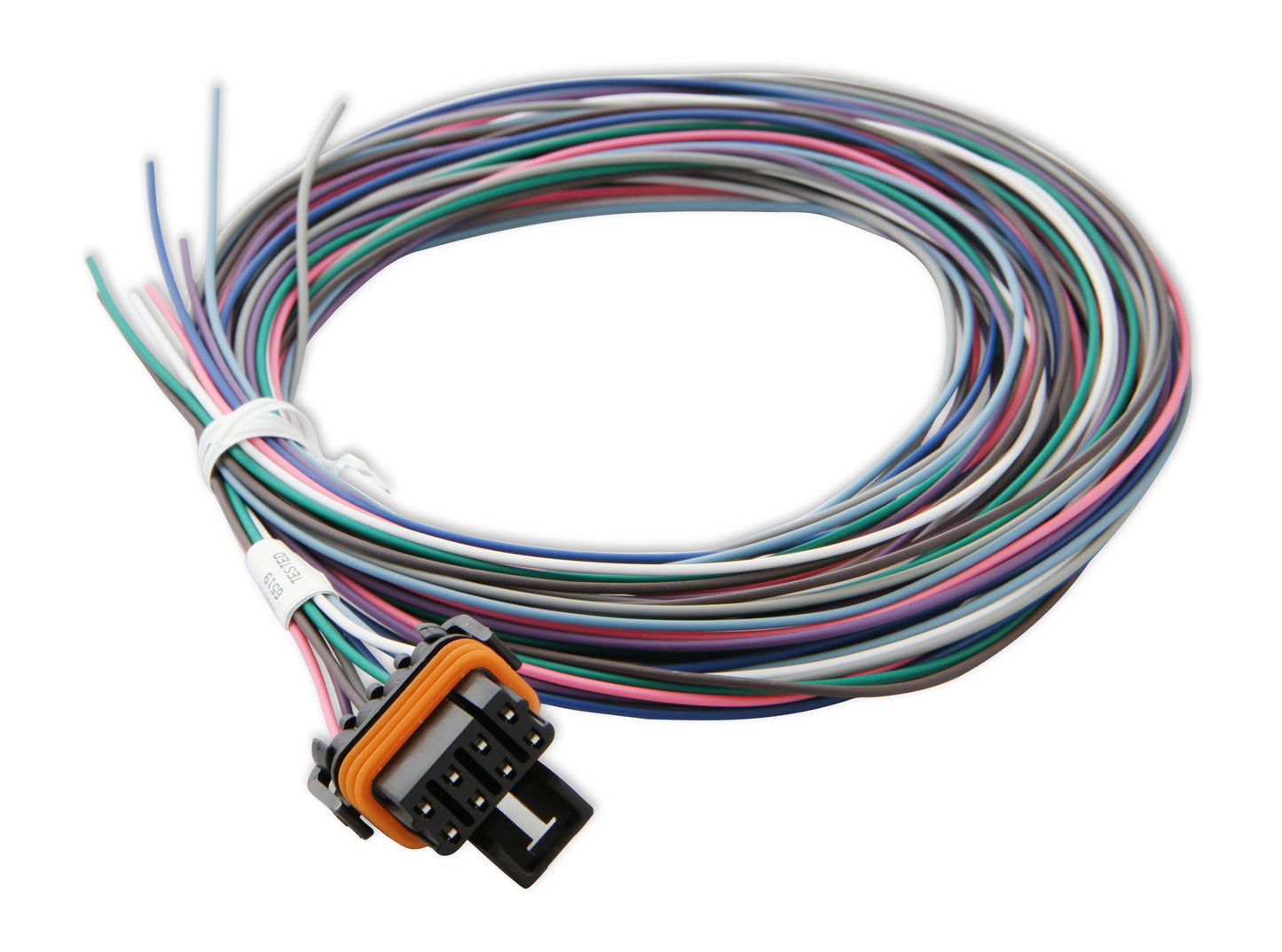

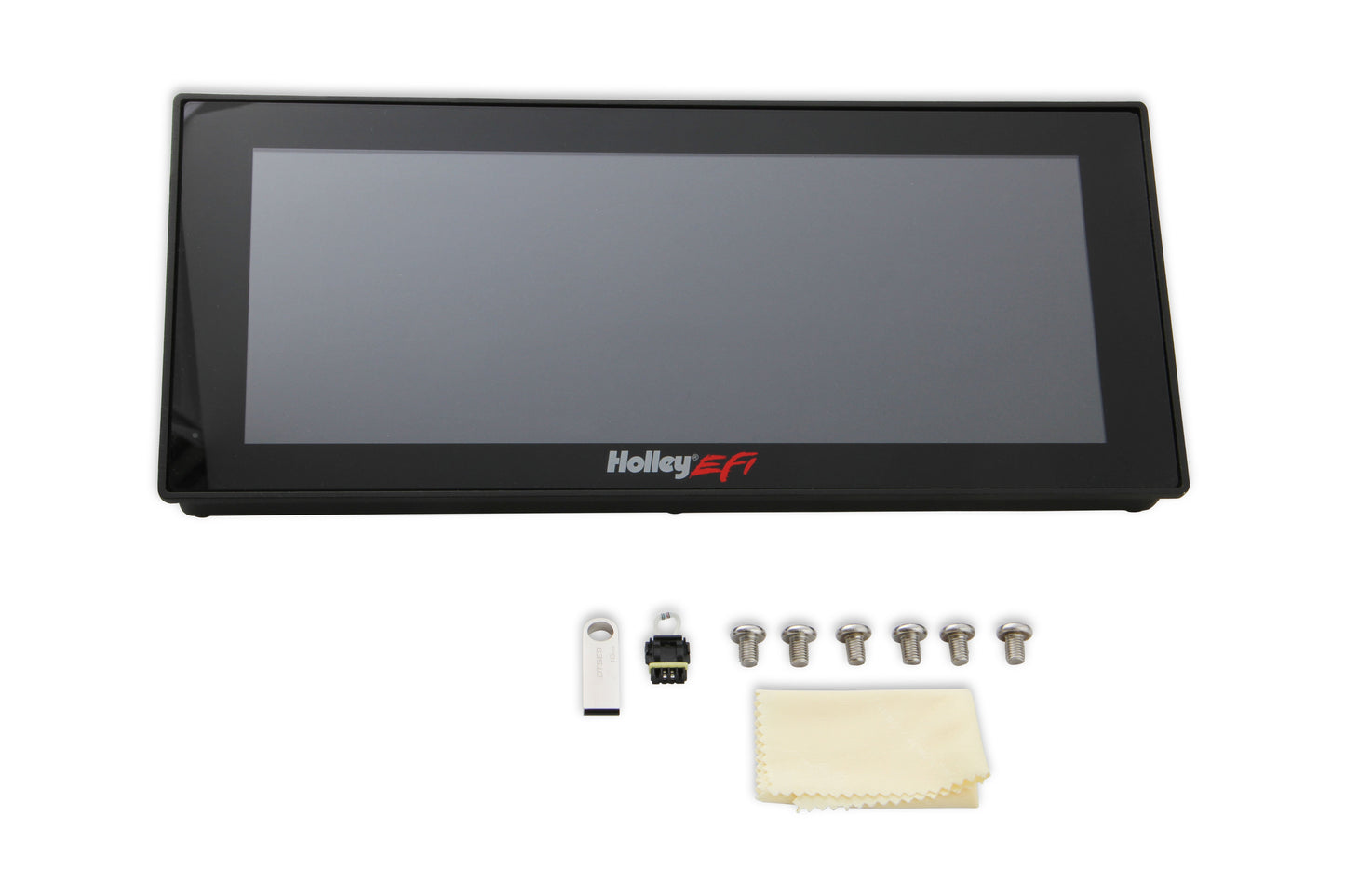

Both dash versions include harness / cables, mounting hardware, USB memory stick and CAN terminator
