Hi-Ram Sheet Metal Fabricated Intake Manifold LS1/LS2/LS6 102mm Throttle Body opening + Fuel Rail Kit Black with Sniper logo
Hi-Ram Sheet Metal Fabricated Intake Manifold LS1/LS2/LS6 102mm Throttle Body opening + Fuel Rail Kit Black with Sniper logo
SKU:820042-1
24 in stock
- Ships from Kentucky or Utah
- Add $300+ for $10 off of your order!
- Add $500+ for $20 off of your order!
Shipping Estimate
Shipping Estimate
Tracking: 1-2 days
Average Shipping: 2-3 days once tracking is available
Regular price
$624.95 USD
Regular price
$780.95 USD
Sale price
$624.95 USD
Unit price
/
per
Sniper EFI Sheet Metal Fabricated Intake Manifold
Replacement Rotor for Holley Sniper Hyperspark Distributors
Overview
Holley Sniper HyperSpark Distributor Service Rotor, This rotor is designed to work with the 565-300 series HyperSpark Distributors. Rotors are injection molded from Rynite material for incredible strength and high dielectric properties.
Features:
Details:
Links
Instruction Sheet
Instruction Sheet
View full details
Replacement Rotor for Holley Sniper Hyperspark Distributors
Overview
Holley Sniper HyperSpark Distributor Service Rotor, This rotor is designed to work with the 565-300 series HyperSpark Distributors. Rotors are injection molded from Rynite material for incredible strength and high dielectric properties.
Features:
- Black Finish creates stealthy under-hood styling
- 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability

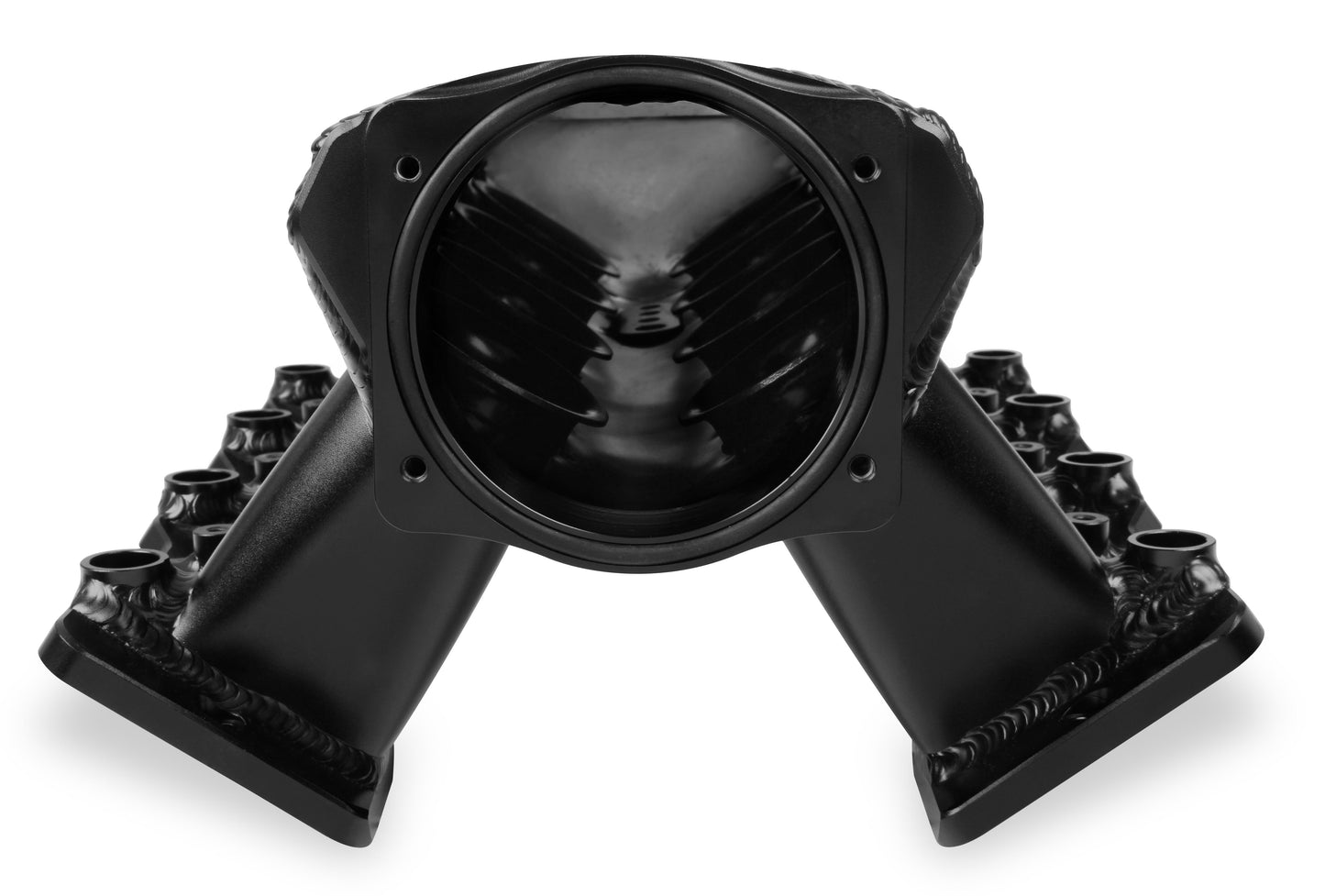

- 102mm throttle bore opening for increased air flow

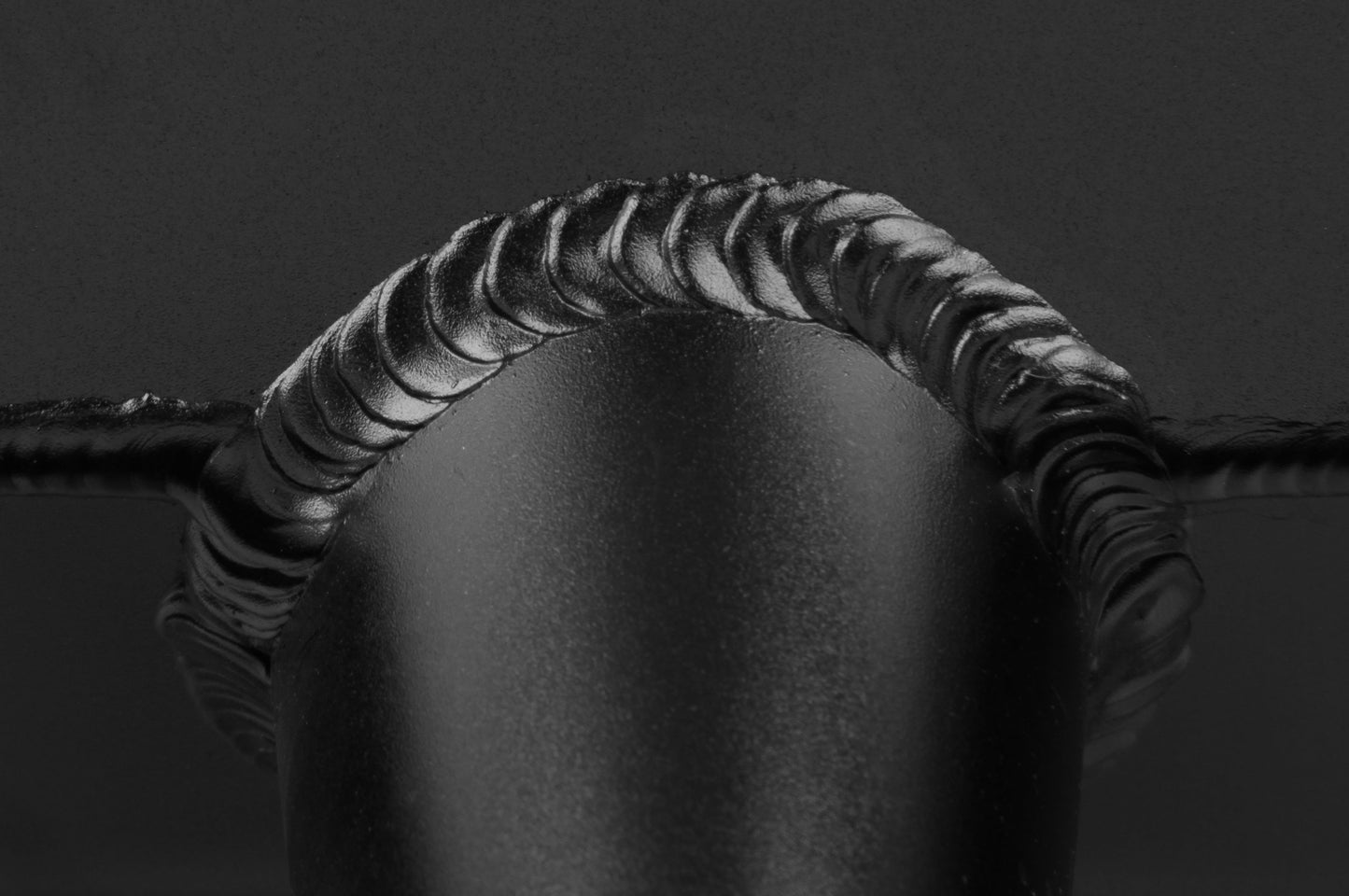

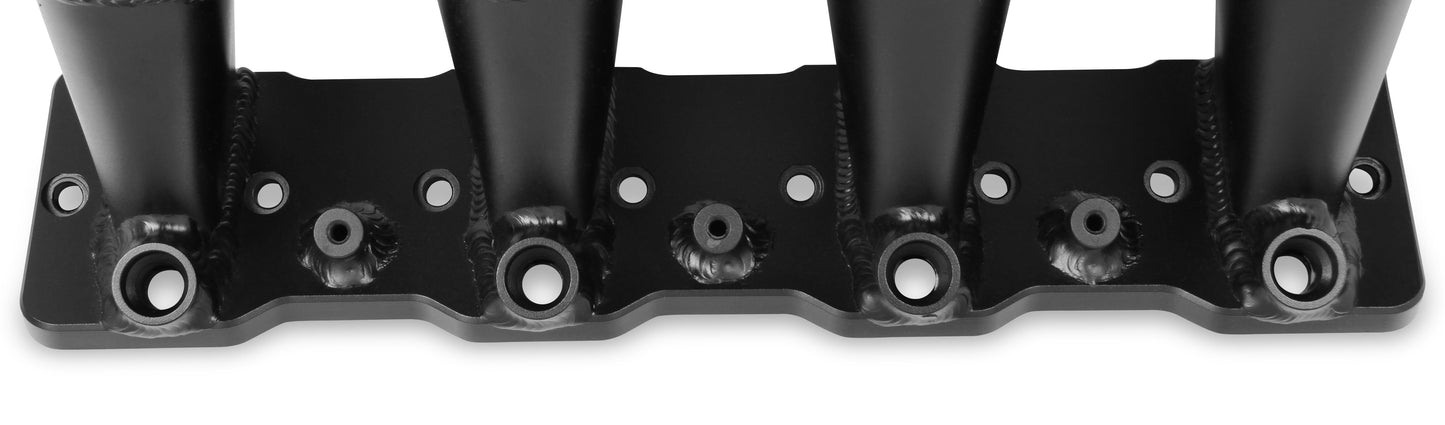

- 100% TIG welded for strength and durability

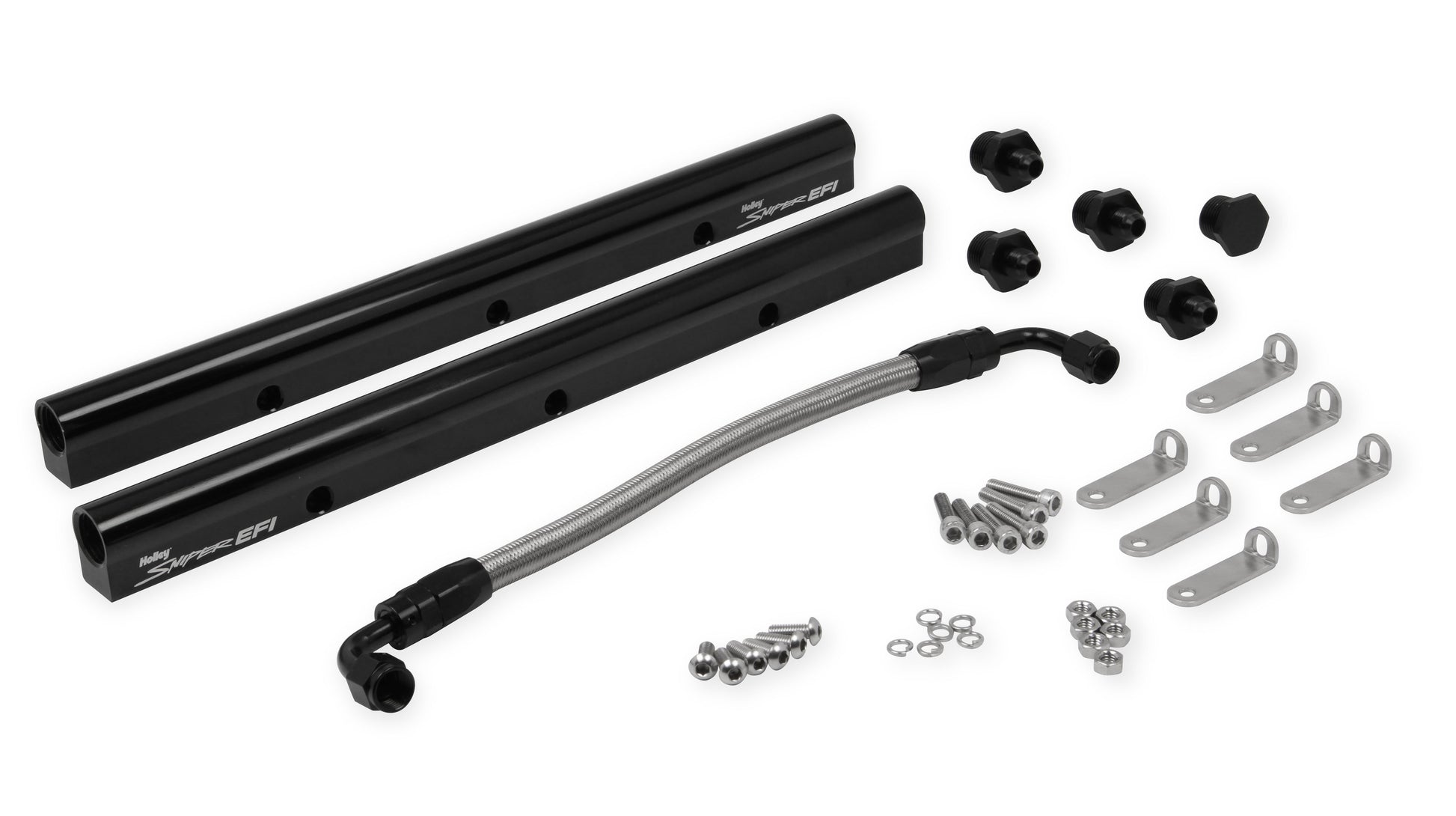

- Includes 3/8" Fuel rail kits (Sniper logo laser engraved)

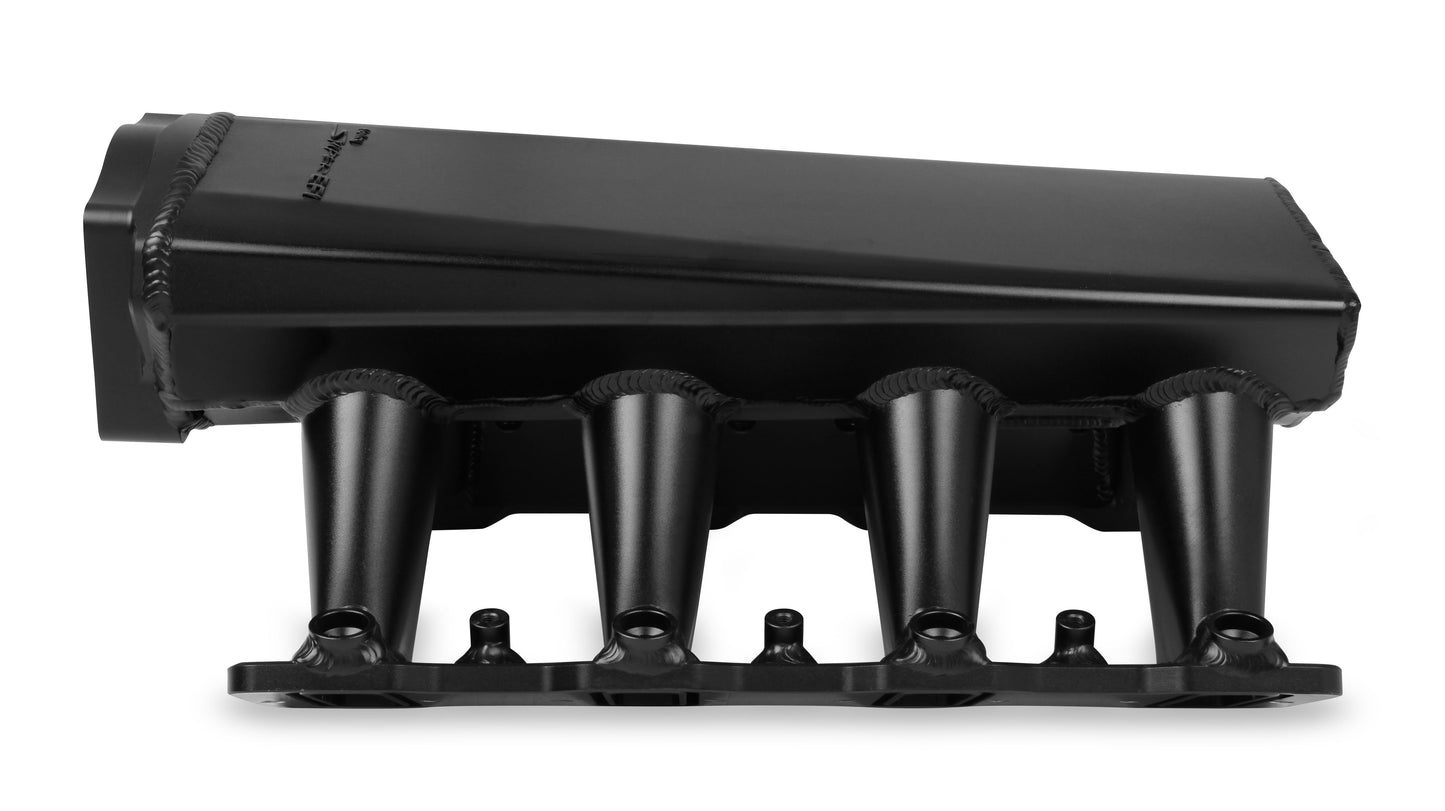

- Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
- Product includes all gaskets and hardware for a hassle-free installation
- The Sniper intake will only accept EV1 style injectors.
Details:
- Color: Black
- Engine: GM Small Block Gen III/IV (LS Based)
- Finish: Black
- Front Height: 8.267 inch
- Fuel System Type: EFI
- Injector Style Provision: EV1
- Manifold Type: Fabricated
- Rear Height: 7.559 inch
- RPM Power Band: 2200-6800 RPM
- Runner Length: 4.921" (125mm)
- Throttle Bore: 102mm

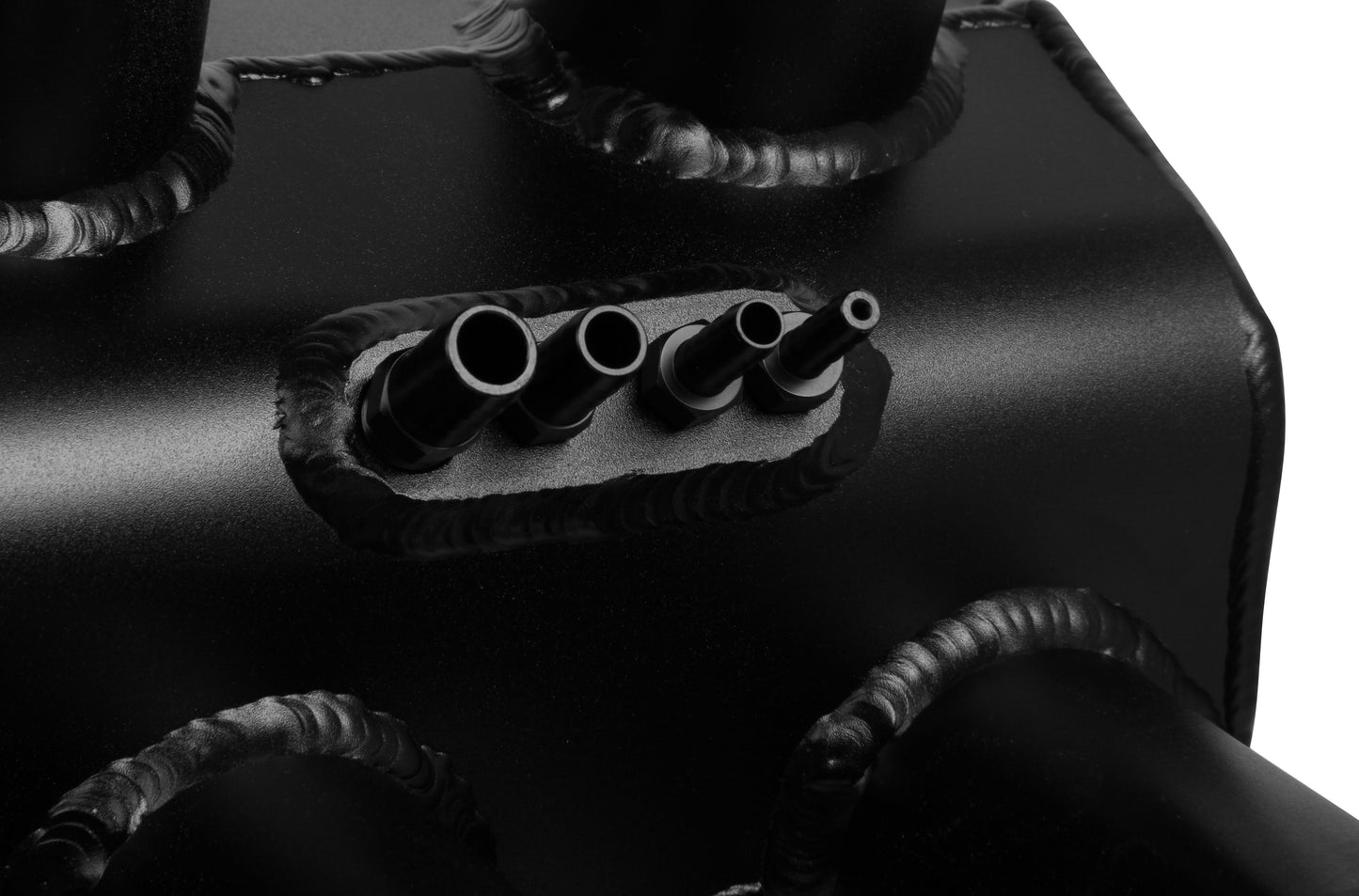

- Vacuum Ports: (3) 1/8"-28BSPT & (1) 1/4"-19BSPT
- Warranty: Limited 90 Day
