Gen V Coil Body, Remote Relocation System - Black Finish

Holley EFI Igntion Coil Remote Relocation Bracket, Black Finish, Pair

Gen III (Truck) Coil Body, Remote Relocation System - Black Finish

Overview

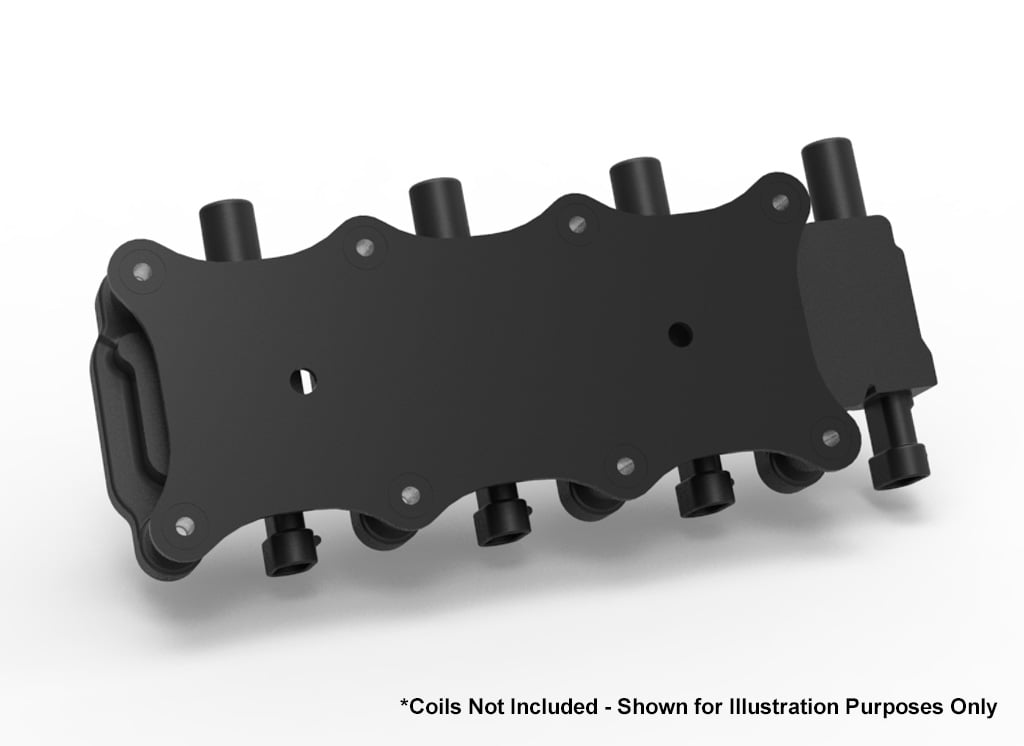

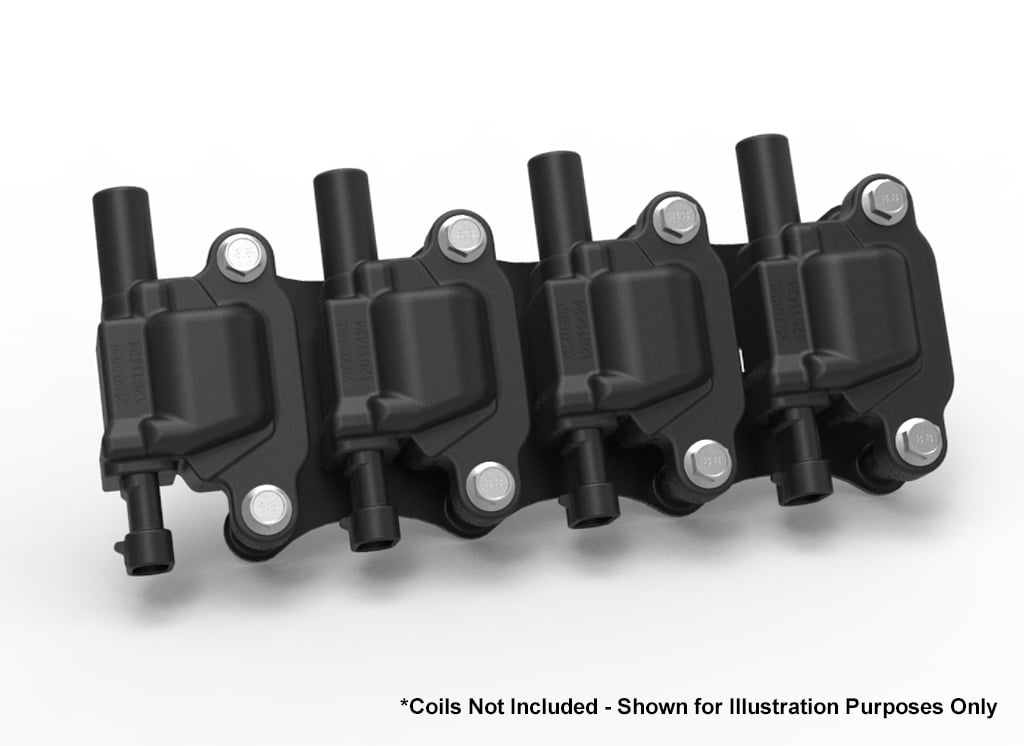

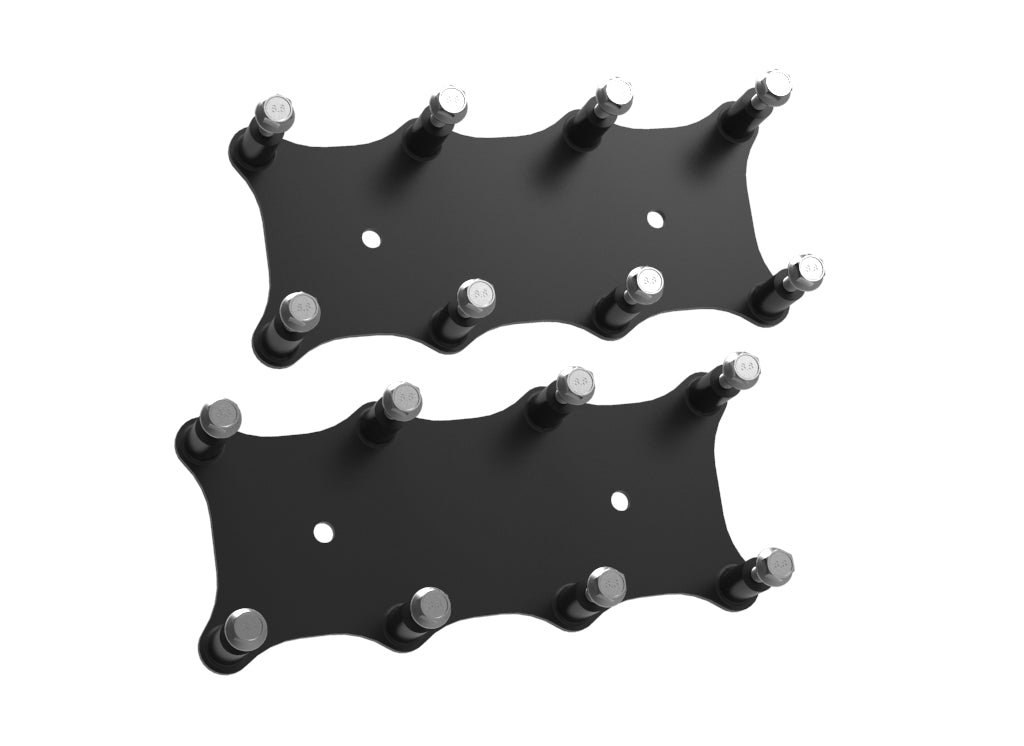

Holley is pleased to announce the arrival of our remote coil relocation brackets for all existing LS coil models, as well as for Holley EFI SmartCoils. These brackets are fabricated from lightweight aluminum and allow users to discreetly remote mount their LS engine coils at a location of their choice. Each kit was custom designed based on the specific coil model to ensure that the coils will mount as compactly as possible ????????" size and shape between each kit will vary depending on the coil being used. Each kit includes two coil dependent mounting brackets (available in both natural aluminum and black) and mounting hardware for each coil.

Vehicle Applications: - 99-06 Chevy, Cadillac, GMC Trucks w/ 4.8L, 5.3L, 6.0L, 8.1L Engines - 03-06 Hummer H2 w/ 6.0L Engines VIN Designation: Z, N, G, E, U, V, T
Coil Reference Numbers: GM: 12563293 AC Delco: D581 MSD: 8264 / 82648

Features:

• Eliminates OE Coil-on-Cover clutter
• Designed to custom fit all LS Ignition coil models
• Fabricated from lightweight aluminum
• Includes coil mounting hardware
• Sold as a pair ???? Coils not included
• Available in Black & Natural

Details:

• Coil Spacing: 0.904" / 22.95mm

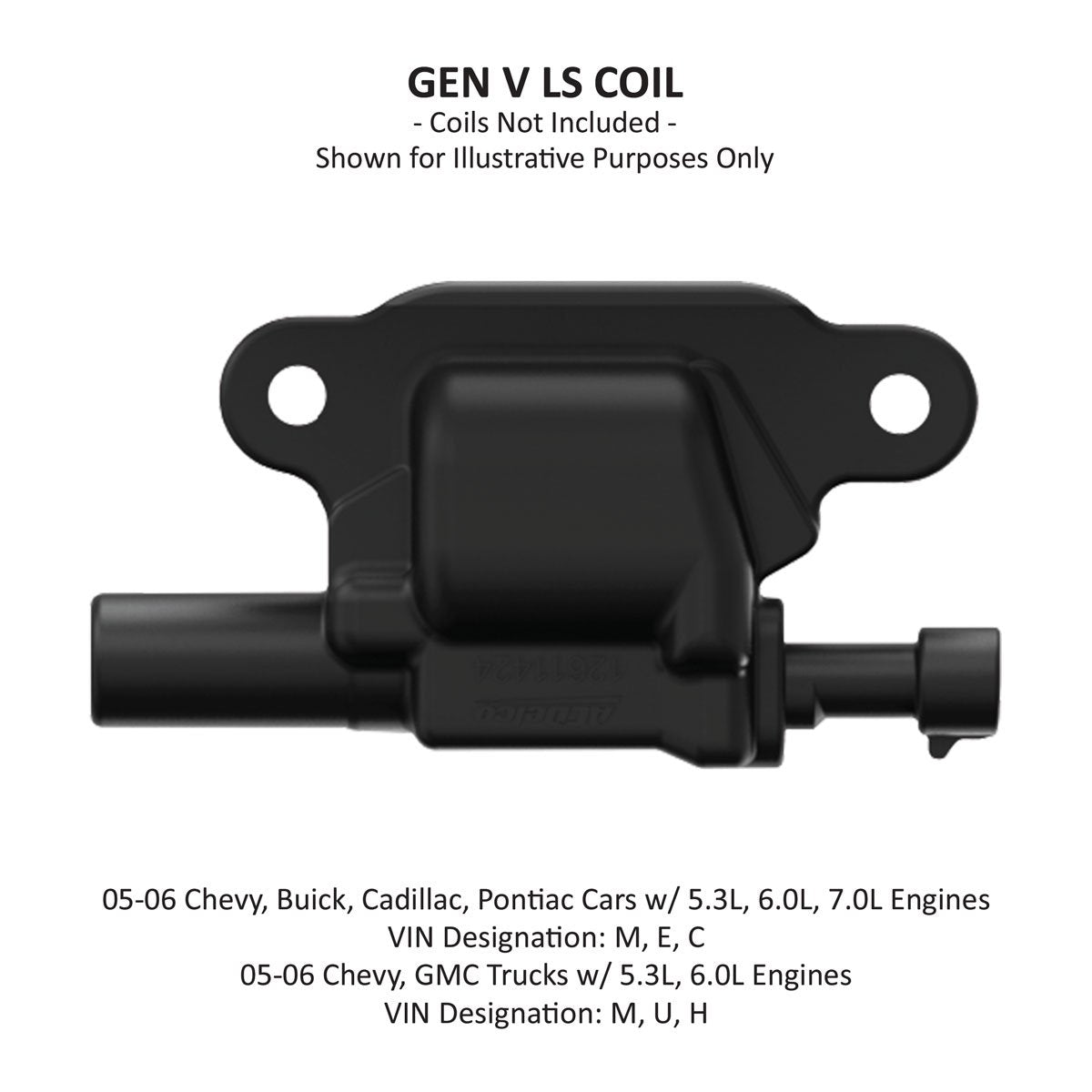

• Coil Type: Gen V LS Coil / D510C
• Dimension A: With Coils: 9.8" L x 4.3" W x 2.0" H
• Dimension B: Bracket Only: 8.25" L x 3.6" W x 1" H
• Finish: Black
• Hardware Included: Yes
• Material: Aluminum
• Thread Size: M6 x 1.0 x 25mm
