Holley

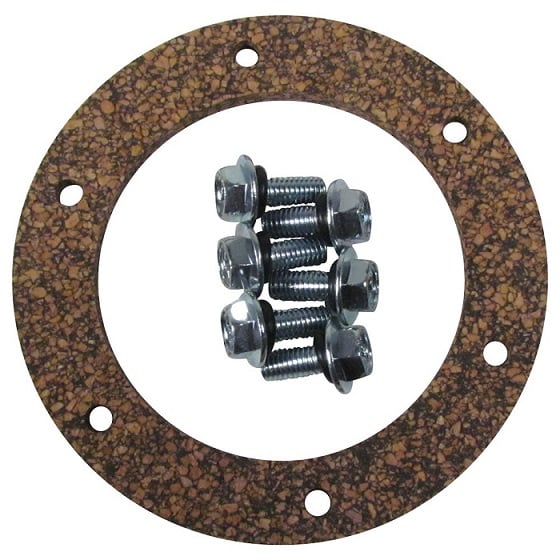

Fuel Pump Hanger Cork/Rubber Gasket and Screw Kit
Fuel Pump Hanger Cork/Rubber Gasket and Screw Kit
SKU:19-169
Low stock: 10 left
- Ships from Kentucky or Utah
- Add $300+ for $10 off of your order!
- Add $500+ for $20 off of your order!
Shipping Estimate
Shipping Estimate
Tracking: 1-2 days
Average Shipping: 2-3 days once tracking is available
Regular price
$39.26 USD
Regular price
$14.91 USD
Sale price
$39.26 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Fuel Pump Hanger Cork/Rubber Gasket and Screw Kit
Replacement 400 LPH FUEL PUMP AND HANGER ASSEMBLY
Overview
400 LPH Electric Fuel Pump Assembly for Sniper EFI Fuel Tanks. Oven brazed fittings can withstand 100 psi. Genuine Walbro Fuel Pump included. 1/4" NPT Supply and Return line. For a better seal use Permatex Indian Head Gasket Shellac Compound or Aviation Form-A-Gasket sealant on the gasket and screws.
New Mounting Screws and gasket available separately. *19-170 kit is a thicker gasket and longer screws for use on the GM A Body (Chevelle, GTO, etc....) fuel tanks since they are shallower at the point where the fuel pump is mounted. *19-169 kit for all other EFI fuel tanks Connect your in-tank wire harness to the fuel pump, making sure that the connections are secure. Route the wires through the pass through fitting being sure to leave a little slack to prevent strain or chaffing, Use a 9mm wrench to tighten the upper jam nut on the wire pass through in 1/4 turn increments until the wire no longer moves up and down. BE CAREFULL NOT TO OVERTIGHTEN DOING SO COULD BREAK THE FITTING OR CAUSE A LEAK.
Details:
View full details
Replacement 400 LPH FUEL PUMP AND HANGER ASSEMBLY
Overview
400 LPH Electric Fuel Pump Assembly for Sniper EFI Fuel Tanks. Oven brazed fittings can withstand 100 psi. Genuine Walbro Fuel Pump included. 1/4" NPT Supply and Return line. For a better seal use Permatex Indian Head Gasket Shellac Compound or Aviation Form-A-Gasket sealant on the gasket and screws.
New Mounting Screws and gasket available separately. *19-170 kit is a thicker gasket and longer screws for use on the GM A Body (Chevelle, GTO, etc....) fuel tanks since they are shallower at the point where the fuel pump is mounted. *19-169 kit for all other EFI fuel tanks Connect your in-tank wire harness to the fuel pump, making sure that the connections are secure. Route the wires through the pass through fitting being sure to leave a little slack to prevent strain or chaffing, Use a 9mm wrench to tighten the upper jam nut on the wire pass through in 1/4 turn increments until the wire no longer moves up and down. BE CAREFULL NOT TO OVERTIGHTEN DOING SO COULD BREAK THE FITTING OR CAUSE A LEAK.
Details:
- Color: Black
- Finish: Black
- Fuel System Type: Gasoline
- Material: Cork / Rubber
- Warranty: Limited 90 Day
