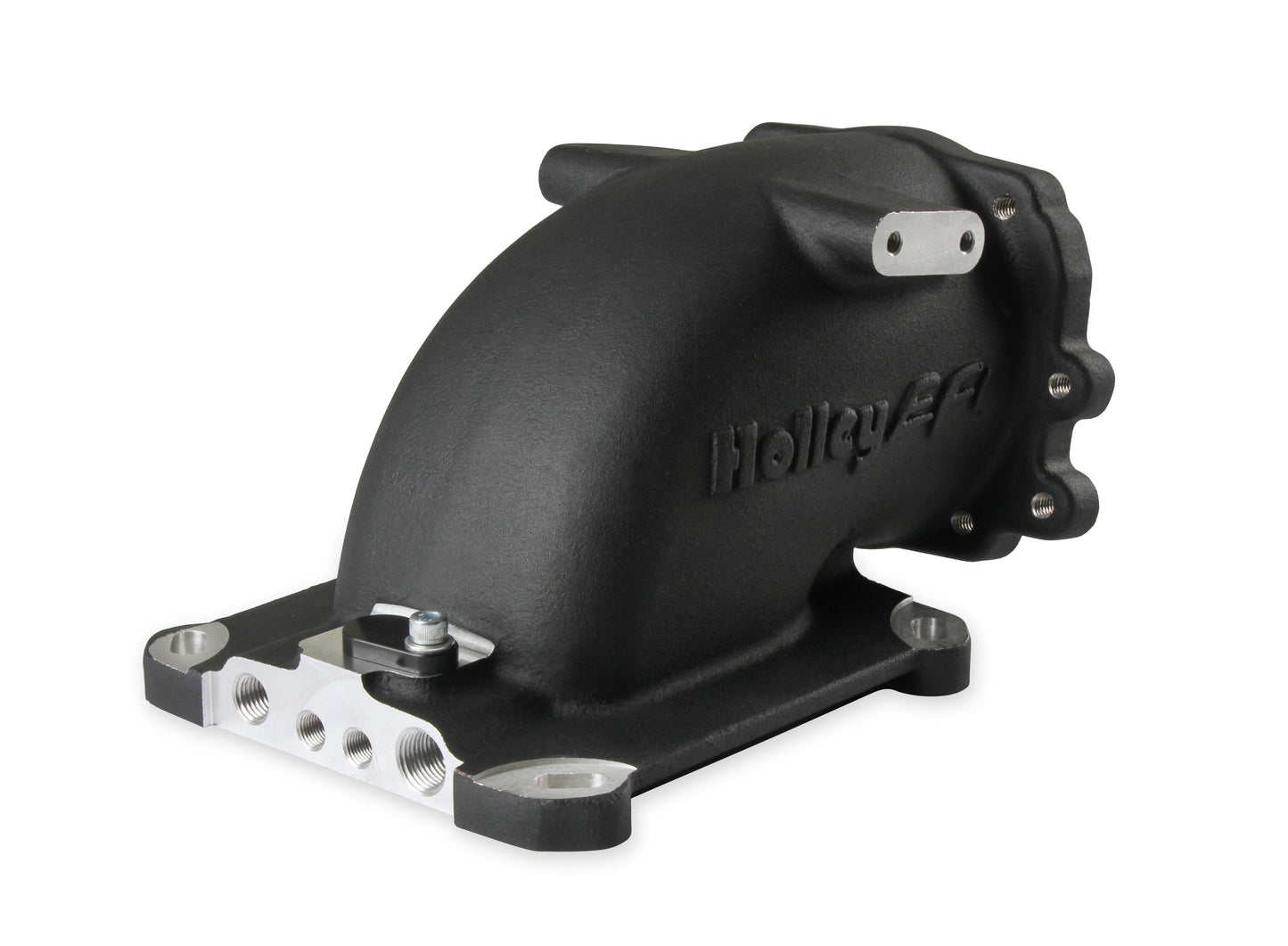

EFI Throttle Body Intake Elbow 4150 - Fits Ford Throttle Bodies

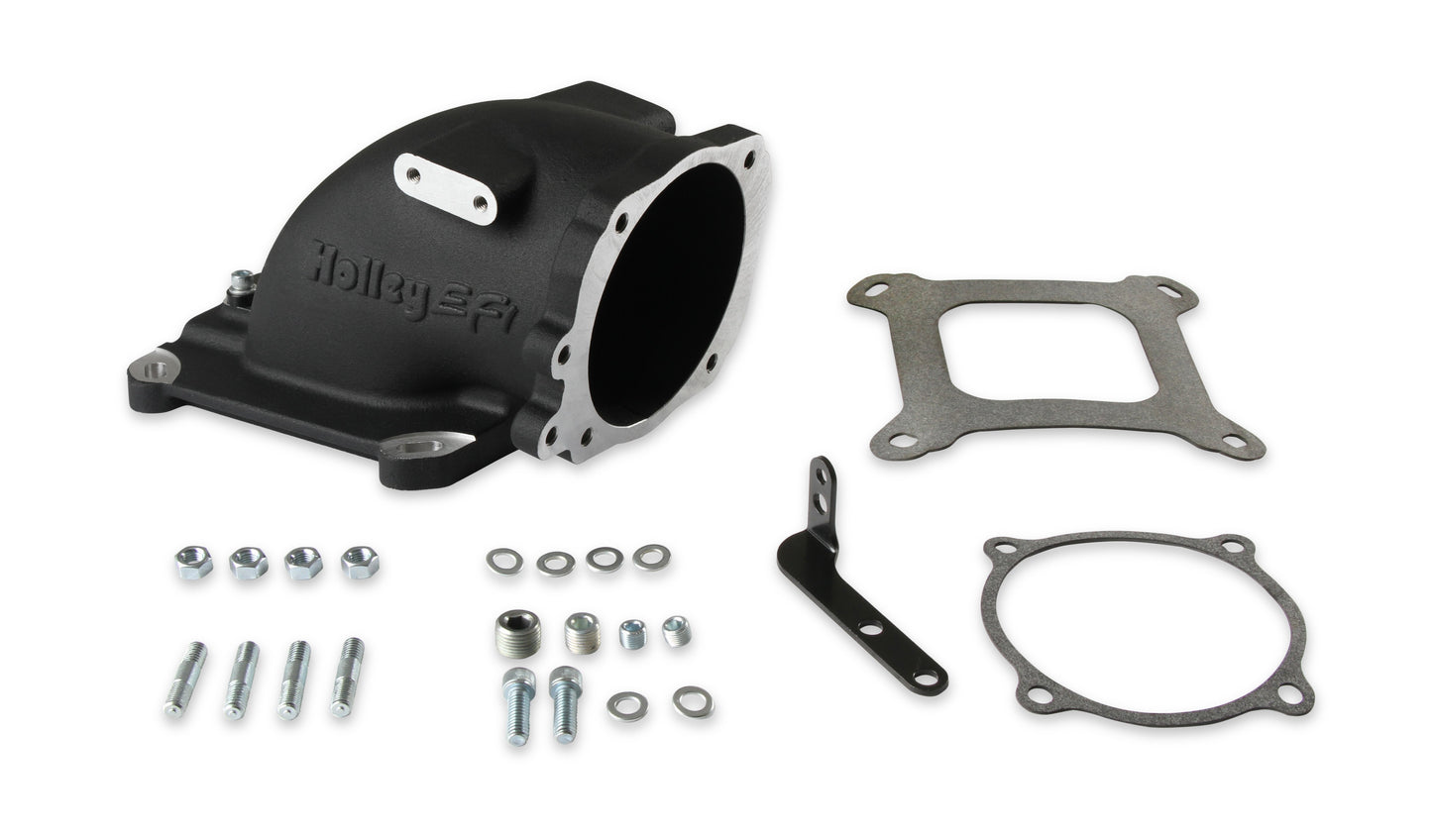

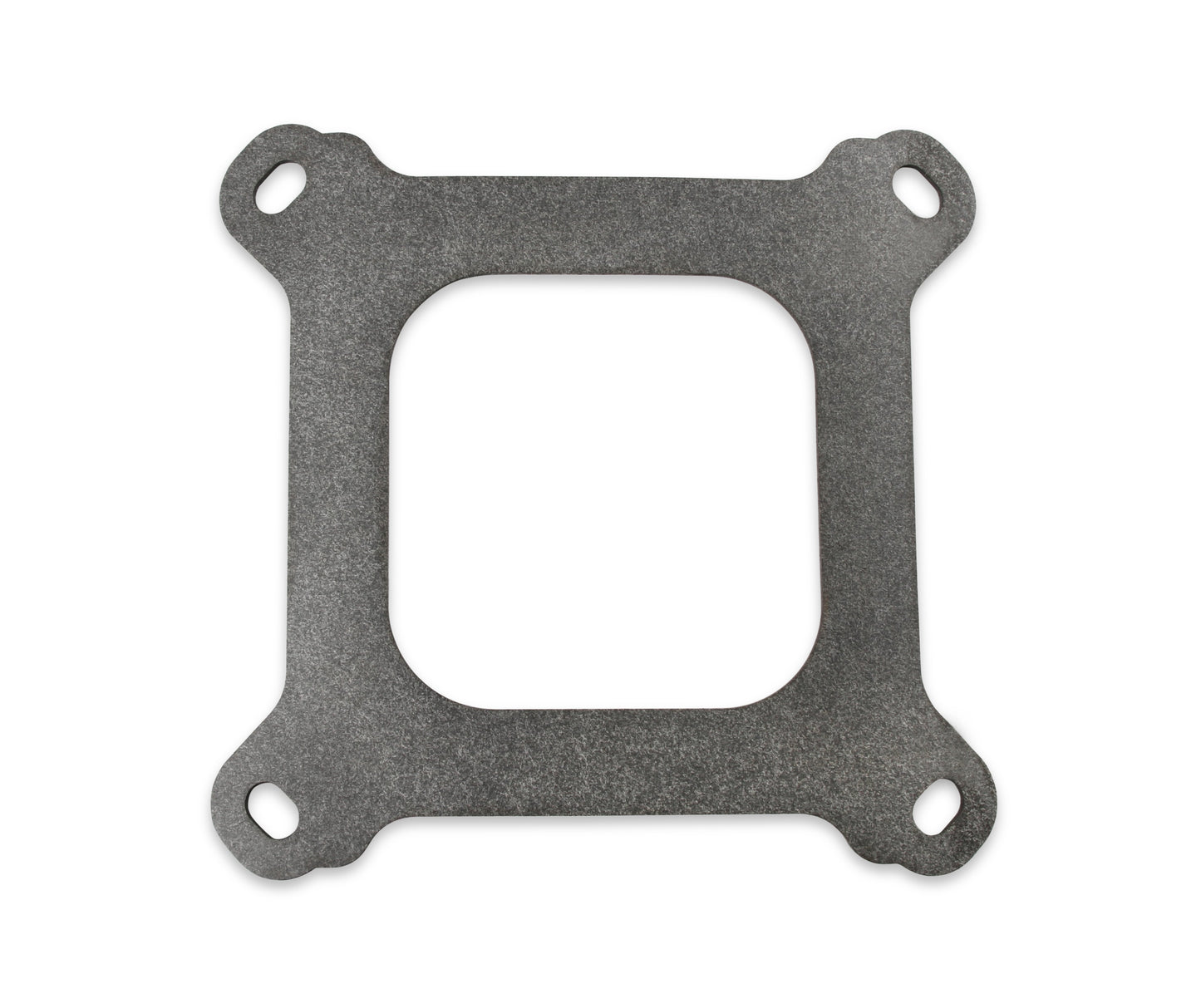

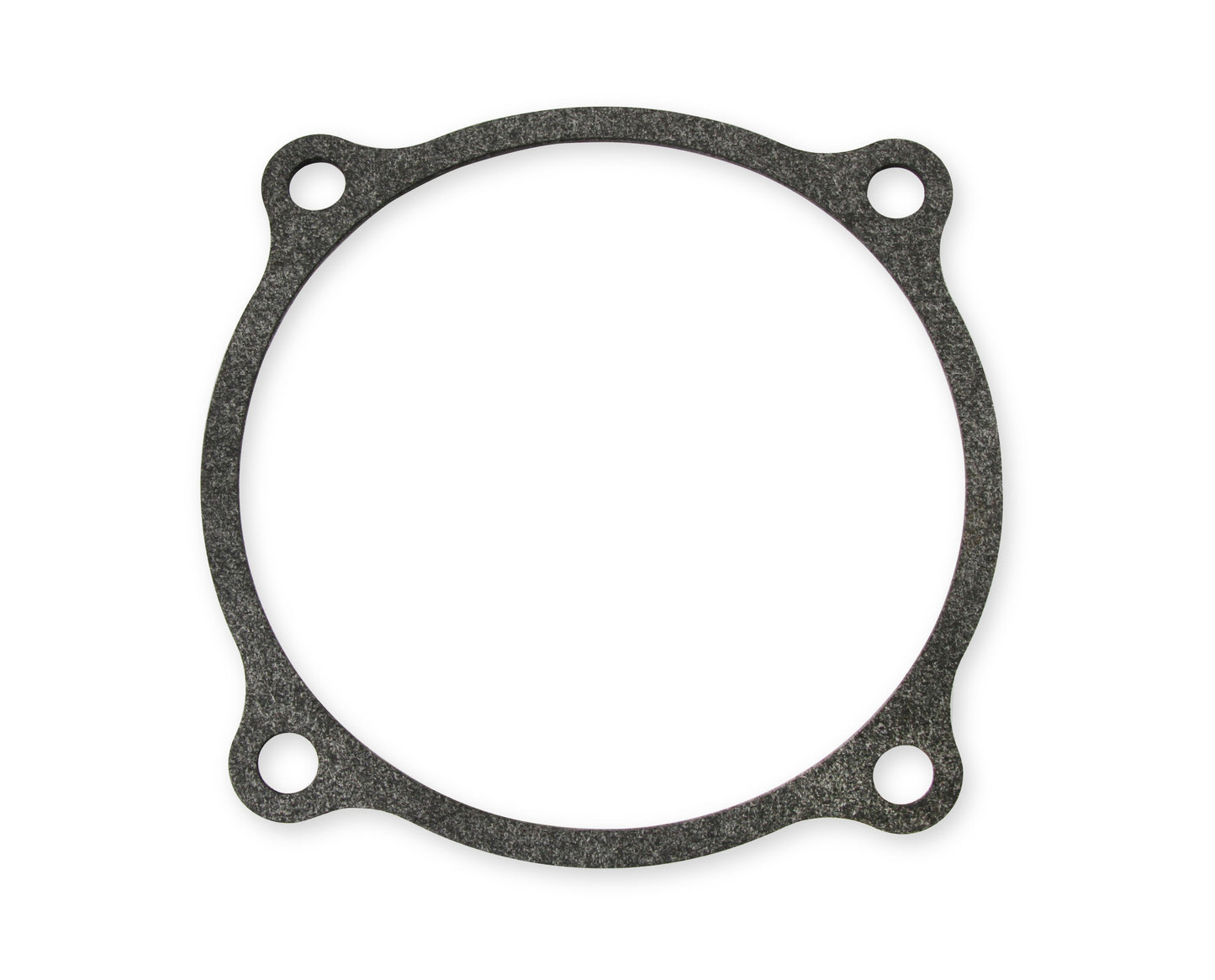

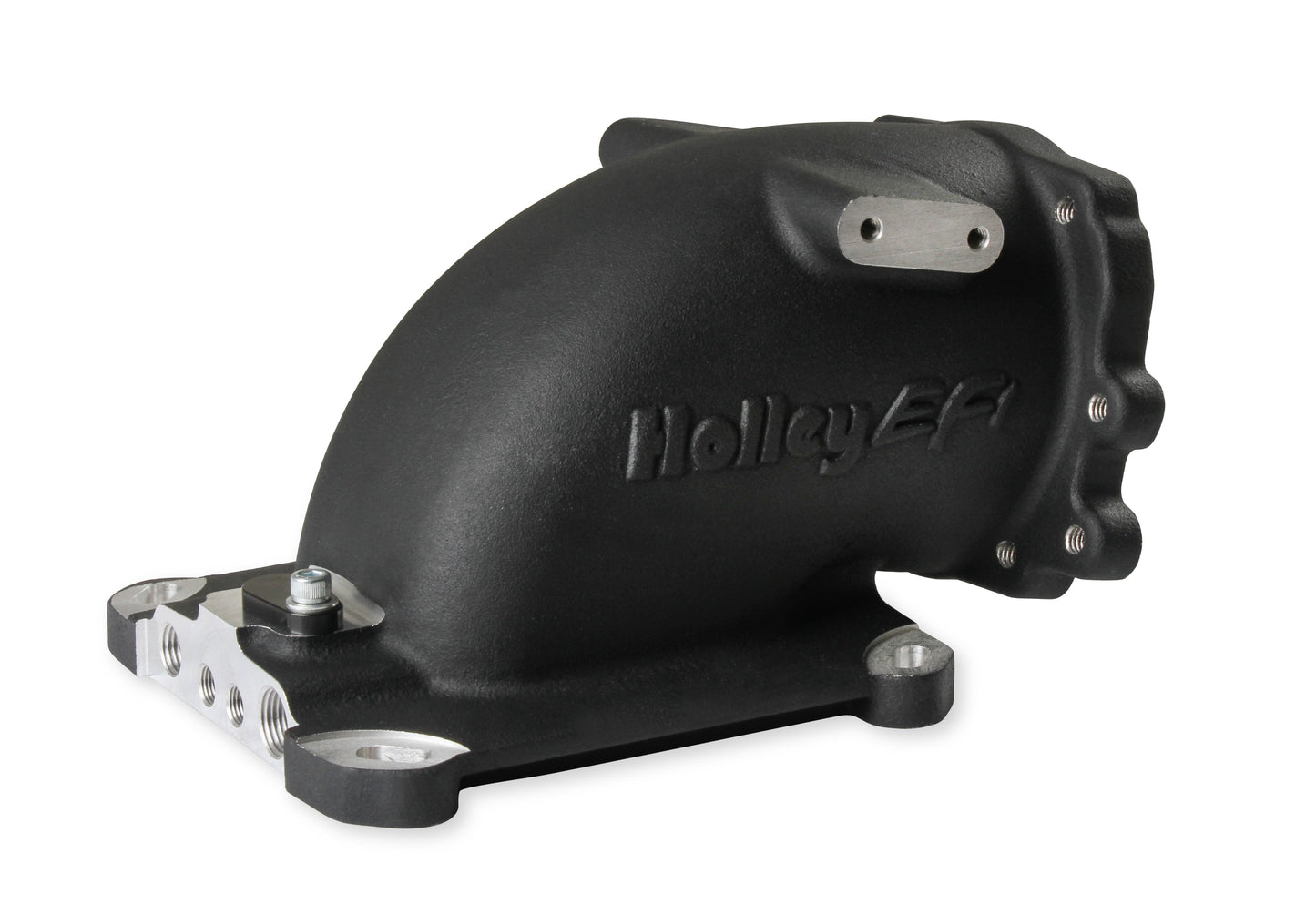

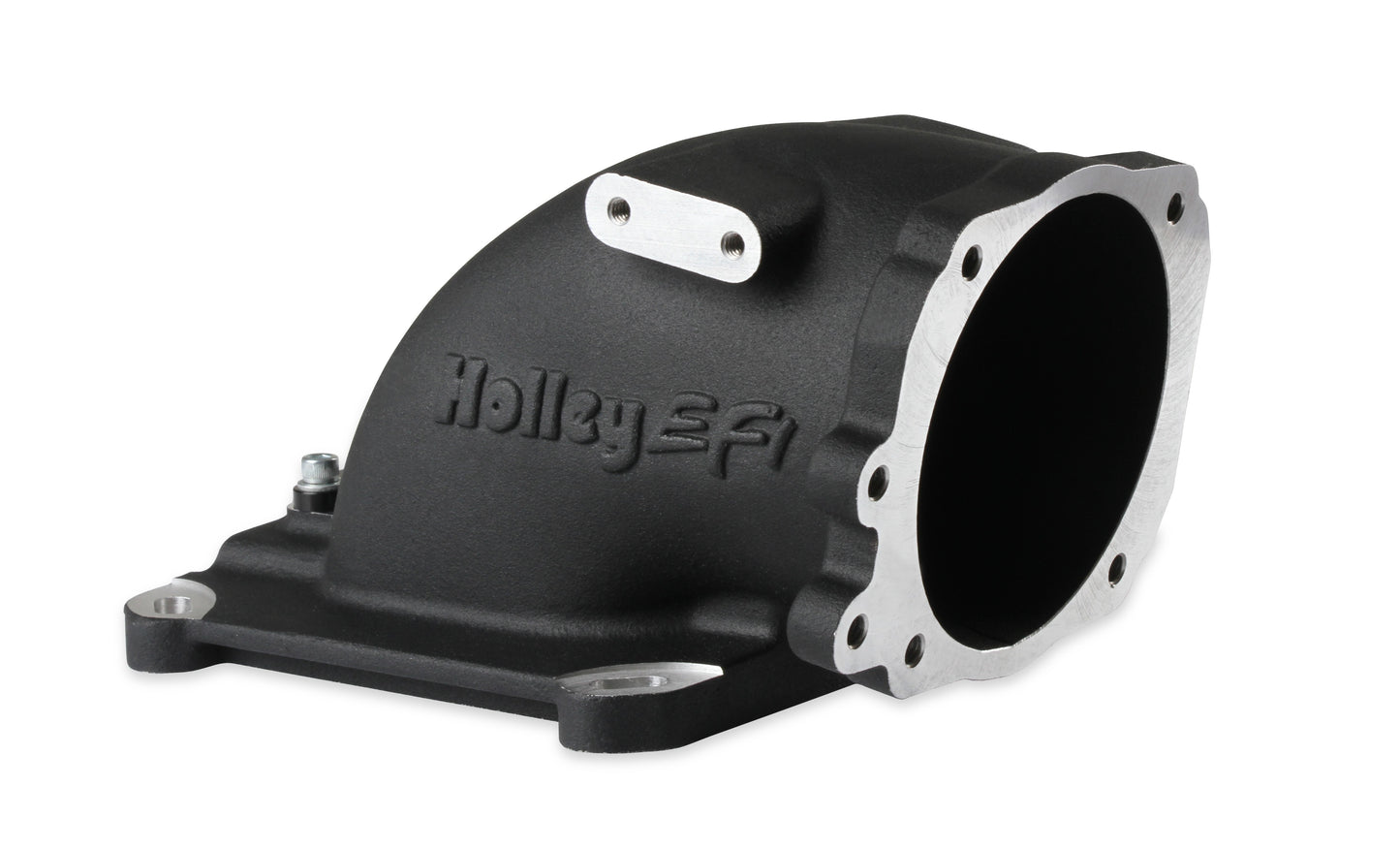

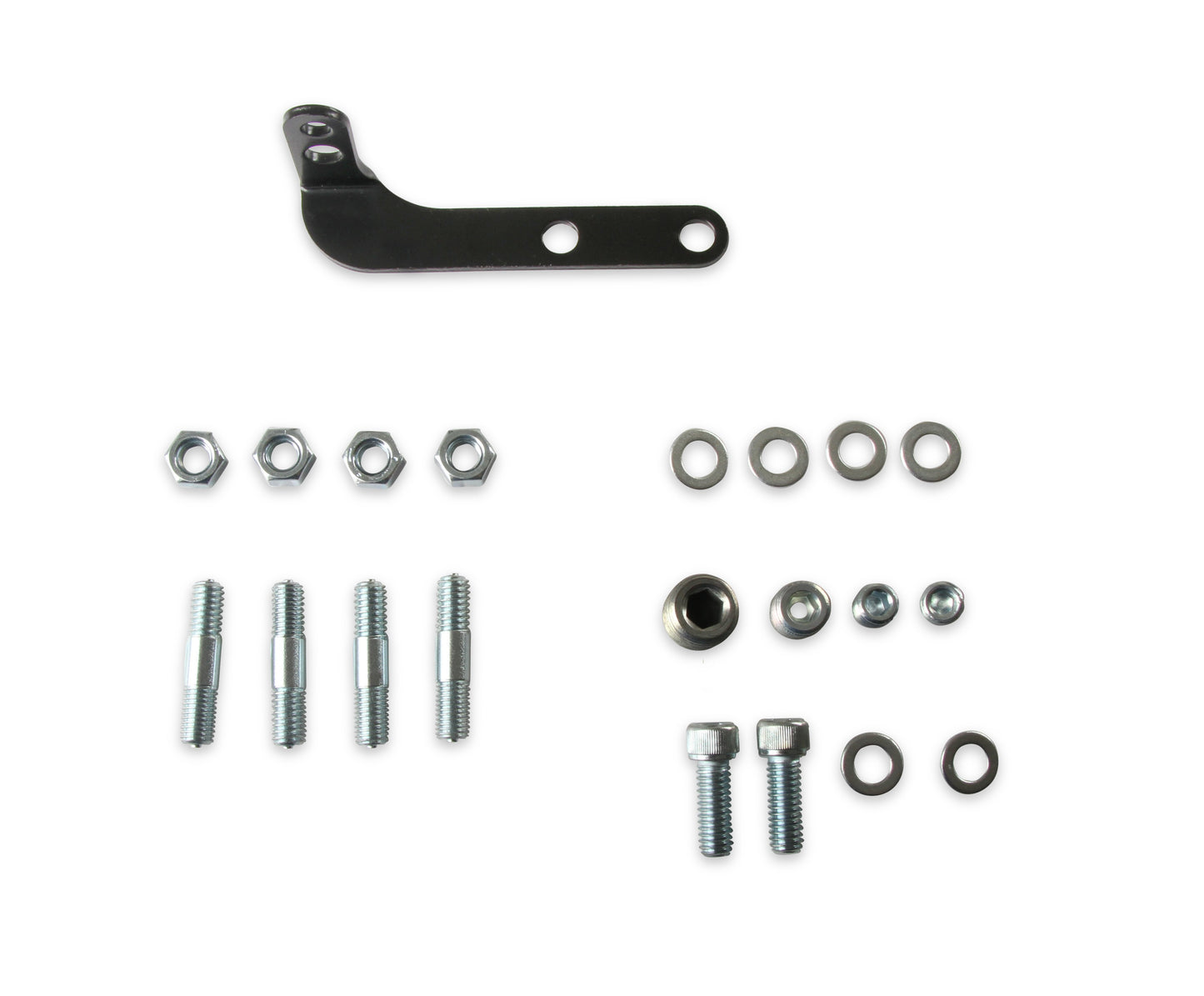

Overview This cast EFI intake elbow allows the use of Ford throttle bodies on any intake manifold w/ the 4150 mounting flange. Slotted mounting holes & dual throttle cable mounting bracket bosses allow the elbow & throttle body to be mounted forward, sideways, or rearward. Features (4) vacuum ports, MAP sensor port, machined / port matched to 4150 gasket, and 100?? throttle body angle for extra hood clearance. Includes MAP sensor port cover, gaskets, throttle cable bracket, and hardware.
Features:
Fits Ford 5.0 Throttle Bodies

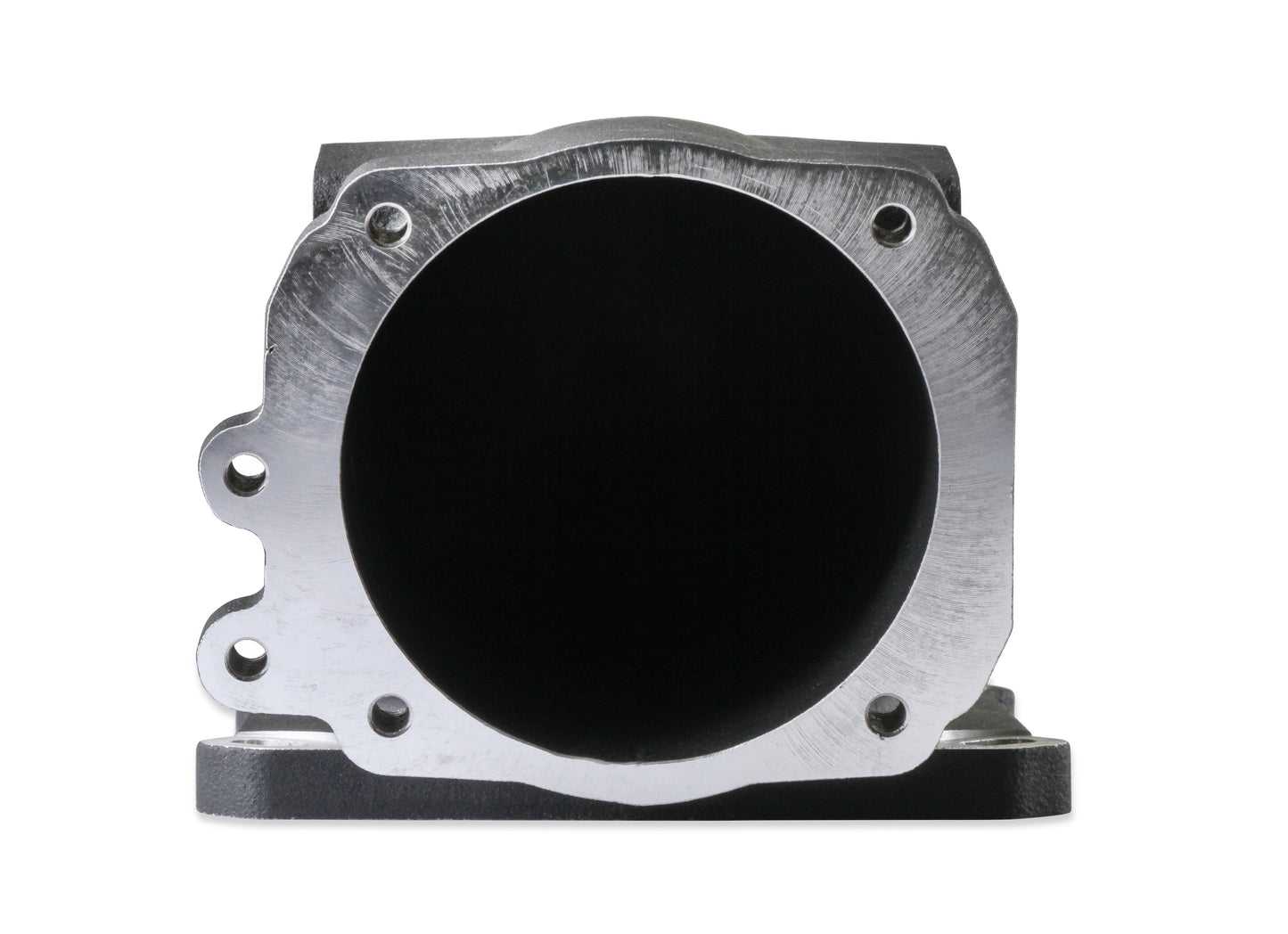

105mm Throttle Body Opening - 100 Mounting Angle

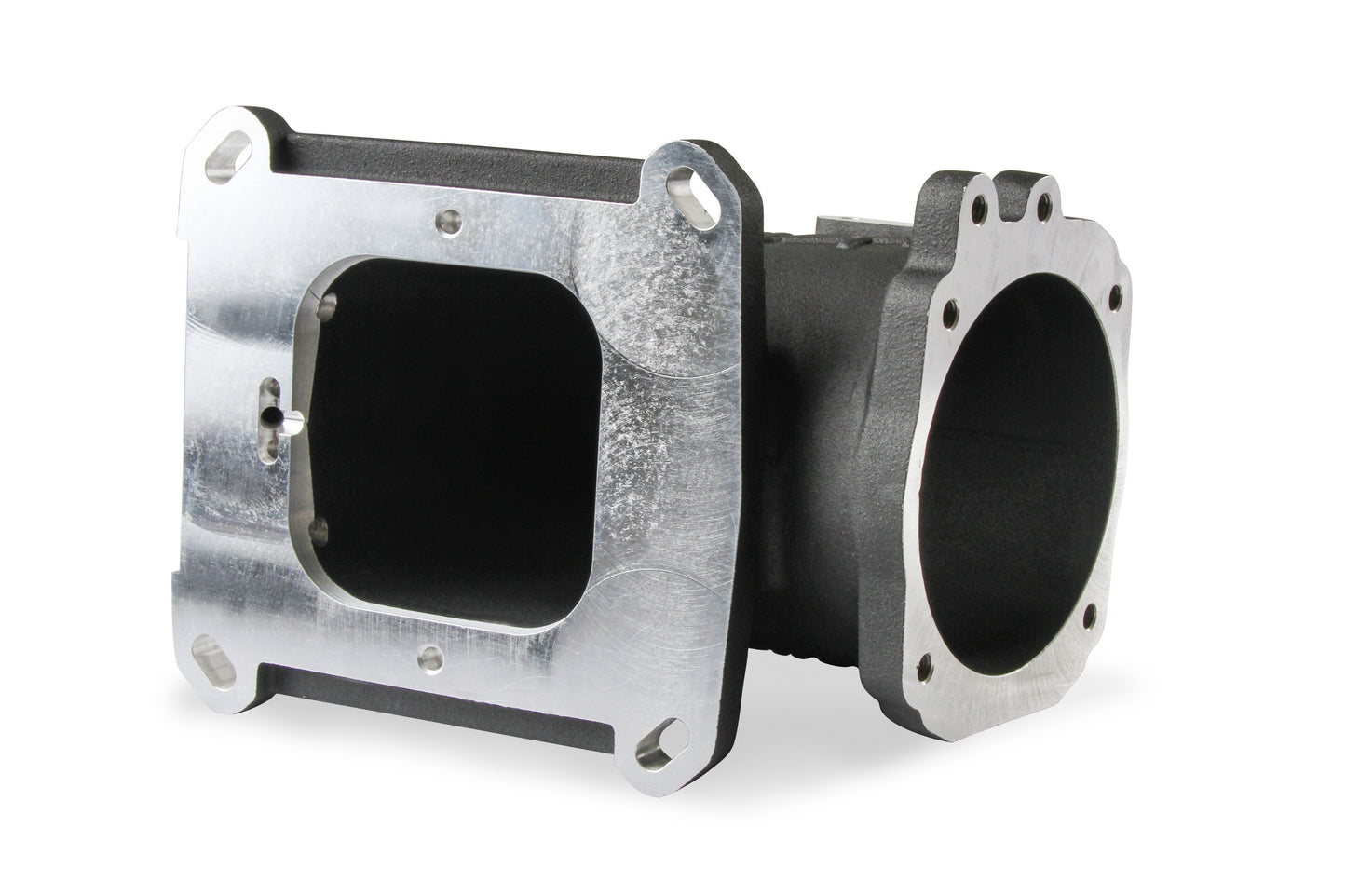

Fits Intakes w/ 4150 Flange
Slotted Mounting Holes Allow Forward, Sideways or Rearward Throttle Body Mounting
LS3 Style MAP Sensor Mounting
(4) Vacuum Ports ???? (1) Each 1/4??? NPT & 3/8??? NPT & (2) 1/8??? NPT w/ Indirect Baffled Signal
