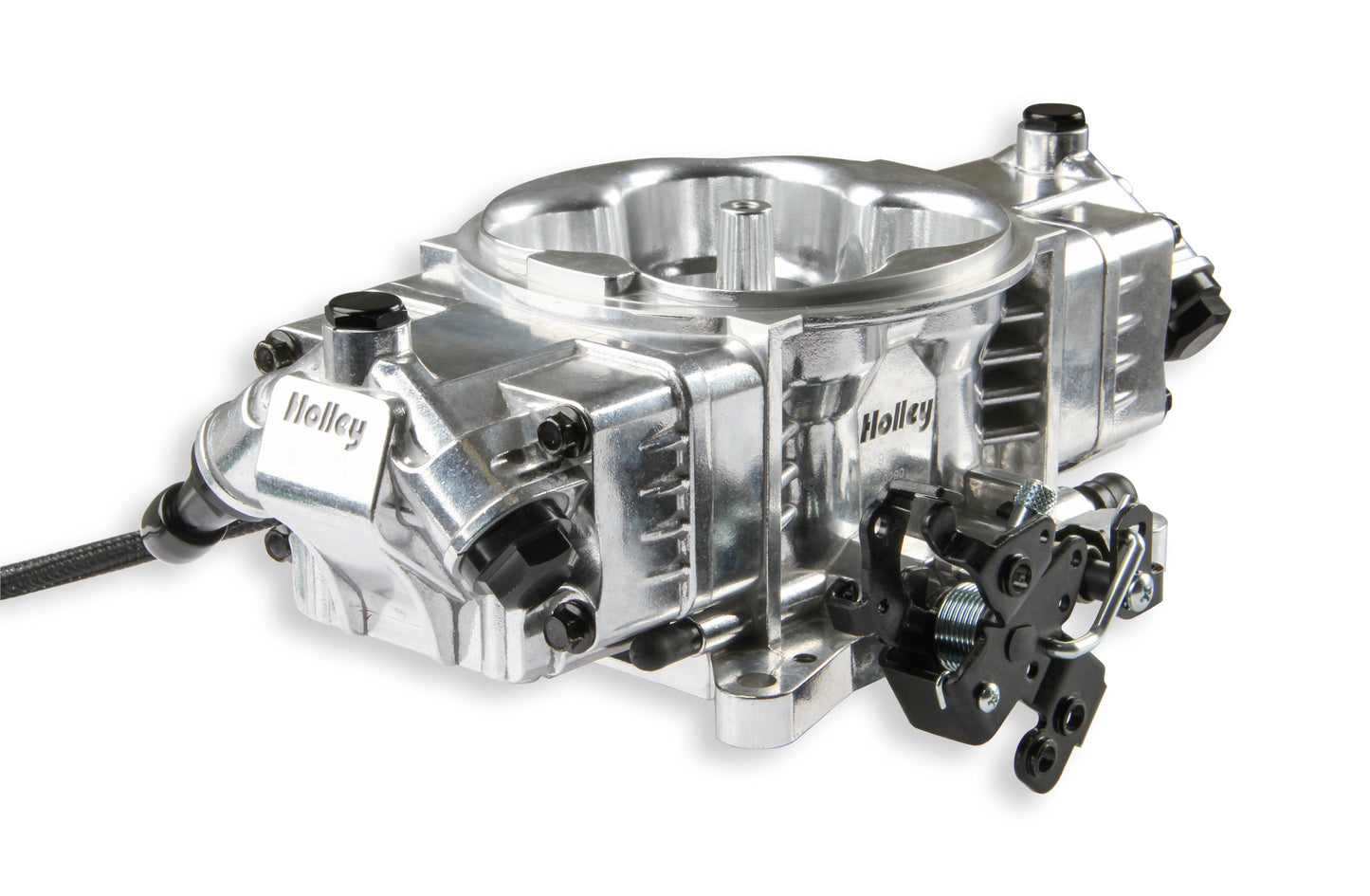

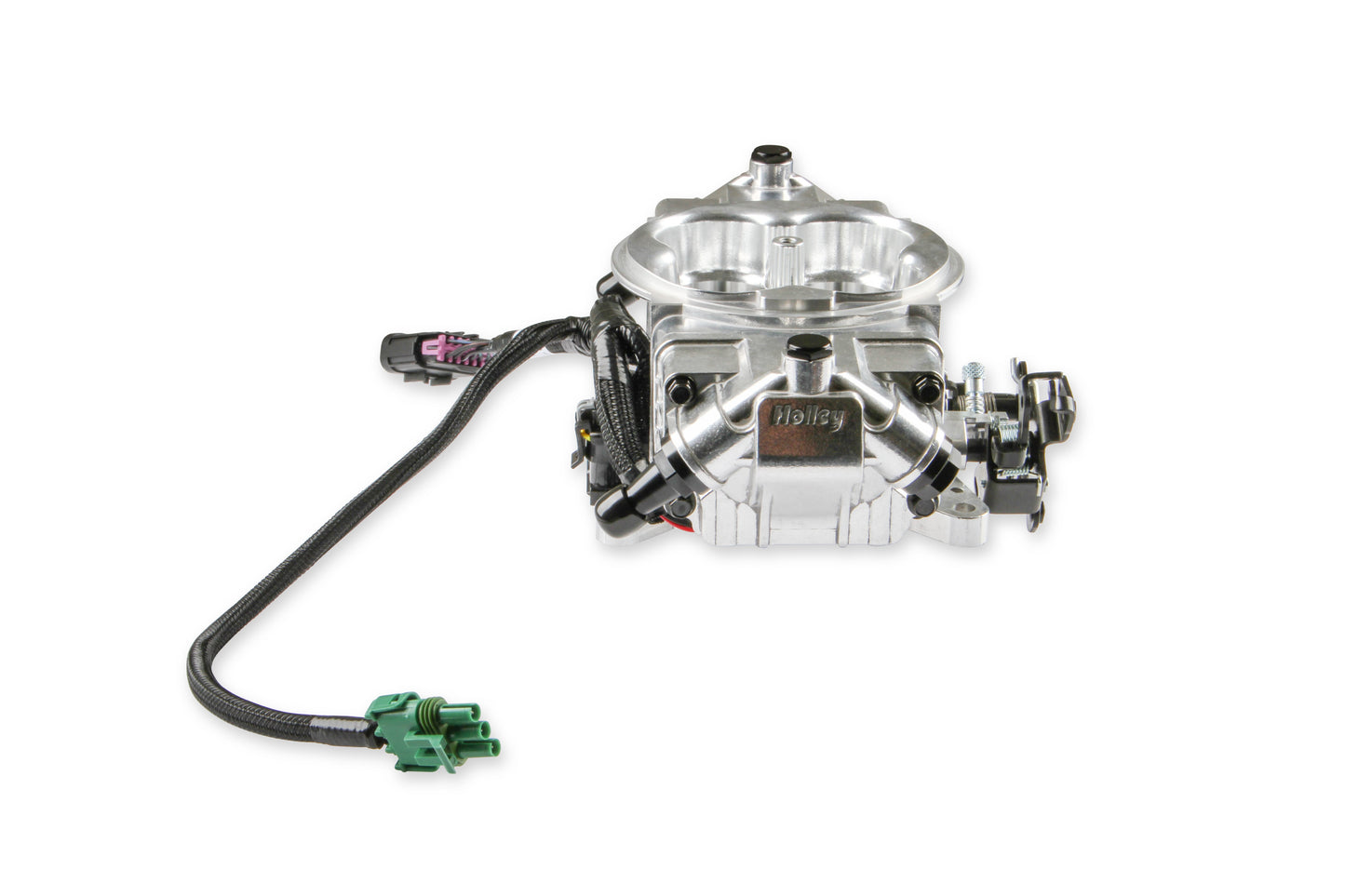

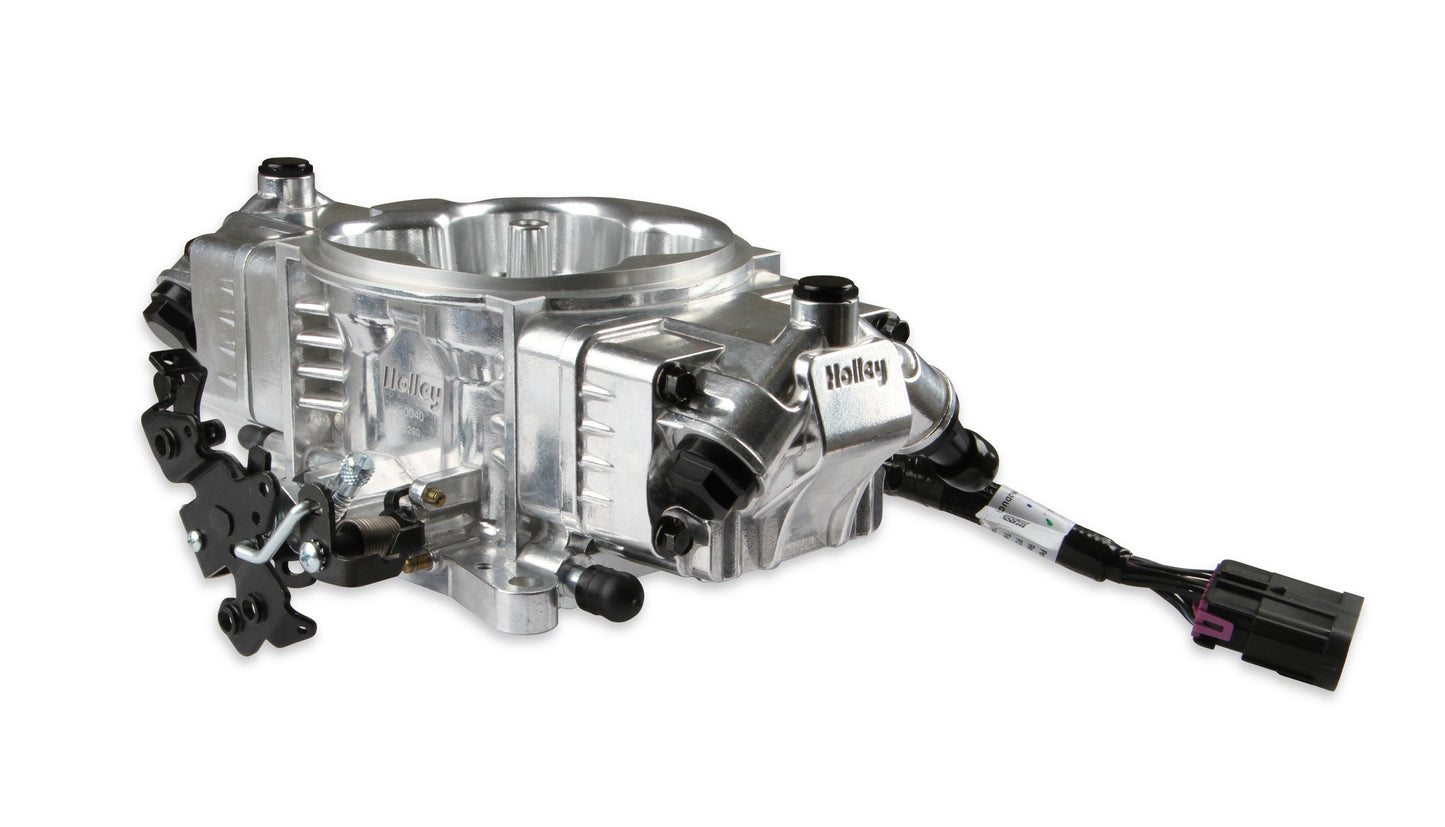

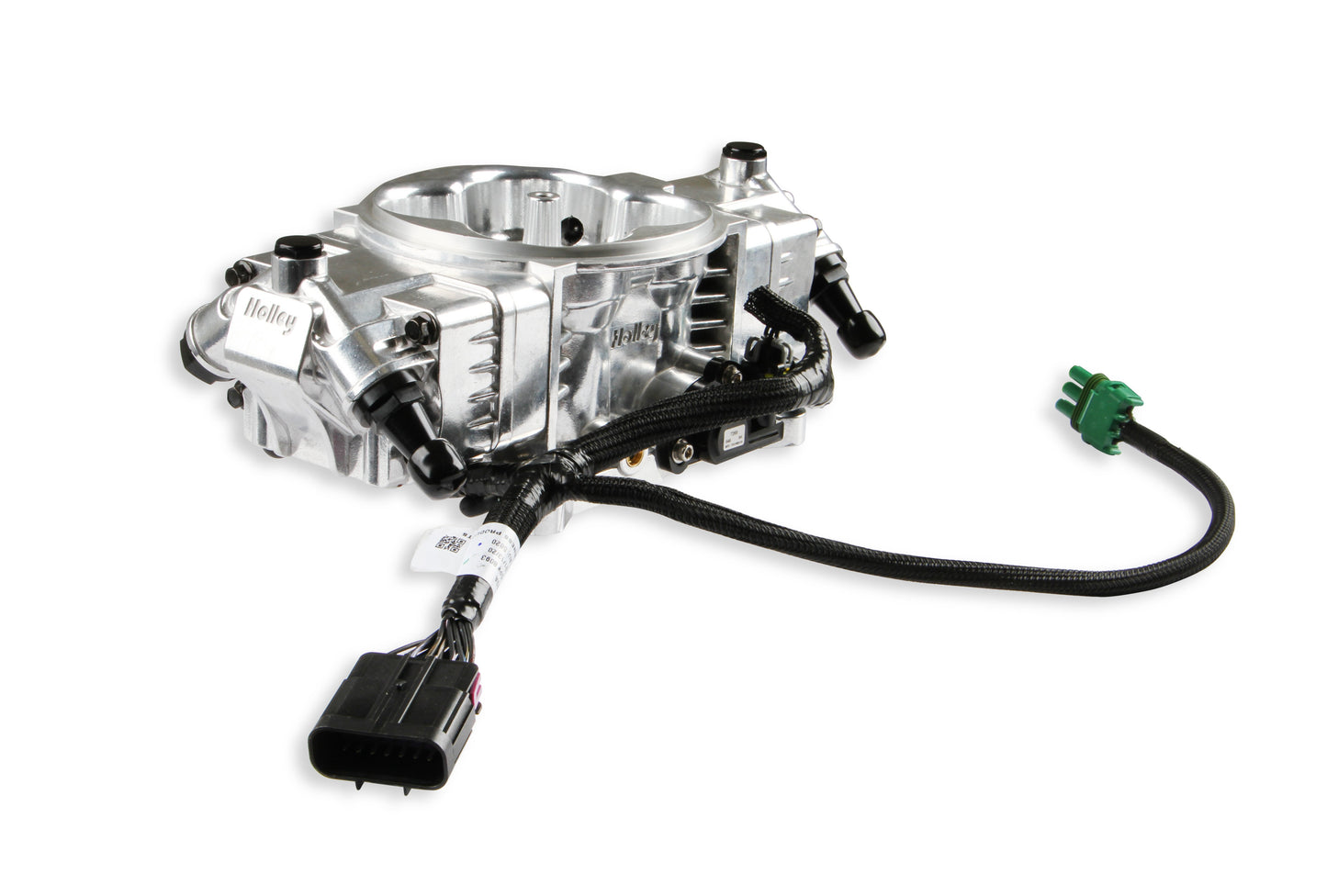

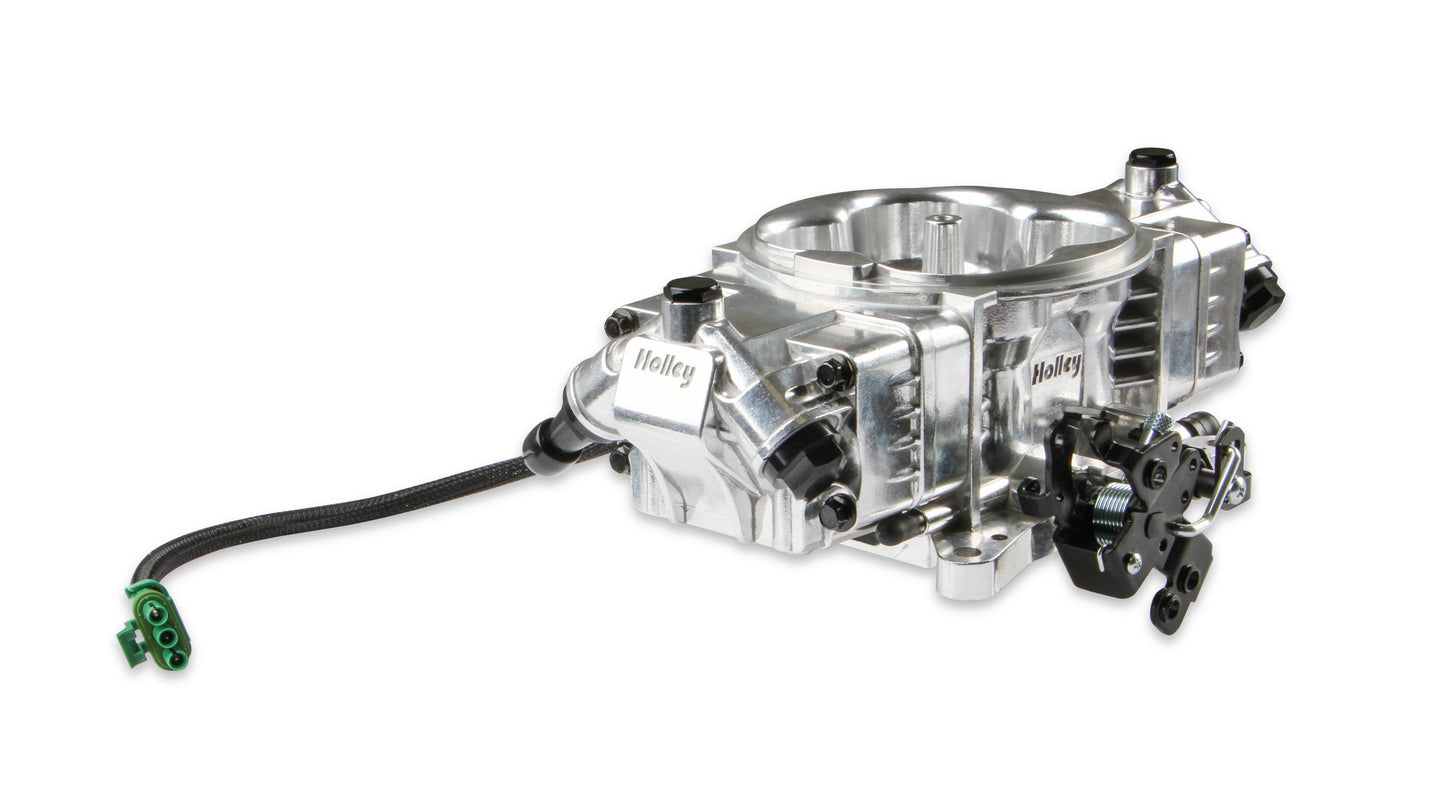

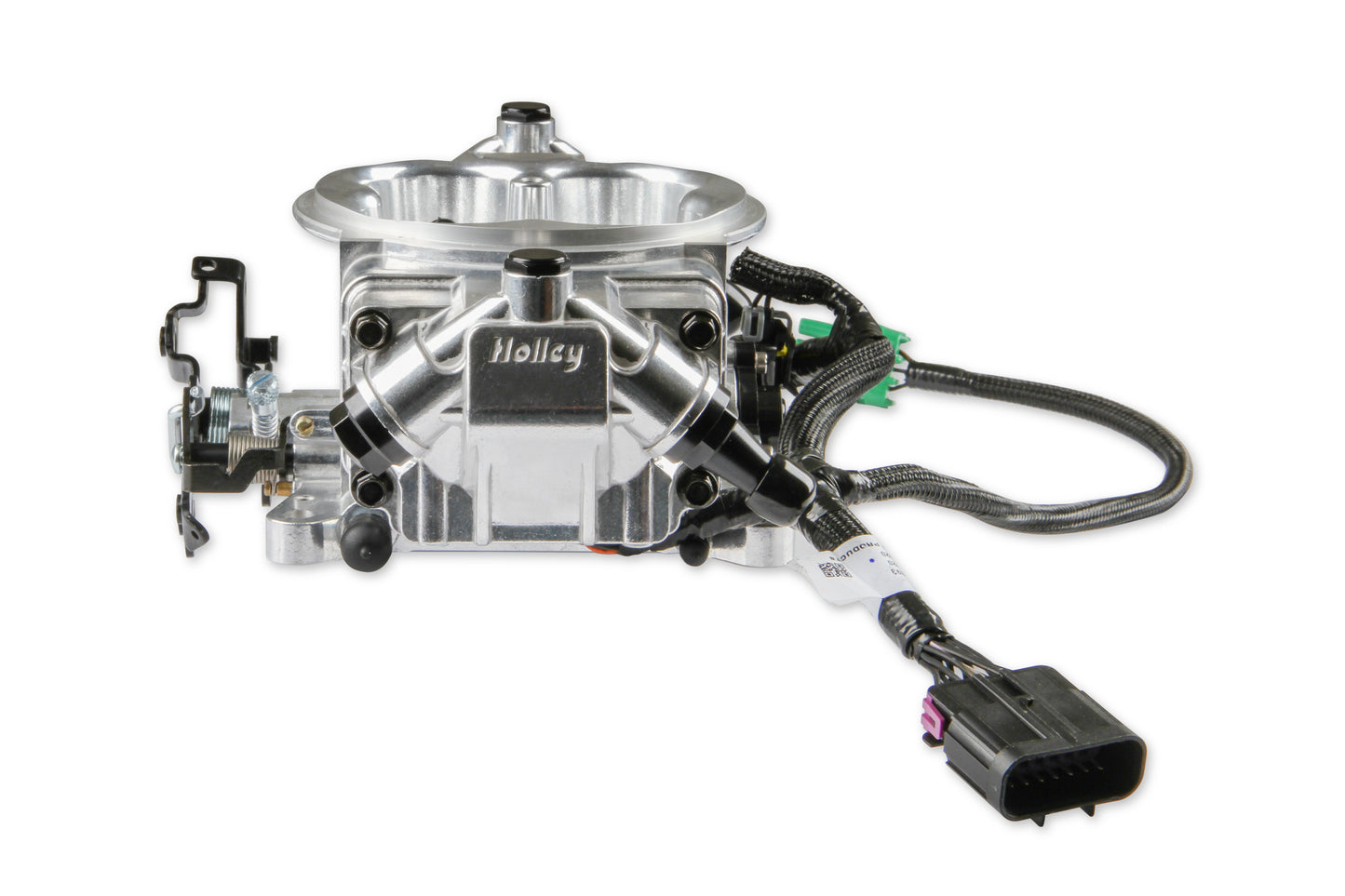

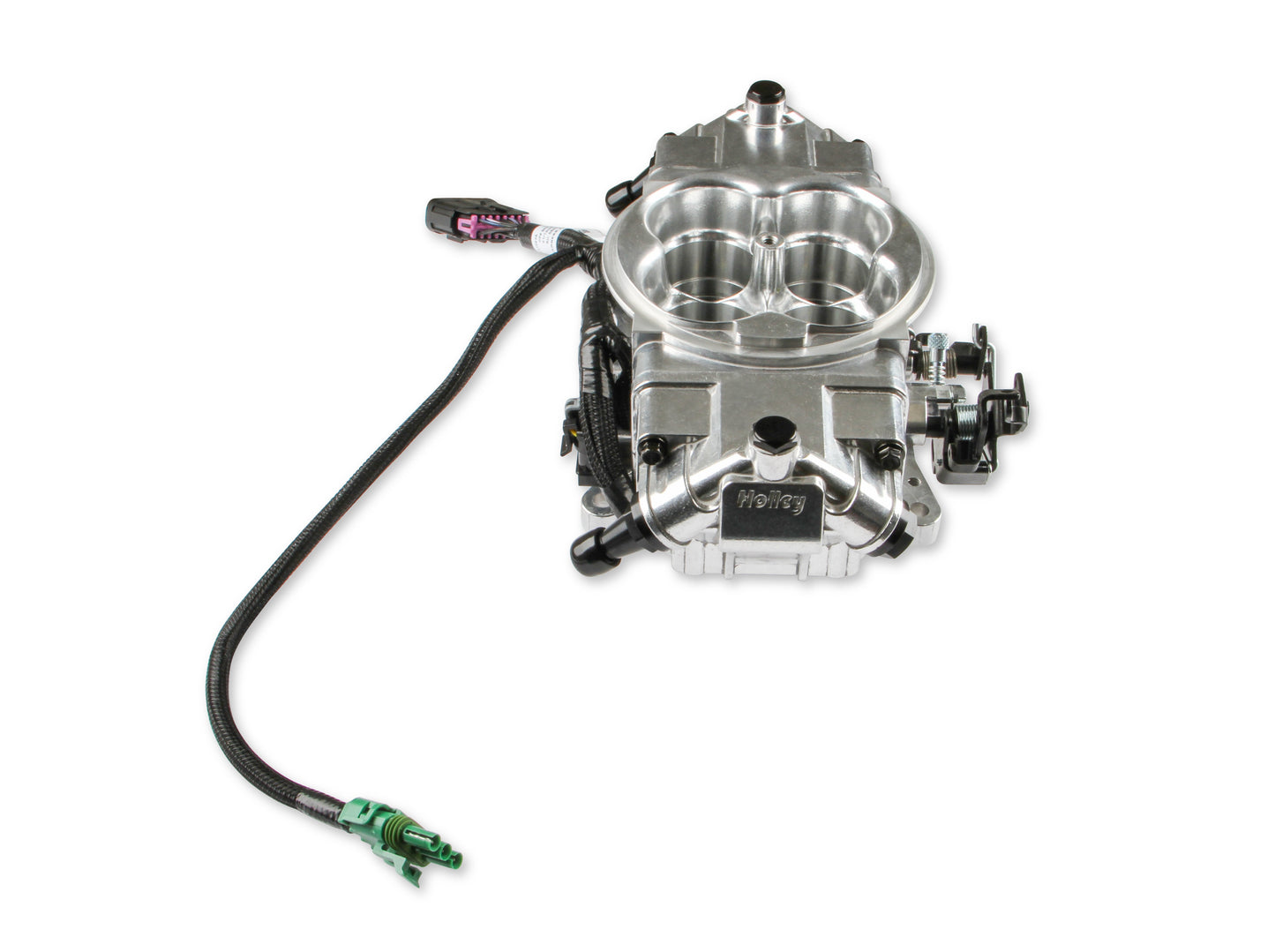

Holley EFI Terminator X Stealth GM LS 4150 - Shiny
Gold - 24X Crank - Trans Control - 650 HP - 3.5 in. Touchscreen

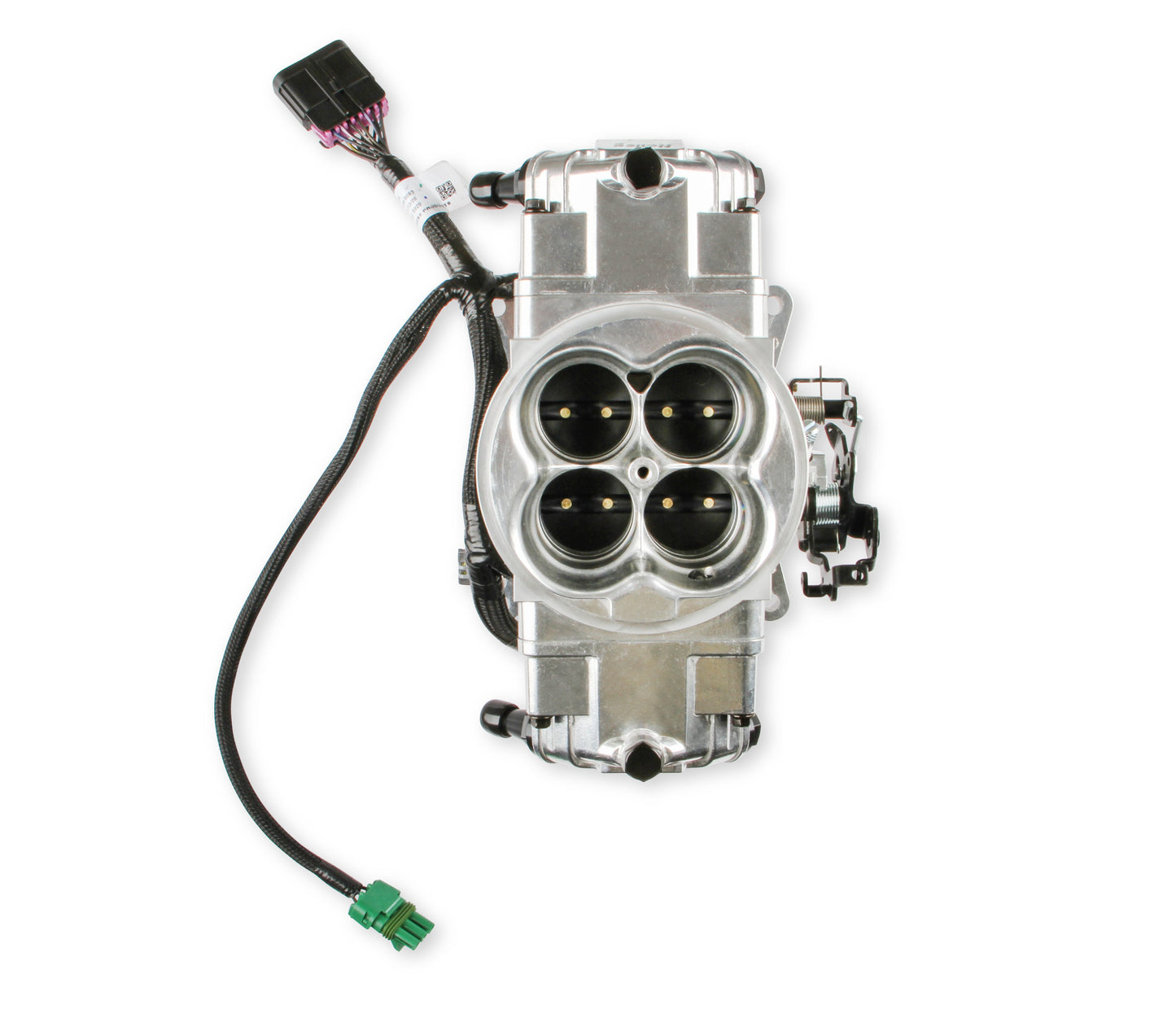

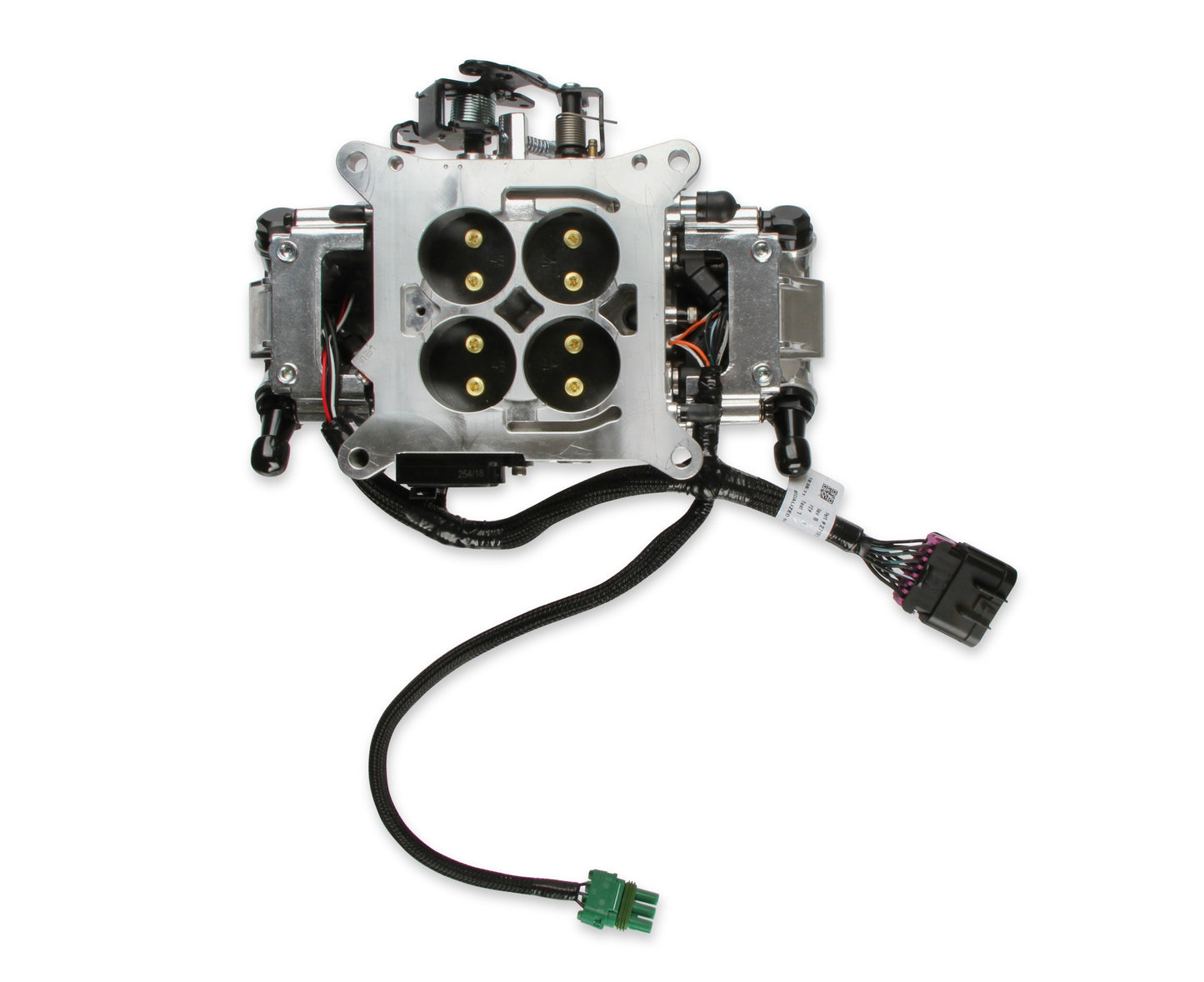

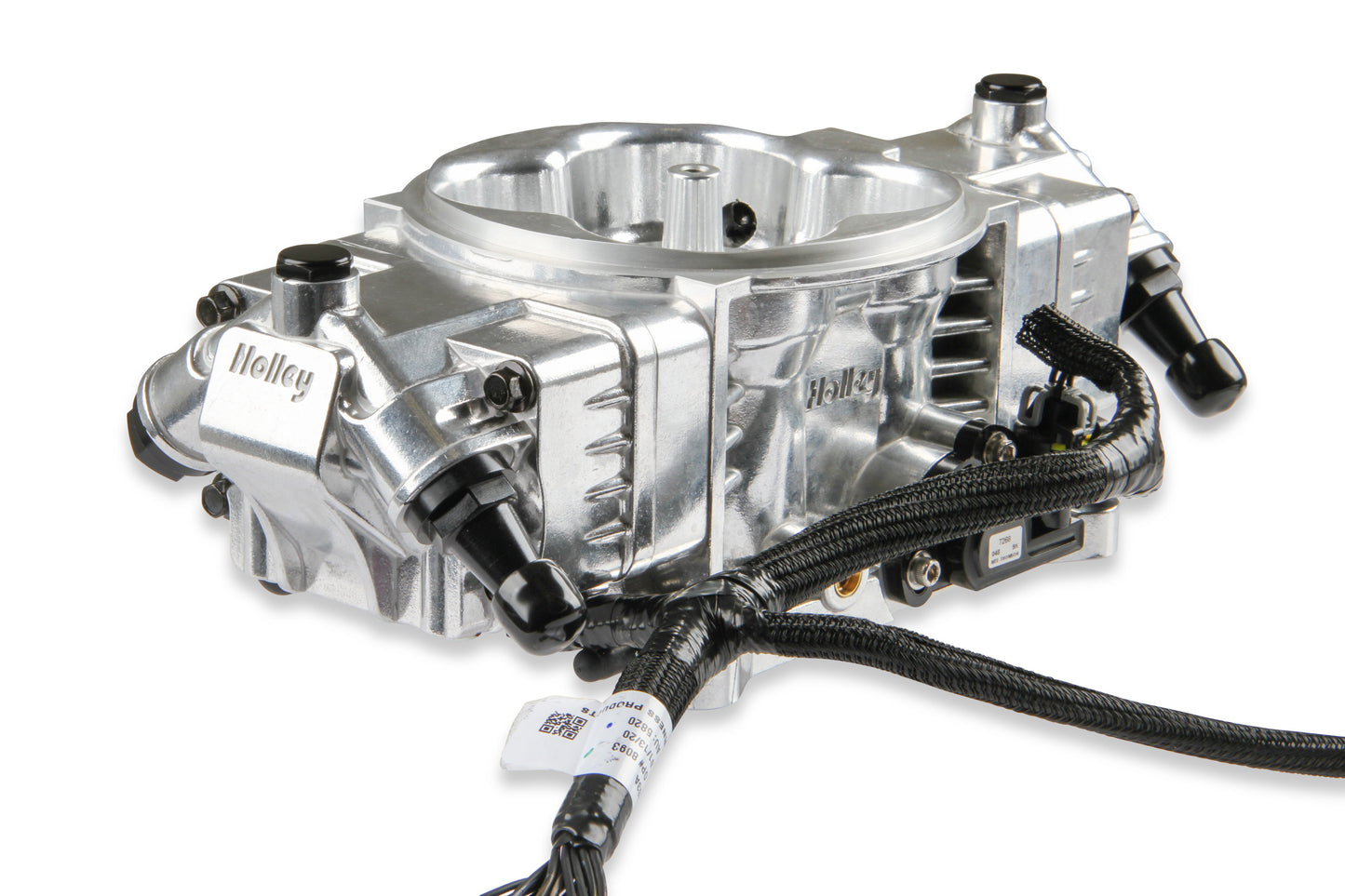

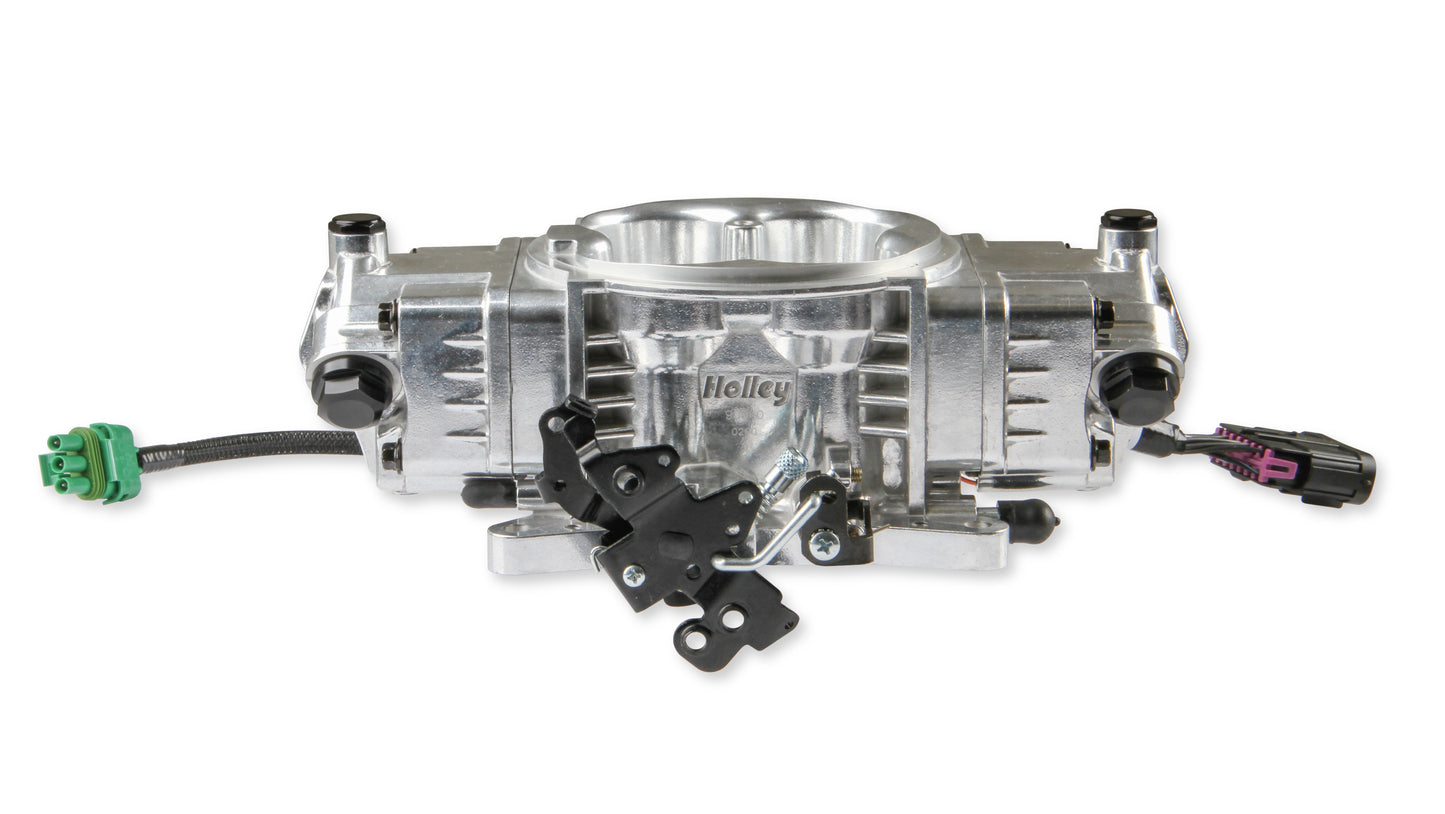

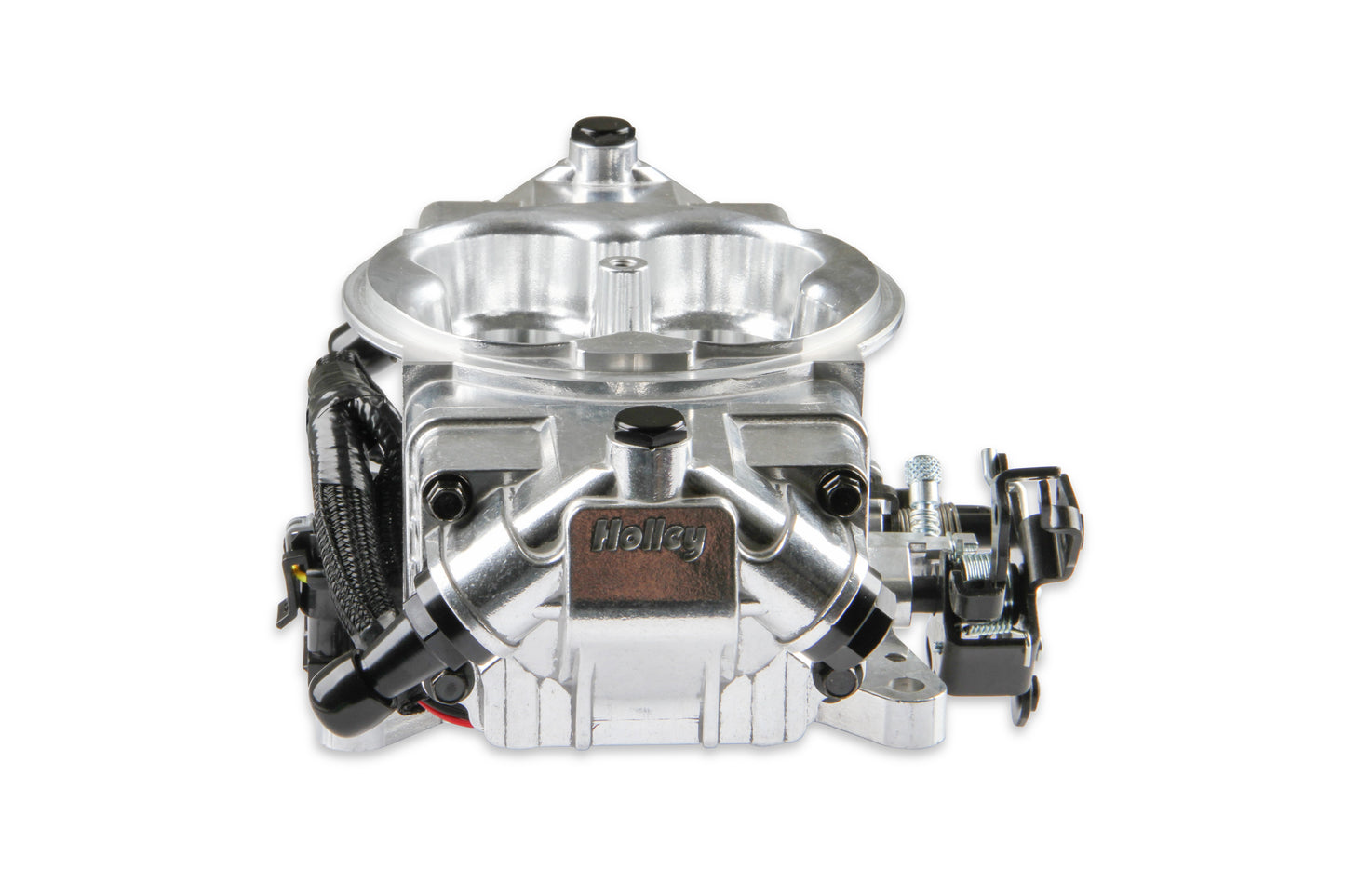

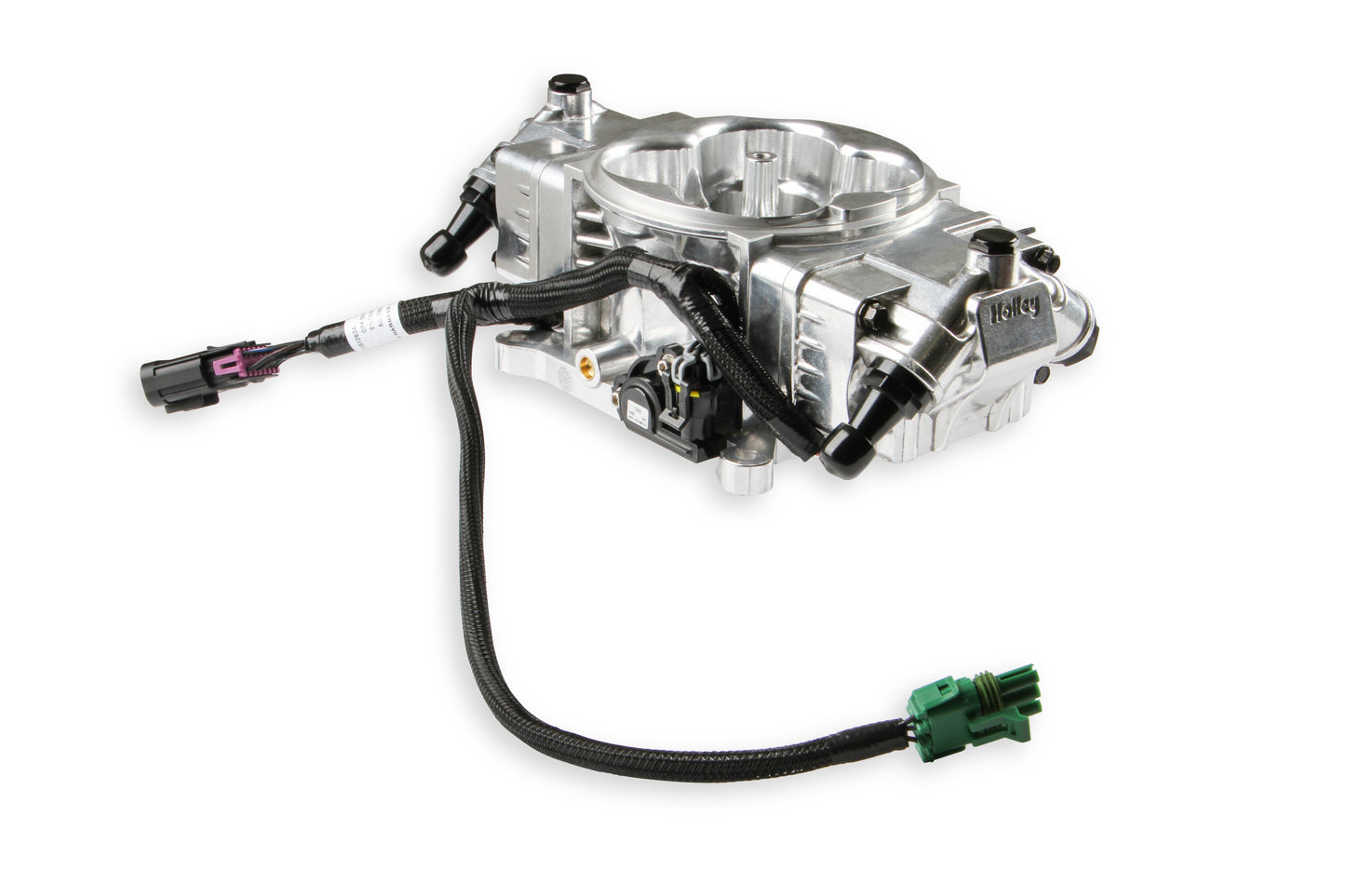

Overview The Terminator X Stealth 4150 EFI system from Holley features 4, 100LB/HR Fuel Injectors capable of supporting up to 650 HP naturally aspirated or 600 HP on forced induction applications. The Terminator X ECU features fuel maps that self-learn and integrated ignition timing control, yielding improved idle stability, drivability, and horsepower at wide-open throttle! Did we mention that the Stealth 4150 also includes transmission kick down provisions for GM TH350/400, 200R4/700R4 and Ford C4/C6 applications? Terminator X Max kits provide plug and play Transmission control for GM 4L60 and 4L80 Transmissions.
Not recommended for 4x4 applications with electronic transfer cases. Not compatible with 4L6X transmissions from model year 1995 or before due to year-by-year changes in converter lockup and downshift strategy.
Features:
Terminator X Stealth 4150 Kits for either 24x or 58x LS engines
Supports up to 650HP with Four 100lb./hr. Injectors
Terminator X Max kits provide plug and play Transmission control for GM Transmissions
Internal 1bar MAP sensor, built into the Terminator X ECU.

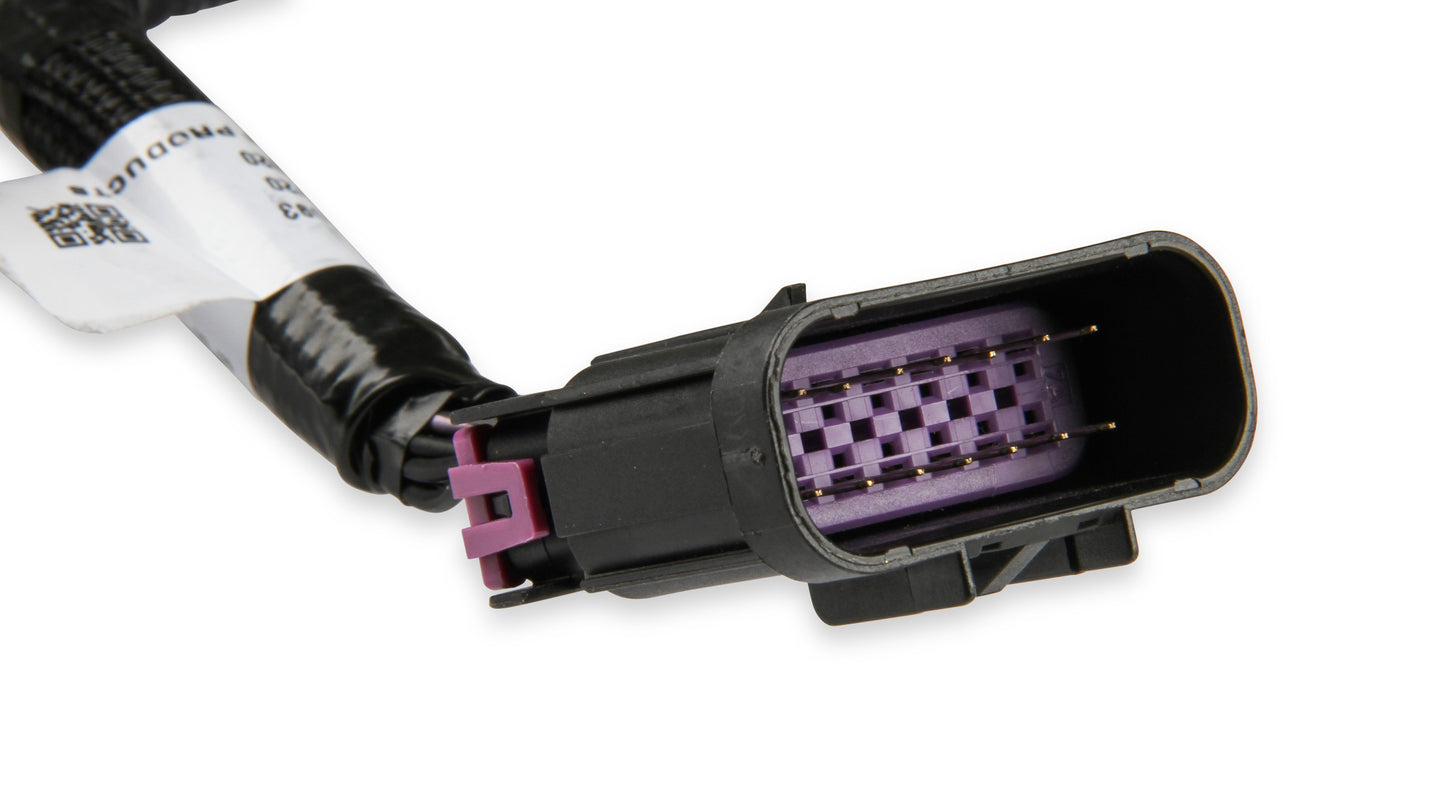

All of the wiring exits below the fuel injector bowls, for a completely stealth installation
Air entry machined to fit most stock style air cleaners with air cleaner locator provisions
External fuel pressure regulator required, set to a base pressure of 58.5 PSI, such as 12-886
Integrated ignition timing control ????????"Plug and play with factory LS coil sub harness and OEM LS coils ????????" no external boxes/modules needed to run Coil Near Plug

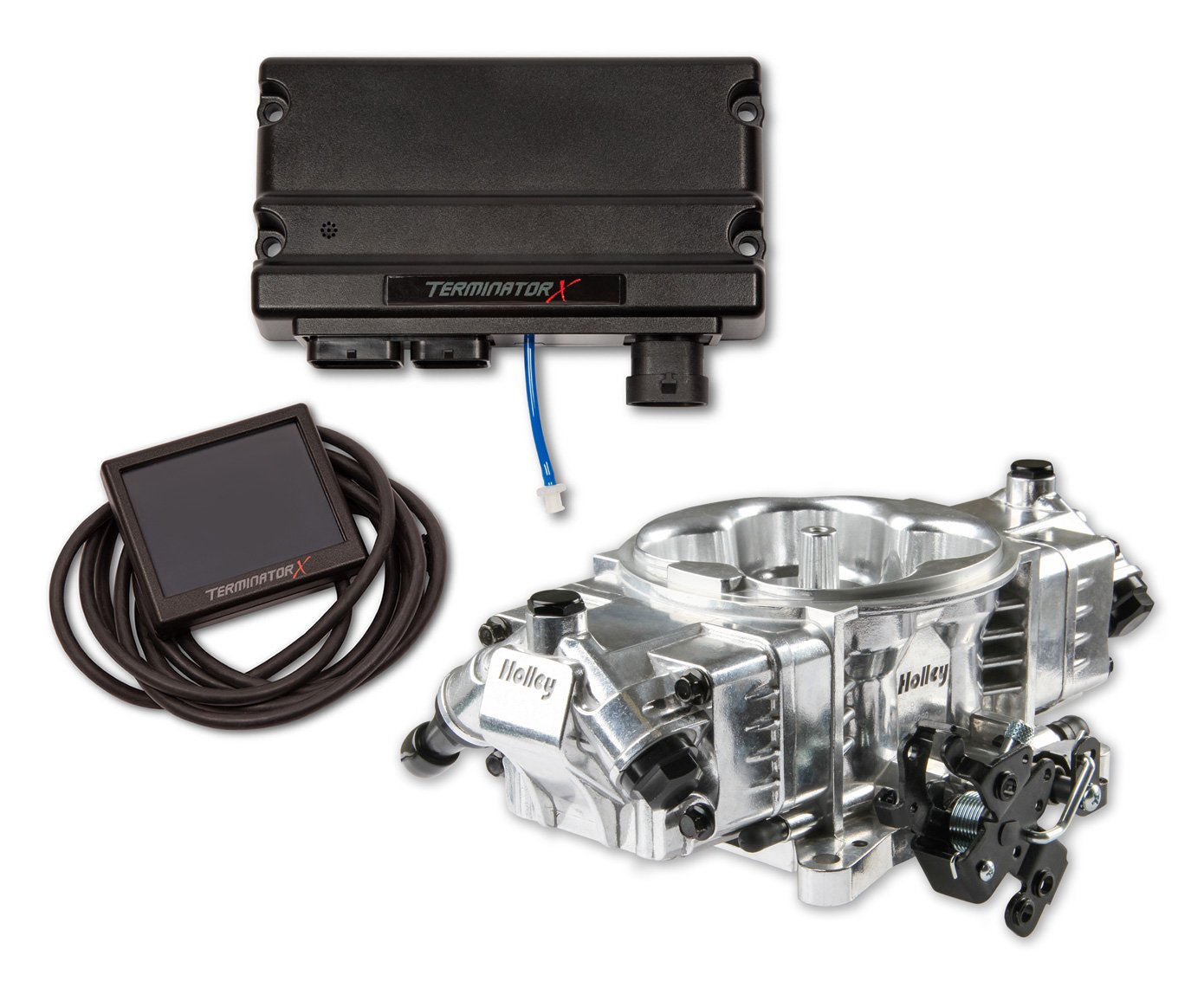

High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays
Simple Calibration Wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required!
Self-tuning ECU means you don??????????????t have to be a computer/tuning wiz to have EFI!
4 Inputs ????????" 12v, Ground, 5v, and Frequency, for things such as additional pressure sensors, or activation triggers for nitrous activation, or a trans brake (Fuel and Oil Pressure Inputs are pre-terminated)
4 Outputs ????????" Ground, PWM - , for accessories such as; fans, boost control, nitrous control, IAC Kit, and More
The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides real-time Fuel Map Learn!
OEM Style TPS/IAC, for years of dependable service
Available in 3 finishes: Shiny, Black and Gold
Compatible with Holley EFI digital dashes, gauges and fuel system accessories
