EFI Terminator X Max - 2015.5-2017 Ford Coyote EV6 Injectors - 98+ 4R70W Transmission and Drive-by-Wire Throttle Body Control, for Late Coils

Holley EFI Terminator X Max - 2015.5-2017 Ford Coyote w/ Ti- VCT

EV1 Injectors - 98+ 4R70W Transmission and Drive-by-Wire Throttle Body Control, for Late Coils

Overview

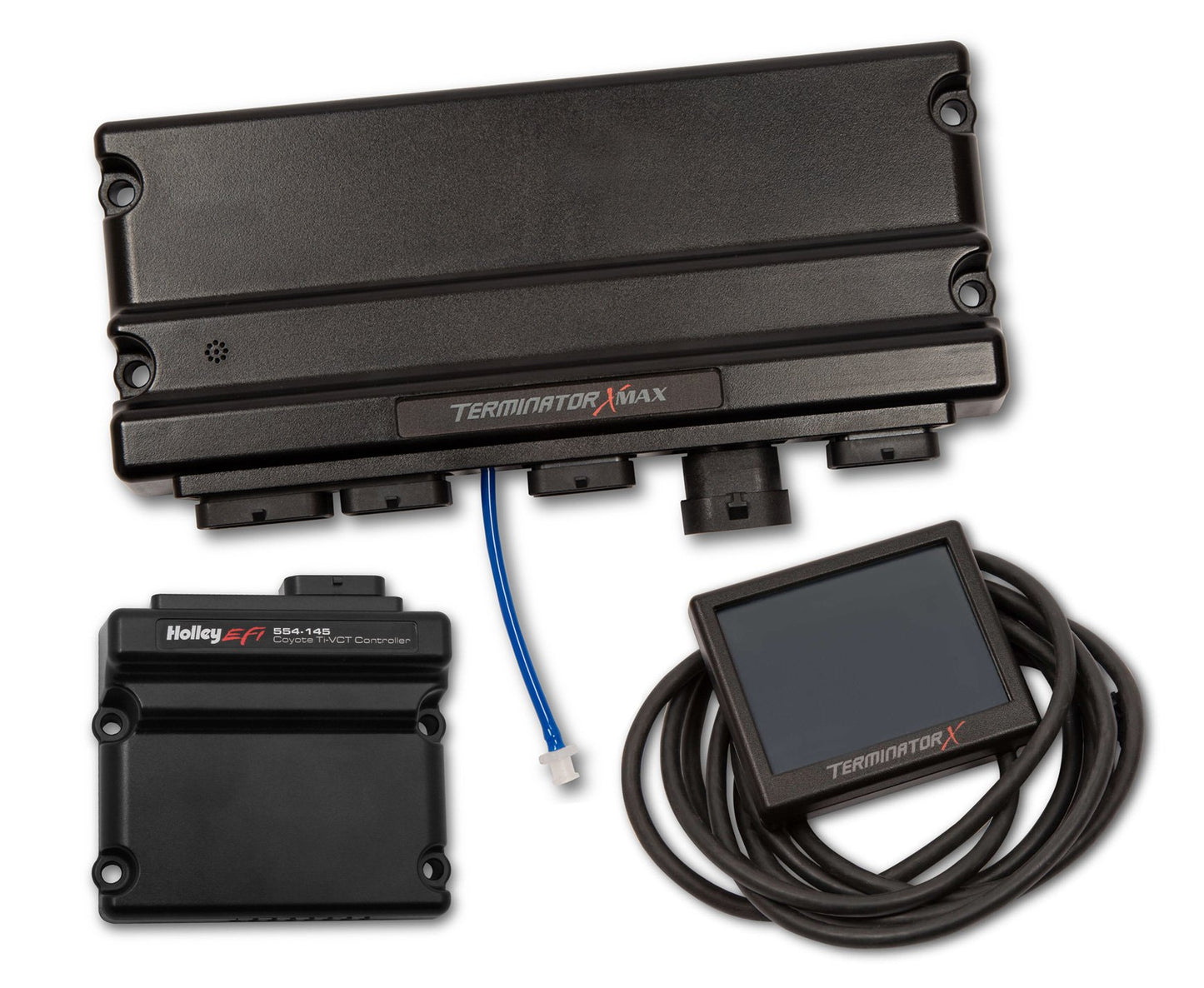

Terminator X and X Max Coyote systems supports Ford Coyote platform with Ti-VCT. Terminator X features real-time fuel learn, high impedance injector drivers, integrated 1bar MAP sensor, and 4 programmable inputs and outputs. These are ideal for electric fans, boost control solenoids, progressive nitrous control, and much more. Terminator X ECU comes fully loaded with base maps for common Coyote engine combinations to get you out of the garage and on the road/track fast. The included 3.5" LCD touch screen handheld contains an easy to use calibration wizard as well as tuning and gauge display functions. Included with Terminator X is Holley EFI's industry leading support, easy to use software suite that allows full laptop access/compatibility for advance users. Whether you're building a budget beater or full on race car, Terminator X has the industry leading features and technology you need at a price that won't break the bank.

Terminator X ECU's are designed to be mounted with the LED's facing up.

Features:

• Plug and play engine control (for Ford 5.0L Coyote with Ti-VCT (Twin Independent Variable Camshaft timing)
• Plug and Play compatible with Holley EFI accessories ???? Analog gauges, shift lights, modules, and both 6.86??? and 12.3??? Pro Dash

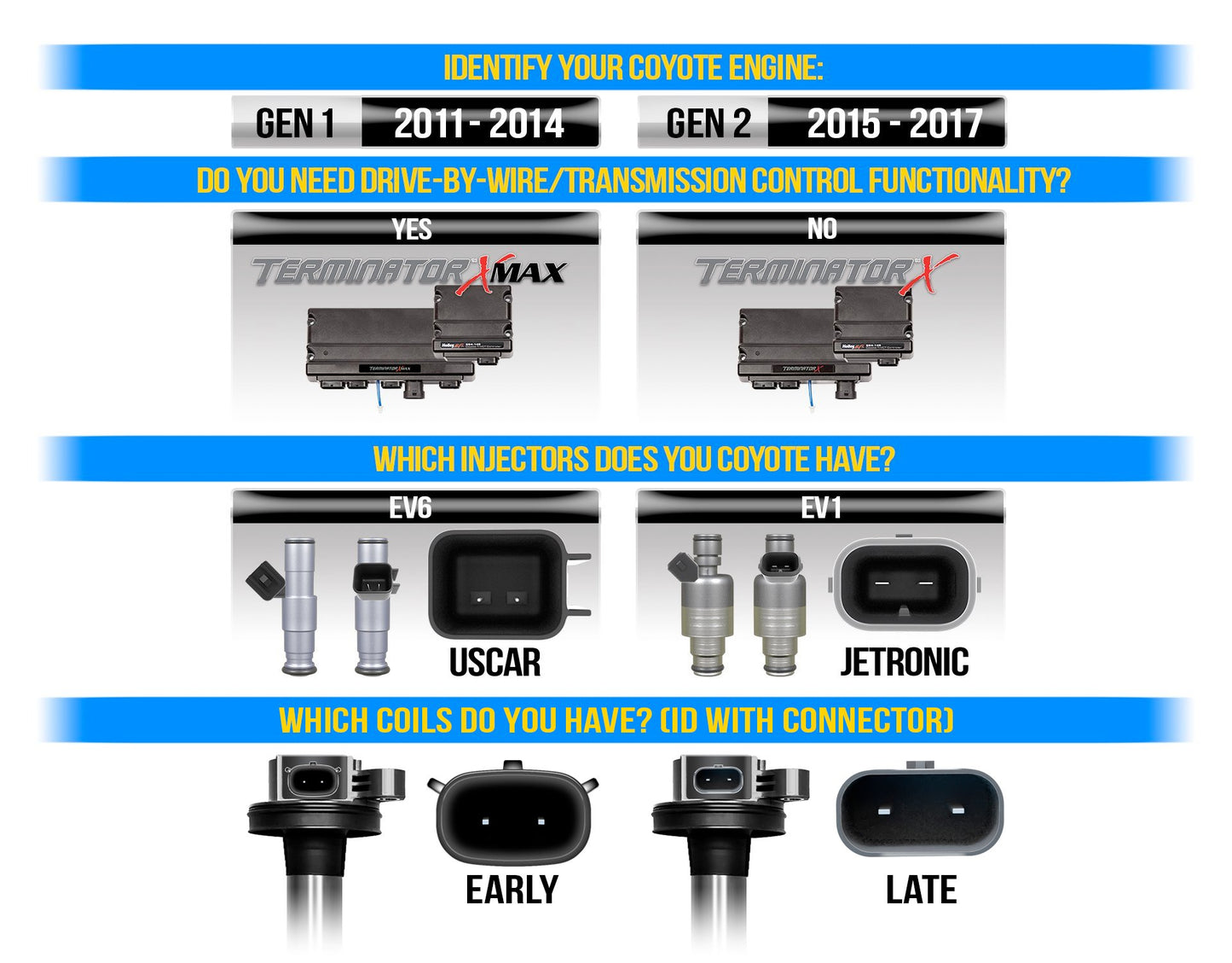

• EV1 or EV6 injector harness included (depending on your injector configuration)
• High Impedance Injector drivers power Holley EFI and most stock injectors -Injector support chart found in instructions (will not support low impedance injectors)
• Included Bosch LSU 4.9 wideband O2 sensors for accurate readings and precise tuning control
• Built in 1bar MAP (manifold absolute pressure) sensor included - For Boosted applications ???? internal MAP sensor can be disabled and utilize external MAP sensor harness (kit includes a terminated connector for seamless installation)
• Vacuum hose adapters included - (1/8???, ?????, and 3/16??? sizes)
• 4 inputs ???? 12v, Ground, 5v, and frequency for items like pressure sensors, activation triggers, nitrous activation, or trans brake
• Boost Control ???? boost vs. time, boost vs. gear, boost vs. RPM, boost vs. speed, and boost safeties
• Nitrous Control ???? channels for wet or dry, progressive or non-progressive, rich/lean safeties, and target closed loop AFR (Air/Fuel Ratio)
• Advanced Tables ???? ( 4x 1D tables, 1x 1D gear table, 4x 2D table, and 1x 2D gear tables) for nearly unlimited table configuration options
• On-board diagnostic LEDS - ECU power, engine run, TPS calibration, cam signal, and more! Identify critical engine parameters at a glance
• 3.5??? touchscreen handheld included - Internal data-logging, custom gauge display, and calibration wizard allow quick building bases tunes for any Domestic V8 engine
• Compact ECU (Engine Control Unit) ???? At only 7.45??? x 4.1??? x 1.66??? the compact packaging allows mounting virtually anywhere (XMAX ECU = 9.6??? x 4.1??? x 1.66???). REMINDER: diagnostic LED??????s must face up!
• FREE EFI Tuning software ???? For compete control of your Terminator X power plant

Details:

• Injector Connector: USCAR (EV6)
