EFI Performance Fuel Injectors - Set of Eight - Bosch/EV1 - 42 lb/hr - High Impedance

Holley EFI Performance Fuel Injectors - Set of Eight

PICO/EV6 - 42 lb/hr - High Impedance

Overview
Terminator X High Impedance Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp o-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. With a wide variety of fuel flow offerings from 42 lb./hr. to 220 lb./hr. (441 cc/m to 2310 cc/m) you are sure to find an injector that matches your non-emissions controlled application. These high quality fuel injectors can also be used with any ECU that utilize high impedance fuel injector drivers.

Features:

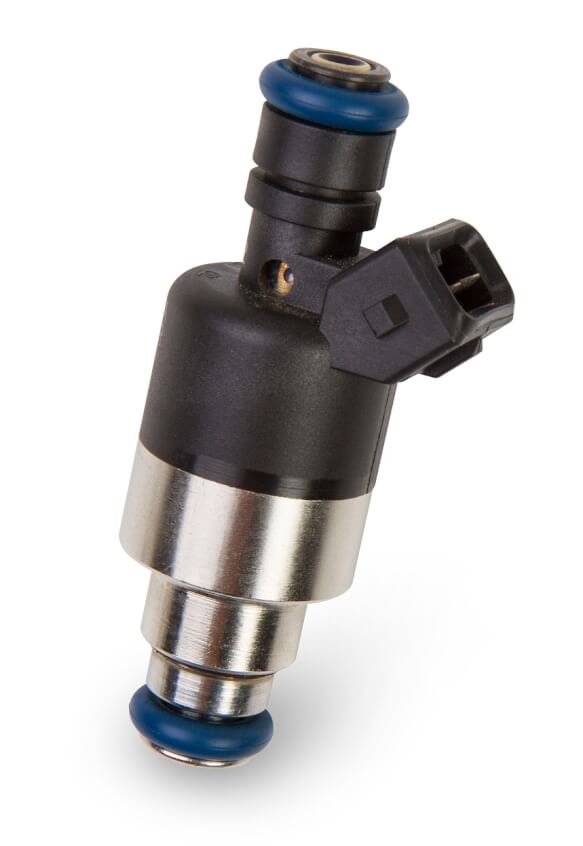

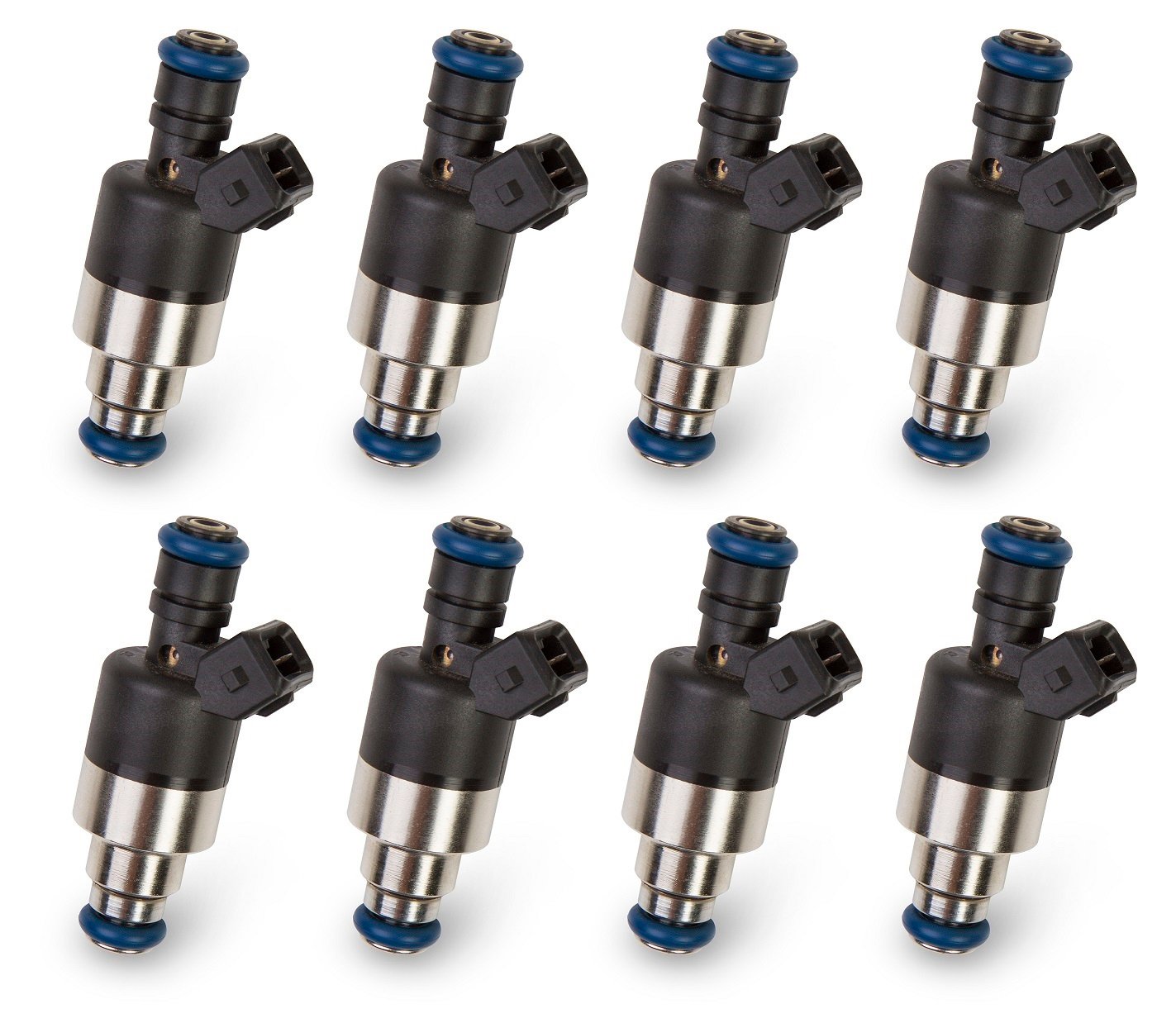

• Bosch/EV1 style performance injectors - Set of 8
• High impedance for use with saturated drivers
• Rated injector flow: 42 lb/hr @ 43 PSI
• Supports up to 670 horsepower
• Tri-cone spray pattern

Details:

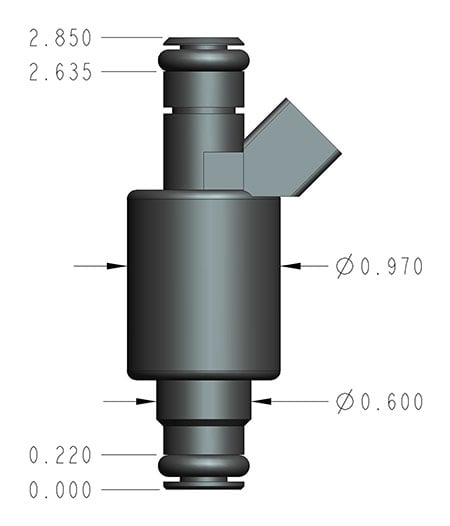

• Body Diameter: 0.97
• Body Length: 2.85"
• Body Style: EV1

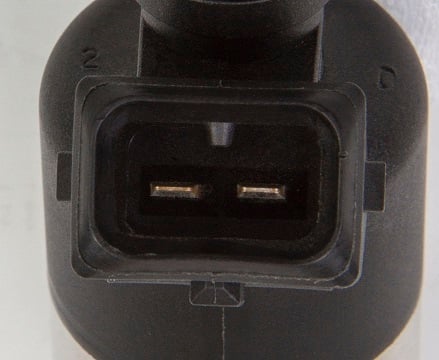

• Connector Series: EV1 - Jetronic - (Bosch Style)
• Fuel Type: E-85
• Fuel Type: Gasoline
• Impedance: High
• O-Ring to O-Ring: 2.415"
• Rated Injector Flow: 42 lb/hr

Links
Instruction Sheet
Bosch Style Injectors
