Holley

EFI Performance Fuel Injector - Individual - Bosch/EV1 - 24 lb/hr - High Impedance

EFI Performance Fuel Injector - Individual - Bosch/EV1 - 24 lb/hr - High Impedance

522-241

Low stock: 9 left

  • Ships from Kentucky or Utah
  • Add $300+ for $10 off of your order!
  • Add $500+ for $20 off of your order!

Shipping Estimate

Tracking: 1-2 days

Average Shipping: 2-3 days once tracking is available

$112.76 USD
$98.95 USD $112.76 USD
Sale Sold out
Shipping calculated at checkout.

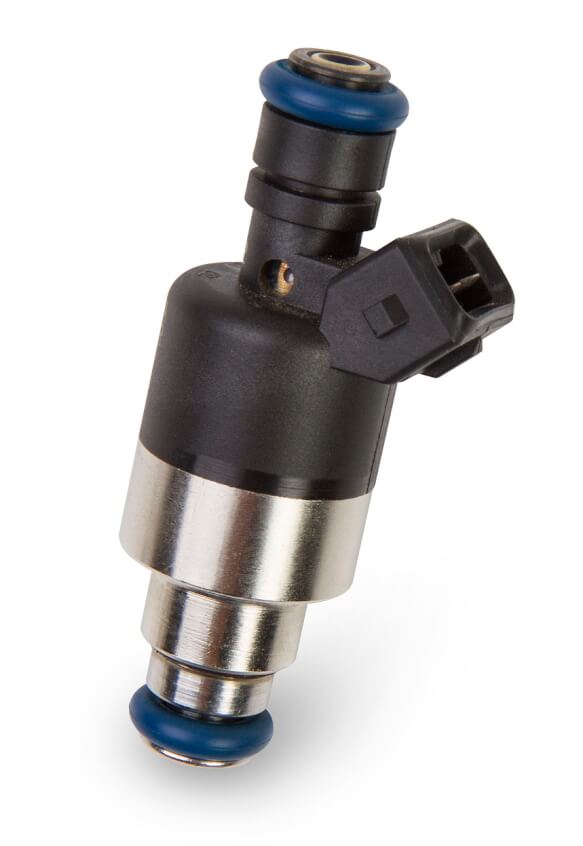

Holley EFI Performance Fuel Injector - Individual

PICO/EV6 Style - High Impedance - Flow Matched

Overview
Terminator X Flow Matched High Impedance Fuel Injectors are dynamic flow matched within 1%, resulting in extremely precision and consistent injector characteristics. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. With a wide variety of fuel flow offerings from 42 lb./hr. to 220 lb./hr. (441 cc/m to 2310 cc/m) you are sure to find an injector that matches your non-emissions controlled application. These high quality fuel injectors can also be used with any ECU that utilize high impedance fuel injector drivers.

Features:
  • Bosch/EV1 style performance injector - Individual
  • High impedance for use with saturated drivers
  • Rated injector flow: 24 lb/hr @ 43 PSI
  • Tri-cone spray pattern

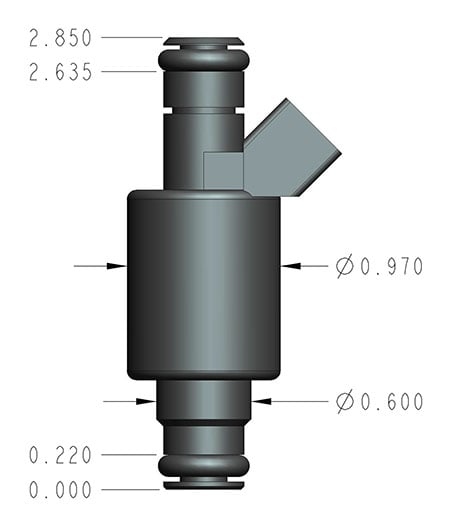

Details:
  • Body Diameter: 0.97
  • Body Length: 2.85"
  • Body Style: EV1

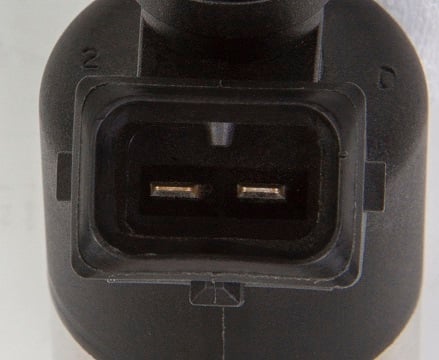

  • Connector Series: EV1 - Jetronic - (Bosch Style)
  • Fuel:
  • Fuel Type: E-85
  • Fuel Type: Gasoline
  • Impedance: High
  • O-Ring to O-Ring: 2.415"
  • Rated Injector Flow: 24 lb/hr


Links
Bosch Style Injectors
