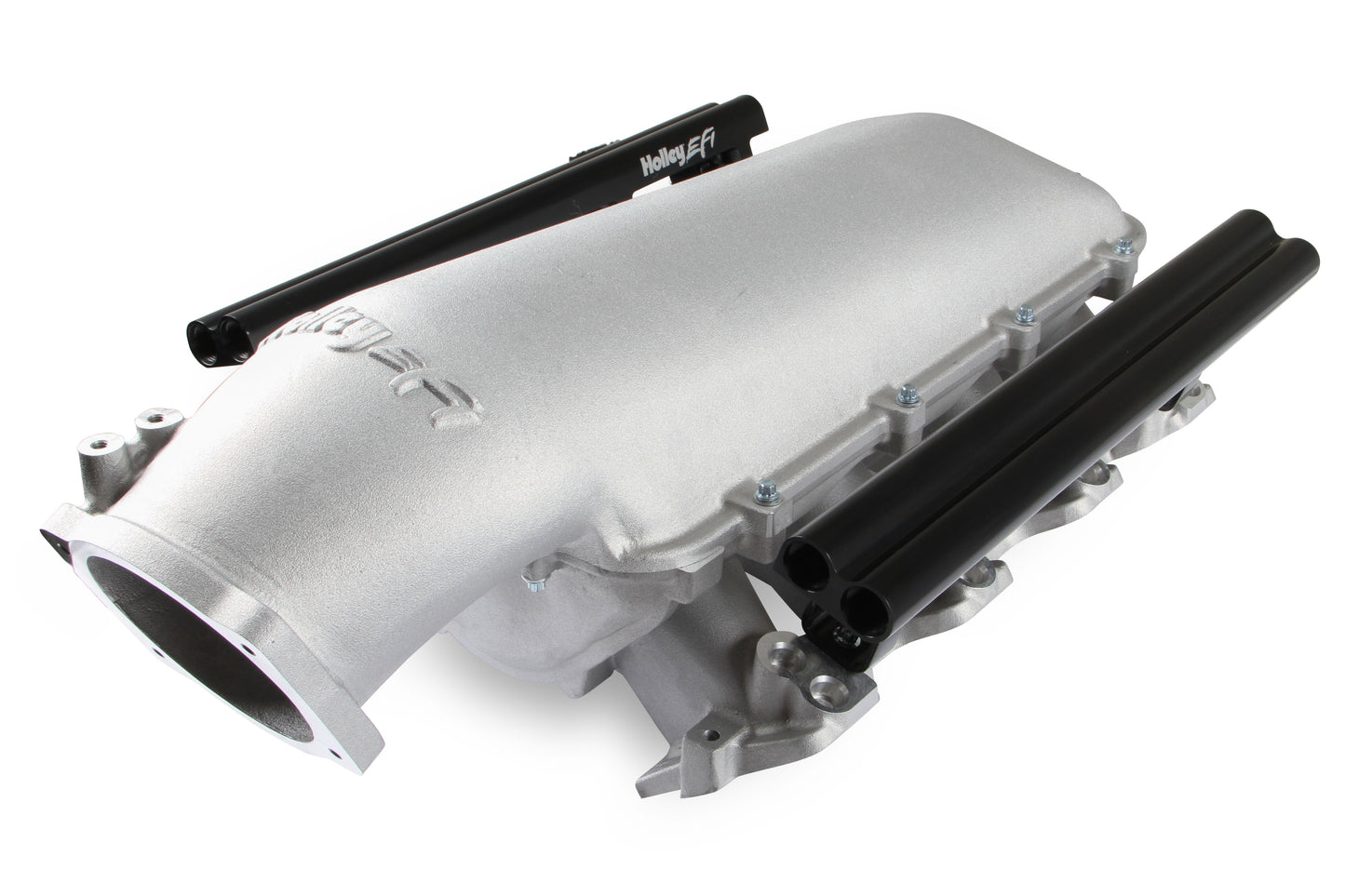

Dual Fuel Injector Lo-Ram EFI Intake Manifold Kit GM LS1/LS2/LS6 - Cast Satin Finish
$1,149.95
300-624
Regular price
$1,149.95
Sale price
$1,149.95
Regular price
$1,293.95
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Sale
Dual Fuel Injector Lo-Ram EFI Intake Manifold Kit GM LS1/LS2/LS6
Burst Panel Flange -Black Finish
Overview
The Holley LS1/2/6 Ultra Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. Plenum top is machined for a standard "large" 6-1/8" x 3-1/8" burst panel. SFI approved burst panels, burst panel frame sets, and gaskets may be purchased from various manufacturers such as Allstar Performance or Specialty Fasteners The Ultra Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications and the 105 mm throttle body part number 112-581 or similar models. The base intake manifold is designed with a lower overall height to fit under a stock or mildly modified hood. The 300-623 Ultra Lo-Ram front-feed plenum entry was configured to provide a very low profile modular intake manifold suitable for turbocharged or centrifugally supercharged engines. The fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors.
Features:
Details:
Links
Instruction Sheet
Burst Panel Flange -Black Finish
Overview
The Holley LS1/2/6 Ultra Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. Plenum top is machined for a standard "large" 6-1/8" x 3-1/8" burst panel. SFI approved burst panels, burst panel frame sets, and gaskets may be purchased from various manufacturers such as Allstar Performance or Specialty Fasteners The Ultra Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications and the 105 mm throttle body part number 112-581 or similar models. The base intake manifold is designed with a lower overall height to fit under a stock or mildly modified hood. The 300-623 Ultra Lo-Ram front-feed plenum entry was configured to provide a very low profile modular intake manifold suitable for turbocharged or centrifugally supercharged engines. The fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors.
Features:
- Designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads
- Provides best performance for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm, depending on the application
- Dual-injector, separate-passage, high-volume fuel rails with mounting hardware, dual-fuel capable, 8 AN o-ring ports
- Low height to aid the packaging of a plenum mounted air-to-water intercooler in a top-feed configuration or to fit under a stock or mildly modified hood in the front-feed configuration
- Available with both as-cast satin and black power-coat finishes
Details:
- Color: Silver
- Construction: Cast
- Engine: GM LS1/LS2/LS6
- Finish: Silver
- Flange Style: EFI
- Front Height: 9.07" without Intercooler
- Fuel System Type: EFI
- Injector Quantity: Dual
- Inlet Location: Top
- Manifold Type: Lo-Ram
- Recommended Use: Forced Induction
- RPM Power Band: 3500-8000 RPM
- Warranty: Limited 90 Day
