Die Cast EFI By Pass Style Fuel Pressure Regulators

Die Cast EFI By Pass Style Fuel Pressure Regulators

Replacement Regulator Kit for EFI Regulators and Sniper EFI throttle bodies.

Overview
A 175 GPH 10 Micron filter and a regulator preset at 59.5 psi. Replacement Regulator for: Filter Regulators: 12-875, 12-876, 12-888, 12-889, 30-201QFT Sniper's: 4150, 2300, BBD, 2GC, Autolite 1100 and Muscle Car Modules

Features:

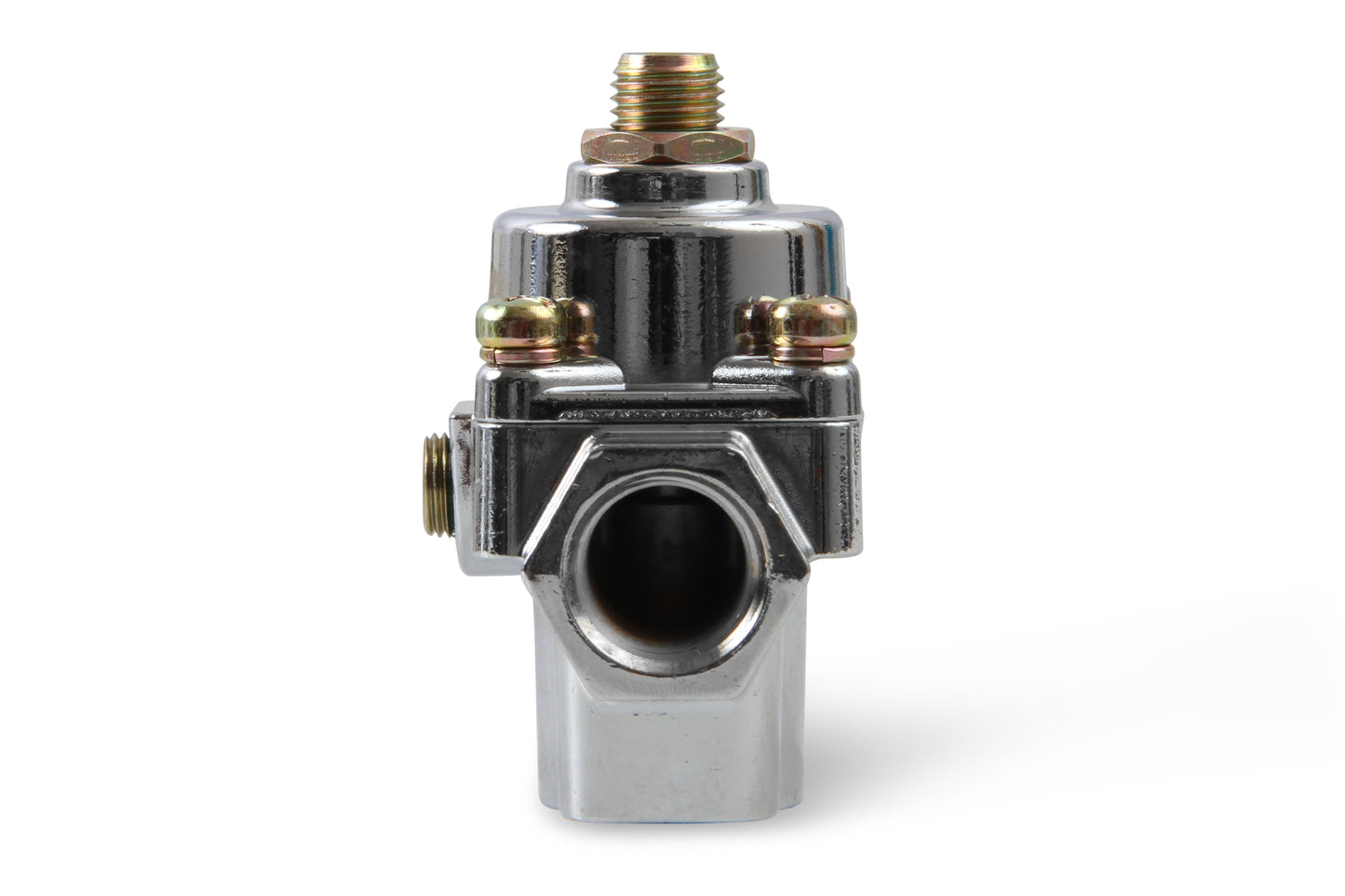

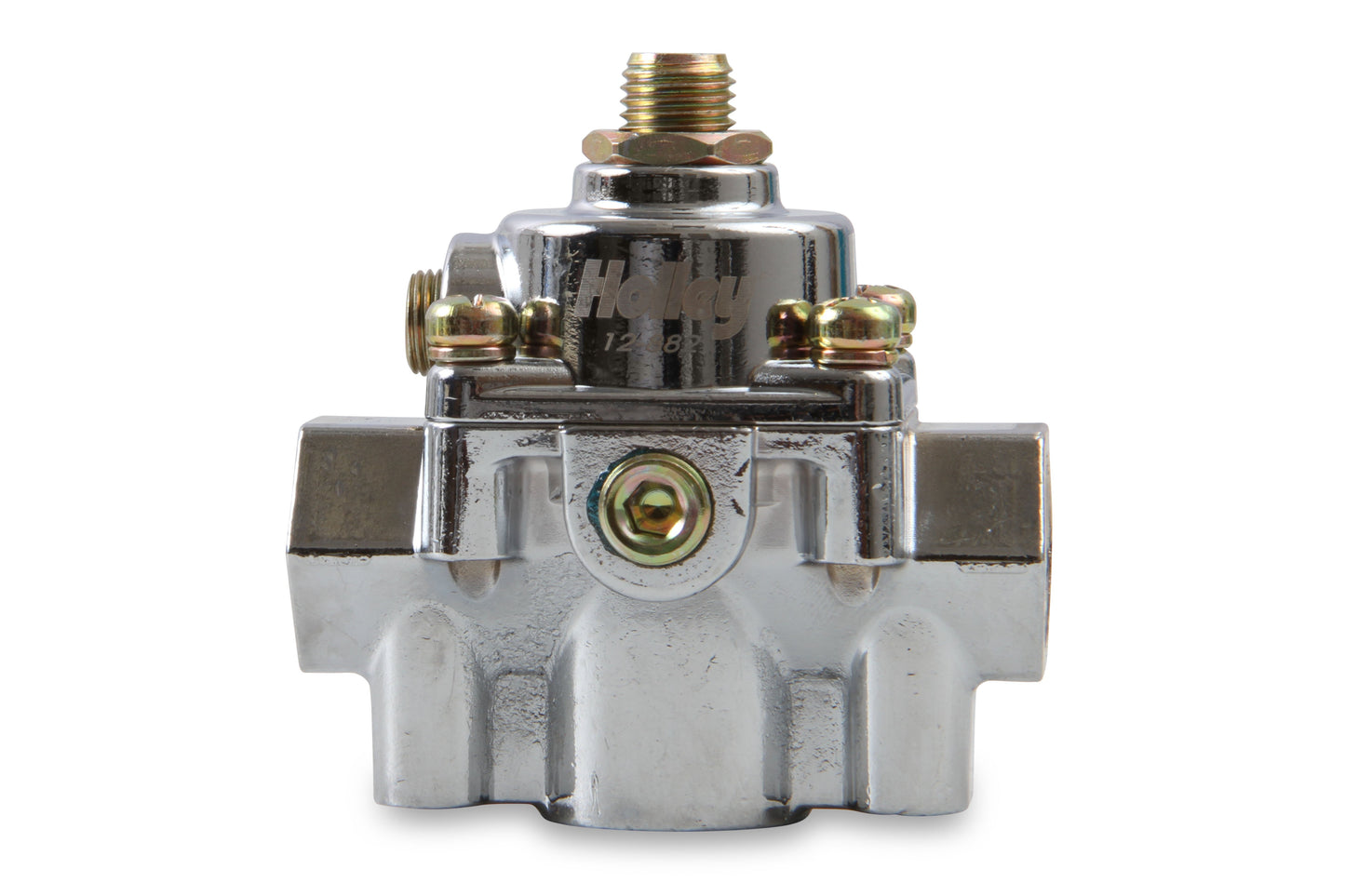

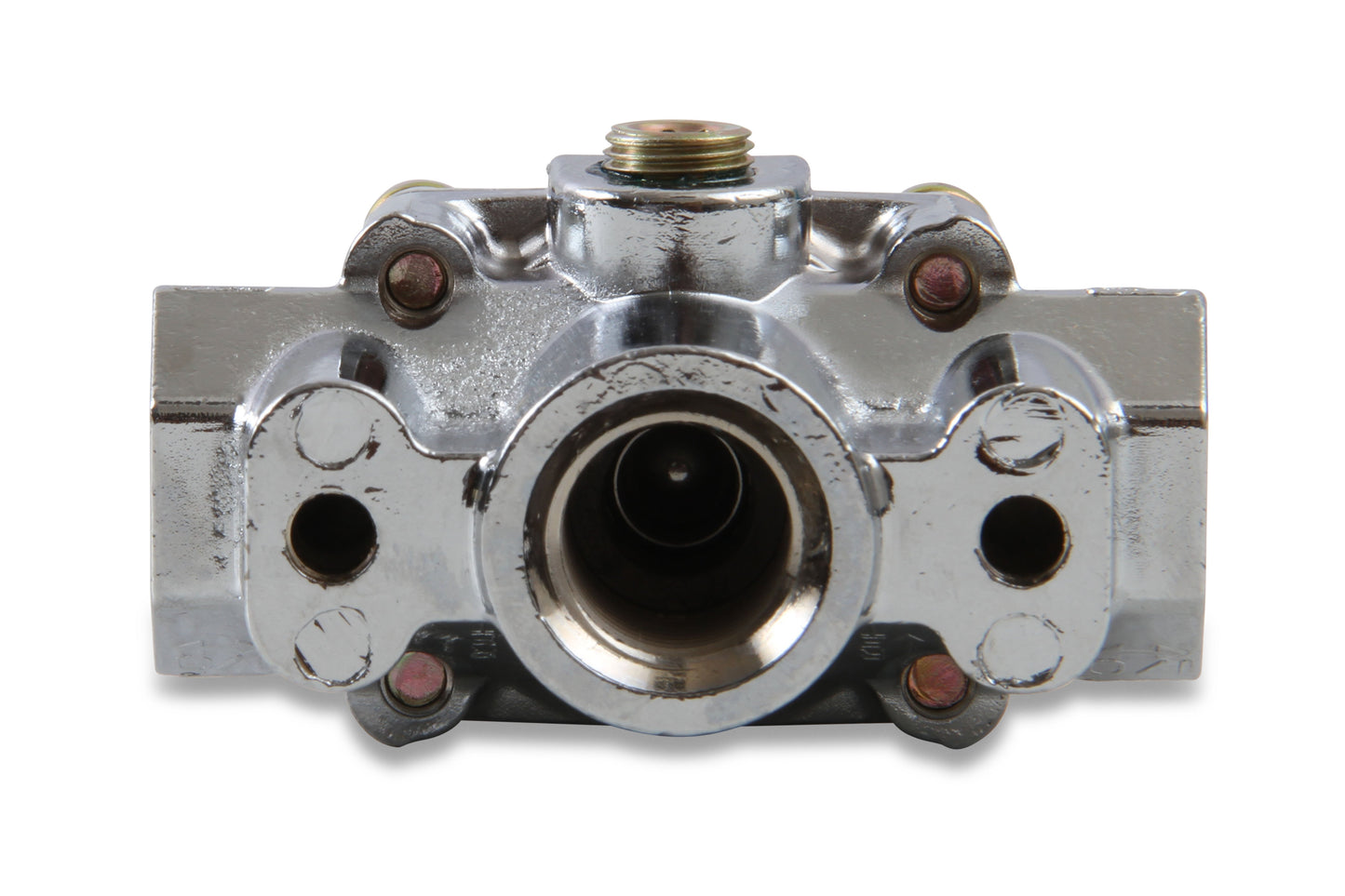

• Die Cast aluminum construction
• 3/8??? NPT Inlet, Outlet, and Return ports
• 1/8??? NPT Gauge Port
• 1/8" NPT Boost Reference ???? 1:1

Details:

• Color: Chrome
• Fuel System: EFI
• Fuel Type: Gasoline
• Inlet Size: 3/8 inch NPT
• Material: Aluminum
• Outlet Size: 3/8 inch NPT
• Pressure Range: 15-60 PSI
• Return Size: 3/8 inch NPT
• Style: Bypass
• Warranty: Limited 90 Day

Links
Instruction Sheet
