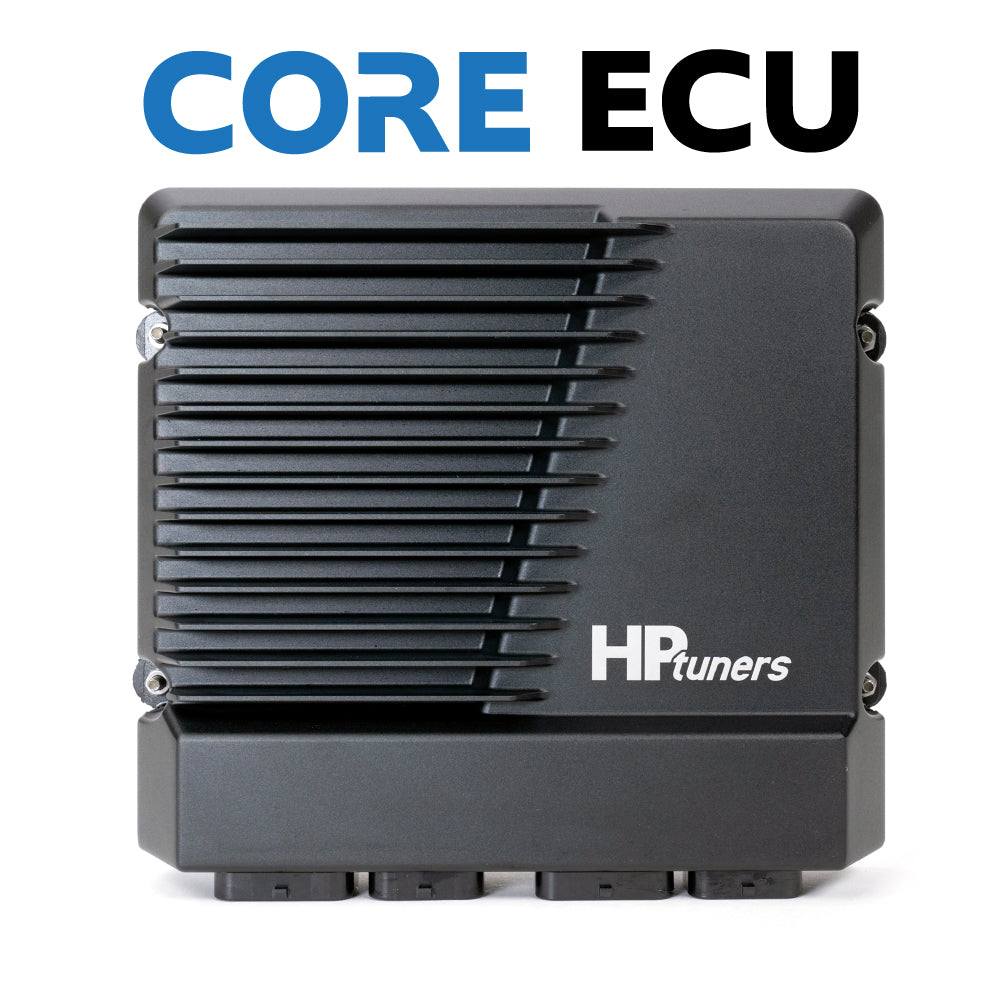

Core ECU

Take complete control of your engine. The CORE ECU is HP Tuners' first standalone engine computer, built for enthusiasts and professionals who want real-time tuning, 16-injector support and full data logging. Whether you're building a drag car, road racer, drift car or restomod, CORE is made to deliver precision, power and reliability.

Key features

• Supports up to 16 injectors and 8 coil packs
• Sequential fuel injection
• Optional flex fuel integration
• Dual throttle body capability
• Built-in dual wideband controller for accurate air-fuel monitoring
• Real-time tuning with VCM Live software
• Data logging of up to 150 channels at 1 kHz
• Advanced boost, nitrous and launch control
• CAN bus support for external devices
• Motorsports-grade construction

Current engine support

• Gen III LS engines (drive-by-cable)
• Gen IV LS engines (drive-by-wire)
• More engine support is on the way

Harness options

Choose the ECU on its own or pair it with a harness above. Each harness is built for simple, durable connections to your sensors and triggers.

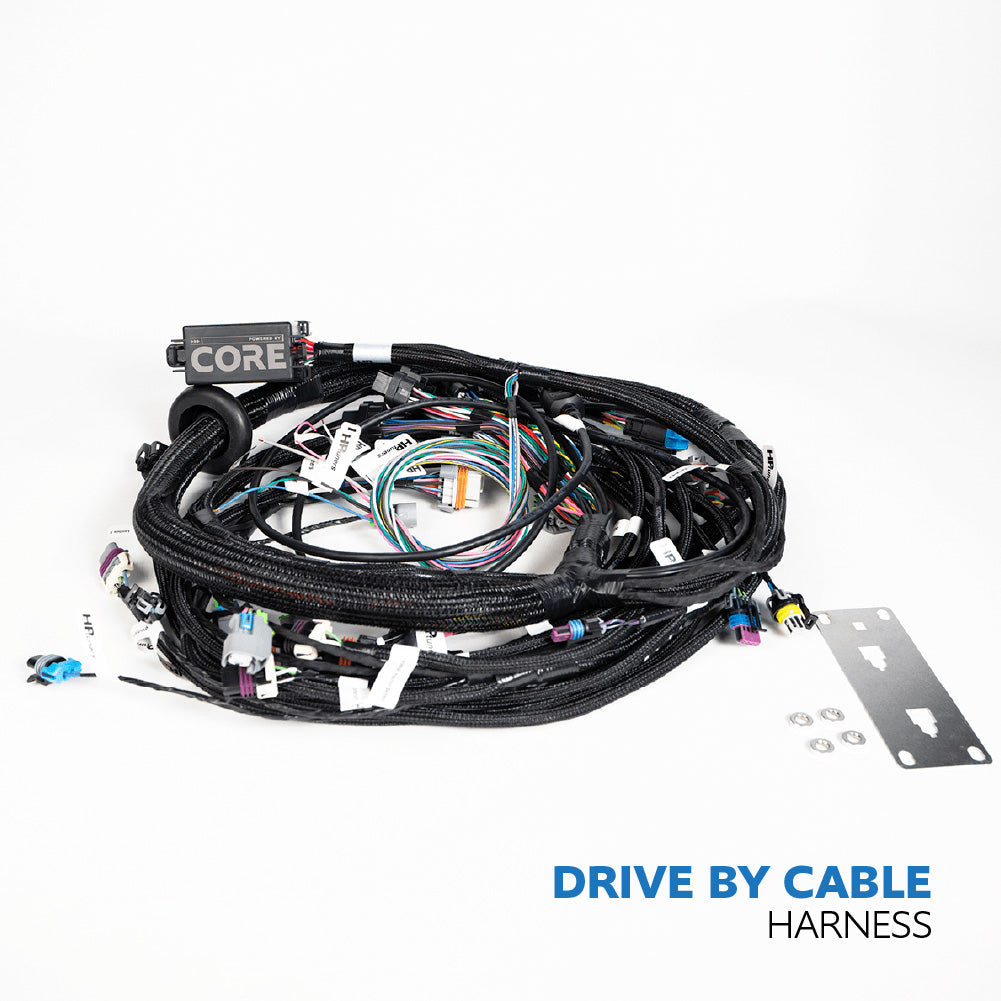

CORE GEN3 DBC Harness: for early (Gen III) LS engines with a cable-driven throttle.

• Drive-by-cable throttle body applications
• Cam sensor at the rear of the engine; knock sensors routed to the engine valley
• Dual Bosch LSU 4.9 wideband sensor connectors
• MAP sensor can be routed to the front or rear of the engine
• 20-pin input/output expansion connector for the sub-harnesses below
• EV6 injector connectors (EV6-to-EV1 adapters sold separately)

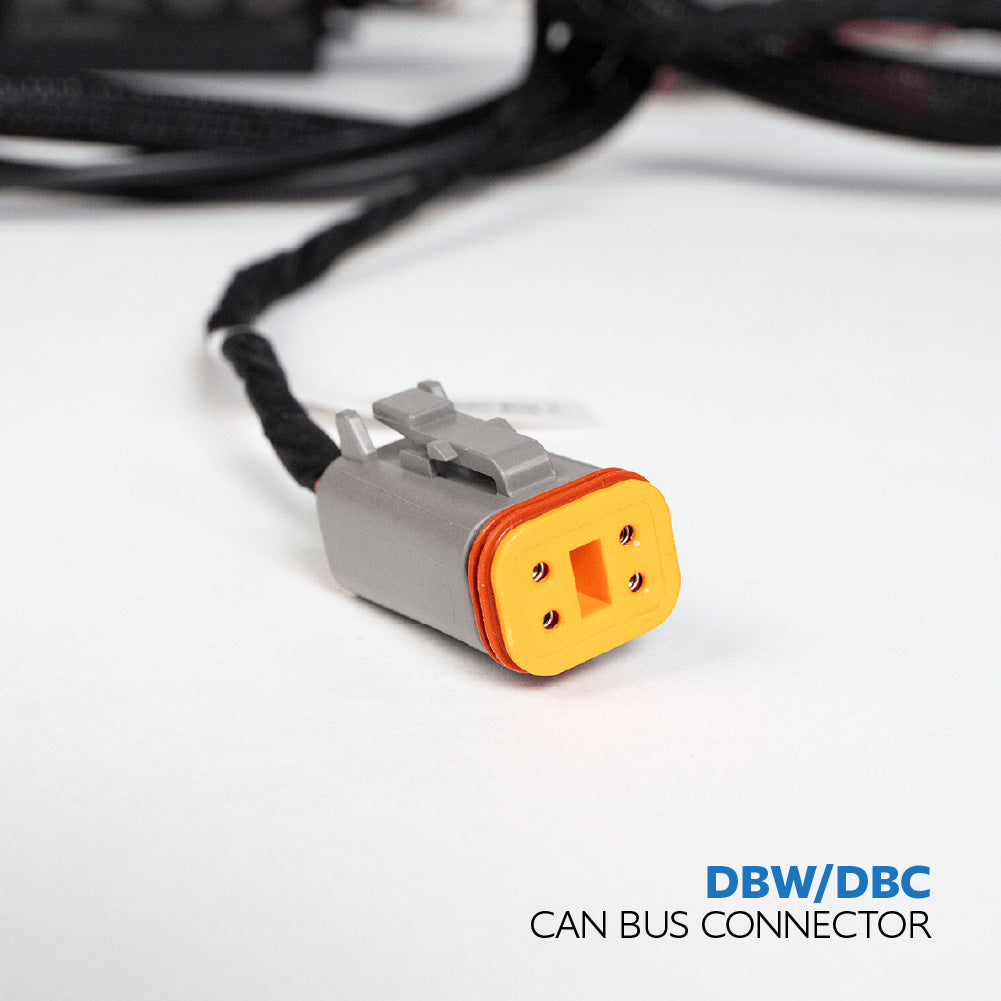

• Pre-terminated CAN connectors
• Can be paired with the optional GM transmission harness

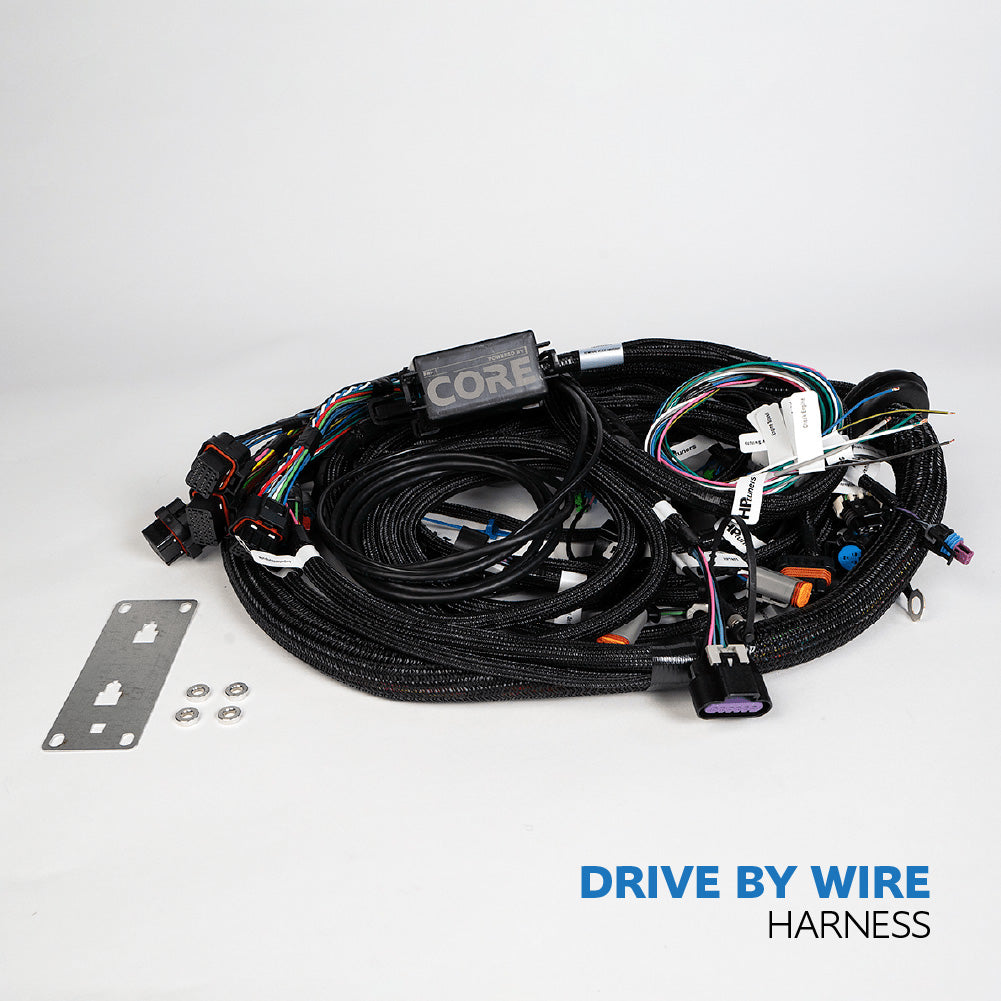

CORE GEN4 DBW Harness: for late (Gen IV) LS engines with drive-by-wire.

• Drive-by-wire throttle body applications
• Cam sensor at the front of the engine; knock sensors on the side of the block
• Dual Bosch LSU 4.9 wideband sensor connectors
• MAP sensor can be routed to the front or rear of the engine
• 20-pin input/output expansion connector for the sub-harnesses below
• EV6 injector connectors (EV6-to-EV1 adapters sold separately)
• Pre-terminated CAN connectors
• Can be paired with the optional GM transmission harness

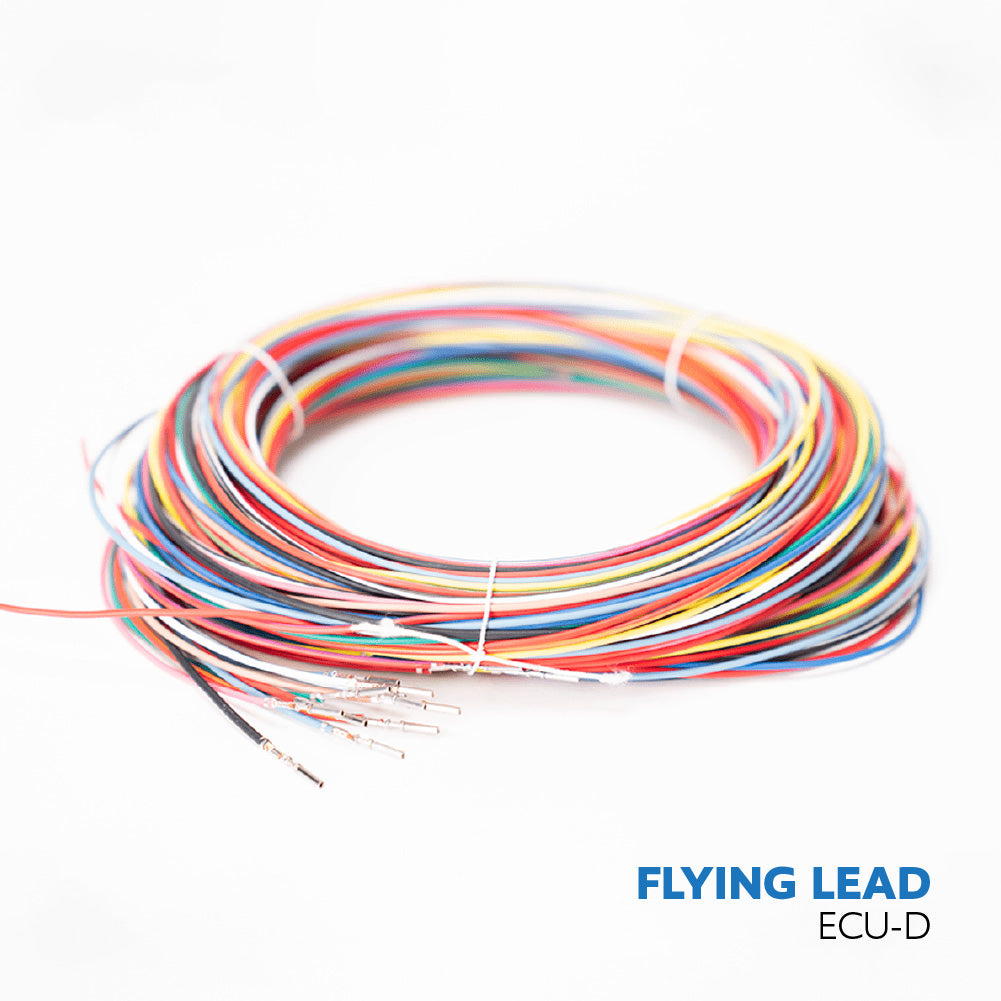

CORE 15' Flying Lead Harness: for builders who want a fully custom harness.

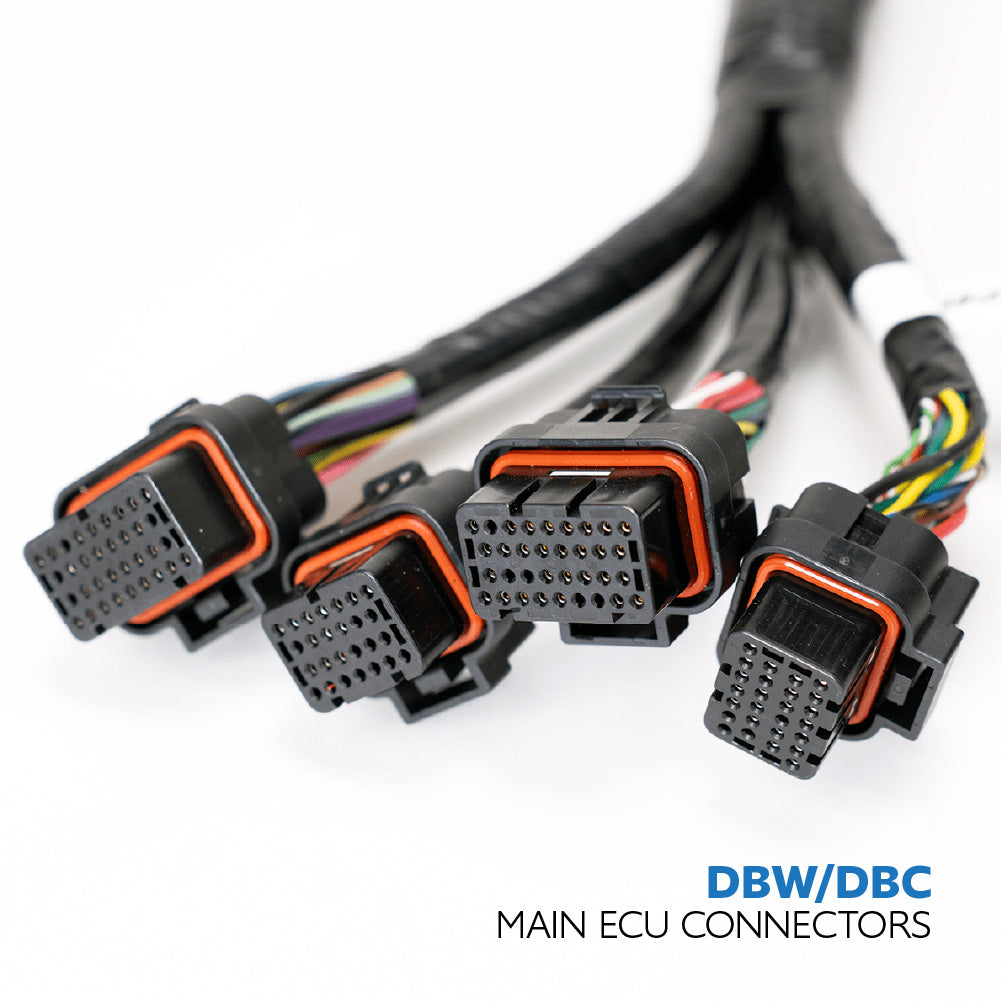

• Four AMP ECU connectors with cavity plugs
• Color-coded wiring in 15-foot lengths
• Instructions with connector diagrams, written for experienced users

Note: tech support is limited on flying-lead applications. It is the customer's responsibility to follow good wiring practice, and flying-lead harnesses are sold as-is.

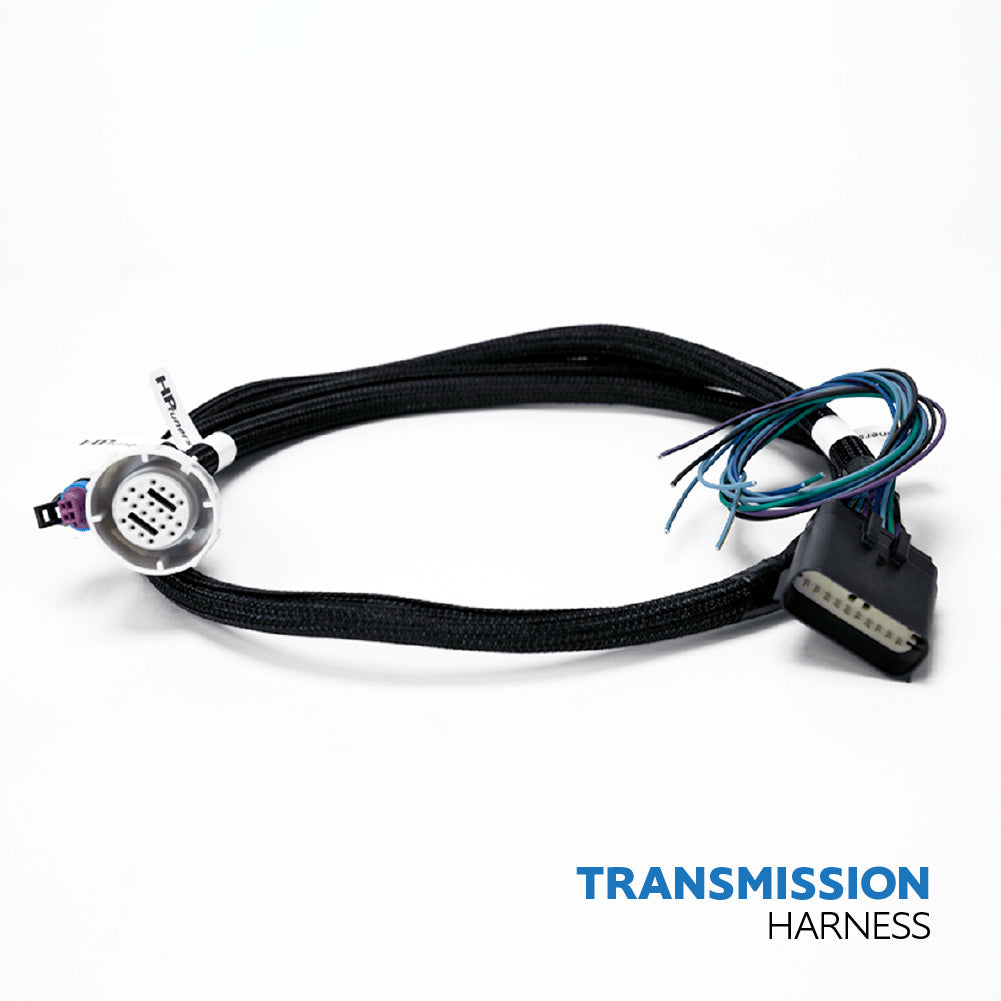

CORE Transmission Control and I/O Harness: a single plug-and-play harness for GM 4L60E and 4L80E transmissions. No wiring changes or pin relocation needed.

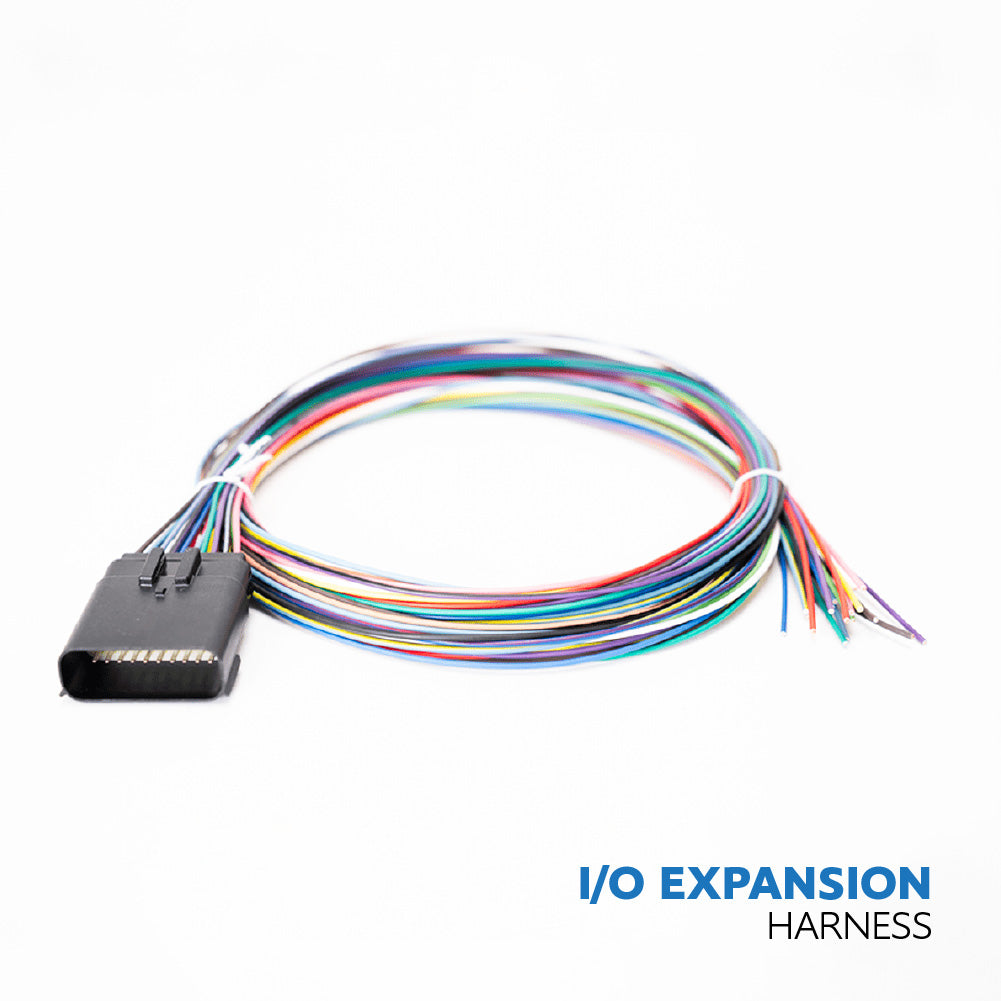

CORE I/O Harness: a flying-lead harness for adding extra inputs and outputs, such as additional sensors, cooling fans and electric pumps.

Guides, software and help

Read our CORE ECU installation guide for mounting, wiring, pin assignments, sensor part numbers and first start-up. VCM Live software is a free download from HP Tuners.

Registration

HP Tuners requires every CORE ECU to be registered, with the vehicle application identified, before installation and use.
