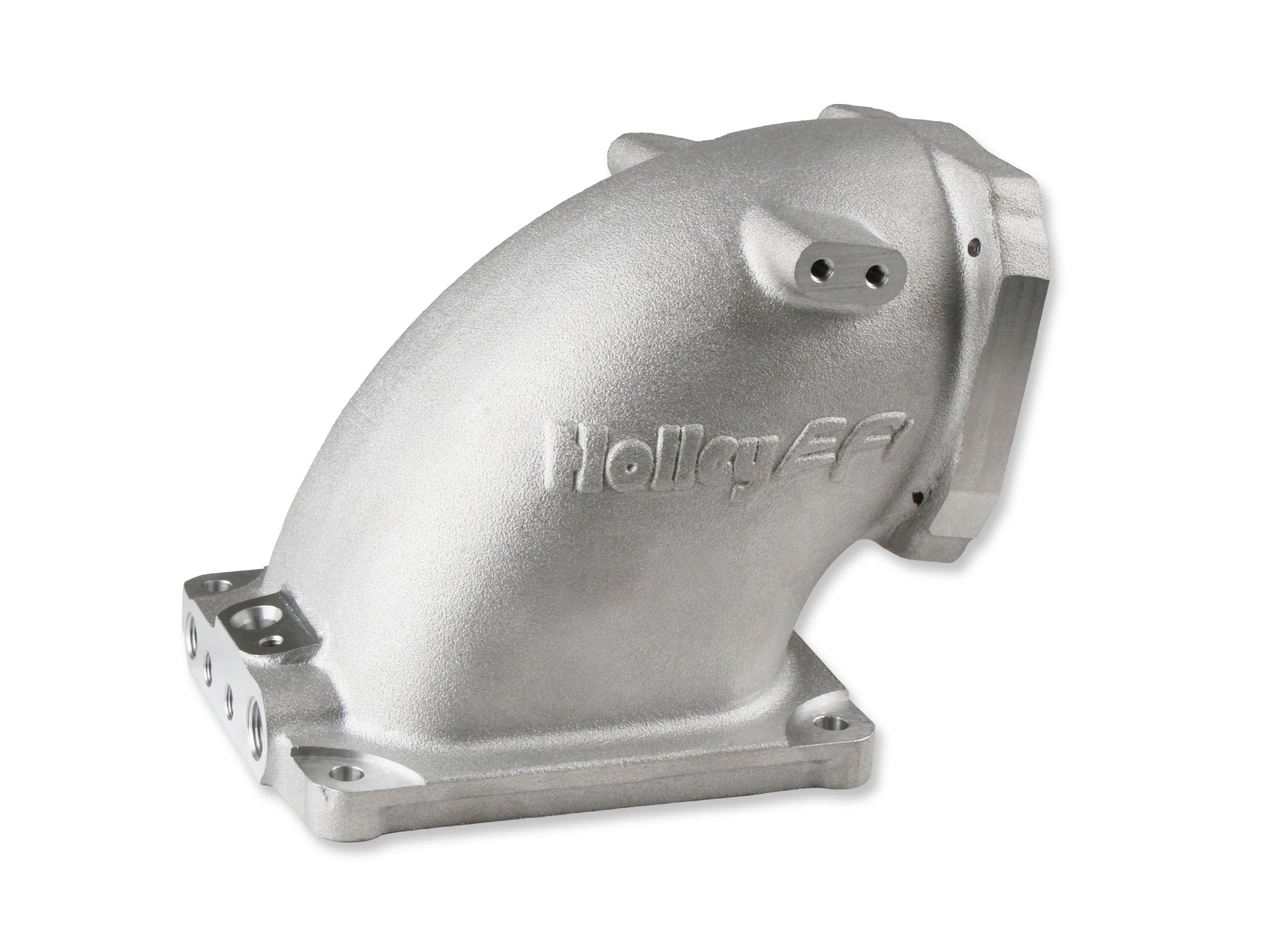

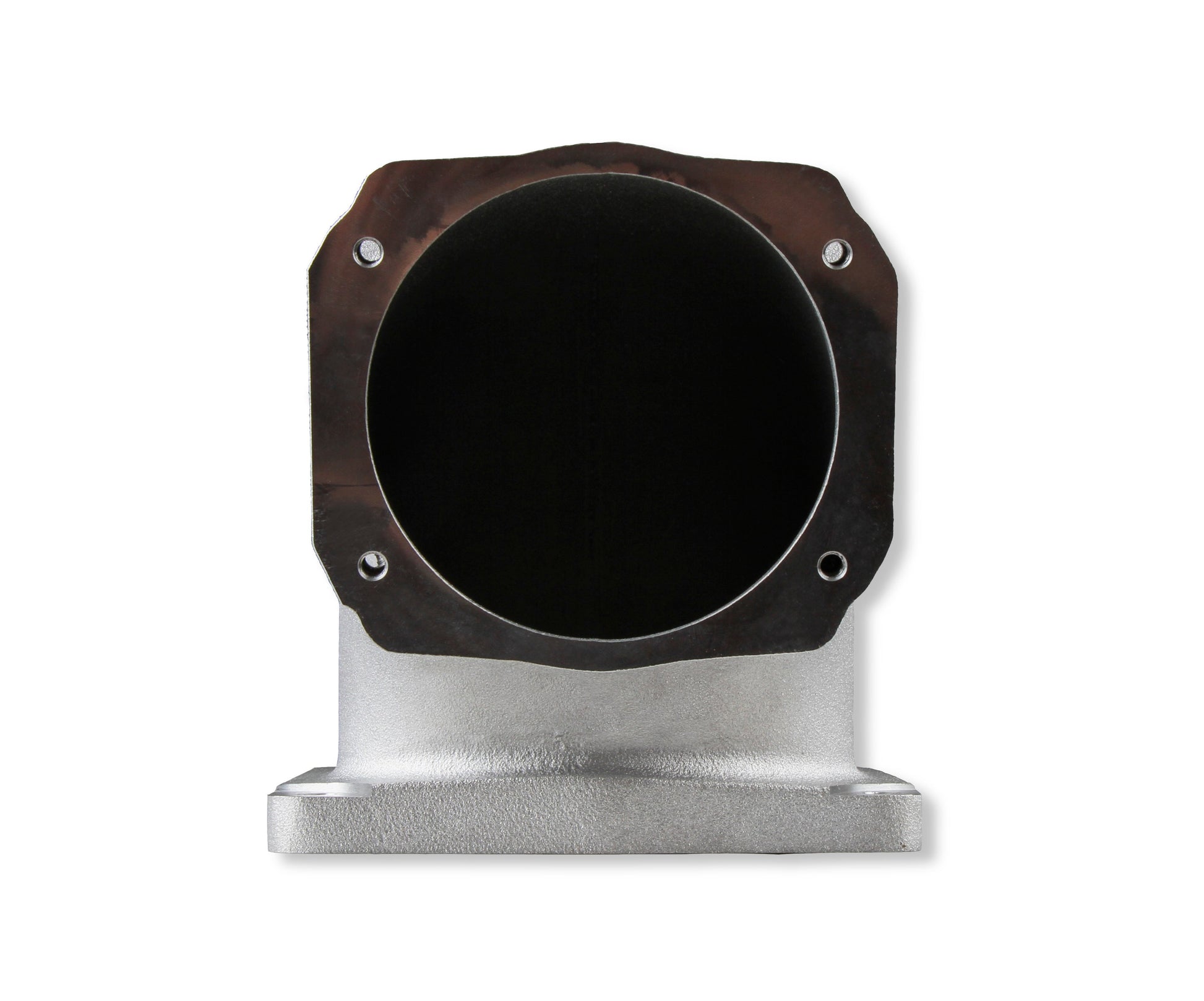

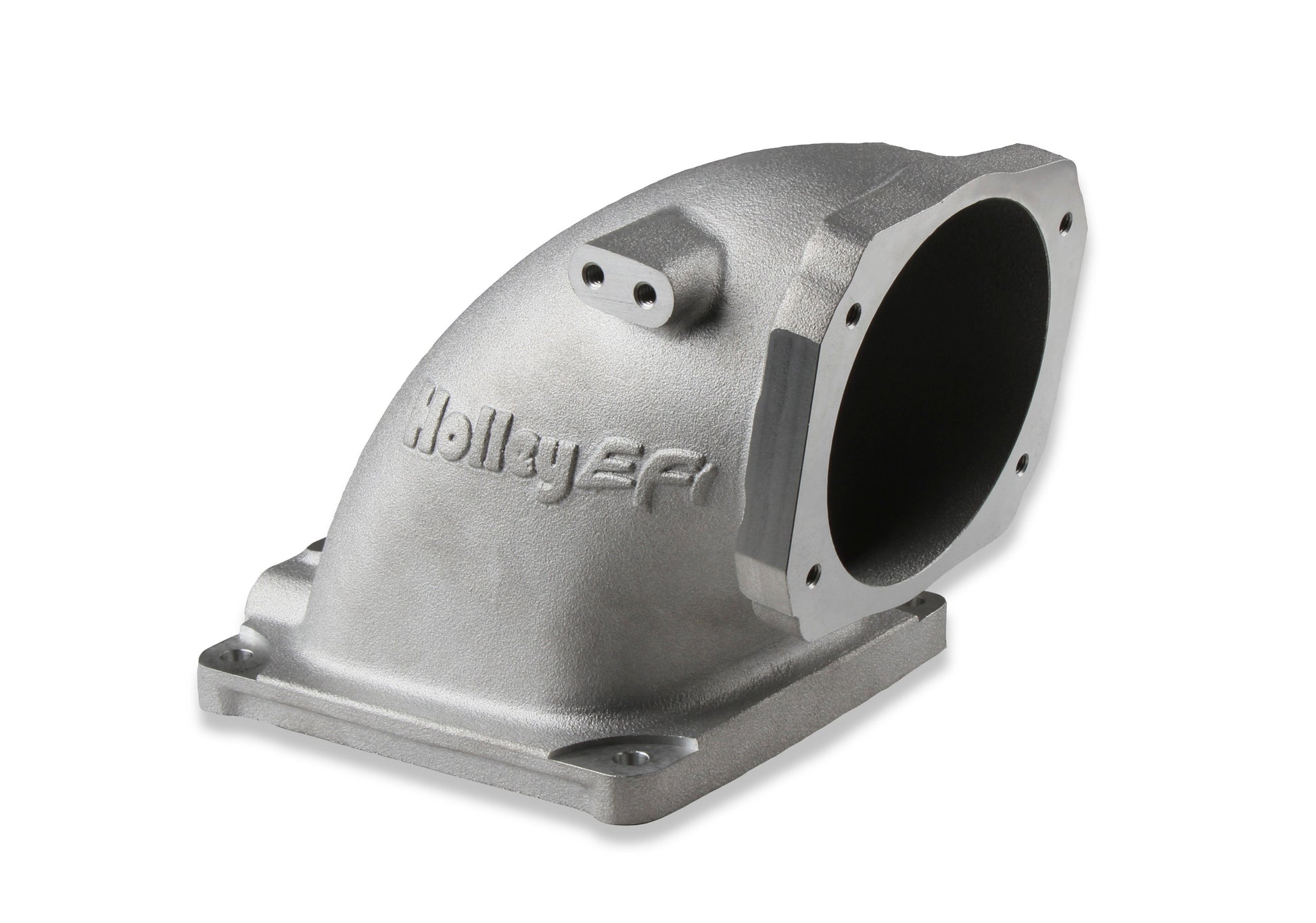

Cast Aluminum 4500 EFI Throttle Body Intake Elbow-LS

Cast Aluminum 4500 EFI Throttle Body Intake Elbow-LS

Stud Kit, 351W Hi-Ram Intake Manifold Mounting

Overview
Stud Kit, 351W Hi-Ram Intake Manifold Mounting

Features:

• Fits GM LS Throttle Bodies

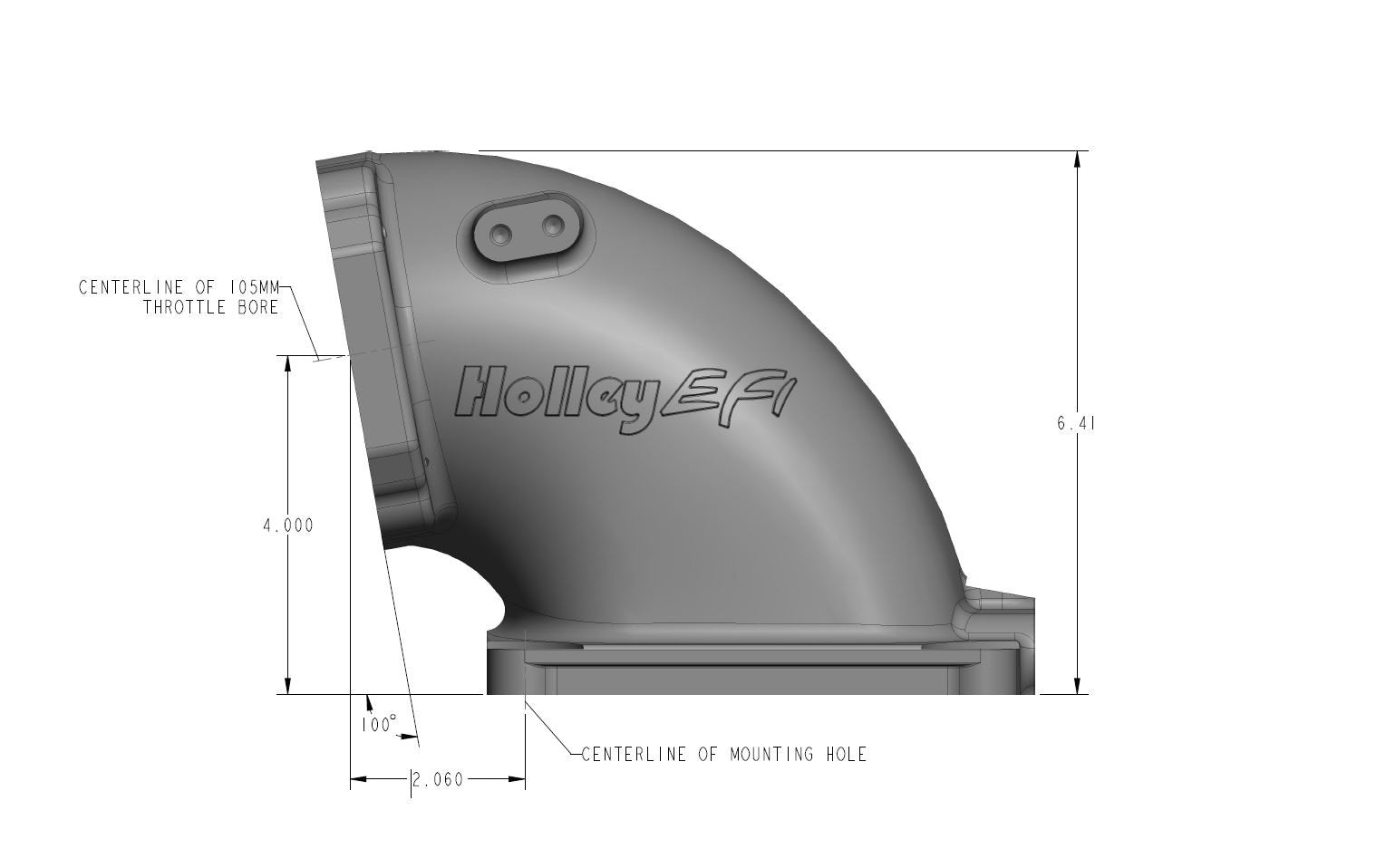

• 105mm Throttle Body Opening - 100 Mounting Angle

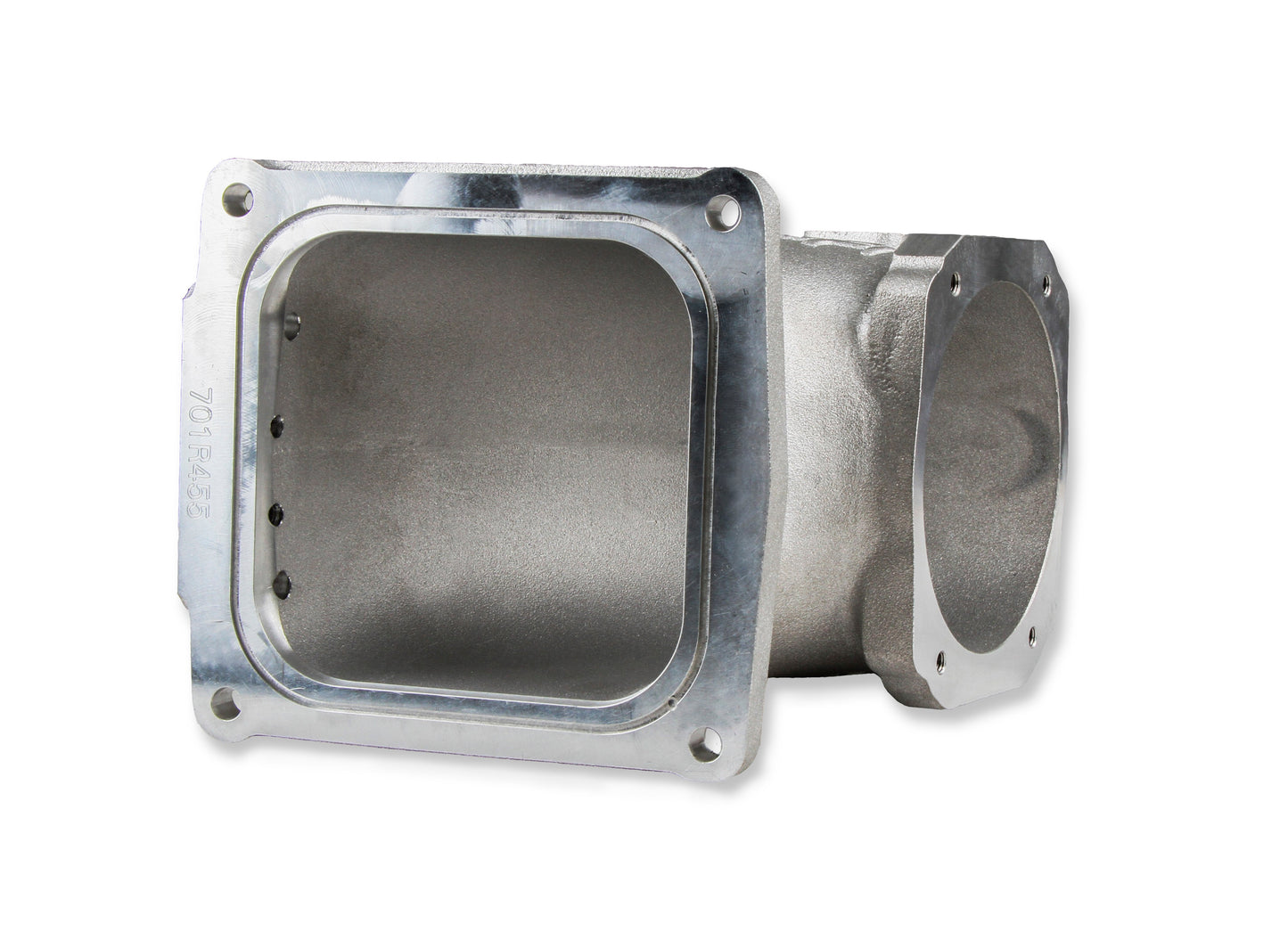

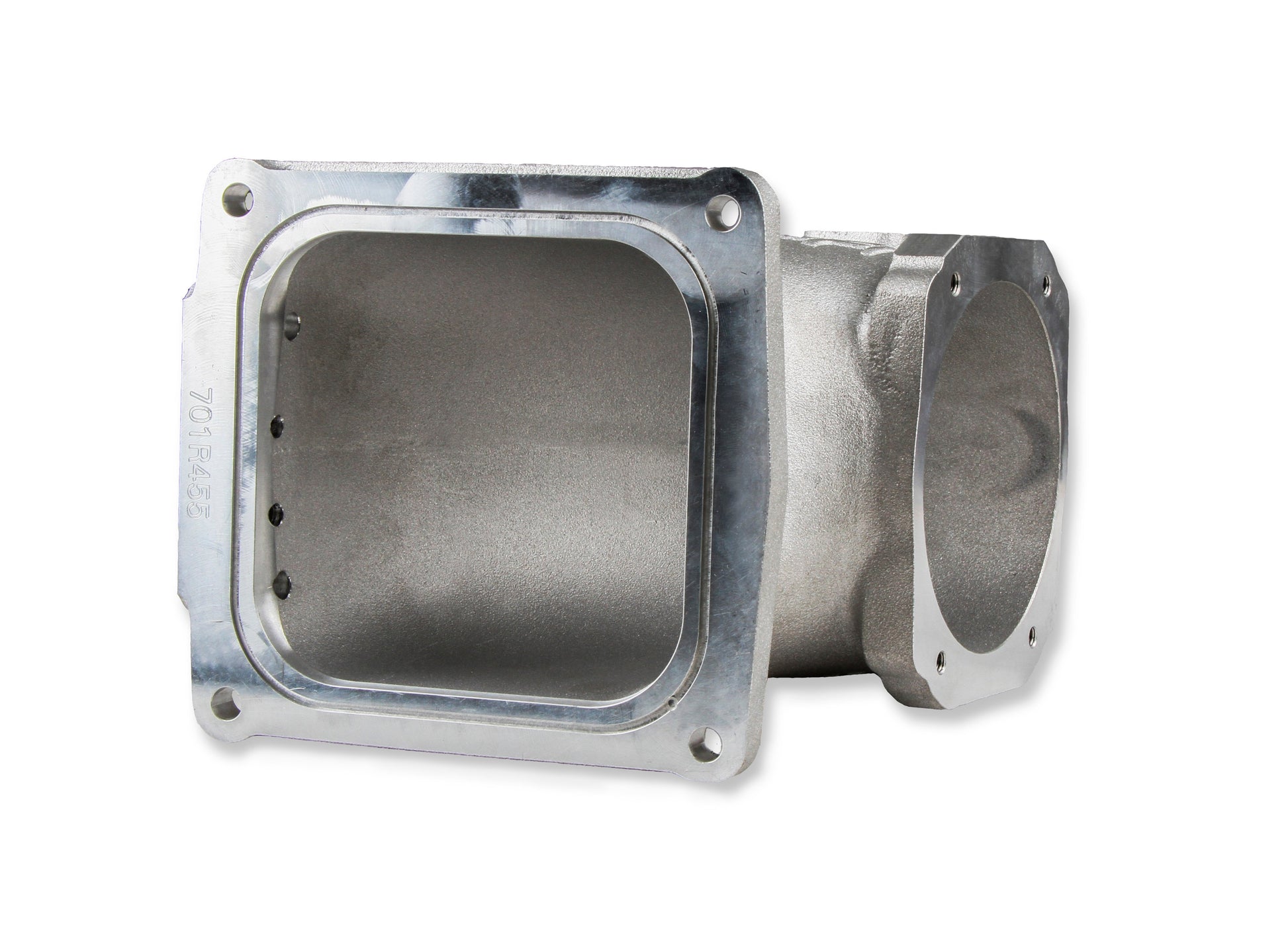

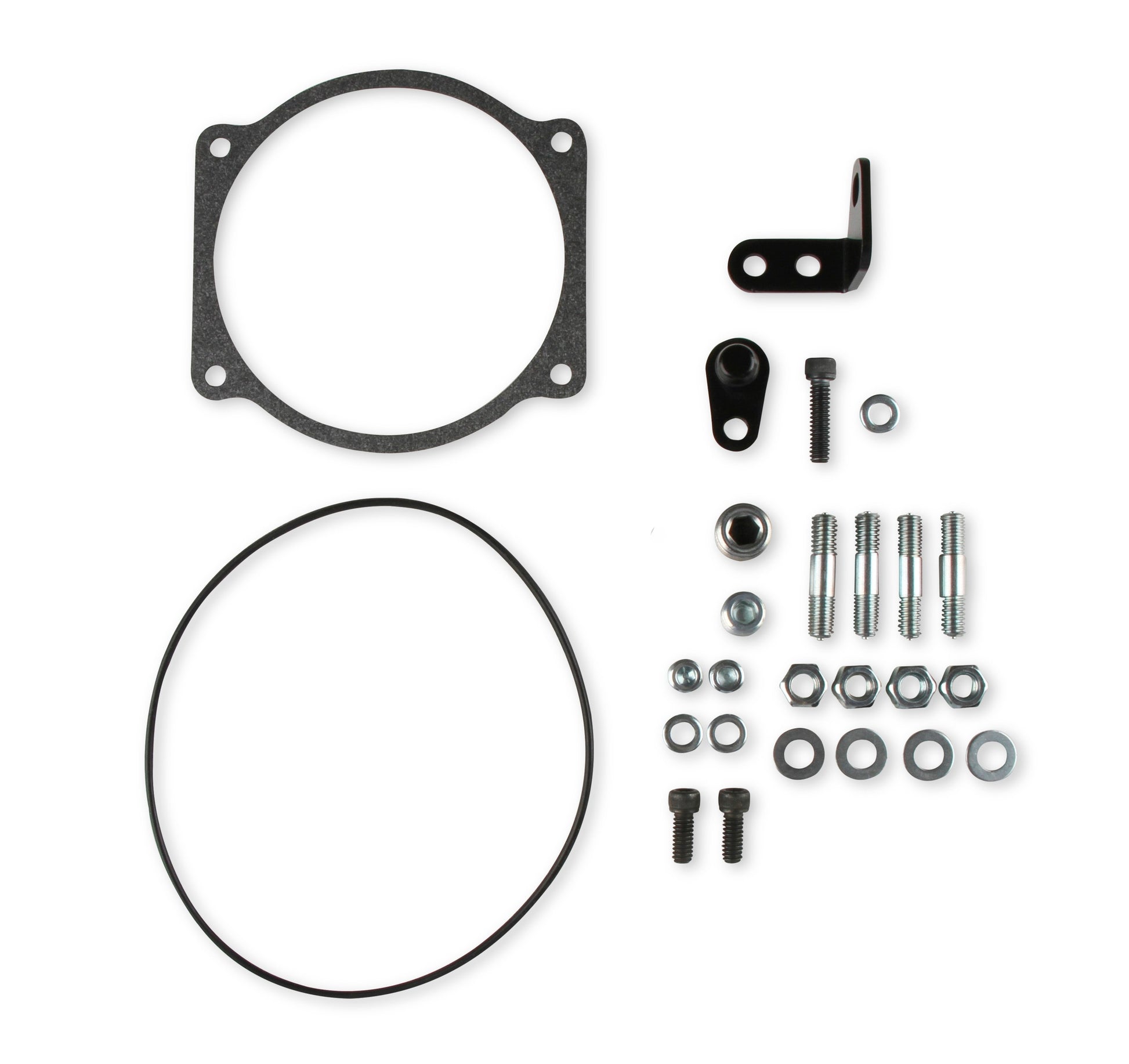

• Fits Intakes w/ 4500 Flange- designed to use the included o-ring for sealing
• The 4500 square flange pattern allows Forward, Sideways or Rearward Throttle Body Mounting
• LS3 Style MAP Sensor Mounting

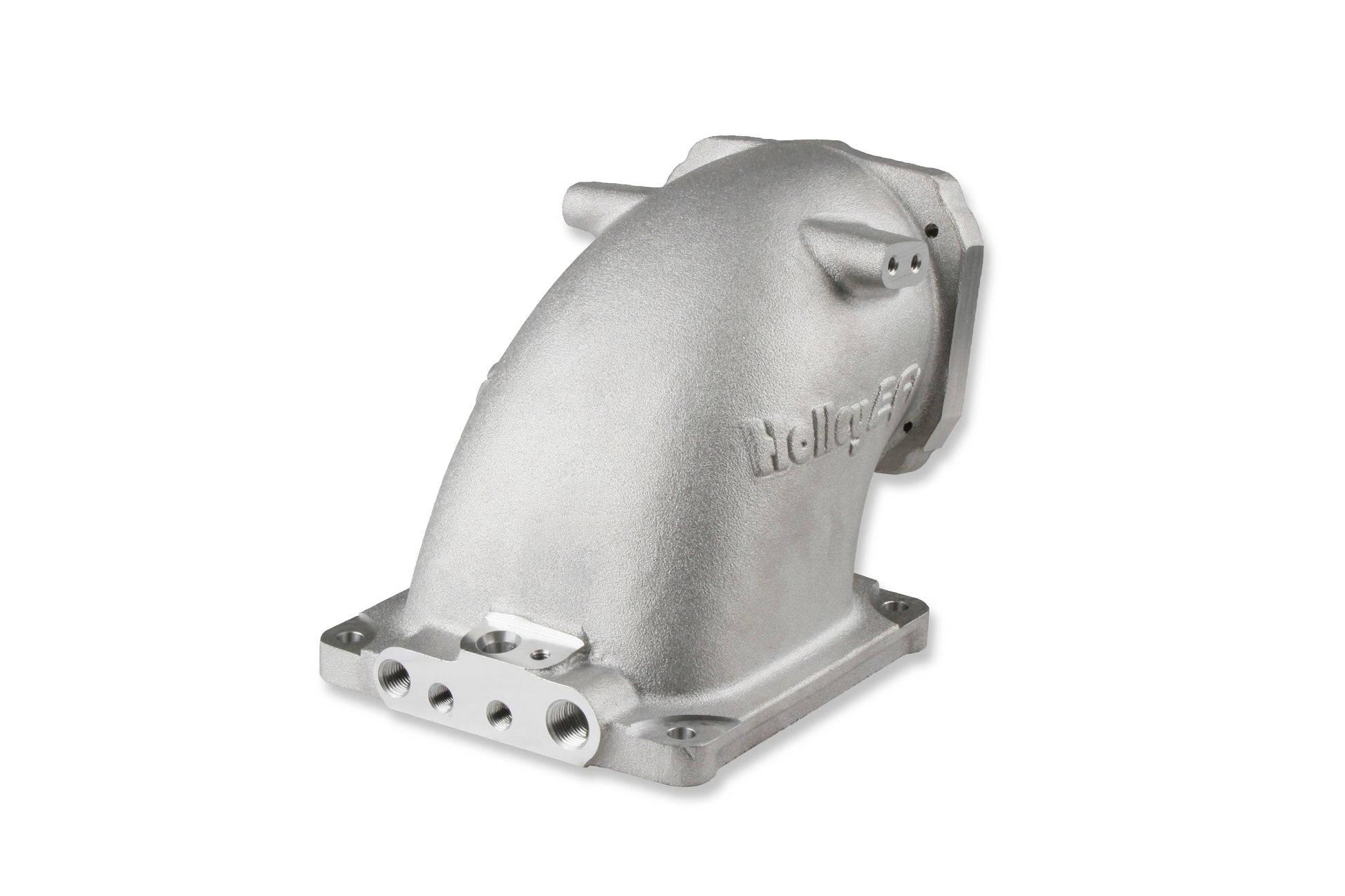

• (4) Vacuum Ports ???? (1) Each 1/4??? NPT 3/8??? NPT (2) 1/8??? NPT

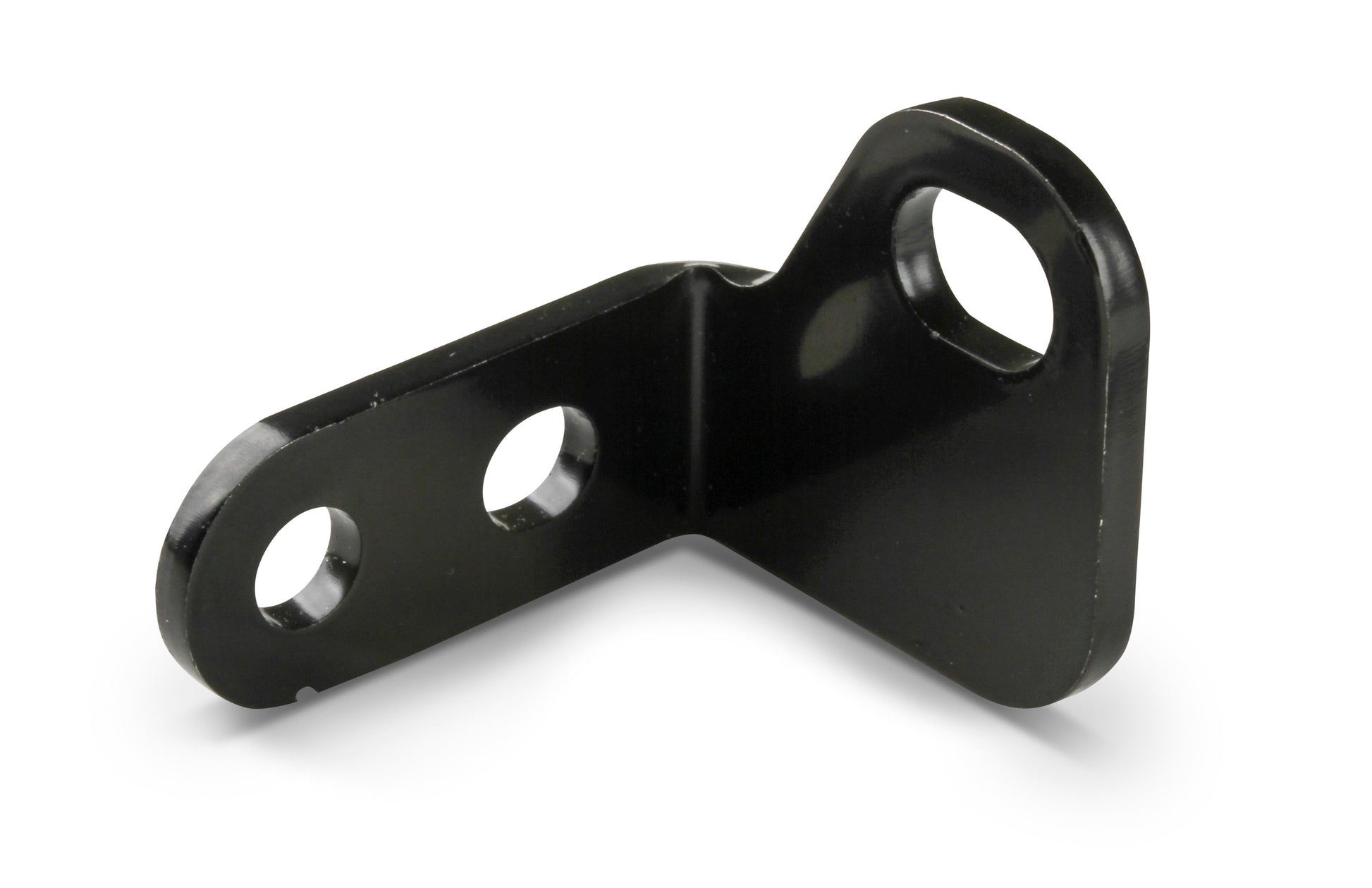

• (2) Throttle Linkage Mounting Bosses
• Cast aluminum finish

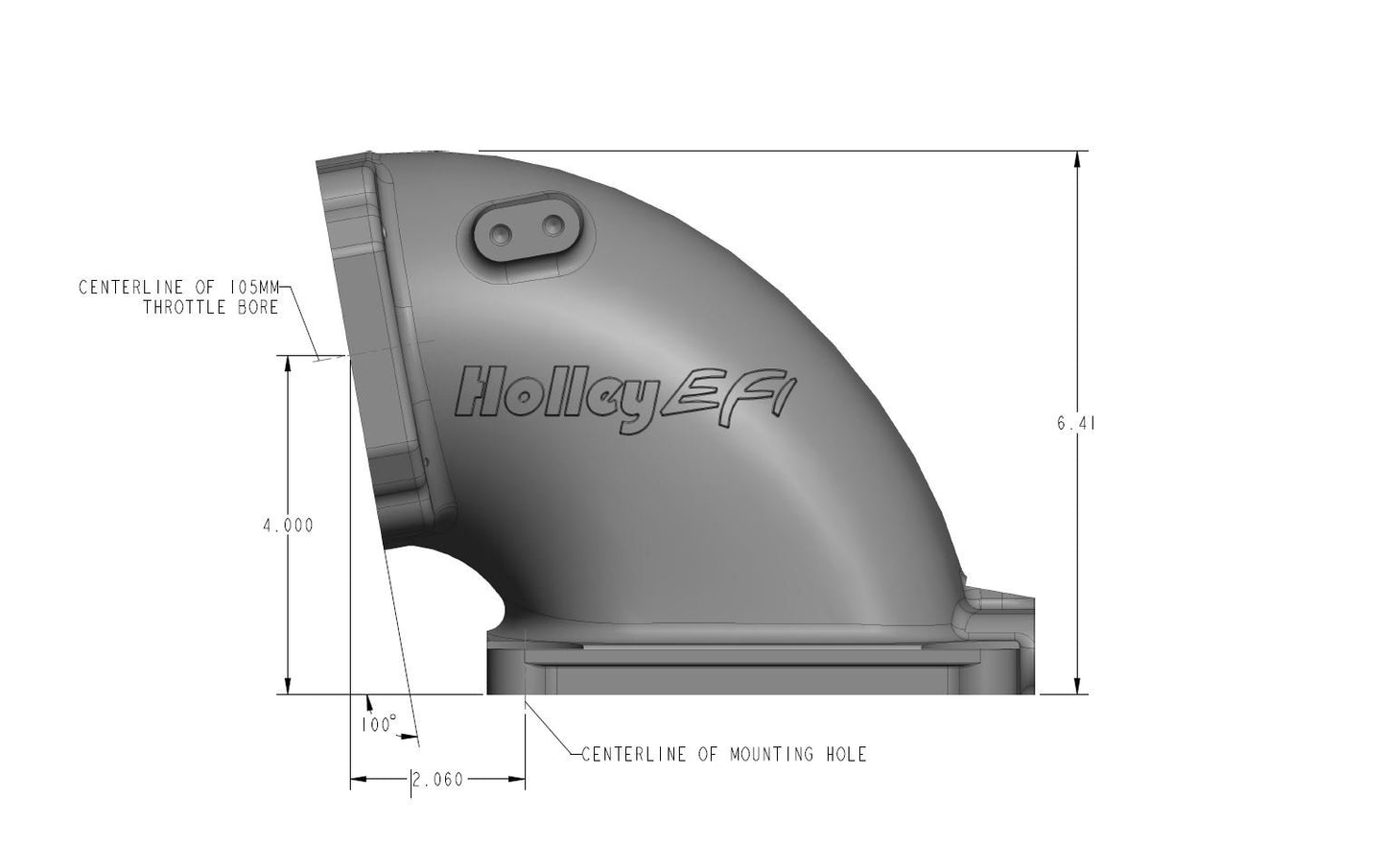

• Overall Height 6.4???

Details:

• Color: Silver
• Construction: Cast
• Engine: GM LS1/LS2/LS6
• Finish: Silver
• Fuel System Type: EFI
• Material: Cast Aluminum
• Throttle Bore: 105mm
• Warranty: Limited 90 Day

Links
Instruction Sheet
