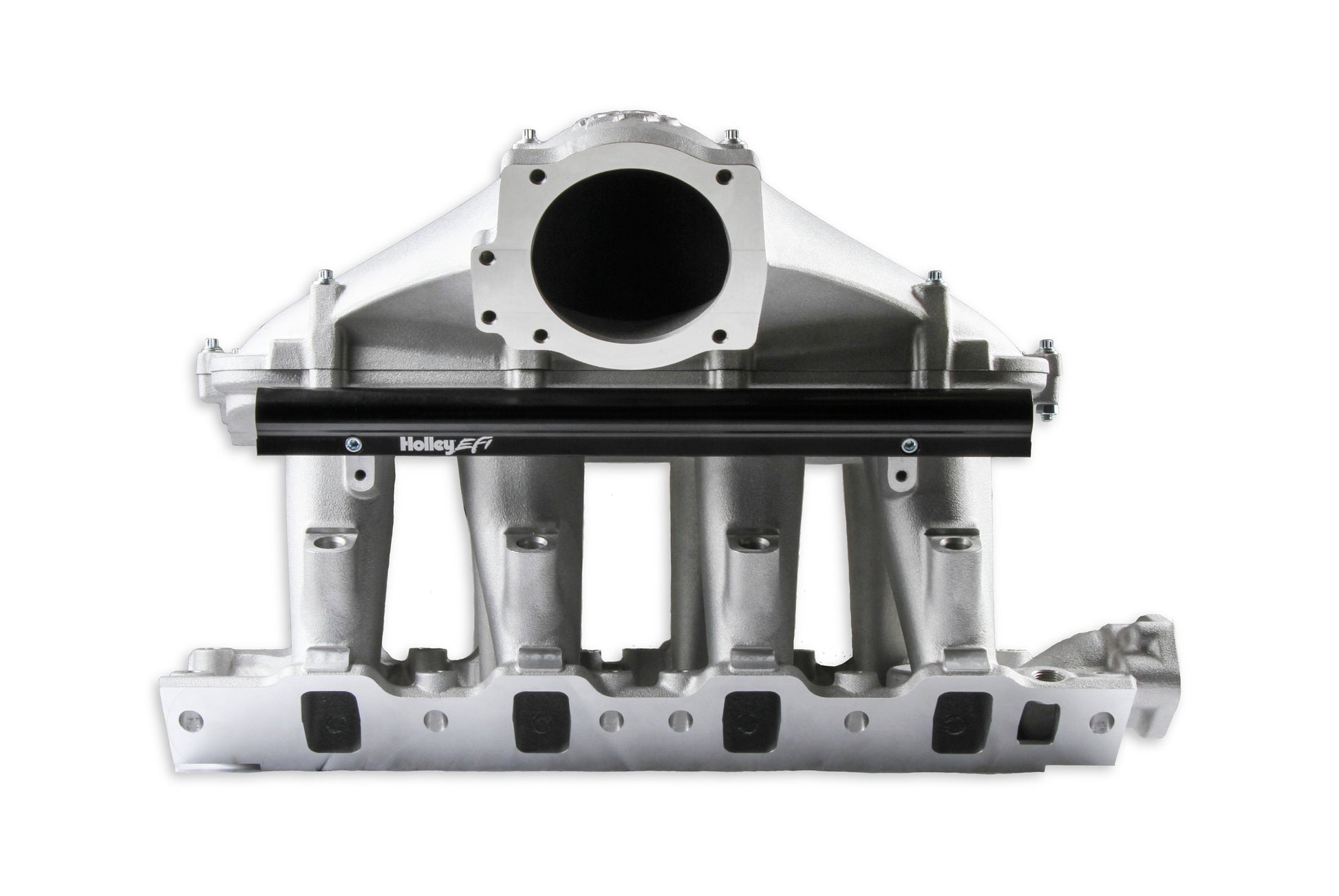

8.2" SBF Ford Hi-Ram Intake Manifold with 95mm 1986-95 Ford 5.0 Throttle Body Flange Side Mount Top.
$1,249.95
300-306
Regular price
$1,249.95
Sale price
$1,249.95
Regular price
$1,406.95
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Sale
8.2" SBF Ford Hi-Ram EFI Manifold with Side Mount Top
Cast Finish- Ford 86-95 5.0L Style throttle body patterns
Overview

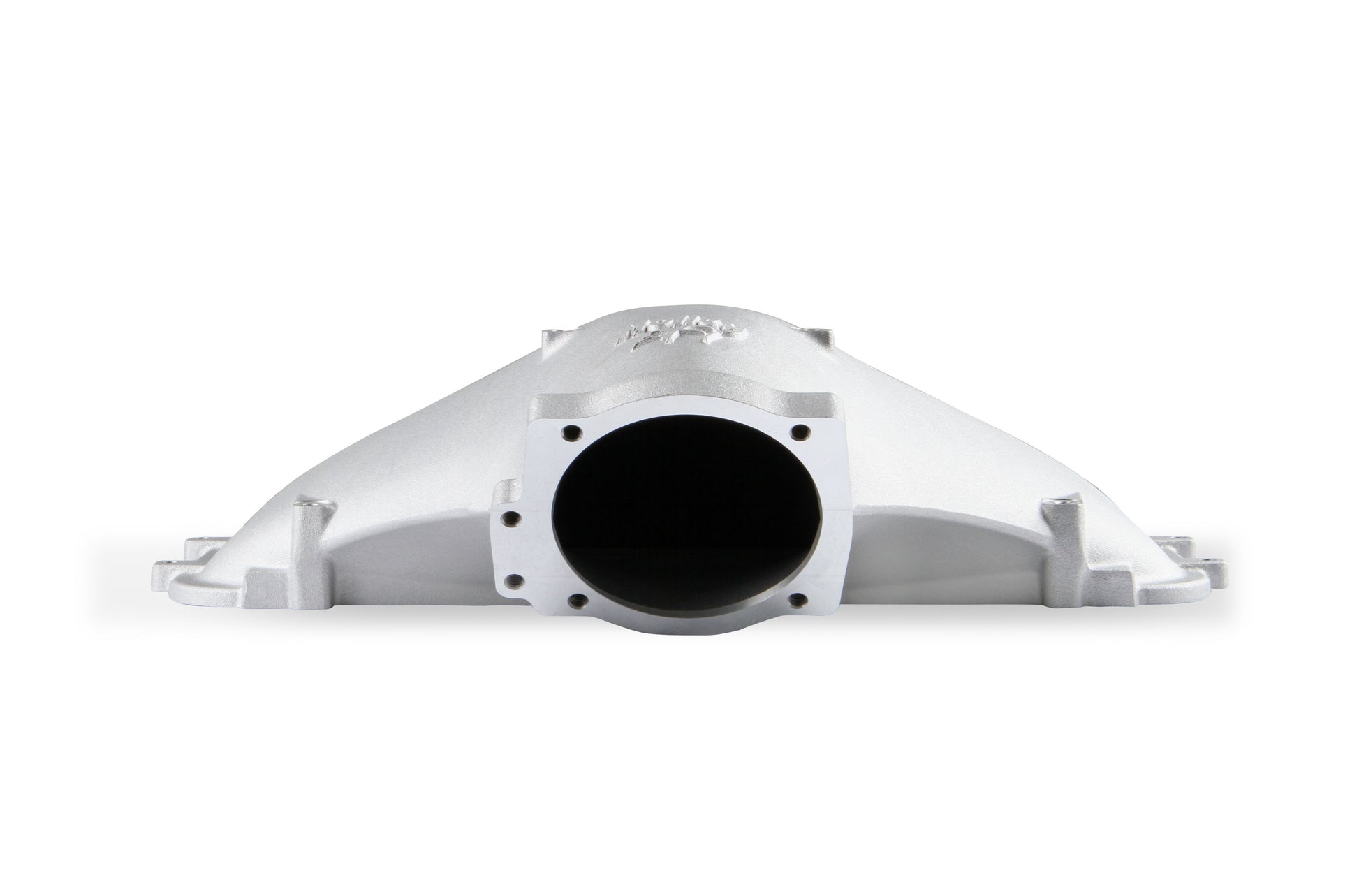

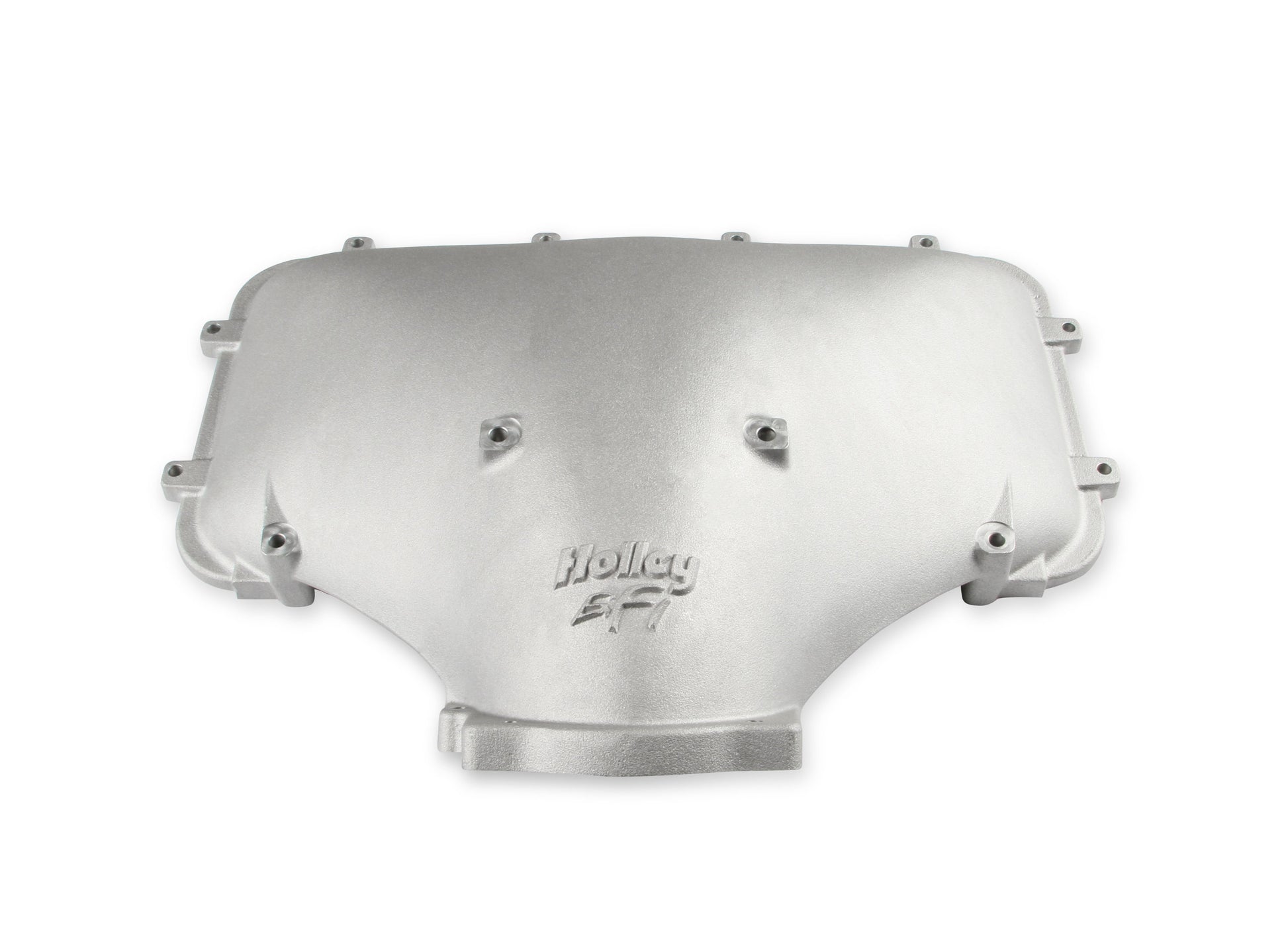

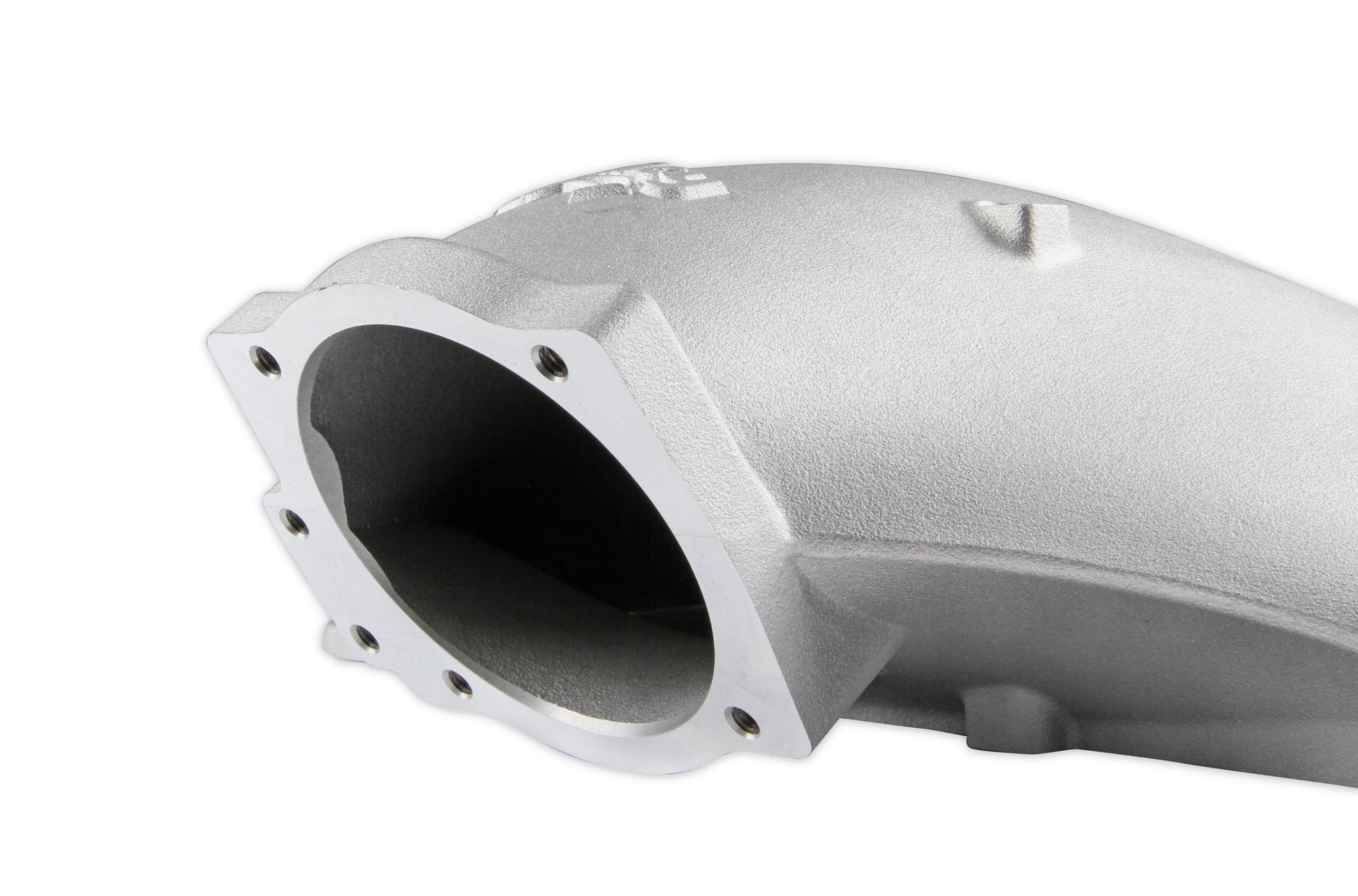

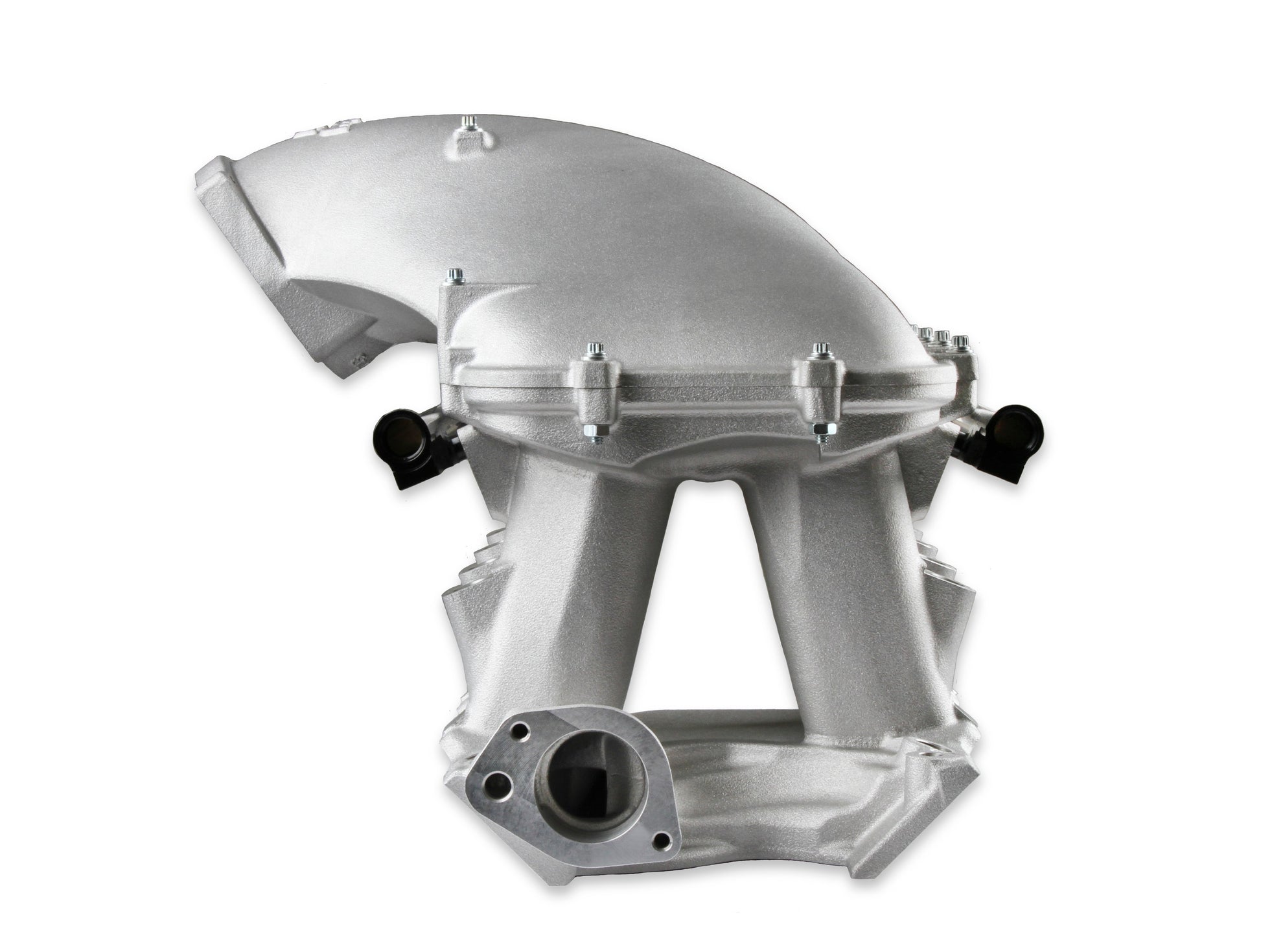

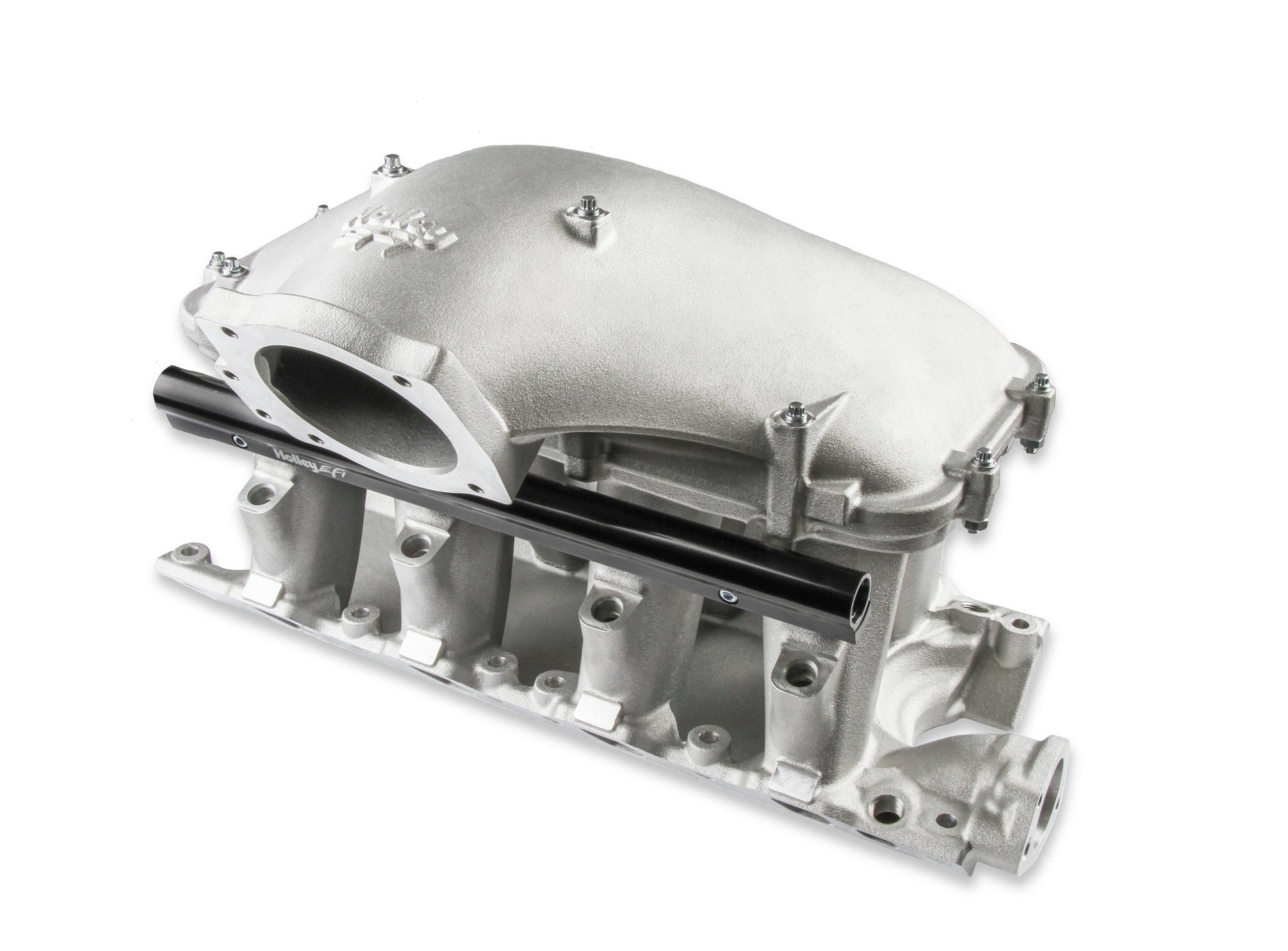

HI-RAM 95MM Cast aluminum Side Mount Plenum Top for EFI Hi-Ram Manifolds Holley now has cast aluminum plenum top options for those of us with limited room in the front of our engine bays. The cast aluminum side mount plenum tops resemble the older Ford EFI manifolds and will allow you to mount the throttle body on the side. This will allow for easier fabrication for boosted applications or for just a different look on your Hi-Ram manifold. Cast aluminum construction designed to mount on our existing Hi-Ram manifold bases. Available in cast or black finish. Models for Ford 86-95 5.0L Style throttle body patterns in 95mm and 105 mm sizes.

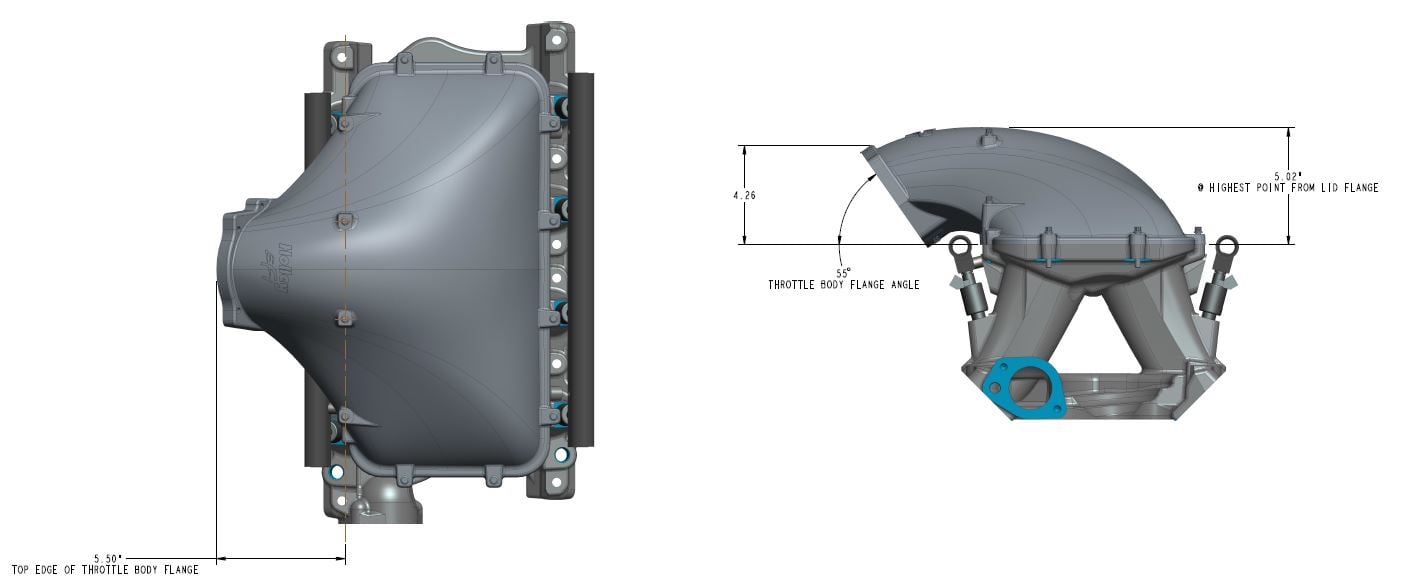

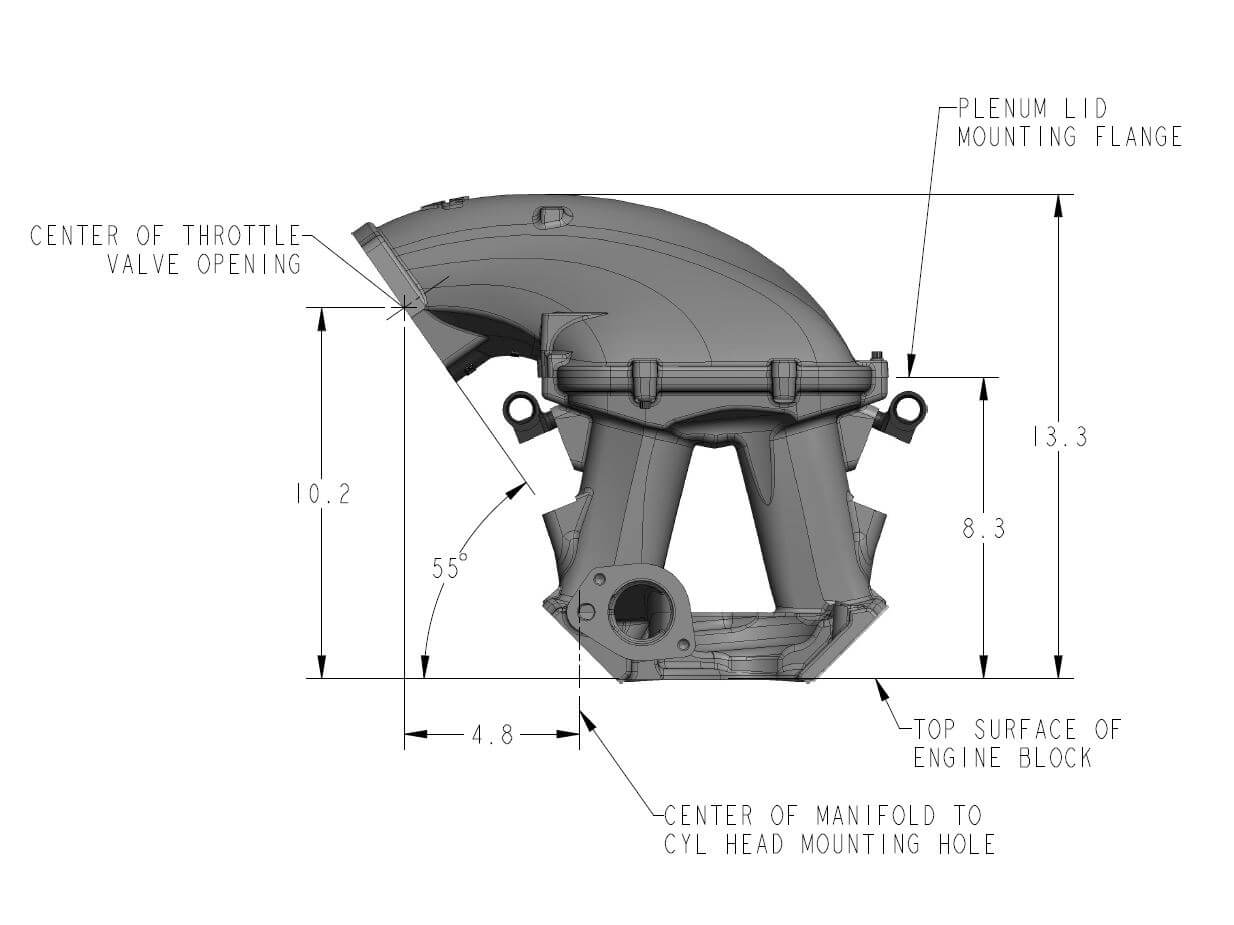

Please see the diagrams in the product images for other dimensions. *** Lid has been verified to fit under Cervinis 2.5" cowl hood on 1979-1993 Mustangs with 351W 302W Hi-Ram bases when using motor mounts that retain stock engine locations.
Features:
Details:
Cast Finish- Ford 86-95 5.0L Style throttle body patterns
Overview
HI-RAM 95MM Cast aluminum Side Mount Plenum Top for EFI Hi-Ram Manifolds Holley now has cast aluminum plenum top options for those of us with limited room in the front of our engine bays. The cast aluminum side mount plenum tops resemble the older Ford EFI manifolds and will allow you to mount the throttle body on the side. This will allow for easier fabrication for boosted applications or for just a different look on your Hi-Ram manifold. Cast aluminum construction designed to mount on our existing Hi-Ram manifold bases. Available in cast or black finish. Models for Ford 86-95 5.0L Style throttle body patterns in 95mm and 105 mm sizes.
Please see the diagrams in the product images for other dimensions. *** Lid has been verified to fit under Cervinis 2.5" cowl hood on 1979-1993 Mustangs with 351W 302W Hi-Ram bases when using motor mounts that retain stock engine locations.
Features:

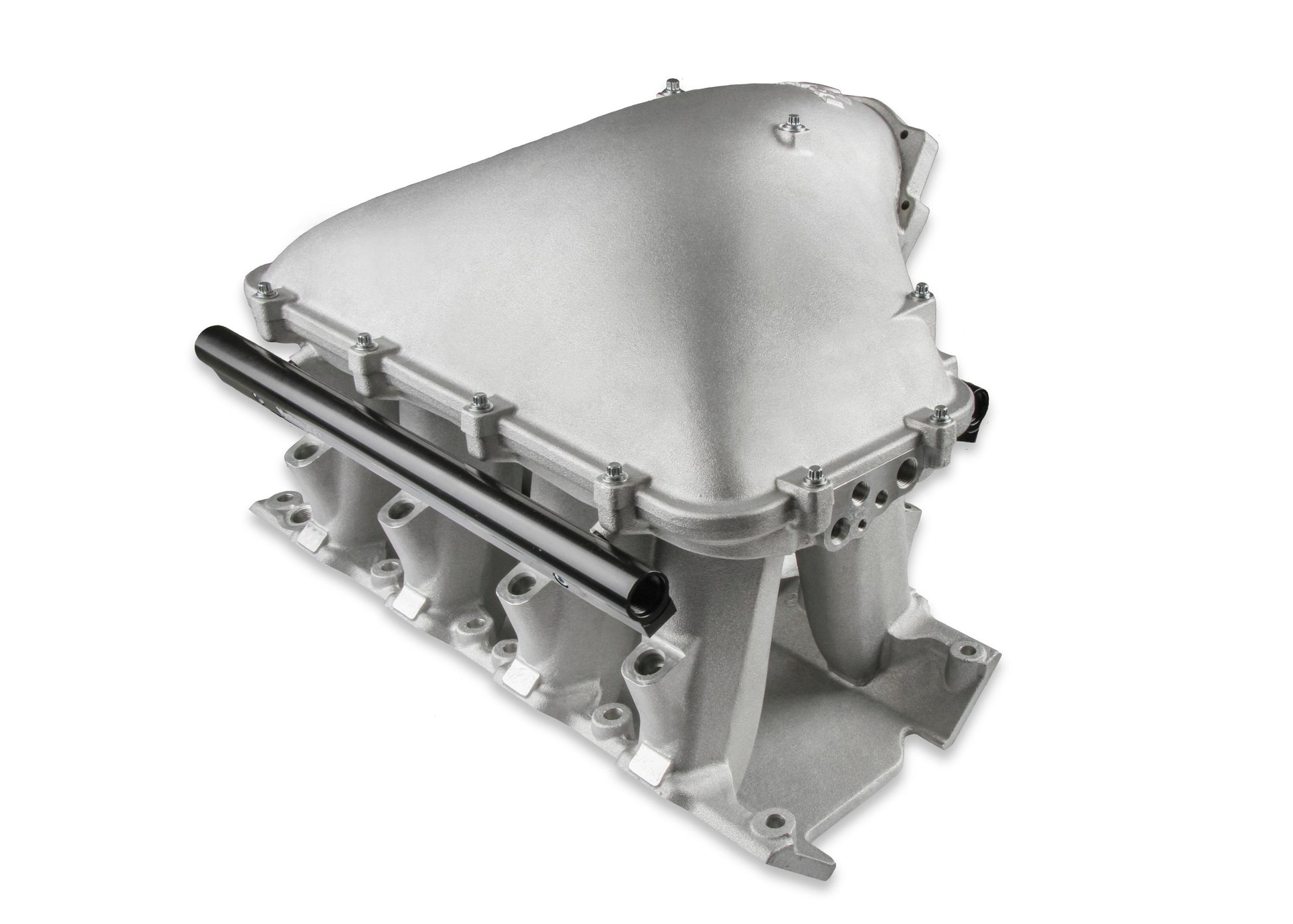

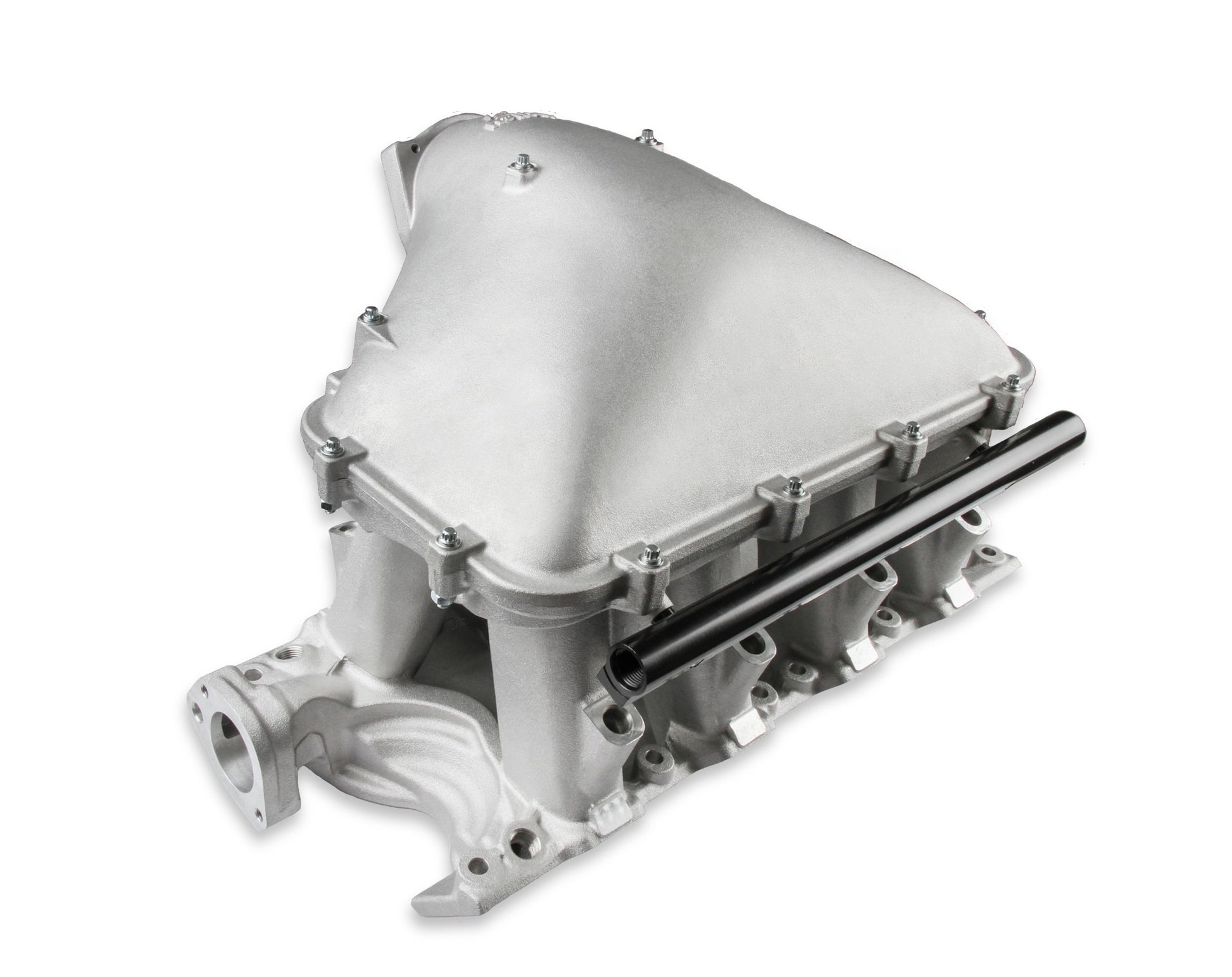

- EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
- Plenum Top Gasket Type ???? 3/32??? Round O-ring Cord
- Manifold is designed for a 8.2" SBF deck height.
- The 8.2 SBF manifold is available to work with 95MM throttle bodies
- Ford 5.0 throttle body fitment
- Lid has been verified to fit under Cervinis 2.5??? cowl hood on 1979-1993 Mustangs with 351W 302W Hi-Ram bases when using motor mounts that retain stock engine locations.
- Designed for side mounted throttle bodies
- Allows room for designing boosted applications
Details:
- Construction: Cast
- Engine: Ford Small Block V8
- Finish: Satin
- Flange Style: EFI
- Fuel System Type: EFI
- Manifold Type: Hi-Ram

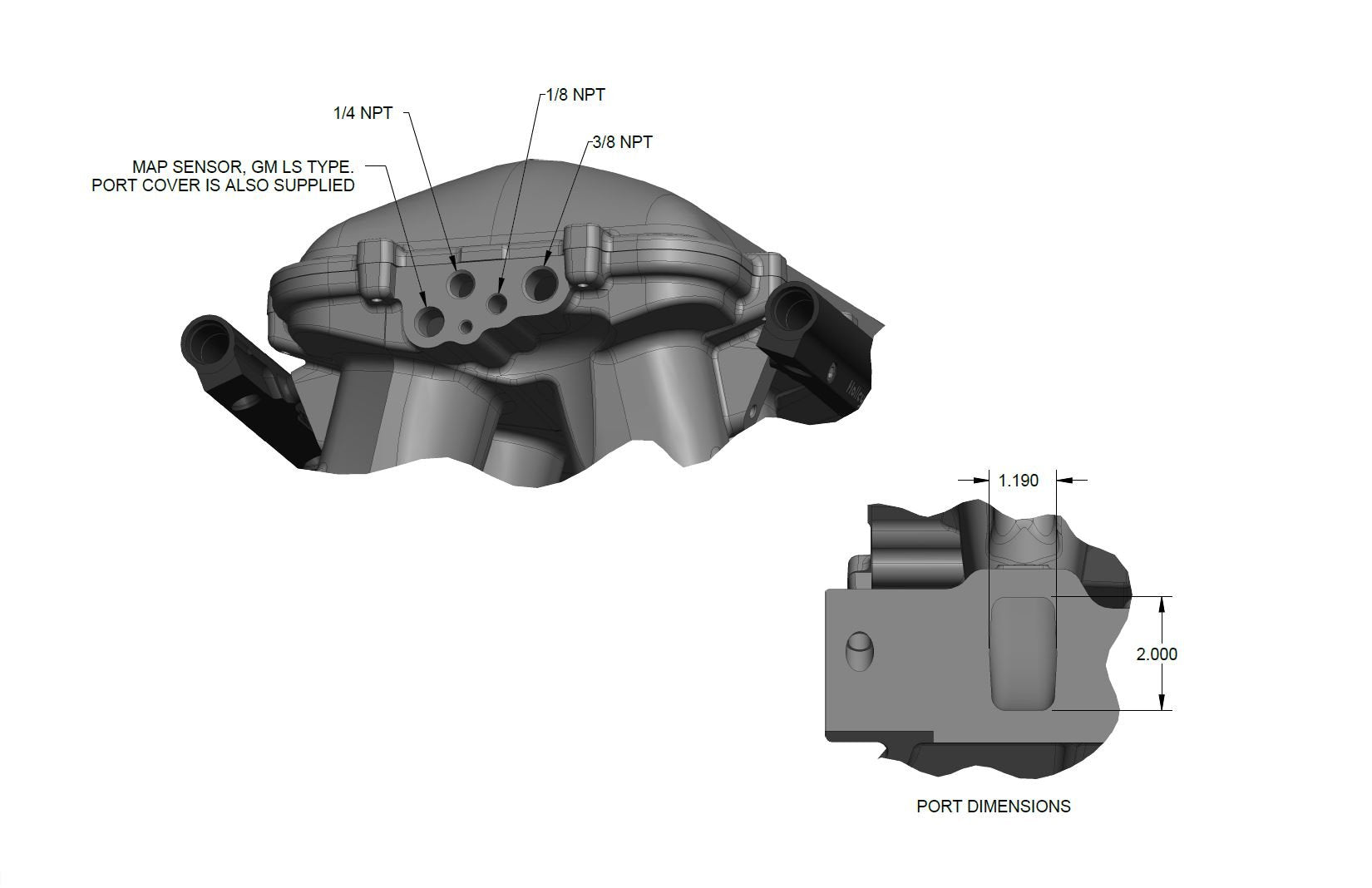

- Port Size: 2.00" x 1.190"
- RPM Power Band: 1500-7000
- Throttle Bore: 95mm
- Warranty: Limited 90 Day
