340 LPH Fuel Pump Module - Fits 1983-1997 Ford Mustang

Sniper 340 LPH Fuel Pump Module

Mounting Strap for 1981-1993 Dodge W100/W150 4WD trucks - Use with Fuel tank 19-592

Overview
Use optional adapter bracket 870022 to install 19-592 fuel tank on 1981-1993 Dodge 4WD W100/W150 trucks.

Use with fuel tank 19-592 on 1981-1993 4WD W100/W150 pickup trucks.

Features:

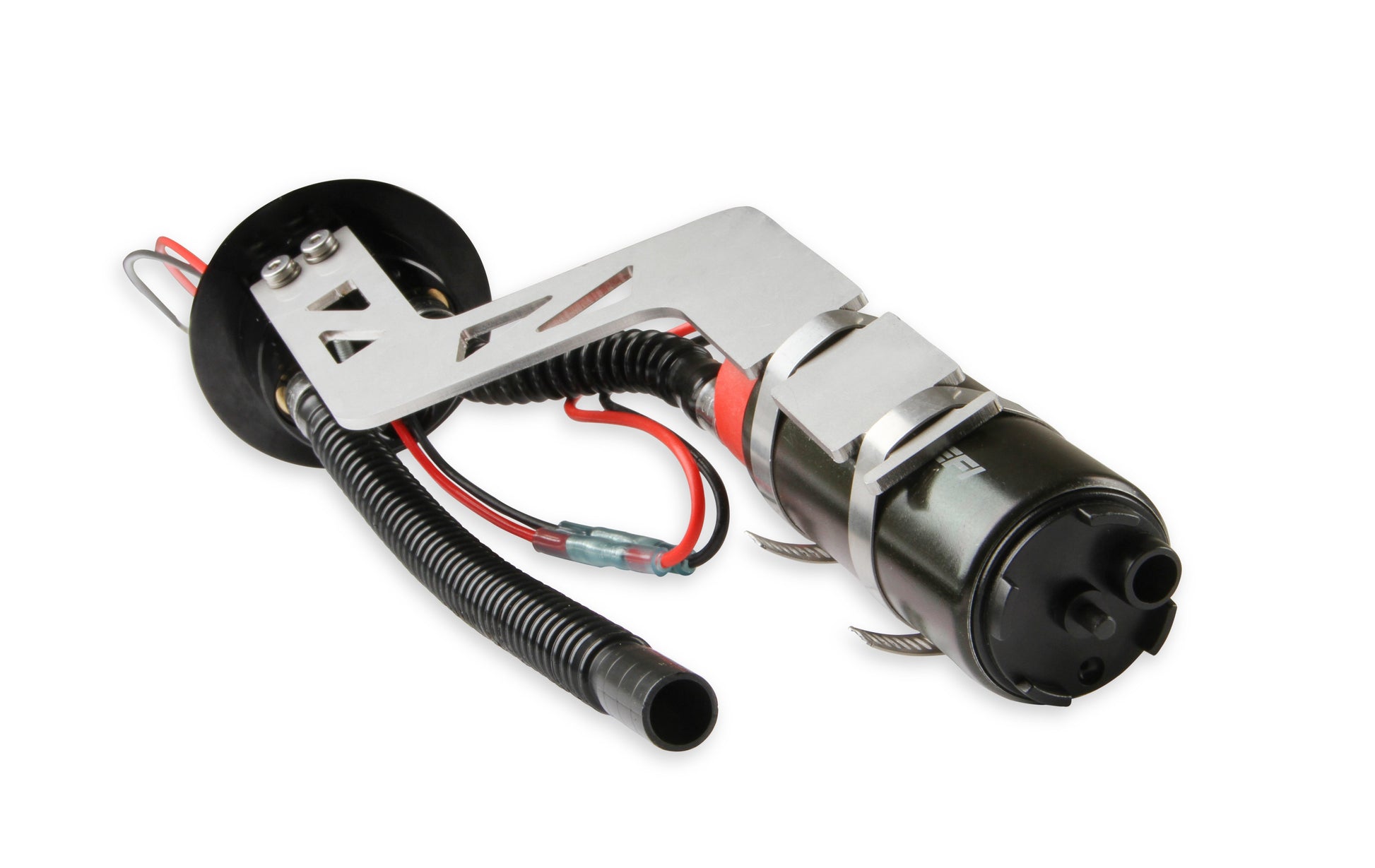

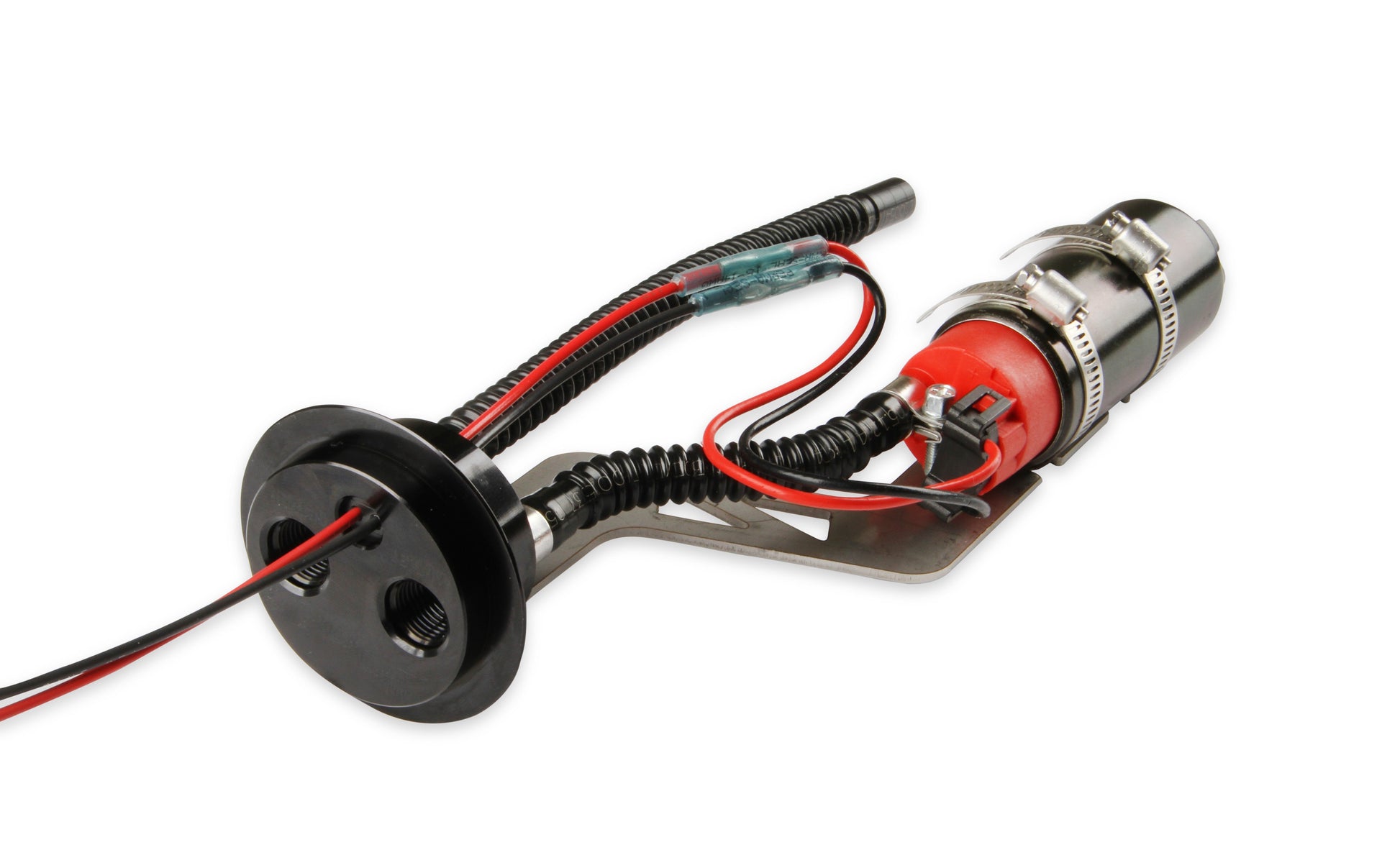

• 6061-T6 Aluminum fuel pump module with a 340 LPH (liters per hour) Sniper pump assembly drops into stock 1983-1997 Mustang EFI fuel tanks

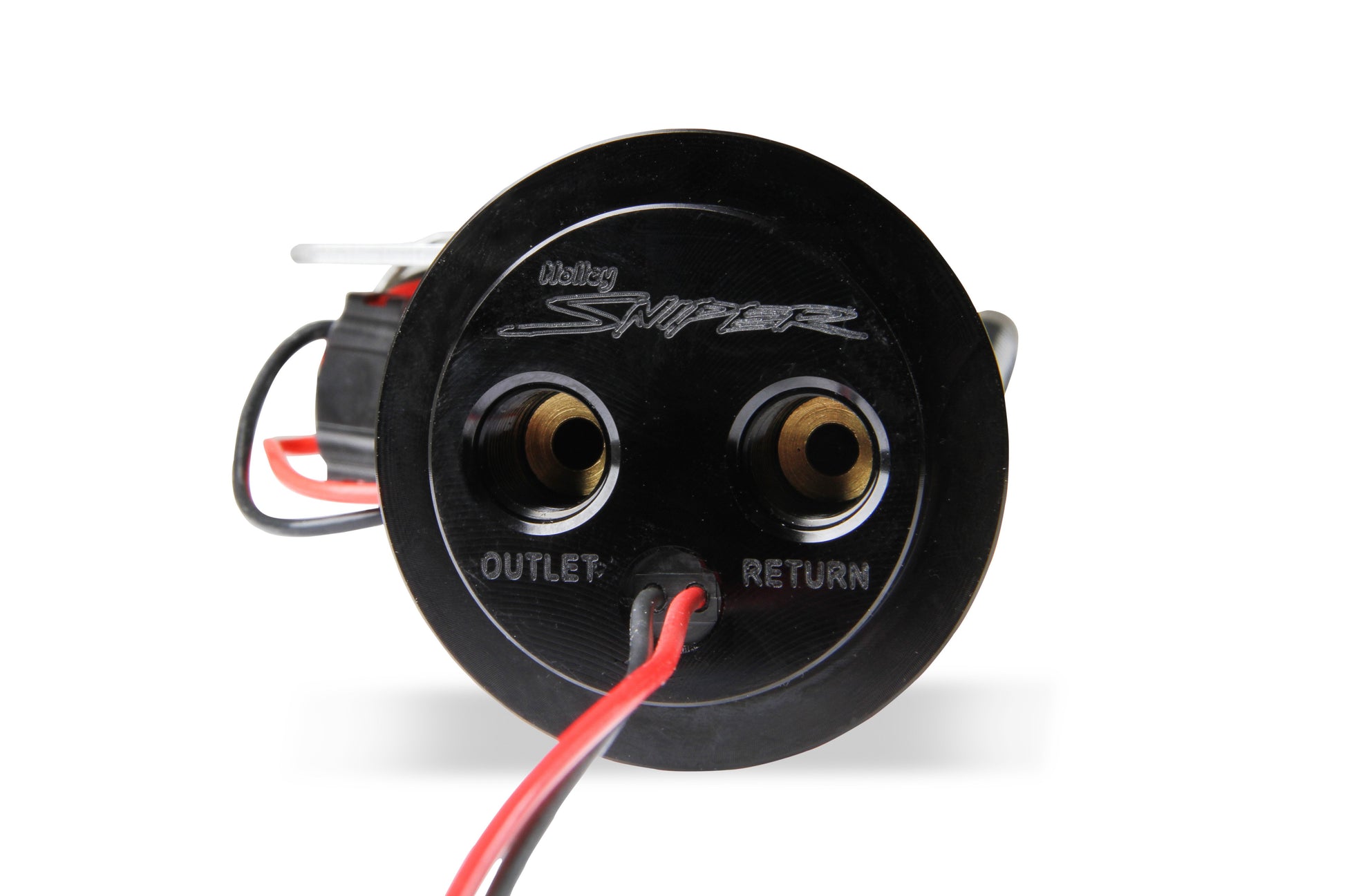

• 6AN o-ring outlet and return ports for easy plumbing connections

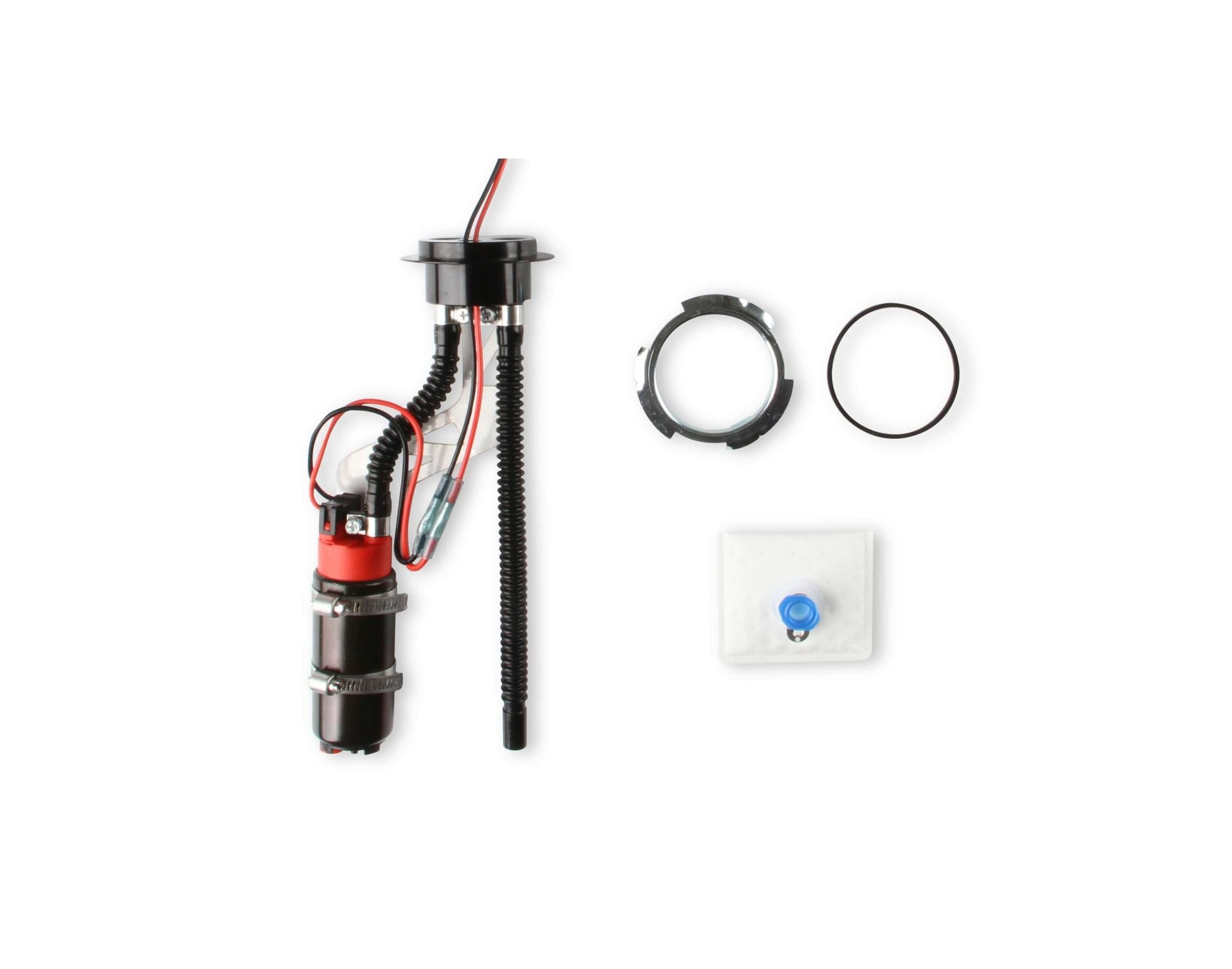

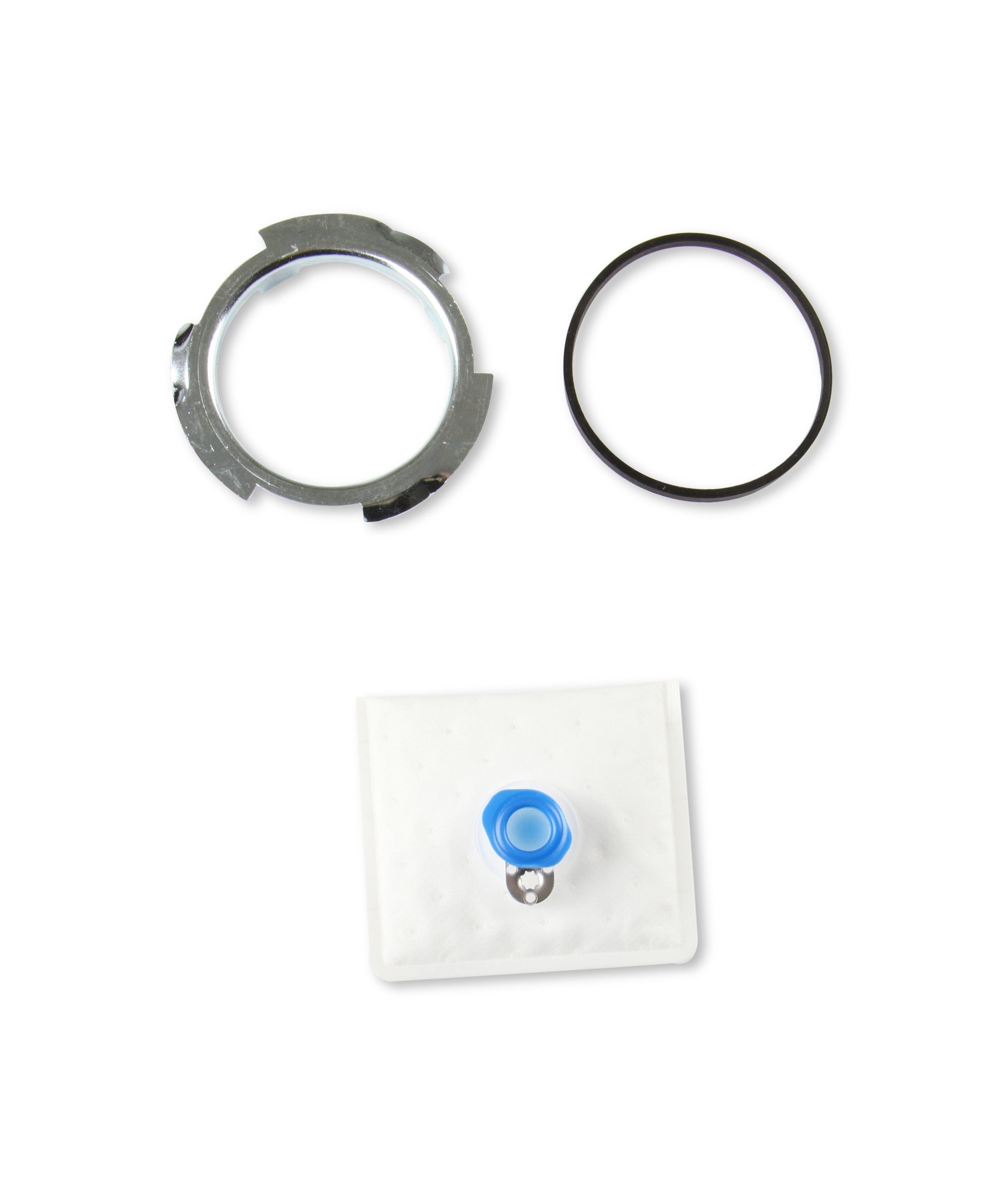

• Filter sock, flange o-ring, and fuel tank lock ring included to complete your installation
• Can be used with both carbureted and EFI (Electronic Fuel Injection) fuel systems depending on your needs
• Supports up to 700 EFI or 900 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw) of course there are many variables, estimates are based on gasoline. Individual systems will vary based on fuel system design, regulator type, fuel cell location, etc...
• Both EFI and carbureted systems will need a bypass design regulator (We recommend the 12-879 or 12-880 Bypass Regulators for these installations. They can be used for both carbureted and EFI systems)
• The flange is bright dip black anodized for corrosion protection from undercar moisture.

Details:

• Application: 1983-1997 Mustang
• Free Flow LPH: 340
• Fuel Type: Gasoline/E85 Compatible
• Material: 6061-T6 Aluminum
• Warranty: Limited 90 Day

Links
Instruction Sheet
