340 LPH E85 In-Tank Electric Fuel Pump - 2

340 LPH E85 In-Tank Electric Fuel Pump

Supports up to 700 EFI or 900 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw) Of course there are many variables, estimates are based on gasoline. Individual systems will vary based on fuel system design, regulator type, fuel cell location, etc...

Overview

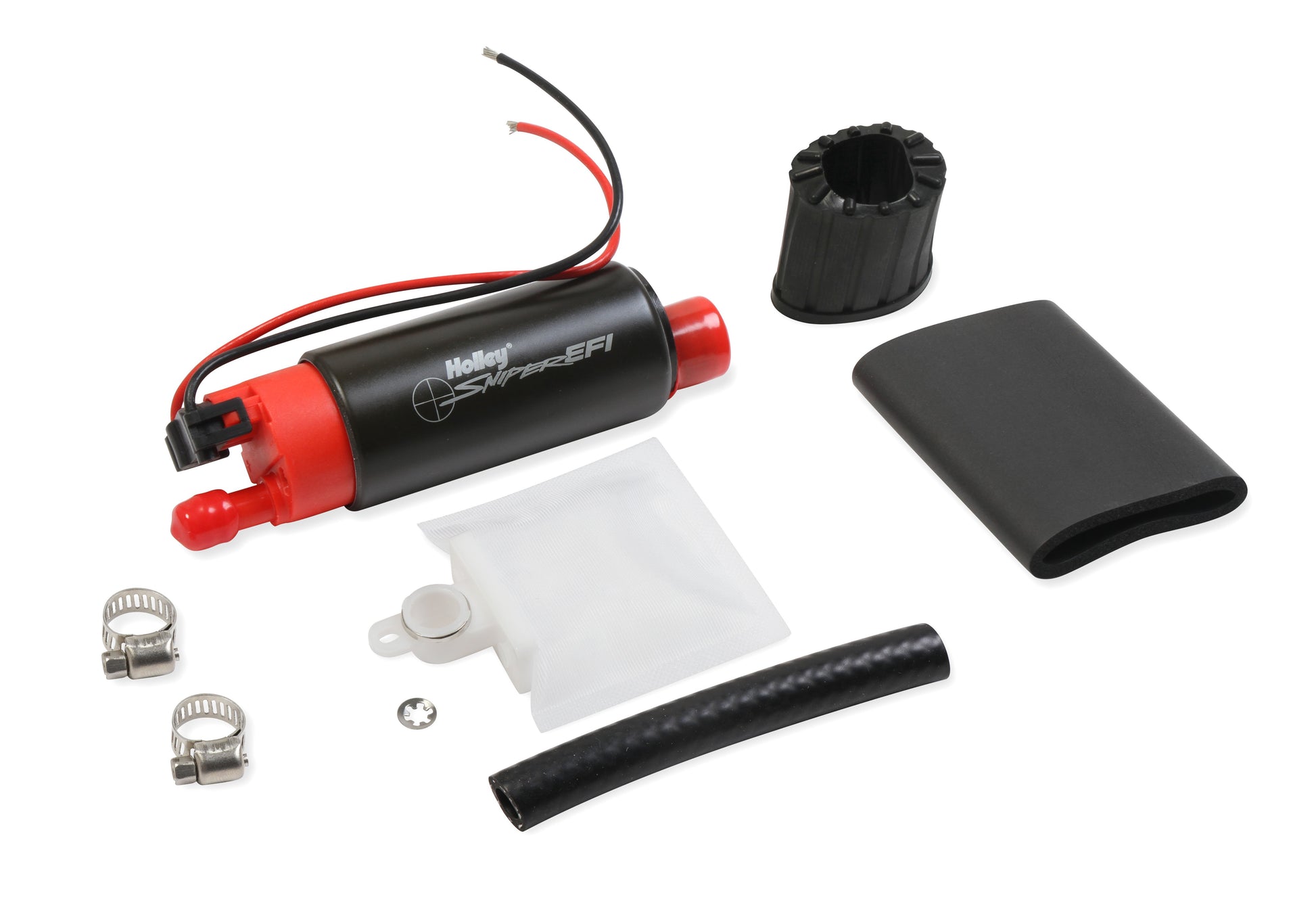

The new Sniper 340 LPH E85 fuel pump is a high output, in tank electric fuel pump that fits the most popular EFI applications. The pump can be regulated to support carbureted systems as well. All four models of the pump are compatible with gasoline or E85 and are designed for applications requiring more fuel flow while utilizing the factory O.E. lines and mounting brackets. The 340 LPH fuel pump can also be used as a universal replacement or upgrade for aftermarket applications that require more fuel flow to support additional horsepower while using power adders such as Nitrous, Turbo and Superchargers. Comes complete with installation hardware kit. (Filter, Wiring Pigtail, Rubber Hose, (2) Clamps, Rubber Grommet) Supports up to 700 EFI or 900 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw) Of course there are many variables, estimates are based on gasoline. Individual systems will vary based on fuel system design, regulator type, fuel cell location, etc... Applications: Acura NSX 1991-2000 Chrysler/Dodge/Plymouth Stealth T/T 1991-1997 Eagle Talon1990-1994 AWD Laser 1990-1994 AWD Turbo Ford Probe GT 1988-1992 Honda Accord 1990-1993 CRX 1989-1991 Prelude 1985-1987 Prelude 1992-1996 Mazda MX6 1988-1992 Prot??g?? 90-91 RX7 1986-1988 RX7 1989-1992 RX7 1993-1995 323 1986-1991 Mitsubishi 3000GT TT 91-97 Eclipse 90-94 AWD Nissan 240SX 1989-1994 240SX 1995-1998 NX1600 91-94 NX2000 91-94 Sentra & SE 1991-1994 Maxima 84-94 Maxima 1998 Altima 1993-1995 Subaru Impreza WRX 98-99 Toyota MR2 1991-1996 Supra 1984-1992 Supra Turbo 84-92 Supra Turbo 94-98 Celica 1985-1989 Celica 90-93 Turbo AWD Celica 90-93 ST & GT Corolla 1985-1992

Diameter: 1.535" Length (Including outlet barb): 5.180"

Features:

• 340 LPH E85 Compatible
• Designed for in-tank use only
• Compact enough to fit in existing hanger assemblies without modification
• Complete kit with all drop parts, accessories and installation instructions
• Inlet filter meets or exceeds original equipment specifications and provides improved filtration/durability
• Can be used with carbureted or EFI applications
• Perfect upgrade for aftermarket pumps like our Retrofit EFI Modules when more fuel is needed with turbos or nitrous

Details:

• Application: Universal
• Free Flow GPH: 90
• Free Flow LPH: 340
• Fuel System: Carbureted
• Fuel System: EFI
• Fuel Type: E85
• Fuel Type: Gasoline
• Material: Steel
• Pump Body Color: Black
• Warranty: Limited 90 Day
