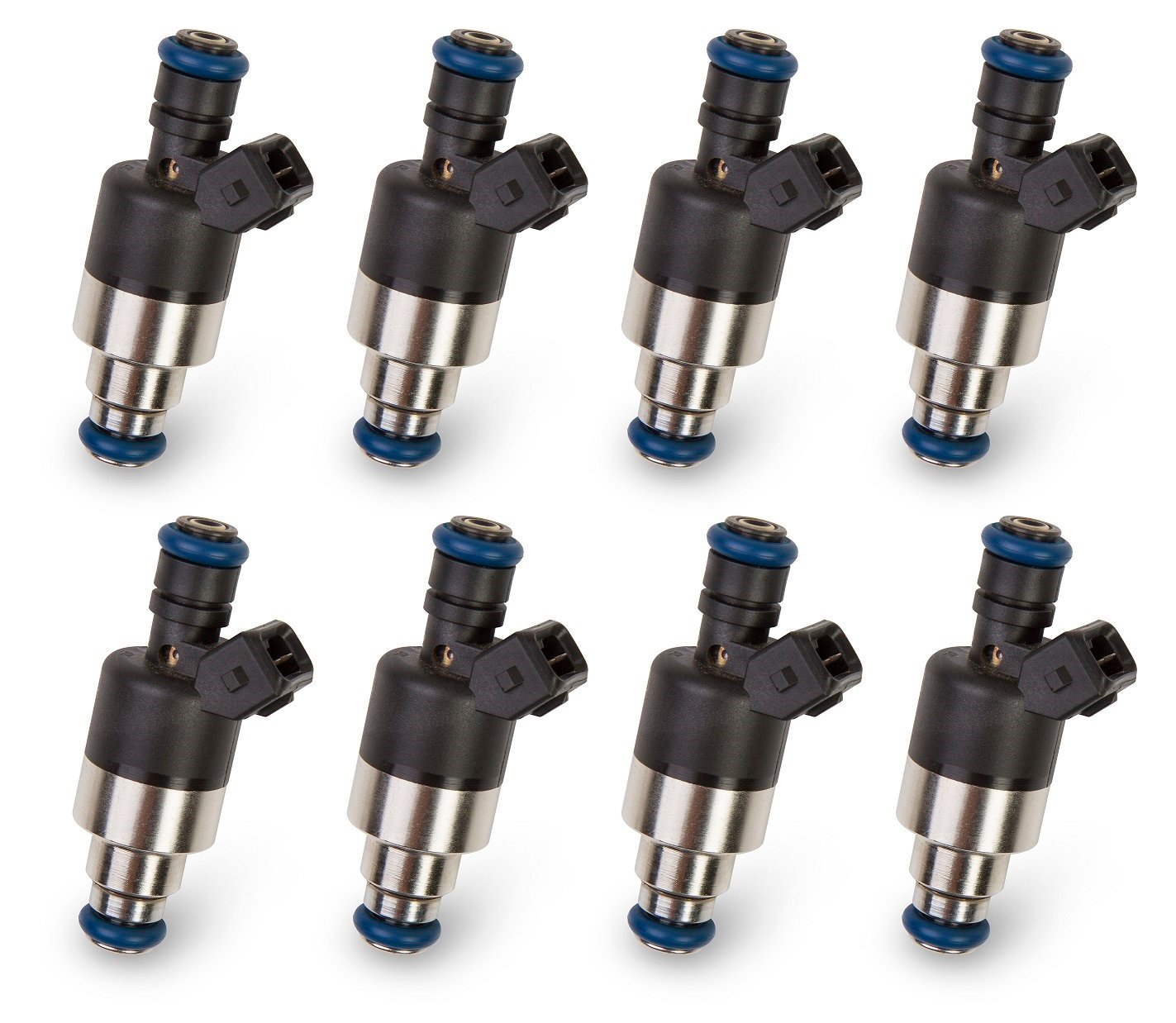

160 lb/hr Performance Fuel Injectors - Set of 8

Bosch/EV1 Style, Low Impedance Fuel Injector

Overview

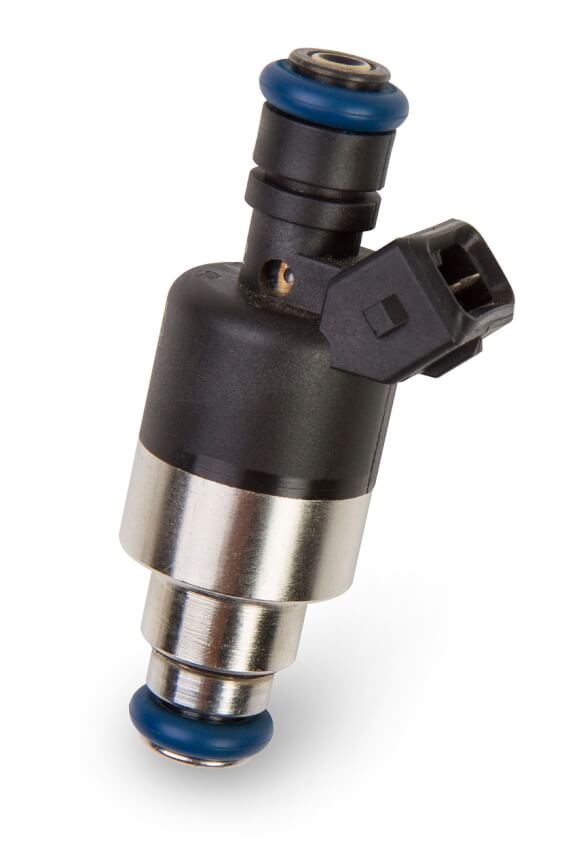

Holley EFI Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp O-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. They are available from 19 to 160 lb/hr flow rates to accommodate a variety of vehicles. Holley EFI Fuel Injectors provide precision fuel delivery you can depend on.

Features:
  • Bosch/EV1 style performance injectors - Set of 8
  • Low impedance (2.0 Ohms) for use with peak and hold drivers
  • Rated injector flow: 160 lb/hr @ 43 PSI
  • Supports up to 2525 horsepower
  • Tri-cone spray pattern
  • Maximum recommended fuel pressure: 75 PSI


Details:

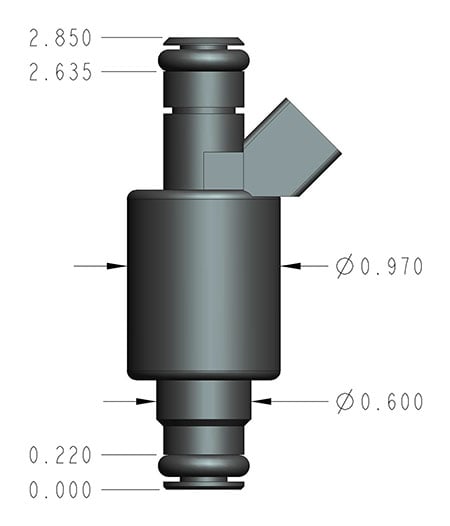

  • Body Diameter: 0.97
  • Body Length: 2.85"
  • Body Style: EV1

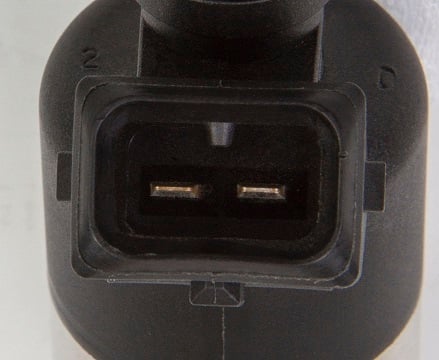

  • Connector Series: EV1 - Jetronic - (Bosch Style)
  • Fuel:
  • Fuel Type: E-85
  • Fuel Type: Gasoline
  • Impedance: Low (2.0 Ohm)
  • O-Ring to O-Ring: 2.415"
  • Rated Injector Flow: 160 lb/hr
