120 lb/hr Performance Fuel Injector - Individual
$112.95
522-121
Regular price
$112.95
Sale price
$112.95
Regular price
$127.95
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Sorry, it's out of stock.
But we can let you know when it's back in.
SaleSold out
120 lb/hr Performance Fuel Injector - Individual
PICO/EV6 - 100 lb/hr - High Impedance - Flow Matched
Overview
Terminator X Flow Matched High Impedance Fuel Injectors are dynamic flow matched within 1%, resulting in extremely precision and consistent injector characteristics. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. With a wide variety of fuel flow offerings from 42 lb./hr. to 220 lb./hr. (441 cc/m to 2310 cc/m) you are sure to find an injector that matches your non-emissions controlled application. These high quality fuel injectors can also be used with any ECU that utilize high impedance fuel injector drivers.
Features:
Details:
Links
Instruction Sheet
Bosch Style Injector
PICO/EV6 - 100 lb/hr - High Impedance - Flow Matched
Overview
Terminator X Flow Matched High Impedance Fuel Injectors are dynamic flow matched within 1%, resulting in extremely precision and consistent injector characteristics. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. With a wide variety of fuel flow offerings from 42 lb./hr. to 220 lb./hr. (441 cc/m to 2310 cc/m) you are sure to find an injector that matches your non-emissions controlled application. These high quality fuel injectors can also be used with any ECU that utilize high impedance fuel injector drivers.
Features:

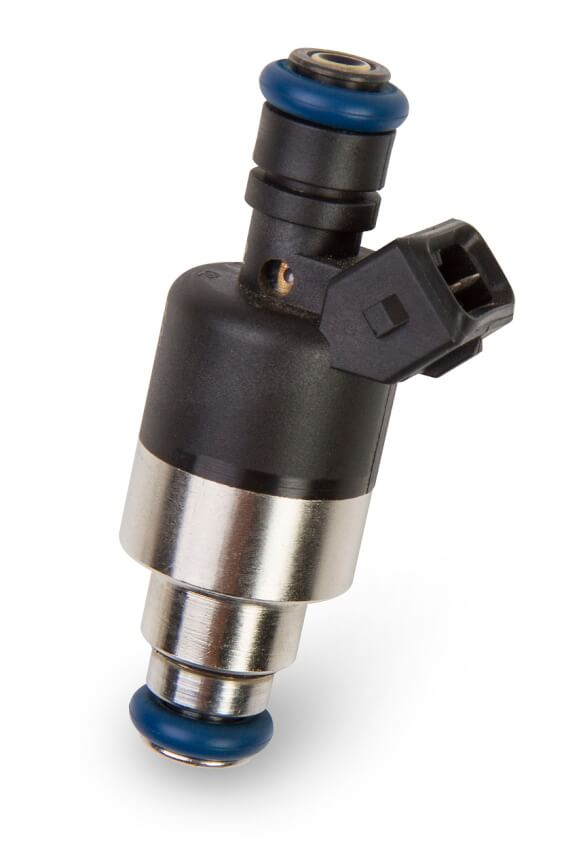

- Bosch/EV1 style performance injector - Individual
- Low impedance (2.2 Ohms) for use with peak and hold drivers
- Rated injector flow: 120 lb/hr @ 43 PSI
- Tri-cone spray pattern
Details:

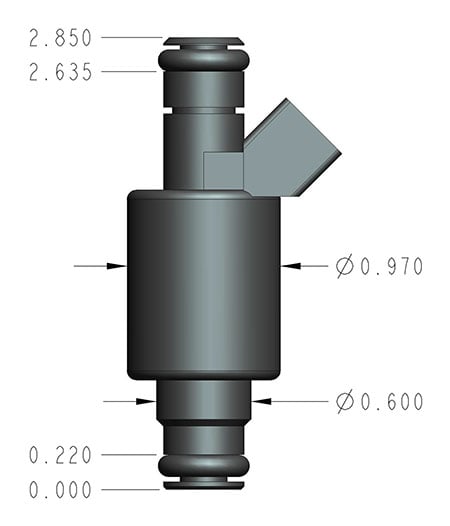

- Body Diameter: 0.97
- Body Length: 2.85"
- Body Style: EV1

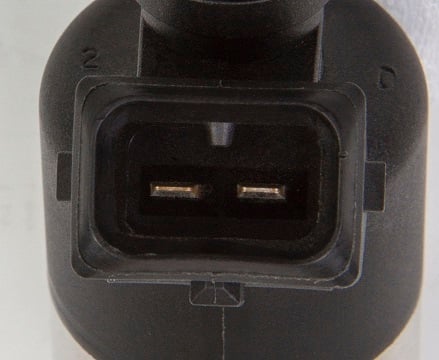

- Connector Series: EV1 - Jetronic - (Bosch Style)
- Fuel Type: E-85
- Fuel Type: Gasoline
- Impedance: Low (2.0 Ohm)
- O-Ring to O-Ring: 2.415"
- Rated Injector Flow: 120 lb/hr
Links
Instruction Sheet
Bosch Style Injector
