Holley

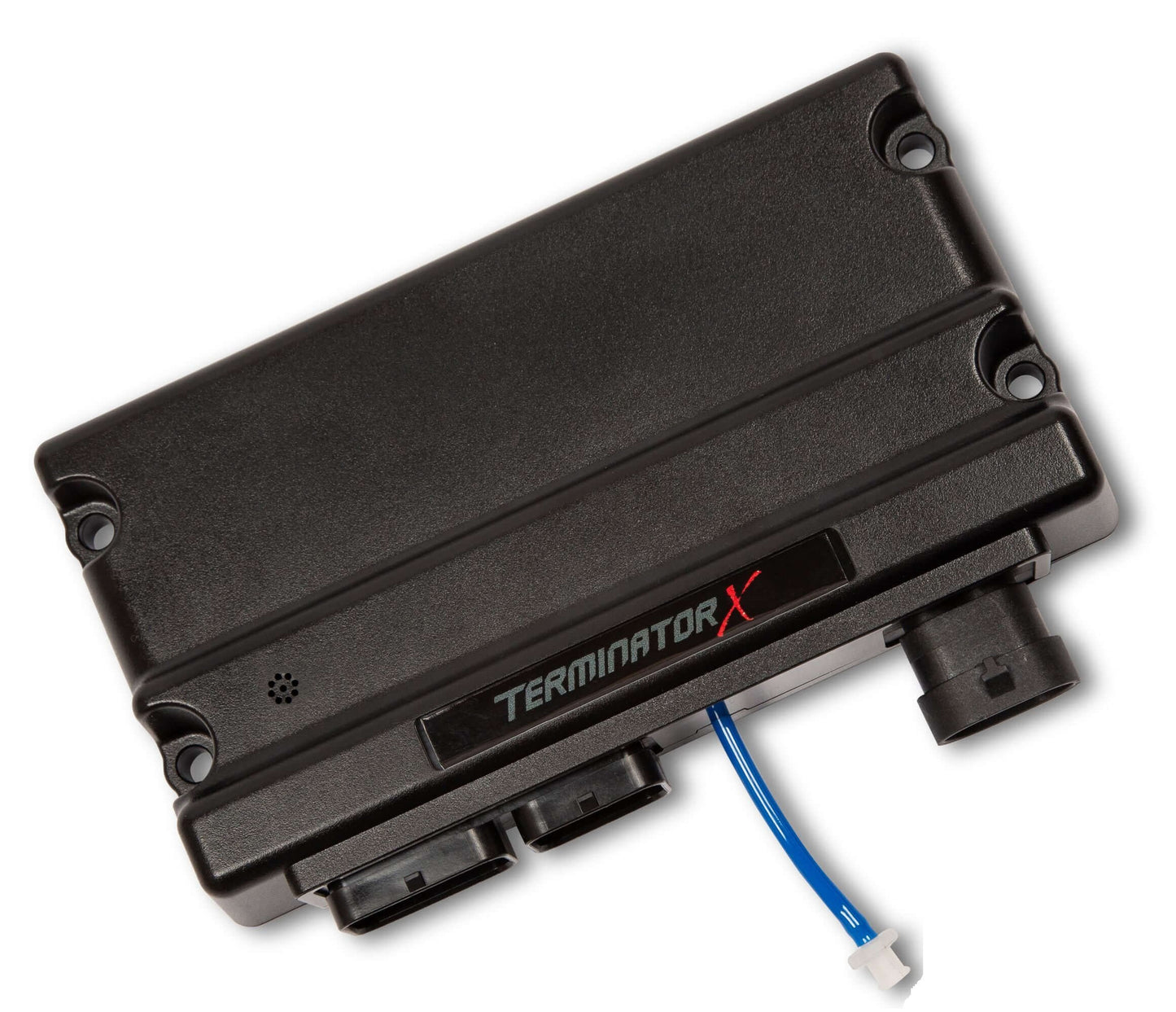

Holley EFI Terminator X Service ECU
Holley EFI Terminator X Service ECU
SKU:554-152
100 in stock
- Ships from Kentucky or Utah
- Made in the USA
- Chat Support Available
Shipping Estimate
Shipping Estimate
Tracking: 1-2 days
Average Shipping: 2-3 days once tracking is available
DON'T MISS OUT
Use code Save25 to save $25 on all orders over $350
Use code Save25 to save $25 on all orders over $350
Regular price
$849.95 USD
Regular price
$956.95 USD
Sale price
$849.95 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Holley EFI Terminator X Service ECU
Service GPS Module for Holley EFI Pro-Dashes
Overview
This GPS Module is plug and play with Holley EFI Pro Dashes part numbers 553-111, 553-112, 553-116, and 553-117.
Features:
View full details
Service GPS Module for Holley EFI Pro-Dashes
Overview
This GPS Module is plug and play with Holley EFI Pro Dashes part numbers 553-111, 553-112, 553-116, and 553-117.
Features:
- OEM (Original Equipment Manufacturer) Injectors supported, with part numbers provided in the handheld wizard, or software.
- Genuine Bosch LSU 4.9 Wideband Control (Will not work with LSU 4.2 Oxygen Sensors)
- 8 Built-in multi-color diagnostic LED's allow you to quickly identify a variety of potential system issues, such as a failed TPS (Throttle Position Sensor) Autoset - faulty crank or cam sensors, or potential oxygen sensor issues!
- Built in 1bar MAP (Manifold Air Pressure) sensor. On boosted applications, you can disable the internal MAP sensor, and utilize an external MAP sensor.
- 4 Inputs ???? 12v, Ground, 5v, and Frequency, for things such as additional pressure sensors, or activation triggers for nitrous activation, or a trans brake (Fuel and Oil Pressure Inputs are pre-terminated)
- 4 Outputs ???? Ground, PWM - , for accessories such as; fans, boost control, nitrous control, IAC Kit, and More
- GM LS and LT, Ford Coyote, and Mopar Gen V Drive-by Wire Throttle Body Control (Terminator X Max Only)
- GM 4L60 and 4L80, and Ford 4R70W Transmission Control (Terminator X Max Only)
- Boost Control ???? Boost vs Time, Boost vs Gear, Boost vs RPM, Boost vs Speed, Boost Safeties
- Nitrous Control ???? Single Channel of Wet or Dry, Progressive or Non-Progressive, Rich/Lean Safeties, and target Closed Loop AFR
- Advanced Tables ???? 4x 1D Tables, 1x 1D per Gear Table, 4x 2D Tables, 1x 2D per Gear Table
- Free EFI Tuning Software for complete control of your Terminator X power plant
