Evolution CTS3 with Locksmith for GM Duramax

$870.95

Skip to product information
1 of 3

85400-262


Regular price $870.95
Sale price $870.95 Regular price $979.95
Shipping calculated at checkout.

Sale

The Evolution CTS3 for GM Duramax delivers powerful tuning, a sleek touchscreen, and real-time engine monitoring. Boost towing power, throttle response, and efficiency with this premium all-in-one tuner and performance upgrade.

The Edge Evolution CTS3 is the ultimate performance upgrade for 2017–2023 Chevy Silverado and GMC Sierra 6.6L L5P Duramax trucks, combining powerful flash tuning with the industry’s best in-cab monitor. This all-in-one device includes the revolutionary Edge Locksmith tool, which unlocks the ECM and TCM through the OBD-II port, giving you access to preloaded emissions-friendly calibrations designed for daily driving, towing, fuel economy, and performance. Simply flash your truck, unplug the tool, and enjoy safe, reliable power gains you can feel every time you drive.
The CTS3’s 5-inch high-resolution touchscreen provides unmatched visibility and control, letting you track critical parameters, log performance data, and customize gauge layouts. Beyond tuning, the Evolution CTS3 gives you access to an impressive range of adjustable features including tire size recalibration, speed limiter adjustment, remembering tow/haul and exhaust brake settings, and more. With its intuitive swipe interface, built-in diagnostics, and Wi-Fi update capability, the CTS3 sets the standard for modern diesel tuning and monitoring.
The Evolution CTS3 also made history as the first to market with 10-speed transmission tuning support, unlocking smoother, stronger shifting on 2020+ L5P trucks. Now, it’s once again leading the way as the first to offer direct OBD-II flash tuning for 2017–2019 6-speed transmissions, eliminating the need for bench flashing or third-party hardware.
Backed by Edge’s 20+ years of diesel tuning expertise, the Evolution CTS3 for L5P Duramax is the go-to choice for owners who want big power gains, better fuel economy, imrpoved drivability while towing and advanced features, and the most powerful monitor in the industry, all in one sleek package.
A PC and our downloadable Update Agent software will be required in order to complete this tune process
**Device can unlock and tune only one vehicle. Once the ECM is unlocked and flashed, the flash can be returned to factory settings, but the Unlock process can not be reversed. If VIN lock and ECM Unlock has been completed, device is non-returnable

Features:

  • In-vehicle ECM unlock
  • Now includes industry's first OBD-II flashing for TCM tunes (TCM calibration included)

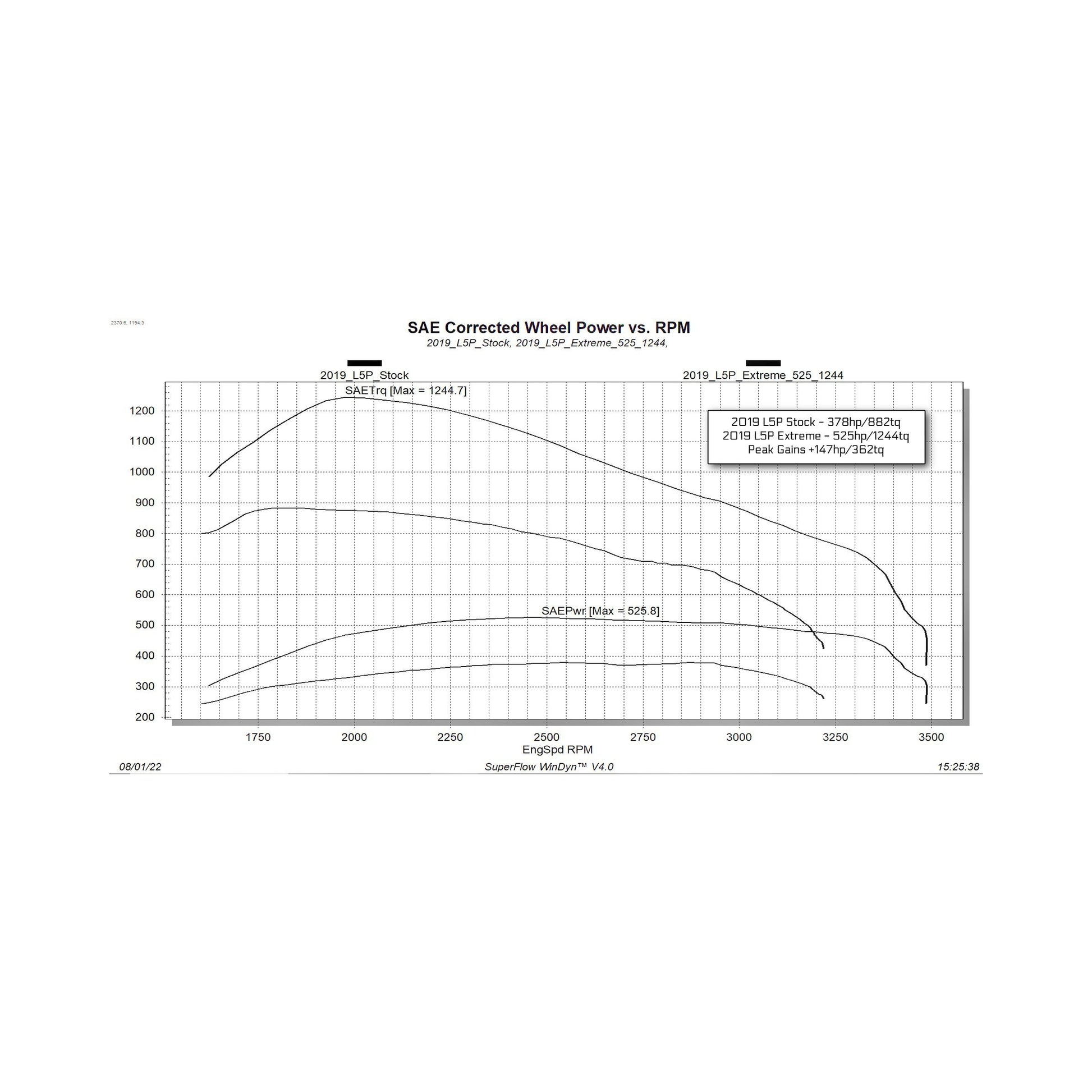

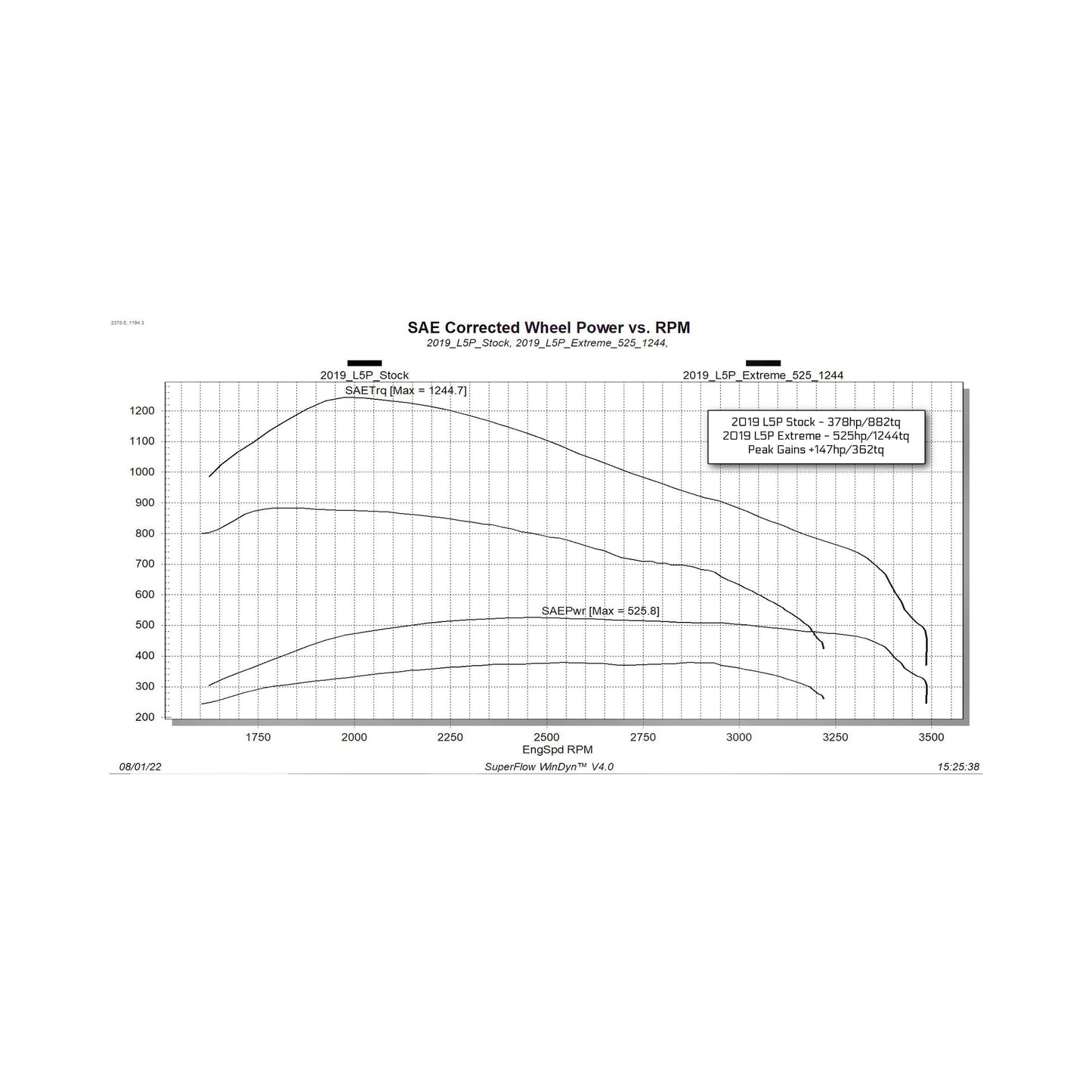

  • Adds up to 150hp/350tq to the tires
  • Monitor displays important data like Soot, Miles Since Last Regen, EGT's, Boost and Fluid Temperatures
  • Economy (75hp/150tq), Towing (100hp/200tq), Performance (125hp/250tq), Extreme (150hp/350tq) *Peak RPM Gains
  • 1.3 seconds faster in the 1/4-mile, gained 8mph!
  • Throttle Boost feature allows user adjustable pedal sensitivity
  • Calibrate speedometer for tire sizes 26-38"
  • Command manual DPF regeneration cycle
  • Remember last button setting for exhaust brake, tow/haul, and grade braking
  • Adjust speed and rev limiters
  • Read and clear DTC's
  • Adjust Idle Up feature for 600-1800rpms
  • Allison Transmission Relearn
  • Great for daily driving and towing performance
  • Tuning has passed all in-house emissions testing with CARB EO submissions being processed
  • Calibrations developed to offer clean, efficient DPF friendly performance
  • Does NOT support the removal of emissions equipment

It is strongly recommended that a battery charger be used during the ECM/TCM Unlock to ensure no voltage drop interrupts the process leaving an ECM in-operable.

Emissions

This part is legal under the provisions of EPA’s Tampering Policy dated November 23rd, 2020. The company has reasonable basis (test results) to verify that this product allows the vehicle to operate within legal emissions standards and is therefore legal to be sold for on-street use in all states that accept the legal provisions of the Clean Air Act and the EPA Tampering Policy. This product is NOT LEGAL FOR SALE OR USE IN THE STATE OF CALIFORNIA. Testing with the California Air Resources Board, in order to achieve 50-state compliance, is pending with CARB. Once testing is complete with California, and an E.O. number is issued, this product will be updated to 50-state legal status.
